Well Pumps & Systems – Submersible pump for deep well

Well Pumps & Systems – Submersible pump for deep well

66 in stock

Quantity
Regular price €270,23 EUR
Regular price €303,63 EUR Sale price €270,23 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Overview

The Submersible pump for deep well 10800 L/hour up to 96 m from Hillvert brings well pumps & systems you can rely on, made for your home & garden needs. A popular choice in Home and Garden, Garden.

Product code: 1009063

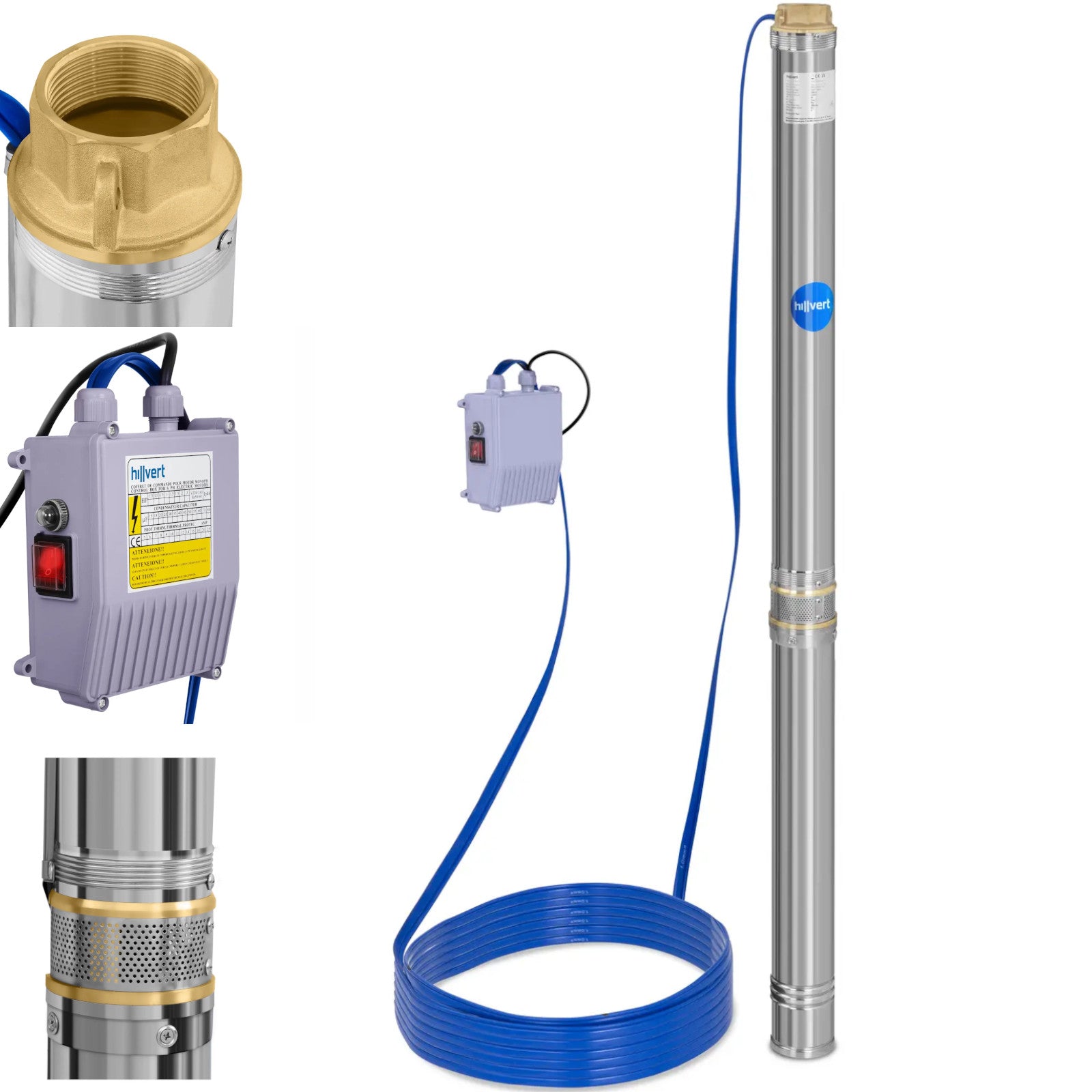

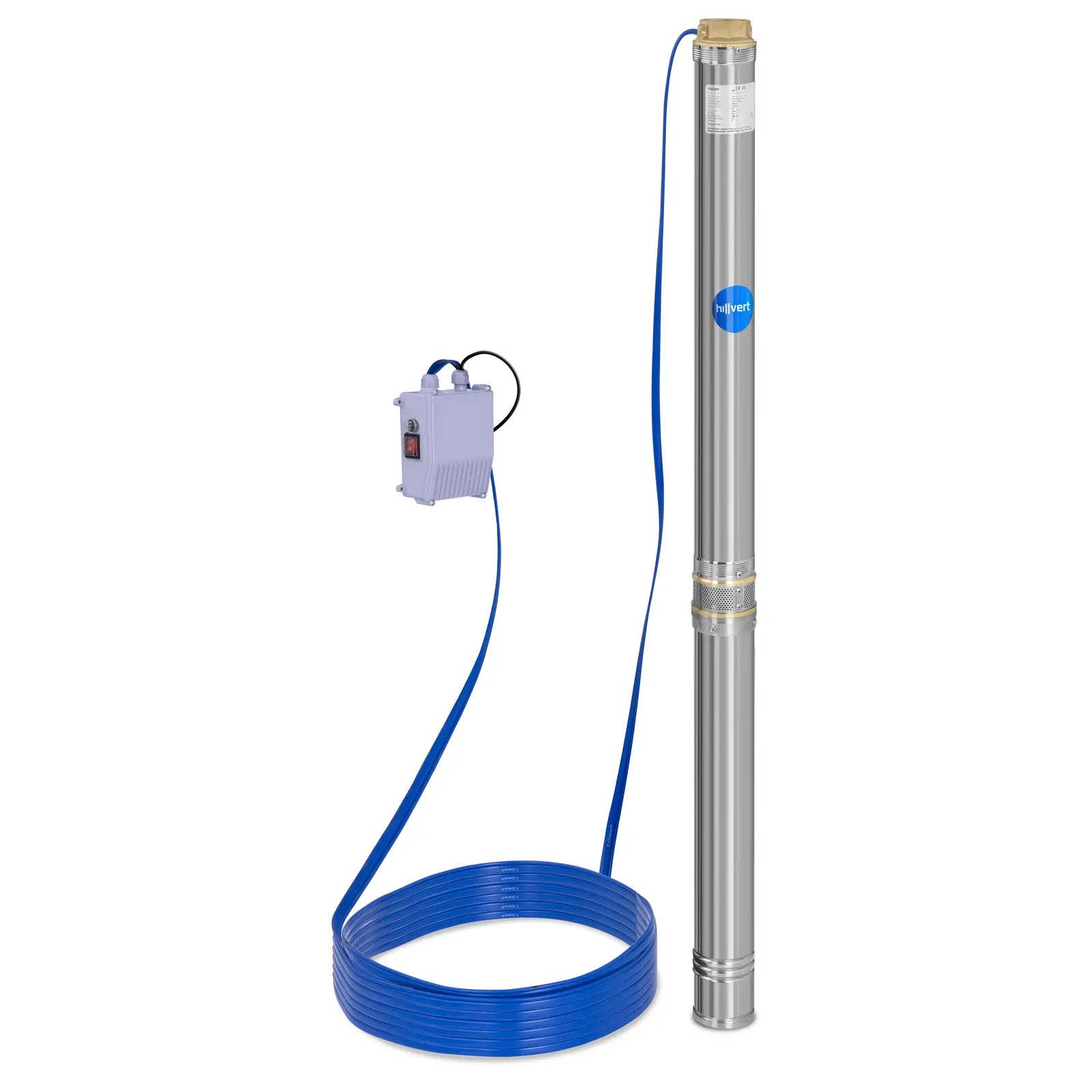

Hillvert submersible pumpeasily pumps water from deep and narrow shafts, wells, tanks or cisterns. The stainless steel housing has a diameter of only 95 mm and is ideal for narrow drilling. The 2200 W motor operates at a speed of 2,850 rpm and provides a high flow of up to 10,800 l/h. The device can be submerged to a depth of 20 m with a maximum lifting height of 96 m. The well pump is suitable for clean water with a temperature of up to 35 degrees Celsius.The submersible pump motor is hermetically sealed and protected against pressure and water. The stainless steel housing is resistant to corrosion and dirt. Moreover, it reliably withstands even the heaviest loads.

Key features

Capacity of 10,800 l/h thanks to a 2,200 W motor and a speed of 2,850 rpm

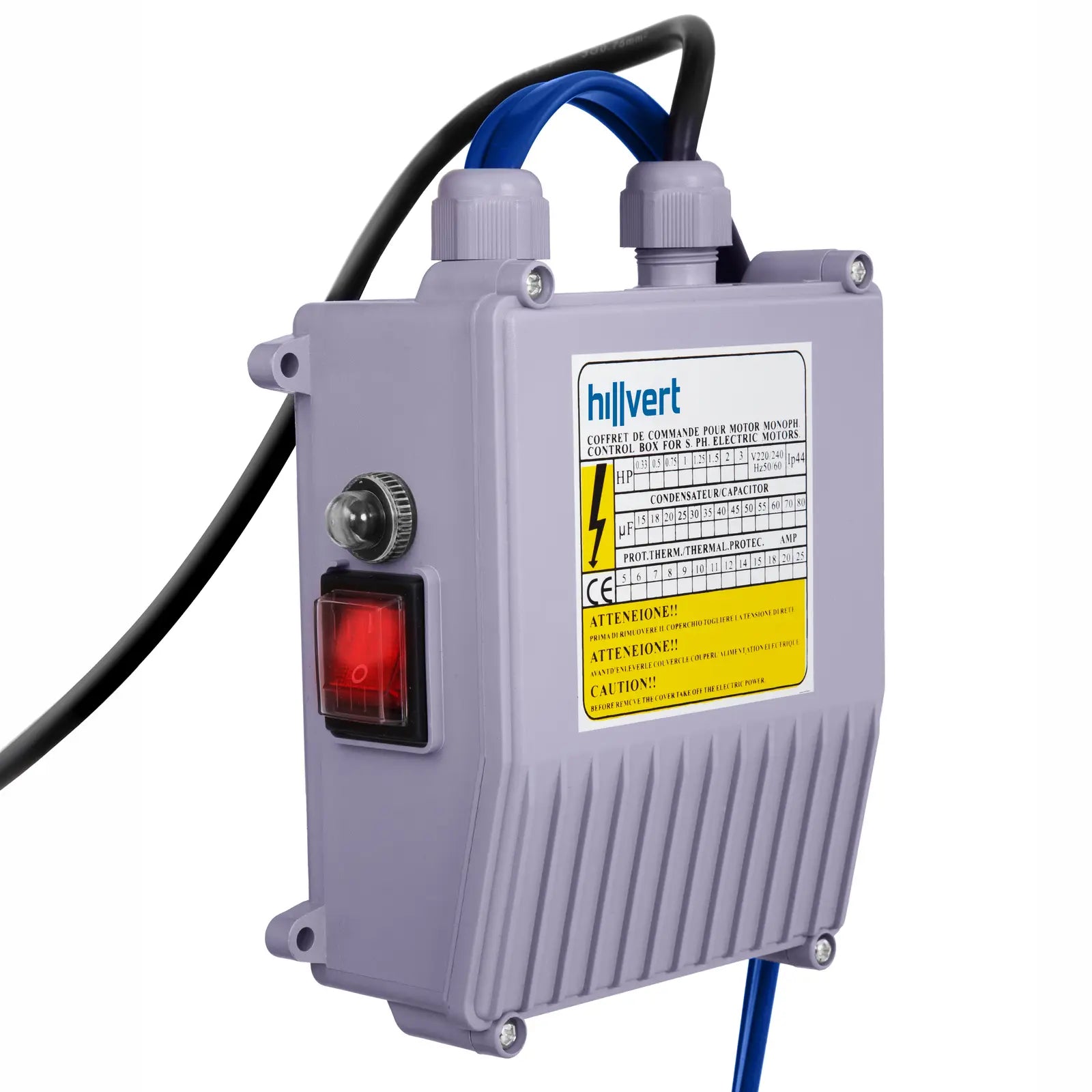

Control via a control box with a secured on/off switch
Maximum lifting height of 96 m
Stainless steel housing resistant to corrosion and dirt
Submersible pump
Technical specification
Specification Detail
Brand Hillvert
Voltage [V] 230
Material Stainless steel
Color Silver
Rated current 14 A
Rated speed [rpm] 2850
Water flow 10,800 l/h
Total diameter 95 mm / 3.75''
Insulation class B
IEC protection class I
Number of stages (pump impellers) 14
Max. depth of immersion under water 20 m
Max. sand content in water [%] 0.25
Maximum number of starts per hour 50 h
Maximum input power 3 kW
Maximum output power 2.2 kW
Maximum water temperature 35 deg C
Maximum lifting height 96 m
Maximum working pressure 9.6 Bar
Maximum water flow 10.8 m³/h
Maximum particle size 1.8 mm
Control methods External start box (2200 W)
Filter Yes
Overcurrent Yes
Check valve Yes
Power cable 20 m
Cable specifications HO7RN-F3G2.5mm²
IP protection level IP68
Mounting hole diameter 100 mm
Diameter water connections 2 in
Dimensions (LxWxH) 136 x 9.5 x 9 cm
Weight 27 kg
Shipping dimensions (LxWxH) 174 x 24 x 13 cm
Shipping weight 29 kg
