The Submersible pump for deep well 4800 L/hour. up to 91 m from Hillvert brings well pumps & systems you can rely on, made for your home & garden needs. A popular choice in Home and Garden, Garden.
Product code: 1009068

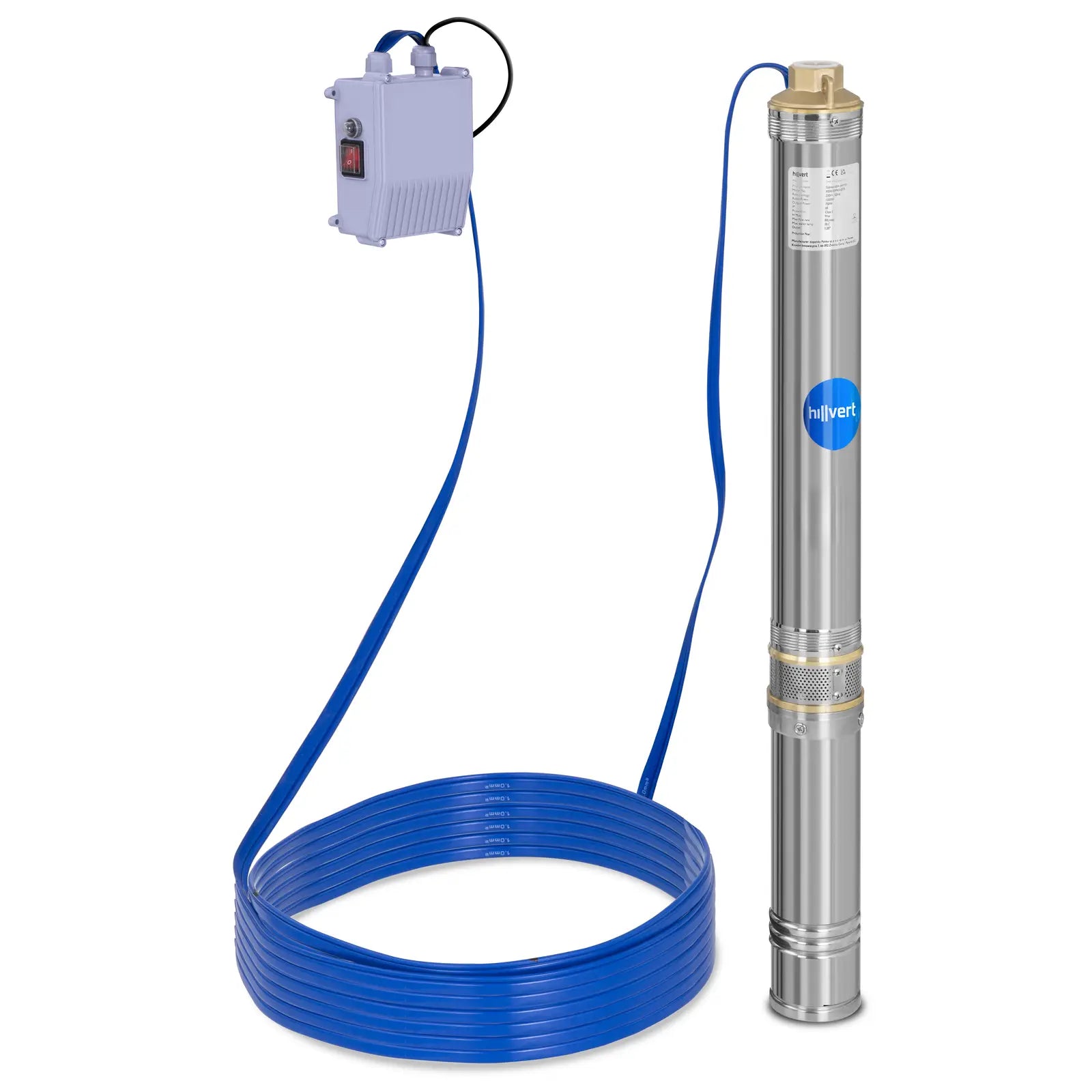

Hillvert submersible pumpeasily pumps water from deep and narrow shafts, wells, tanks or cisterns. The stainless steel housing has a diameter of only 95 mm and is ideal for narrow drilling. The 750 W motor operates at a speed of 2,850 rpm and provides a high flow rate of up to 4,800 l/h. The device can be submerged to a depth of 20 m with a maximum lifting height of 91 m. The well pump is suitable for clean water with a temperature of up to 35 degrees Celsius. The submersible pump motor is hermetically sealed and protected against pressure and water. Steel casing stainless steel is resistant to corrosion and dirt. Moreover, it reliably withstands even the heaviest loads.
Key features
| Specification | Detail |
|---|---|
| Brand | Hillvert |
| Voltage [V] | 230 |
| Material | Stainless steel |
| Color | Silver |
| Rated current | 5 A |
| Rated speed [rpm] | 2850 |
| Water flow | 4800 l/h |
| Total diameter | 95 mm / 3.75'' |
| Insulation class | B |
| IEC protection class | I |
| Number of stages (pump impellers) | 12 |
| Max. immersion depth under water | 20 m |
| Max. sand content in water [%] | 0.25 |
| Maximum number of starts per hour | 50 h |
| Maximum input power | 1.5 kW |
| Maximum output power | 0.75 kW |
| Maximum water temperature | 35 deg C |
| Maximum lifting height | 91 m |
| Maximum working pressure | 8.8 Bar |
| Maximum water flow | 4.8 m³/h |
| Maximum particle size | 1.8 mm |
| Control methods | External start box (750 W) |
| Filter | Yes |
| Over current | Yes |
| Check valve | Yes |
| Power cable | 20 m |
| Cable specification | H07RN-F 3G1 mm² |
| IP protection level | IP68 |
| Mounting hole diameter | 100 mm |
| Diameter water connections | 1.25 in |
| Dimensions (LxWxH) | 85 x 9 x 9 cm |
| Weight | 15 kg |
| Shipping dimensions (LxWxH) | 126 x 23 x 12 cm |
| Shipping weight | 17 kg |
