Description
Manufacturer's code:

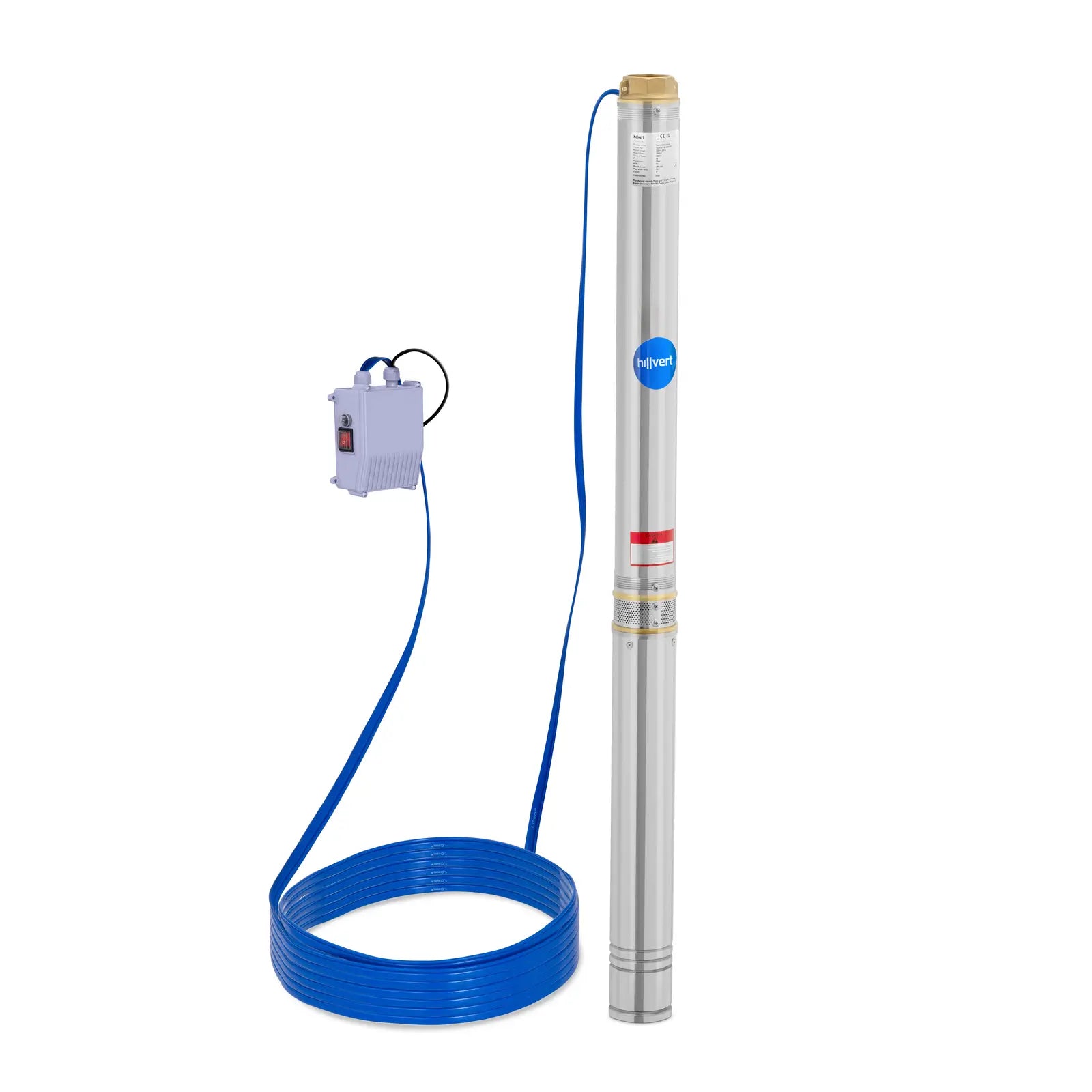

10062054Hillvert deep-sea pump it easily pumps water from deep and narrow shafts, wells, tanks or tanks.
stainless steel It's only a diameter.
95 mm and ideally suited for narrow drilling. Engine about
Power supply 2200 W working at speed
2850 rpm and provides high flow to
10 800 l/hThe device can be immersed to a depth of 50 m at a maximum lifting height of 96 m. The pump for a well is suitable for clean water with a temperature up to 35deg C - just for water supply.
Product features: - - Fast pumping - 10 800 l/h performance thanks to 2200 W engine and 2850 rpm speed,

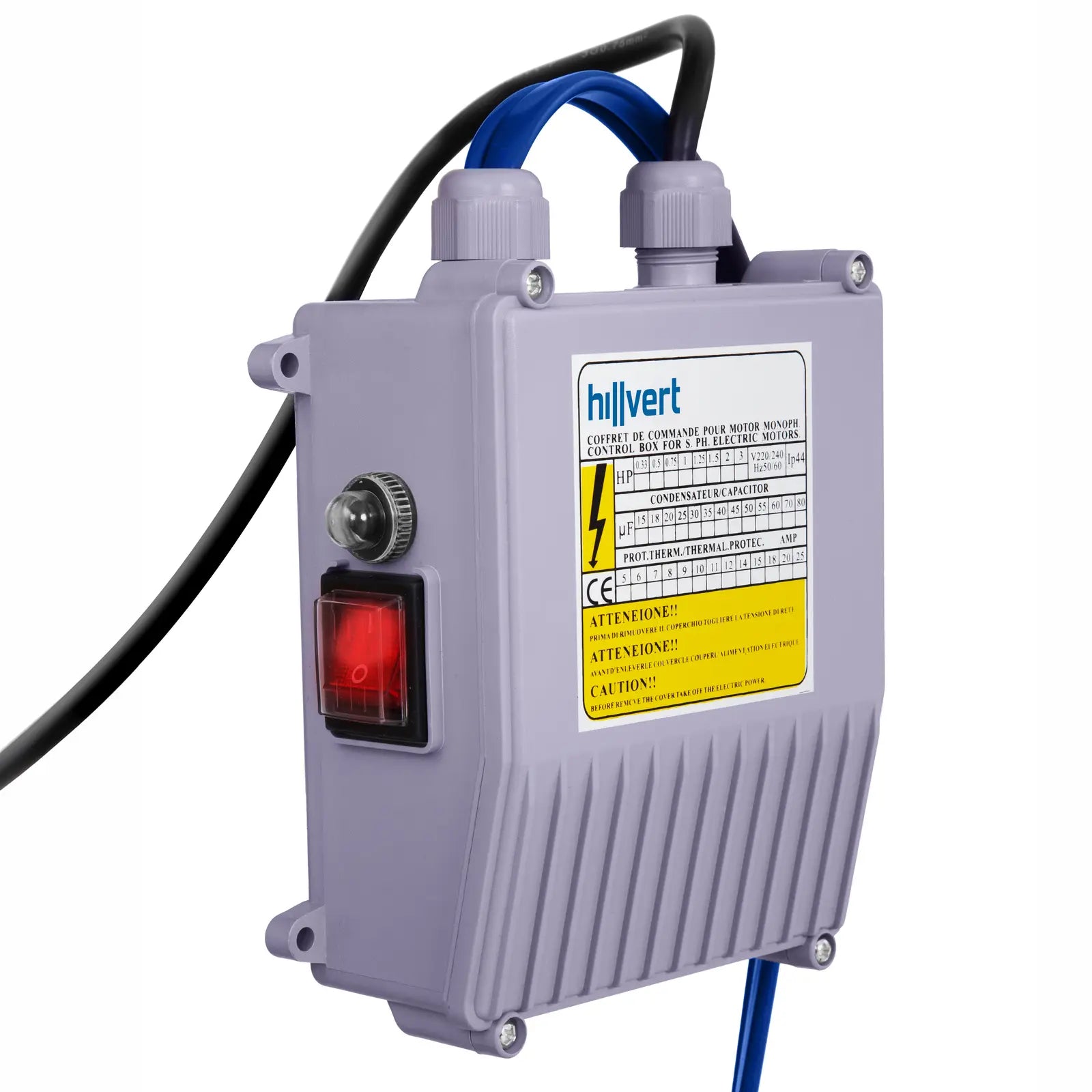

- - Convenient operation - control with control box with protected switch/off,
- - Wide application - maximum lifting height 96 m,
- - You place the device flexibly - thanks to a long power cord and maximum depth of 50 m draught,
- - High durability - stainless steel casing resistant to corrosion and dirt.
Technical parameters: - - Catalog number - 10062054
- - The state of the article - New
- - Total diameter - 95 mm / 3.75'

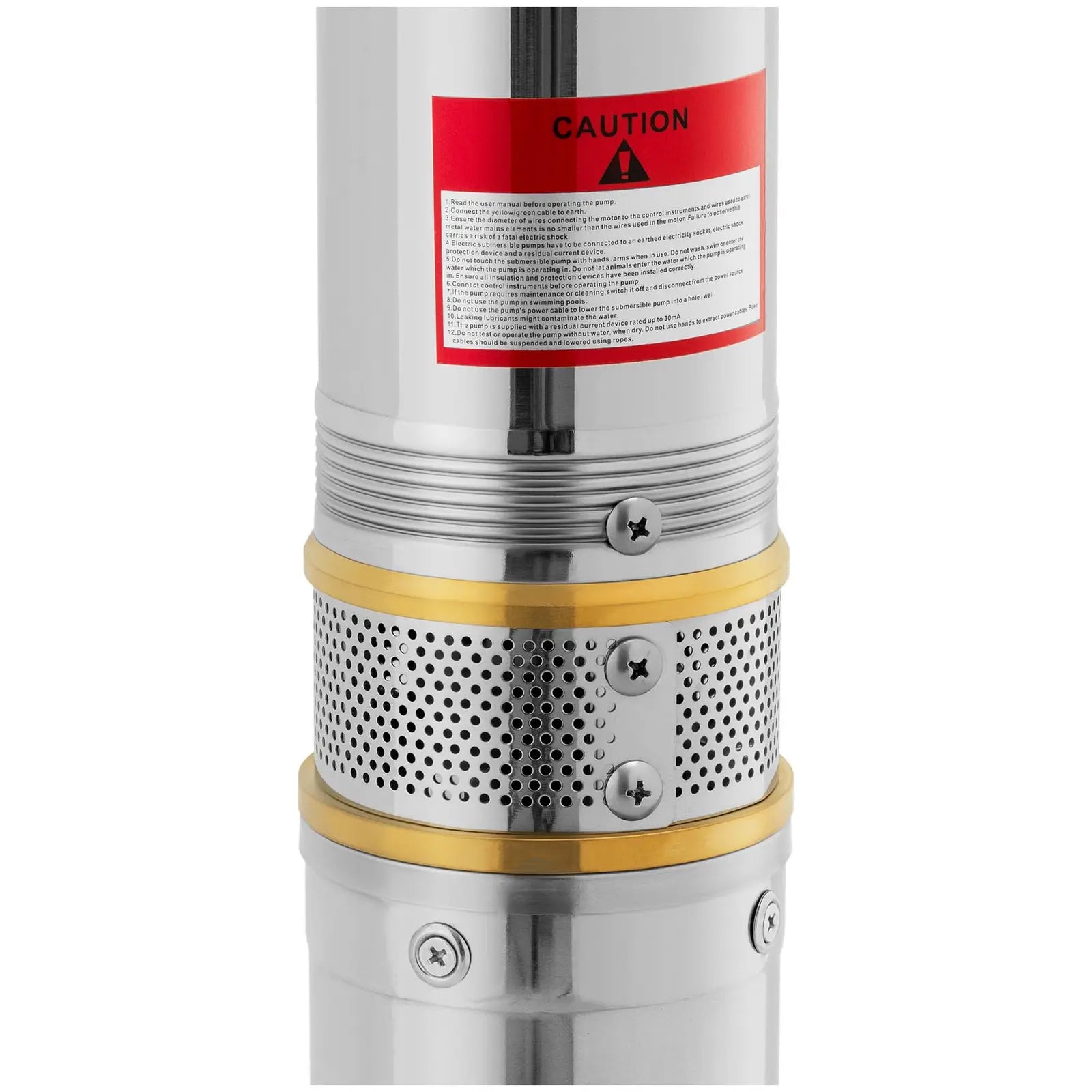

- - Filter - Yes.
- - Insulation class - B
- - IEC protection class - I
- - Color - Silver
- - Number of steps (pump rotors) - 14
- - Max. depth of underwater immersion - 50 m
- - Max. sand content in water [%] - 0.25
- - Maximum number of startups per hour - 50 h
- - Maximum input power - 3 kW
- - Maximum output power - 2.2 kW
- - Maximum water temperature - 35 deg C
- - Maximum lifting height - 96 m
- - Maximum working pressure - 9.07 Bar
- - Maximum water flow - 10.8 m3/h
- - Maximum particle size - 1.8 mm
- - Material - Stainless steel
- - Control methods - External boot box (2200 W)
- - Voltage [V] - 230
- - The rated current - 14 A
- - Rated speed [min] - 2850
- - Water flow - 10800 l/h
- - Expansion - Yes.
- - Power cord - 50 m
- - Wire specification - HO7RN-F3G2.5mm2
- - IP protection - IP68
- - The diameter of the mounting hole - 100 mm

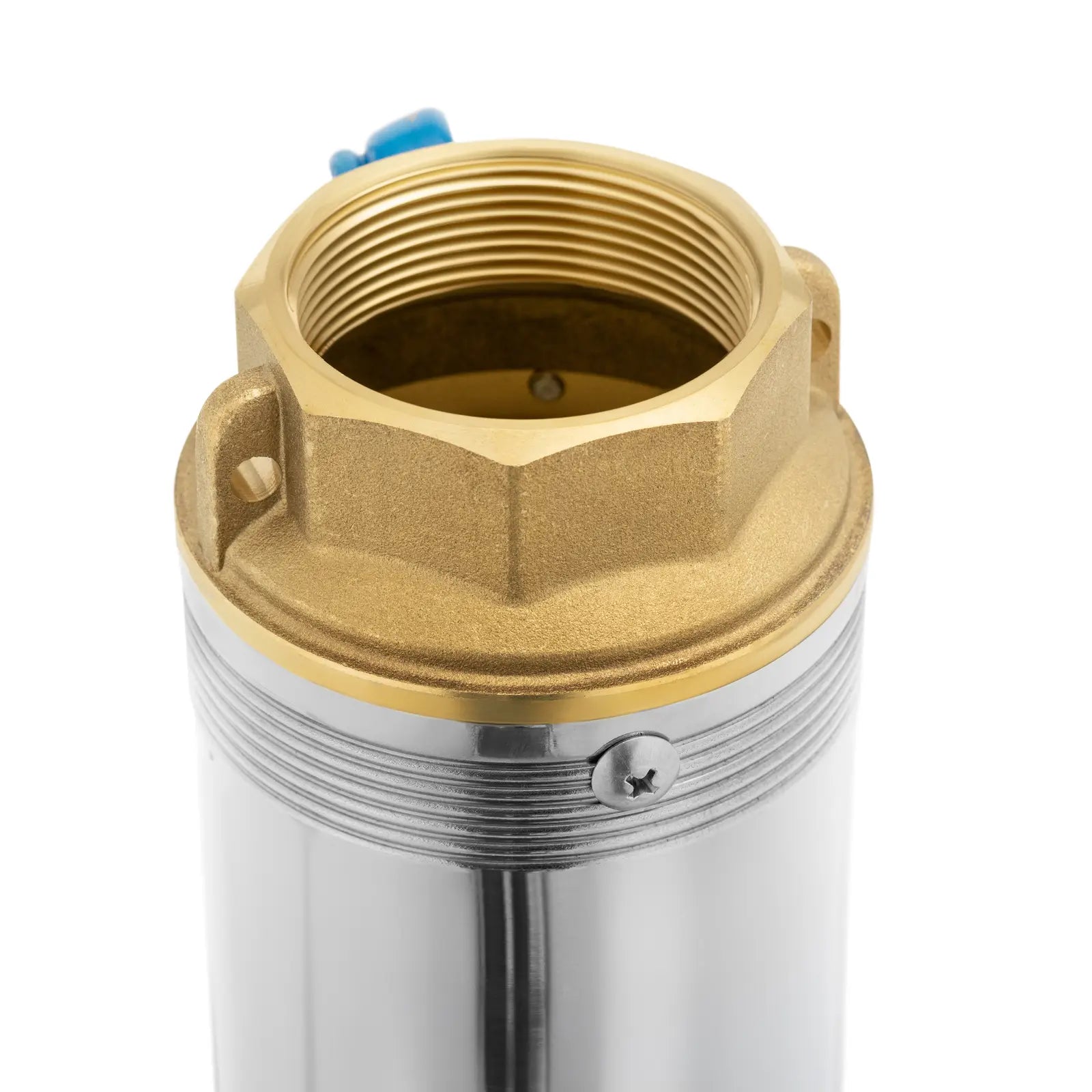

- - Diameter of water connection - 2 in
- - The return valve - Yes.
- - Weight - 30.8 kg
- - Weight of shipping - 34.7 kg
- - Dimensions (DxSxW) - 136 x 9.5 x 9.5 cm
- - Dimensions of dispatch (DxSxW) - 172 x 24 x 12 cm
Included: - - Deep-sea pump.
- - User manual
