Description
Manufacturer's code:

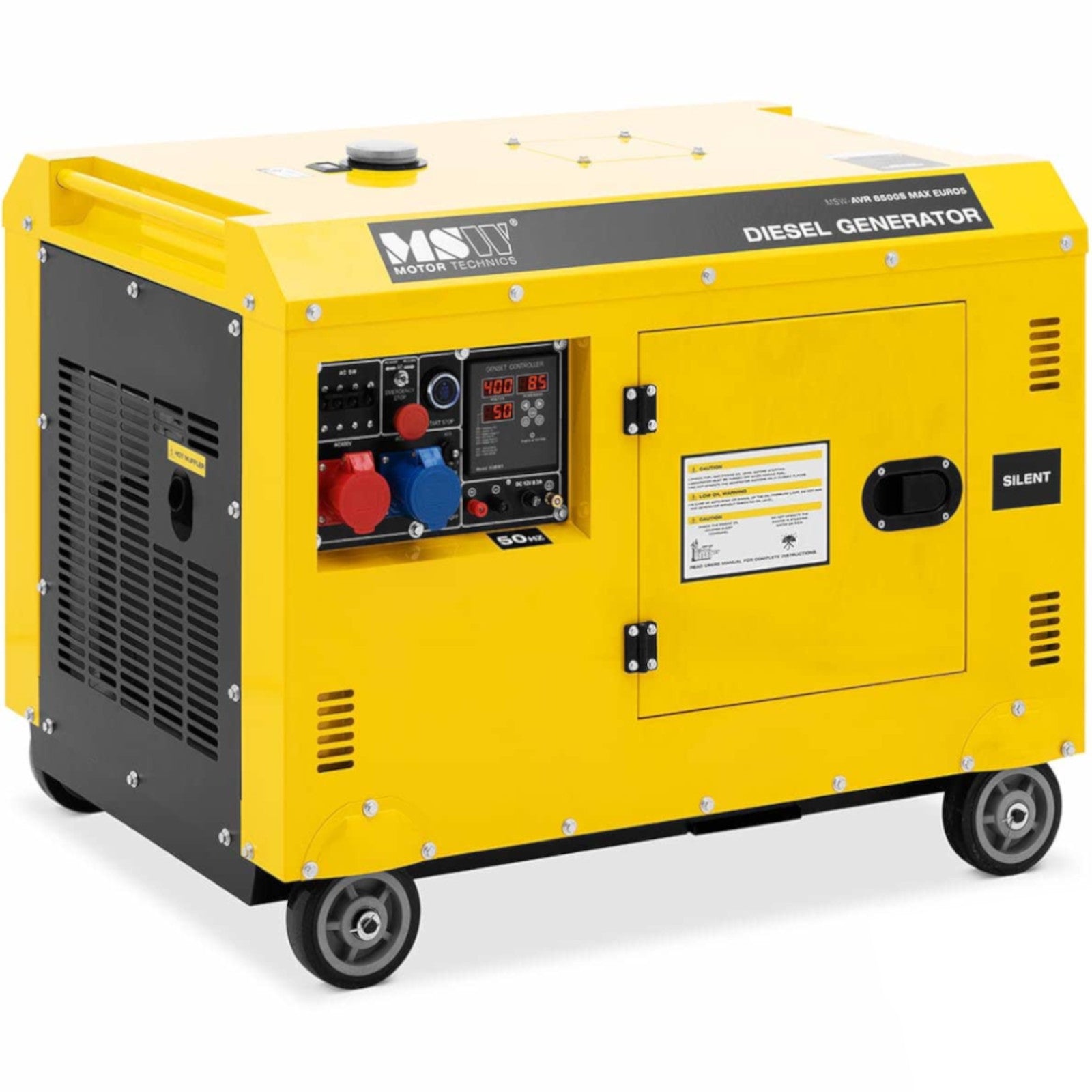

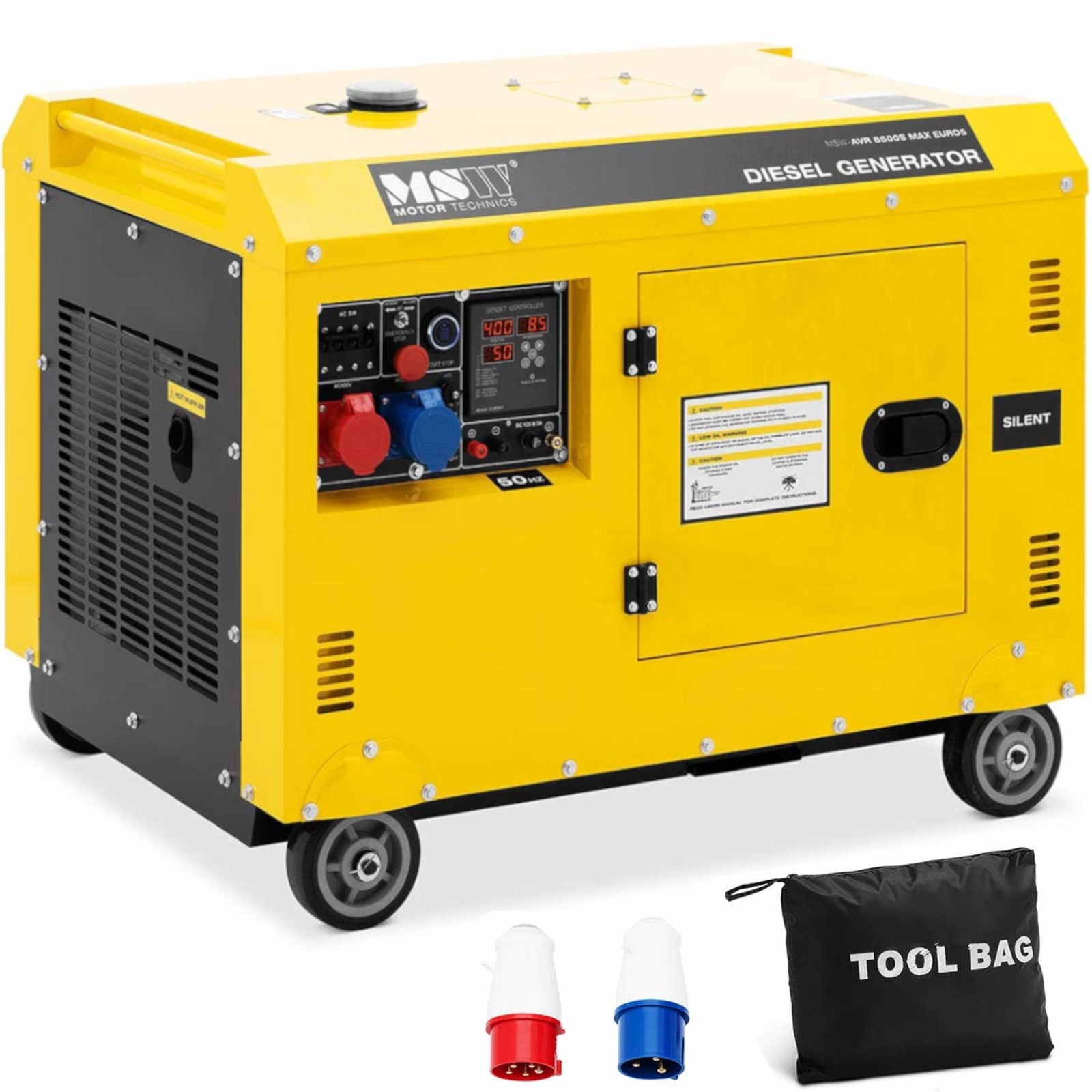

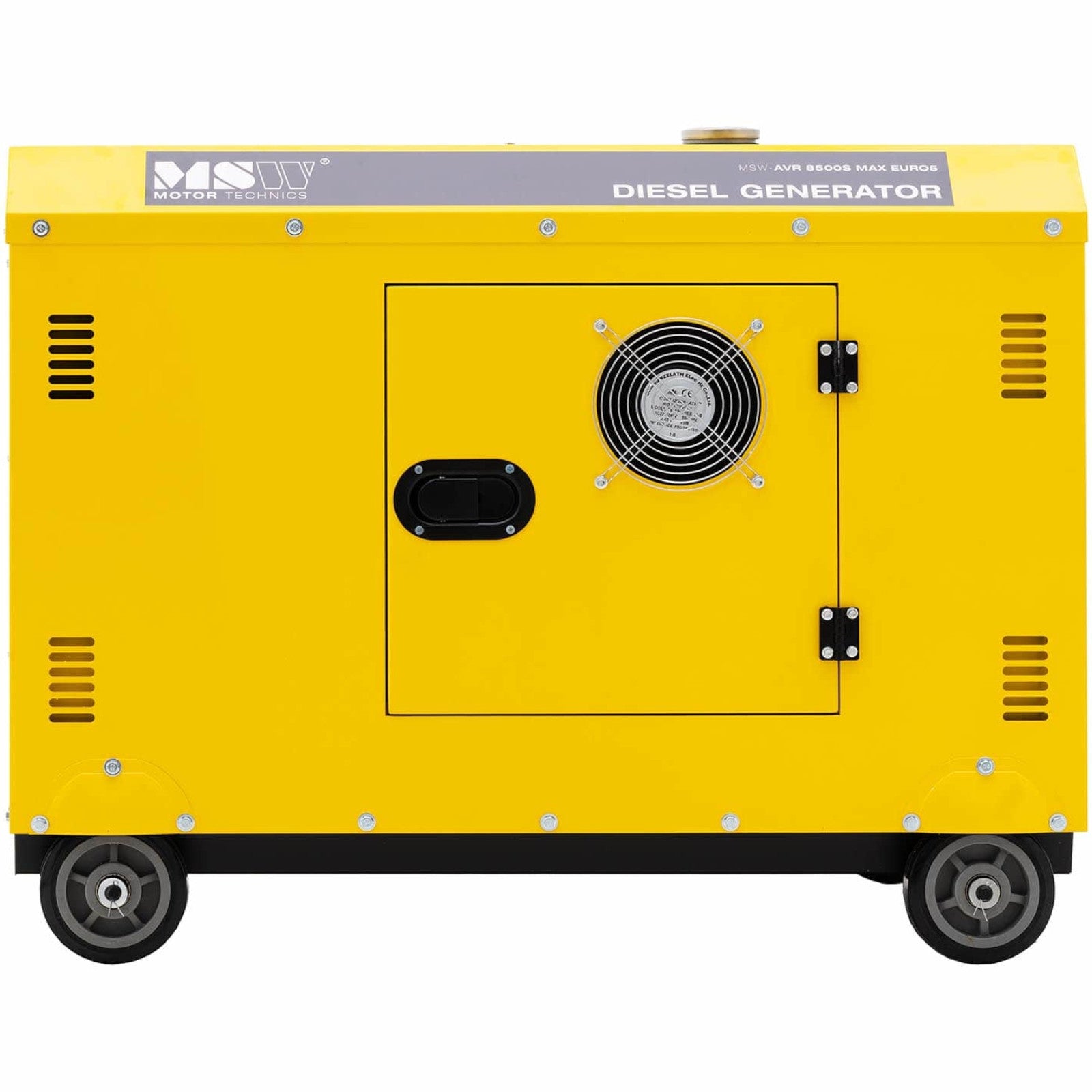

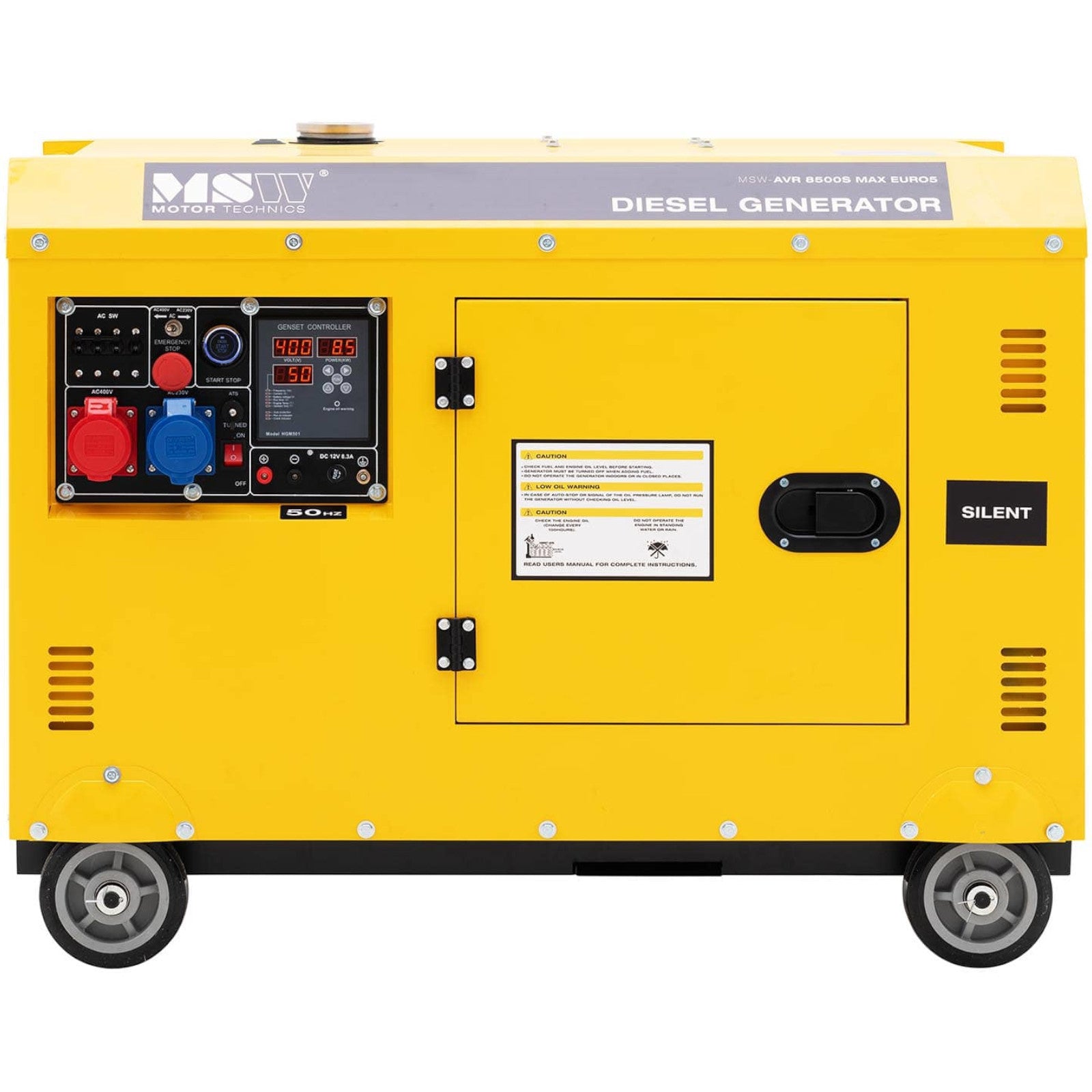

10062297The MSW Diesel generator set provides the necessary electricity in the event of power outages. This is made possible by a powerful 4-stroke diesel engine. The device consumes only
30 liters of fuel per 12 hours. The equipment operates with
7220 / 8500 Wpower. Thanks to

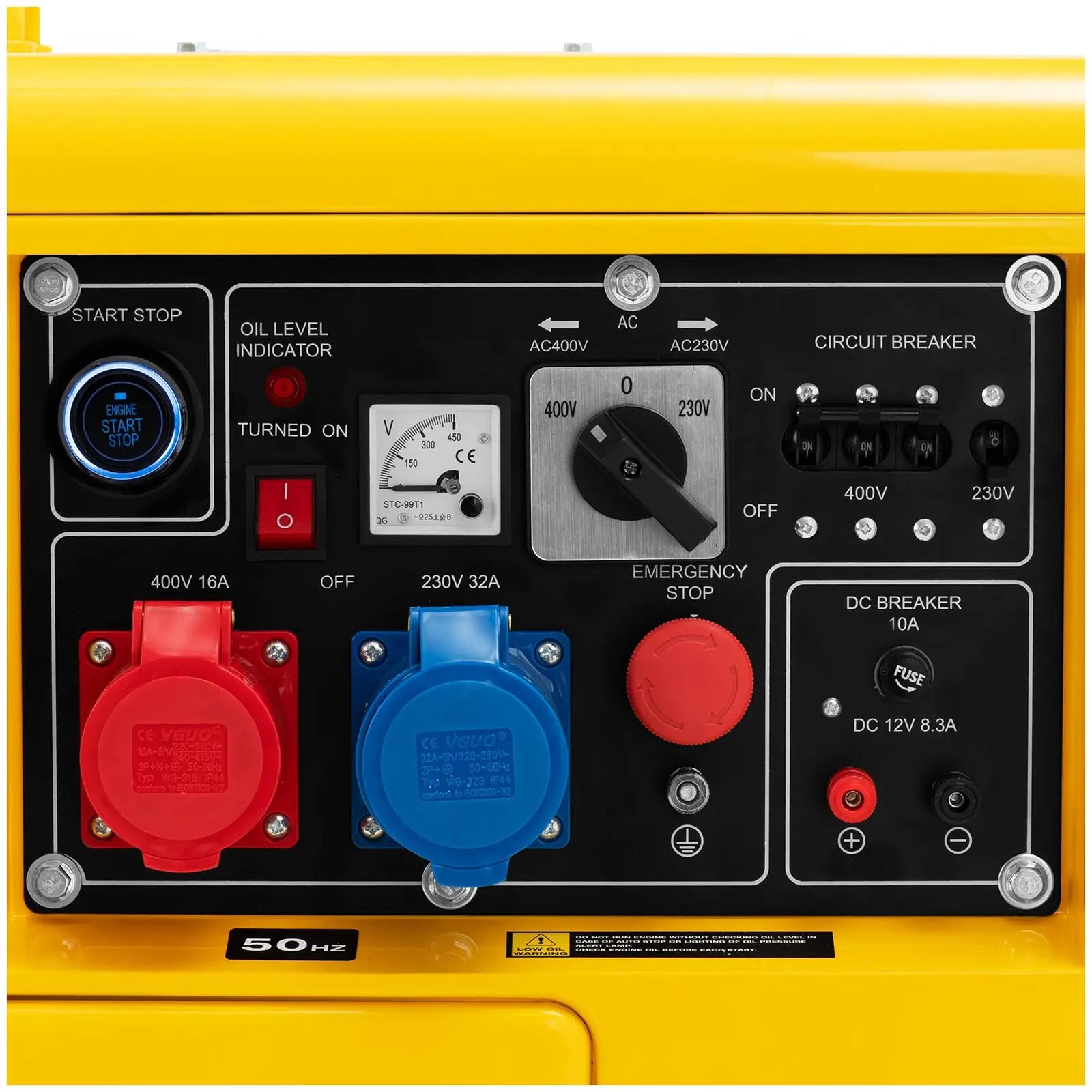

three sockets (240/400 V and 12 V)it can operate several different machines, even in parallel. The maximum power of a

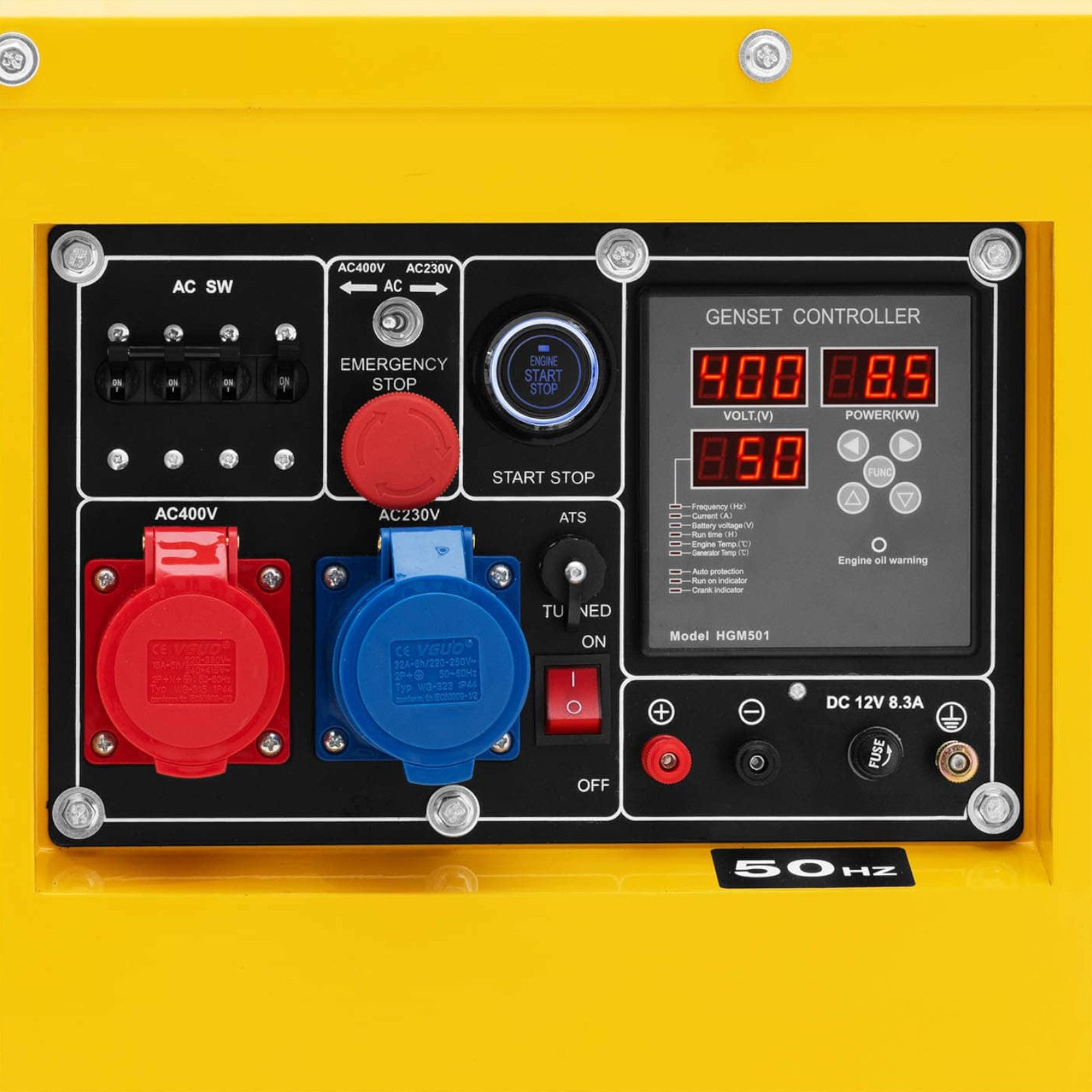

230 V socket is 7220 W, and a 400 V socket is 8500 W. This makes the equipment ideal for emergency situations at home, in the office, camping, on a boat or in the industrial sector. The generator is turned on using an electric starter. All settings can be read from the display while working in real time. The device operates at a volume
from 78 to 96 dB. The drive unit is safely constructed and cleanly finished. Effective air cooling protects the engine from overheating. Overload protection prevents motor damage in the event of overheating. Thanks to the IP23 protection class, the unit is protected against water splashes at an angle of up to 60 degrees. The device is also protected against solid objects with a diameter of up to 12.5 mm. A large tank ensures long-lasting power, even under heavy loads. The compact diesel engine unit is equipped with an AVR voltage regulator, emergency stop switch, low oil pressure sensor and remote control.
Product features: - - Maximum power 7220 / 8500 W or 10 kVA,
- - Up to 12 h of operating time on a full 30 l tank,
- - Simultaneous operation of various machines with three sockets with 240/400 V AC and 12 V DC,
- - High-quality materials and solid workmanship ensure durability,
- - Effective air cooling, overload protection and IP23 protection class.
Technical parameters: - - Catalog number - 10062297
- - Article condition - New
- - Model - MSW-AVR 8500S MAX EURO5
- - Noise level [dB] - 78
- - Material - Aluminum, Aluminum alloy
- - 12 V output - Yes
- - Carrying handles - Yes
- - Continuous power - 10
- - Cylinder diameter x stroke [mm] - 100x84
- - Stroke volume [cm³] - 660
- - Emergency stop switch - Yes
- - Engine model - 1100F
- - Engine speed [rpm] - 3000
- - Ignition system - Self-excitation
- - IP protection level - IP23
- - Fuel consumption [l/h] - 2.2
- - Fuel type - Diesel
- - Frequency [Hz] - 50
- - Fuel tank capacity [l] - 30
- - Rated output current [A] - 8.3
- - Rated output power [W] - 99.6
- - Overload protection - Yes
- - Oil tank capacity [l] - 2.5
- - Operating time with full tank [h] - 12
- - Motor - AC synchronous operation
- - Rated power 50 Hz [kVA] - 10
- - Power factor - 1
- - Maximum power [W] - 7220 / 8500
- - Rated output voltage [V] - 12
- - Pulse width modulation - Yes
- - Engine oil type - SAE 10W30 (above grade CD)
- - Remote control - Yes
- - Starting - Electric
- - Sound power level [dB] - 78
- - Sound pressure level [dB] - 96
- - Fuel consumption [g/kWh] - ≤230
- - Voltage regulator - Yes
- - Operating temperature range [deg C] - -10 - 40
- - Voltage [V] - 240/400

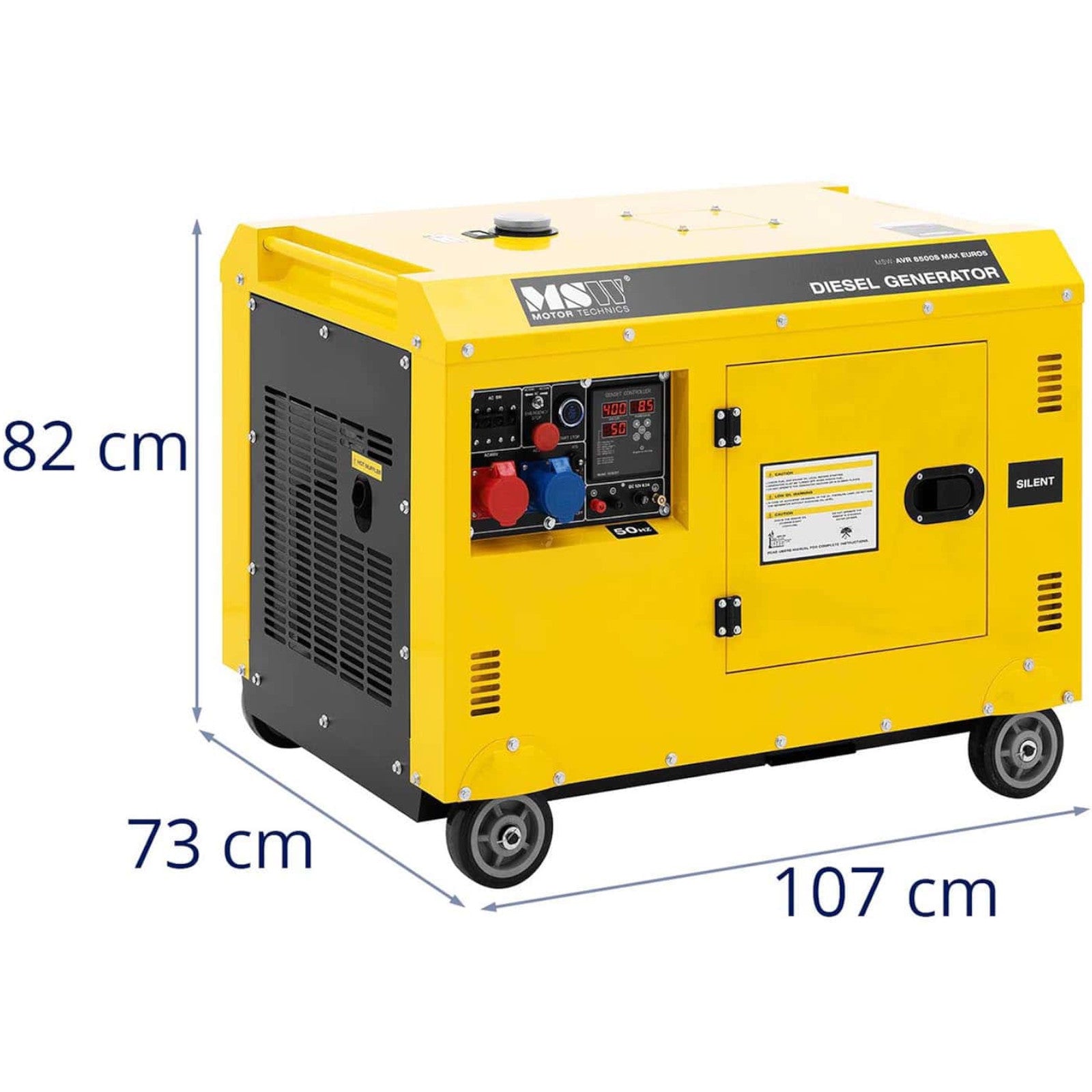

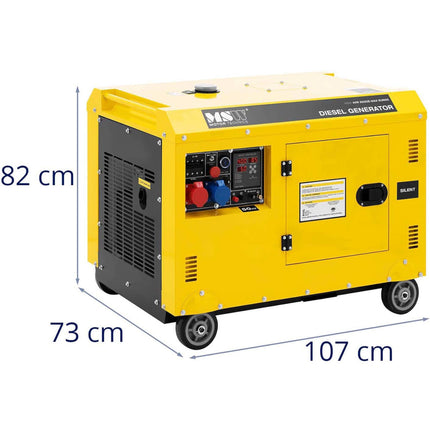

- - Dimensions (LxWxH) - 107 x 73 x 82 cm
- - Weight - 199.1 kg
- - Shipping dimensions (LxWxH) - 112 x 76.5 x 93 cm
- - Shipping weight - 220.2 kg

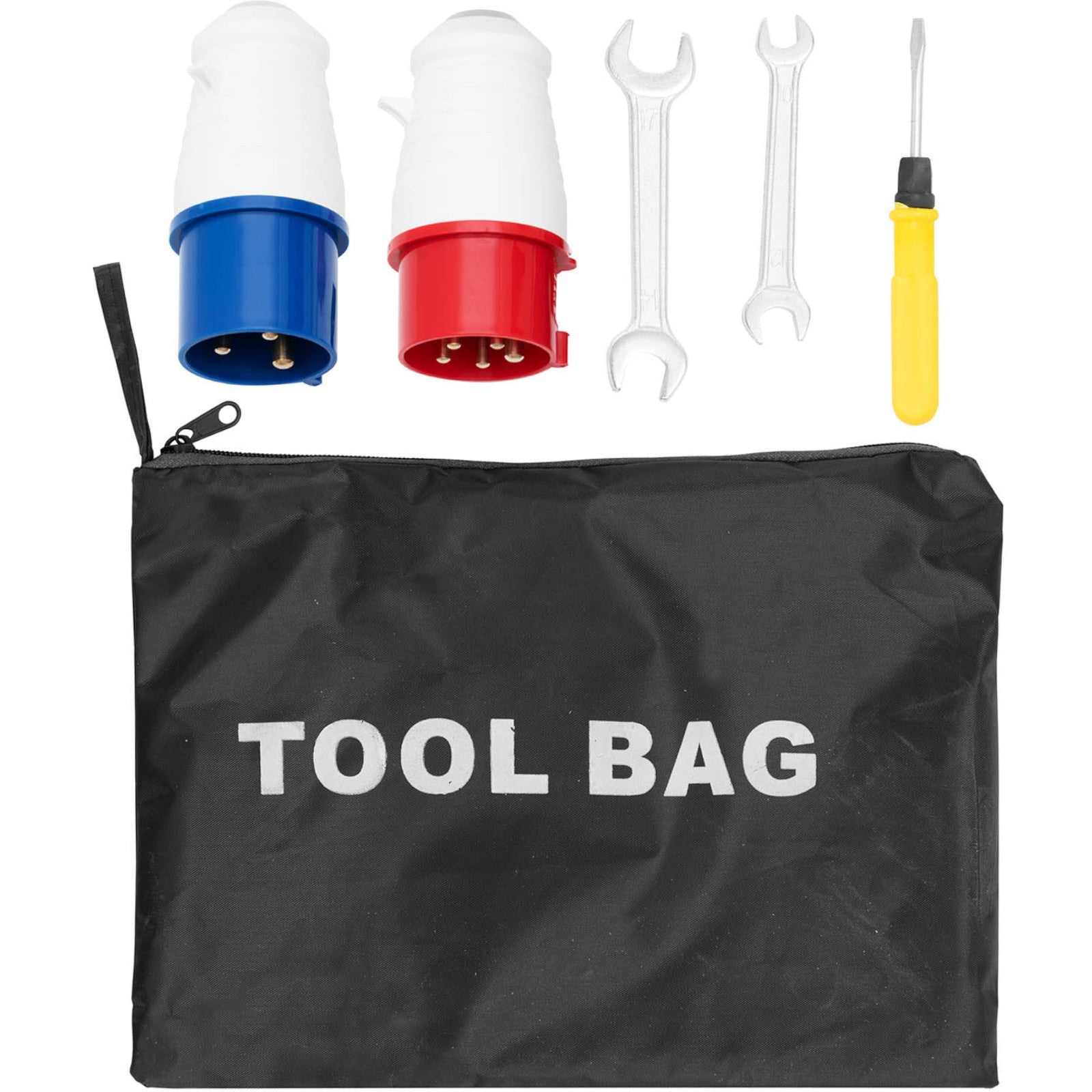

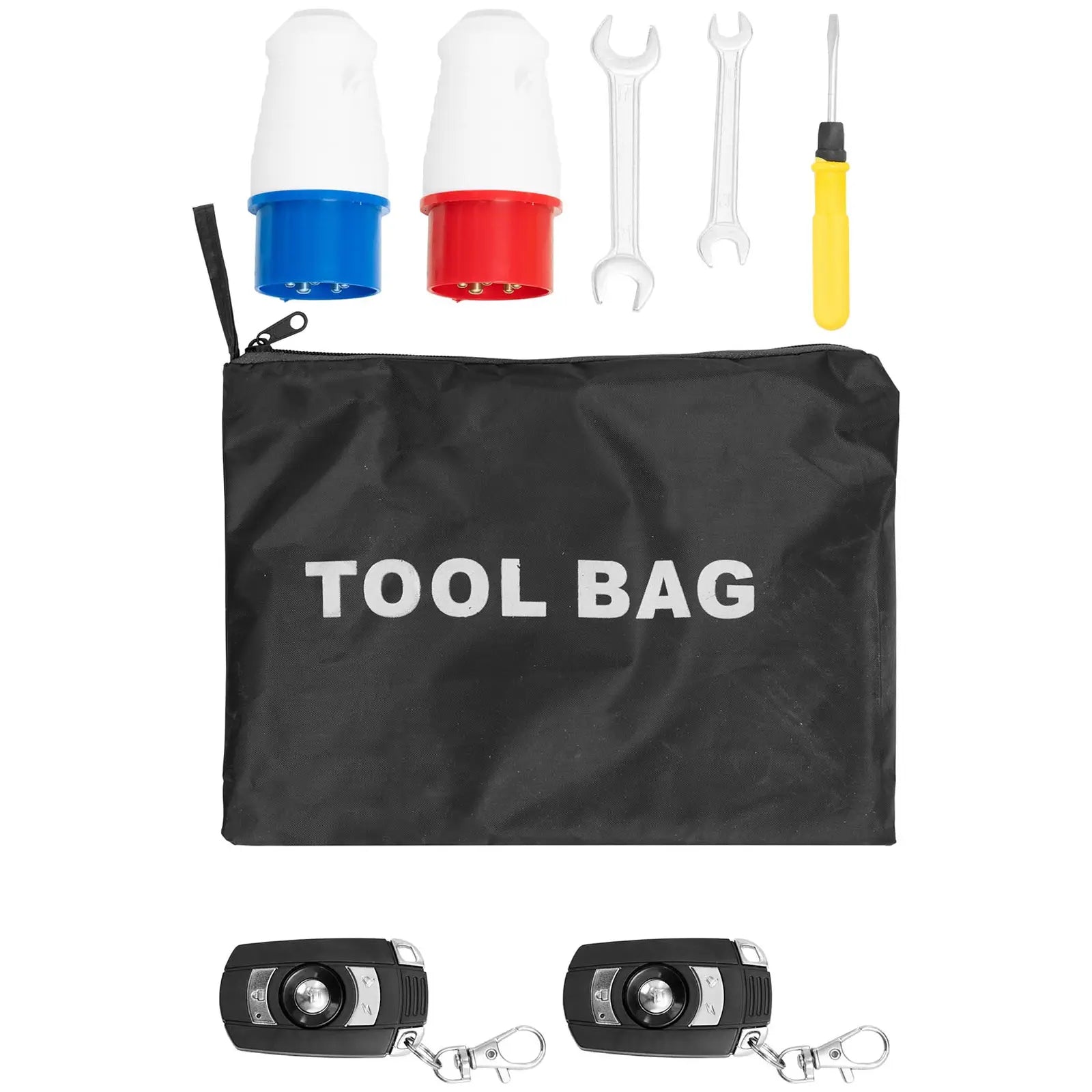

Included in the set:
