Description
Manufacturer's code:

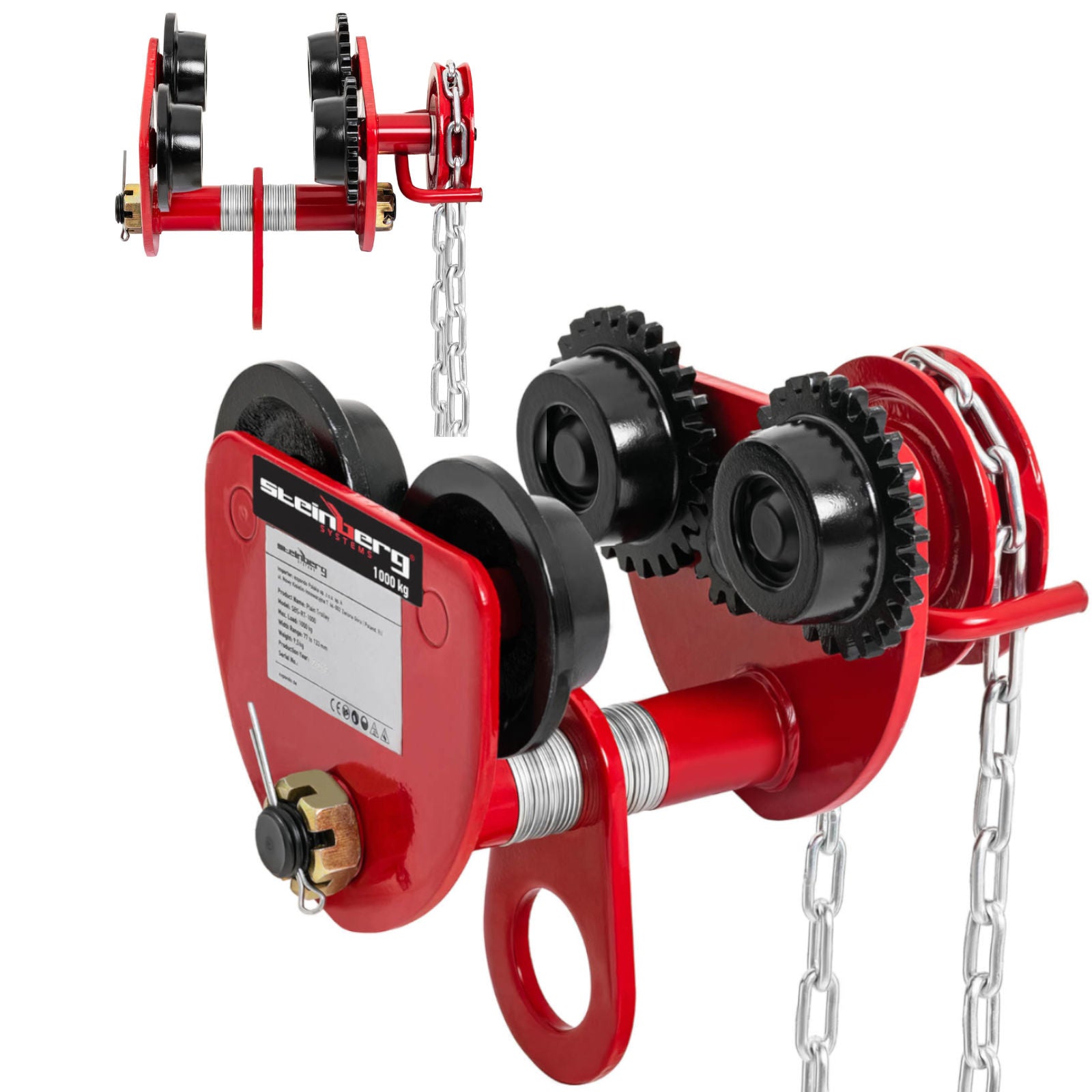

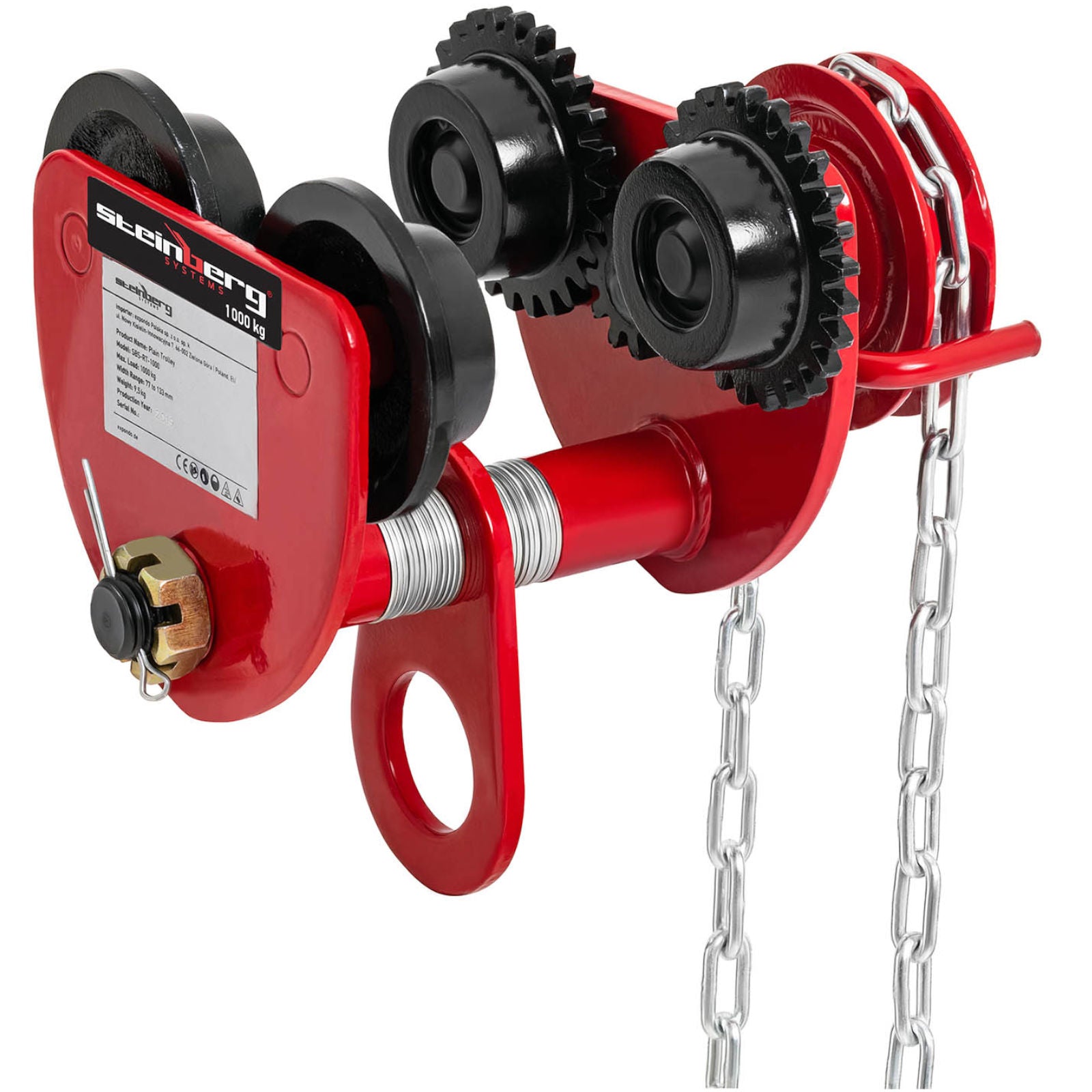

10030429The Steinberg Systems crane trolley this device that will work perfectly to
easy movement of heavy loads in a straight line e.g. after the industry, among others in factories such as ironworks, shipyards, recycling plants, scrap yards etc.

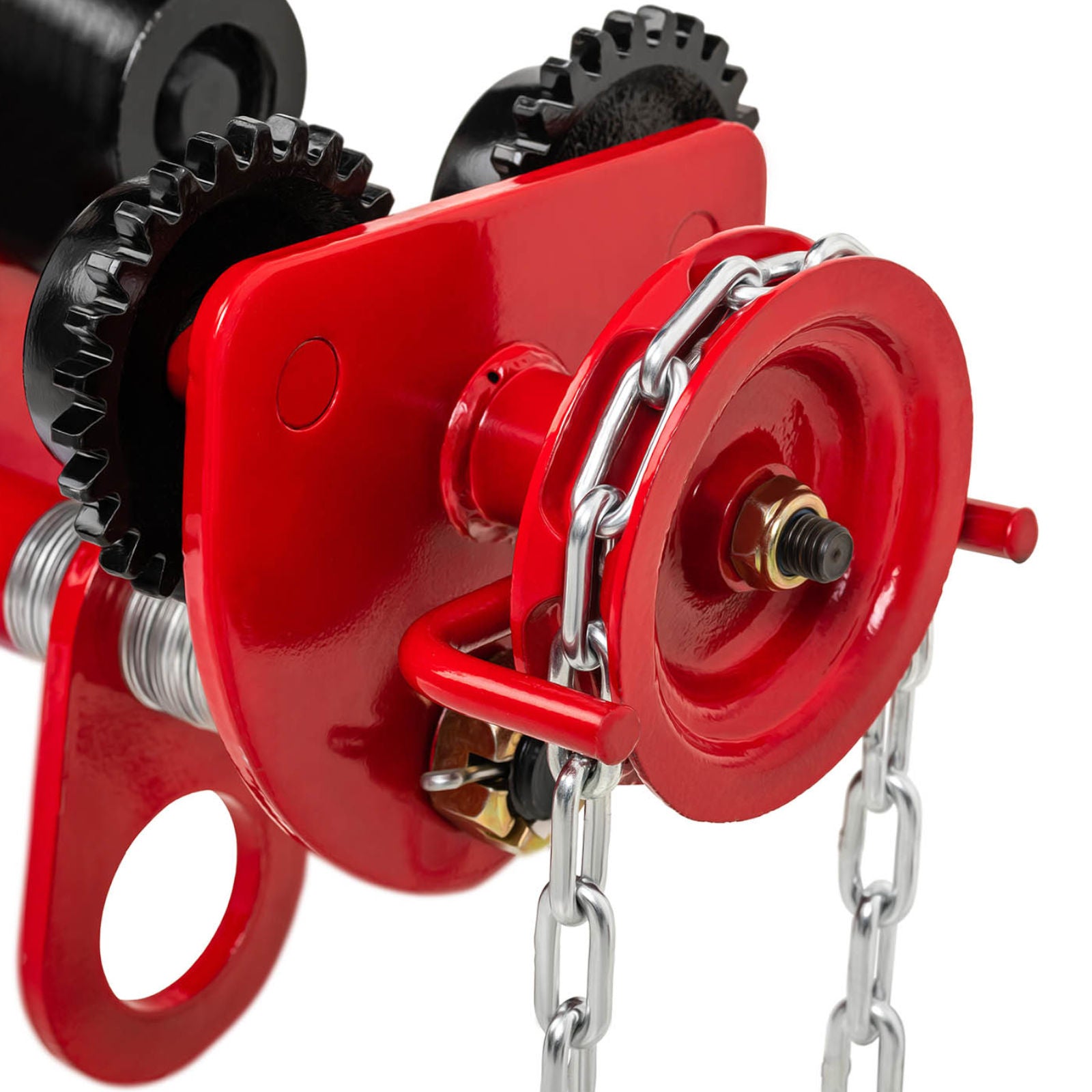

Pulling on
3 metres chain causes movement of a trolley equipped with transmission. It is used to move the trolley in two directions.
Maximum load capacity The trolley shall be 1
1000 kg a
safety factor 1.25 max. load capacityThe width adjustment in the range

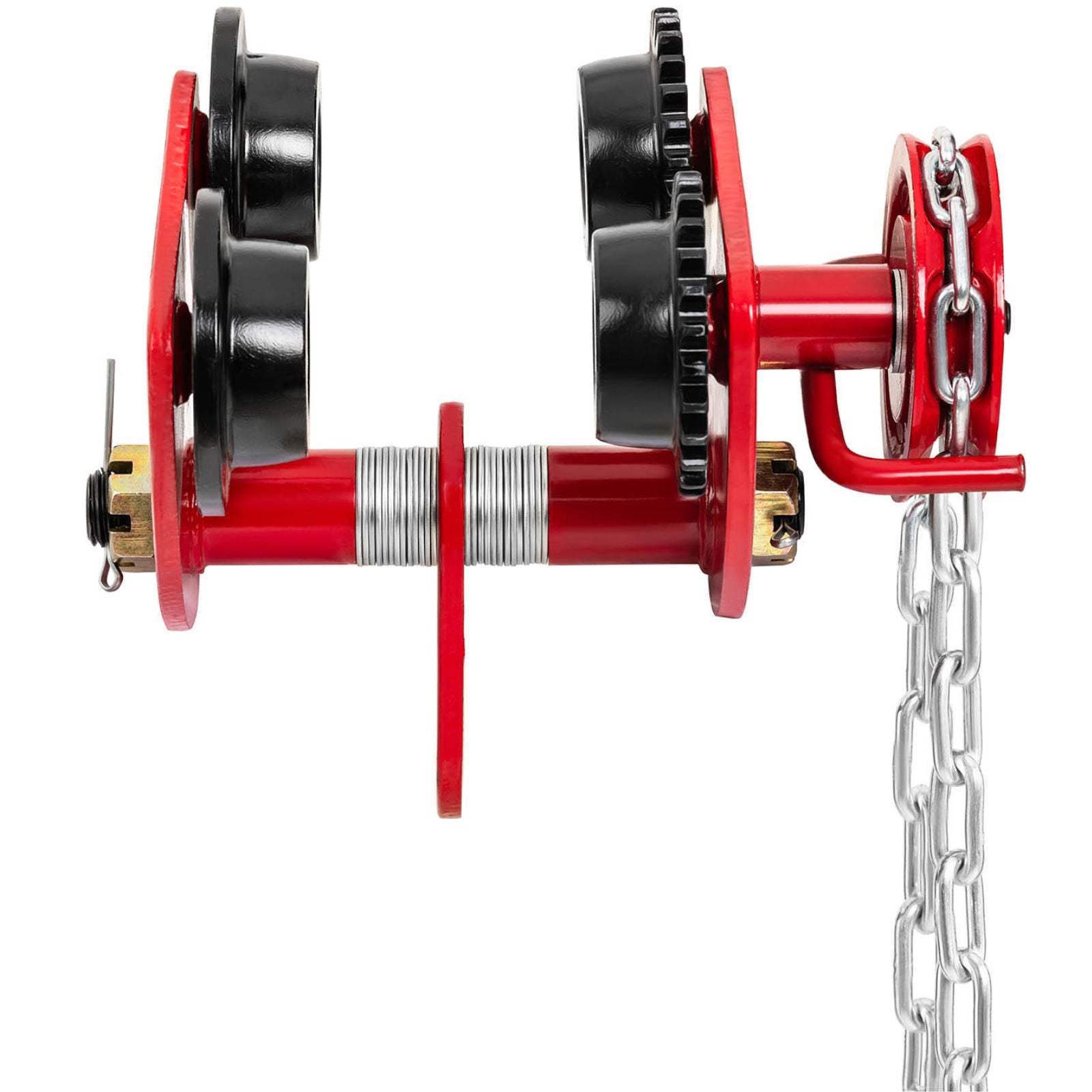

77-133 mm allows to mount the device on various girders. The trolley has been made
of steelfour steel wheels allow quick movement on the gantry crane and their double system allows you to fit into simple and conical guides.
Product features: - - Simple operation - a 3 m chain
- - Solidity - lifting capacity up to 1000 kg,
- - Protection - safety factor of 1.25 max. load capacity,
- - Mobility - 4 wheels of steel,
- - Strength - permanent construction,
- - Flexibility - width adjustment.
Technical parameters: - - Model - SBS-RT-1000
- - Catalog number - 10030429
- - The state of the article - New
- - The lifting capacity max. - 1000 kg
- - Wheels - 4 x steel
- - The material of the bar - C45 steel
- - Safety factor - 1.25 max capacity
- - Scope of regulation - 77-133 mm
- - The length of the chain - 3000 mm
- - Dimensions (DxSxW) - 27 x 20.5 x 23.5 cm
- - Weight - 9.75 kg
- - Dimensions of dispatch (DxSxW) - 26 x 16 x 22 cm
- - Weight of shipping - 10,15 kg
Included:
