Overview

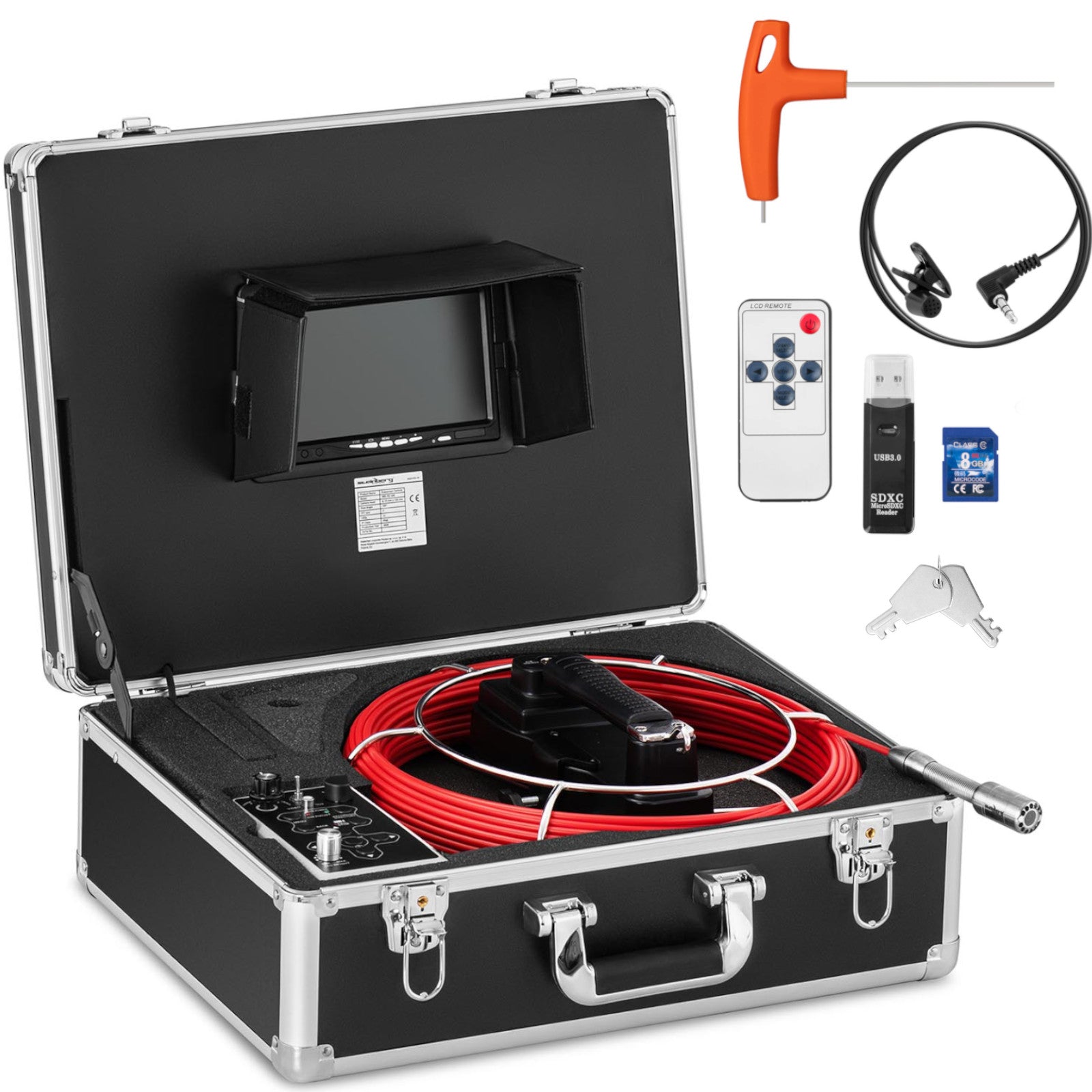

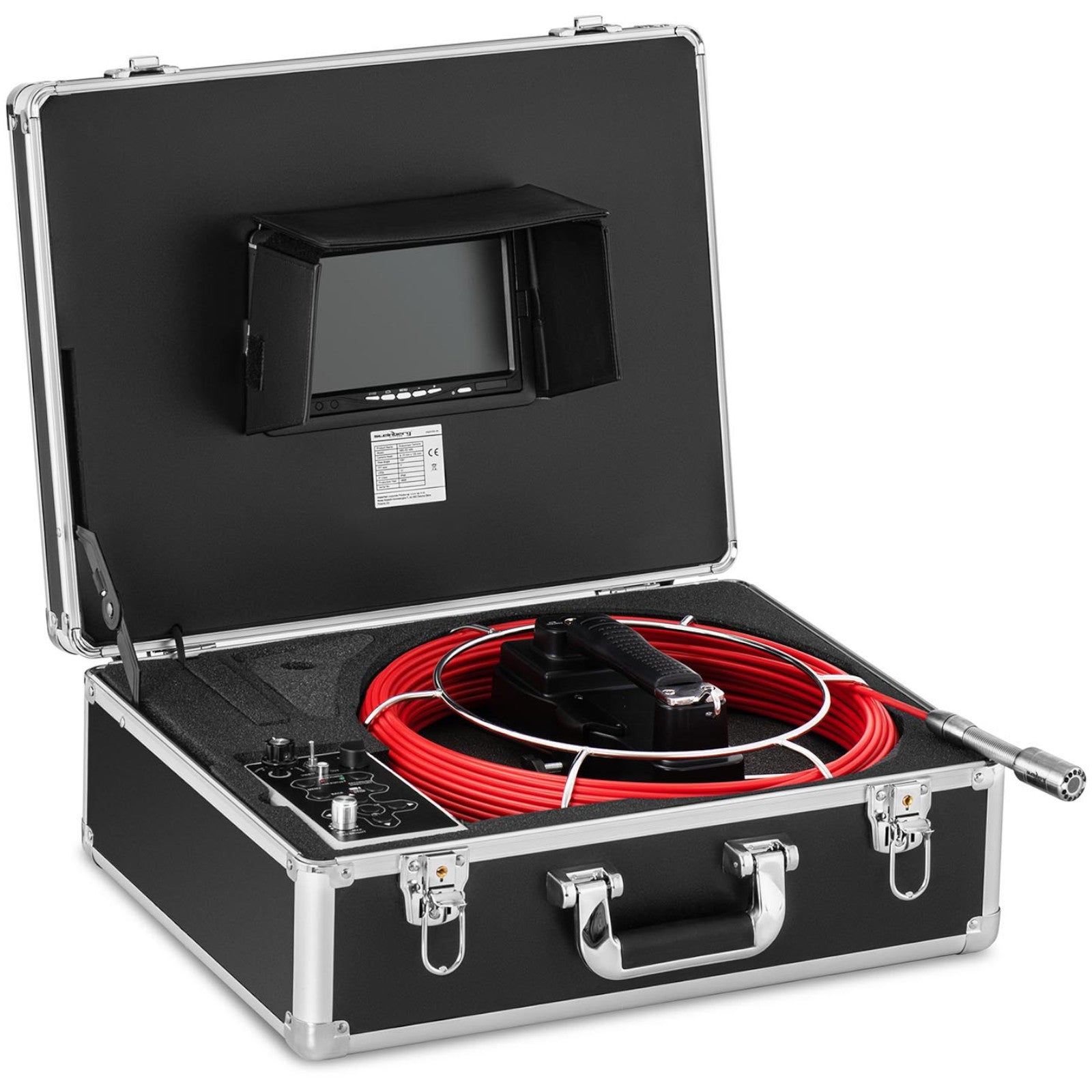

The Endoscope Diagnostic Inspection Camera in Case 12 LED TFT 7'' SD 30 m from Steinberg Systems brings tools you can rely on, made for your workshop & garage needs. A popular choice in Workshop garage, Workshop equipment.
Manufacturer's code:

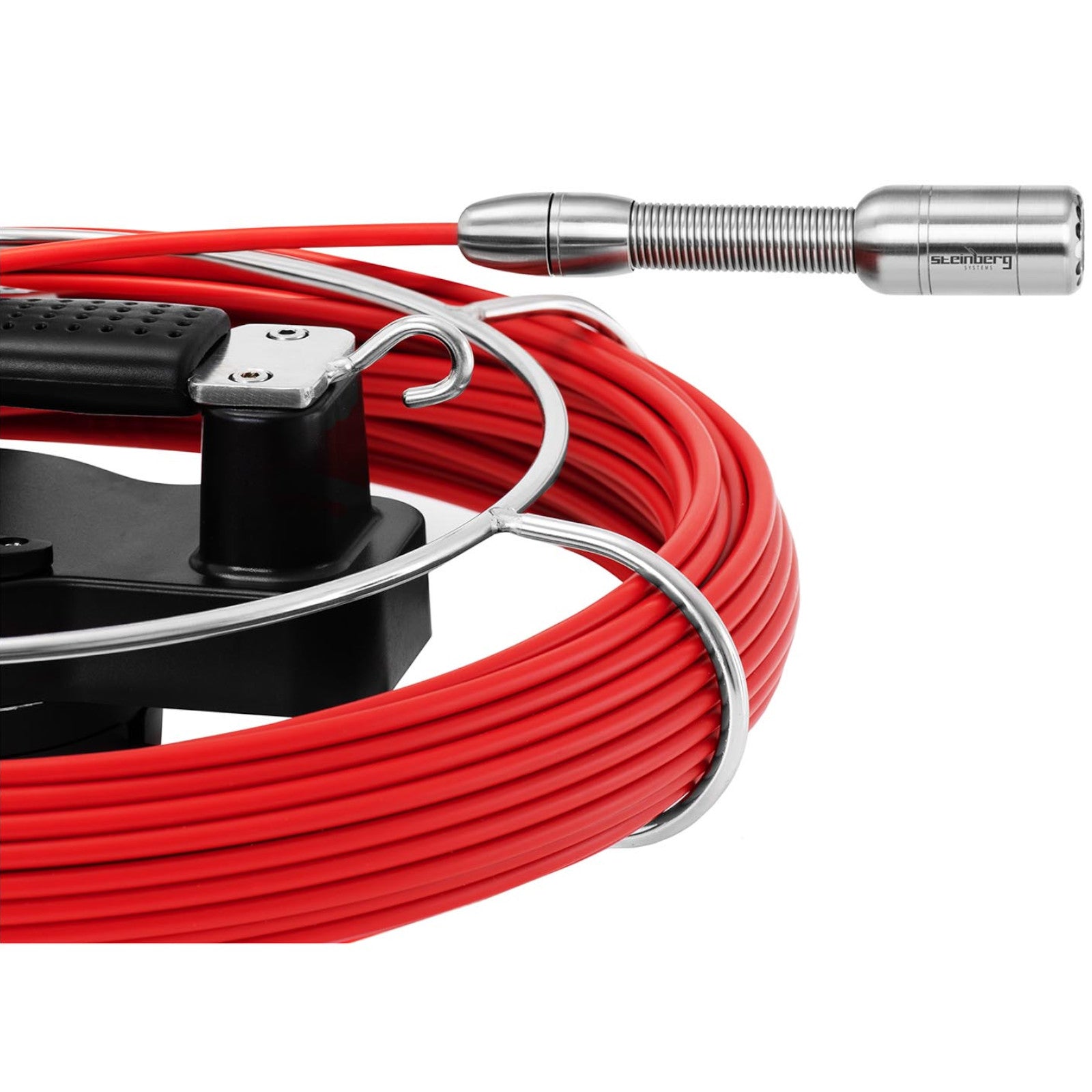

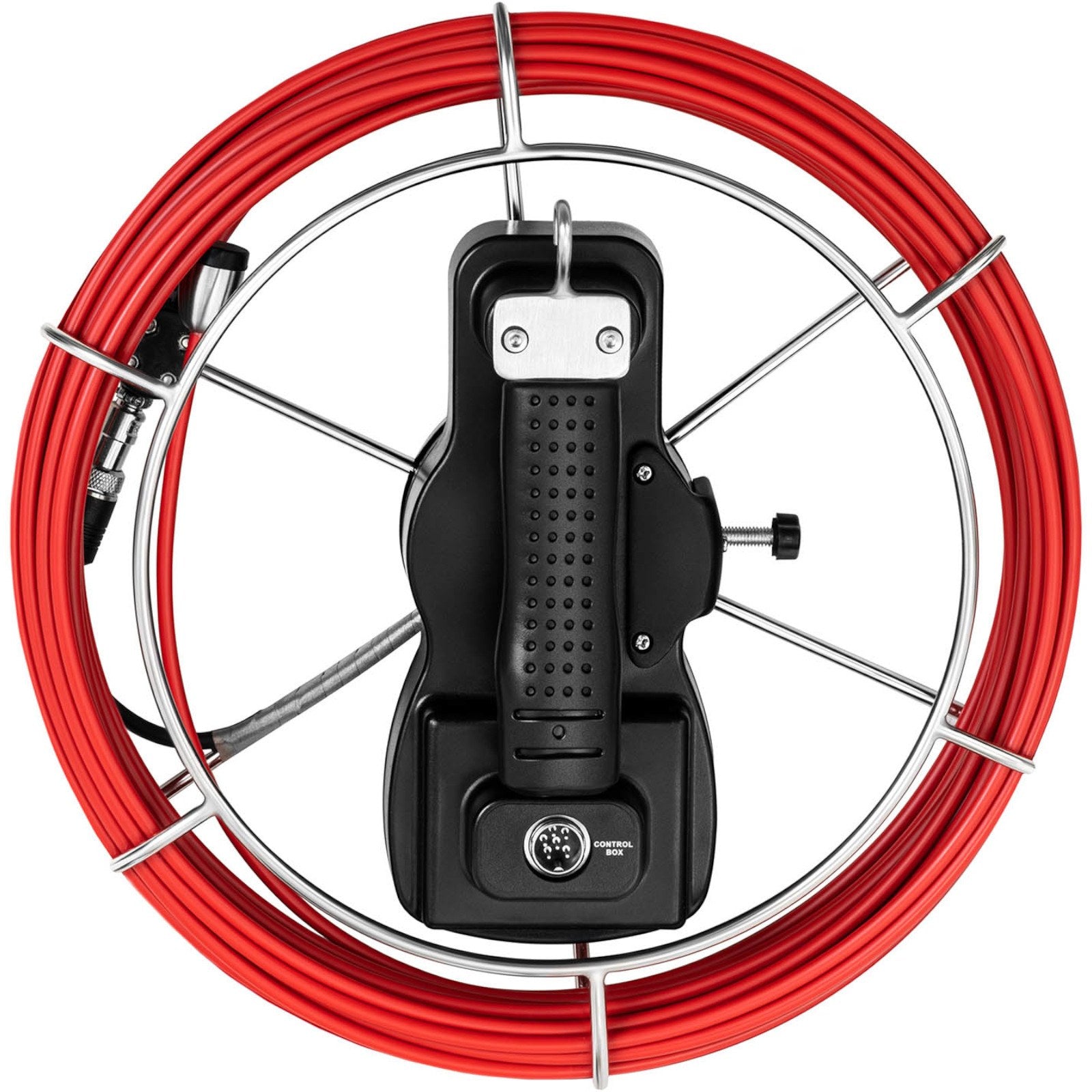

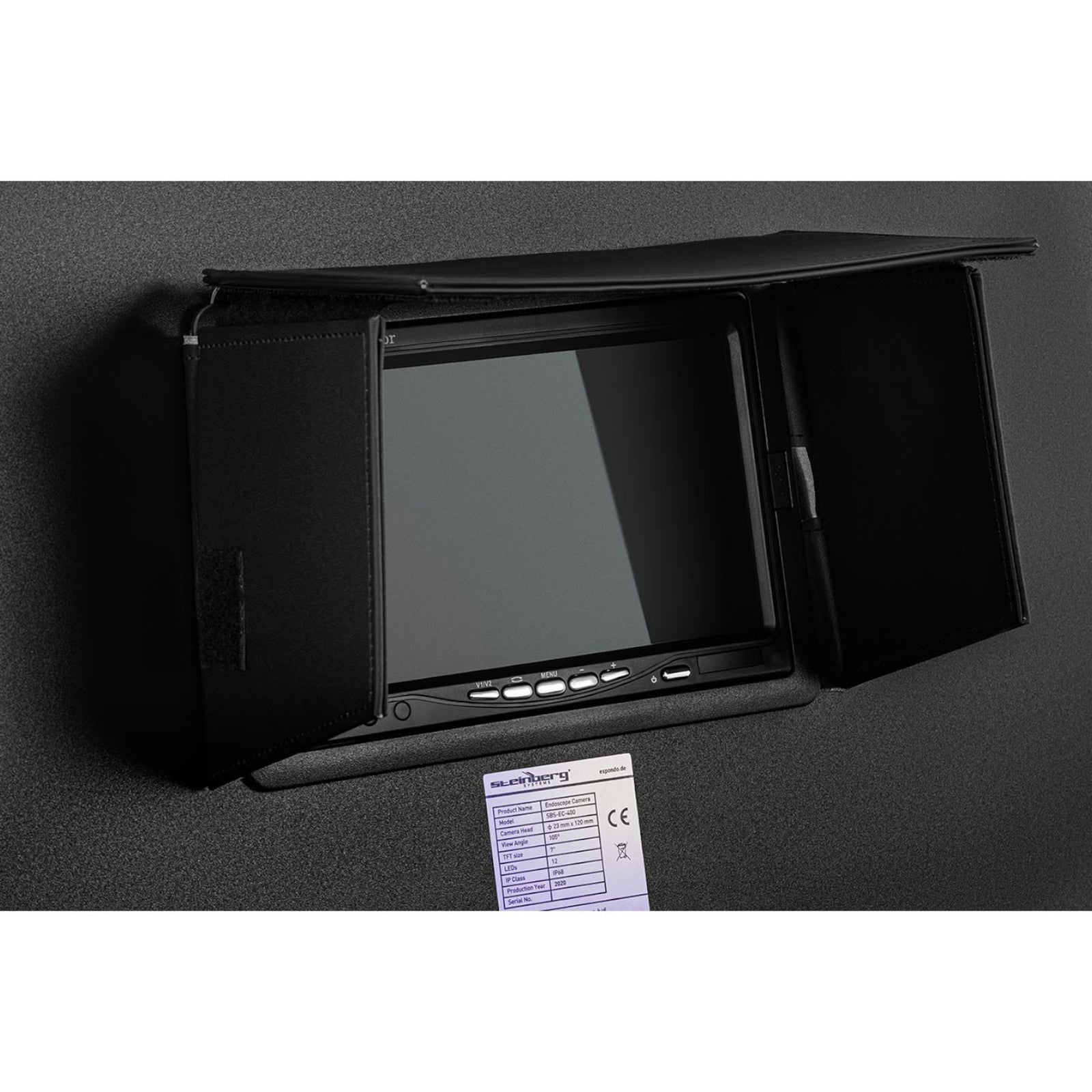

Endoscopic camera is ideal for inspecting hard-to-reach nooks and crannies, e.g. pipe installations. Thanks to the 30 m long cable, it will be ideal for use when, for example, inspecting ventilation ducts or sewage systems. A viewing angle of 105deg and 12 LEDs ensure excellent visibility. A 7" color TFT screen will display the recorded image, and videos and photos are saved on an SD card (max. 256 GB).
Product features:
Technical parameters:
Key features
| Specification | Detail |
|---|---|
| Display | LCD |
| User manual | Yes |
| LED lamp | Yes |
| Case included | Yes |
| USB port | Yes |
| Auto power off | No |
| Digital zoom | x10 |
| Head rotation degree [deg] | 90 |
| Viewing angle [deg] | 105 |

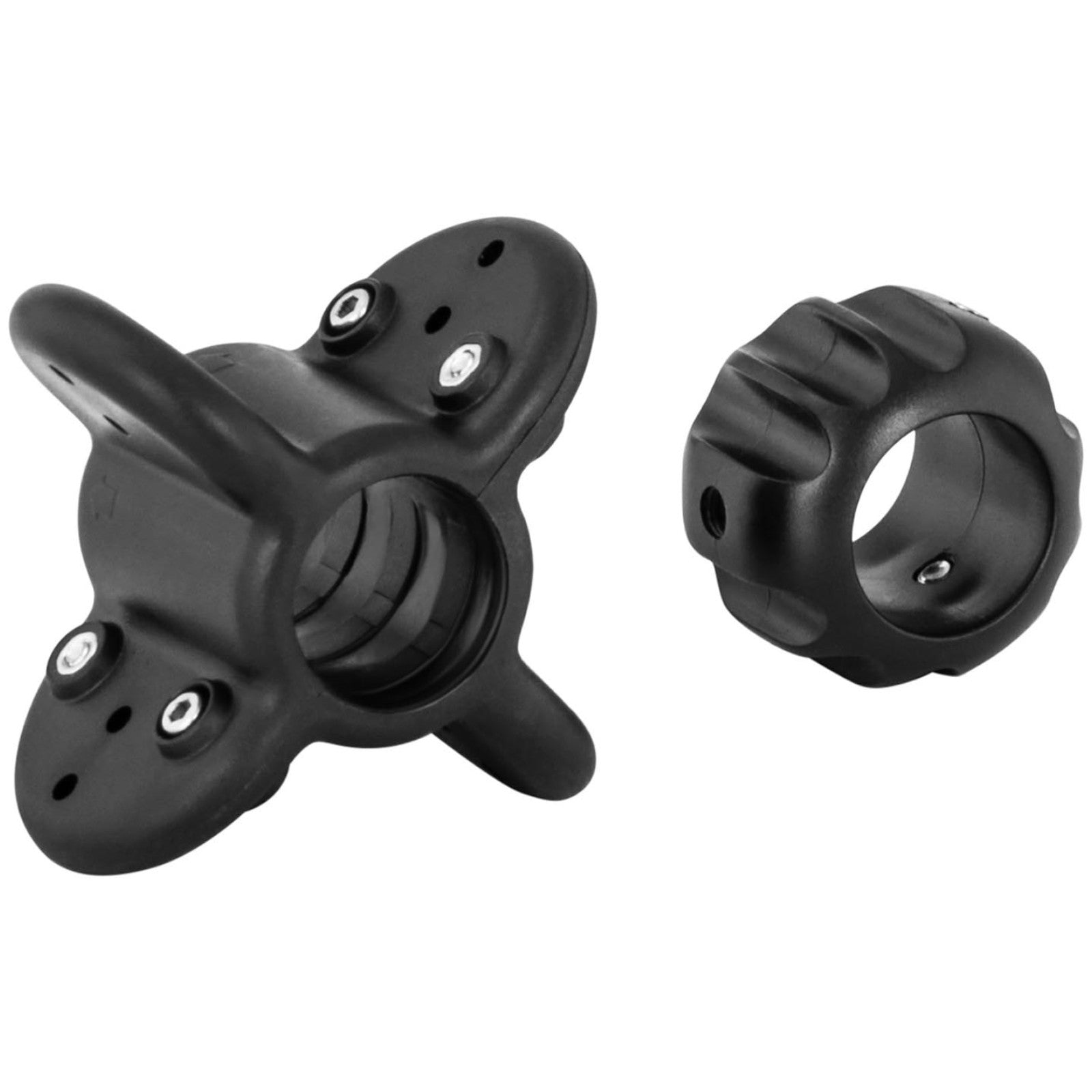

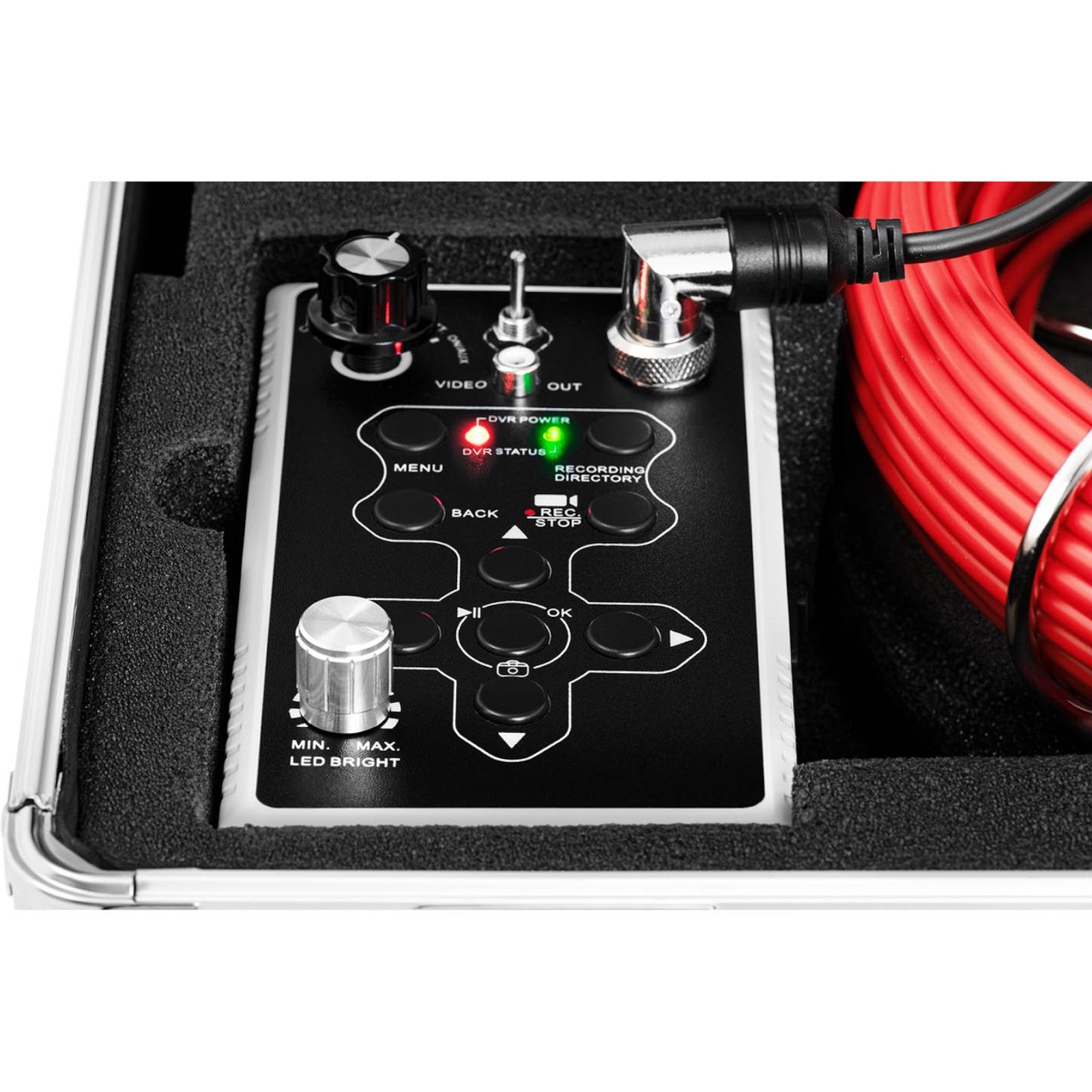

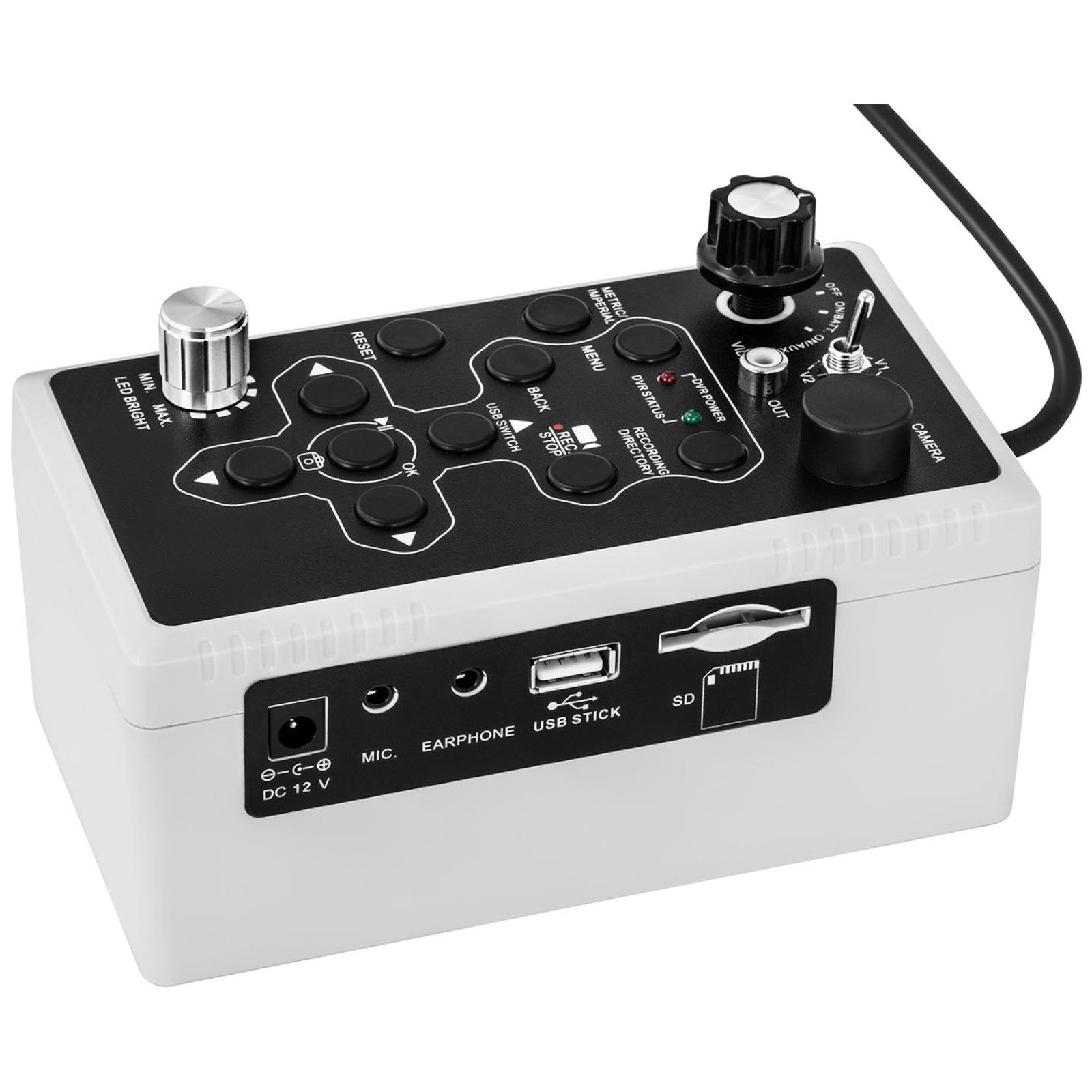

| Material | Control box - ABS camera head - 304 stainless steel cable - PP, fiberglass, copper box filling - black EPE cable holder - PVC skids - PC sun visor - PU charger - ABS connecting line - TPU |
| Housing material | Fireproof board and aluminum alloy |
| Power source | 10 -240 V / 50/60 Hz 1.5 A |
| IP protection class | IP68 |

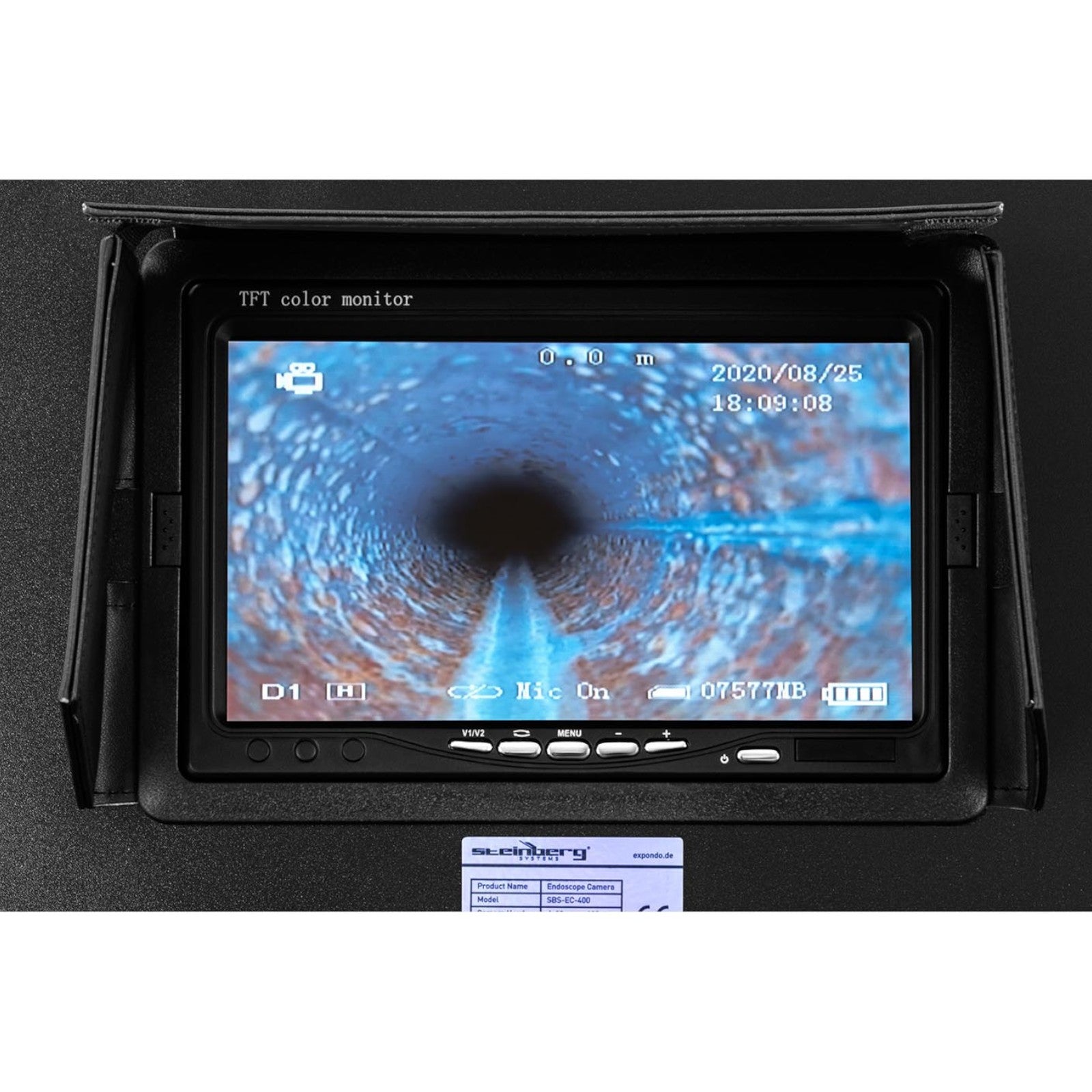

| Display type | 7-inch TFT color screen |
| Number of LEDs | 12 |

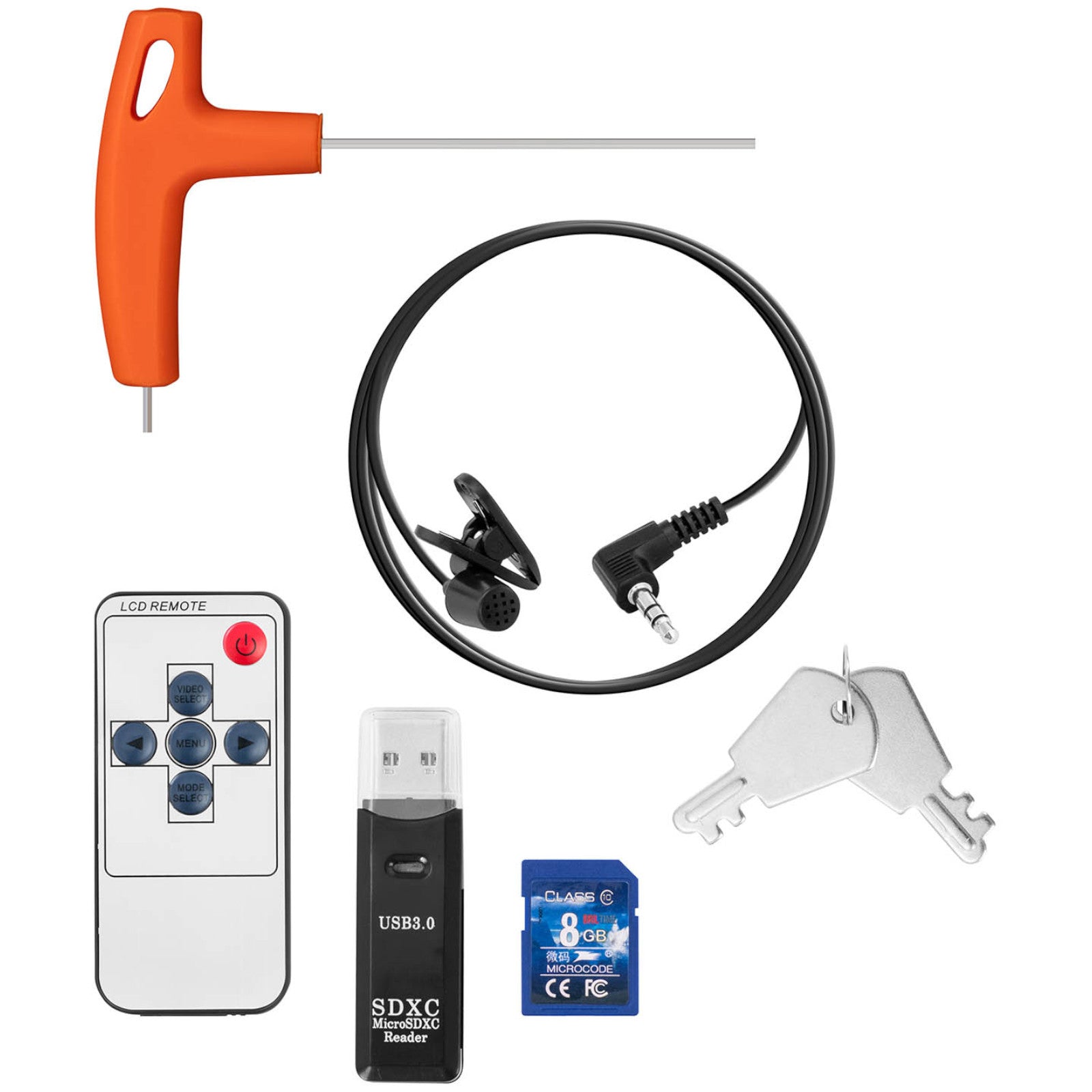

| Memory | 8 GB SD card (supports max. 256 GB SD card or USB flash drive) |
| Battery | Built-in lithium-ion battery 4400 mAh / 12.6 V |
| Matrix resolution | 1/4 inch |
| Head diameter | 23 x 120 mm |
| Lens type | Sapphire glass |
| Transmission signal | Cable |
| Probe boom length [mm] | 30 |
| Dimensions (LxWxH) [cm] | 47 x 37 x 19 |
| Weight [kg] | 7 |
| Shipping dimensions (LxWxH) [cm] | 50 x 20 x 42 |
| Shipping weight [kg] | 7.92 |
