Description
Manufacturer's code:
10021428Universal aluminum welding machine for alternating current (AC) or direct current (DC) with a welding thickness of 0.5-5 mm will allow you to weld aluminum, steel, stainless steel or copper. The selection of all welding parameters and welding current up to 200 A is very easy on the clear control panel.
You can check all values on the LCD display with pre-installed English, German, French and Swedish languages. This way you can achieve precise welding results. The modern IGBT inverter allows you to quickly switch between TIG DC, TIG AC and MMA welding methods.
With a current of up to 200 A, you can easily weld most metals regardless of the conditions. The pulsation function will allow you to achieve optimal welding results. Adjusting the pulse frequency up to 200 Hz will enable the arc to be stabilized even in difficult conditions. The welder has numerous parameters for the pulsation function, such as initial, basic or final current. They are optimally set to the workpiece using the control panel.
The ergonomic shape of the welding handle allows you to work in various positions, both vertically, horizontally and overhead. An aluminum welder makes it possible to obtain high-quality welds with fewer sparks or spatters. The modern IGBT inverter allows you to easily change all parameters. Whether it's switching from AC to DC or choosing 2- or 4-step operation. The MMA method will allow you to weld outdoors, even in strong winds.
With a constant current intensity, you can achieve very good welding results on various metals, such as steel, iron, cast iron, nickel or copper. The best results will be achieved with the Hot Start and Arc Force functions. The Hot Start function provides a short-term increase in welding current once the welding process has started, so you can work reliably and cleanly from the first moment. The Arc Force function adjusts the arc to adapt to the material being welded and the desired weld density. For welding, use the included electrode holder for 1.6-4 mm diameter electrodes.

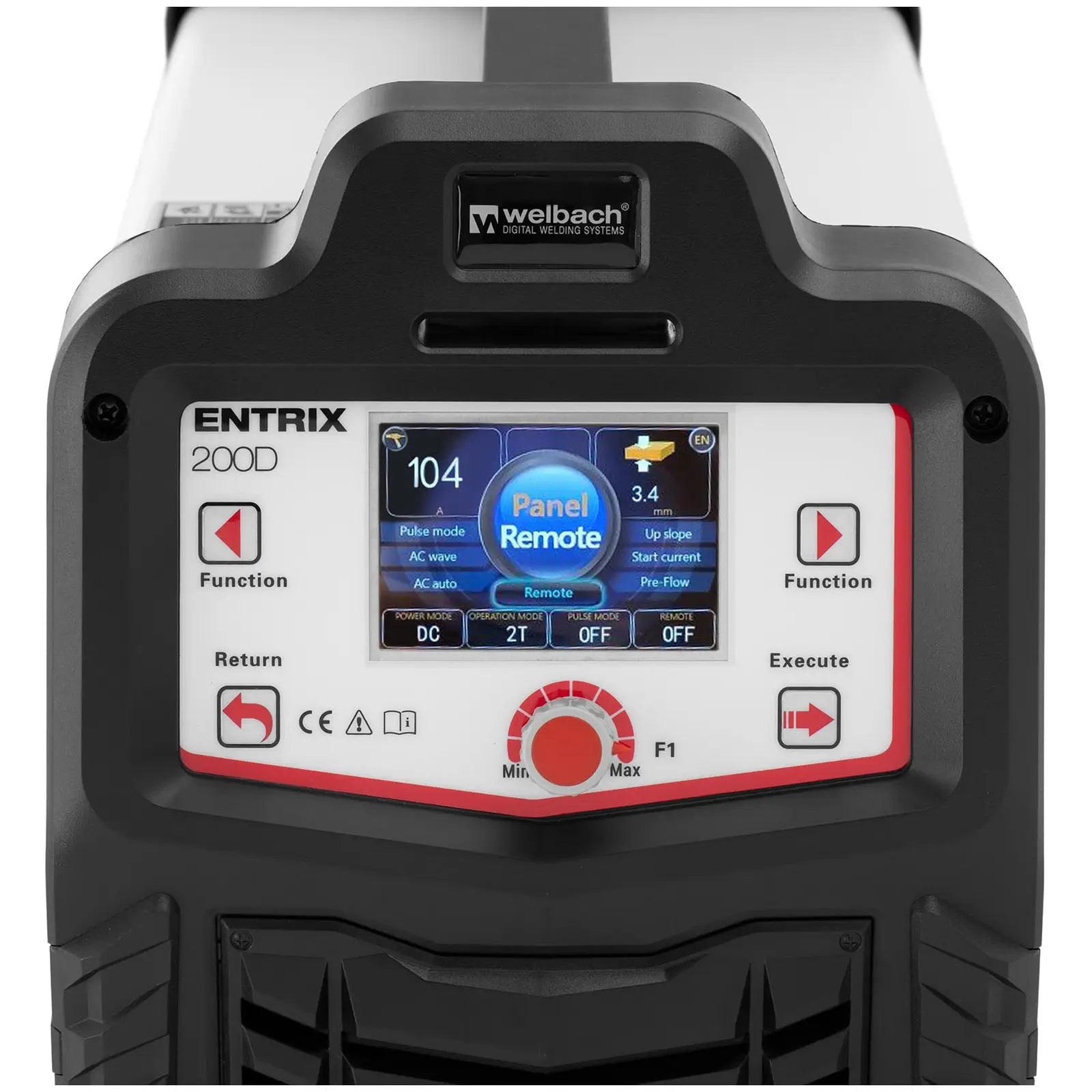

Product features: - - Digital control panel with large LCD display and pre-installed English, German, French and Swedish languages, ensuring precise welding results,
- - Perfect for steel, stainless steel, copper as well as aluminum thanks to TIG AC and pulsation function,
- - IGBT inverter with 2T/4T function and high frequency ignition,
- - Stable arc and optimal welding parameters thanks to the pulsation function,
- - MMA welding using Hot Start and Arc Force.
Technical parameters: - - Catalog number - 10021428
- - Article condition - New
- - Model - ENTRIX 200D
- - TIG ignition - HF
- - Voltage [V] - 220
- - IP protection level - IP21S
- - Input power [kVA] - 6.06
- - Power factor - 0.73
- - MMA welding current [A] - 30-200
- - Pulse current [A] - 10-200
- - Gas flow time [s] - 1-10
- - Maximum input current [A] - 9.6
- - Standard compliance - EN60974-1
- - Maximum input current [A] - TIG: 28 MMA: 43.6
- - AC current balance [%] - 10-90%
- - Rated input current [A] - TIG: 17.7 MMA: 27.6
- - Pulse frequency (AC) [Hz] - 0.5-200
- - Pulse frequency (DC) [Hz] - 0.5-200
- - AC output current frequency [Hz] - 0.5-200
- - 2/4 Cycle - Yes
- - ARC-Force - Yes
- - Hot Start - Yes
- - Duty cycle [%] - 80
- - TIG cable - 4 m
- - MMA cable - 3 m
- - Down Slope time - 25 s
- - Ground wire - 3 m

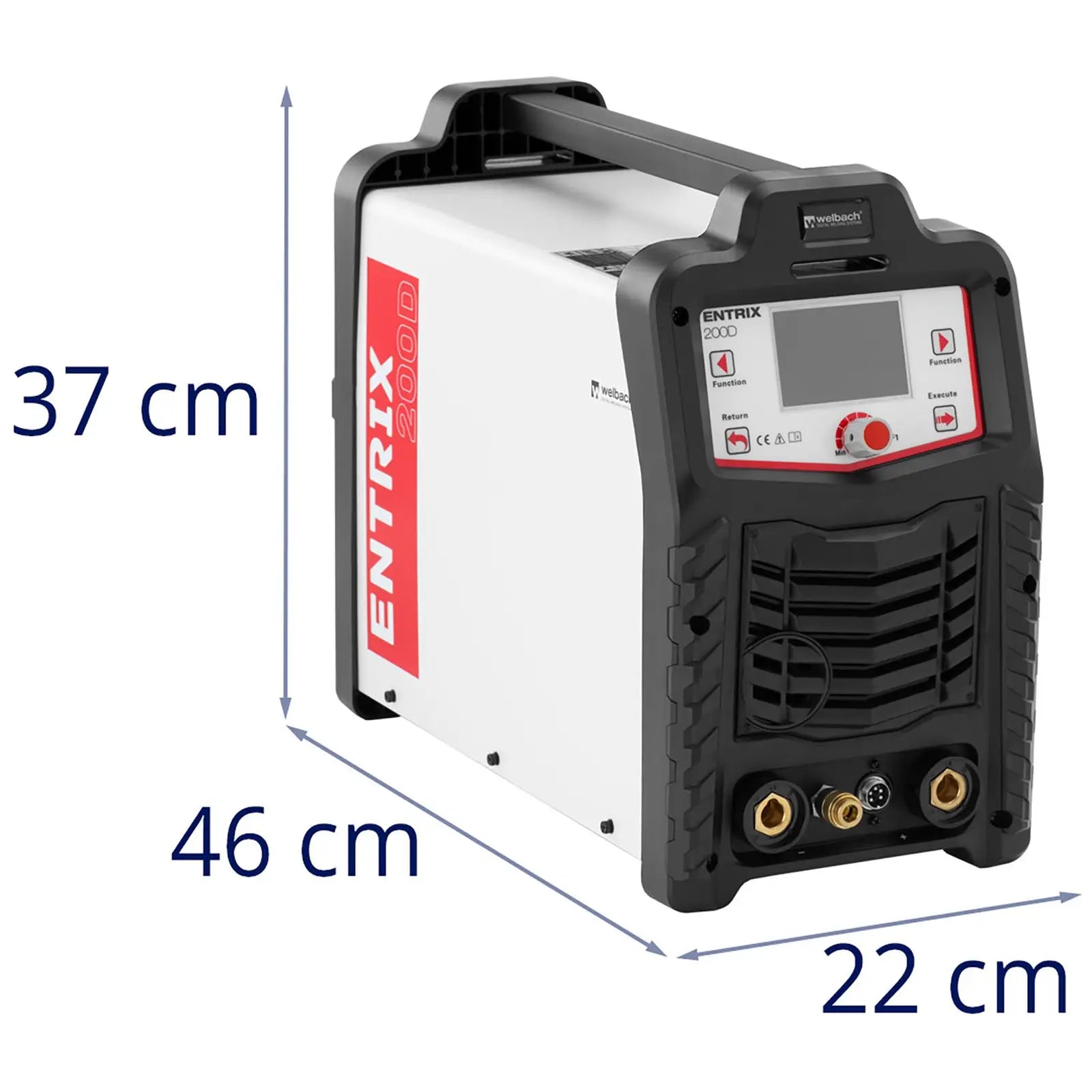

- - Dimensions (LxWxH) - 46 x 21.5 x 37.5 cm
- - Weight - 19.46 kg
- - Shipping dimensions (LxWxH) - 58 x 50 x 33 cm
- - Shipping weight - 21.3 kg

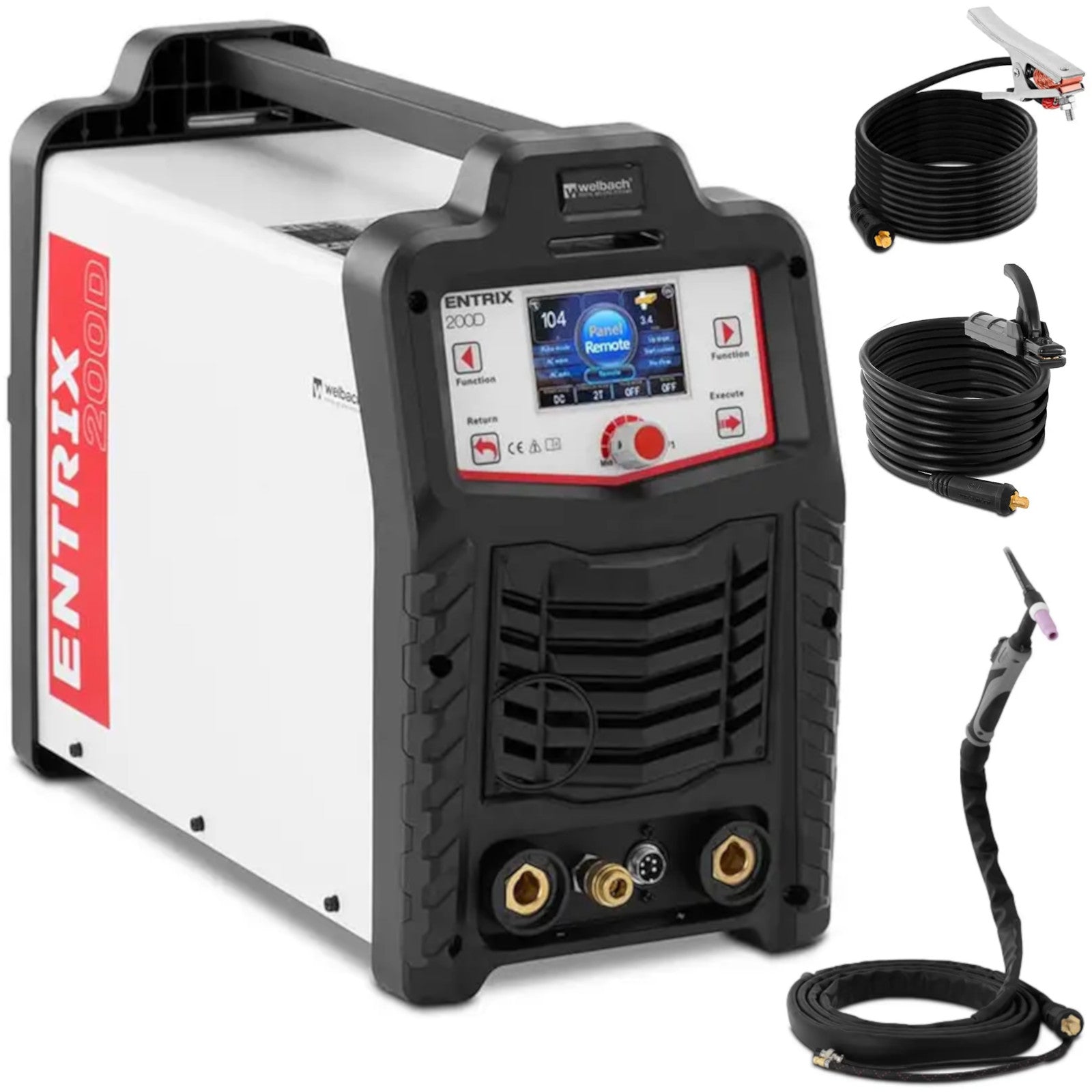

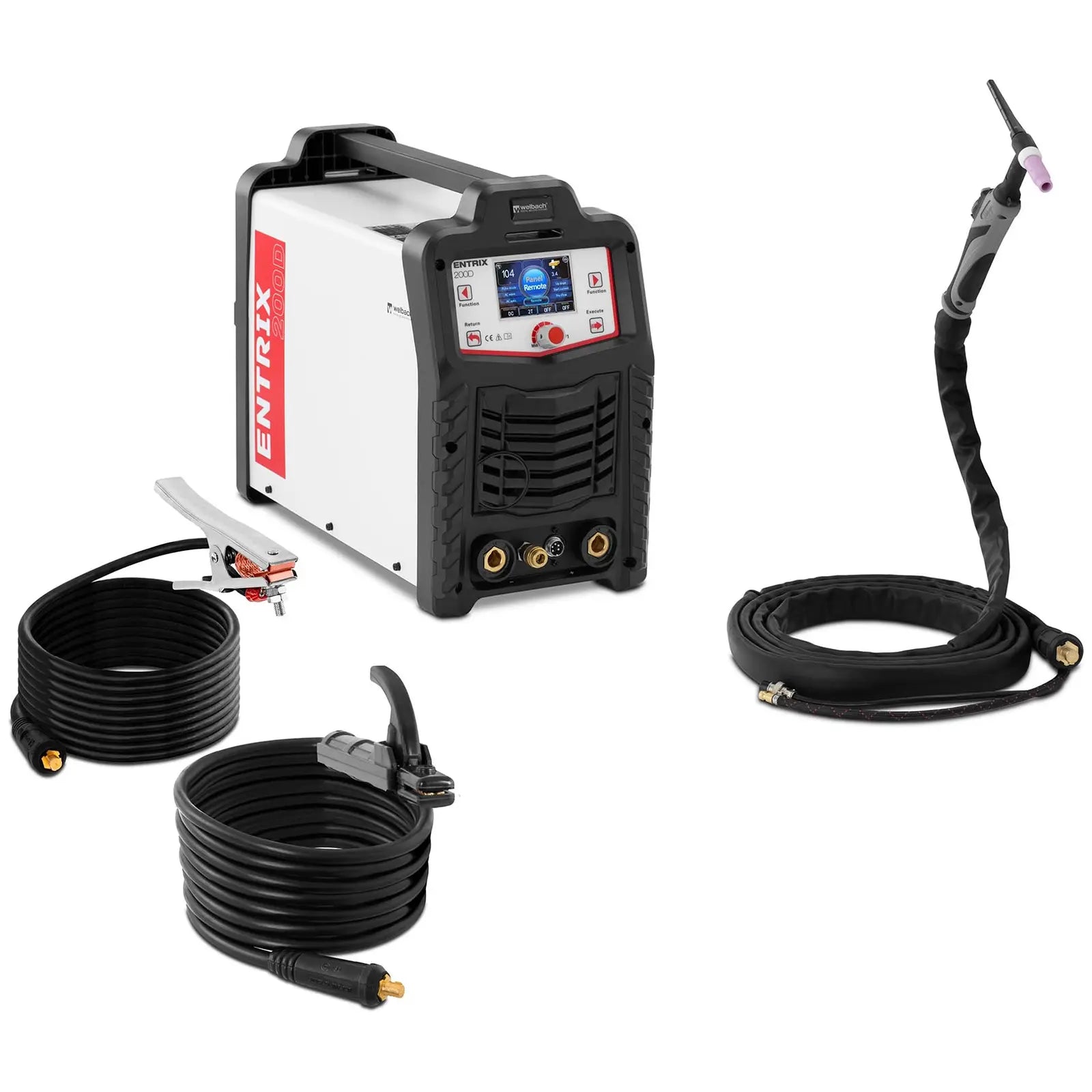

Included in the set: - - Aluminum welding machine
- - TIG WP26 welding torch with cable package (4 m)
- - Clamp grounding with cable (3 m)
- - Electrode holder with cable (3 m)
