Description
Product code:
1010659 High quality product Czech leader in the production of gas equipment and accessories of the company
MEVA, which has been in existence since 1898. - I'm sorry.
durable and effective gas burner for hard and soft soldering. It also works when heating various materials or removing paint. The burner can be powered by G30 gas, propane-butane from a standard LPG cylinder. The gas supply hose is mounted with clamps.
with a power of 2.1 kW it is equipped with a comfortable handle with a knob for adjusting gas flow.
Features and functions of the construction gas burner: - - high power effectively warms or melts the material,
- - a fluidly adjustable flame,
- - easy and cost-effective to use
- - profiled handle and small weight increase work comfort.
Technical parameters: - - Fuel source: 2 or 10 kg LPG tank
- - Fuel: G30 (propane, butane or mixture thereof)
- - Recommended working pressure of burners: 1 ÷ 4 bar
- - Connection to gas cylinders - two options:
- with hose and clamping bands: tip for connection of hose length 28mm / wed 8mm
- with G 3/8" L connector
13 mm burner - - Power consumption (at pressure) 2 ÷ 3 bar: 1,4 kW
- - Consumption (pressure) 2 ÷ 3 bar: 100 g/h
- - Diameter of nozzle (reference): wed. 0,15 mm (No 15)
- - Minimum room volume: 15 m3
14 mm burner - - Power consumption (at pressure) 2 ÷ 3 bar: 1,7 kW
- - Consumption (at pressure) 2 ÷ 3 bar: 120 g/h
- - Diameter of nozzle (reference): wedlock: 0.20 mm (No 20)
- - Minimum room volume: 17 m3
20 mm torch - - Power consumption (at pressure) 2 ÷ 3 bar): 2,1 kW
- - Consumption (at pressure) 2 ÷ 3 bar: 150 g/h
- - Nozzle diameter (reference): wed. 0,30 mm (No 30)
- - Minimum room volume: 21 m3

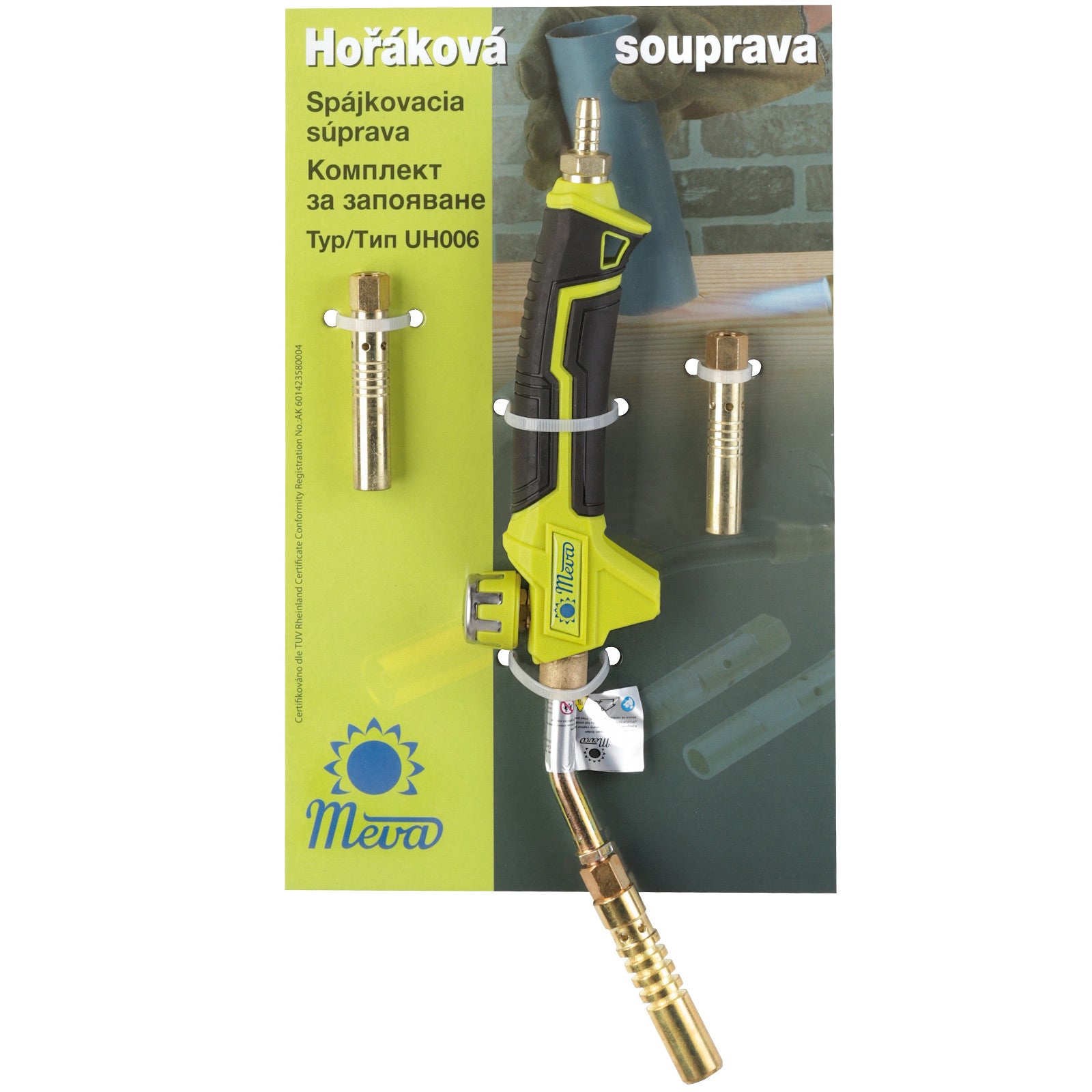

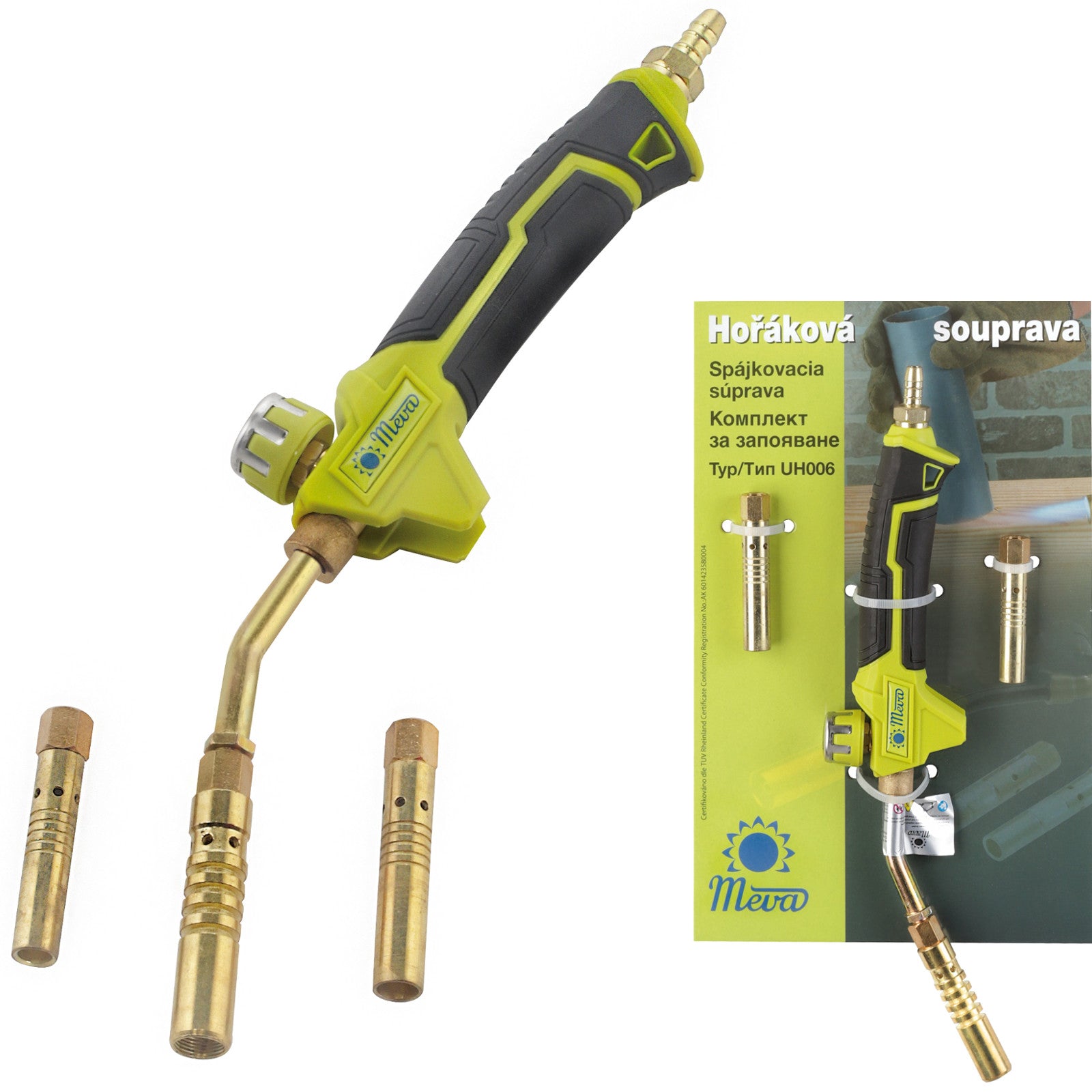

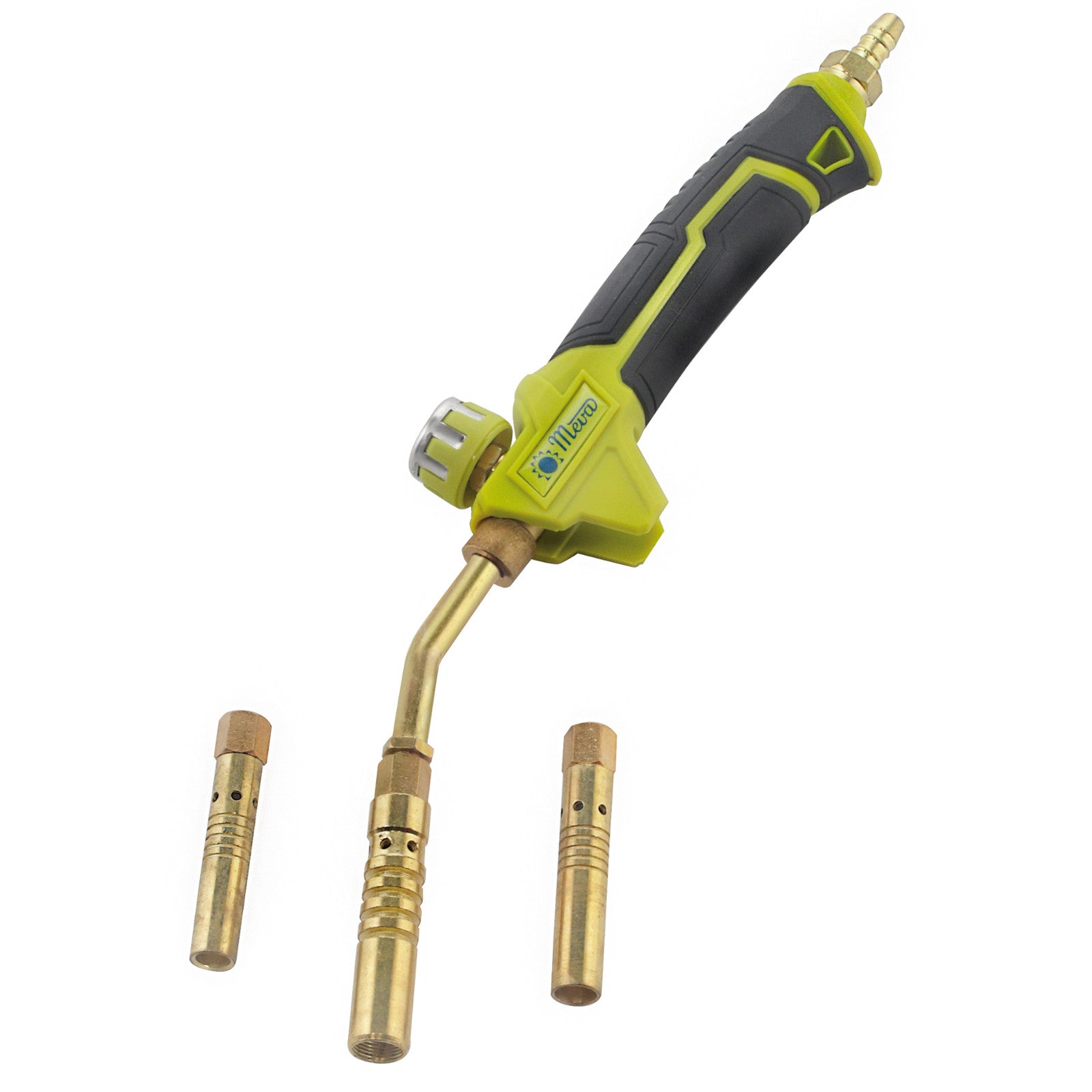

Included: - - handle with control valve (with connecting shaft)
- - 3 burners (Wind. 13 / 14 / 20 mm)
