Description
Manufacturer's code:

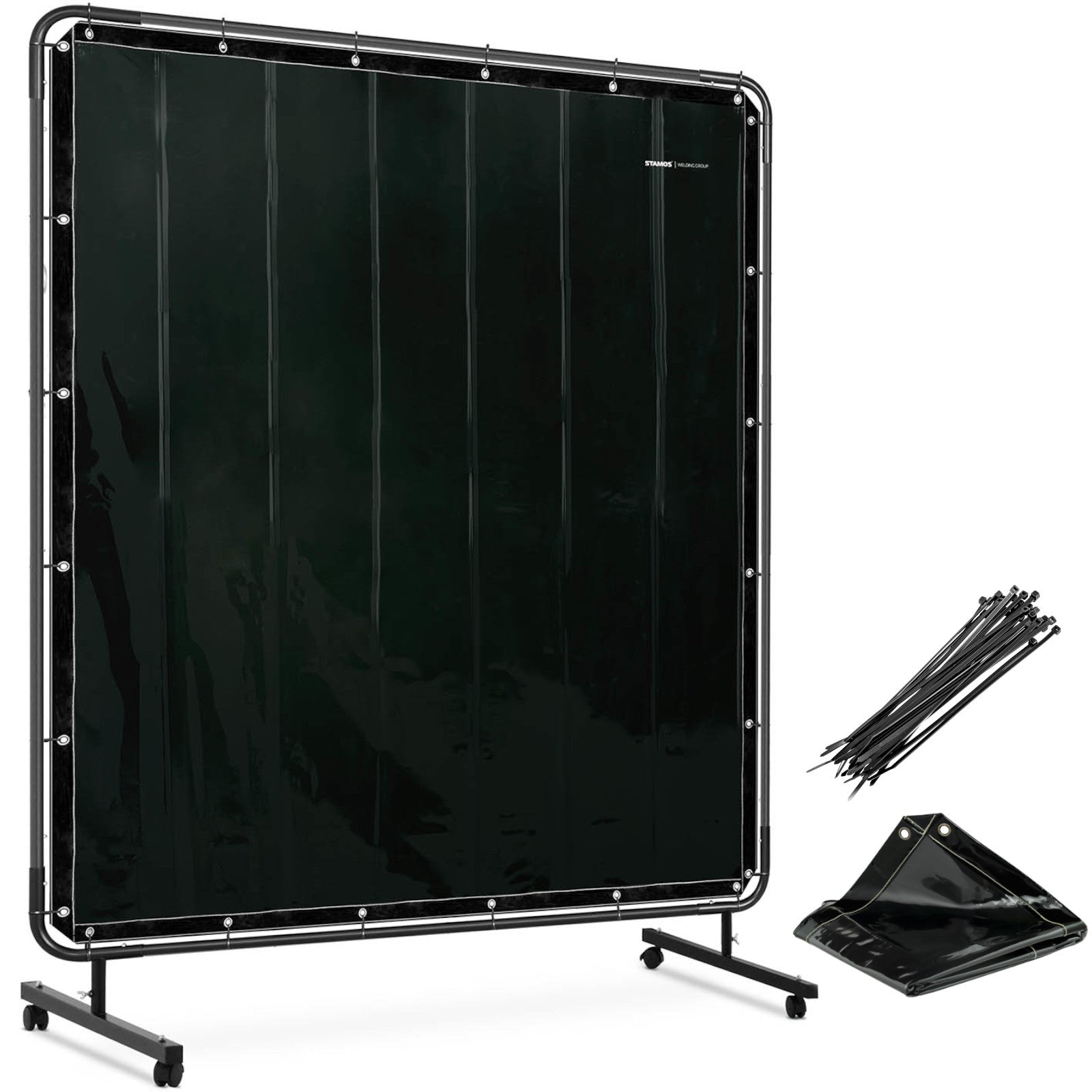

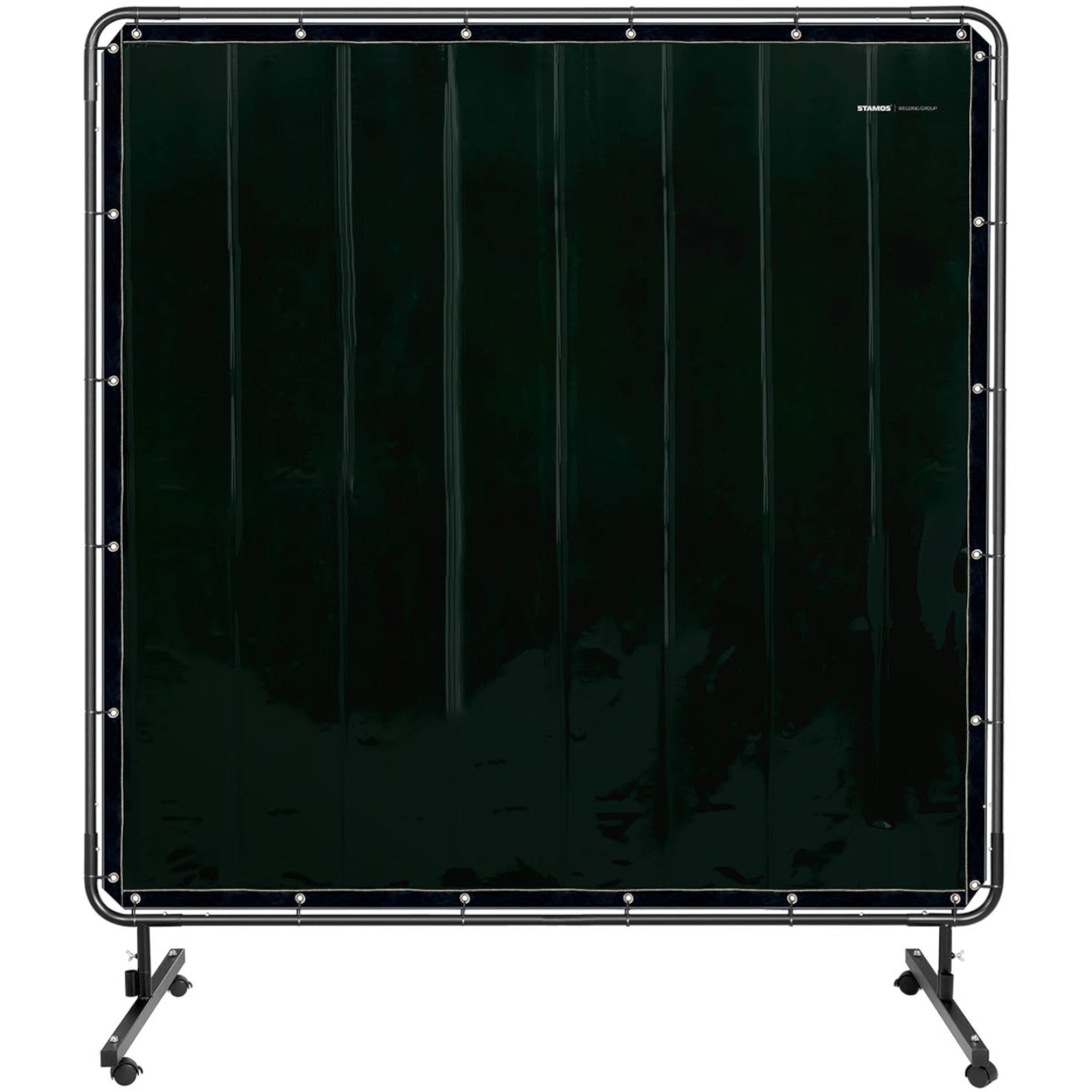

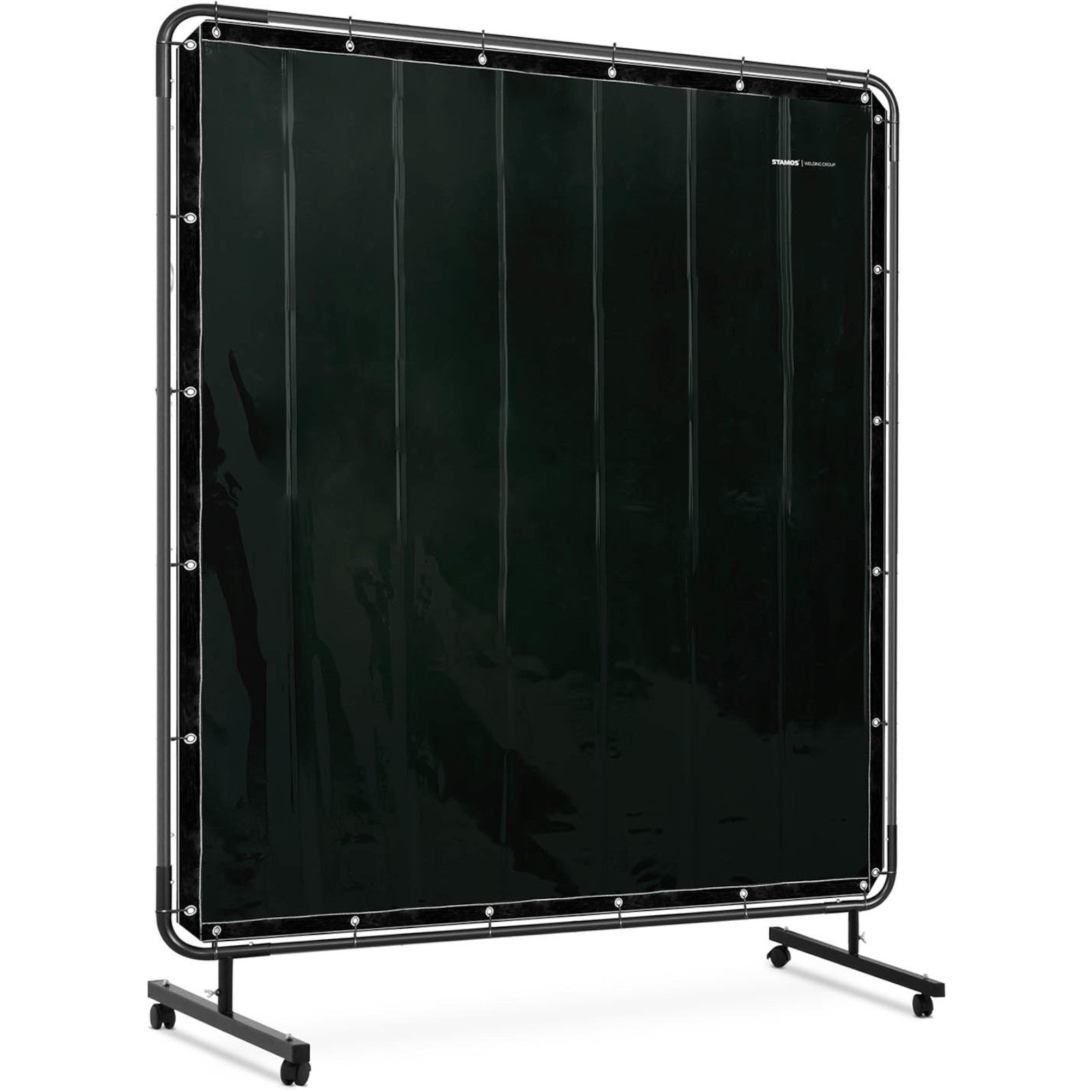

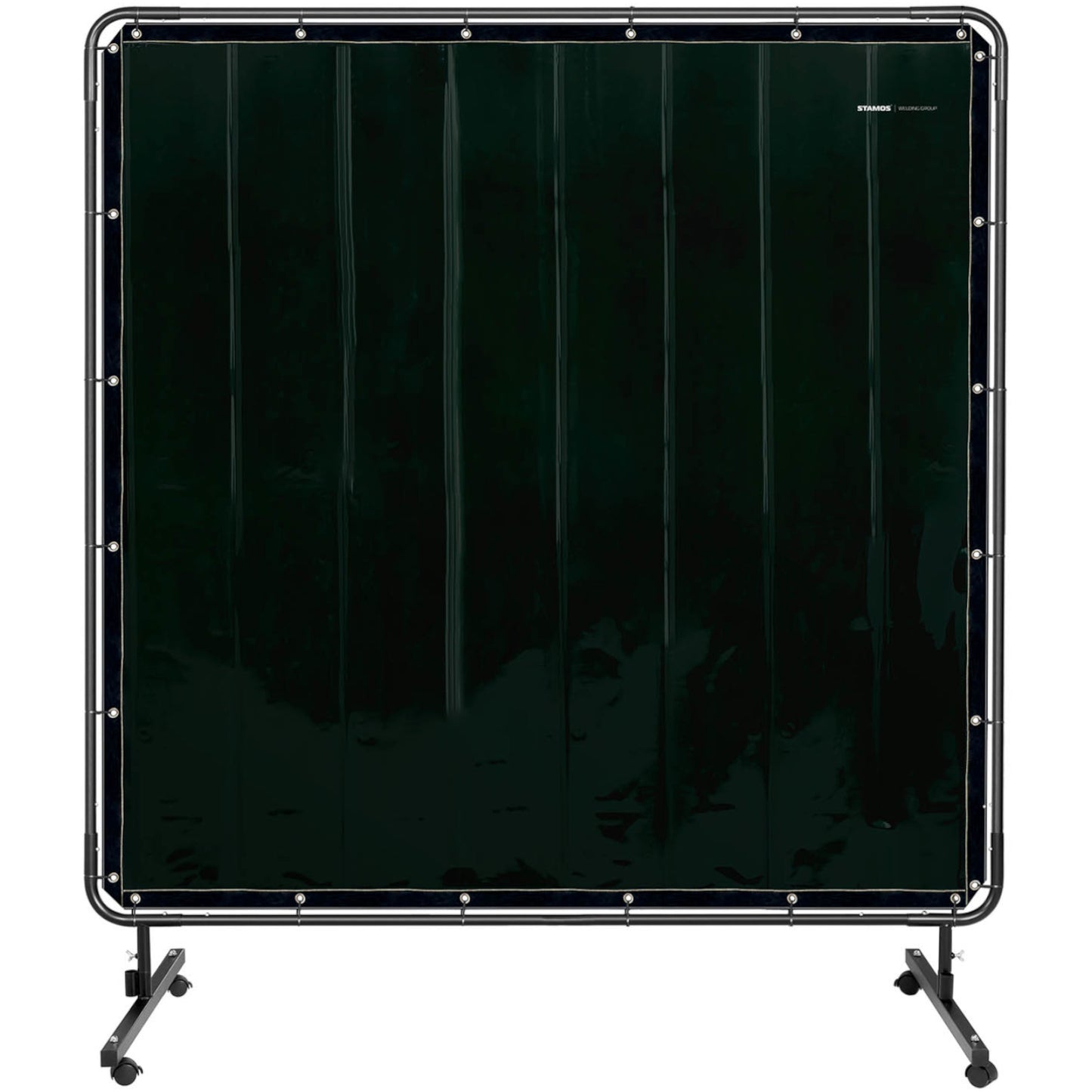

10021110Welding curtain is a product designed to protect outsiders from the light of welding arc, sparks and splinters. Large size effective separates the working area.
The screen was made of vinyl thickness
0,4 mmwhich is non-flammable and UV-resistant. The entire circuit is covered by the

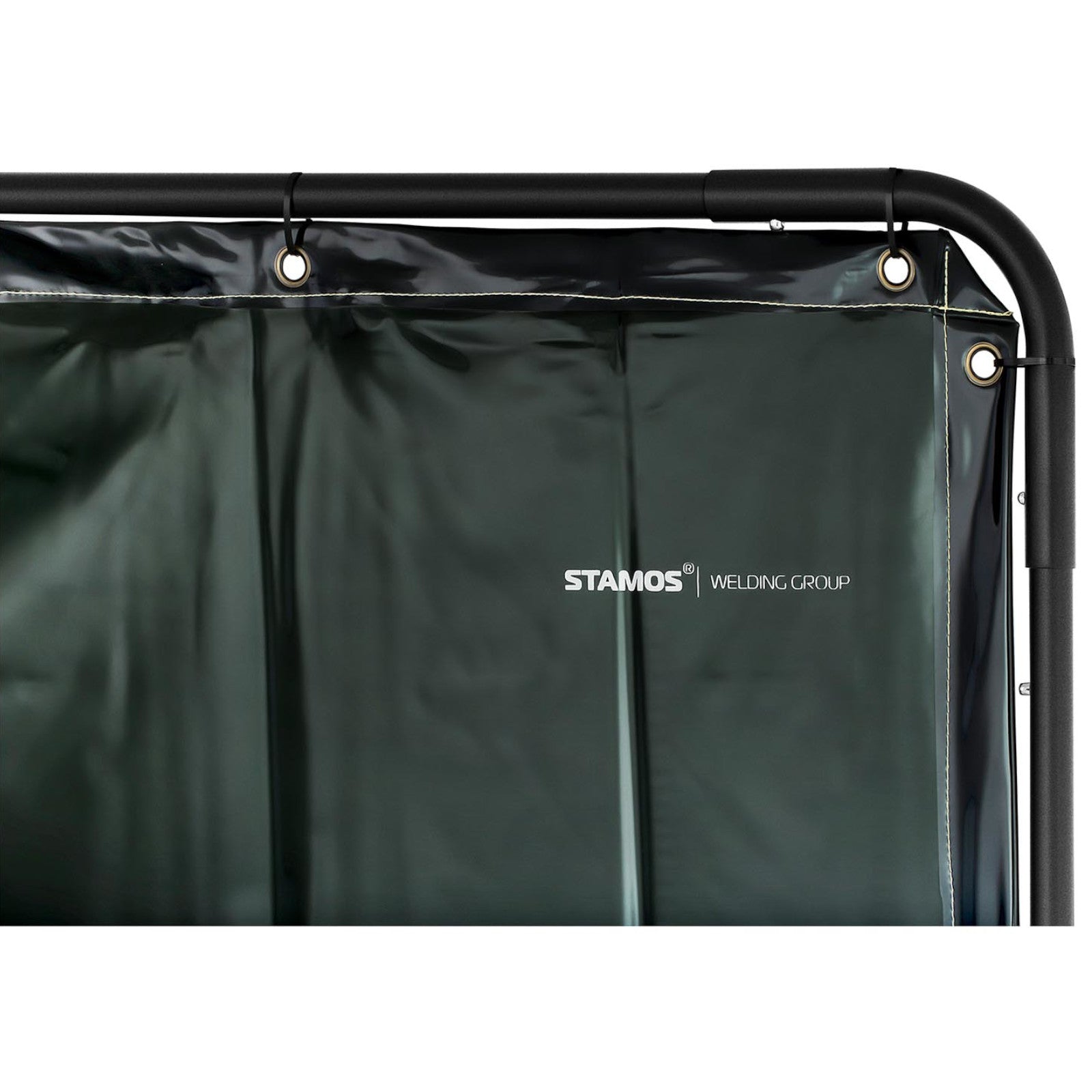

mounting eyesThe screen is equipped with high quality stitches with strong fire-resistant threads. The wallet holder has dimensions of 174 x 180 cm. The diameter of the pipes is 22 mm. 4 wheels provide a curtain mobility. The product is certified to conform with the norm
EN ISO 25980 required for safety and safety procedures.
Product features: - - Resistance - vinyl, 0.4 mm thick UV-resistant and flammable,
- - Durability - stitches made of strong threads resistant to heat and fire,
- - Protection - large area of 175 x 175 cm,
- - Security - according to EN ISO 25980,
- - Mobility - solid frame on wheels, two have brakes,
- - Easy to mount - there are seat-mounted guides on the whole perimeter.
Technical parameters: - - Model - SWS05
- - Catalog number - 10021110
- - The state of the article - New
- - Material - Vinyl
- - Kind of circles - Torsion brakes
- - The diameter of the rail pipes - 22 mm
- - Sutures - Strong Fire Resistant Fences
- - Color - Black
- - Screen size [mm] - 1740 x 1740
- - Spectral transfer [%] - < 0,002 / < 3
- - MMA - Yes.
- - TIG - Yes.
- - MIG/MAG - Yes.
- - Risk level - 0,6
- - Light permeability [%] - 0,93
- - The level of danger after exposure - 0,59
- - Light transmittance after light exposure [%] - 0,63
- - Relative change in light transmission [%] - 29,6
- - Dimensions (DxSxW) [cm] - 3 x 180 x 190
- - Weight [kg] - 6,25
- - Dimensions of dispatch (DxSxW) [cm] - 162 x 24 x 6.5
- - Weight of dispatch [kg] - 7,5

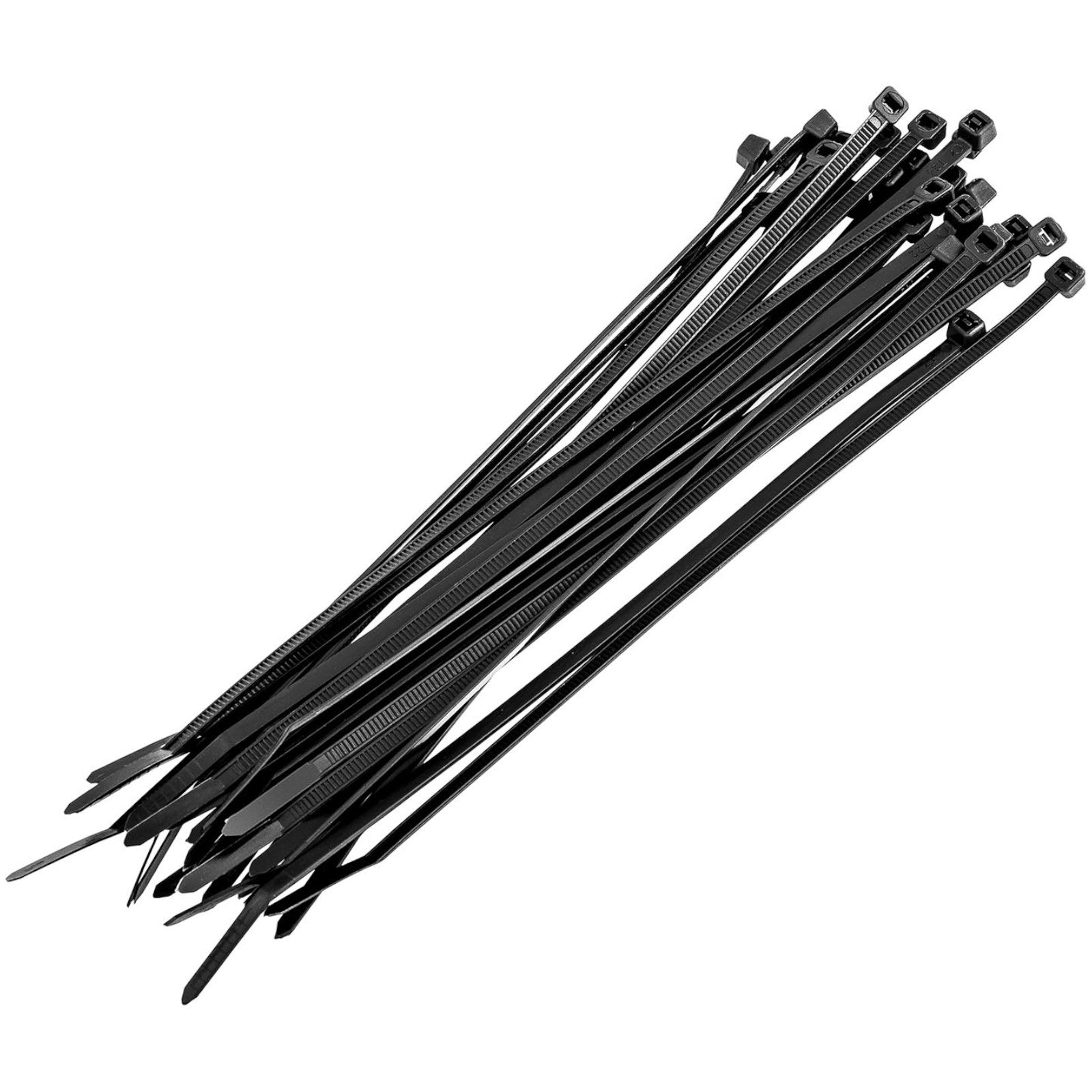

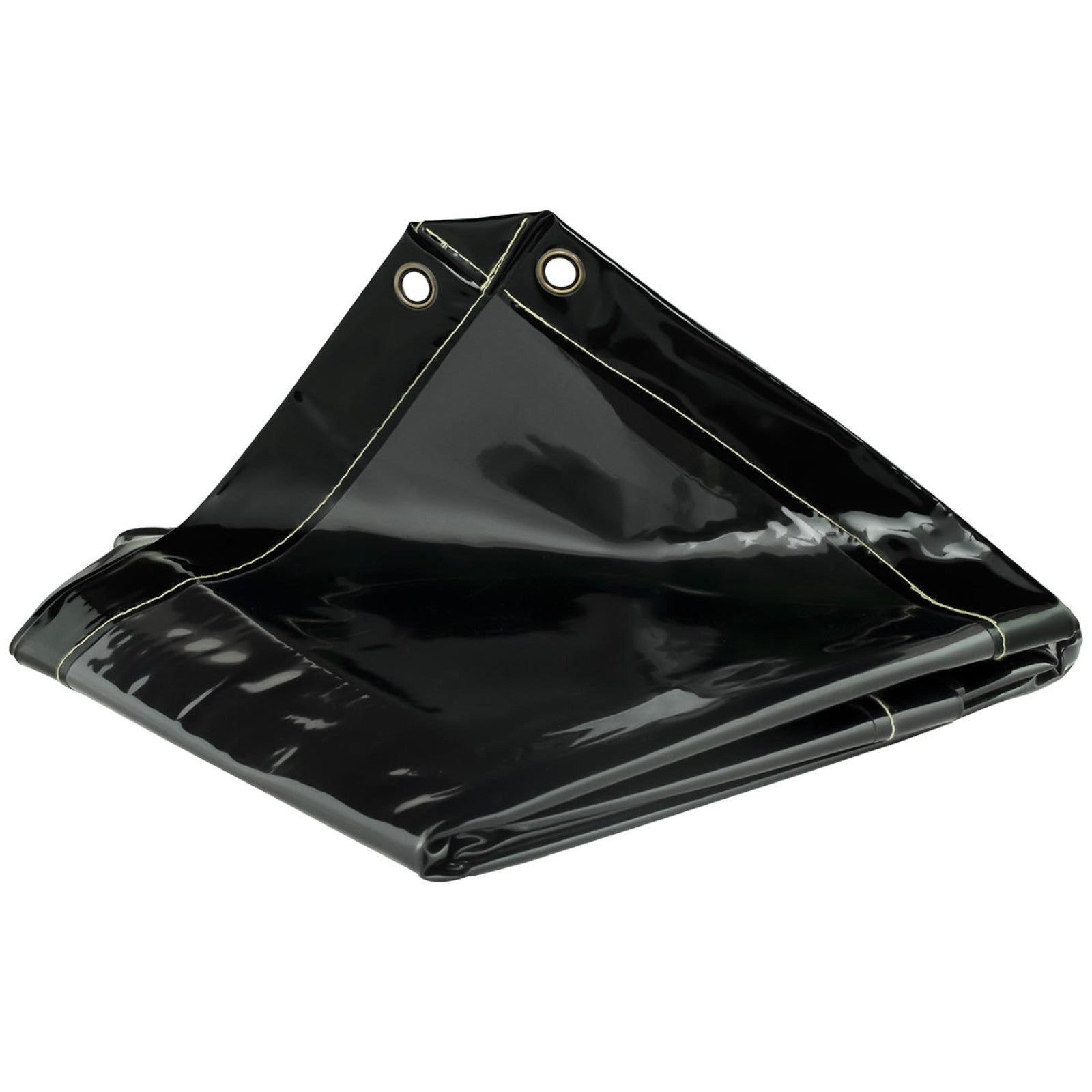

Included: - - Welding curtain

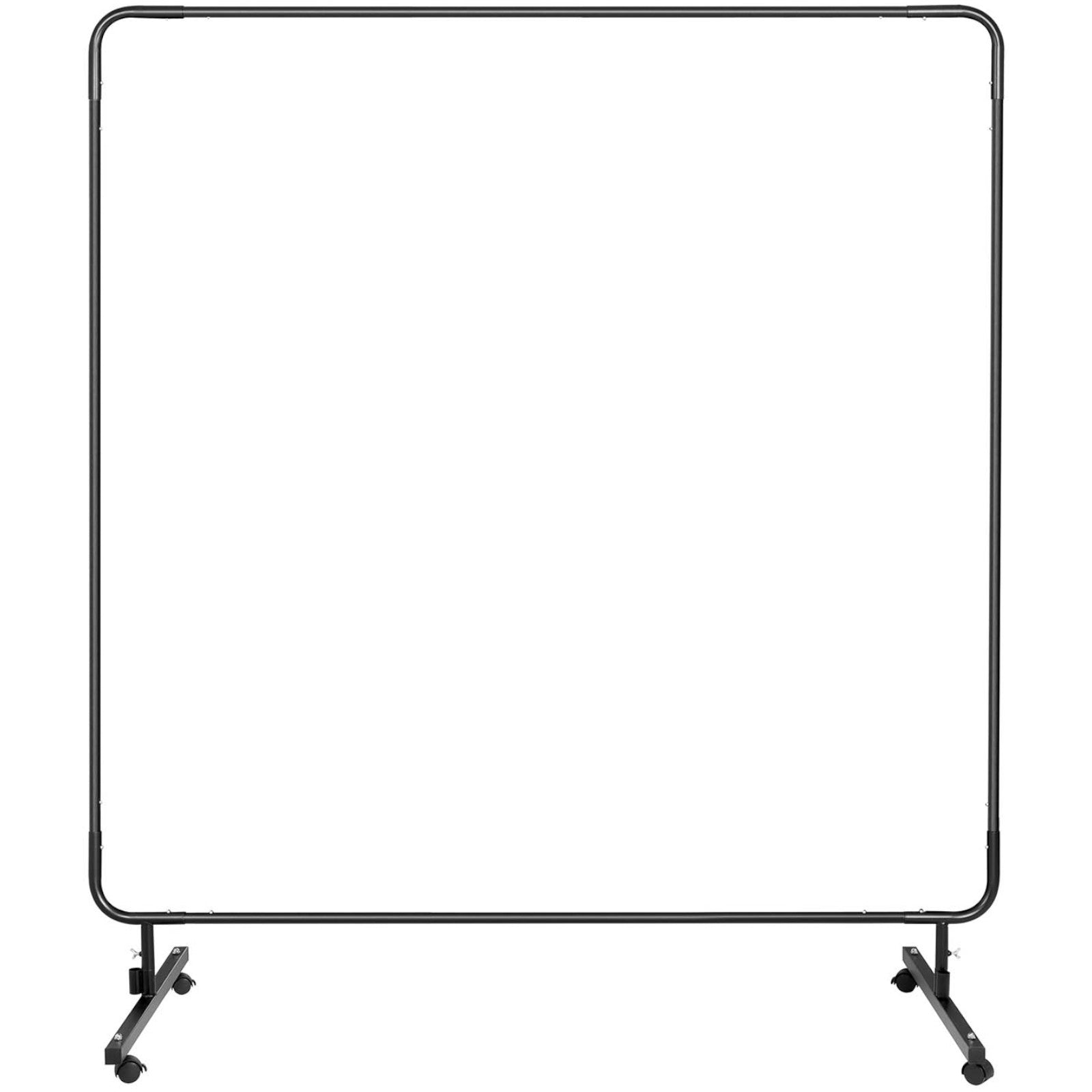

- - The frame.
- - Instruction
