Description
Manufacturer's code:

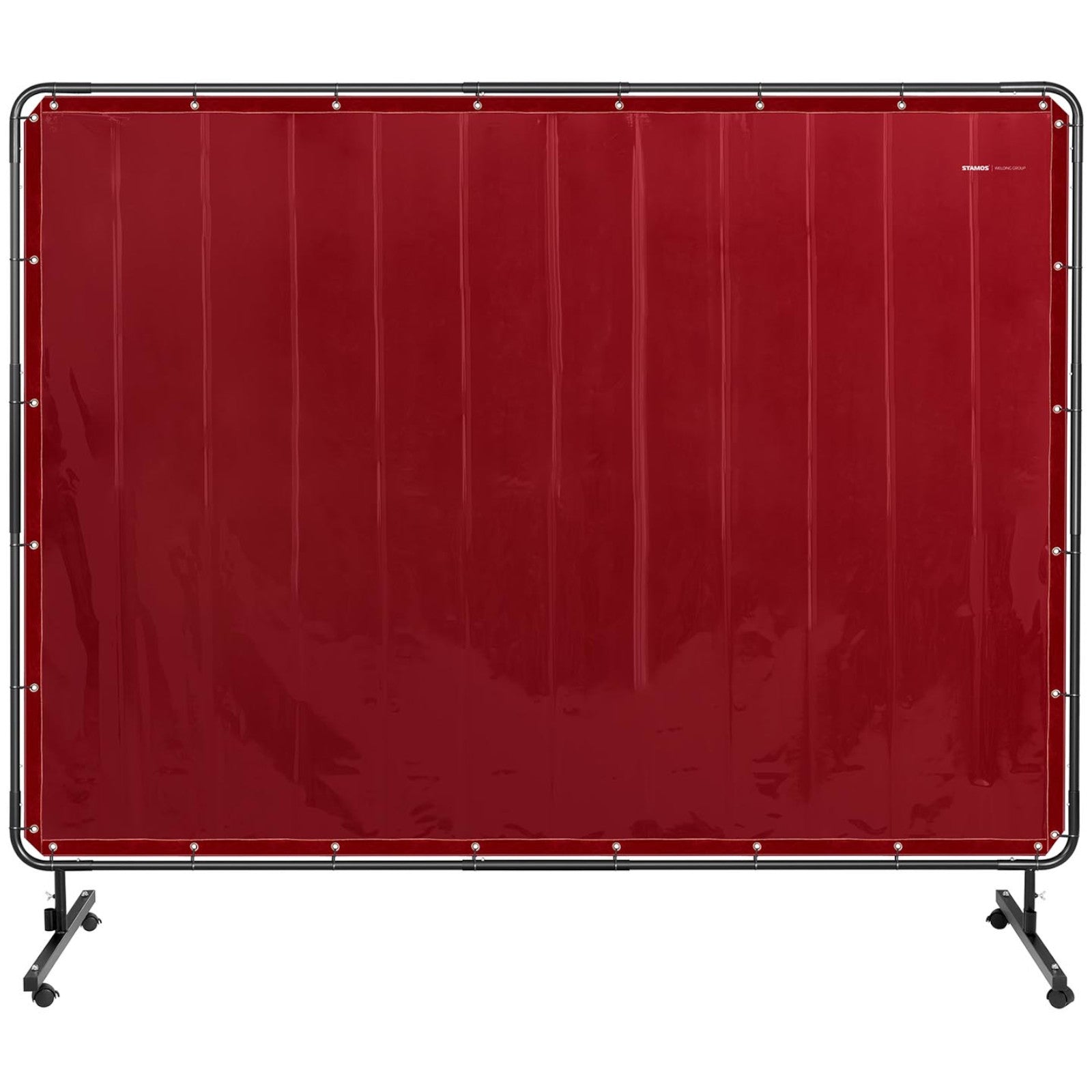

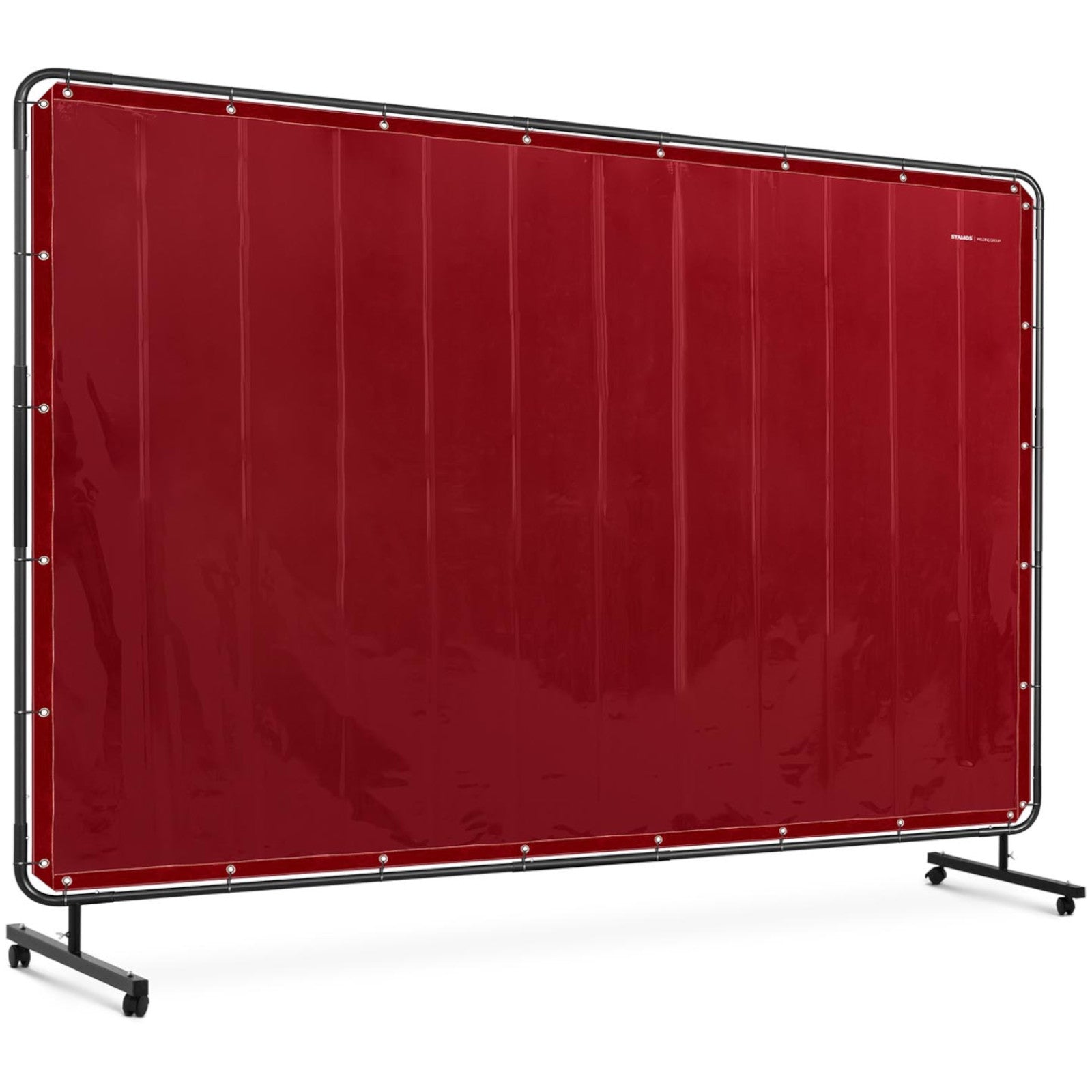

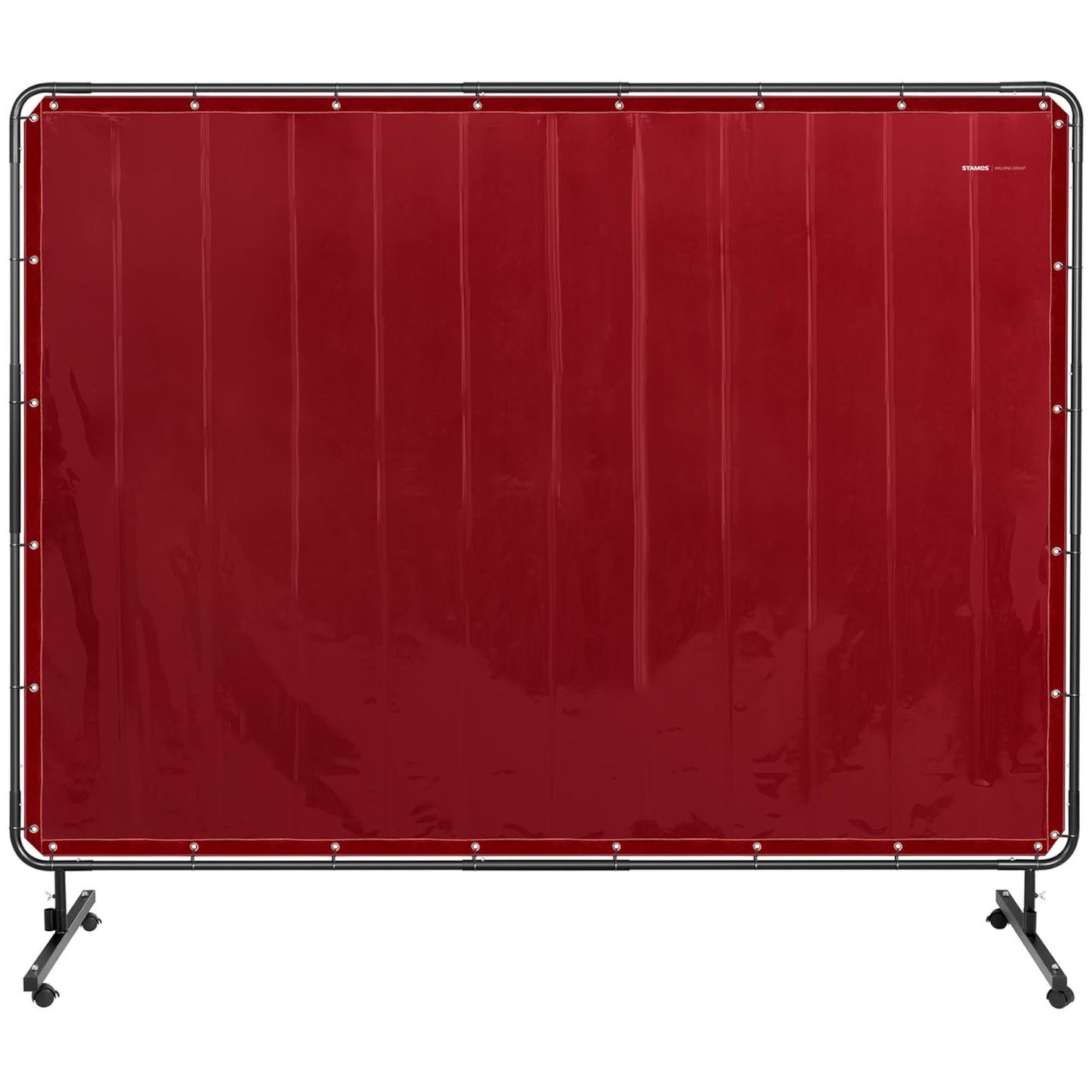

10021109Welding curtain is a product designed to protect outsiders from the light of welding arc, sparks and splinters. Large size effective separates the working area.

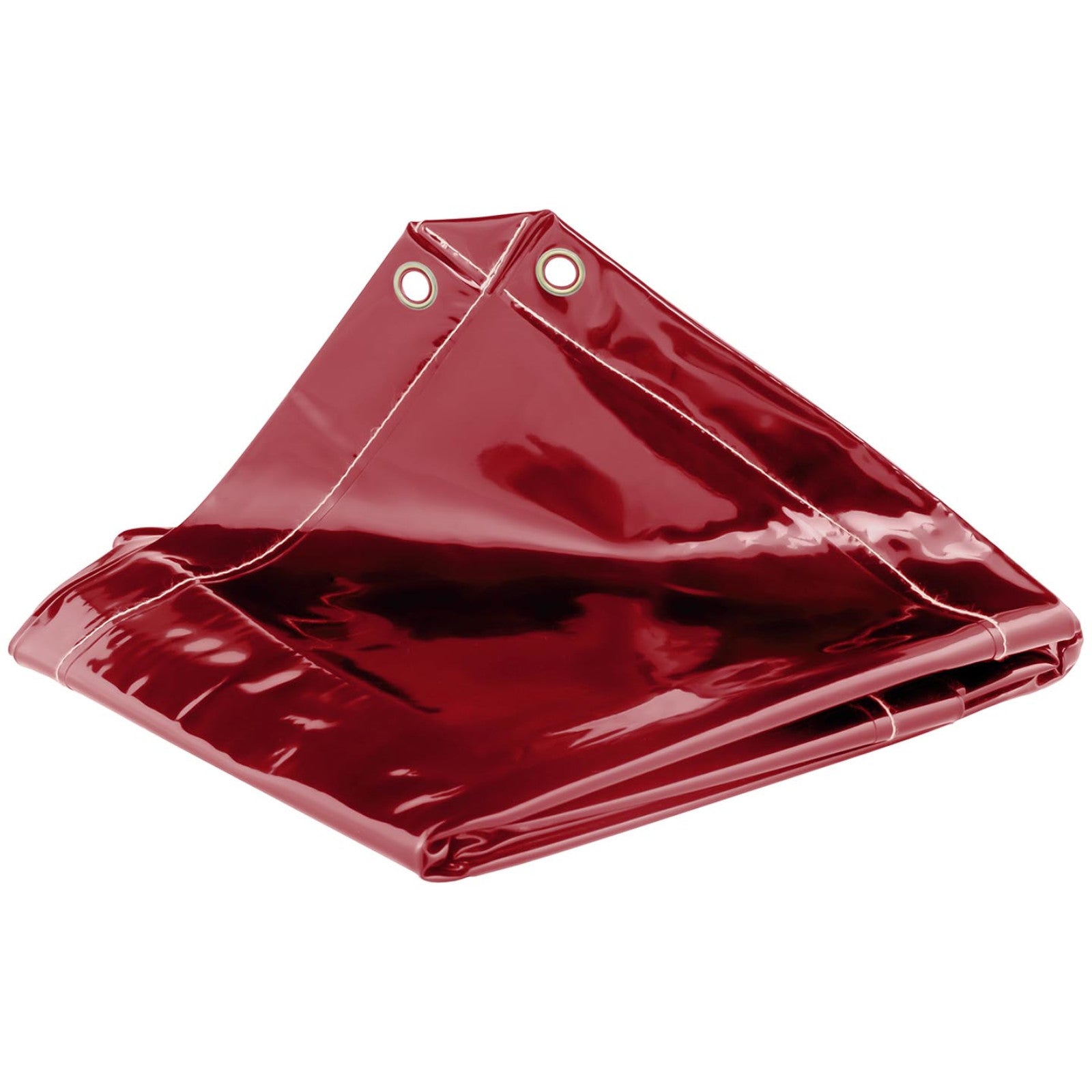

The screen was made of vinyl thickness
0,4 mmwhich is non-flammable and UV-resistant. The entire circuit is covered by the

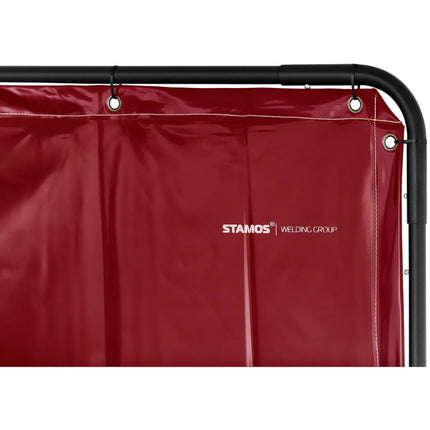

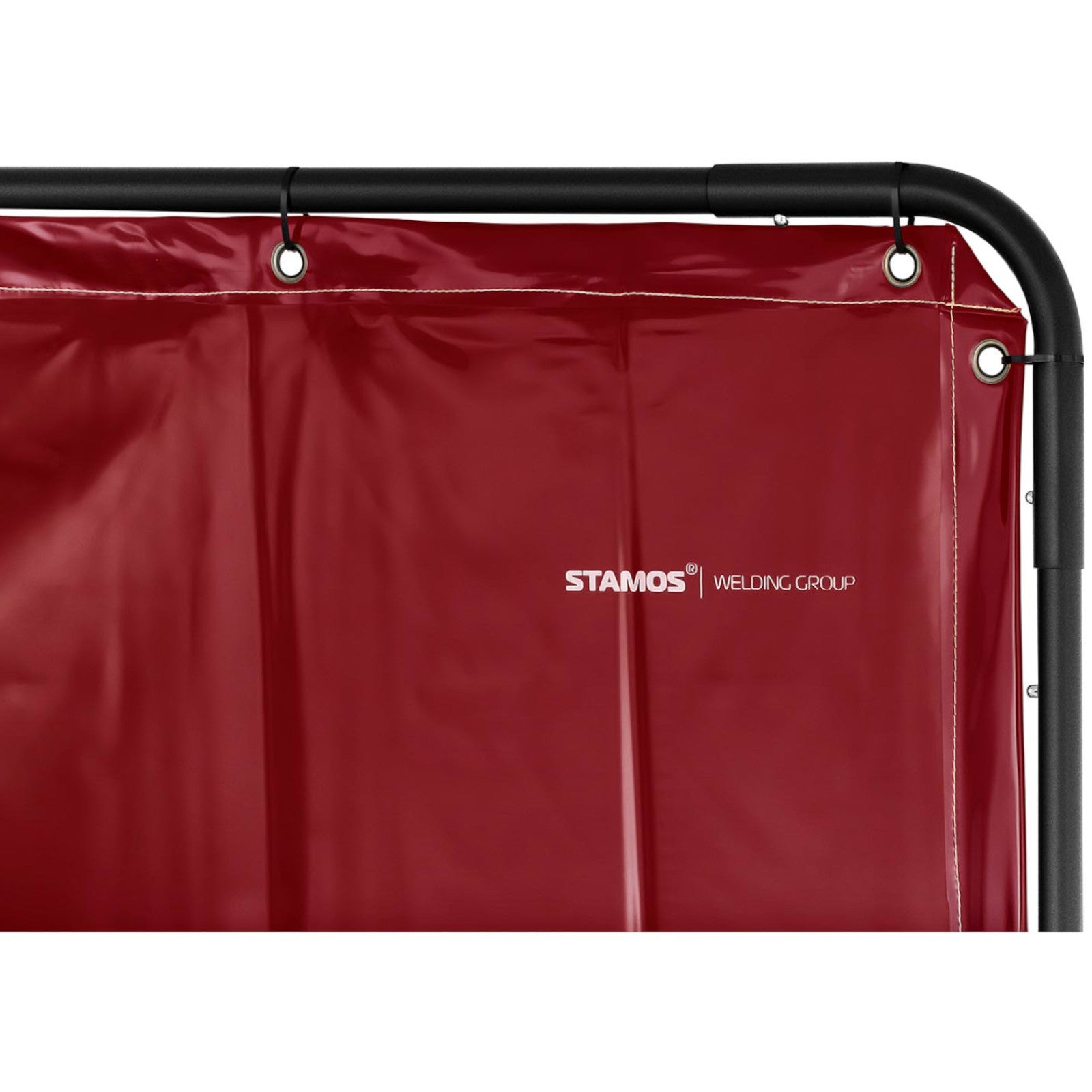

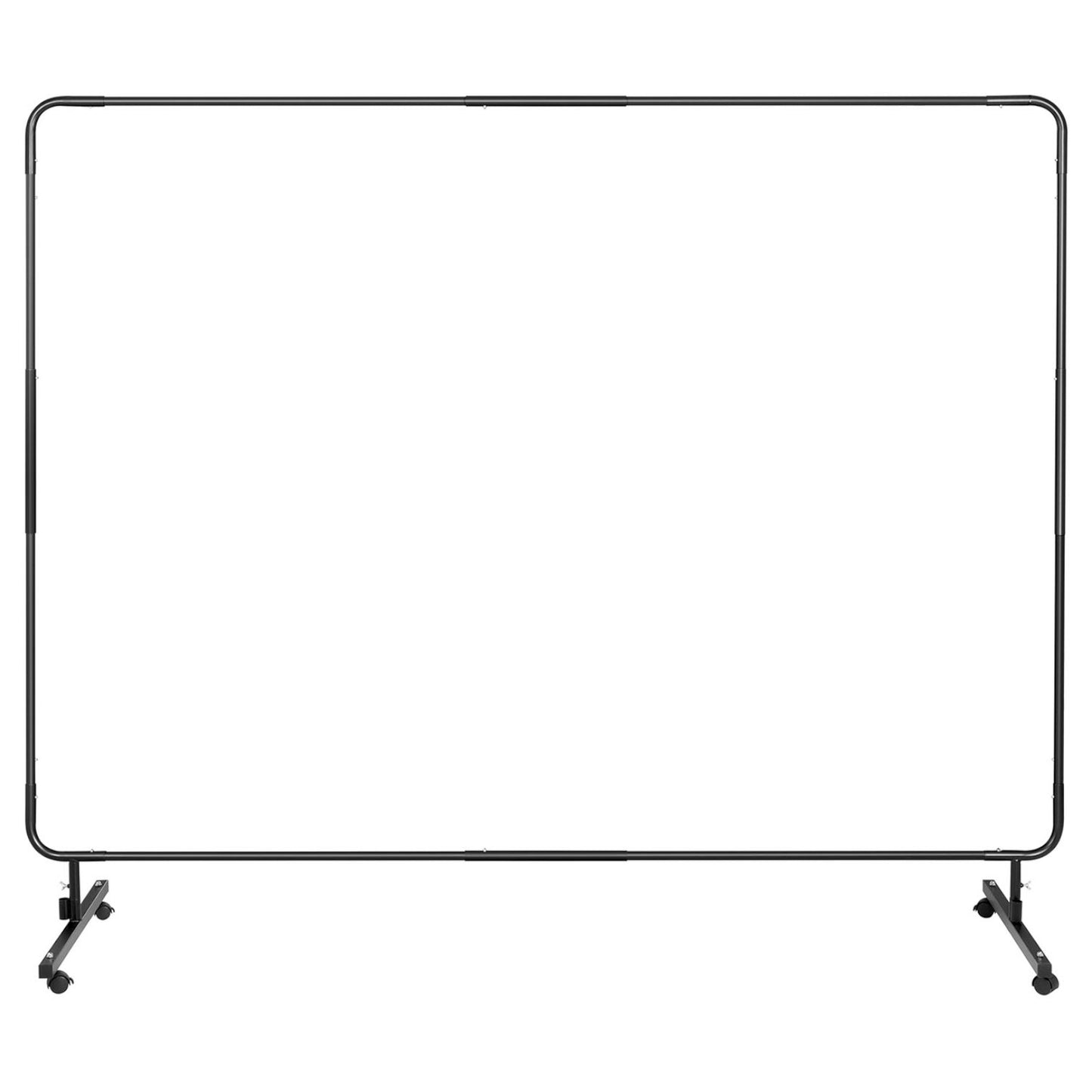

mounting eyesThe screen is equipped with high quality seams made of strong fire resistant threads. The stability of the screen provides a solid steel base with dimensions of 240 x 180 cm. The diameter of the pipes is 22 mm. 4 casters provide a curtain mobility. The product has a certificate of compliance with the standard
EN ISO 25980 required for safety and safety procedures.
Product features: - - Resistance - vinyl, 0.4 mm thick UV-resistant and flammable,
- - Durability - stitches made of strong threads resistant to heat and fire,
- - Protection - large area with dimensions of 239 x 175 cm,
- - Security - according to EN ISO 25980,
- - Mobility - solid frame on wheels,
- - Easy to mount - there are seat-mounted guides on the whole perimeter.
Technical parameters: - - Model - SWS04
- - Catalog number - 10021109
- - The state of the article - New
- - Material - Vinyl
- - The wheels material - Plastic
- - Kind of circles - 360Deg torsion
- - The diameter of the rail pipes - 22 mm
- - Sutures - Strong Fire Resistant Fences
- - Light transmission based on light source A> 0.0001 - 0,0093
- - Spectral penetration factor for wavelength 210nm≤λ≤313nm - < 0,002%
- - Spectral penetration factor for wavelength 313nm≤λ≤400nm [%] - < 3
- - Hazard level 1 (400nm≤λ≤1400nm) - 0,6
- - Light permeability based on light source A after exposure to UV rays - 0,0063
- - Relative change in light transmission after exposure to UV rays - 0,296
- - Risk level - 59
- - moderate UV resistance - Yes.
- - Fire resistance - Yes.
- - The distances between the flyers - 304 mm
- - Thickness of material - 0,4 mm
- - The dimensions of the curtain - 239 x 175 cm
- - Dimensions of the rail - 240 x 180 cm
- - Dimensions (DxSxW) - 66,00 x 240,00 x 196,00 cm
- - Weight - 8.70 kg
- - Dimensions of dispatch (DxSxW) - 23.5 x 120,00 x 8,00 cm
- - Weight of shipping - 9,00 kg

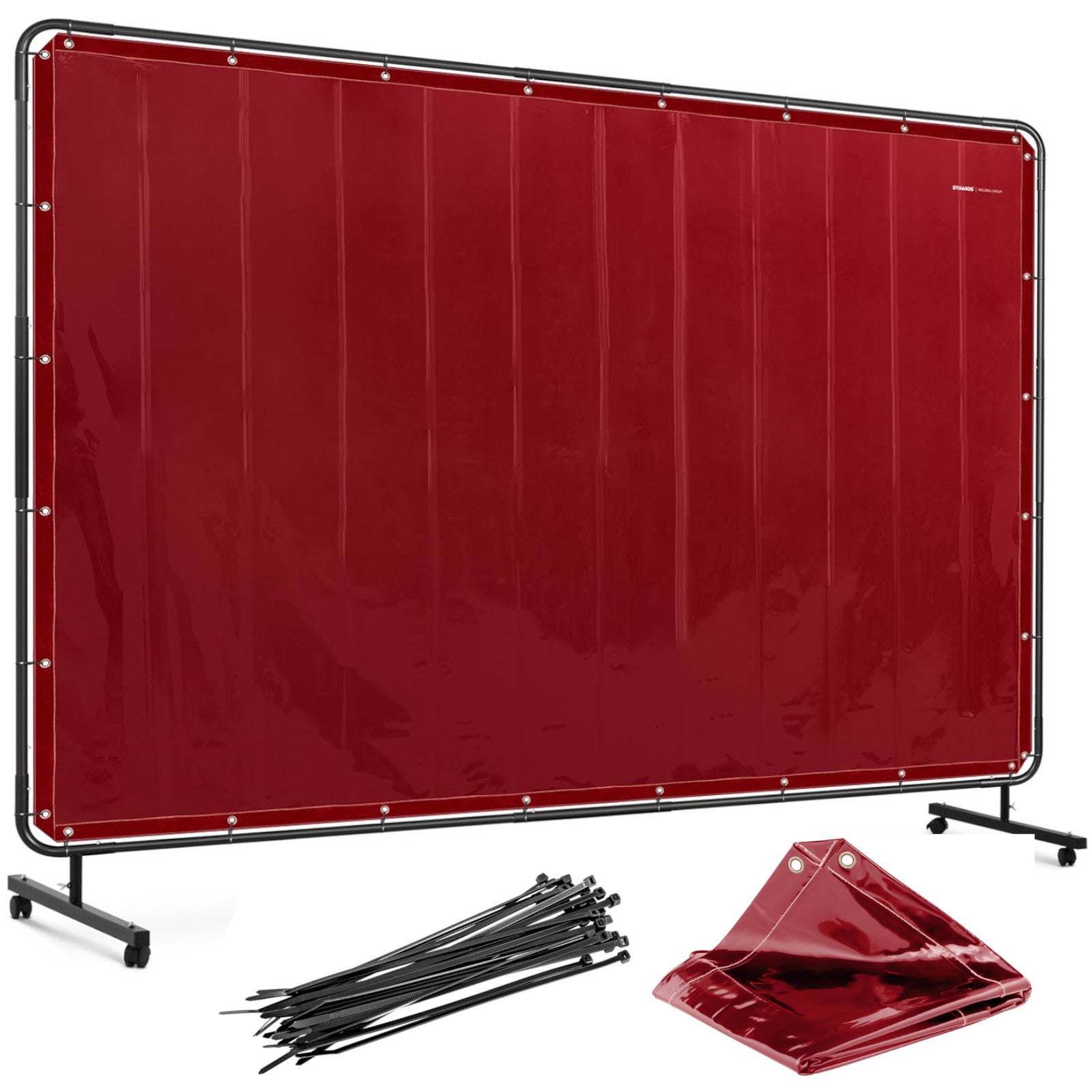

Included: - - Welding curtain

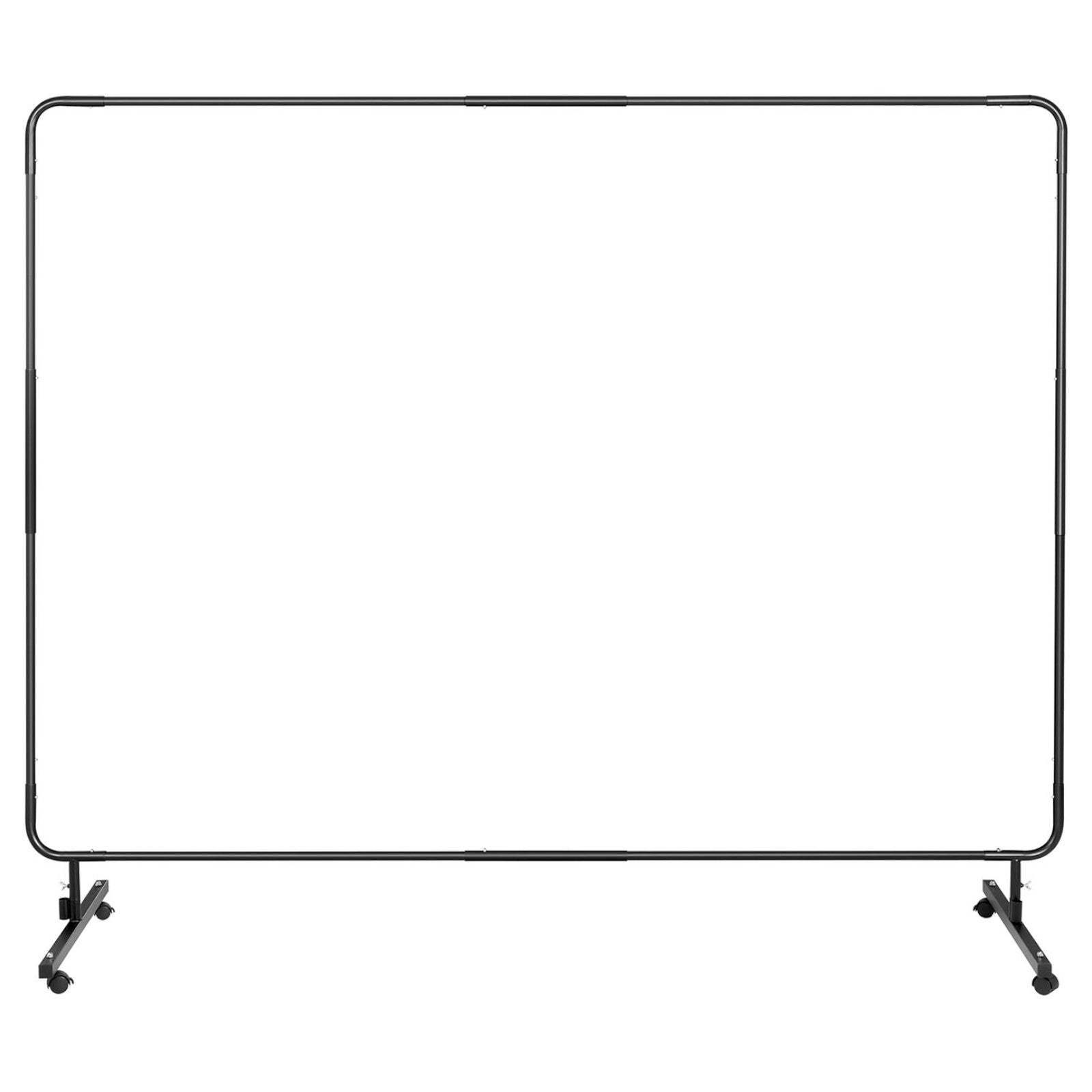

- - The frame.
- - Instruction
