Description
Manufacturer's code:

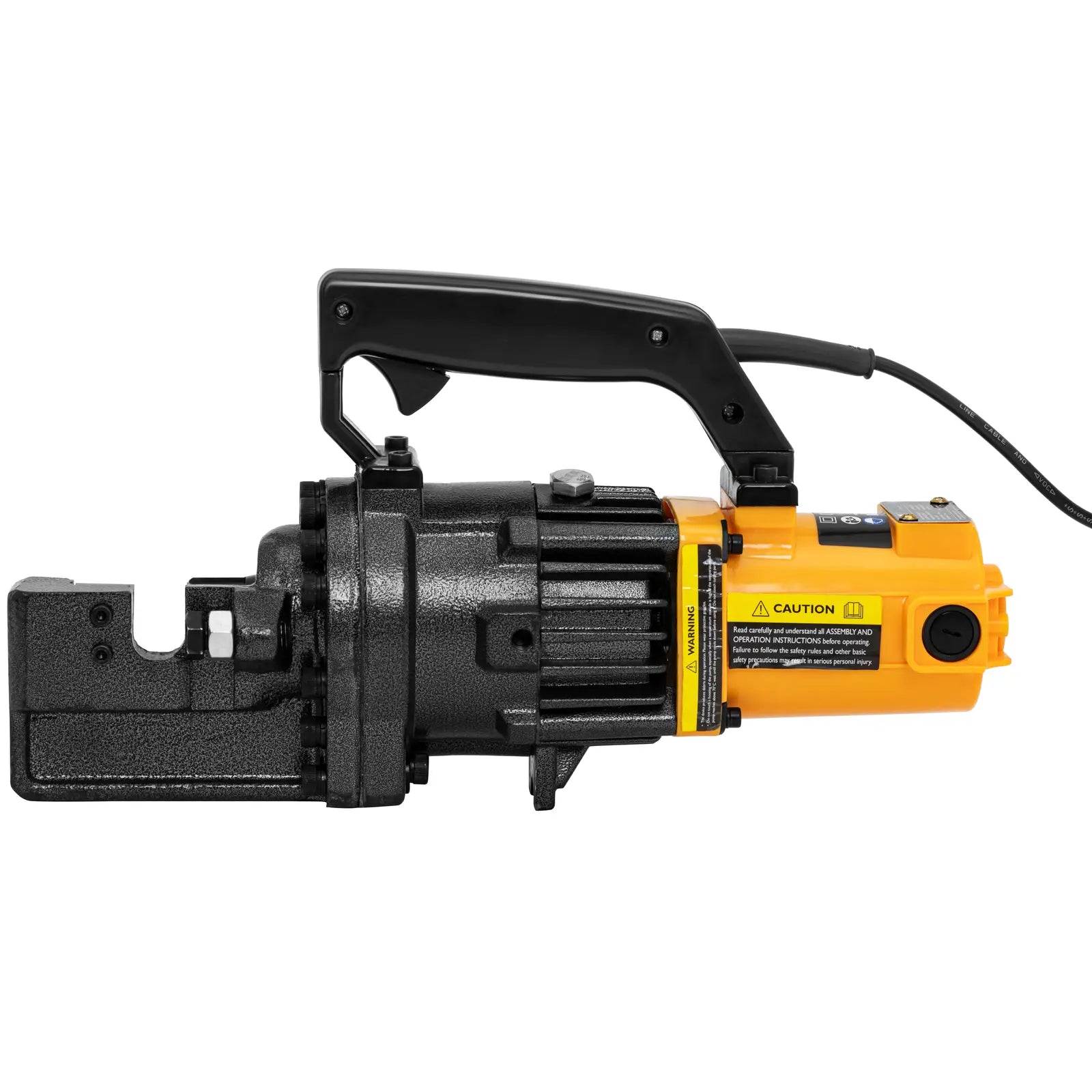

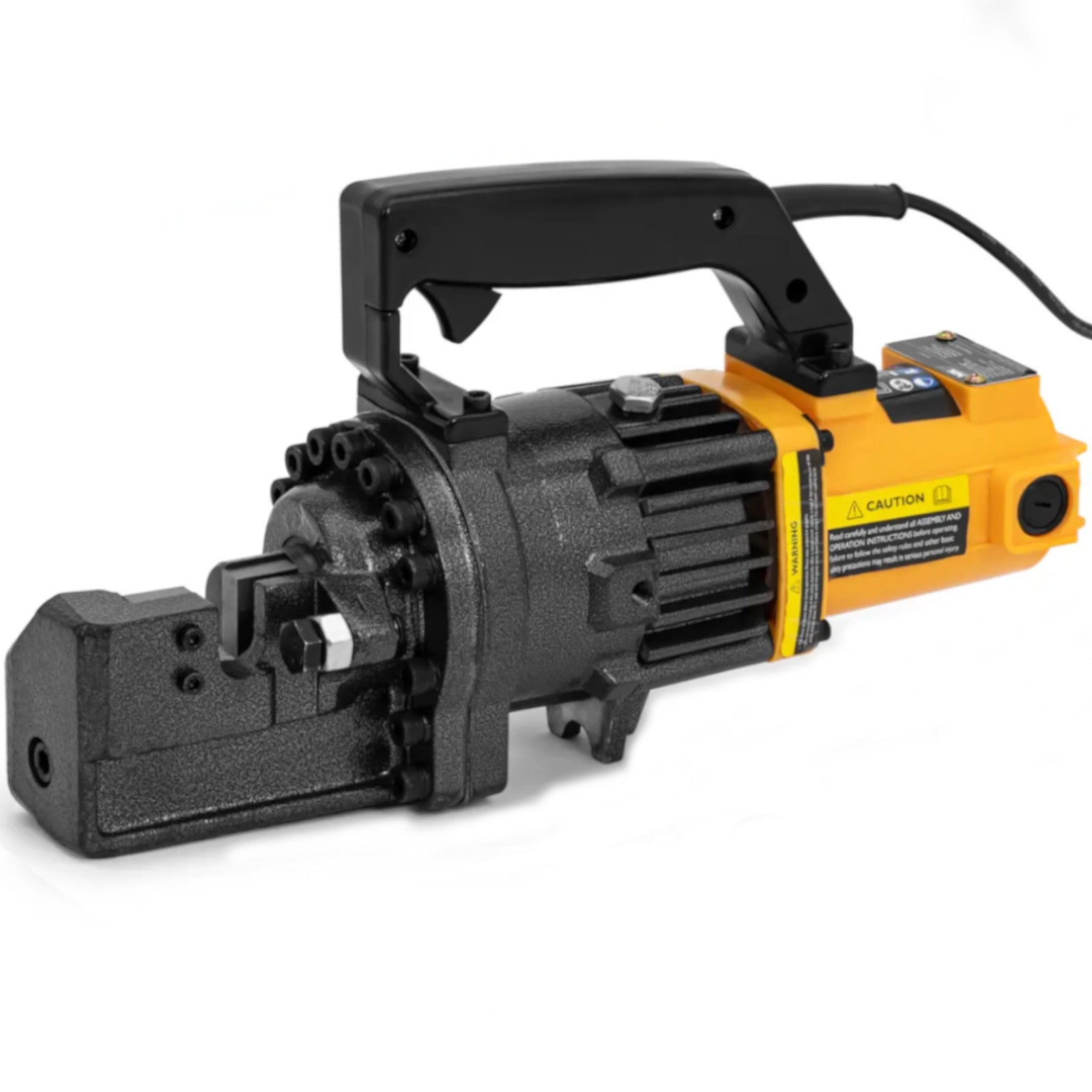

10062742The MSW brand bar cutter offers impressive cutting power and cuts reinforcing steel up to a diameter of 20 mm in just 3 seconds, even with a tensile strength of 650 N/mm².
Electrohydraulic rebar shears with a power of 1200 W and a working pressure of 300 bar guarantee precise and clean cutting edges. The combination of power, precision and efficiency makes it an irreplaceable tool in the production of reinforcements and more. The model can be used to strengthen foundations, beams or columns, as well as for infrastructure projects such as building bridges, tunnels or roads. The ergonomic cutter is very comfortable to use. It is also compact, making it easy to transport to the workplace.
Electric scissors are equipped with a quick blade replacement system. Combined with its solid construction, the tool will serve for many years.
Thanks to the hardness of the HRC 55 double-insulated blade in accordance with IEC protection class II and insulation class F (up to a maximum of 155deg C), the guillotine ensures high reliability and durability even in demanding working conditions.Product features: - - The rod cutter cuts reinforcing steel with a thickness of up to 20 mm and a maximum tensile strength of 650 N/mm² in just 3 s,
- - The electro-hydraulic rebar cutter generates a working pressure of 300 bar and a power of 1200 W, ensuring clean edges,

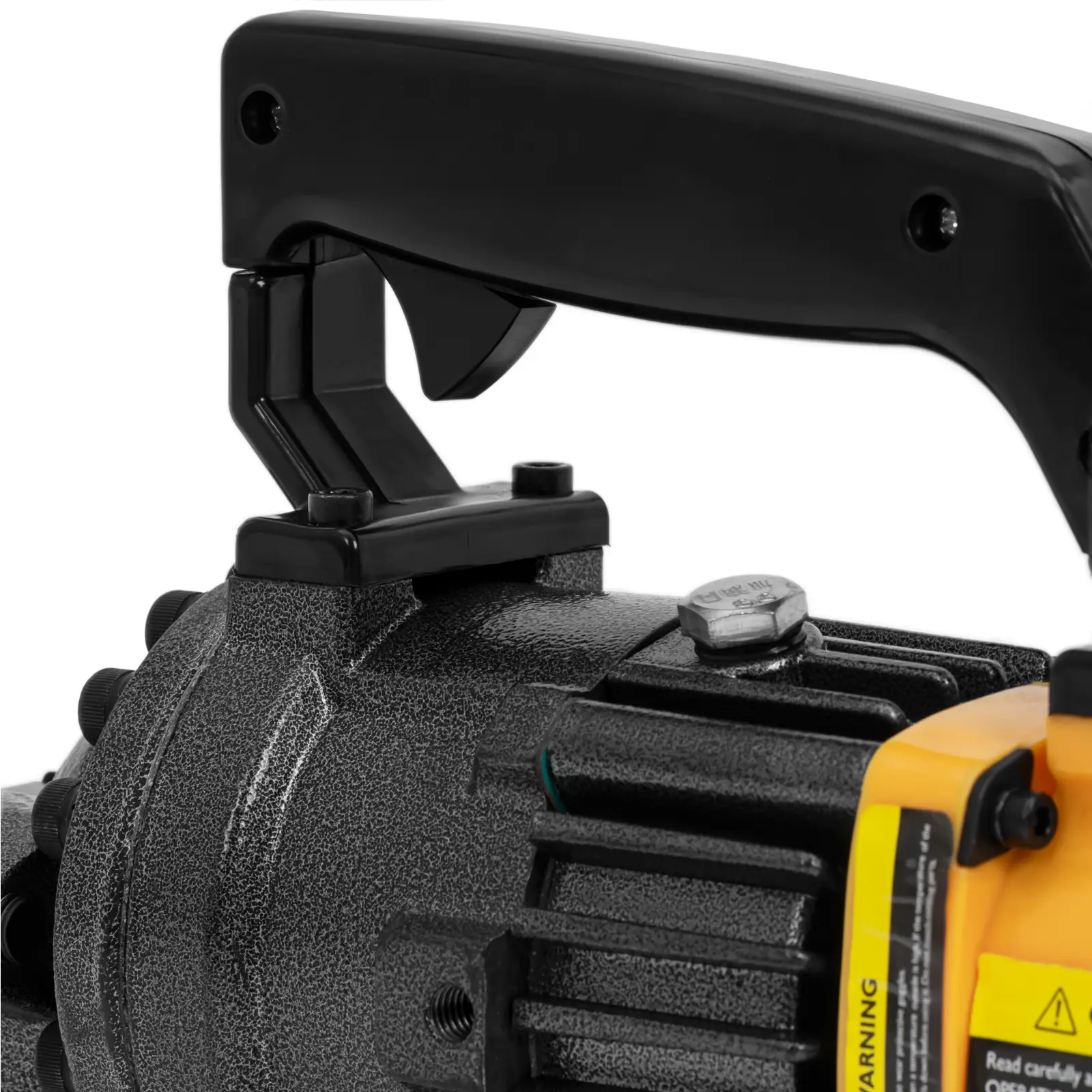

- - The handle of the rebar cutter is comfortable to hold and operate, and the compact design makes it easy to transport to the place of use,

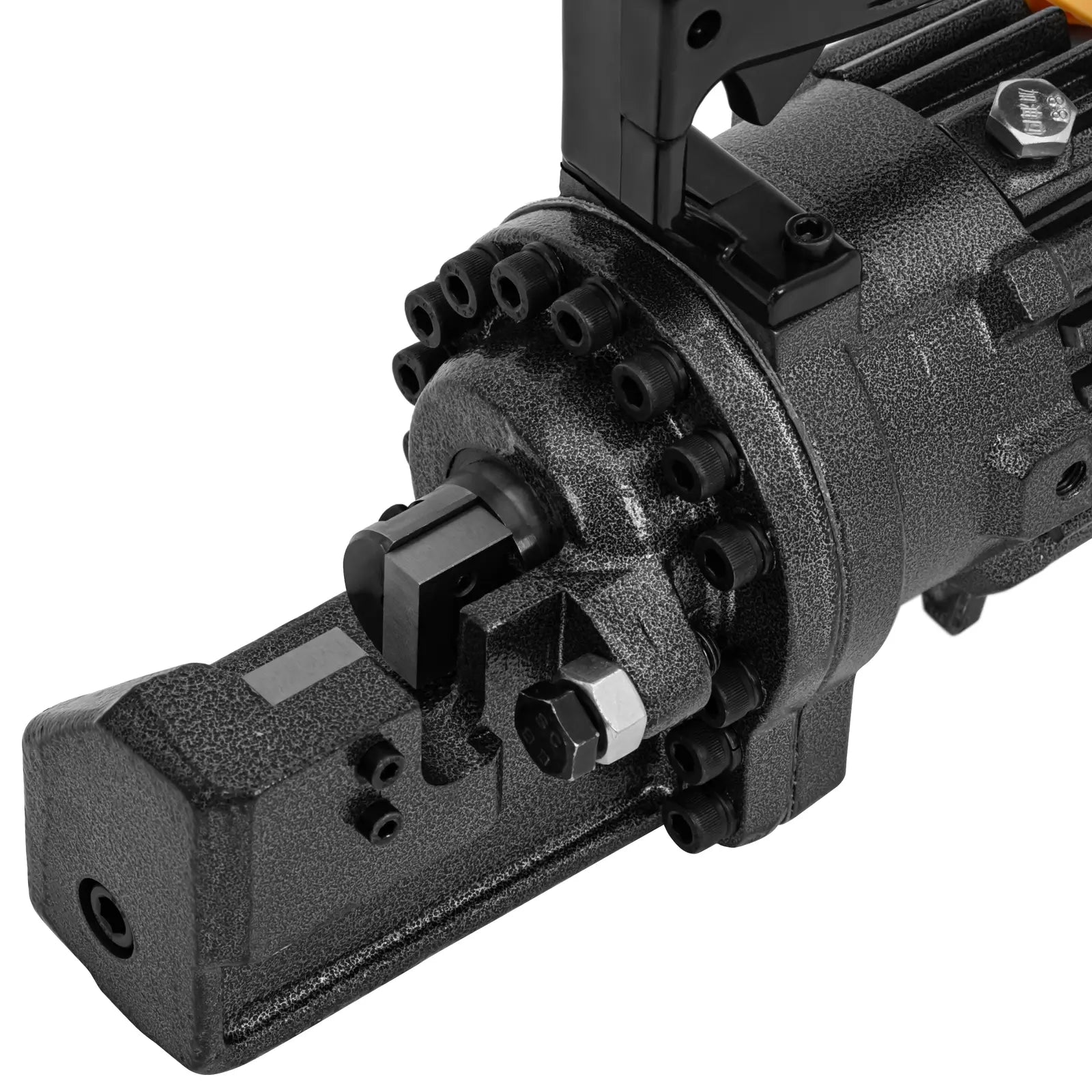

- - The rebar cutter has a quick blade change system and is designed for continuous operation in accordance with the nominal operating mode S1,
- - The bolt cutters are characterized by a blade hardness of HRC 55 and double insulation (IEC protection class II) and class F (up to max. 155deg C).
Technical parameters: - - Catalog number - 10062742
- - Article condition - New
- - Model - MSW-CUTTER-B16
- - Frequency [Hz] - 50
- - Material - Nylon, Cast Iron, Alloy Steel
- - Color - Gray
- - Voltage [V] - 230
- - Hardness - Tensile strength: 650 N/mm²
- - Cutter size [mm] - 20
- - Cutting time [s] - 3
- - Power [W] - 1200
- - Head dimensions [cm] - 12
- - Pressure [bar] - 300
- - Cutting range [mm] - 4 - 20 mm
- - Blade hardness [HRC] - HRC 55
- - Insulation class - F
- - IEC protection class - II
- - Device duty cycle - S1 (continuous operation)
- - Power cord - 1.7 m

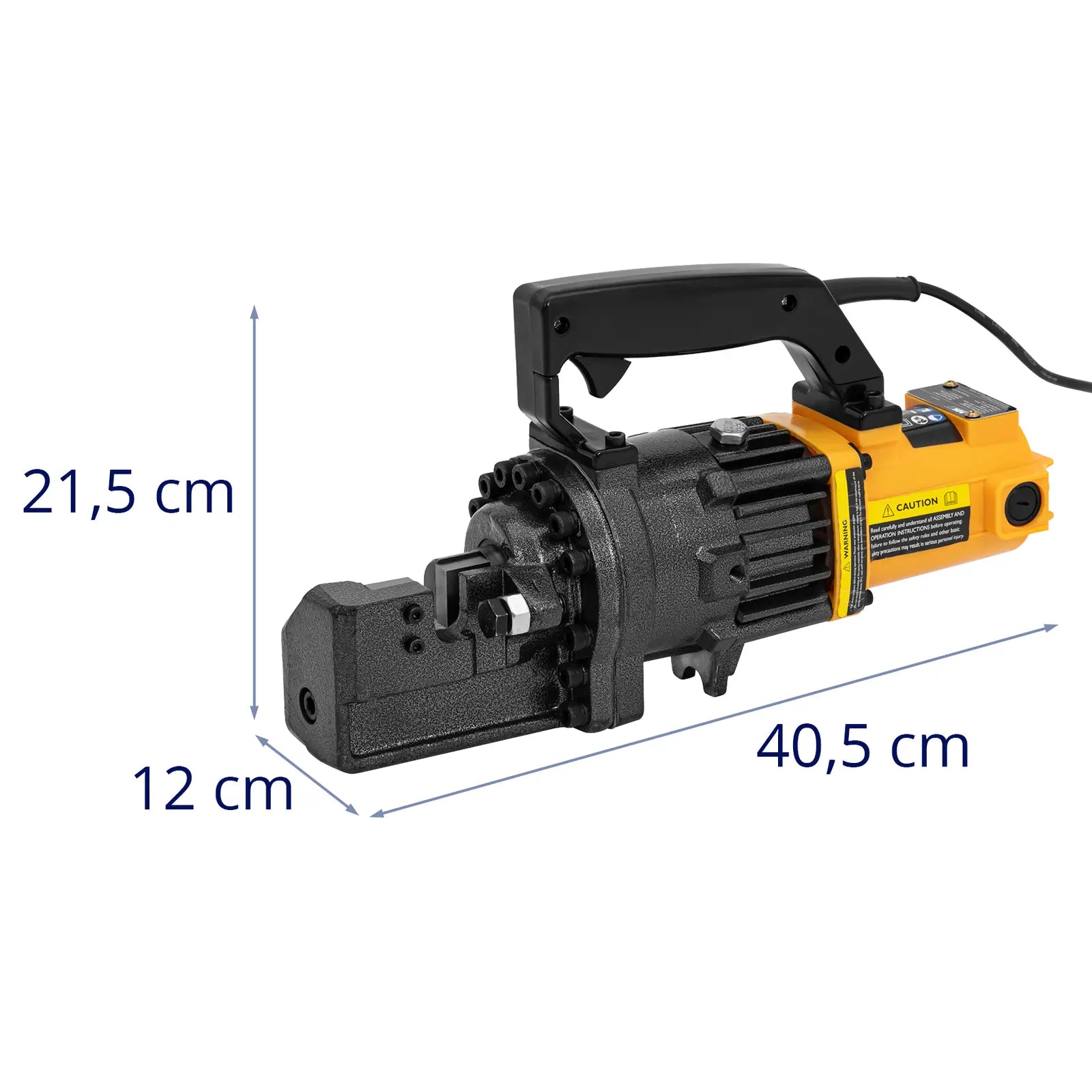

- - Dimensions (LxWxH) - 40.5 x 12 x 21.5 cm
- - Weight - 12.25 kg
- - Shipping dimensions (LxWxH) - 51 x 22 x 31 cm
- - Shipping weight - 17.5 kg

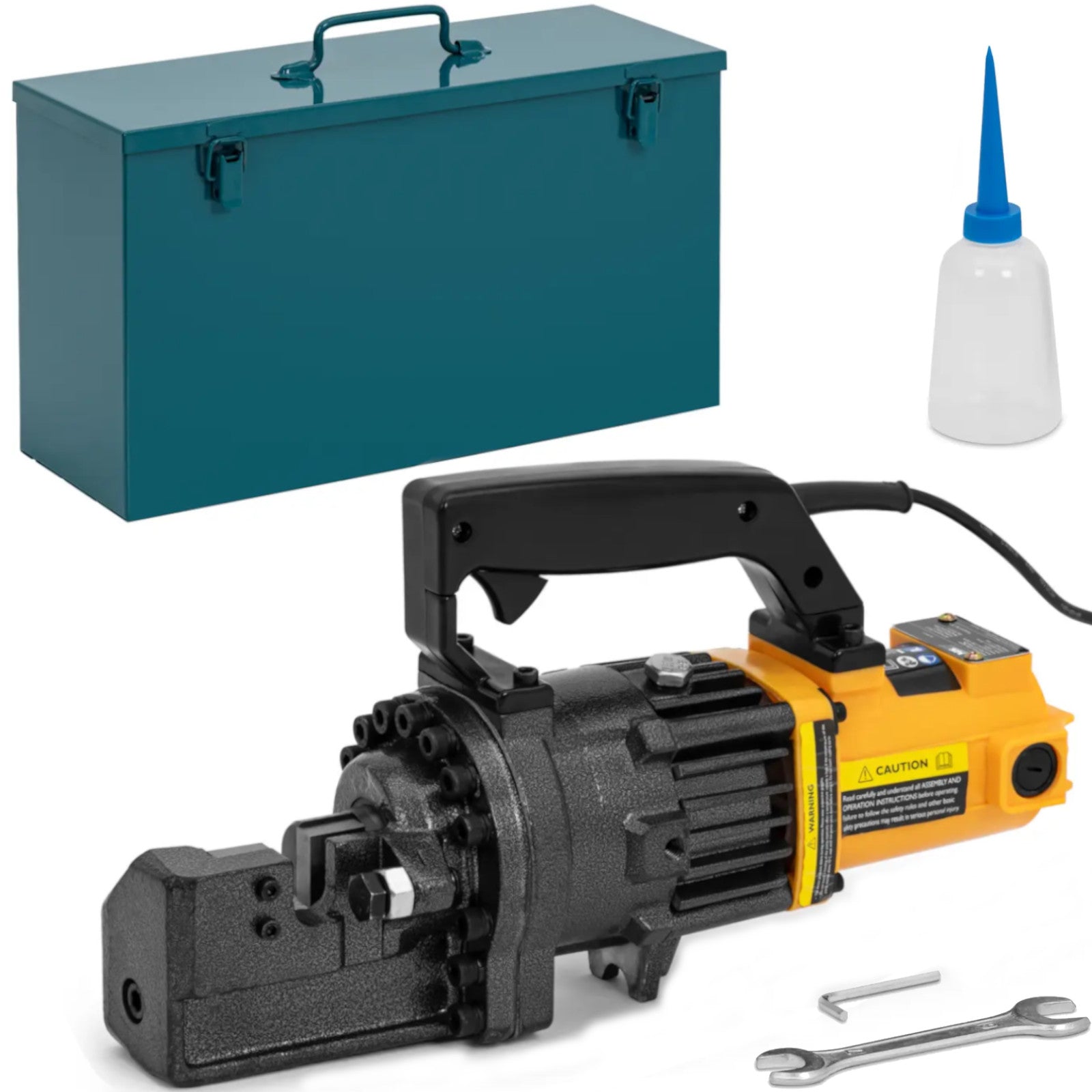

In the set: - - Bar cutter
- - 4 screws
- - Wrench
- - Allen wrench
- - Oil tank
- - Storage box
