Description
Manufacturer's number:

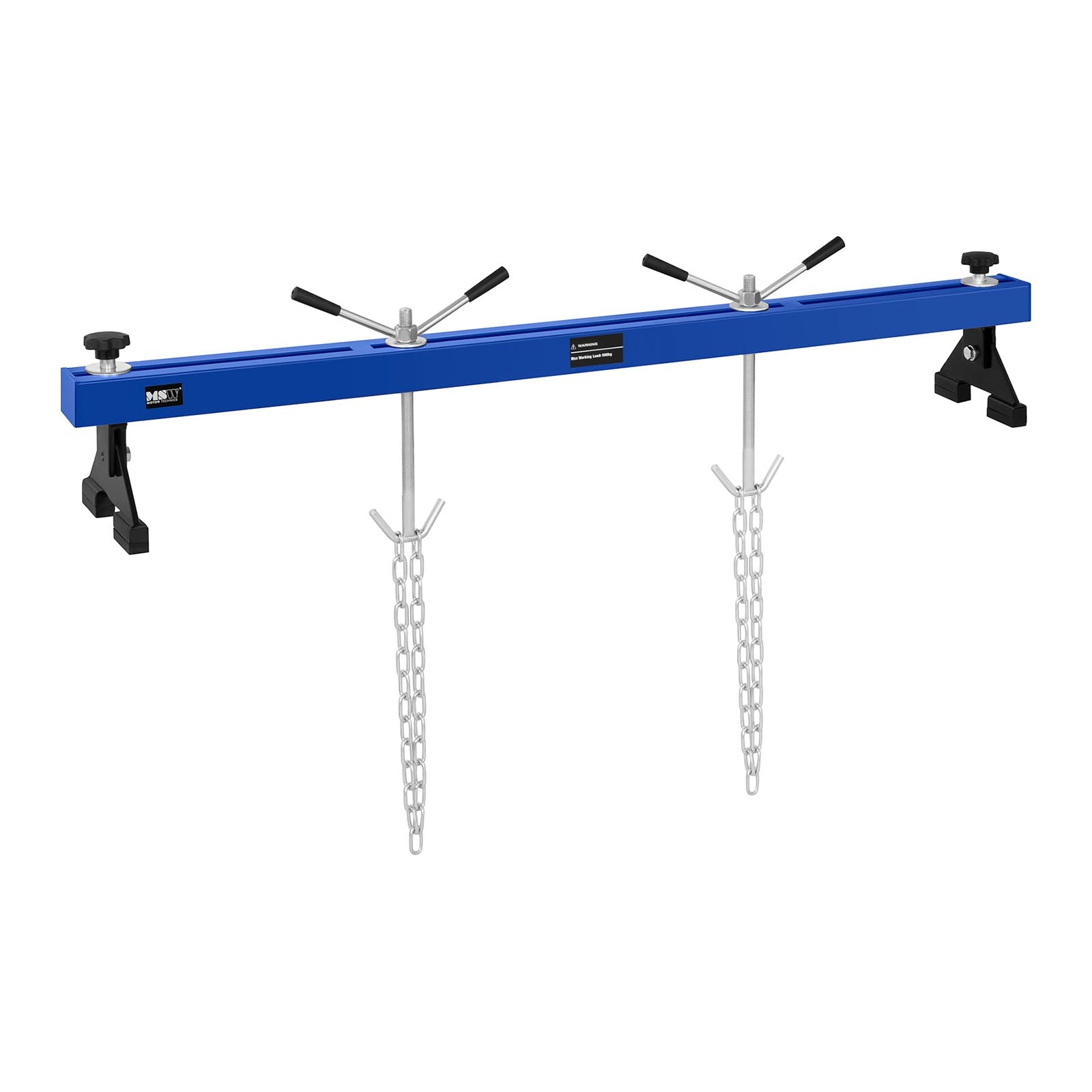

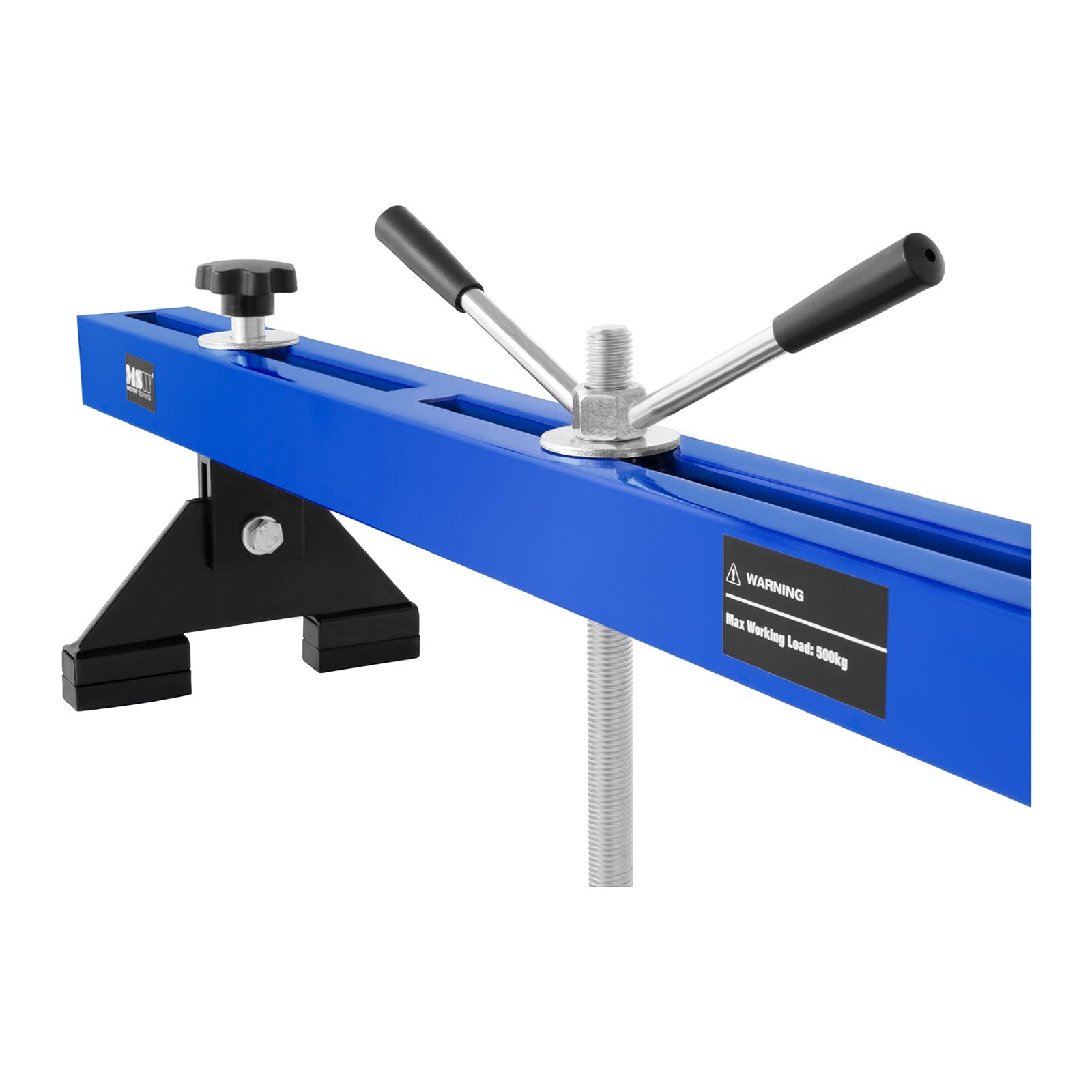

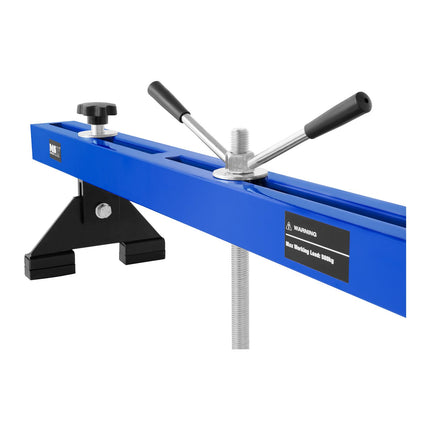

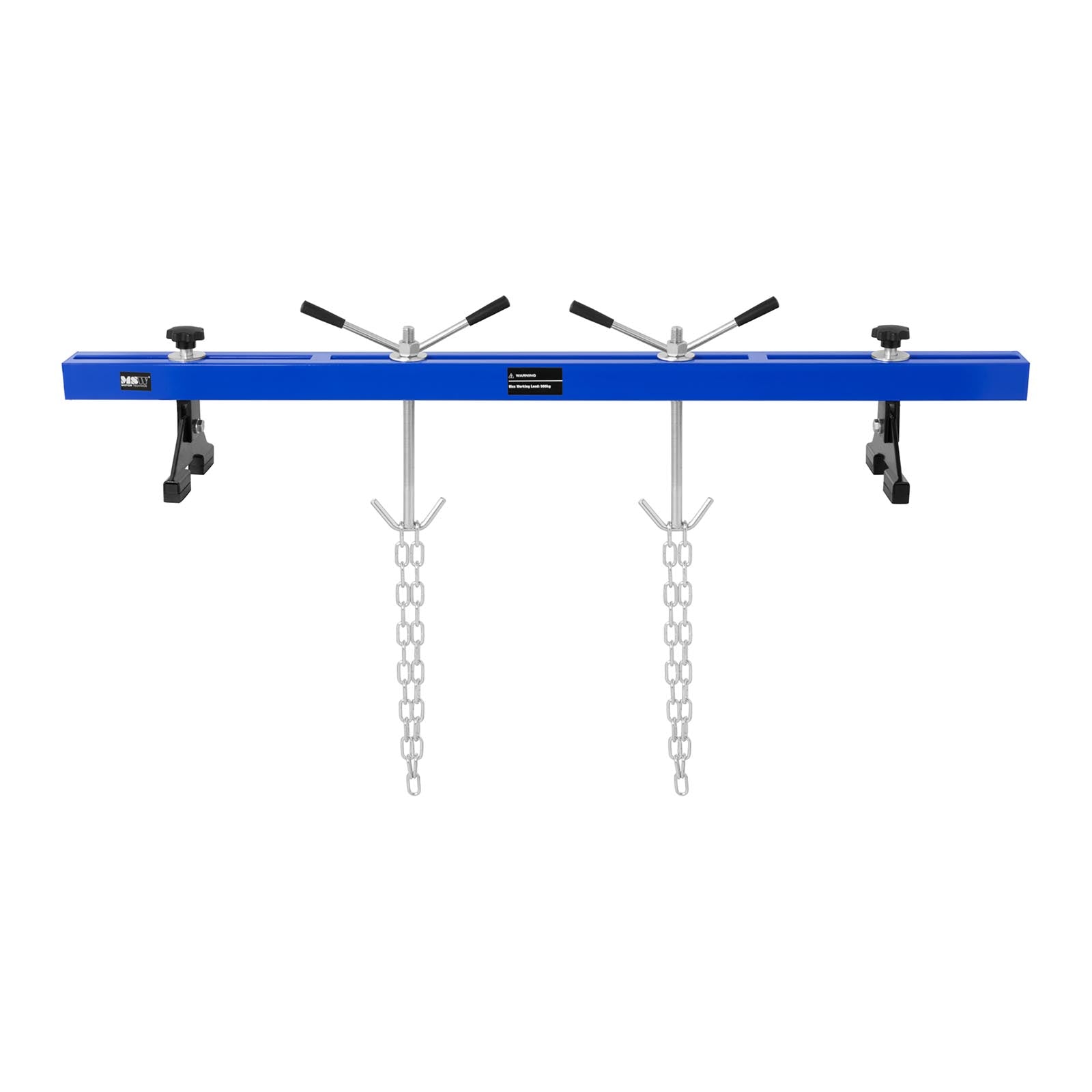

MSW 10060938 The MMA engine suspension beam is a device designed for workshops or car service and car manufacturing plants.
It enables repair work to be carried out requiring the dismantling and installation of the engine or gearbox and provides access to the components and mechanisms underneath it. Maximum
The boom load reaches 500 kgThe 360deg supports with rubber ends are responsible for the safety of use, which makes the beam not slipping and moving.
tip protect paint from accidental scratching when carrying out corrective work.
To increase the comfort of use of the structure, it was used in it
adjustment of support spacing (range 725 to 1490 mm) and engine lift height (range 0 to 240 mm). It is done with two comfortable knobs and two arm levers.
Product features: - - Strength - maximum load up to 500 kg,
- - Precision - adjustment of the support spacing and the lift height of the engine,
- - Security - anti-slip feet prevent the structure from moving and protect against scratching the varnish,

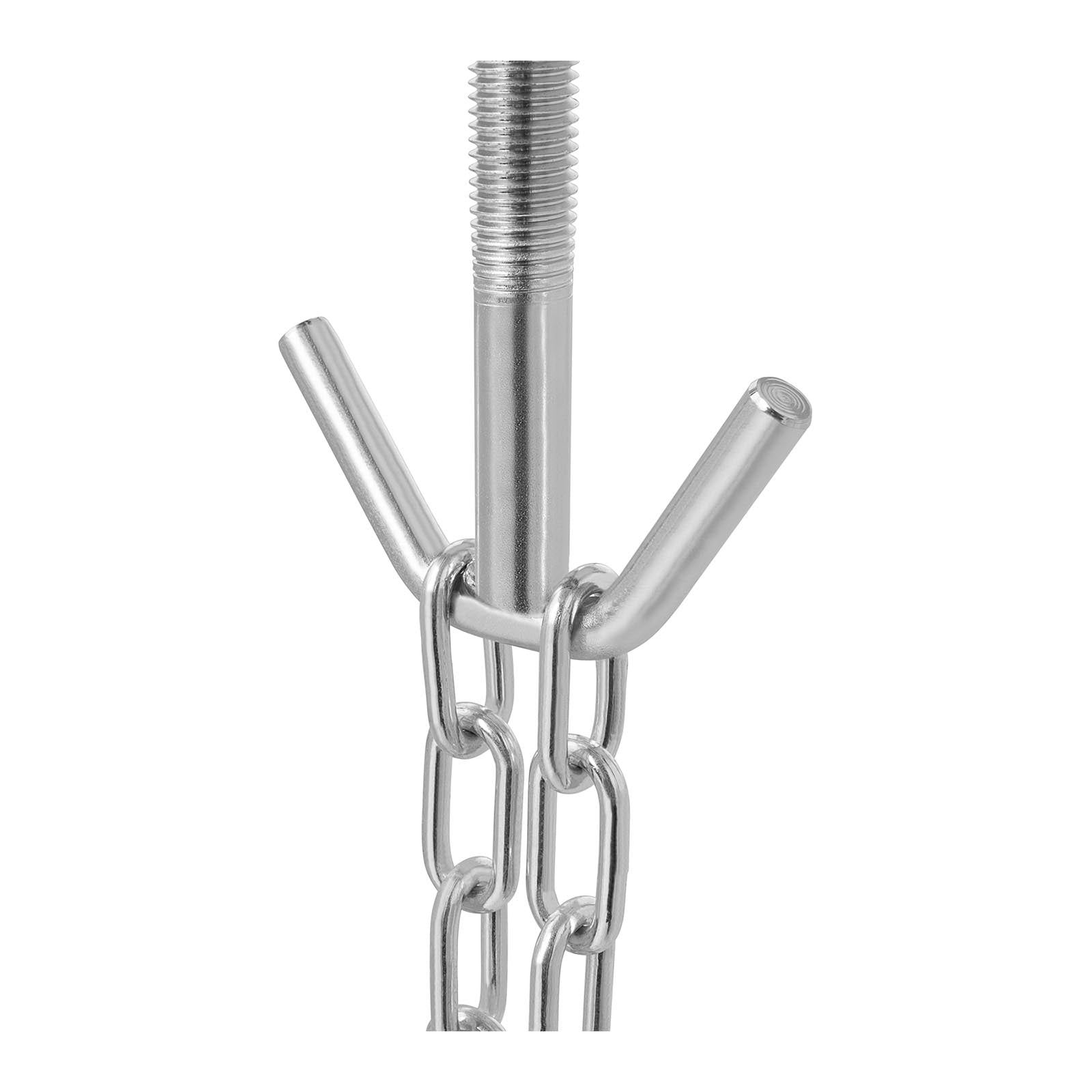

- - Comfort - double hooks make it easier to set the engine in the right position.
Technical parameters: - - Model - MSW-MB-500
- - Catalog number - 10060938
- - The state of the article - New
- - Material - Steel
- - Maximum load - 500 kg
- - Height of lift - 0-240 mm
- - Range of distance between supports - 725-1490 mm
- - The length of the chain - 950 mm
- - The length of the beam - 1505 mm
- - Dimensions (DxSxW) - 150,5 x 22.5 x 41.5 cm
- - Weight - 16.4 kg
- - Dimensions of dispatch (DxSxW) - 154 x 15.5 x 12 cm
- - Weight of shipping - 17,4 kg
Included: - - The engine suspension beam
- - Handle
- - Support
- - Chain
- - Support screw with hooks
- - Installation parts
- - PL Manual
