Description
Manufacturer's name

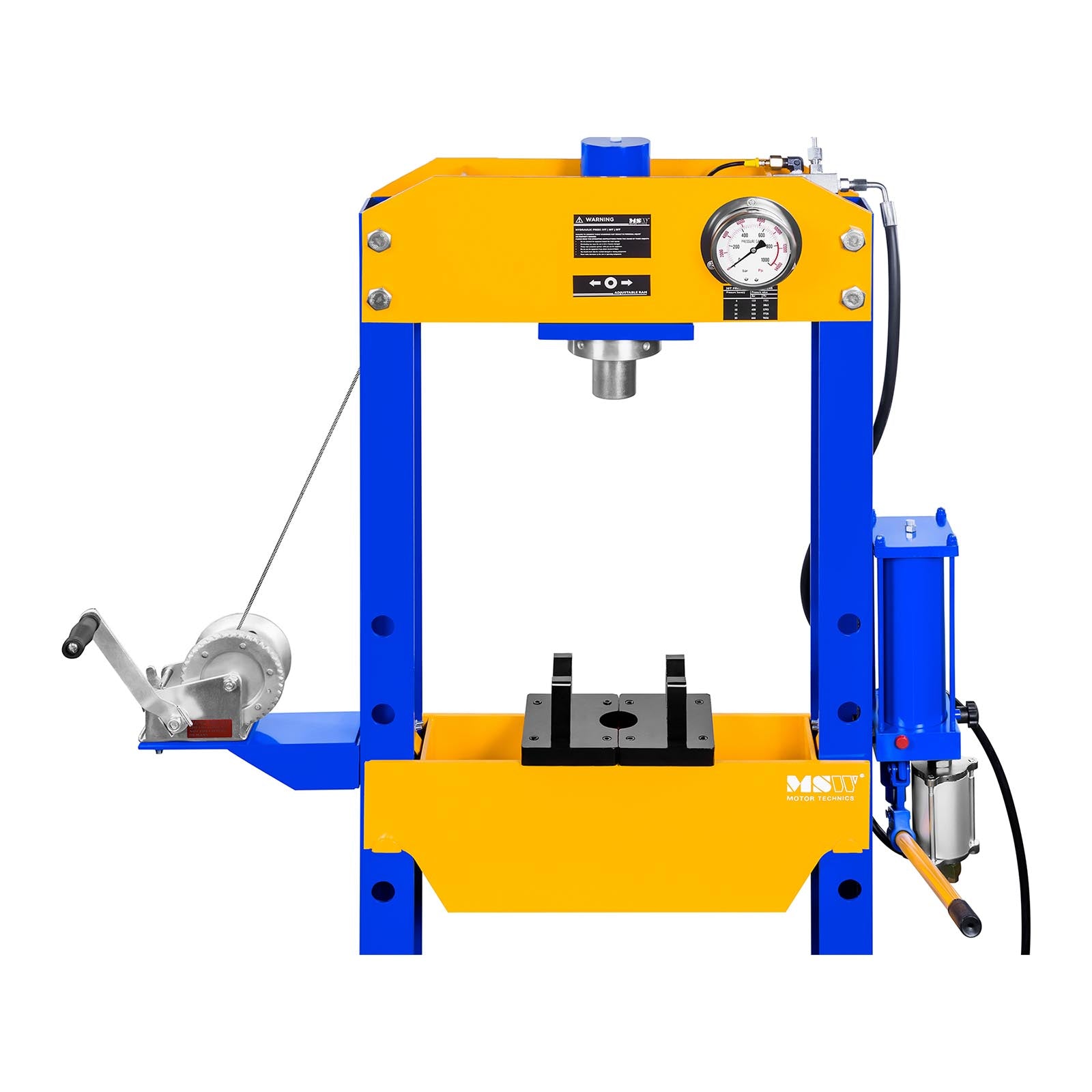

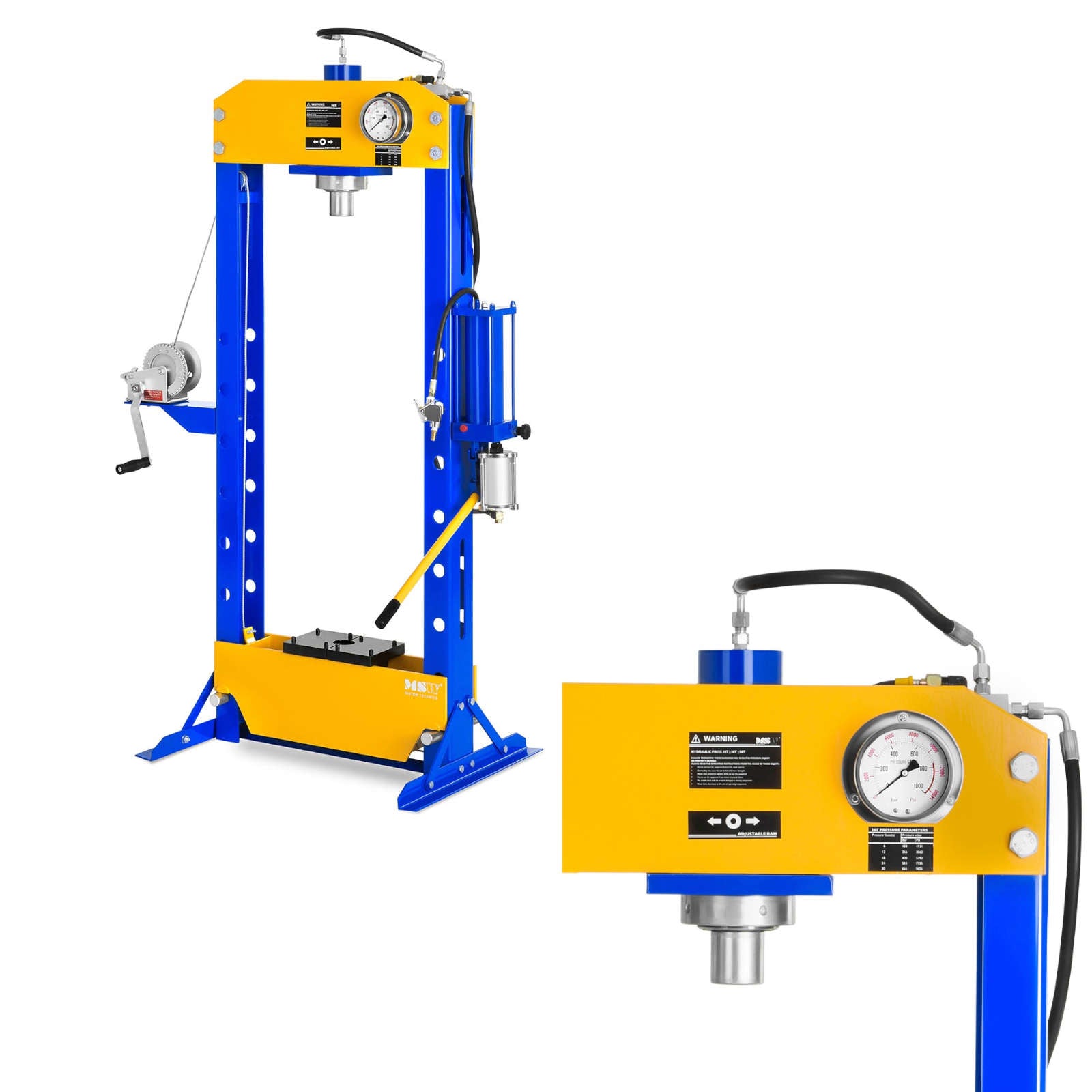

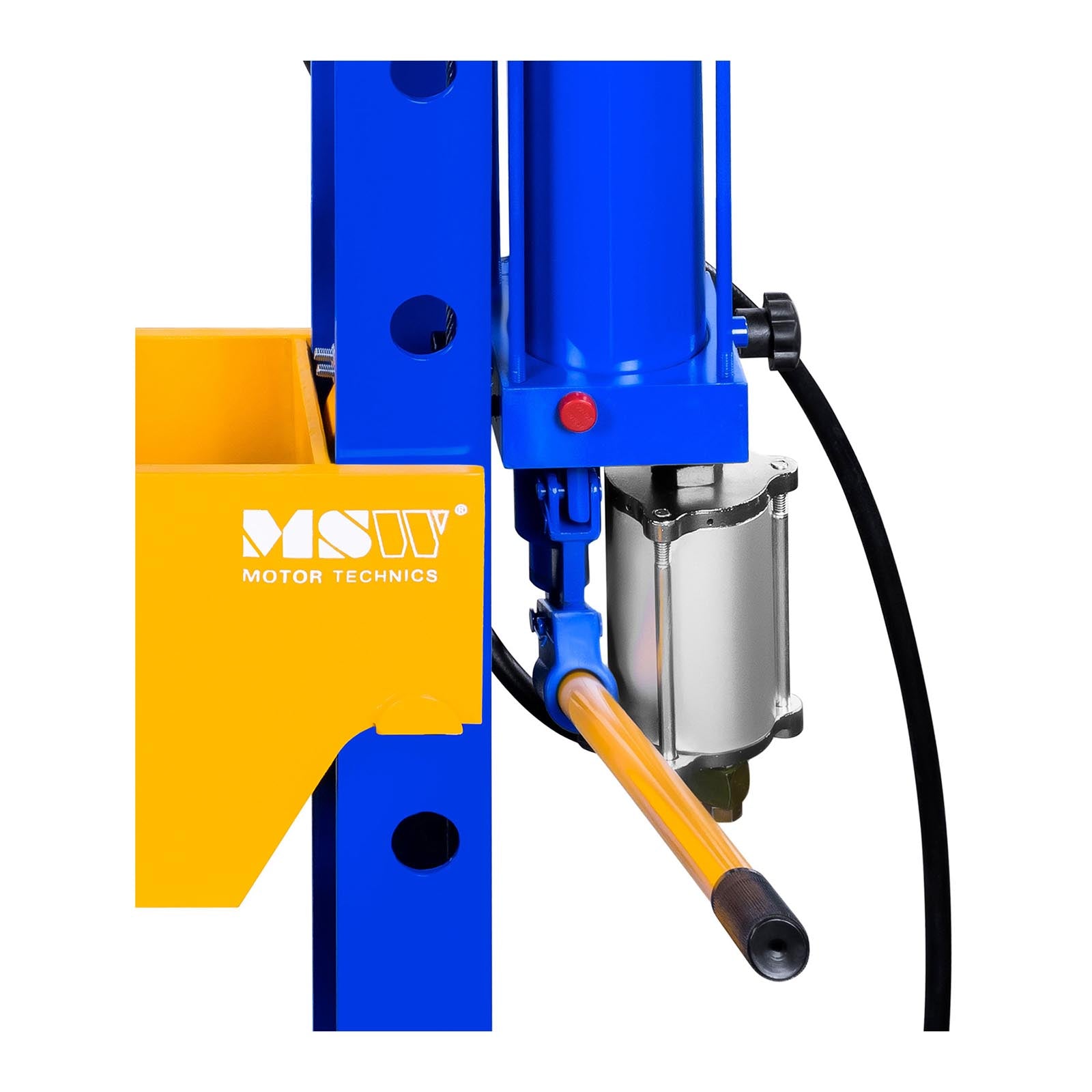

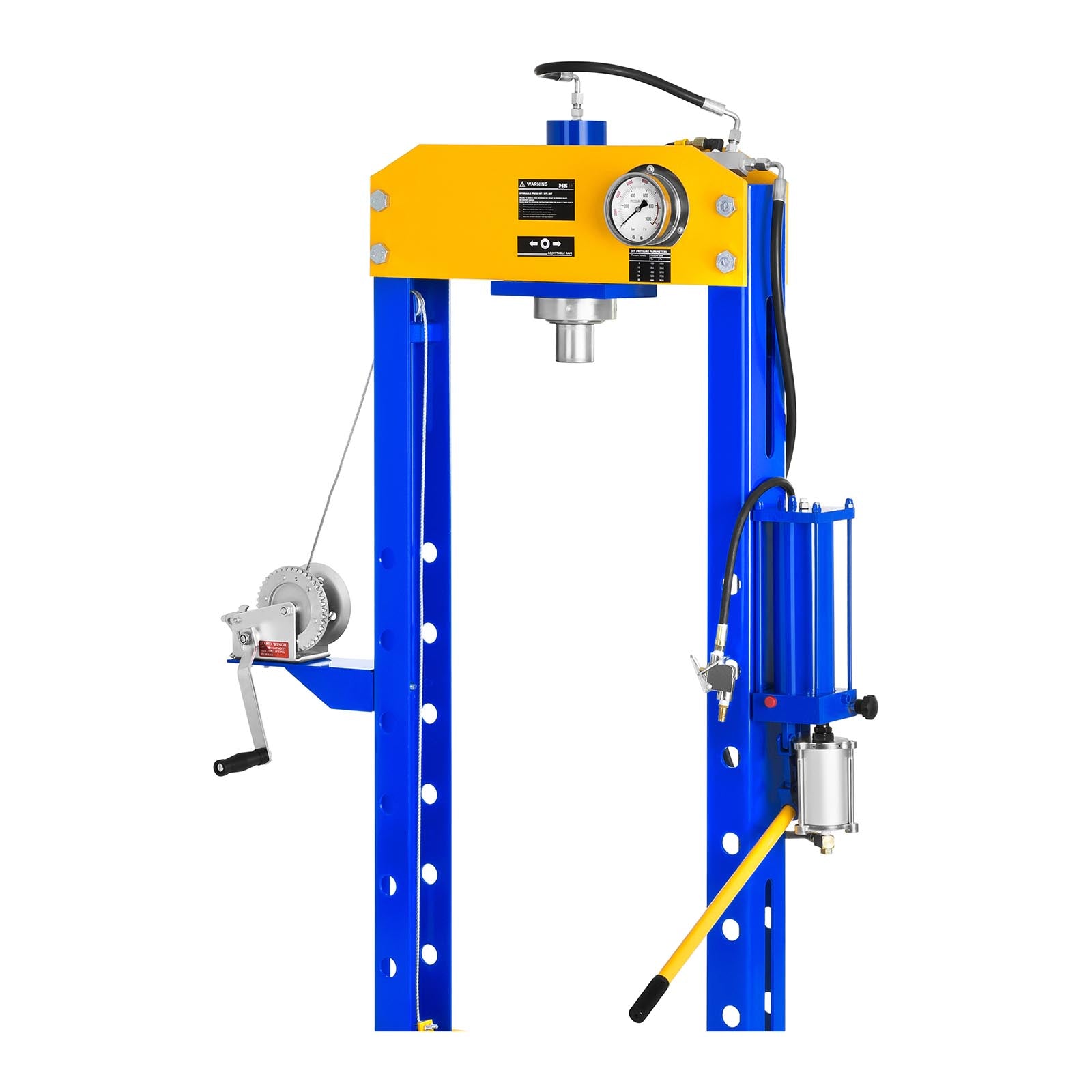

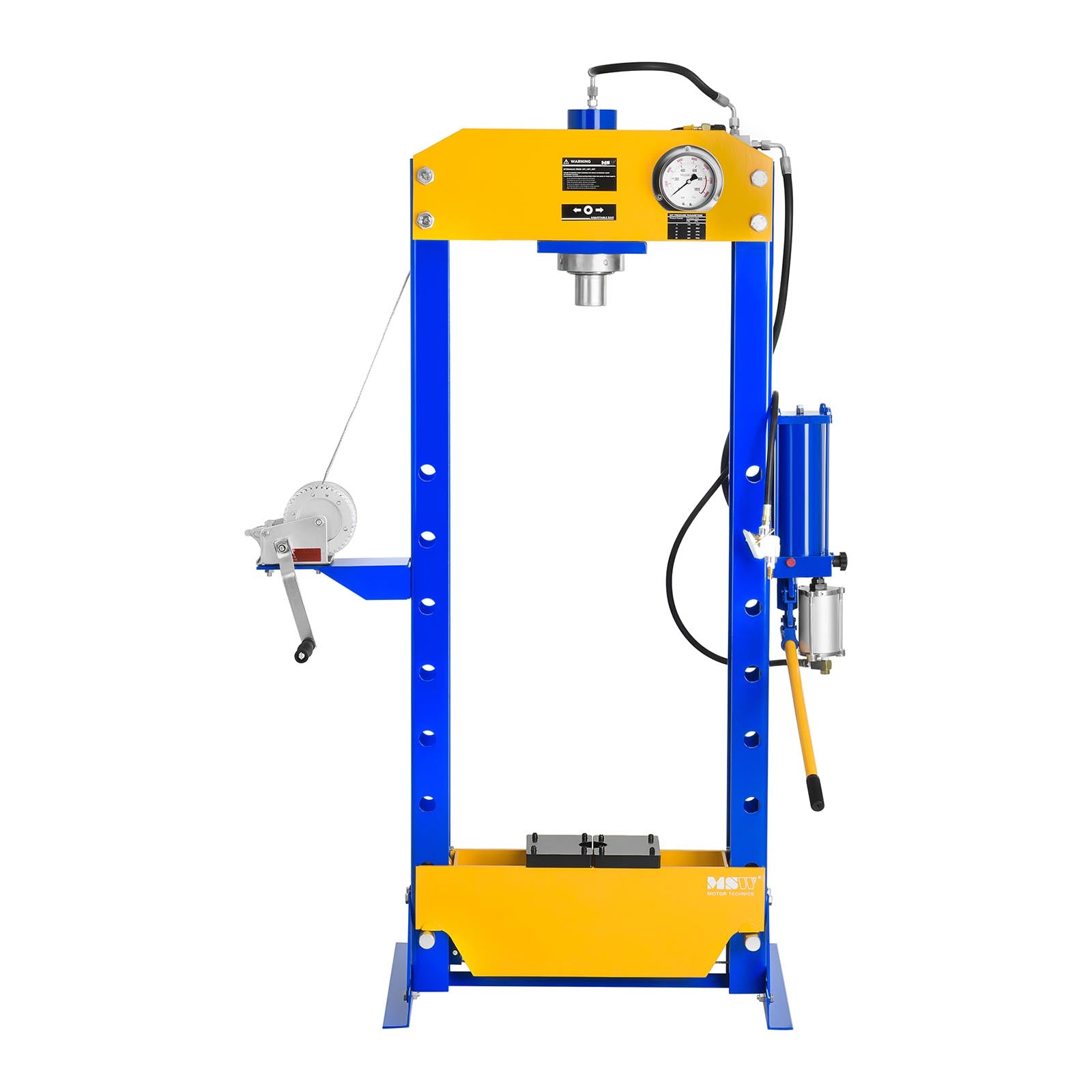

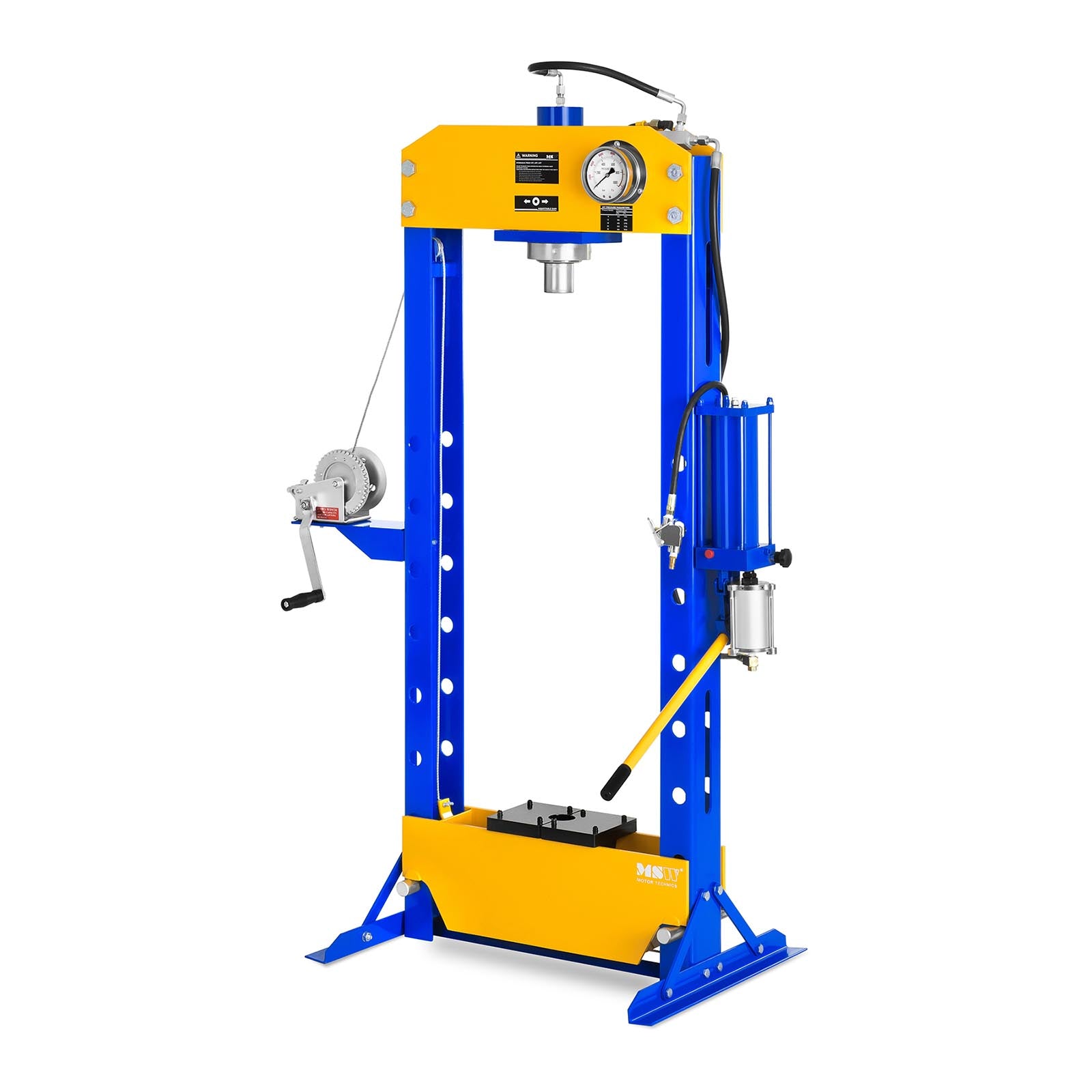

: MSW-WP-30T A hydraulic-pneumatic press with a maximum pressure of 30 tonsfrom the MSW Motor Technics brand is a device that will be used in industrial plants, workshops, garages, automotive services and shops. The equipment is perfect for shaping, bending and straightening hard metal, and will also enable easy assembly and disassembly of gears, bearings, hubs and bushings. The solid, fully welded construction ensures high durability of the device. The modern technical solutions used by the manufacturer make working with the MSW-WP-30T-P model very effective. Pneumatic control increases the speed and efficiency of operations while minimizing operator fatigue. Hydraulic control ensures greater precision and high sensitivity.
Product features:- High piston pressure
- Two control methods
- Fully welded structure

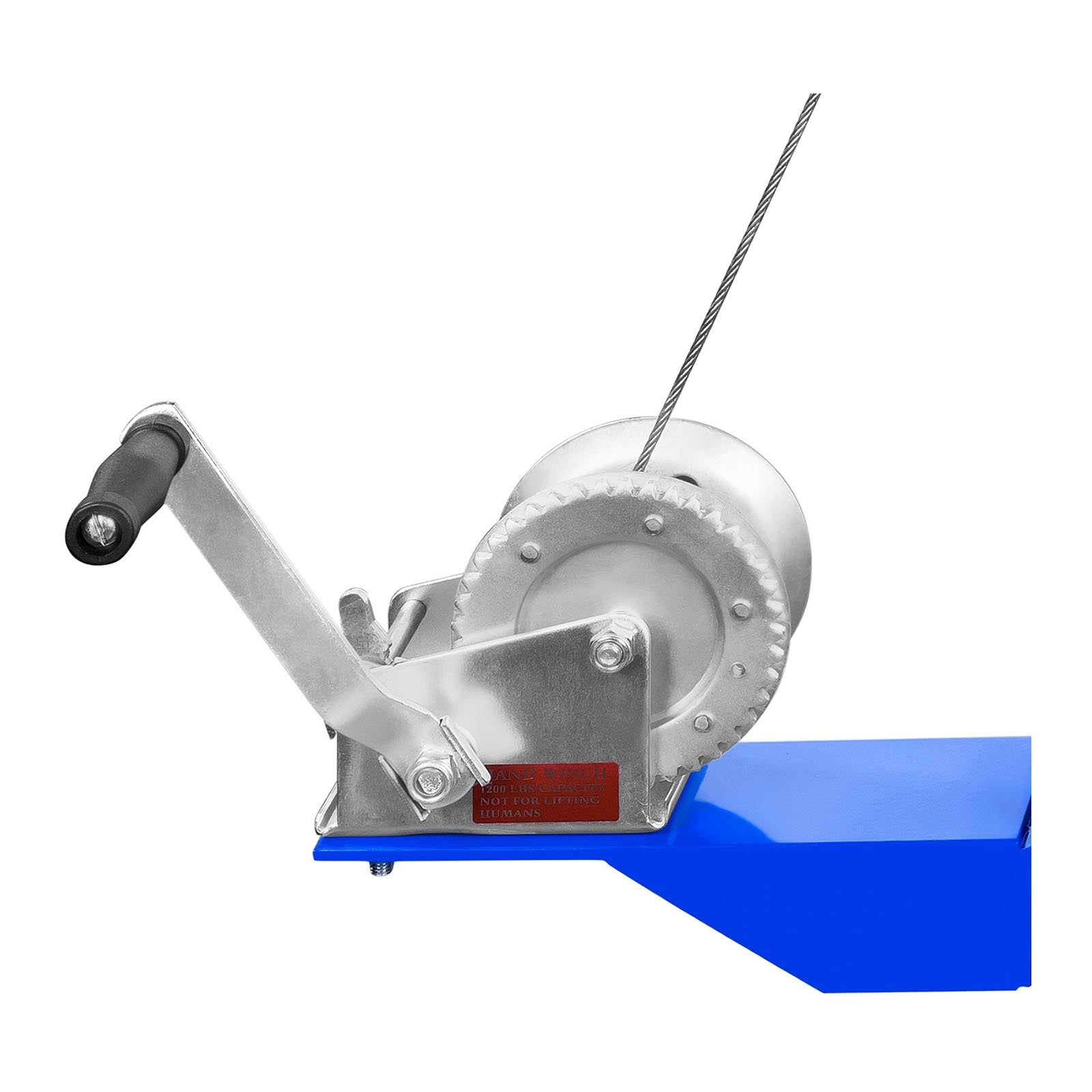

- Working height adjustment
- Horizontal piston movement

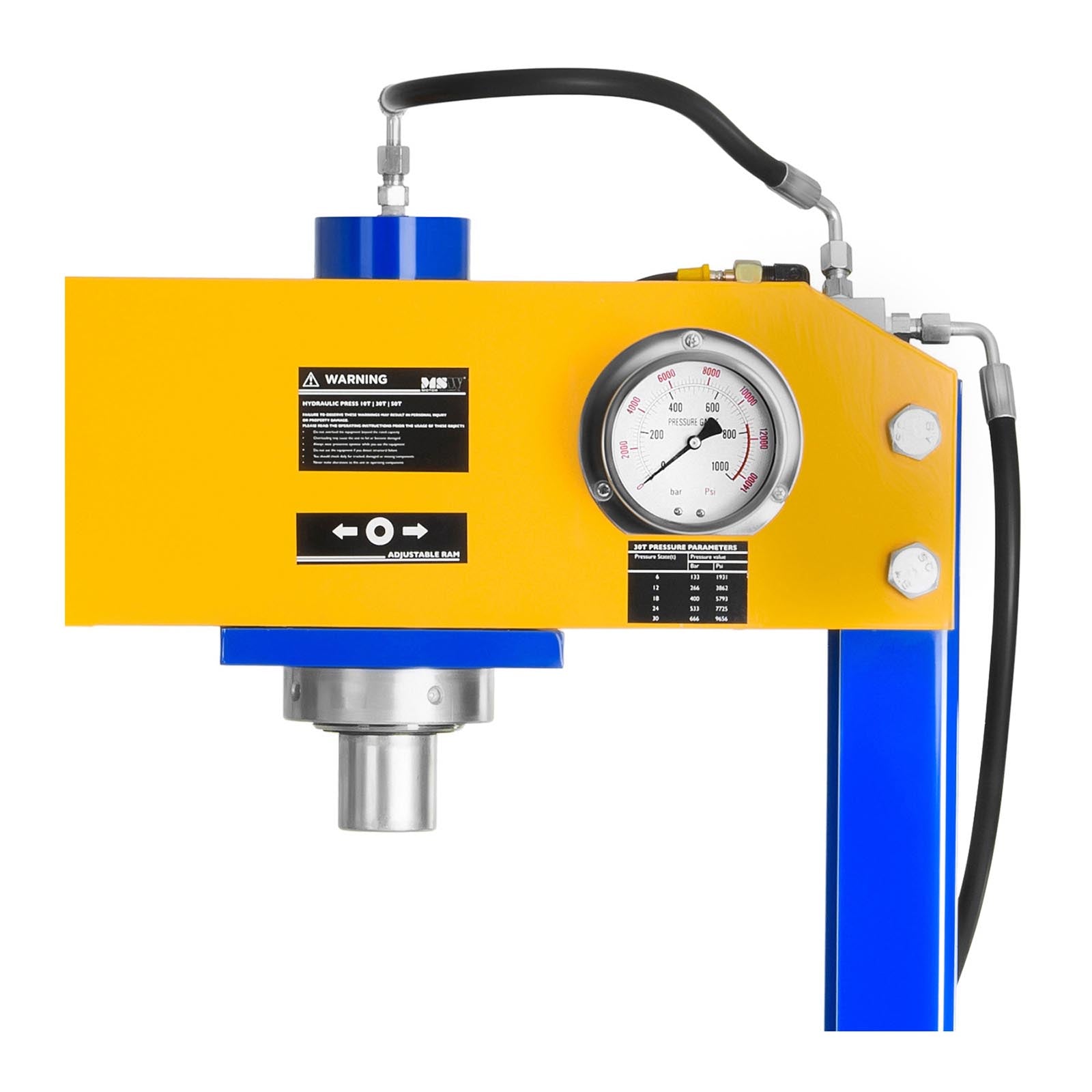

- Precise pressure gauge
- For industrial and workshop work
Parameters technical: - - Model - MSW-WP-30T-P
- - Catalog number - 6302
- - Article condition - New
- - Maximum pressing force - 30 t
- - Maximum working pressure - 666 bar (9656 psi)
- - Air pressure - 7.5 – 8.5 bar (0.75 – 0.85 Mpa)
- - Working height - 250-1125 mm (8 levels adjustable at 125 intervals)
- - Work table width - 530 mm
- - Stroke piston - 160 mm
- - Dimensions (LxWxH) - 82 x 111 x 164 cm
- - Weight - 133 kg
- - Shipping dimensions (LxWxH) - 176.5 x 71.5 x 27 cm
- - Shipping weight - 154.5 kg
Included in the set:- Hydraulic press
- Instructions EN
