Description
Manufacturer's number:

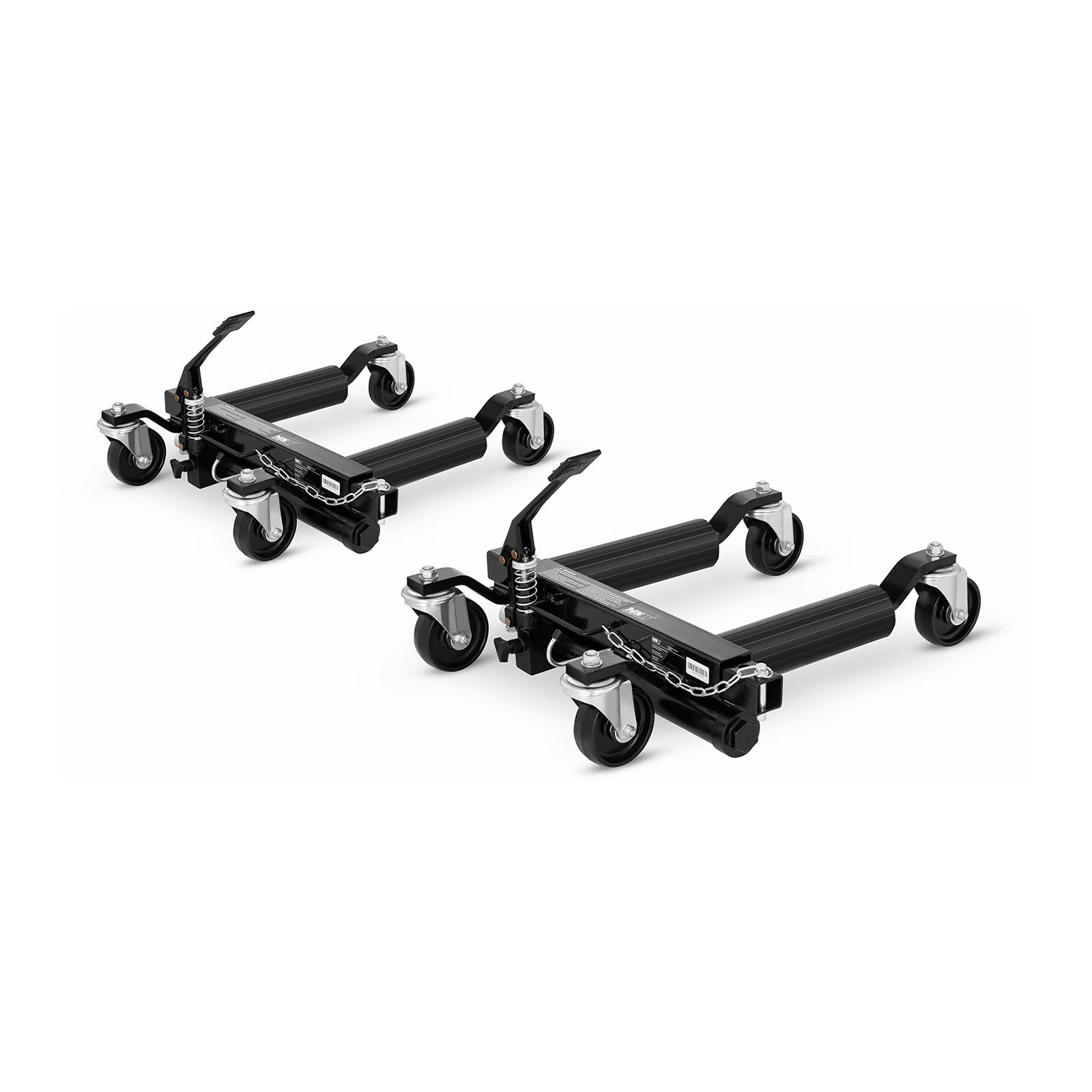

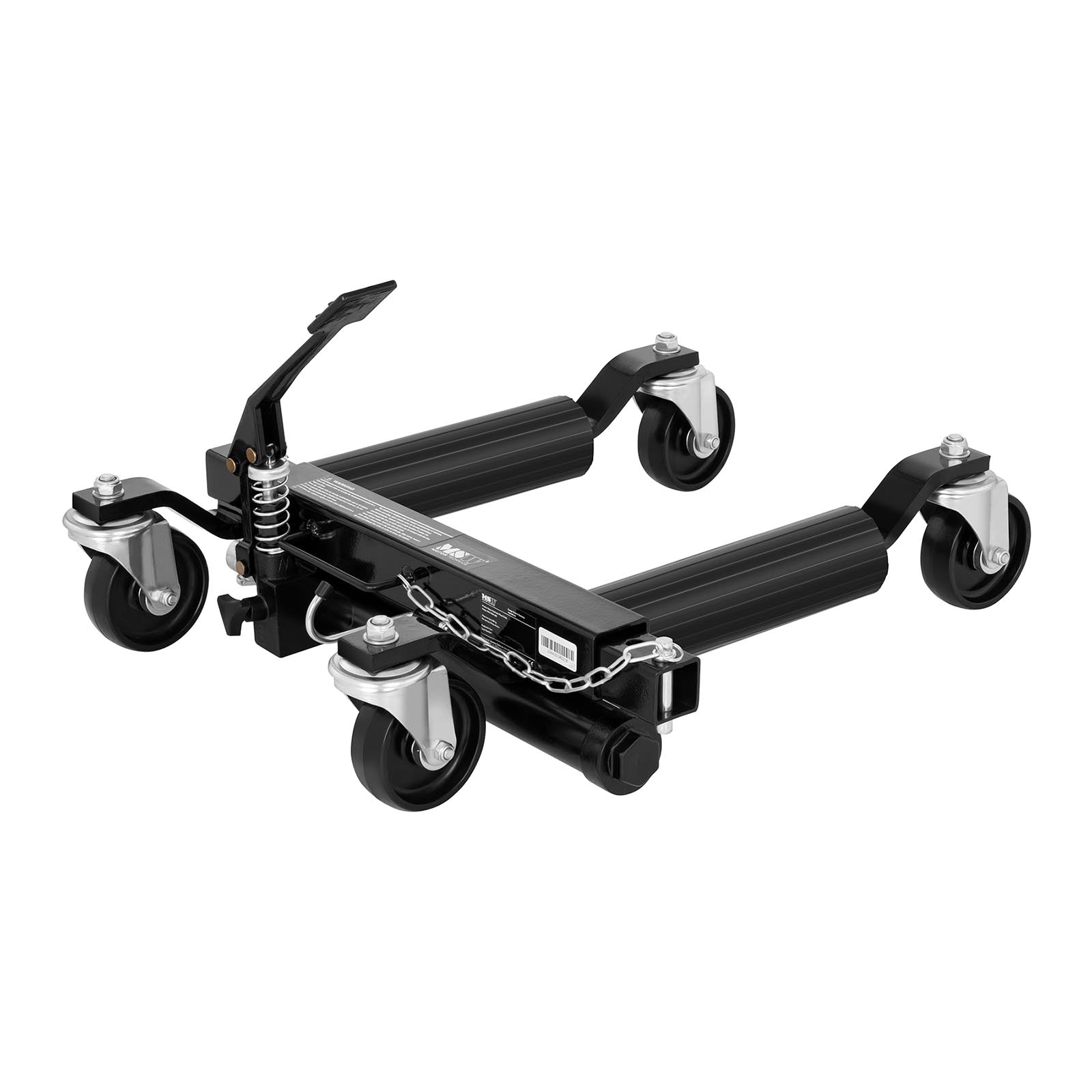

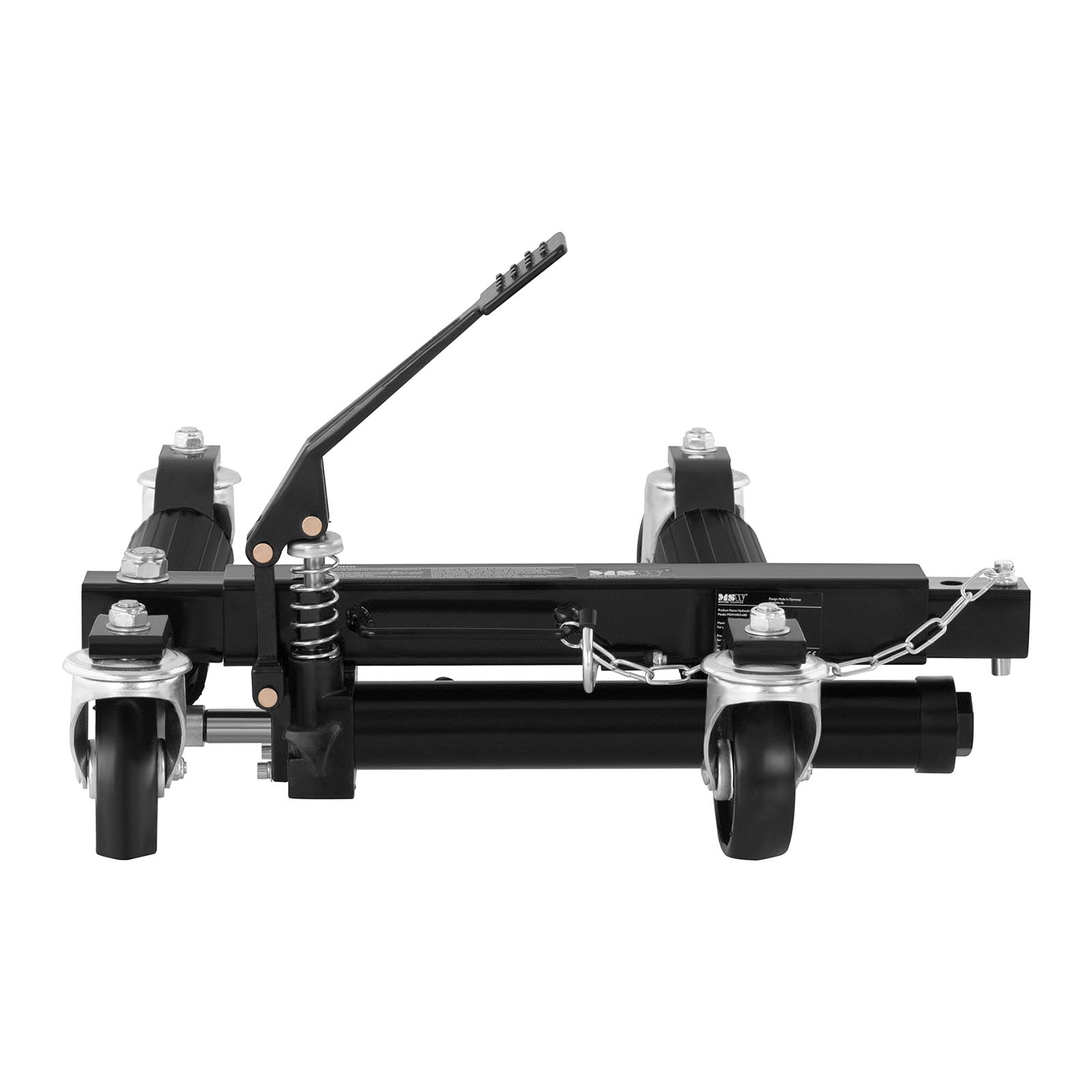

MSW 10060930The trolley for the movement of vehicles of the German brand MMA is
a vehicle lift and carry-over tool without the need to use their basic drive. The MMW-HRH-680 model is perfect for many types of workshops, services, road aids or agricultural and individual garages of masterpieces.
Four twisting wheels They facilitate maneuvering of the structure, even in small spaces, and comfortable, controlled by the foot pedal, hydraulic lifting mechanism (range 380 to 660 mm) increases its functionality. Furthermore, the mechanism locking the car in the right position and the safety bolt with chain and hook increase the safety of the work.
The transport rollers are made of high quality steel, which guarantees superior durability.
convenient transport and lifting of vehicles up to 680 kg (for a single piece). Additionally, due to simple operation, the small weight and compact size set is very mobile and comfortable.
Product features: - - Productivity - hydraulic lifting mechanism (from 380 to 660 mm),
- - Strength - strong construction with a maximum load capacity up to 680 kg,
- - Comfort - four torsion wheels, control by foot pedal,
- - Security - the mechanism locking the car in the correct position and the safety of the ball with the chain and the hook locking the pedal,
- - Mobility - small weight and compact sizes facilitate the transfer of the kit,
- - Multifunctionality - the possibility of placing under a pierced or damaged wheel (including working with tyres up to 30 cm wide), the threshold, engine, swing or sled.
Technical parameters: - - Model - MSW-HRH-680
- - Catalog number - 10060930
- - The wheel dimensions - 101.5 x 33.8 mm
- - The wheel support rollers - 300 mm
- - Scope of regulation - 380-660 mm
- - The actuator jump - 280 mm
- - Maximum load for one piece - 680 kg
- - Dimensions (DxSxW) - 73 x 68 x 34.5 cm
- - Weight - 35 kg
- - Dimensions of dispatch (DxSxW) - 88 x 62.5 x 24.5 cm
- - Weight of shipping - 37,45 kg
Included: - - cart (2 pcs),
- - The PL manual.
