Description
Manufacturer's name:

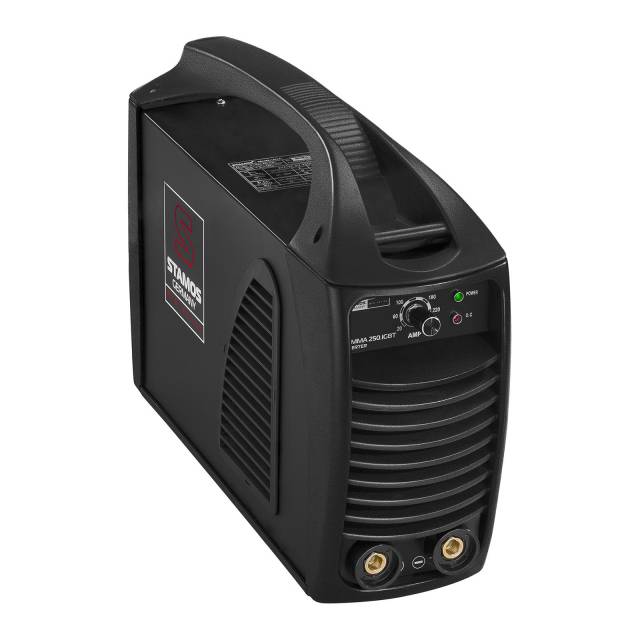

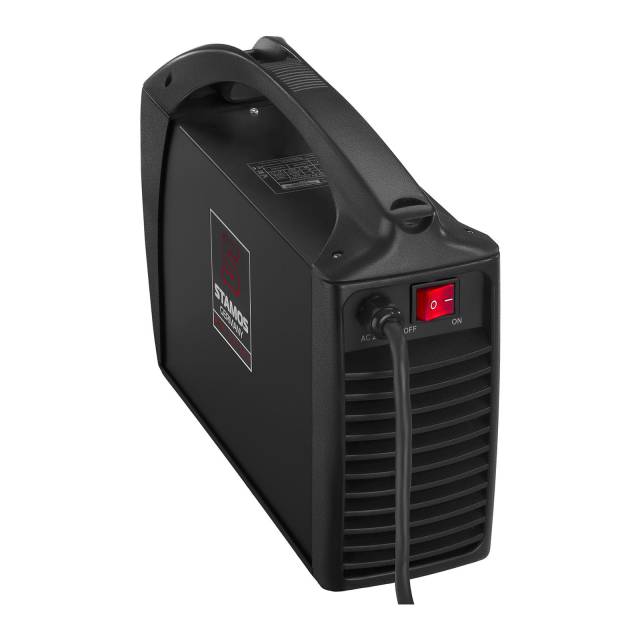

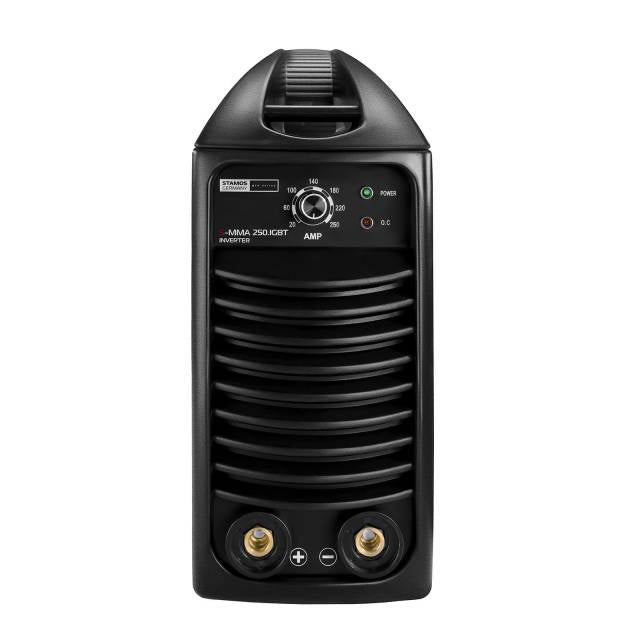

S-MMA 250.IGBTInverter welder S-MMA 250.IGBT is designed for bonding metal materials both
inside and outside the roomsThis is possible by means of
MMA methodsIt uses the gas to make use of the gas.
Hoisted electrodes suitable for welding steel, iron, aluminium, copper or nickel with
thickness up to 10 mm.
Modern
IGBT inverter technology guarantees stable and precise work. It also affects the high reliability of the device, because it uses three-point semiconductor devices, which
prevent shortness of breath.
Product features: - - Practicality - suitable for machining elements made of steel, iron, aluminium or copper,
- - Productivity - the use of modern IGBT technology guarantees precise work and safety against short circuit,
- - Intuitiveness - easy to use control panel and infinite knob allow precise setting of welding current,
- - Mobility - comfortable handle and small dimensions facilitate the transfer of welders,
- - Security - overheating protection system and hot air fan protect the device,
STAMOS devices have been made according to strict European standards and have undergone CE and RoHS conformity tests. This guarantees long service life and high quality of the device.Technical parameters: - - Model - S-MMA 250.IGBT
- - Catalog number - 2203
- - The state of the article - New
- - Power supply - 230 V / 50 Hz
- - Marked input current - 34 A
- - Max. input current - 43 A
- - Marked input power - 7,8 kVA
- - Max. input power - 9,9 kVA
- - Idle-temporarate - 56 V
- - MMA welding current - 20 – 250 A
- - Cycle of work - 60%
- - Welding current in the working cycle 60% - 250 A
- - Welding current in the working cycle 100% - 193 A
- - Diameter of electrodes - 1,6
- - Welding thickness - 1,5
- - Hot Start - Yes.
- - The MMA handle cable - 8 m
- - Mass cable with clamp - 8 m
- - Cooling - Fan
- - Insulation class - F
- - Protection class - IP21
- - Dimensions (DxSxW) - 38 x 12 x 28 cm
- - Weight - 7.2 kg
- - Dimensions of dispatch (DxSxW) - 47 x 25.5 x 31 cm
- - Weight of shipping - 8.6 kg
Functions: - - Hot Start consists of a temporary increase in welding current during the arc glow,

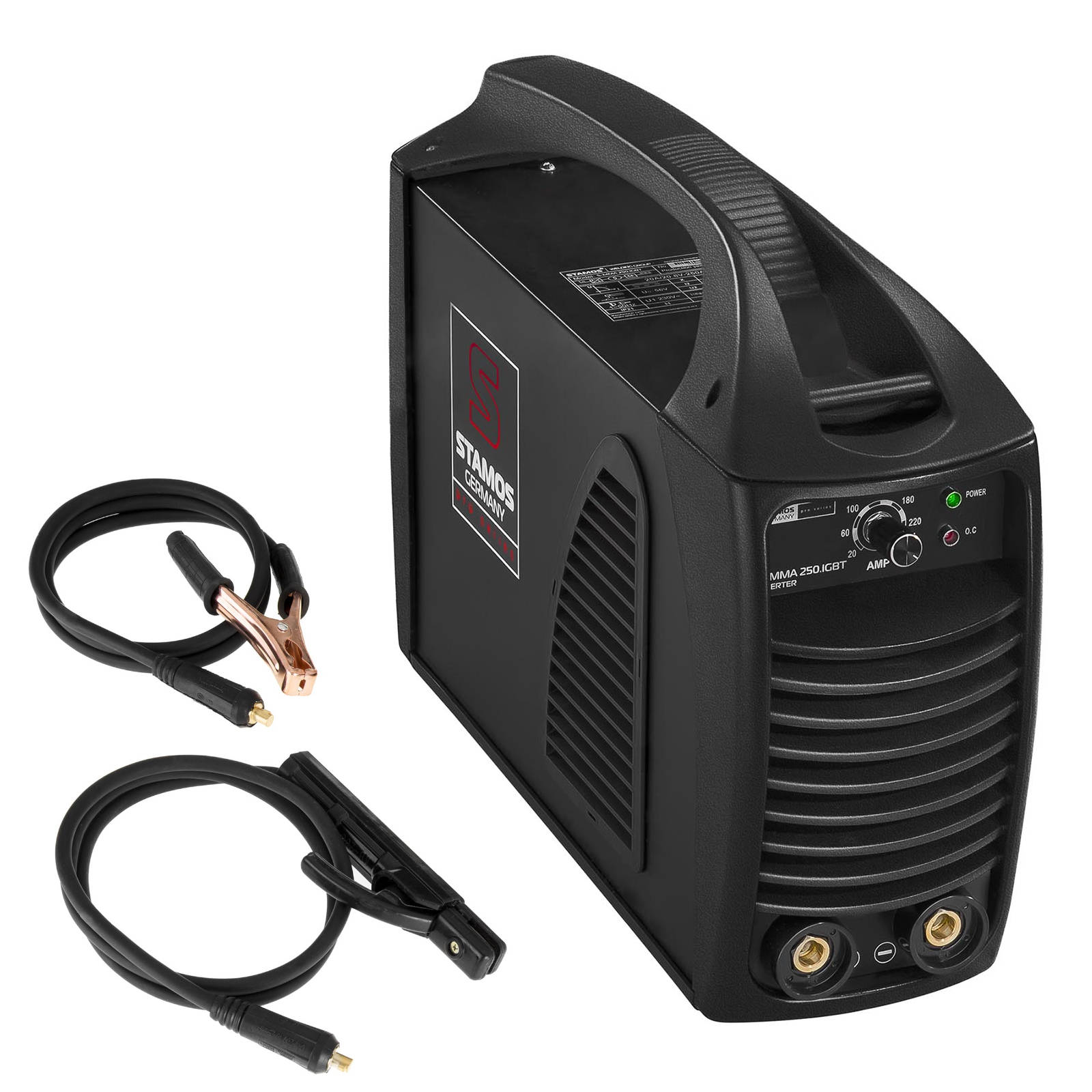

Included: - - MMA welding machine

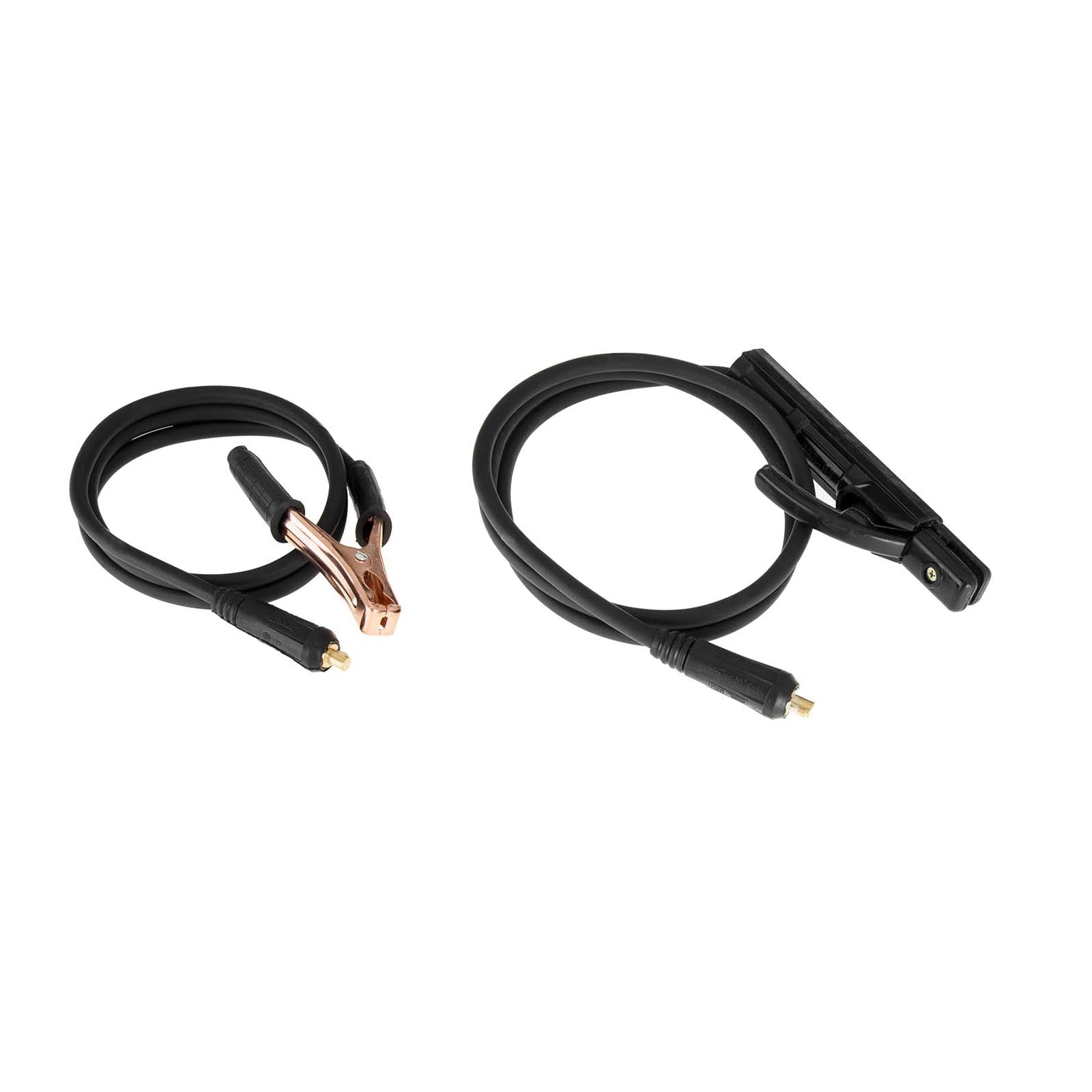

- - Cable with MMA handle
- - Mass cable with clamp
- - Instruction
