Description
Manufacturer's code:

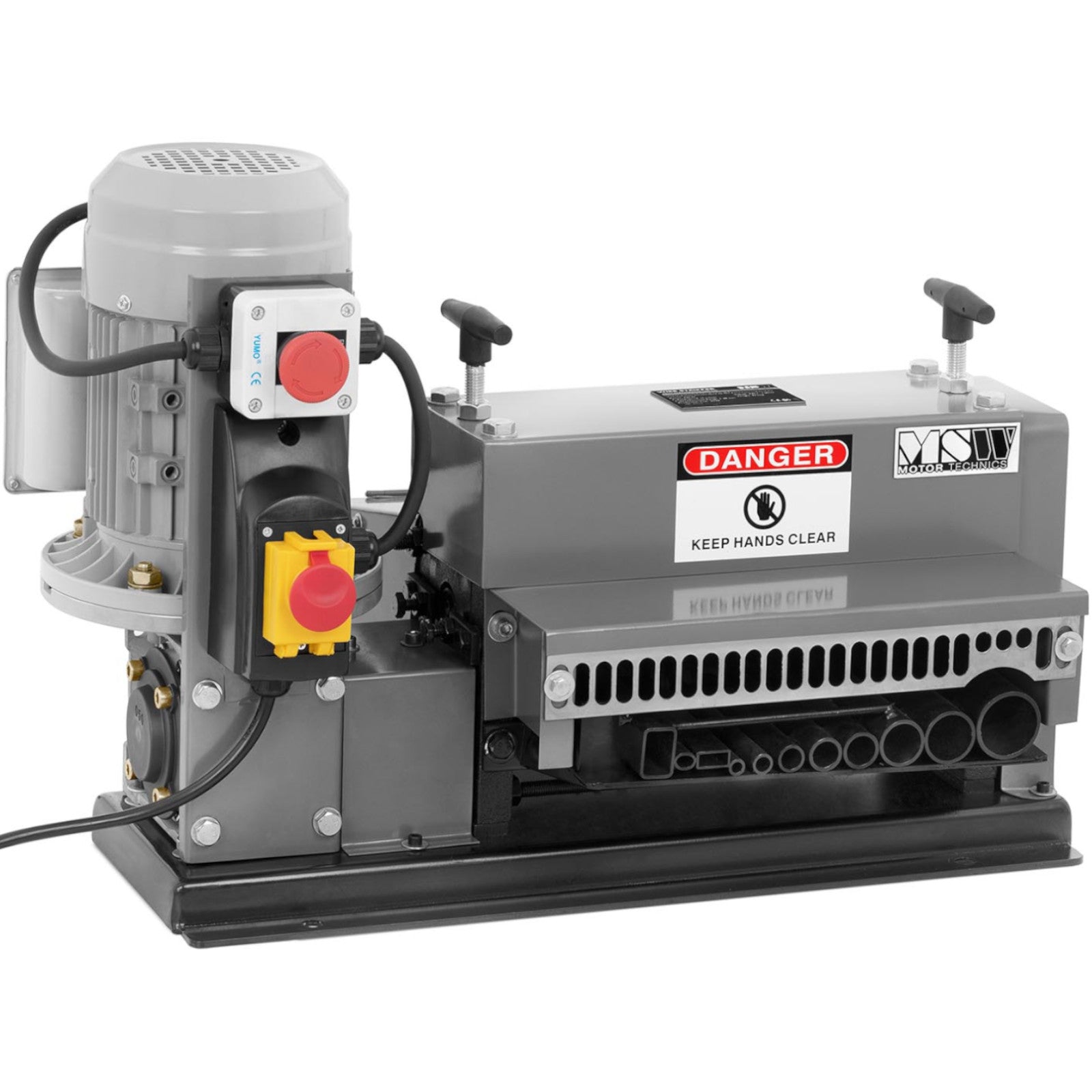

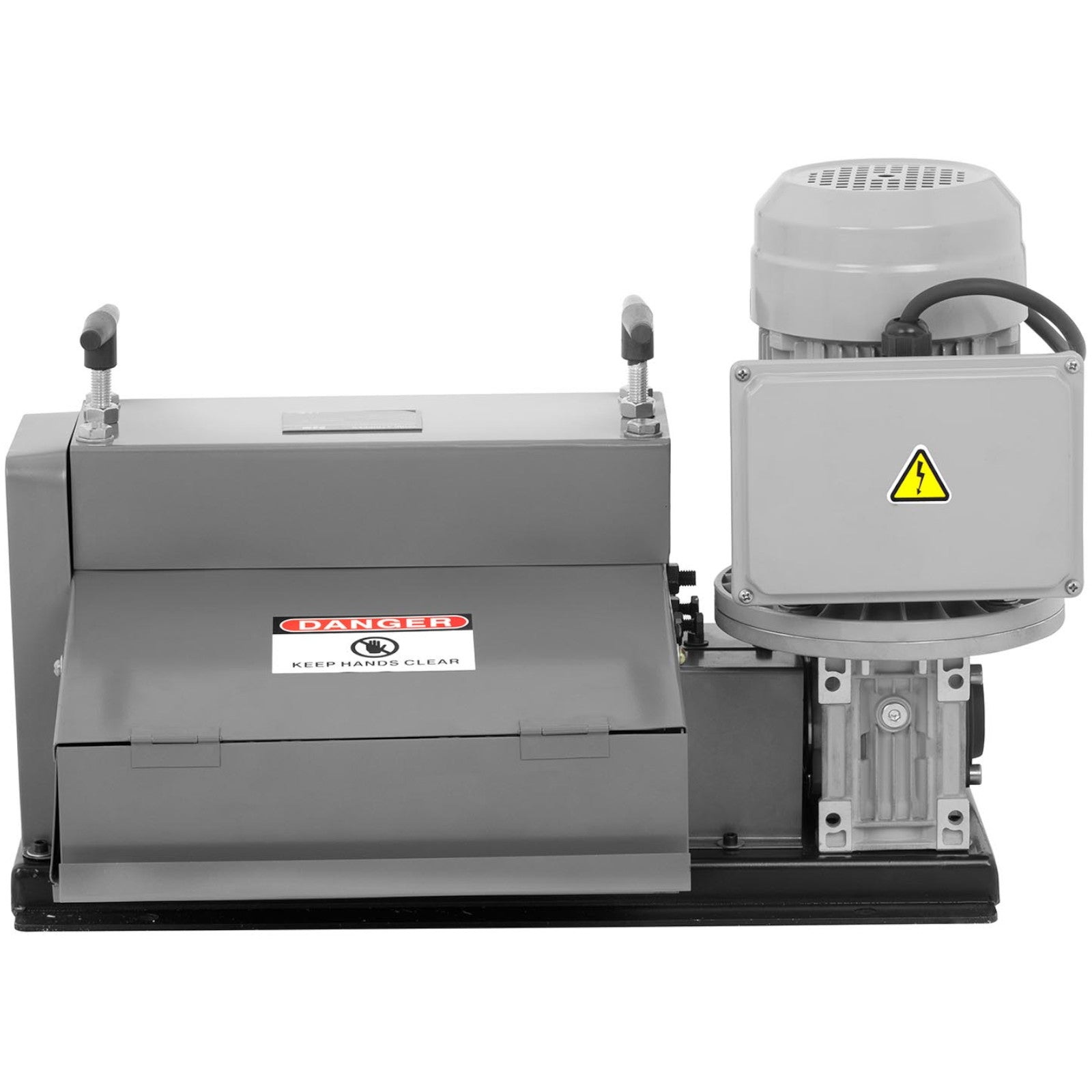

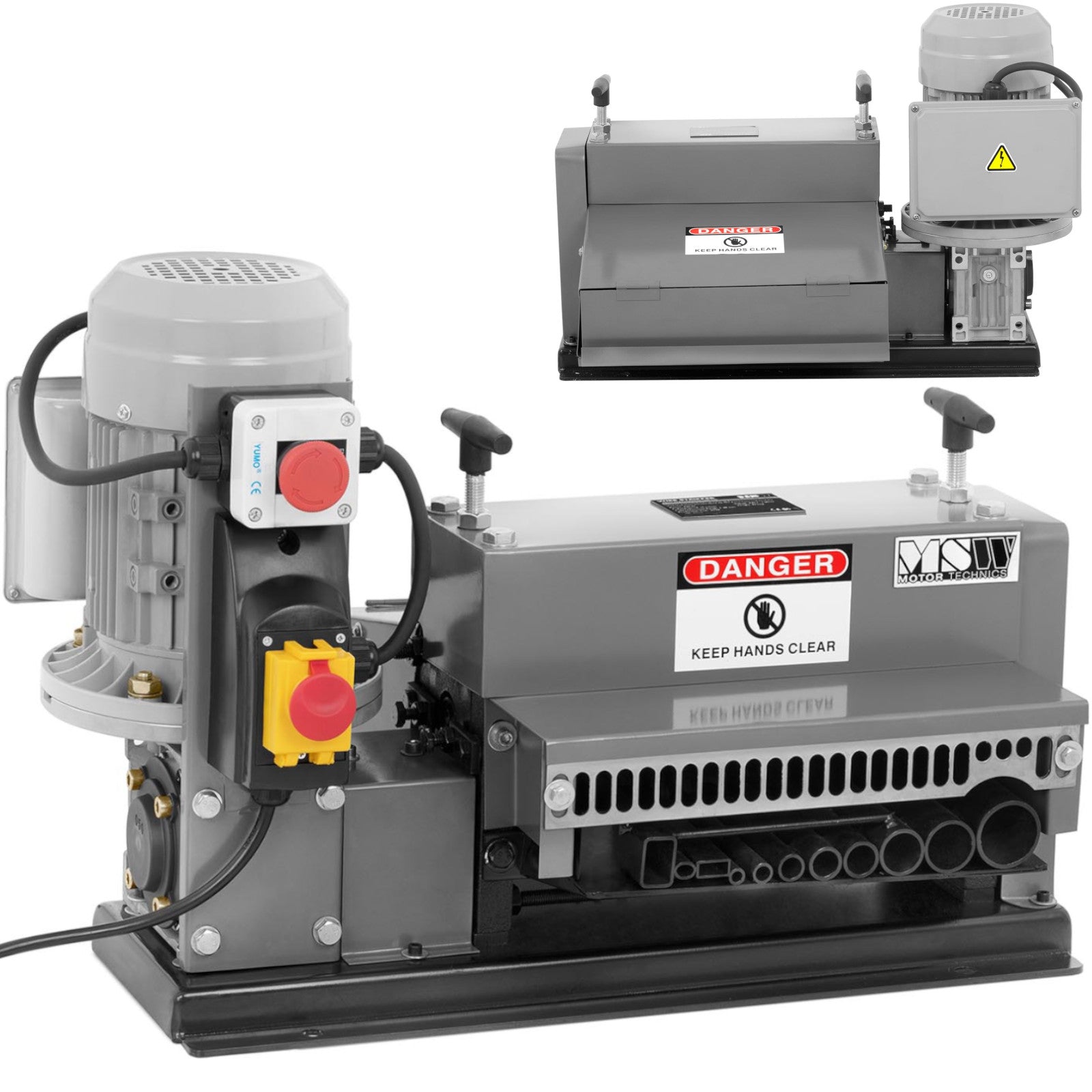

10061195MMA Cable Cording Machine allows to remove insulation from copper and aluminium wires in a short time.
Power of 750 W provides cutting speed to
16 m/minThe pressure and adjustment of the blades are adjustable to adjust the device to the insulation thickness. The deisoler is equipped with

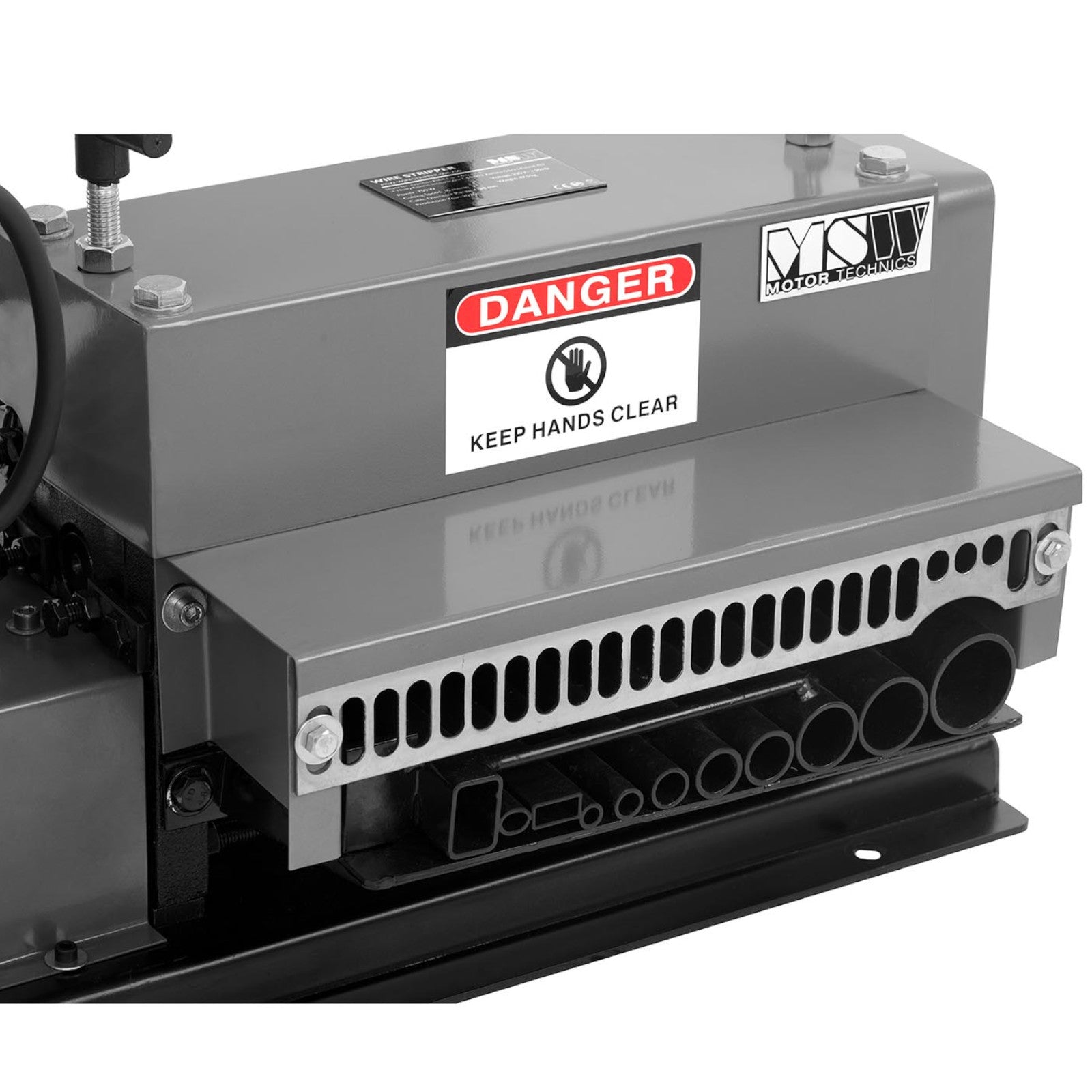

11 holes per cable with a size of
38 mm, 28 mm, 23.5 mm, 17.5 mm, 15 mm, 11 mm, 10.5 mm, 7 mm, 18 x 8 mm, 12 x 6 mm, 26 x 16.5 mmThe safety of work ensures

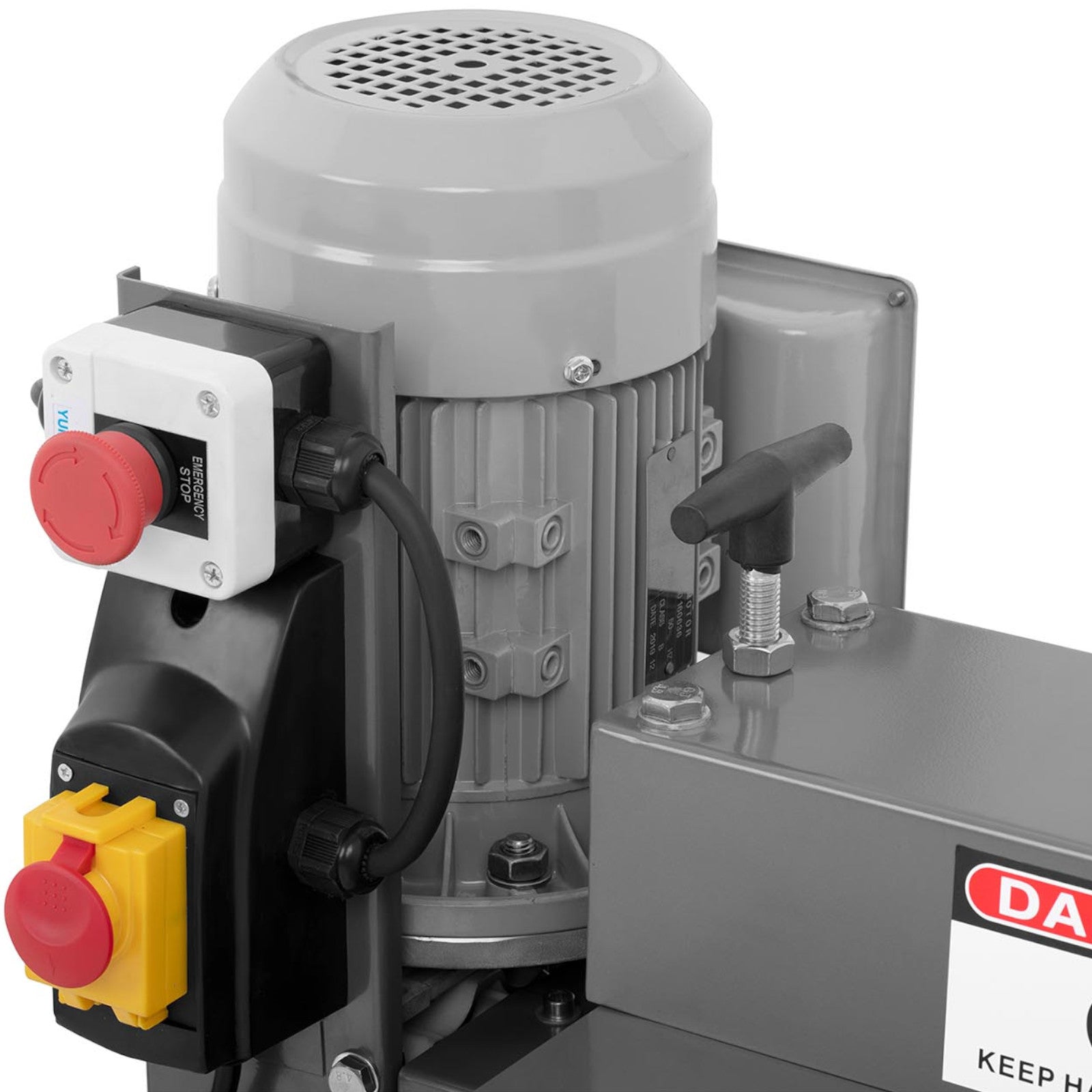

emergency switchwhich shuts off the power.
ON/OFF it has protection against dust and dirt. The device can be screwed onto the workstation for greater stability.
Product features: - - 750 W power ensures high efficiency,
- - Adjusting the pressure of the blade,
- - Equipped with 11 different cable holes,
- - Security switch,
- - The openings to get the job done.
Technical parameters: - - Model - MSW-WIRESTRIPPER-008-750
- - Catalog number - 10061195
- - The state of the article - New
- - Voltage - 230 V
- - Power - 750 W
- - Cutting speed - 16 m/min
- - Number of holes per cable - 11
- - Permissible size of cables - 38 mm 28 mm 23,5 mm 17,5 mm 15 mm 11 mm 10,5 mm 7 mm 18 x 8 mm 12 x 6 mm 26 x 16.5 mm
- - The number of blades - 10 units
- - The length of the holes - 13 cm
- - Minimum length of the wire - 190 mm
- - Unrecommended types of wires - Silicon dioxide insulated with copper reinforcement
- - User manual - Yes.
- - Dimensions (DxSxW) - 45,00 x 64,00 x 42,00 cm
- - Weight - 46.80 kg
- - Dimensions of dispatch (DxSxW) - 59.50 x 67.50 x 57,00 cm
- - Weight of shipping - 57.90 kg
Included: - - Cable cortex
- - Accessories
- - User manual
