Description
Manufacturer's code:

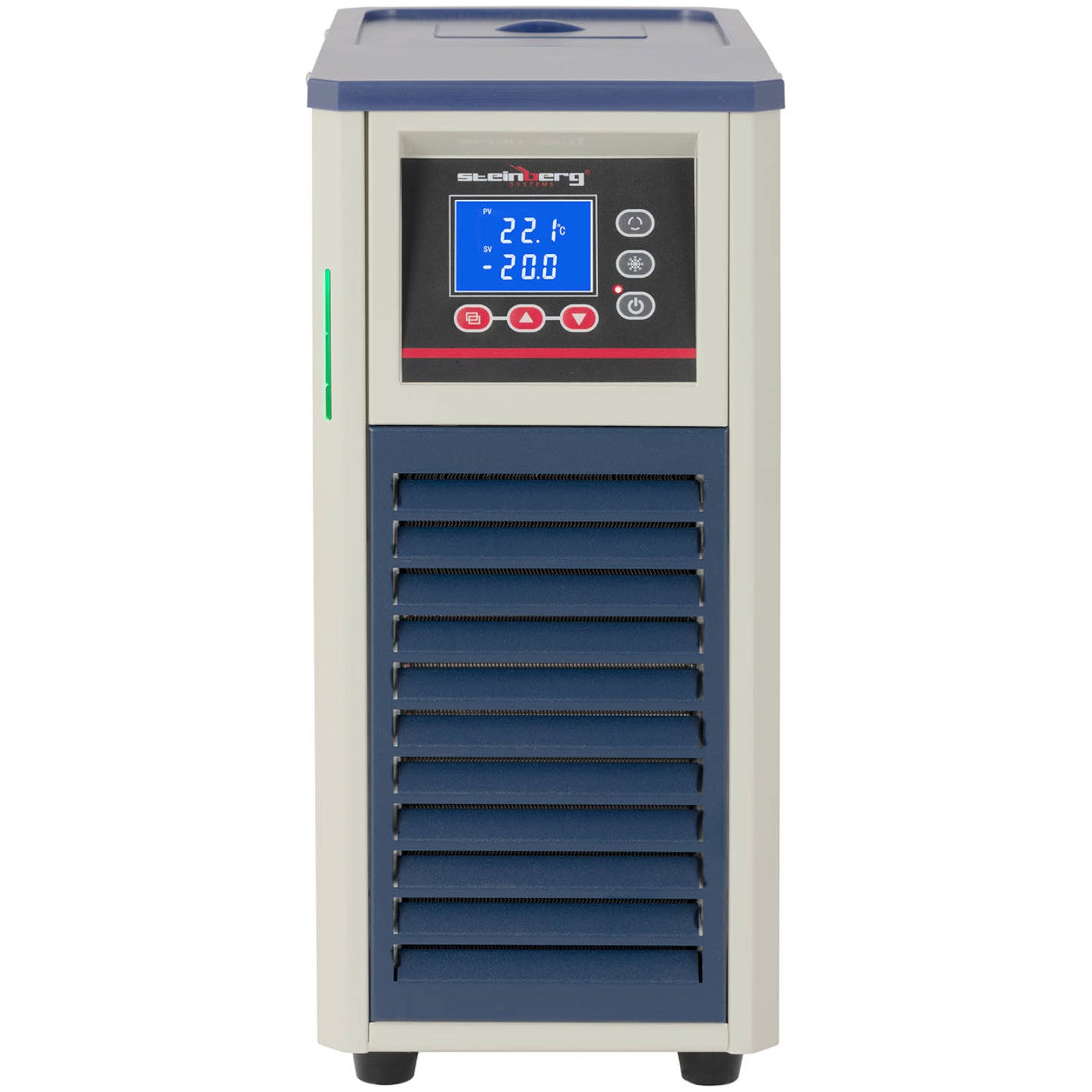

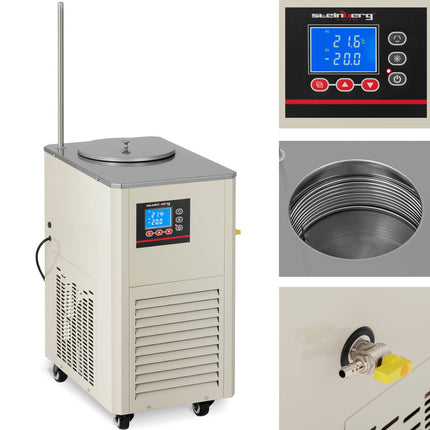

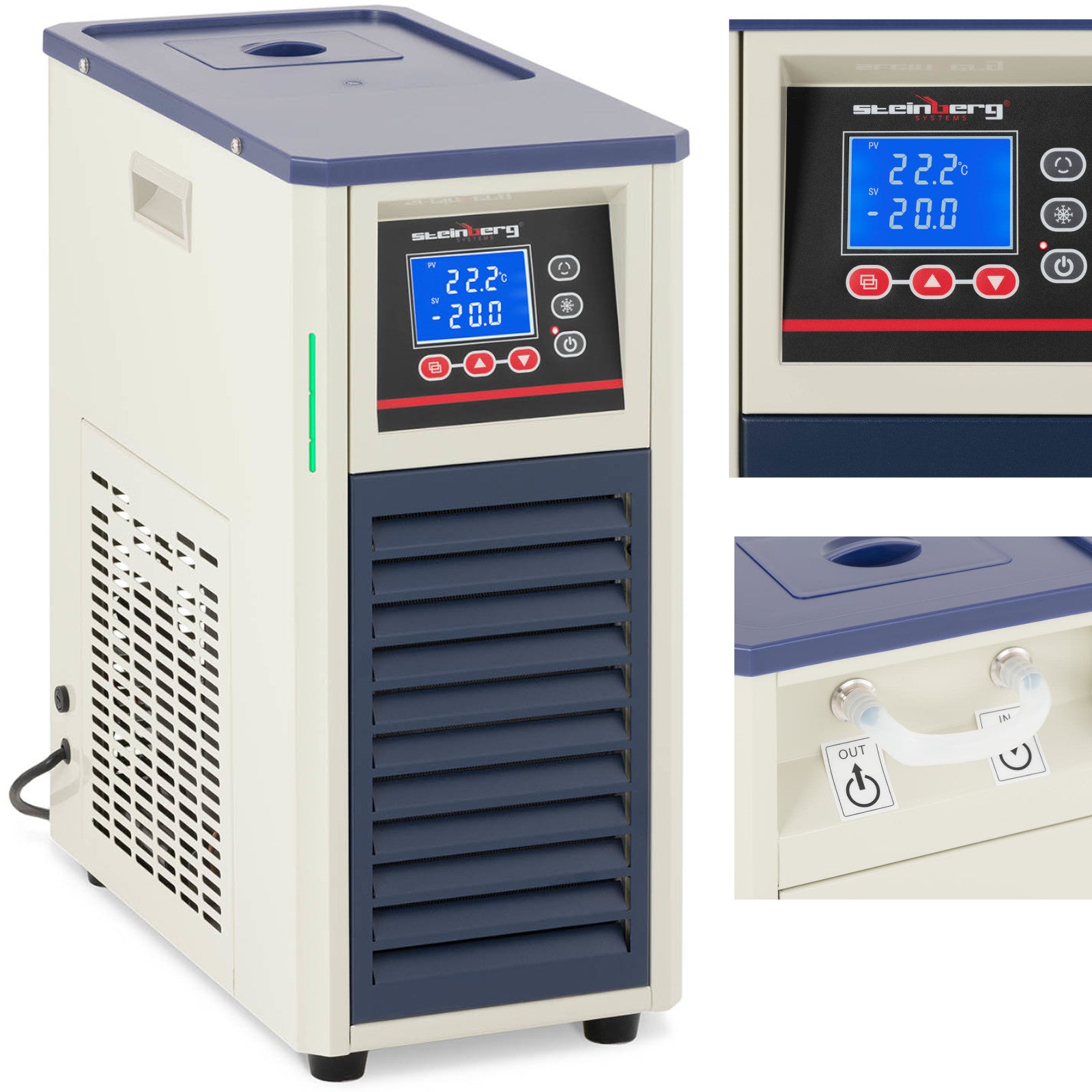

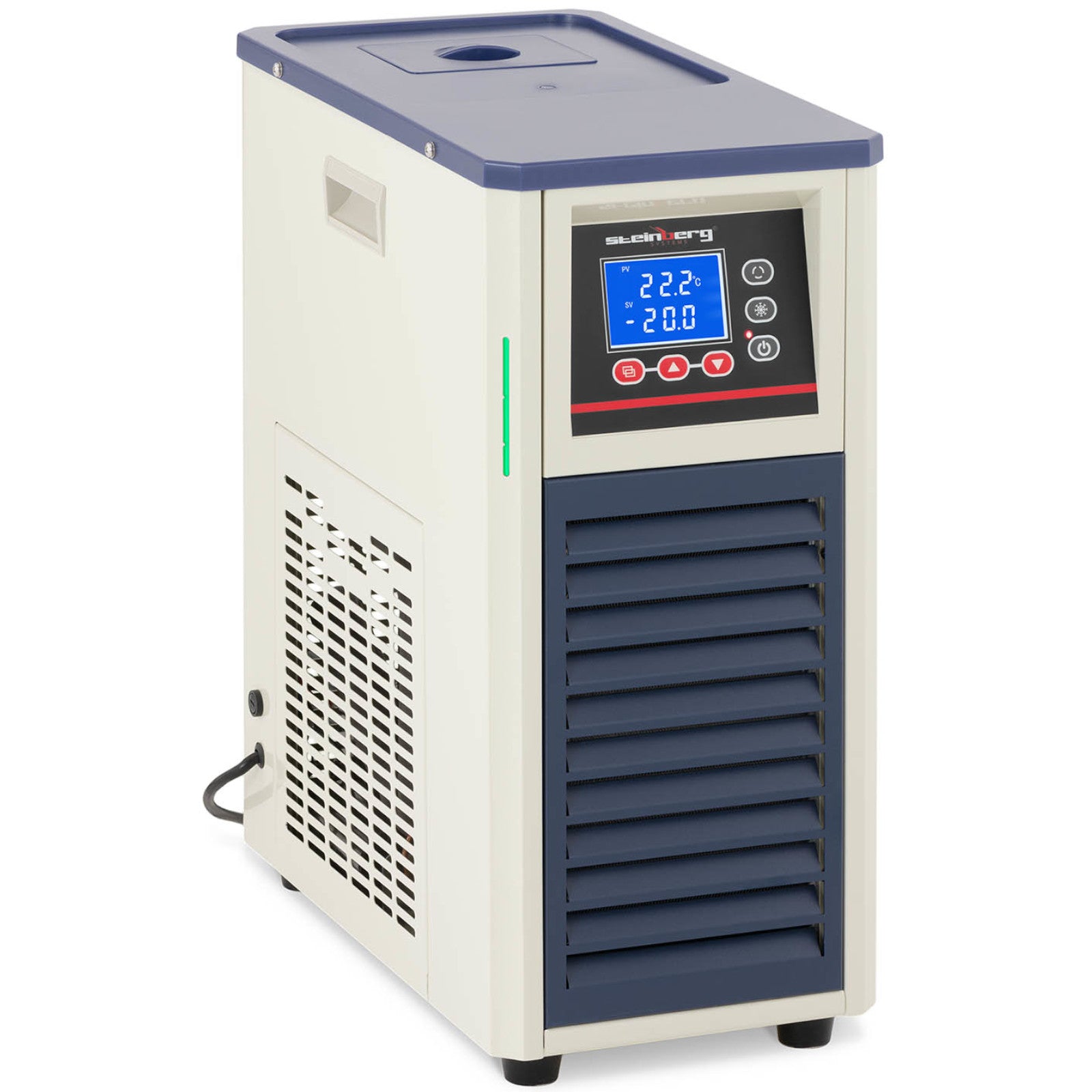

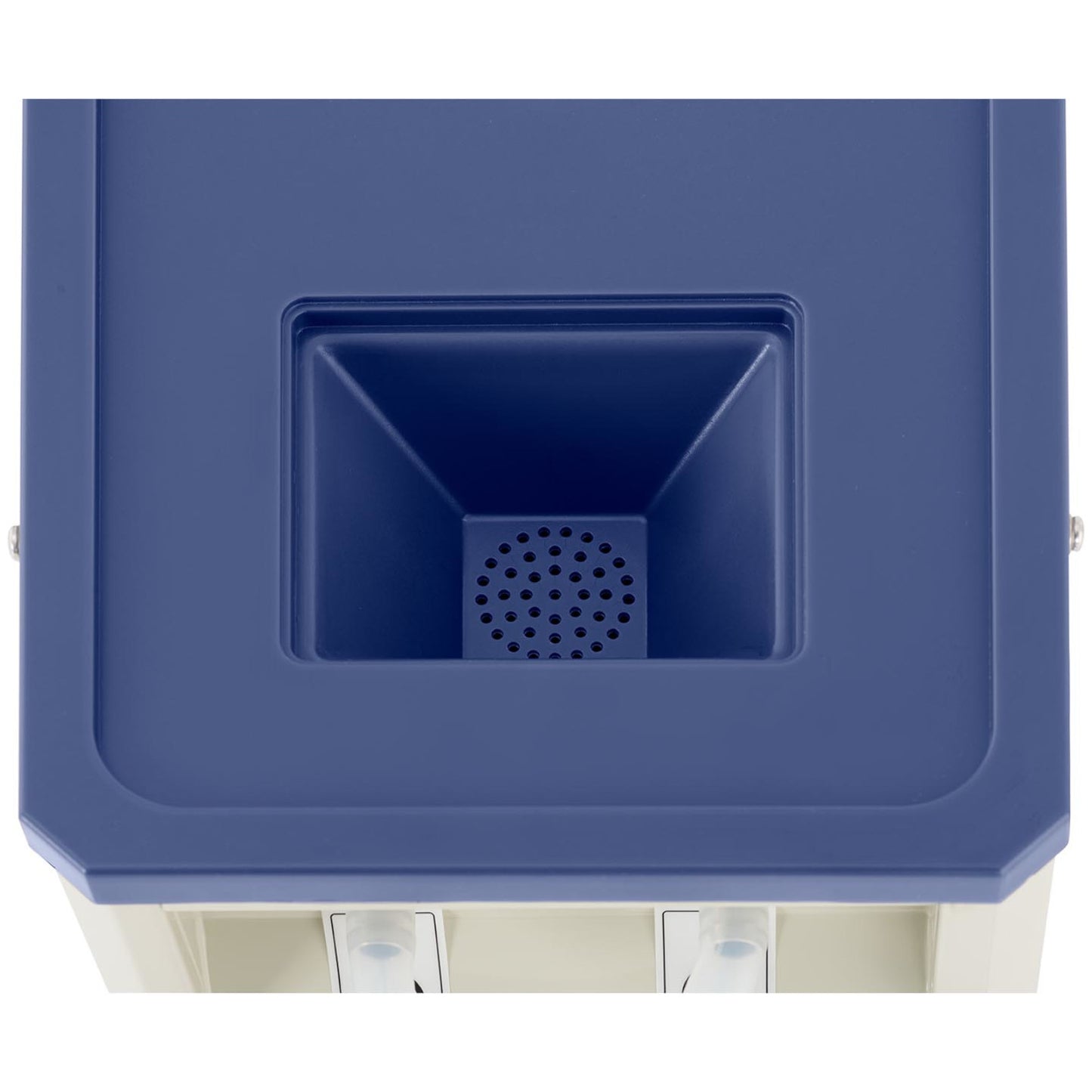

10030664Cooling Circulator Steinberg Systems is a high quality laboratory device for internal and external temperature control.
can be connected for electron microscopes, rotating vacuum distillers or glass reactor.
for cooling lasers and incubators High control accuracy is due to the
a digital PID regulator with a microprocessorwhich increases the level of heating/cooling depending on temperature. Convenient adjustment
within the range -20 til 20deg C is possible by means of the display
LCDTank with
stainless steel easy to keep clean. Additionally, the functions were used.
rust-resistant and coolant contamination.
Product features: - - Microprocessor controlled PID regulator,
- - The constant temperature from accuracy +/-2deg C,

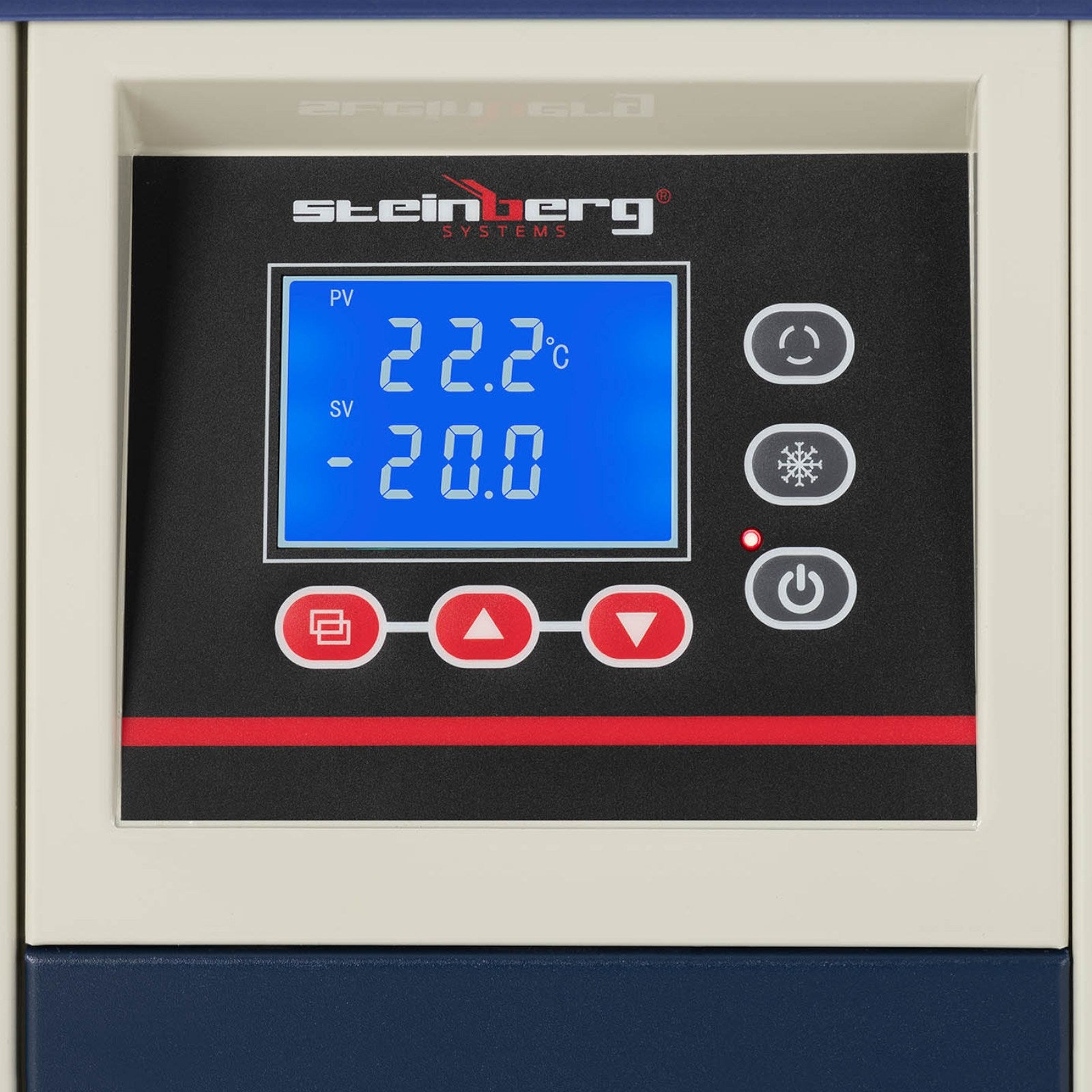

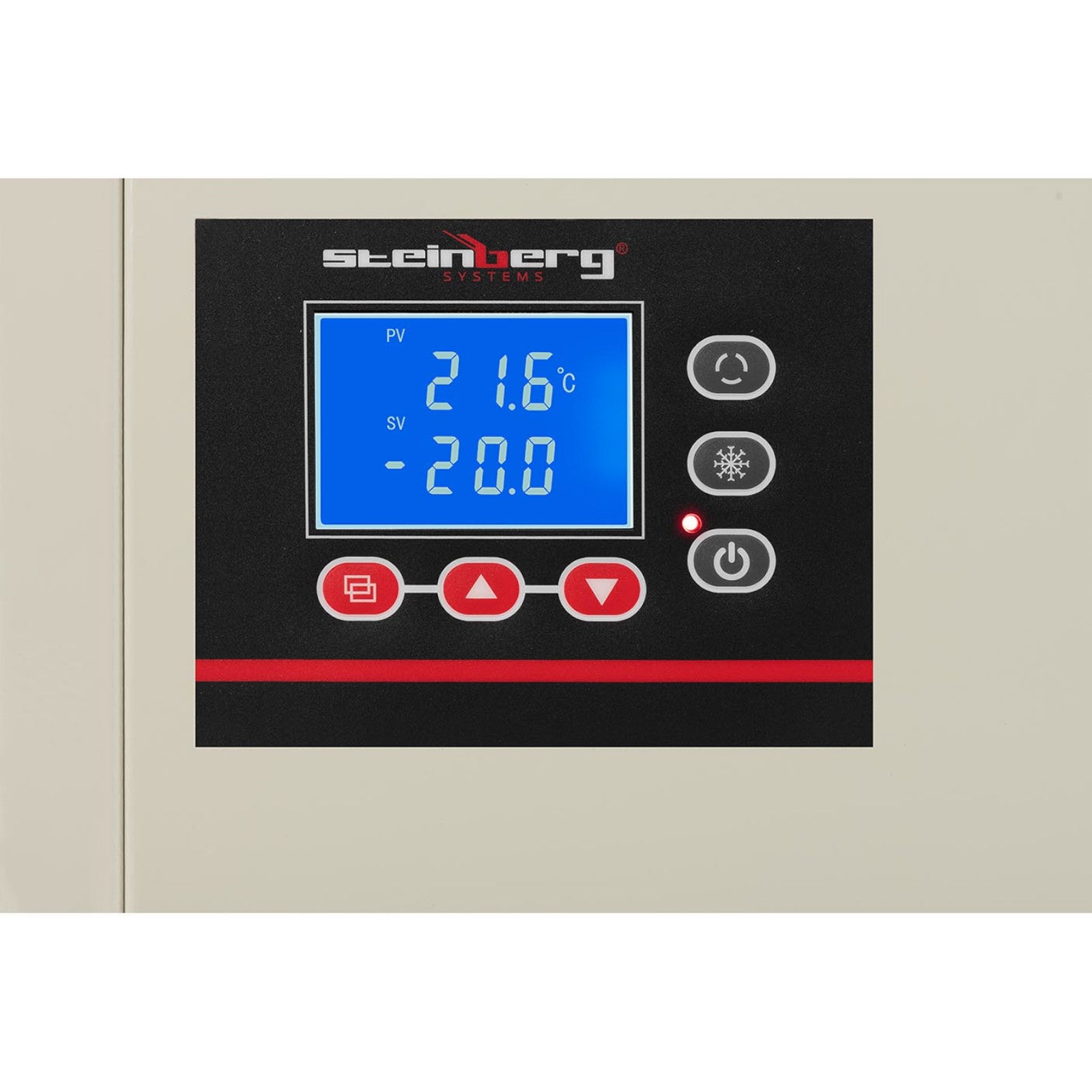

- - Display LCD,

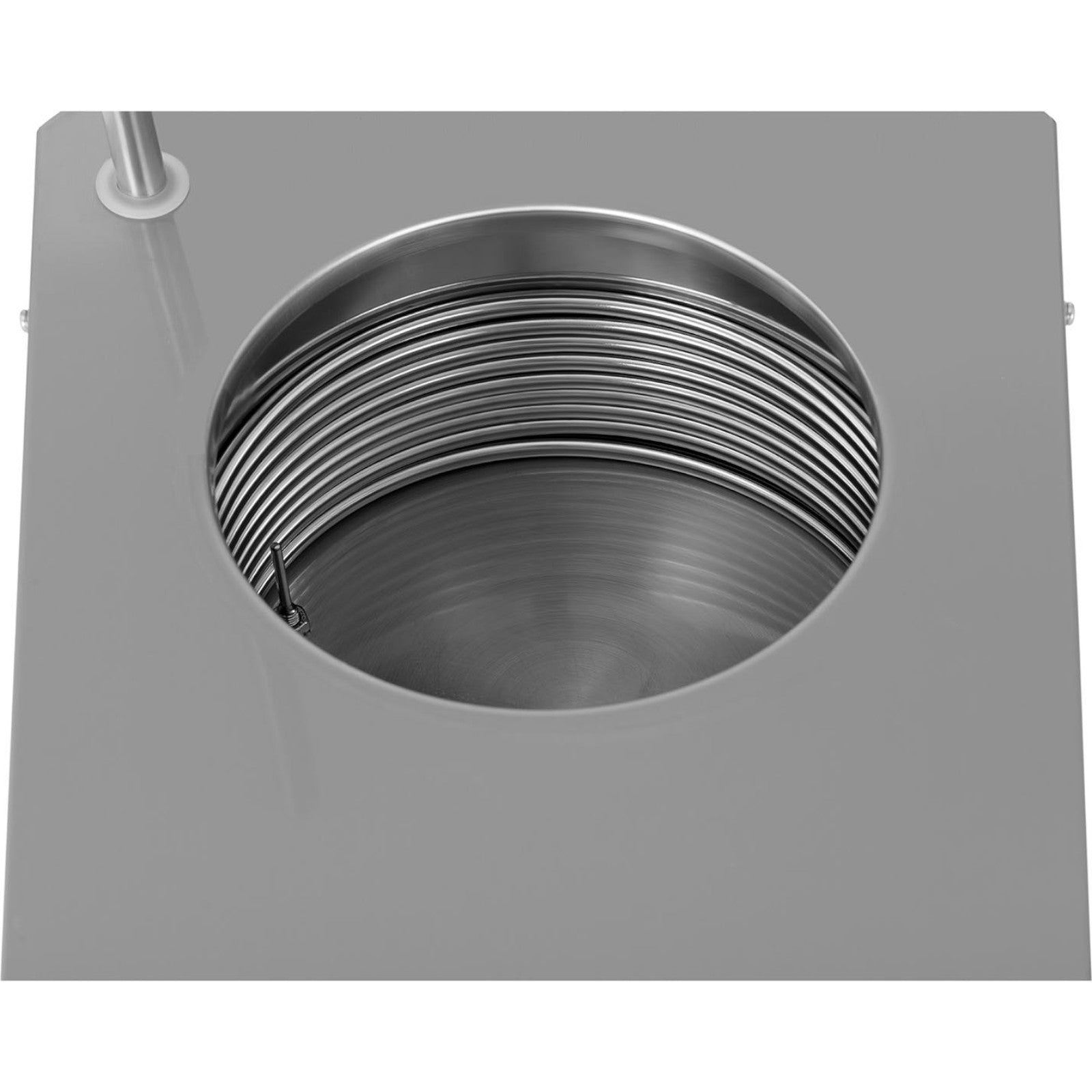

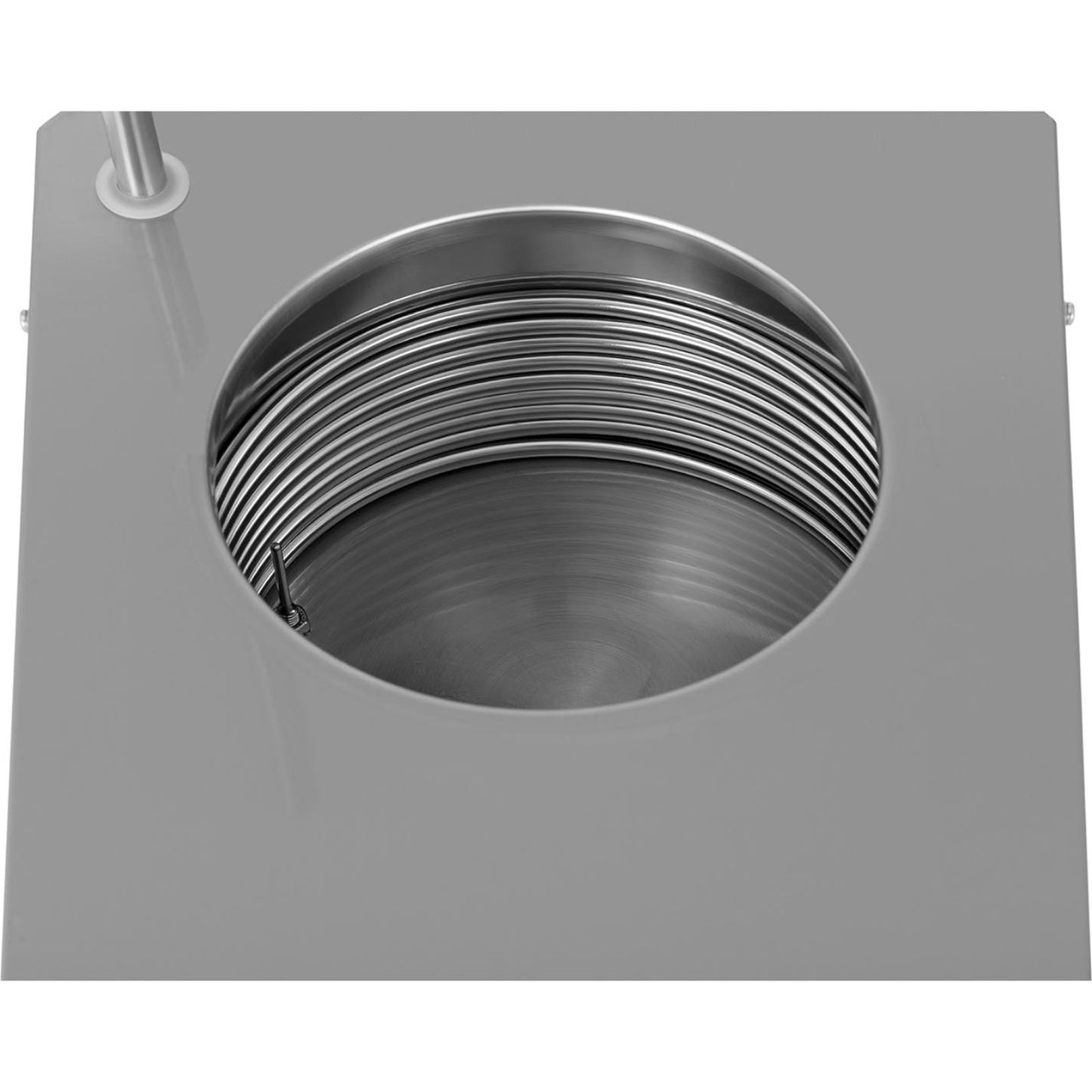

- - Tank of stainless steel,
- - Lowest temperature. to -20deg C,
- - Compact construction,
- - Security before overheating.
Technical data: - - Catalog number - 10030664
- - The state of the article - New
- - Producer - Steinberg Systems
- - Model - SBS-LCC-3000
- - Voltage [V] - 230
- - Display - LCD
- - User manual - Yes.
- - Overheating protection - Yes.
- - Dimensions of the tank [cm] -
- - Temperature accuracy [deg C] - +/-2
- - Protection against overrunning - Yes.
- - Temperature range [deg C] - - 20 till 20.
- - The current [A] - 2.25
- - Material - Stainless steel 304 / Q235
- - Operating temperature range [deg C] - ≤25
- - Capacity [l] - 3
- - Frequency [Hz] - 50/60
- - Relative humidity [%] - ≤60
- - Power compressor [W] - 495
- - Power compressor [HM] - 1
- - Power of the circulator [W] - 100
- - Flow of the circulator [l/min] - 20
- - Cooling efficiency [W] - 10deg C-1150 W, 0deg C-880 W, -10deg C-600 W, -20deg C-3200 W
- - Raising the circulation pump [m] - 5-7
- - Lowest temperature [deg C] - -20
- - Late start - Yes.
- - Dimensions (DxSxW) [cm] - 42 x 23 x 50
- - Weight [kg] - 27
- - Dimensions of dispatch (DxSxW) [cm] - 49 x 30 x 65
- - Weight of dispatch [kg] - 41
Included: - - Cooling Circulator,
- - Pipe,
- - Fuse fuse - 2 pcs,
- - Manual.
