Overview

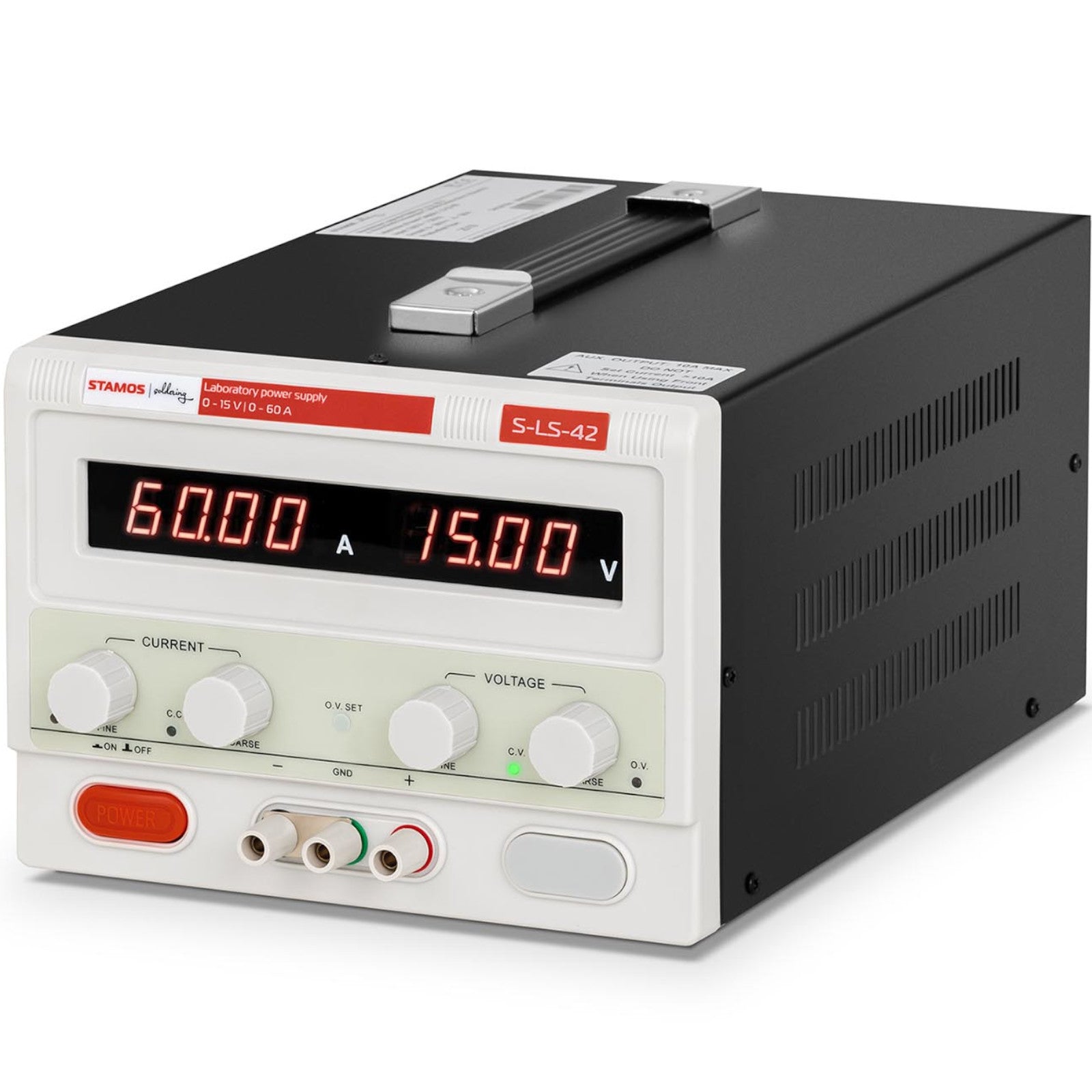

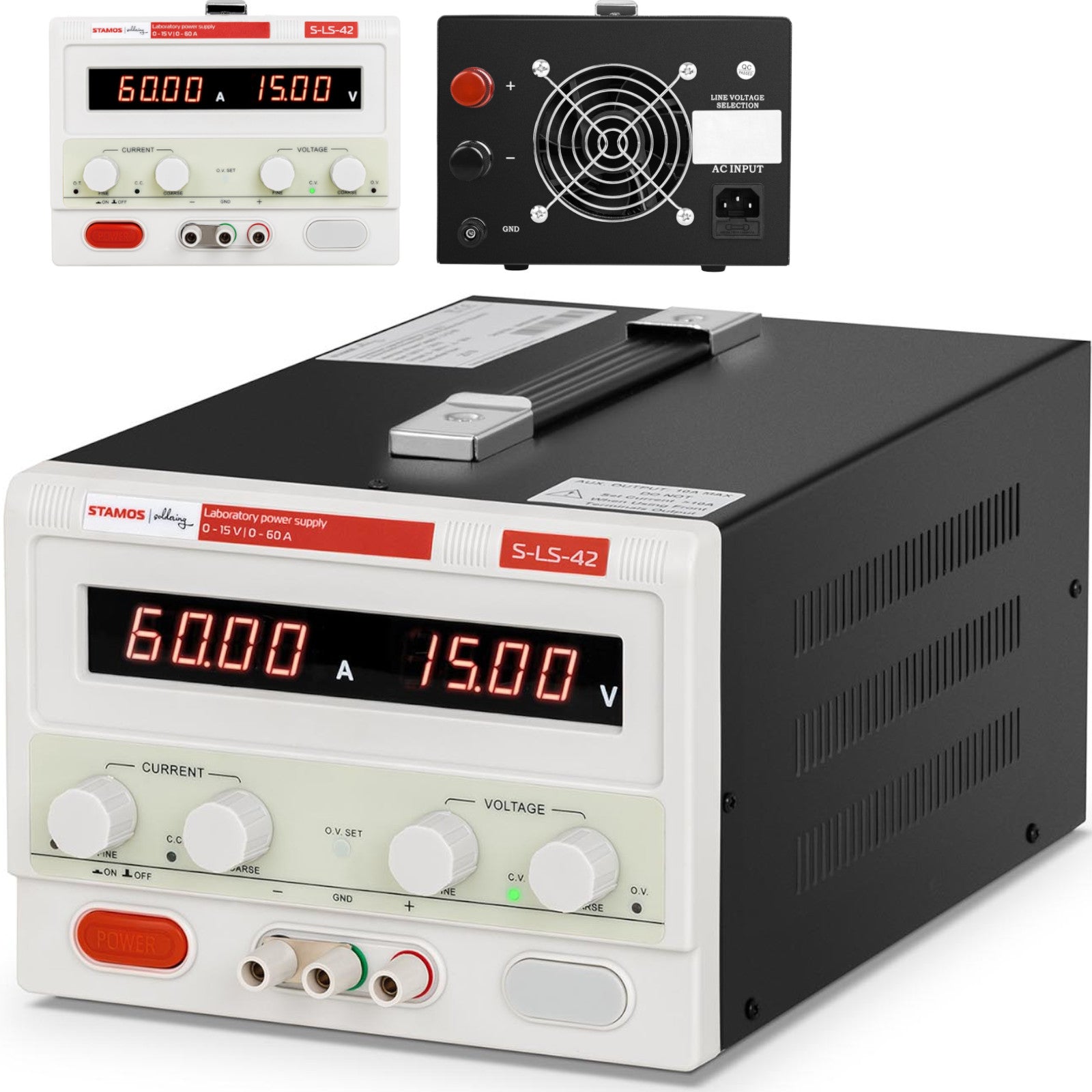

The Laboratory service power supply 0-15 V 0-60 A DC 900 W LED from Stamos Soldering brings power supply enclosures you can rely on, made for your power tools needs. A popular choice in Electro-tools, Tools for electronics.
Manufacturer's code: 10021072
The STAMOS brand laboratory power supply will work well in production and industrial plants, as well as in the telecommunications industry. The power supply will be used in workshops, electronics services, laboratories and research institutes. It is used to convert alternating current into direct current electricity at a specific voltage and supplies it to external electrical devices. The device is effective due to the placement of feces with a positive and negative output. The power supply precisely generates current with low ripple≤1% RMSand low noise, which prevents damage to the circuit. It has a voltage of up to 15 Vand an output current of up to 60 A. The power supply has anLEDdisplay on which we can check the current and voltage values. Precise regulation of the output current and voltage make it easier to adjust the appropriate parameter value. As a result, the power supply offers balanced parameters. It allows you to work in two modesC.V. andC.C.. The safety of working with the device from Stamos Soldering is ensured by four functions: protection against overvoltage (OVP), overload of the stabilizer (OCP), overheating (OTP) and overload of the entire power supply (OPP). The S-LS-33 power supply is mobile due to its low weight (3.6 kg) and compact size.
Product features:
Technical parameters:
The set includes:
Key features
| Specification | Detail |
|---|---|
| Operation in two modes | C.V. (constant output voltage) and C.C. (constant load current), |
| Catalog number | 10021072 |
| Article condition | New |
| Model | S-LS-42 |
| Type | Pulse |
| Display | LED |
| Voltage [V] | 230 |
| Color | Black |
| Fuse [A] | 10 |
| Power [W] | 900 |
| Cooling | Fan, temperature control |
| Ripple | ≤1% RMS full scale |
| Connector [mm] | Output jacks, mains power jack, ground output terminal |
| Power cable [m] | 1.75 |
| Protections | OVP, OCP, OTP, OPP |
| Resolution | 100 mV / 10 mA |
| Output voltage [V] | 0 - 15 |
| Rated input current [A] | 60 |
| Current intensity | N/A |
| Output current [A] | 0 - 60 |
| Voltage stabilization factor | Cv≤0.2% of reading + 2 digits, Cc≤0.5% of reading + 2 digits |
| Current stabilization factor | ≤0.5% of reading + 2 digits |
| Storage temperature [deg C] | -80 |
| Connection method to the computer | N/A |
| Current adjustment range [A] | N/A |
| Operating temperature range [deg C] | 0-40 |
| DC voltage adjustment range [V] | N/A |
| Work stabilization factor | Cv≤0.2% + 2D/cc≤0.5% + 2D |
| Work stabilization factor during load | ≤0.5% + 2D |
| Protection against too high voltage | Yes |
| Protection against exceeding the maximum current | Yes |
| Dimensions (LxWxH) [cm] | 32.5 x 20 x 16.5 |
| Weight [kg] | 3.6 |
| Shipping dimensions (LxWxH) [cm] | 37 x 25 x 21 |
| Shipping weight [kg] | 3.8 |
