Description
Manufacturer's code:

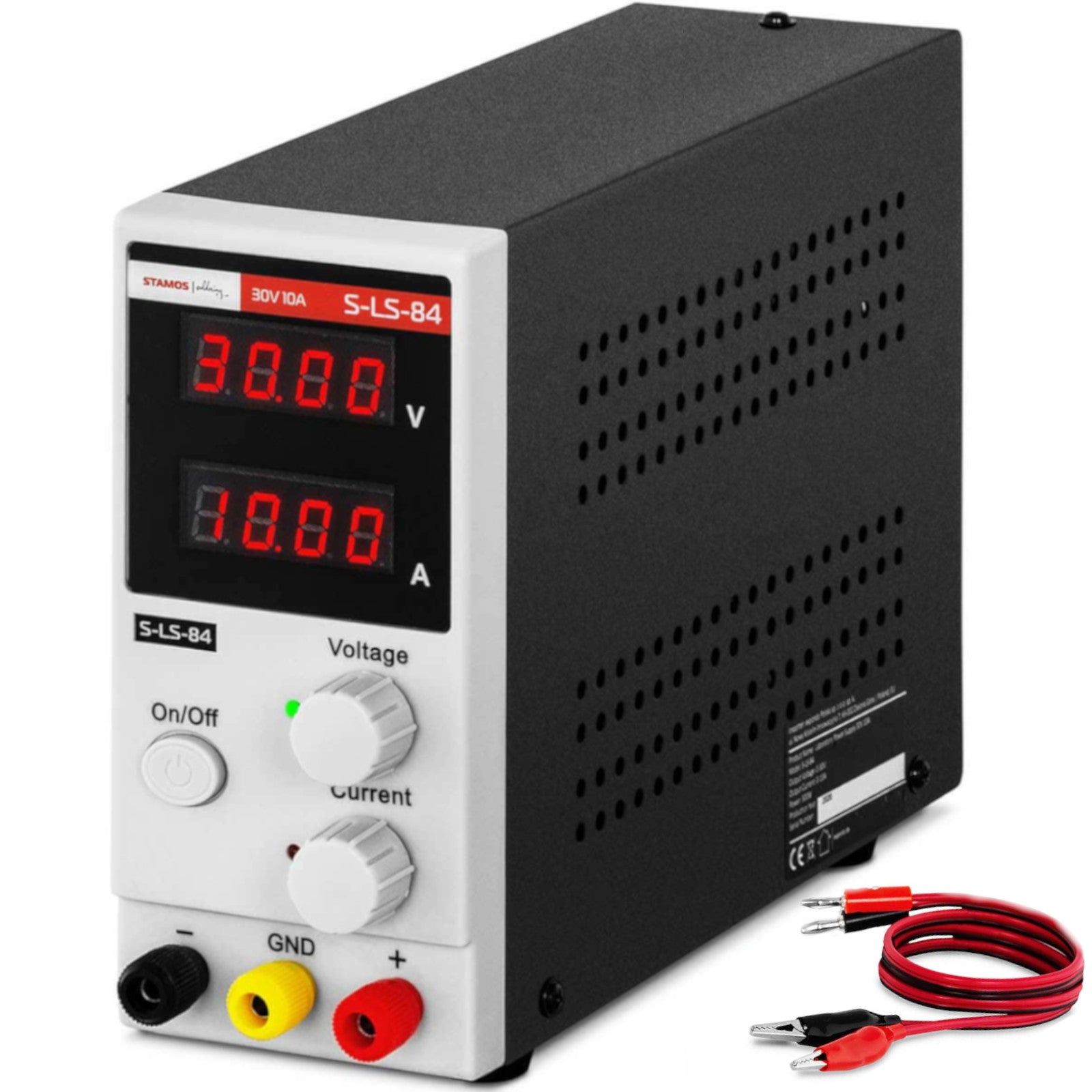

10021175Stamos Soldering Laboratory Power Supply will be suitable for manufacturing, industrial, laboratories and research institutes as well as the telecommunications industry.
conversion of alternating current into DC electricity The power supply is equipped with one channel. It allows precise voltage adjustment in the range 0-30 V and output current 0-10 A. The control of parameters is done by means of knobs. The device is 300 W. The LED display allows you to read the values of current and output voltage. The device has a mode of output current stabilisation (CC) and voltage stabilisation (CV). It is also equipped with thermal protection (OTP) and overload (OPP). The fan ensures the optimum temperature of the equipment.
Product features: - - Power 300 W,
- - 0-30 V and 0-10 A regulation,
- - adjustment with knobs,
- - LED display,
- - OTP and OPP security.
Technical parameters: - - Catalog number - 10021175
- - The state of the article - New
- - Model - S-LS-84
- - Connector [mm] - Output sockets, power socket, ground output terminal
- - Cooling - Fan, temperature control
- - Color - Black
- - Flashback [A] - 10
- - Voltage stabilisation factor - Cv≤20 mV, Cc≤20 mA
- - Current stability factor - Cv≤50 mV, Cc≤20 mA
- - Type - Impulse
- - Output current [A] - 0 - 10
- - Security - OTP, OPP
- - Power cord [m] - 1,1
- - Output voltage [V] - 0 - 30
- - Display - LED
- - Voltage [V] - 230
- - Power [W] - 300
- - Marked input current [A] - 10
- - Pulse ox - 30 mV, 20 mA
- - Dimensions (DxSxW) - 21.7 x 7.1 x 16 cm
- - Weight - 1.5 kg
- - Dimensions of dispatch (DxSxW) - 30.5 x 11 x 19.8 cm
- - Weight of shipping - 1.77 kg
Included: - - Laboratory power supply.

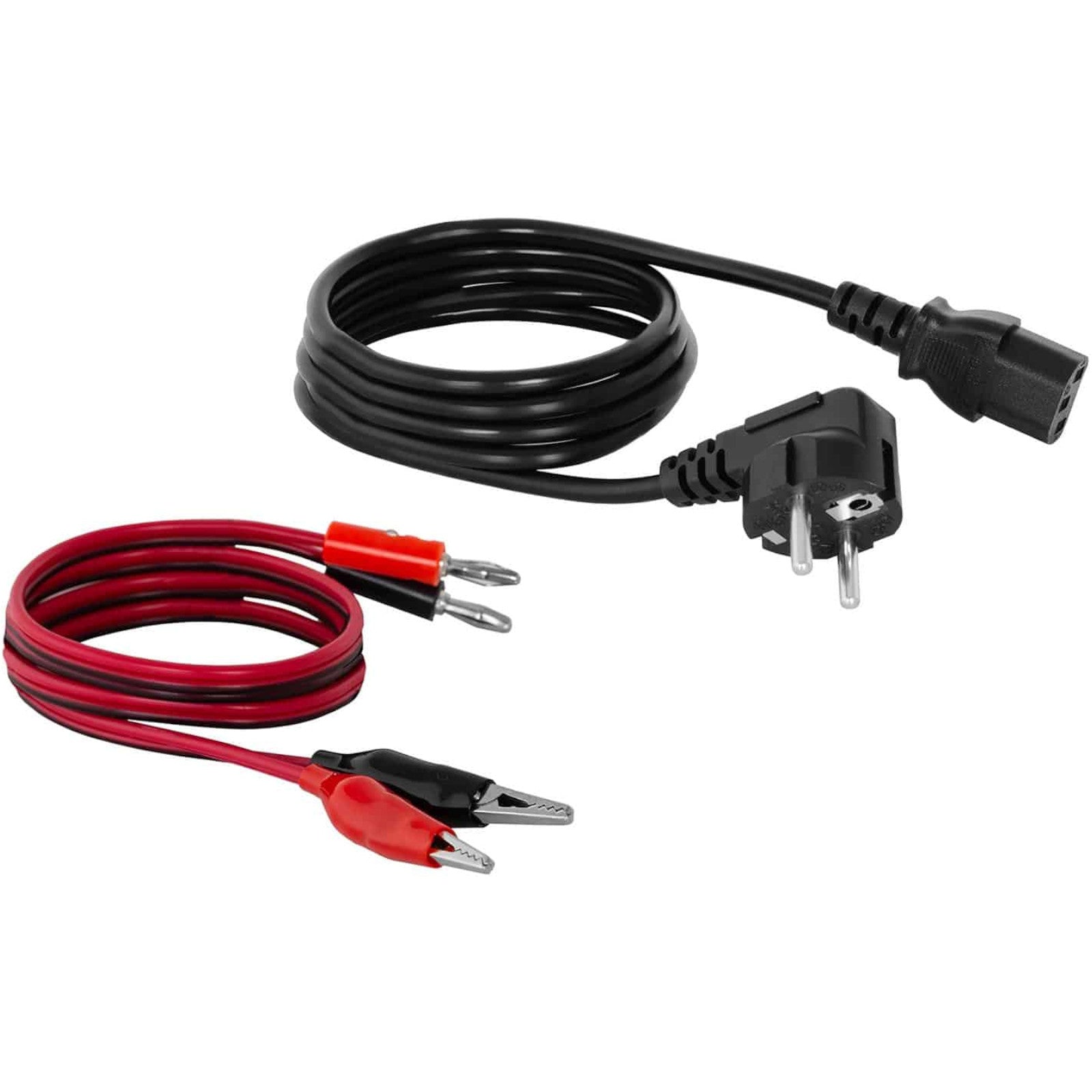

- - Connection cable
- - Power cord
- - User manual
