Description
Manufacturer's code:

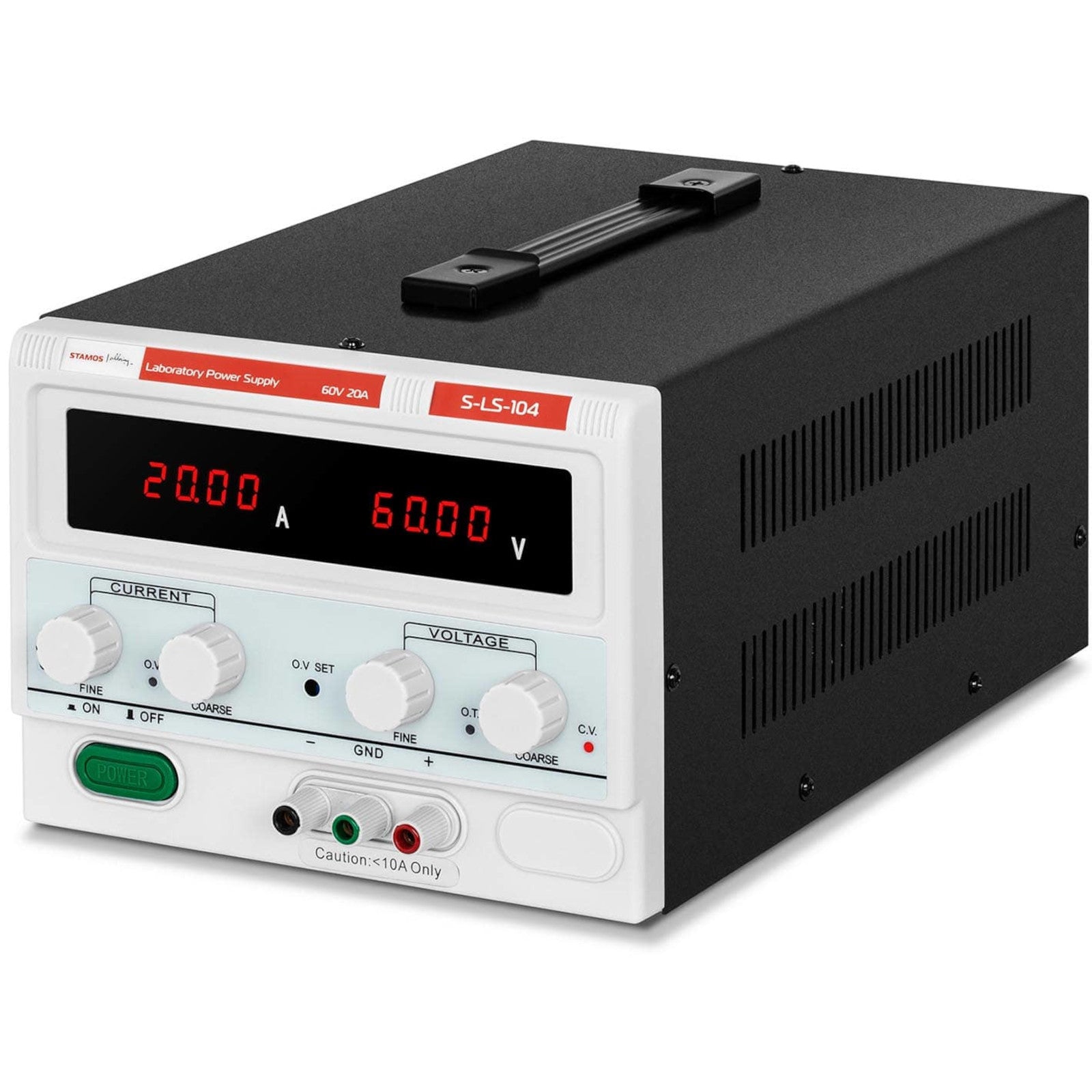

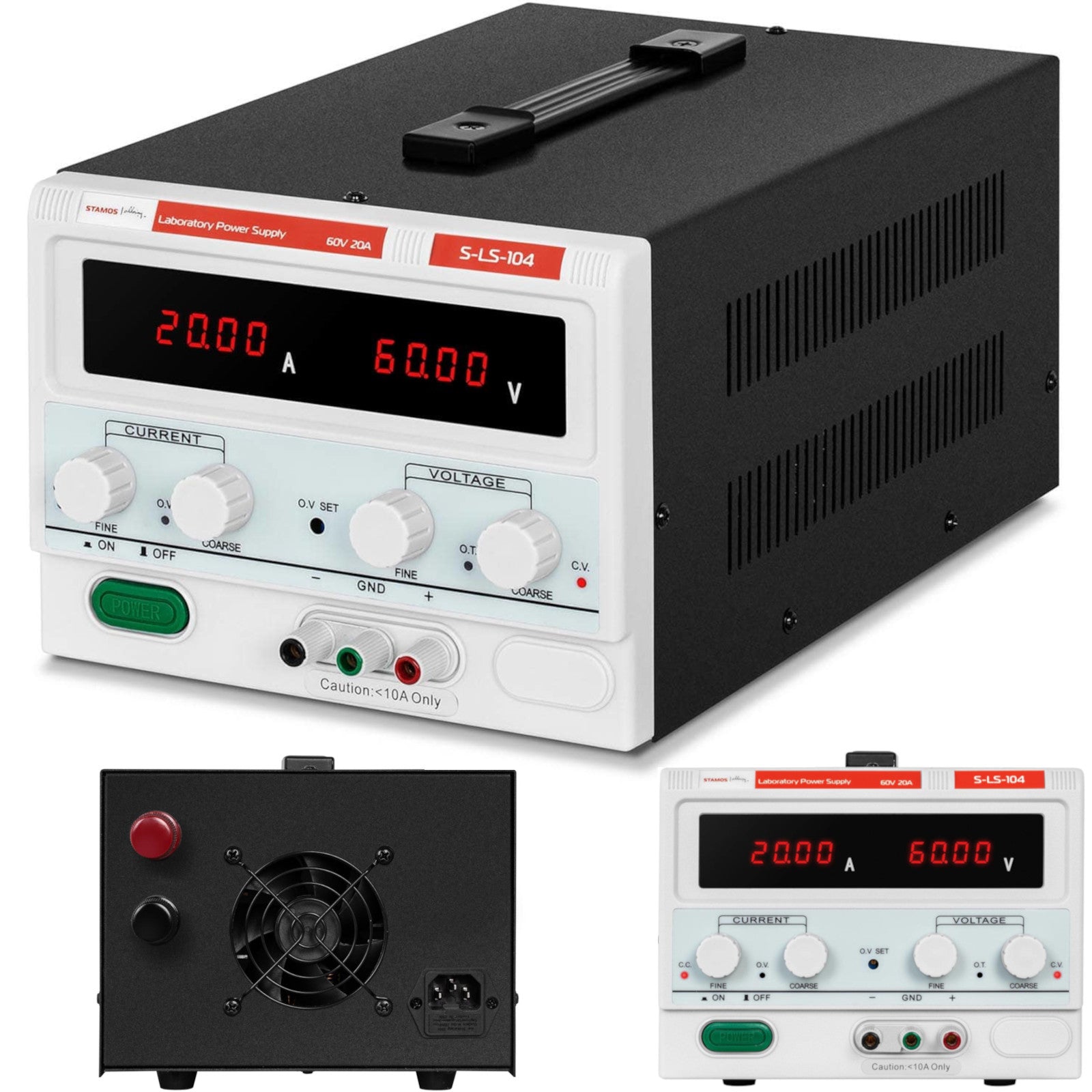

10021283Stamos Soldering Laboratory Power Supply it is designed for professional use in the industrial sector, laboratories, telecommunications, workshops and research institutes.
Linear Technology provides
low residual heart rate and low noiseBig

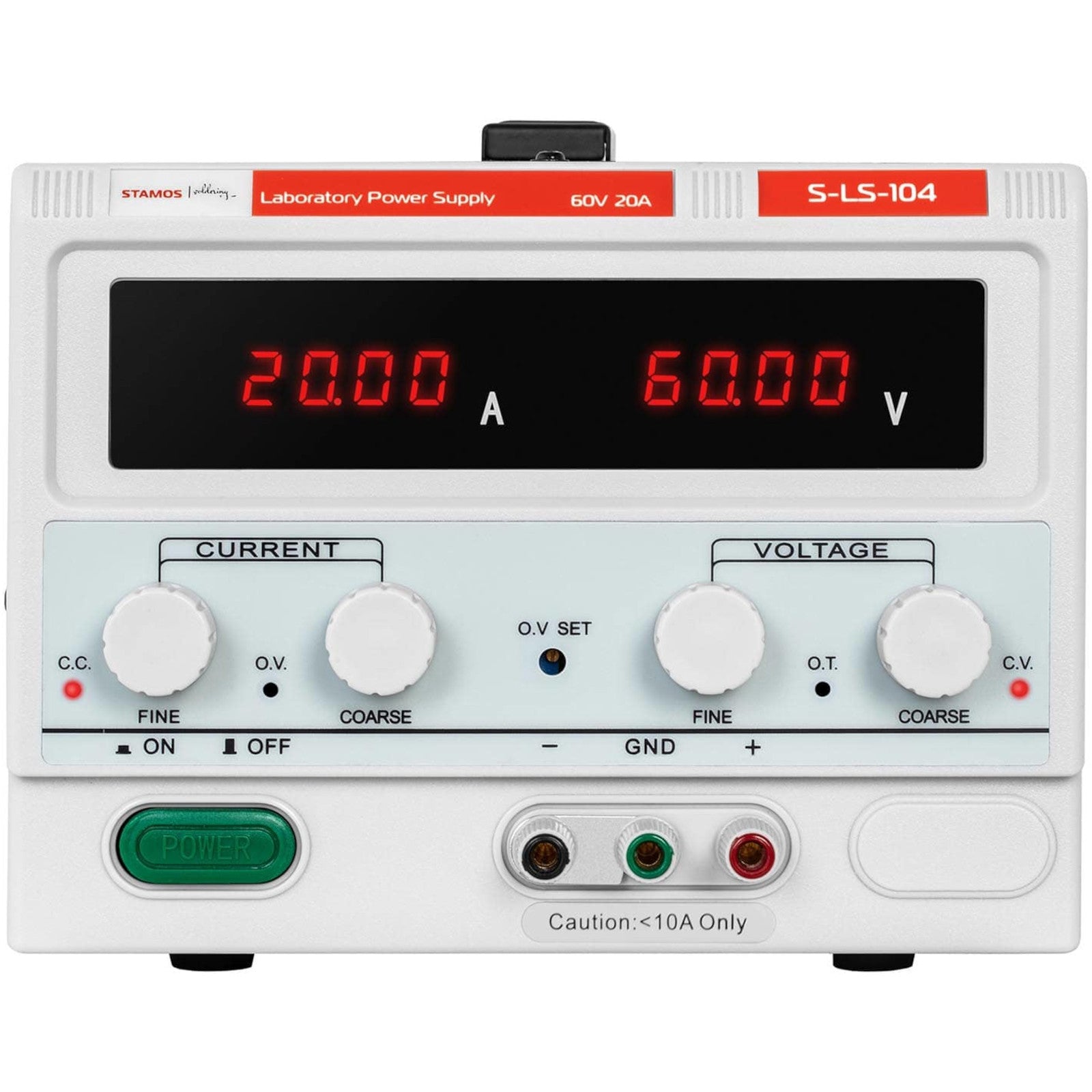

LED display allows you to easily read the set values of output voltage, current and power.
Four Memory Locations The device is operated with knobs and buttons. The voltage is adjustable from
0 to 60 V DC and the electricity from
0 to 20 AThe values can be controlled on a large
LED displayThe power supply also has a power supply that can be used to adapt them easily to its needs.
control panel lock preventing accidental change of set parameters. If the power supply acts as a fixed voltage source (CV), the device automatically switches to DC mode (CA) as soon as the load limit is reached. This prevents damage to connected devices. The power supply is equipped with
overvoltage protection (OVP),
overcurrent collateral (OCP),
overload protection (OPP),
current limitation and special
overheating protection (OTP). The fan provides proper cooling. Antislip rubber feet ensure safe setting of the device, and protect the surface from scratches.
Product features: - - Adjusting in the range 0-60 V and 0-20 A,
- - 4-digit LED display,
- - 4 memory locations and interface with Modbus protocol to connect to the computer,
- - Built-in overheating, overvoltage, overcharge,
- - Intelligent temperature control and automatic change from constant current to constant voltage.
Technical parameters: - - Catalog number - 10021283
- - The state of the article - New
- - Model - S-LS-104
- - Current stability - CC ≤ 0,25% FS
- - Connector [mm] - 4

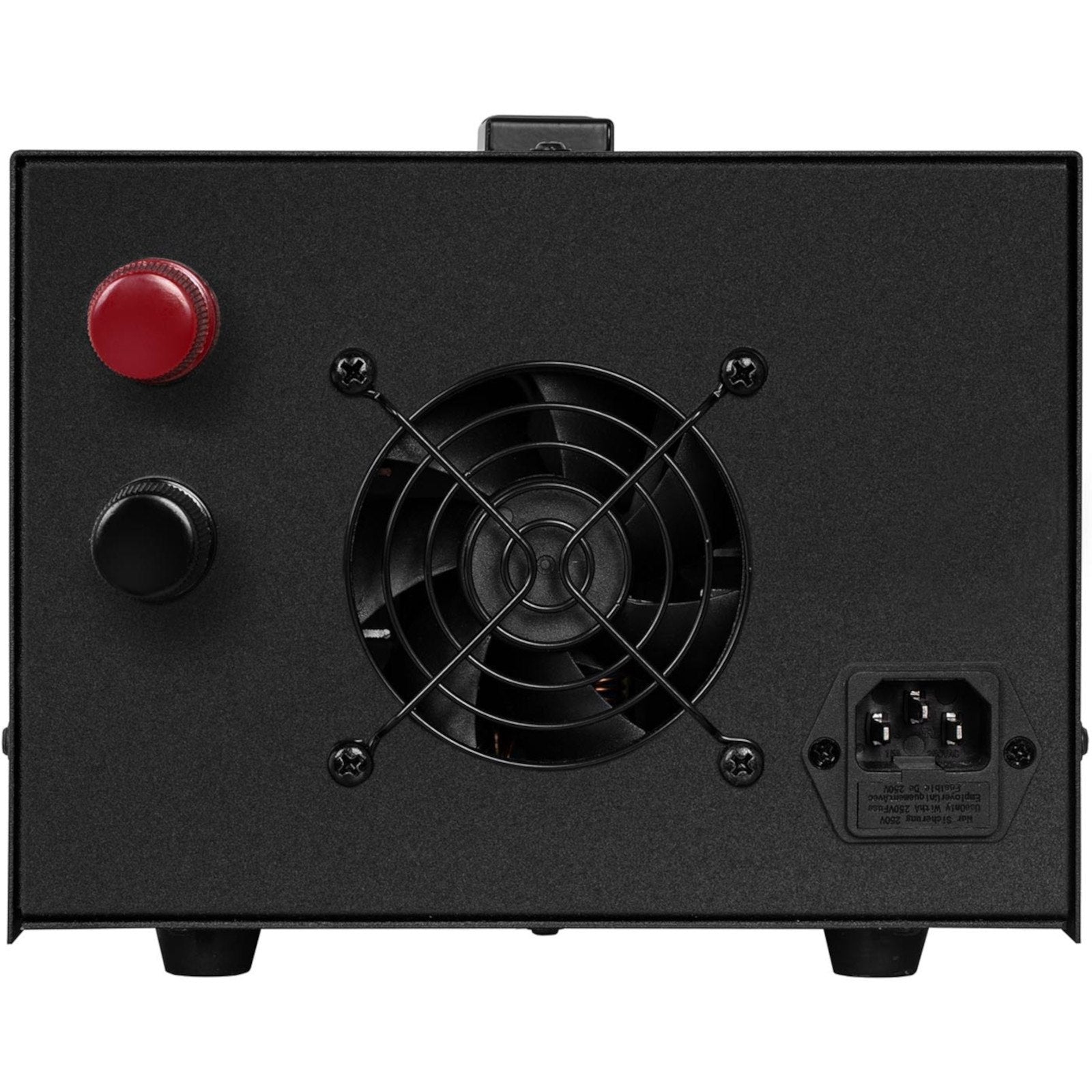

- - Cooling - Fan
- - Range of current control [A] - 0-20
- - Display accuracy - Voltage: 10 mV intensity: 10 mA
- - Color - Grey
- - Current current - 0-20
- - Range of DC voltage regulation [V] - 0-60
- - Flashback [A] - 10
- - Isolation resistance [MΩ] - ≤ 100
- - Voltage stabilisation factor - CV: ≤ 0,5% CC: ≤ 0,5%
- - Current stability factor - CV: ≤ 0,5% FS CC: ≤ 0,5% FS
- - Working humidity [%] - ≤ 80
- - Output current [A] - 20
- - Security - OVP, OCP, OTP, OPP

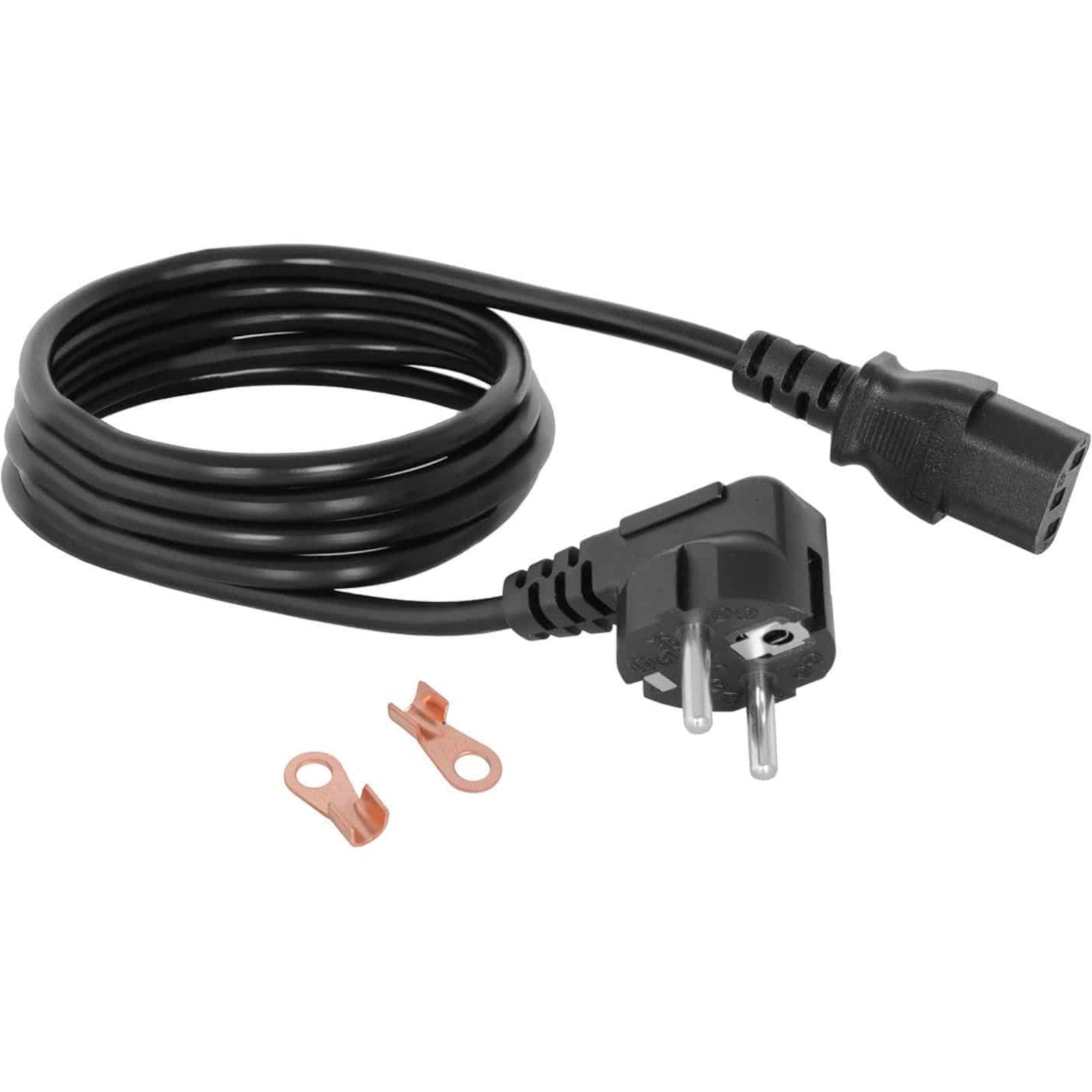

- - Power cord [m] - 1,5
- - Output voltage [V] - 60
- - Resolution - 4-digit LED display / 10 mV / 10 mA
- - Display - LED
- - Relative permissible humidity of the operation and storage [%] - ≤ 80
- - Parameter setting accuracy (25deg C ±5deg C) - ± 1% FS ± 1
- - Voltage [V] - 230
- - Power [W] - 1200
- - Power [W] - 1,200
- - Response time to rise/voltage drop/current intensity (at 10% load) [ms] - 400
- - Marked input current [A] - 6,8
- - Pulse ox - ≤ 1%
- - Voltage range [V] - 0-60
- - Storage temperature [deg C] - -20 - +85
- - Voltage stability - CV ≤ 0,5% FS
- - Storage humidity - ≤ 80%
- - Dimensions (DxSxW) - 23 x 32 x 16 cm
- - Weight - 5 kg
Included: - - Laboratory power supply.
- - User manual
