Overview

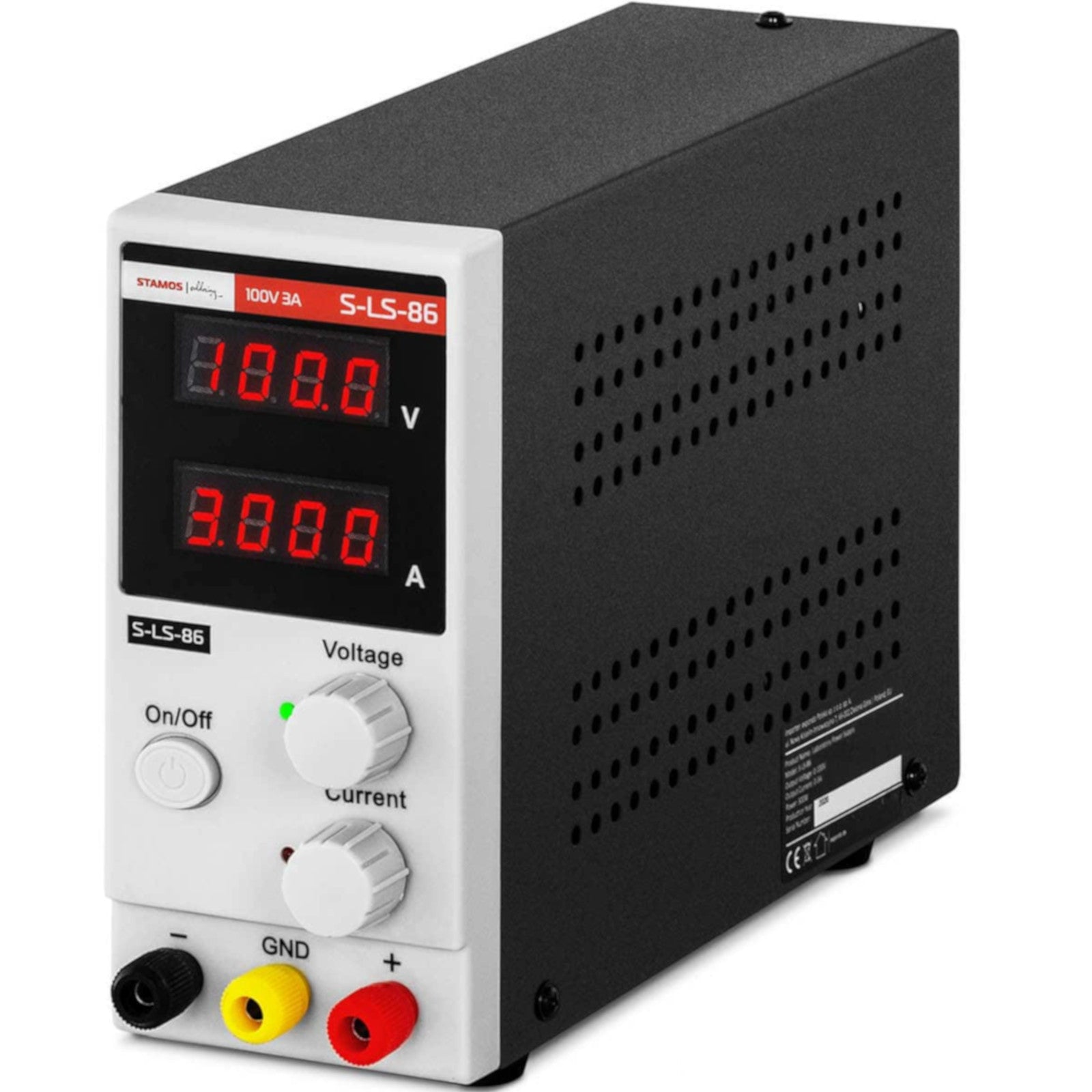

The Laboratory service power supply regulated 0-100 V 0-3 A 300 W from Stamos Germany brings power supply enclosures you can rely on, made for your power tools needs. A popular choice in Electro-tools, Tools for electronics.
Manufacturer's code: 10021177

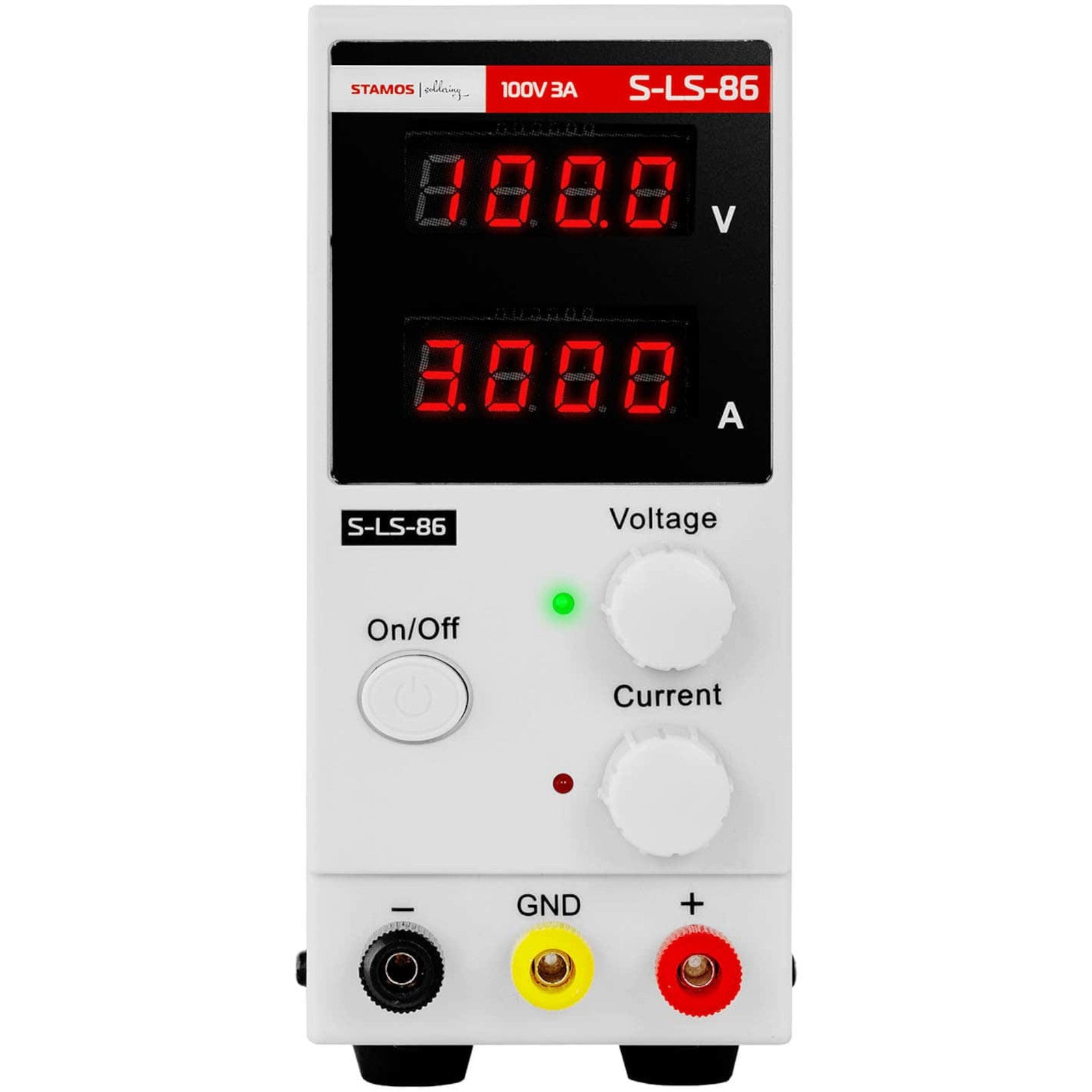

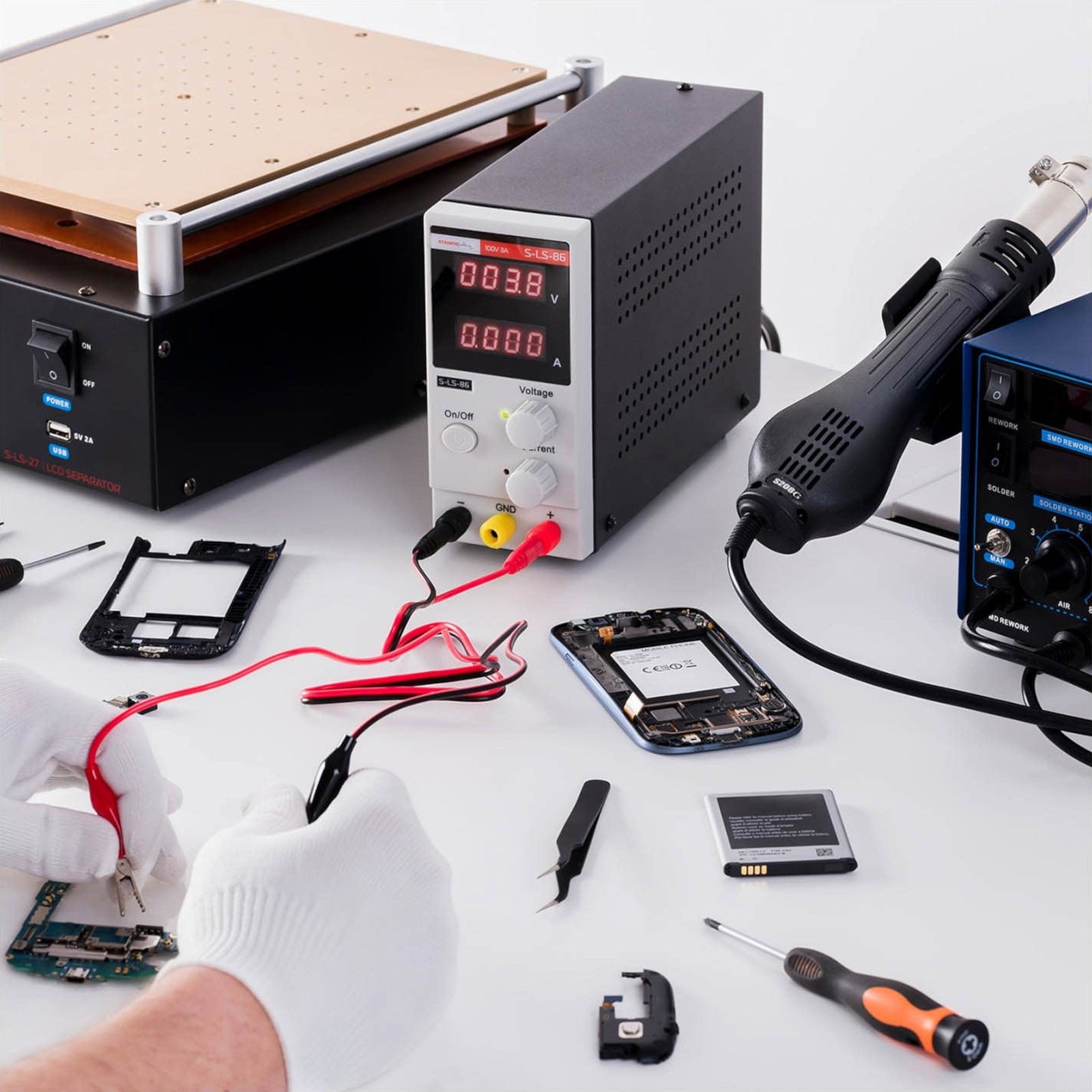

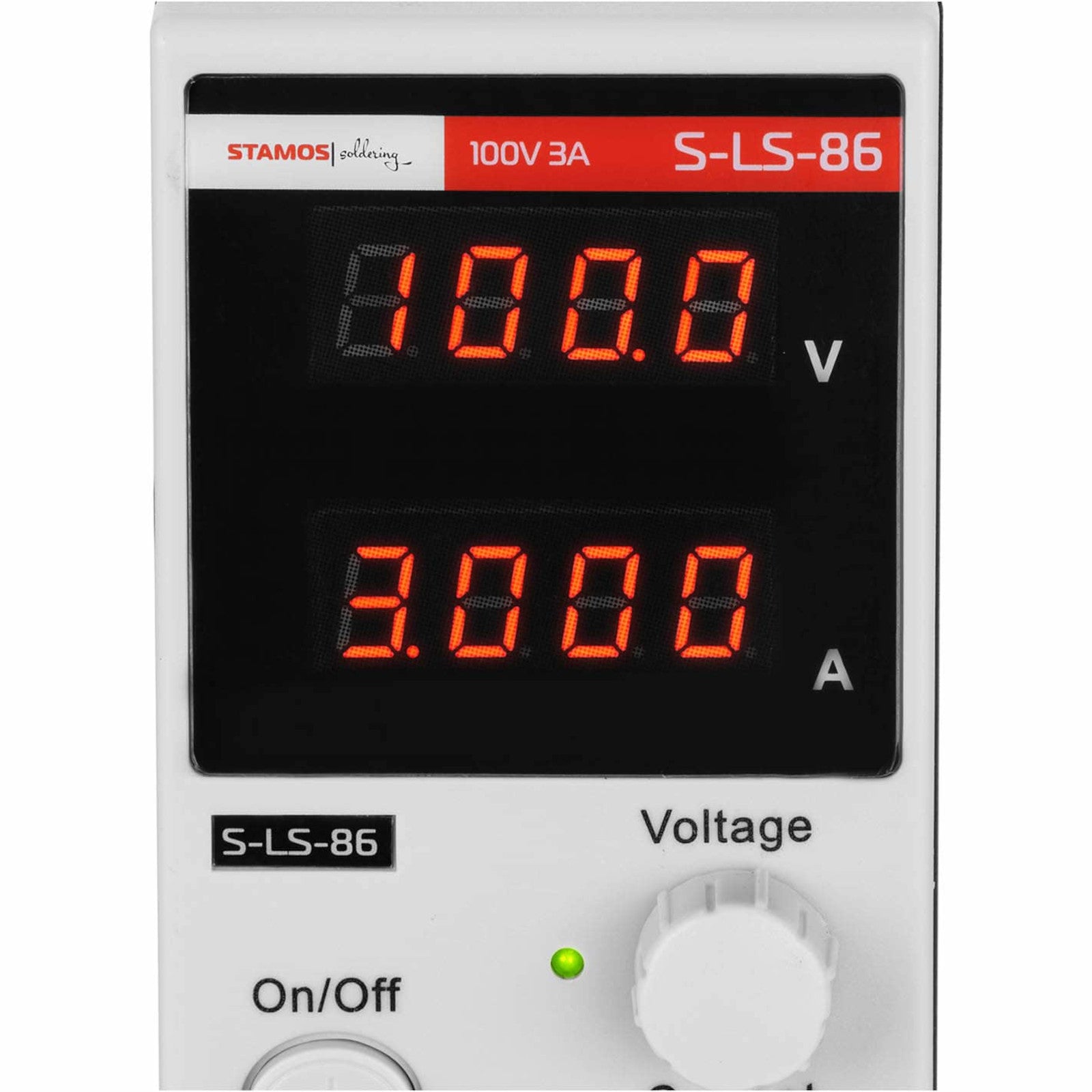

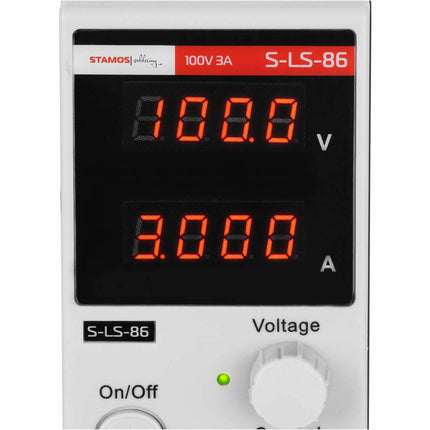

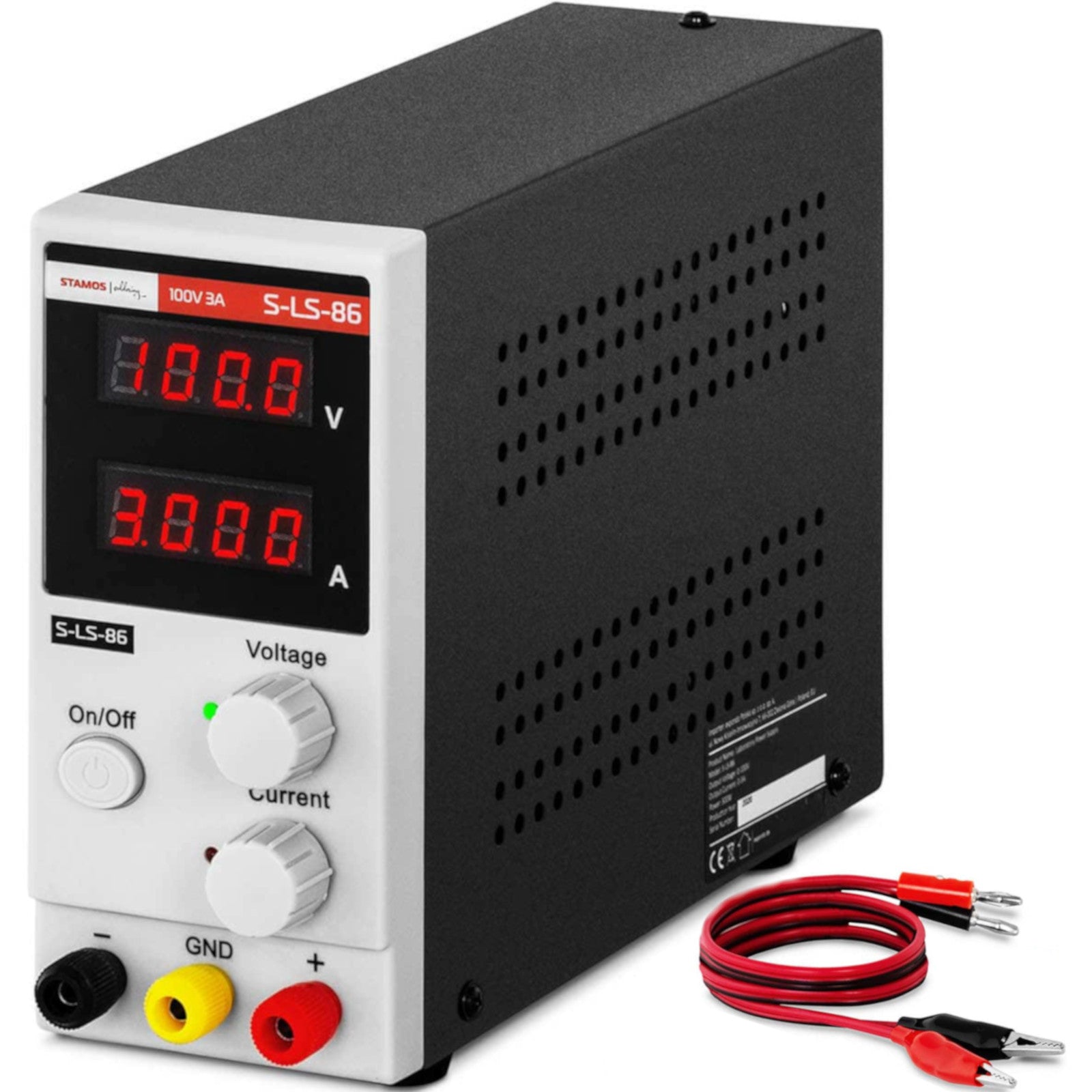

The laboratory power supply by Stamos Soldering will work well in industry, laboratories, telecommunications, workshops, etc. The technology used ensures a low level of ripple and noise. Large LEDdisplays allow you to easily read the set values at any time. The settings are adjusted using the knobs. They enable precise setting of the output voltage from0 to 100 Vand the output current from0 to 3 A. If the power supply is operated as a constant voltage (CV) source, it automatically switches to constant current (CA) operation when the set load limit is reached. This prevents damage to connected devices. The equipment is equipped with overload protection (OPP) and overheating protection (OTP), which automatically starts the fan when the maximum temperature is exceeded. Anti-slip rubber feet ensure the stability of the device and protect the surface from scratches.
Product features:
Technical parameters:

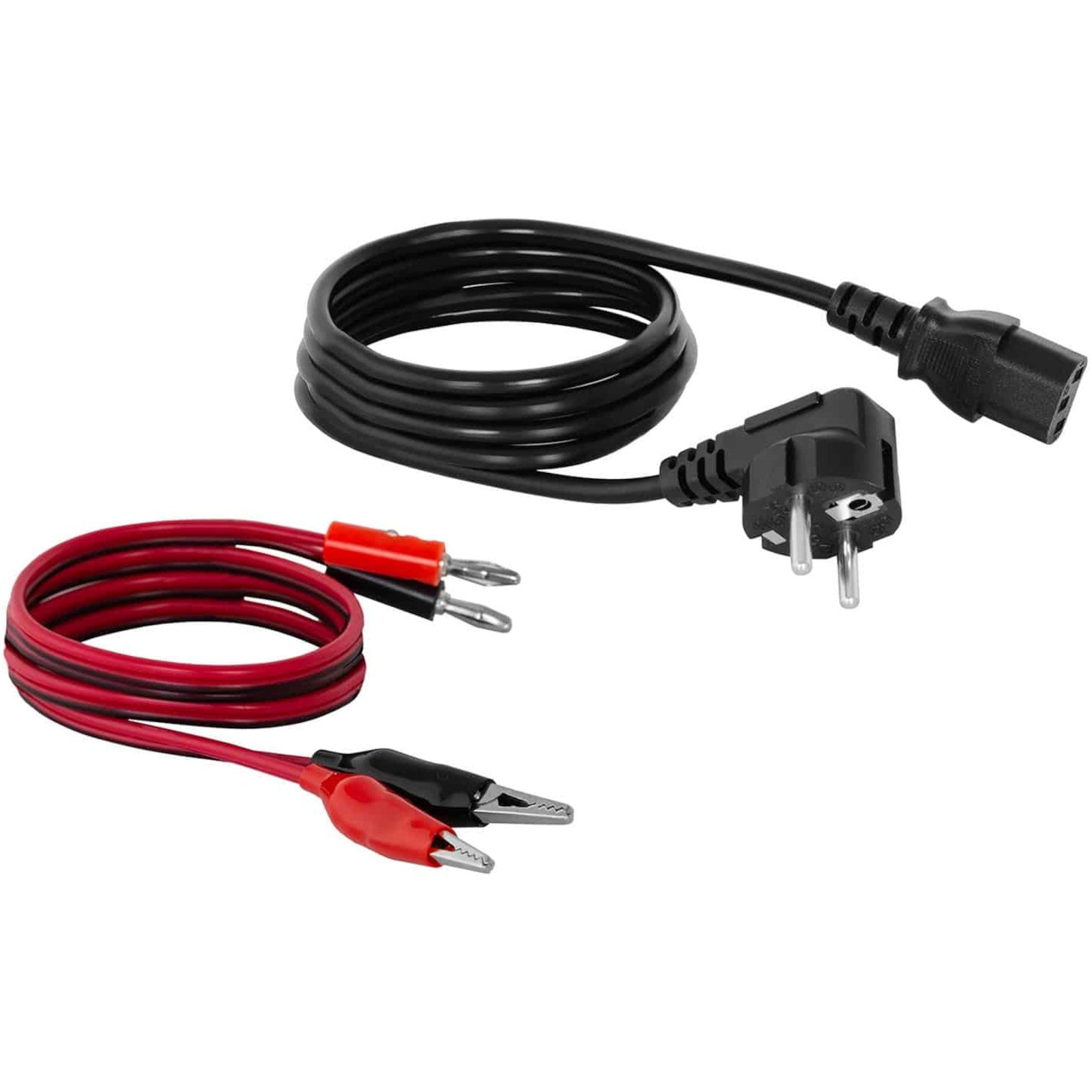

In the set:
Key features
| Specification | Detail |
|---|---|
| Catalog number | 10021177 |
| Article condition | New |
| Model | S-LS-86 |

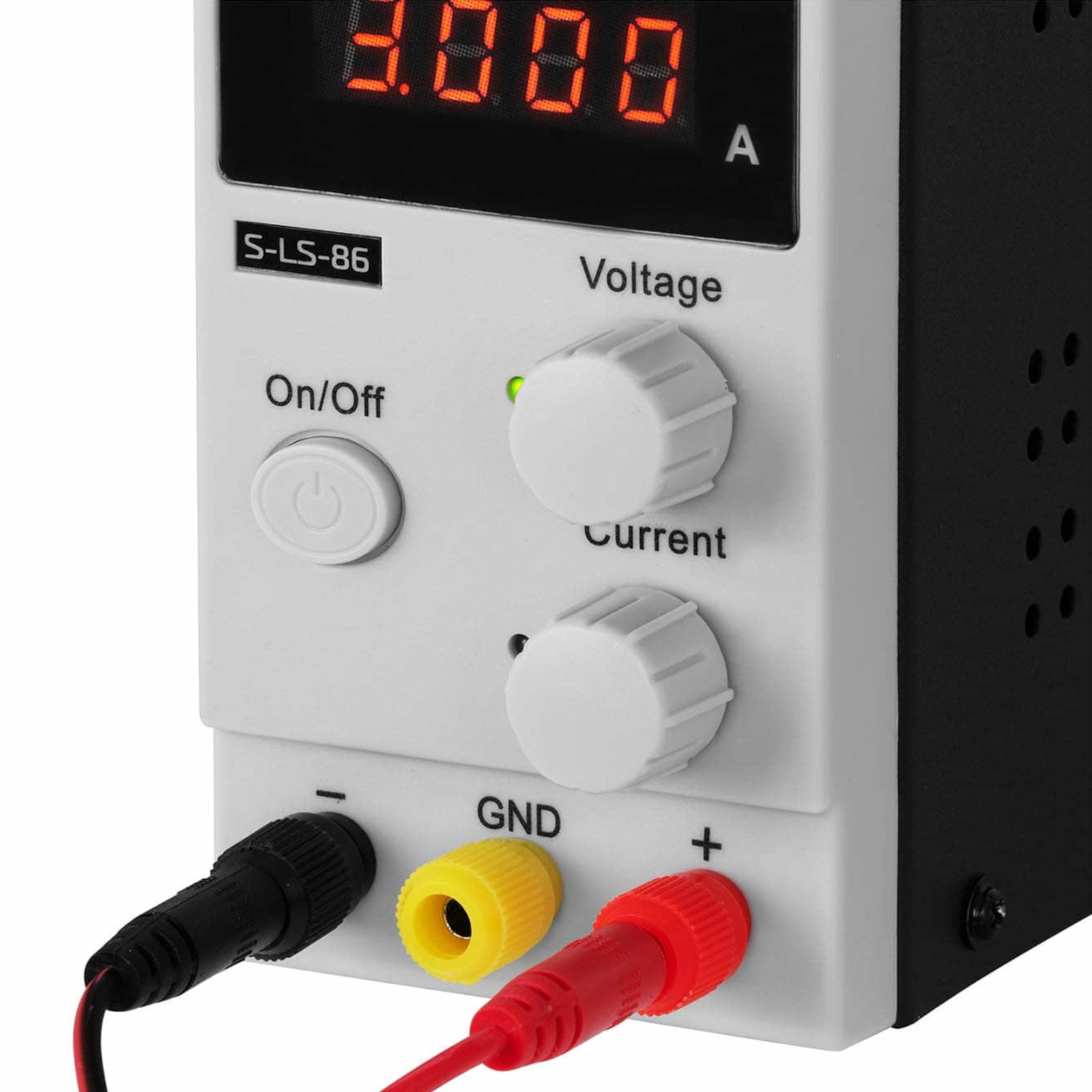

| Connector [mm] | Output sockets, mains socket, grounding output |

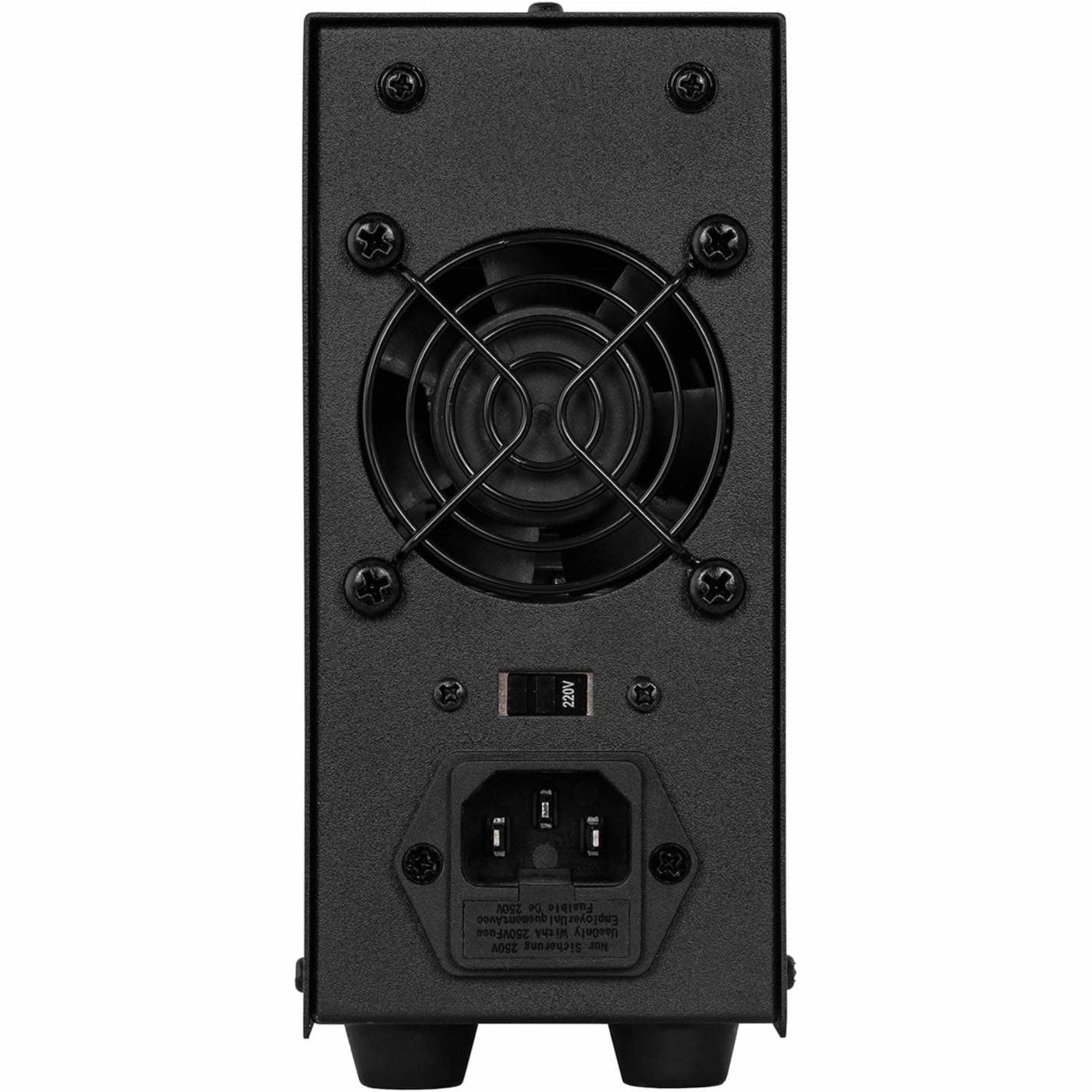

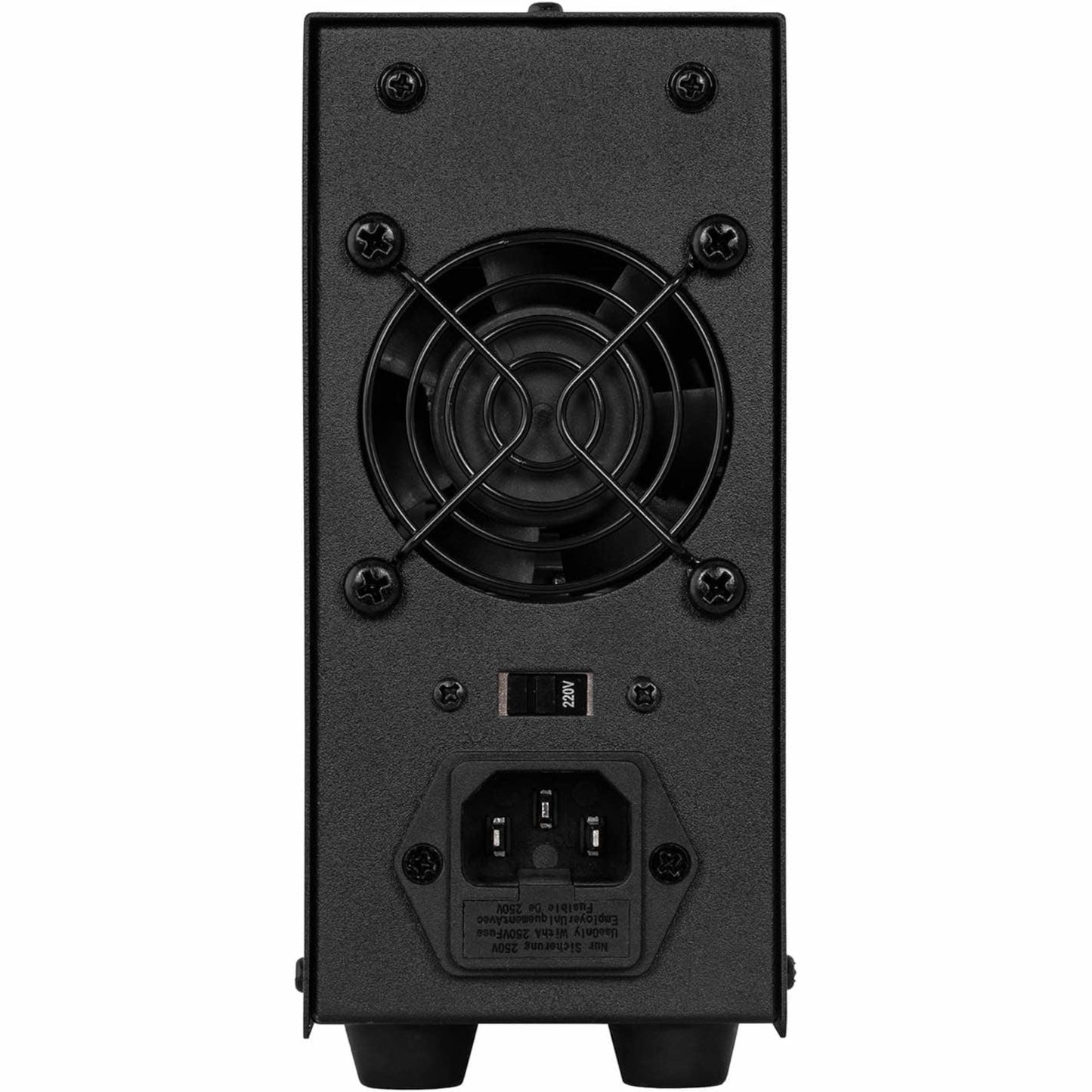

| Cooling | Fan, temperature control |
| Color | Black |
| Fuse [A] | 5 |
| Voltage stabilization factor | CV 20 mV / CC 20 mA |
| Current stabilization factor | CV 50 mV / CC 20 mA |
| Type | Pulse |
| Output current [A] | 0 - 3 |
| Protections | OTP, OPP |
| Power cable [m] | 1.1 |
| Output voltage [V] | 0 - 100 |
| Display | LED |
| Voltage [V] | 230 |
| Power [W] | 300 |
| Rated input current [A] | 3 |
| Ripple | 30 mV / 20 mA |

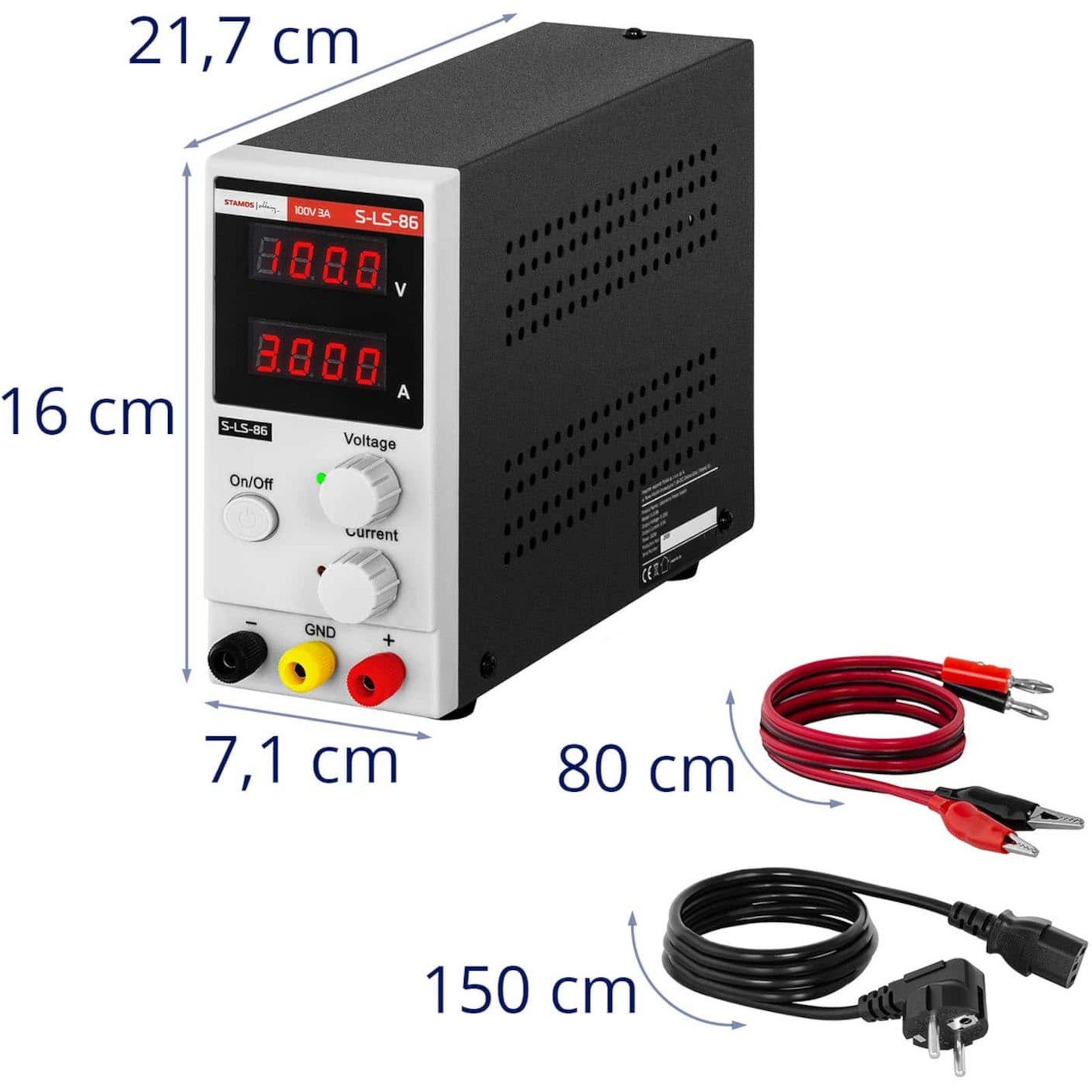

| Dimensions (LxWxH) | 21.7 x 7.1 x 16 cm |
| Weight | 1.5 kg |
| Shipping dimensions (LxWxH) | 30.3 x 10.8 x 20 cm |
| Shipping weight | 1.78 kg |
