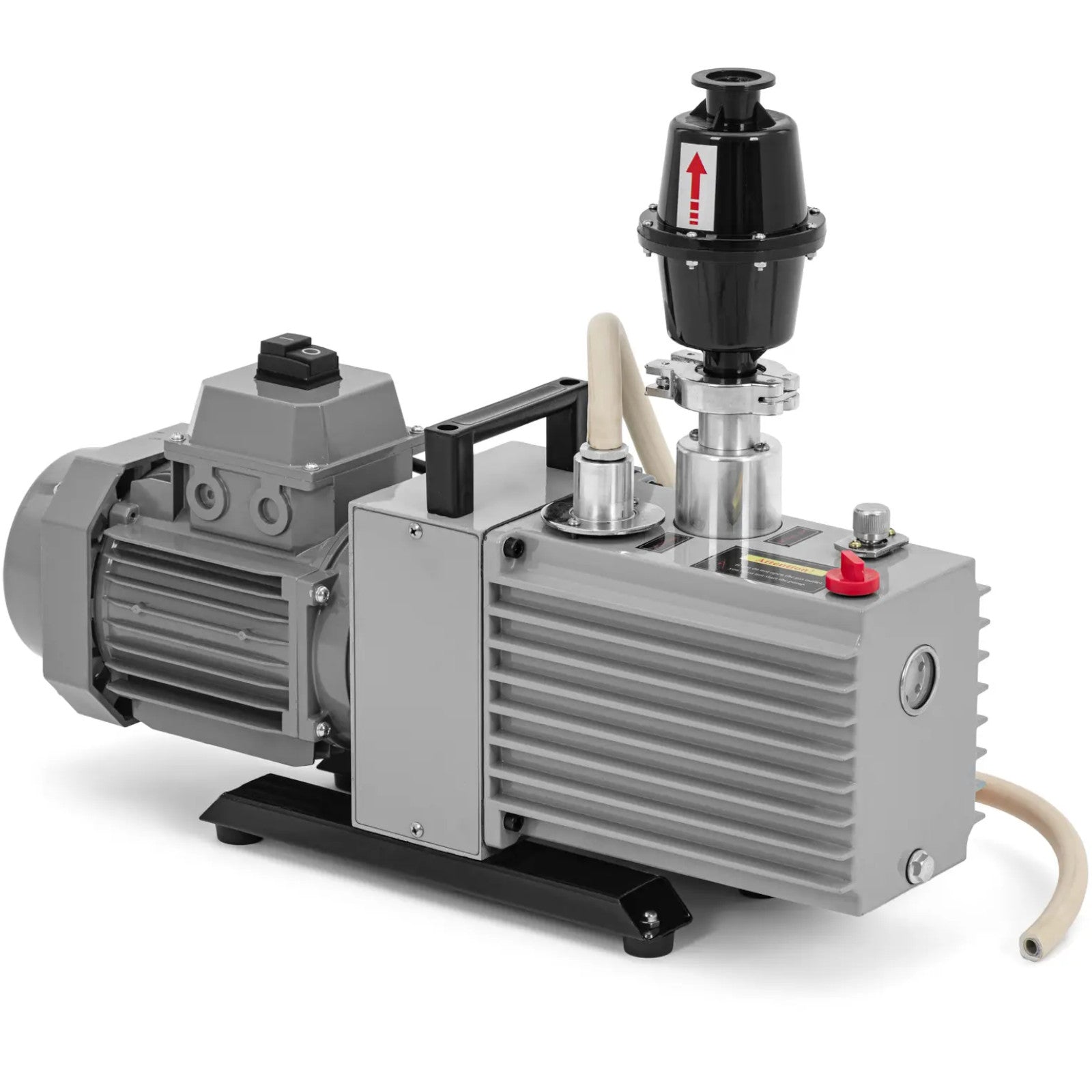

Laboratory vacuum pump 4 l/s 0.06 Pa 550 W

Description

Manufacturer's code: 10031047
The Steinberg Systems vacuum pump is suitable for effectively emptying closed systems in laboratories, in the electrovacuum industry, in the production of vacuum bottles or in welding. It is also suitable as additional equipment in combination with precise measuring devices. The device can be usedas a main or auxiliary pump to increase pressure, or as a diffusion or molecular pump. The vacuum pump is a highly efficient laboratory equipment. Thanks to the power of 550 W, it achieves a suction efficiency of 4 l/sand can work continuously for a long time. The high vacuum level of0.06 Paenables precise pressure control in vacuum chambers or systems. This level of reliability creates optimal conditions, for example in the production of semiconductors or the deposition of thin films. The pump is energy-efficient because it only takes a moment to create and maintain a vacuum. It also saves time when using and replacing the oil mist filter. Thanks to the special design, you can install a new one very quickly, reducing downtime and labor costs. The pump is characterized by compact dimensions, making it ideal for mobile use. Thanks to the IP44 protection class, the device is protected against foreign bodies with a diameter of 1 mm or more and against water splashes. The solid and durable aluminum and iron construction will withstand heavy use for many years.
Product features:
  • - Vacuum pump with a flow rate of 4 l/s and a vacuum level of 0.06 Pa for precision laboratory applications,
  • - Made of durable aluminum and iron, it requires little maintenance and is suitable for a long operating time,
  • - Can be used as a main or booster pump, and also as a diffusion or molecular pump,
  • - Small and light, ideal for mobile applications,

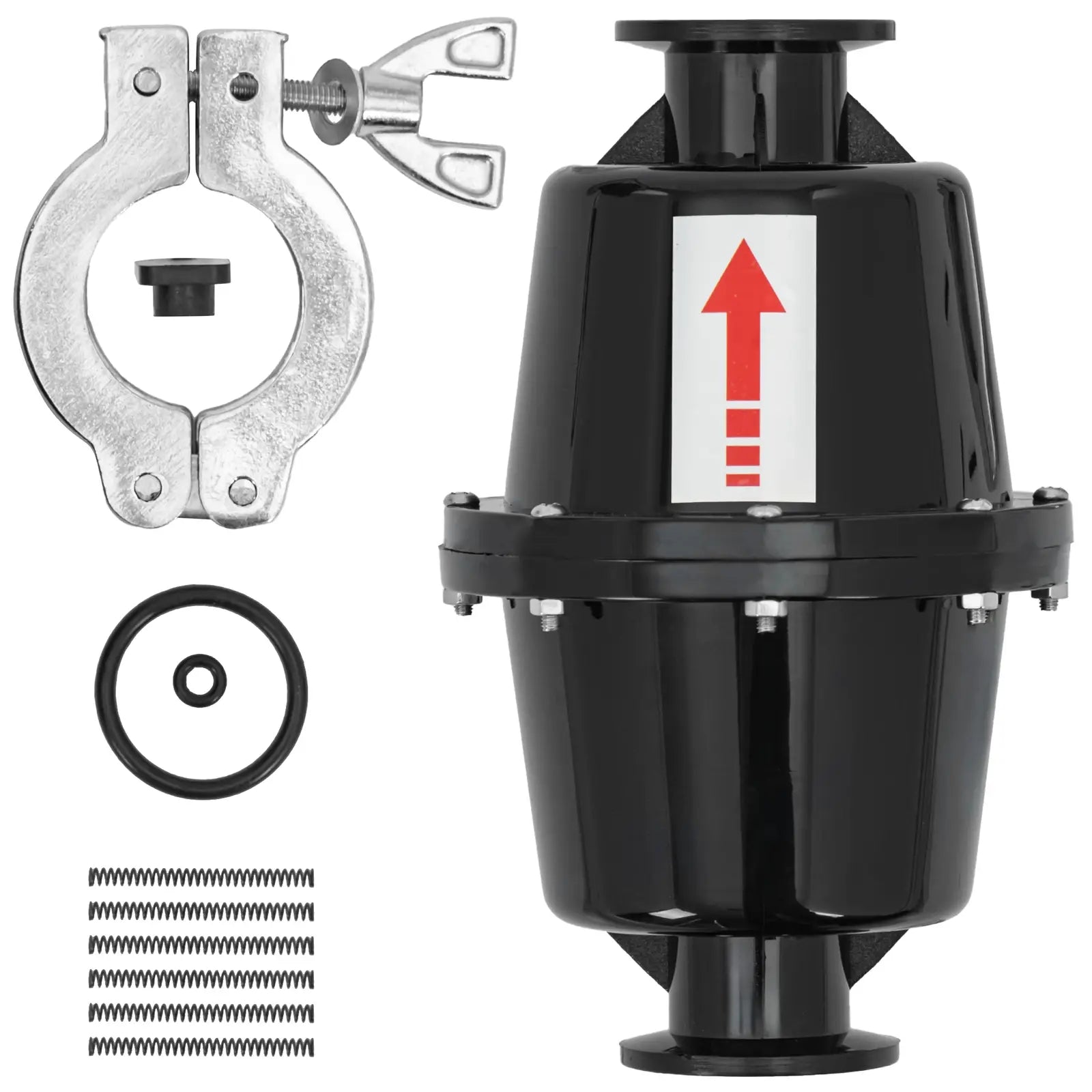

  • - Quickly replaceable oil mist filter.

Technical parameters:
  • - Catalog number - 10031047
  • - Article condition - New
  • - Model - SBS-LA
  • - Material - Aluminum, Iron
  • - Color - Silver metallic
  • - Voltage [V] - 230
  • - IP protection level - IP44
  • - Power [W] - 550
  • - Inlet size [mm] - 10 mm
  • - Maximum rotational speed [rpm] - 1400
  • - Flow - 4 l/s
  • - Capacity - 1 l
  • - Vacuum degree - 0.06 Pa
  • - Noise level - 65 dB
  • - Thermal protection - Yes

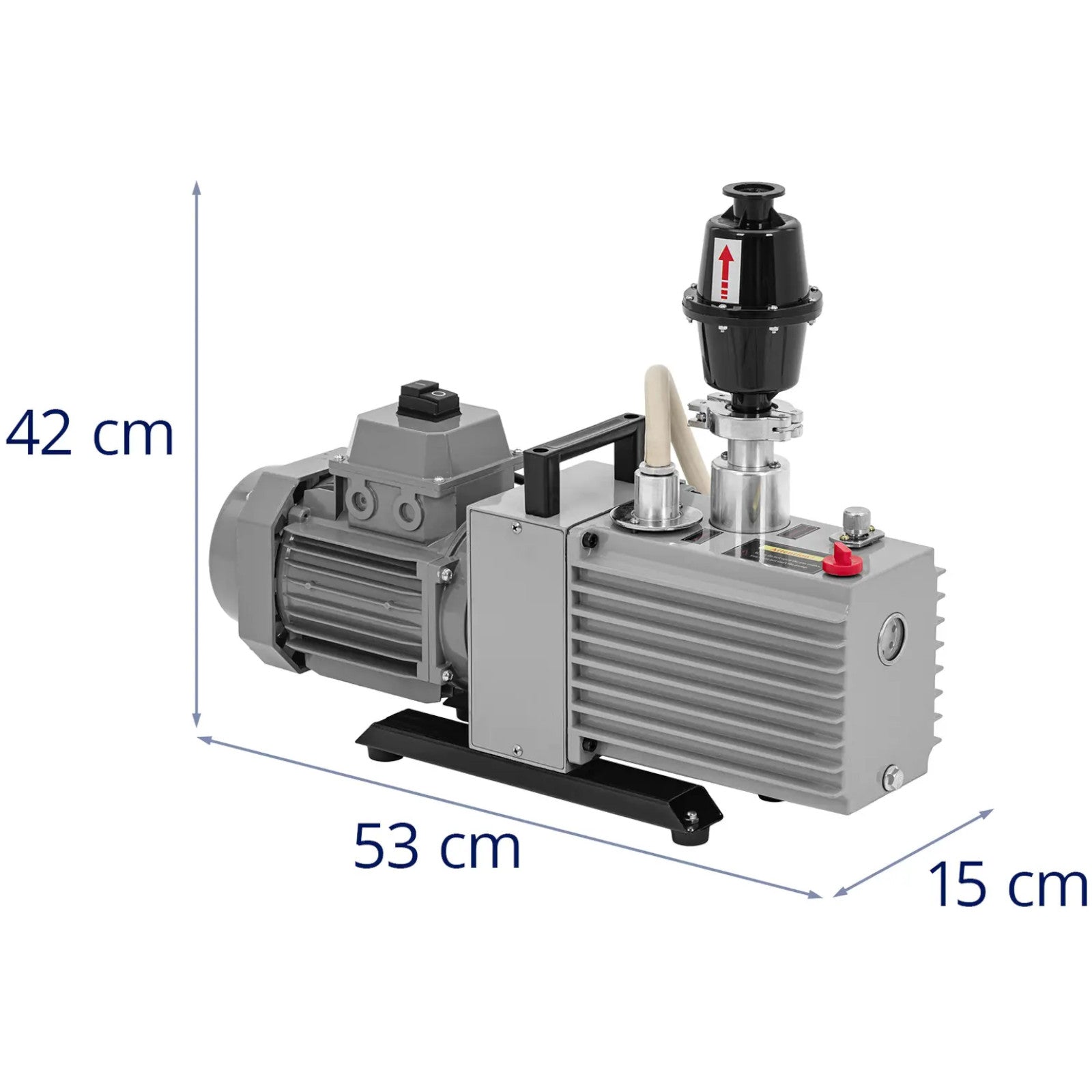

  • - Dimensions (LxWxH) - 53 x 15 x 42 cm
  • - Weight - 20.4 kg
  • - Shipping dimensions (LxWxH) - 62 x 23 x 38 cm
  • - Shipping weight - 25.4 kg

Included:
  • - Vacuum pump

Laboratory vacuum pump 4 l/s 0.06 Pa 550 W

Product form

Manufacturer's code: 10031047The Steinberg Systems vacuum pump is suitable for effectively emptying closed systems in laboratories, in the electrovacuum industry,... Read more

Barcode: 4062859140487

8 in stock

€1.193,28 Incl. VAT

    • Guaranteed secure & safe checkout.

      paypal

    Description

    Manufacturer's code: 10031047
    The Steinberg Systems vacuum pump is suitable for effectively emptying closed systems in laboratories, in the electrovacuum industry, in the production of vacuum bottles or in welding. It is also suitable as additional equipment in combination with precise measuring devices. The device can be usedas a main or auxiliary pump to increase pressure, or as a diffusion or molecular pump. The vacuum pump is a highly efficient laboratory equipment. Thanks to the power of 550 W, it achieves a suction efficiency of 4 l/sand can work continuously for a long time. The high vacuum level of0.06 Paenables precise pressure control in vacuum chambers or systems. This level of reliability creates optimal conditions, for example in the production of semiconductors or the deposition of thin films. The pump is energy-efficient because it only takes a moment to create and maintain a vacuum. It also saves time when using and replacing the oil mist filter. Thanks to the special design, you can install a new one very quickly, reducing downtime and labor costs. The pump is characterized by compact dimensions, making it ideal for mobile use. Thanks to the IP44 protection class, the device is protected against foreign bodies with a diameter of 1 mm or more and against water splashes. The solid and durable aluminum and iron construction will withstand heavy use for many years.
    Product features:
    • - Vacuum pump with a flow rate of 4 l/s and a vacuum level of 0.06 Pa for precision laboratory applications,
    • - Made of durable aluminum and iron, it requires little maintenance and is suitable for a long operating time,
    • - Can be used as a main or booster pump, and also as a diffusion or molecular pump,
    • - Small and light, ideal for mobile applications,
    • - Quickly replaceable oil mist filter.

    Technical parameters:
    • - Catalog number - 10031047
    • - Article condition - New
    • - Model - SBS-LA
    • - Material - Aluminum, Iron
    • - Color - Silver metallic
    • - Voltage [V] - 230
    • - IP protection level - IP44
    • - Power [W] - 550
    • - Inlet size [mm] - 10 mm
    • - Maximum rotational speed [rpm] - 1400
    • - Flow - 4 l/s
    • - Capacity - 1 l
    • - Vacuum degree - 0.06 Pa
    • - Noise level - 65 dB
    • - Thermal protection - Yes
    • - Dimensions (LxWxH) - 53 x 15 x 42 cm
    • - Weight - 20.4 kg
    • - Shipping dimensions (LxWxH) - 62 x 23 x 38 cm
    • - Shipping weight - 25.4 kg

    Included:
    • - Vacuum pump
