Description

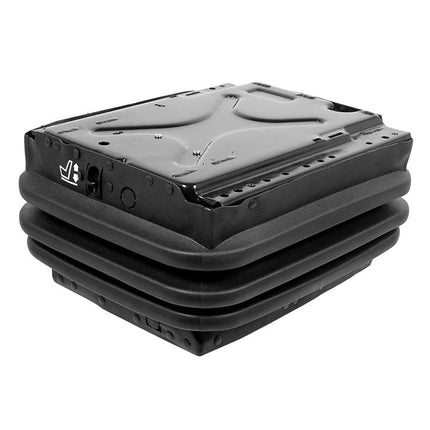

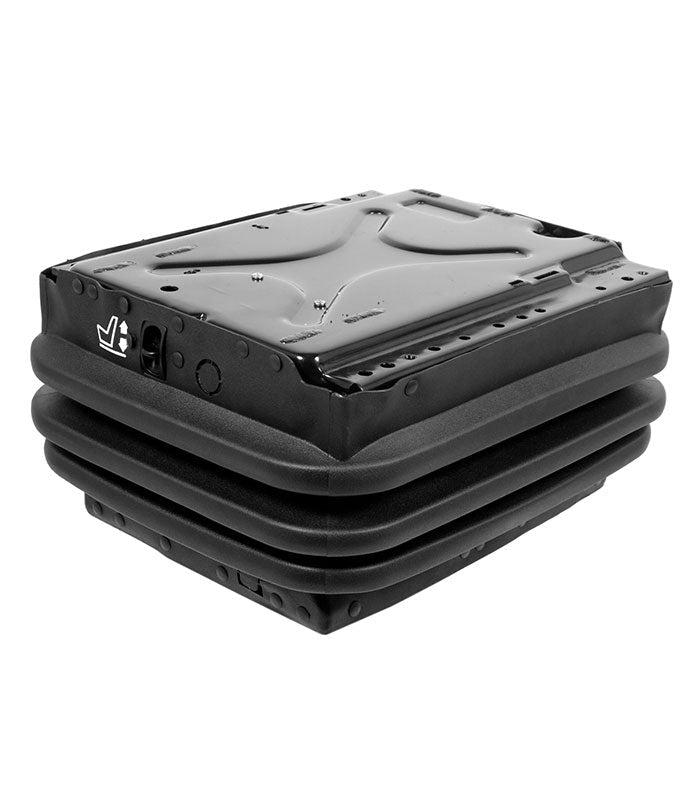

UnitedSeats LGV120 Air Suspension Seat – 24V
Heavy-duty comfort. Industrial-grade durability. Built for demanding vehicles and long shifts.
The LGV120 24V Air Suspension Seat from UnitedSeats is engineered to deliver reliable support and ride comfort in the harshest working conditions. With its rugged 100 mm suspension travel, wide weight adjustment range, and compatibility with industrial and agricultural vehicles, it's an ideal solution for professional operators across Europe.
🛠️ Key Features
-
Heavy-Duty Air Suspension – 100 mm of vertical suspension travel smooths out shocks and machine vibrations.
-
Wide Weight Adjustment – Supports operator body weights from 50 to 150 kg, offering excellent flexibility.
-
24V Air System – Designed for vehicles with 24-volt electrical systems, ensuring compatibility with larger machines.
-
200 mm Slide Rail Travel – For smooth forward/backward adjustment in tight or large cabins.
-
Turntable Option – Swivel functionality available for improved access and visibility (optional).
🔧 Technical Specifications
| Suspension Type |
Air, 24V |
| Suspension Travel |
100 mm |
| Weight Capacity |
50 – 150 kg |
| Slide Rail Travel |
200 mm |
| Turntable |
Available (optional) |
🚜 Compatible With:
-
Agricultural tractors – ideal for Valtra, Fendt, John Deere, Massey Ferguson
-
Construction machines – loaders, backhoes, compactors, and dozers
-
Industrial vehicles – forklifts, telehandlers, utility and municipal machinery
-
Forestry & Off-road utility vehicles – with 24V electrical systems
✅ Fitment & Suitability Analysis
| Category |
Fit |
Notes |
| Truck seats |
✅ Yes |
Works well in industrial/commercial trucks with 24V |
| Marine seats |
❌ No |
Not rated for marine environment |
| Factory / Production |
✅ Yes |
Good for operator cabins and industrial control stations |
| Special services transport |
✅ Yes |
Where 24V systems and rugged comfort are needed |
| Ships |
❌ No |
Lacks water resistance or marine compliance |
| Small construction vehicles |
✅ With fit check |
Depends on cabin space and power compatibility |
| Small vehicles |
❌ No |
Too large for compact machines |
| Forklifts |
✅ Yes |
Ideal for large forklifts with 24V systems |
| Construction seats |
✅ Ideal |
Designed for heavy-duty construction use |
| Tractor seats |
✅ Excellent |
Ideal for Valtra, MTZ, and large agri machinery |
🧭 Final Thoughts
The LGV120 Air Suspension Seat is a rugged, no-nonsense solution for operators working long hours in heavy machinery. With its reliable 24V air suspension and wide adaptability, it’s the smart upgrade for better ride quality and operator satisfaction in any industrial or agricultural environment.
