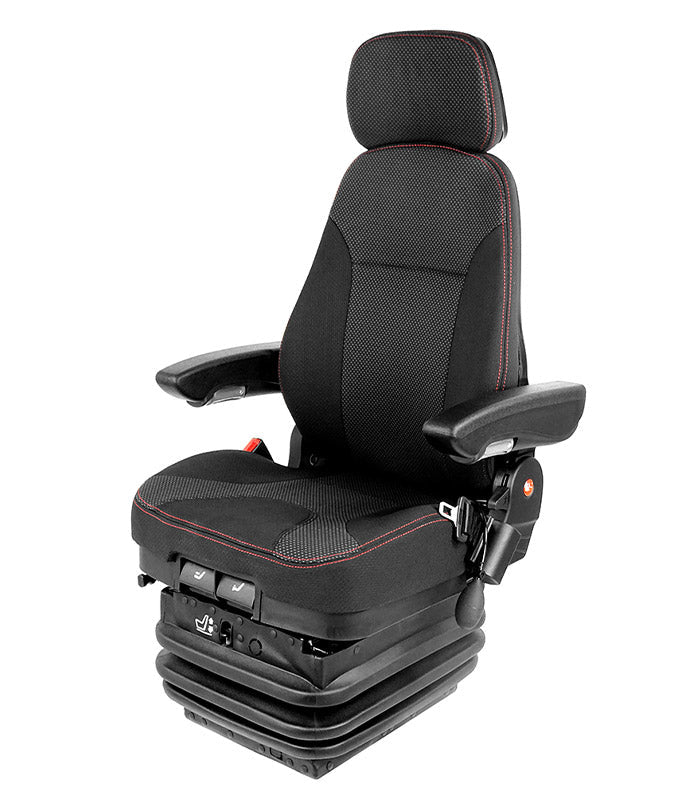

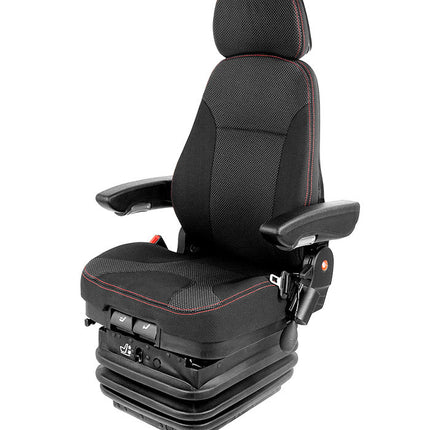

UnitedSeats LGV120/C7 Pro 24V Air Suspension Seat – Ergonomic Comfort for Heavy-Duty Machines
All-day comfort meets rugged dependability. Tailored for operators in industrial, agricultural, and off-road environments.
The LGV120/C7 Pro combines UnitedSeats' proven 24V air suspension platform with a high-back ergonomic seat top, headrest, and full adjustability. It’s ideal for operators who spend long hours in challenging working conditions and need a durable, supportive seating solution that won’t compromise comfort or control.
🛠️ Key Features
-
Air Suspension (24V): Smooth, pressure-adjustable suspension with 100 mm travel for maximum vibration isolation.
-
Ergonomic Comfort: High backrest, headrest, seat tilt and cushion depth adjustment promote natural posture during long shifts.
-
Custom Fit: Supports operators weighing 50–150 kg; slide rail travel of 200 mm allows perfect seat positioning.
-
Durable Trim: Upholstered in wear-resistant UnitedSeats fabric, suitable for heavy-duty and outdoor environments.
-
Optional Enhancements: PVC trim, air lumbar support, heaters (12V/24V/48V), armrests, seatbelt, and more.
🔧 Technical Specifications
-
Suspension Type: Pneumatic (Air), 24V
-
Weight Adjustment: 50 – 150 kg
-
Suspension Travel: 100 mm
-
Slide Rail Travel: 200 mm
-
Seat Width: 490 mm
-
Seat Back: High back with adjustable recline
-
Seat Cushion: Depth and tilt adjustable
-
Trim Material: UnitedSeats fabric (optional heavy-duty PVC)
-
Headrest: Integrated
🎯 Optional Features
- Heavy-duty PVC or custom trim
- Air lumbar support
- Adjustable armrests and pods
- Seatbelt, contact switch
- Heating (12V, 24V, 48V)
- Turntable, document box
🛠️ Mechanical Suspension Alternative – MGV120
If you prefer a mechanical system, the MGV120 version is available:
-
Suspension Type: Mechanical
-
Weight Adjustment: 50 – 150 kg
-
Suspension Travel: 100 mm
🚜 Fitment & Compatibility
This seat is ideal for:
-
Tractors: MTZ, Valtra, Fendt, John Deere, Case IH, New Holland, Massey Ferguson
-
Construction Machinery: Telehandlers, small wheel loaders, compact excavators
-
Industrial Equipment: Municipal machines, forklifts, utility vehicles
-
Heavy-duty Off-Road Vehicles: Forestry, mining, and road maintenance machinery
🧭 Final Thoughts
The UnitedSeats LGV120/C7 Pro is engineered for demanding use where comfort, adjustability, and suspension performance are essential. Choose it for your most critical applications and elevate your operator's working environment.
