Description

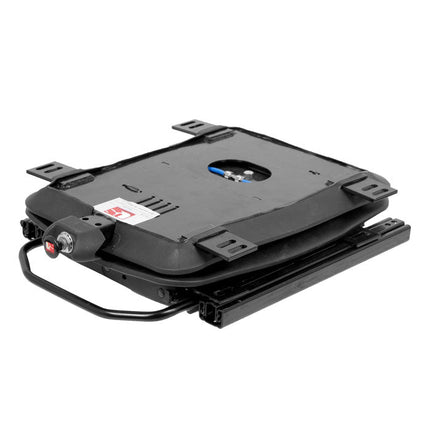

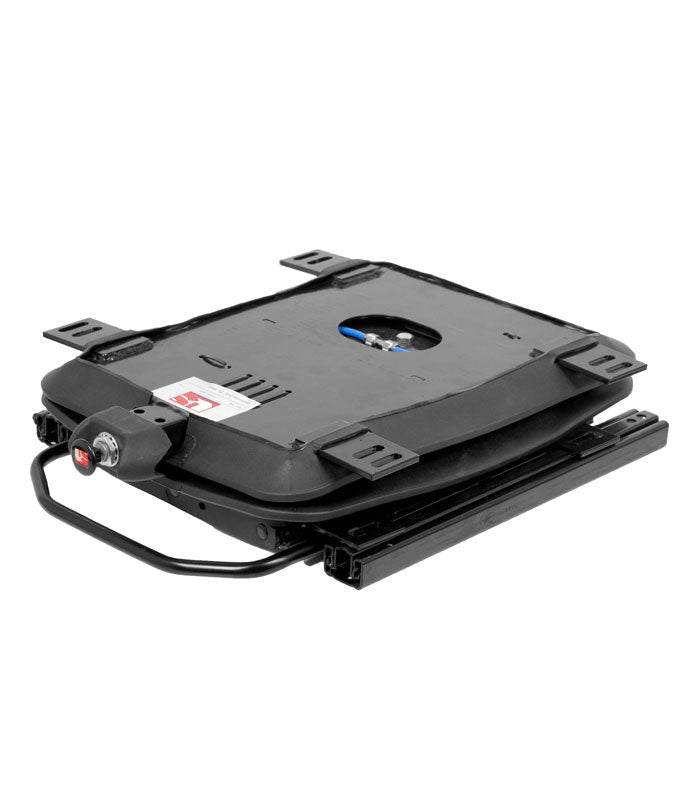

UnitedSeats LGV35 12V Low Profile Air Suspension Seat
Ultra-compact. Smooth-riding. Built for confined cabins and tough workdays.
The UnitedSeats LGV35 is a low-profile air suspension seat engineered for compact construction machines, forklifts, and industrial vehicles. Featuring a 12V integrated compressor and 60 mm of suspension travel, it delivers maximum ride comfort in minimal space—perfect for tight installation areas.
🛠️ Key Features
-
Low Profile Air Suspension – 12V air compressor with 60 mm suspension travel.
-
Weight Adjustment Range – Suitable for operators between 50 – 125 kg.
-
Compact & Flexible – Fits in confined cabins where height is limited.
-
Slide Rail Adjustment – 200 mm of forward/backward travel for custom positioning.
-
Optional Features – Turntable and 24V/48V compressor options for specialized applications.
🔧 Technical Specifications
| Suspension Type |
Low-profile air suspension with 12V compressor |
| Suspension Travel |
60 mm |
| Weight Adjustment |
50 – 125 kg |
| Slide Rail Travel |
200 mm |
| Optional Features |
Turntable, 24V or 48V compressor |
🚜 Compatibility
This seat is a great match for:
- Compact construction equipment (excavators, skid-steers)
- Forklifts and warehouse machinery
- Municipal and utility vehicles with limited cabin space
- Compact tractors and turf equipment
- Industrial machinery requiring low-profile seating
✅ Ideal For:
- Operators working in tight cabin environments
- Applications needing vibration-dampening with minimal height
- Machines that require 12V air suspension support
🧭 Final Thoughts
The UnitedSeats LGV35 12V offers a compact footprint with full air suspension comfort—an excellent choice when space is tight but operator performance still matters.
