Description

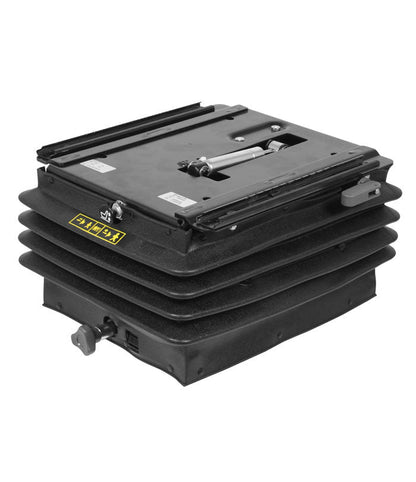

UnitedSeats LGV90 Air Suspension Seat – 12V
Ride smoother. Work longer. Air suspension made for serious operators.
The LGV90 from UnitedSeats is a compact, professional-grade air suspension seat with built-in 12V compressor and horizontal suspension. Designed for agricultural, municipal, and industrial machines, it offers advanced ride comfort through 120 mm of travel and stepless height adjustment.
🛠️ Key Features
-
Integrated 12V Compressor – No external air supply needed; plug-and-play for most machinery.
-
Air Suspension System – 120 mm of suspension travel with semi-automatic weight adjustment (50–130 kg).
-
Stepless Height Adjustment – 80 mm vertical range to match any operator or cabin layout.
-
Horizontal Suspension – Minimizes forward-backward jolts from uneven terrain or braking.
-
Slide Rails – 200 mm travel for forward/back positioning.
-
Optional Turntable – Enables 360° rotation for easier entry/exit and multi-directional work.
🔧 Technical Specifications
| Suspension Type |
Air (12V compressor included) |
| Weight Adjustment |
50 – 130 kg (semi-automatic) |
| Suspension Travel |
120 mm |
| Height Adjustment |
80 mm (stepless) |
| Slide Rail Travel |
200 mm |
| Horizontal Suspension |
Included |
| Compressor Voltage |
12V (24V or 48V optional) |
| Turntable |
Available as option |
🚜 Compatible With:
-
MTZ / Belarus: MTZ-952, MTZ-1025, MTZ-920.3
-
Valtra: A114, N134, G125
-
John Deere: 5055E, 5075M, 5090R
-
Kubota: M4063, L3902, M5112
-
Massey Ferguson: 5711M, 5S Series, 3707
-
New Holland: T4.90, Boomer 50, T5 Series
-
Case IH: Vestrum CVXDrive, Farmall C Series
-
Others: small wheel loaders, municipal sweepers, utility equipment
✅ Fitment & Suitability Analysis
| Category |
Fit |
Notes |
| Truck seats |
⚠️ Limited |
Possible in light trucks with flat base and power supply |
| Marine seats |
❌ Not suitable |
No saltwater resistance or marine certification |
| Factory / Production |
✅ Yes |
Good for vehicle operators within indoor machinery |
| Special services transport |
✅ Yes |
May be fitted into snowplows, loaders, etc. |
| Ships |
❌ Not suitable |
Not designed for sea environments |
| Small construction vehicles |
✅ Excellent |
Fits skid steers, mini loaders, etc. |
| Small vehicles |
⚠️ Limited |
May be too large for micro-cab layouts |
| Forklifts |
✅ Yes |
Works well in medium-duty models |
| Construction machinery |
✅ Excellent |
Ideal for compact excavators, wheel loaders |
| Tractor seats |
✅ Excellent |
Perfect fit for MTZ, Valtra, JD, MF, NH, Kubota |
🧭 Final Thoughts
The LGV90 12V Air Suspension Seat delivers the ride quality, customization, and vibration isolation that professionals need. With its smooth horizontal suspension and built-in compressor, this seat upgrades any workday—whether you’re in a field, forest, or construction zone.
