Description

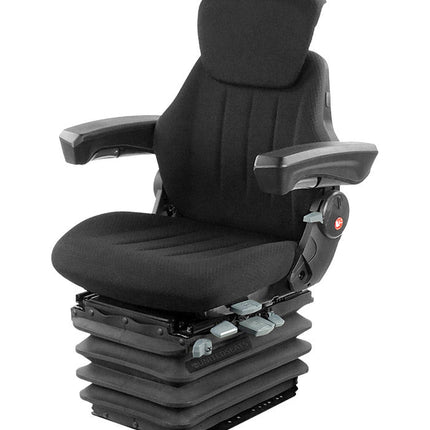

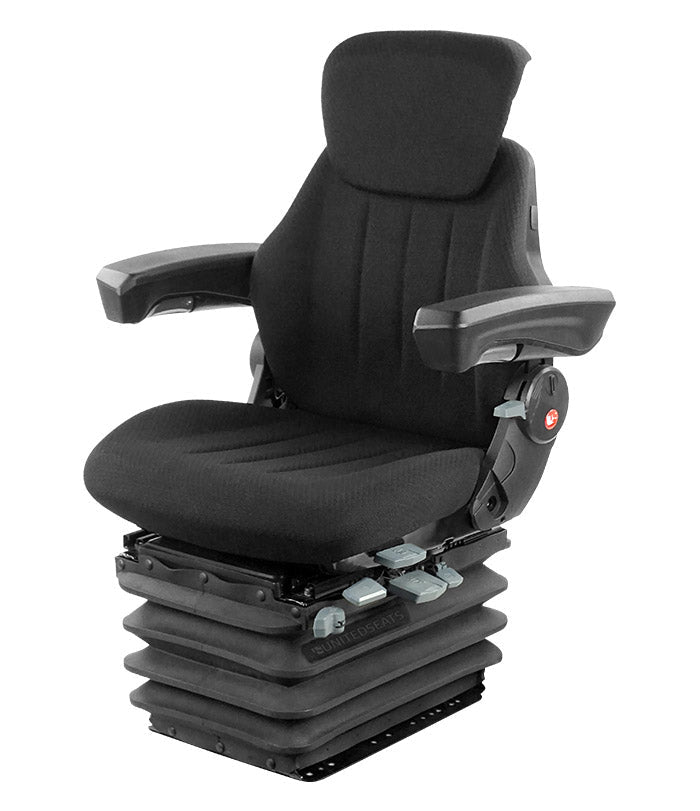

UnitedSeats LGV95/H152 ARD Rancher Low Back Seat – 12V
Stability, comfort, and control in one rugged seat solution.
The LGV95/H152 ARD Rancher Low Back seat by UnitedSeats pairs the robust LGV95 12V pneumatic suspension base with the ergonomic H152 low-profile seat top. Designed to maximize operator comfort in tight cabins, this seat delivers excellent ride quality, adjustability, and durability for agriculture, construction, and utility machinery.
🛠️ Key Features
-
12V Pneumatic Suspension – Delivers 120 mm of smooth vertical travel and 80 mm height adjustment for operators weighing 50–135 kg.
-
Fore/Aft Isolator – Absorbs machine movement to minimize fatigue and improve comfort.
-
Wide Deluxe Seat Cushion – 520 mm seat base ensures long hours of seating comfort in the field or on-site.
-
Adjustable Ergonomics – Includes mechanical lumbar support, backrest tilt, damper, seat depth, and adjustable armrests.
-
Swivel Base – 20° left and 20° right rotation for ease of entry/exit and added cab flexibility.
-
Elephant Black Fabric – High-durability textile that’s breathable, tough, and professional-looking.
🚜 Compatible With:
-
MTZ / Belarus: MTZ-920.3, MTZ-952, MTZ-1025
-
Valtra: G125, A104, N114e
-
Kubota: M4063, L5740, M5112
-
John Deere: 5055E, 5075M, 5090R
-
New Holland: T4.75, T5.100, Boomer 50
-
Massey Ferguson: 5S Series, 5711M
-
Case IH: Farmall C, Vestrum CVXDrive
-
Others: Compact wheel loaders, municipal and forestry machinery, telehandlers

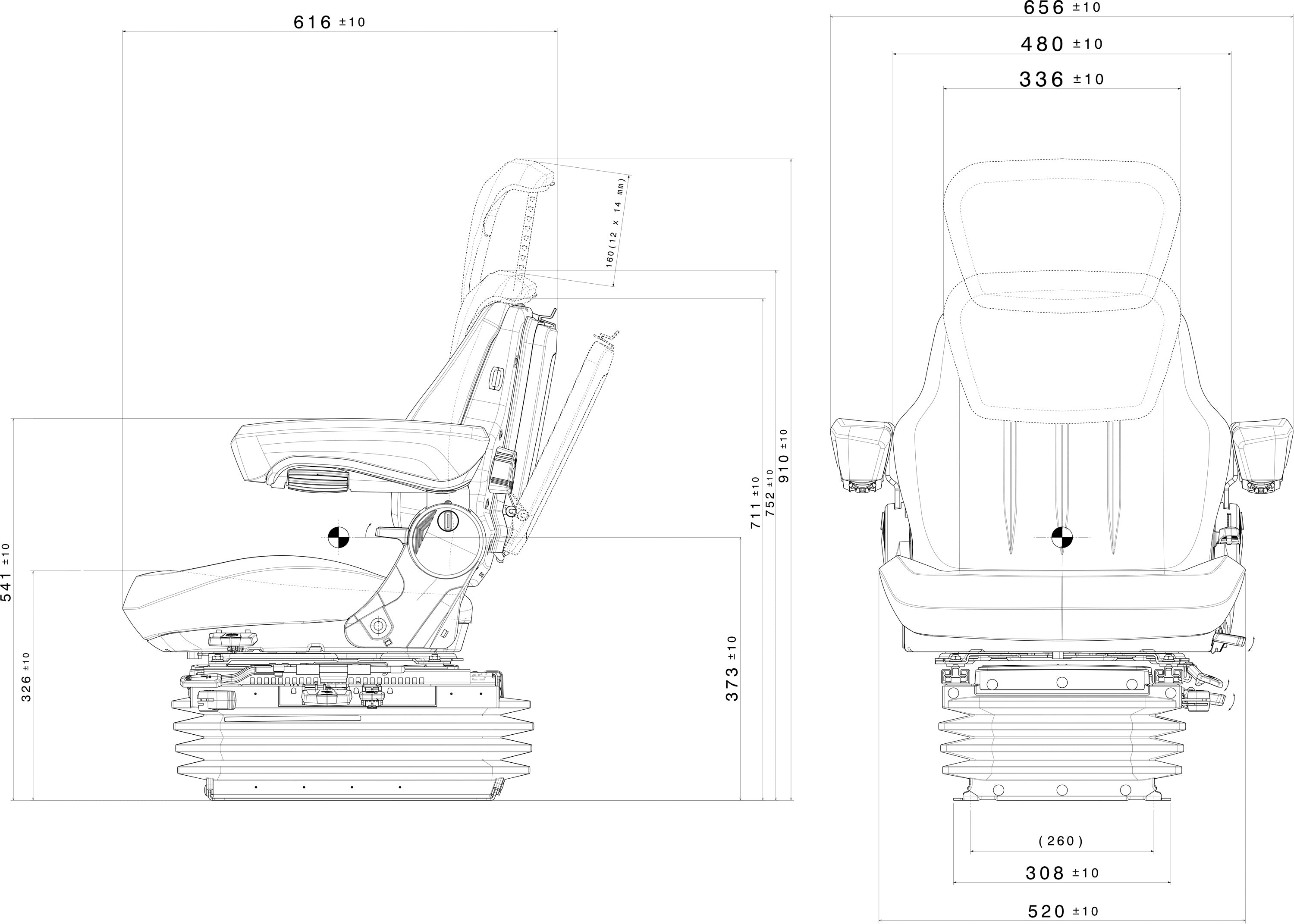

🔧 Technical Specifications
| Suspension Type |
Pneumatic, 12V |
| Suspension Travel |
120 mm |
| Height Adjustment |
80 mm |
| Weight Capacity |
50 – 135 kg |
| Slide Rail Travel |
210 mm |
| Seat Width |
520 mm (deluxe cushion) |
| Swivel |
20° left / 20° right |
| Backrest |
Low-profile with tilt adjustment |
| Lumbar Support |
Mechanical |
| Material |
Elephant Black fabric |
| Certifications |
e5 – ISO 3776-2, EU 1322/2018 |
✅ Ideal For:
- Tractors with low cabin height (MTZ, Valtra, John Deere, etc.)
- Compact construction machinery
- Municipal and forestry equipment
- Operators needing swivel and ergonomic adjustability in tight spaces
🧭 Suitability Analysis
| Category |
Fit |
Reason |
| Truck seats |
❌ Not suitable |
Lacks necessary on-road compliance and mounting format |
| Marine seats |
❌ Not suitable |
Not marine-rated or salt-resistant |
| Factory / Plant seats |
✅ Limited |
Can be used in static operator platforms with mounting modification |
| Special services transport |
✅ Possible |
Compact size and swivel support potential retrofitting |
| Ships seats |
❌ Not suitable |
No maritime certification |
| Small construction vehicles |
✅ Excellent |
Designed for compact excavators, wheel loaders, etc. |
| Small vehicle seats |
✅ Good fit |
Low profile ideal for compact cabins and municipal equipment |
| Forklift seats |
✅ Possible |
Fits if pneumatic power and space are available |
| Construction seats |
✅ Ideal |
Designed for rugged site use with suspension and isolators |
| Tractor seats |
✅ Excellent |
Perfect fit for mid-size European tractors |
🧭 Final Thoughts
The UnitedSeats LGV95/H152 ARD Rancher Low Back delivers high-spec performance in a compact ergonomic form. It’s the go-to upgrade for operators working in confined tractor cabs or on construction sites—where space is limited but comfort and adjustability matter most.
