Description

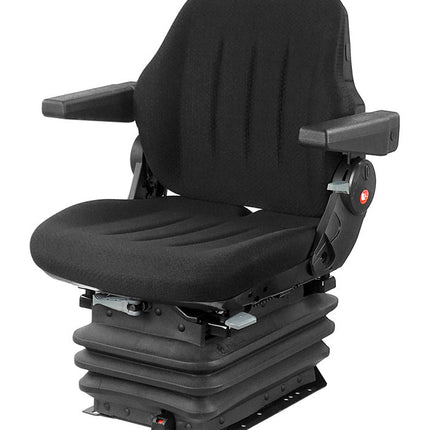

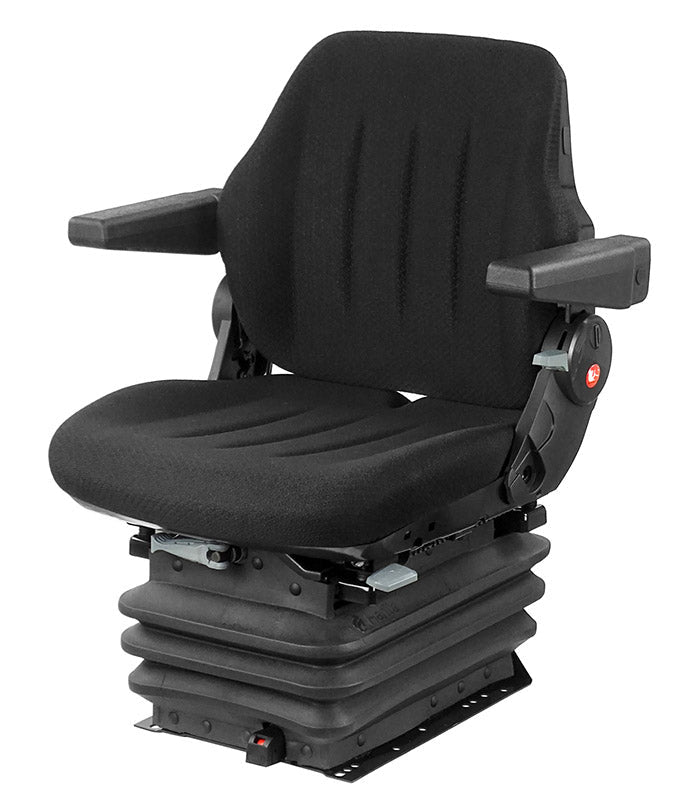

UnitedSeats Rancher Eco Mechanical Suspension Seat – PVC, 480mm
Essential comfort. Economical design. Perfect for European tractors and compact machinery.
The Rancher Eco by UnitedSeats is a cost-effective mechanical suspension seat built for reliability and comfort in small tractors, mowers, and construction equipment. With rugged PVC trim, ergonomic backrest, and fixed damper support, this seat delivers durability and functionality where it matters most.
🛠️ Key Features
-
Mechanical Suspension – 120 mm of vertical travel reduces shocks and bumps in off-road conditions.
-
Weight Adjustment – Adjustable for operators between 50–135 kg.
-
Durable PVC Upholstery – Weather-resistant and easy to clean, perfect for outdoor and field work.
-
Wide Deluxe Seat Cushion – 480 mm wide, provides extra comfort in narrow machine cabins.
-
Standard Damper – Fixed damper adds extra movement stability.
-
Adjustable Backrest – Enhances ergonomic posture and comfort for long shifts.
-
Basic Armrests – Lightweight side support for added user comfort.
-
Slide Rails – 210 mm travel for flexible fore/aft seat positioning.
🚜 Compatible With:
-
MTZ / Belarus: MTZ-82, MTZ-920, MTZ-1025
-
Valtra: A Series and N Series tractors
-
John Deere: 1025R, 3025E, 5055E
-
Kubota: BX2380, B Series, L2501, L3902
-
Massey Ferguson: GC1700, 1700E, 2600H Series
-
New Holland: Boomer 25/40/50, Workmaster 25
-
Case IH: Farmall A and C Series
-
ISEKI, Kioti, LS, TYM, Yanmar: Compact models
-
Others: Schäffer, Giant, Avant loaders, commercial mowers, mini-excavators

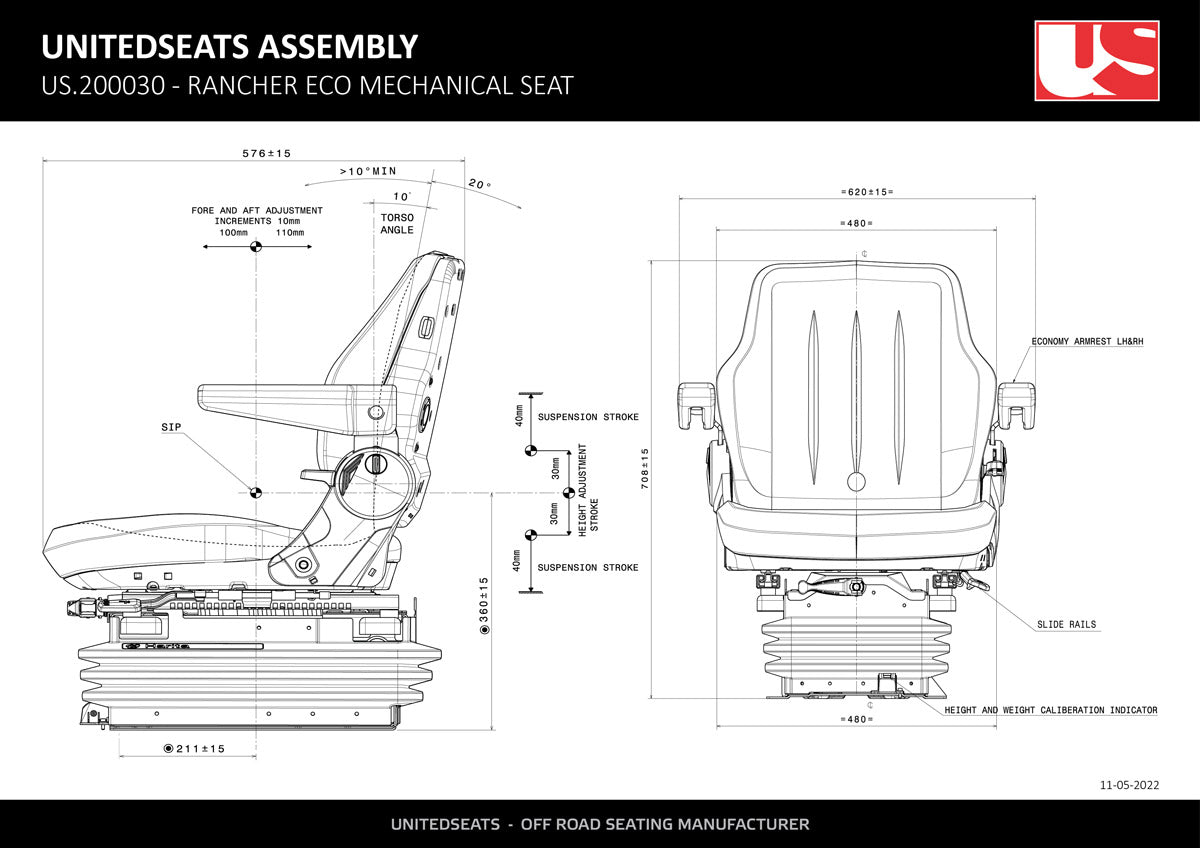

🔧 Technical Specifications
| Suspension Type |
Mechanical |
| Suspension Travel |
120 mm |
| Weight Capacity |
50 – 135 kg |
| Slide Rail Travel |
210 mm |
| Seat Width |
480 mm |
| Armrests |
Basic |
| Backrest |
Adjustable |
| Damper |
Standard (non-adjustable) |
| Material |
Black PVC |
| Certifications |
e5 – ISO 3776-2, EU 1322/2018 |
✅ Ideal For:
- Compact and utility tractors (including MTZ and Valtra)
- Ride-on mowers and mini-excavators
- Municipal and landscaping vehicles
- Operators looking for a durable, cost-effective upgrade
🧭 Suitability Analysis
| Category |
Fit |
Reason |
| Truck seats |
❌ Not suitable |
Does not meet comfort standards for long-haul driving |
| Marine seats |
❌ Not suitable |
Not corrosion-resistant or marine-certified |
| Factory / Plant seats |
✅ Limited |
Could be mounted on static operator stations |
| Special services transport |
✅ Possible |
If limited space and mechanical suspension are acceptable |
| Ships seats |
❌ Not suitable |
Lacks marine durability and mounting systems |
| Small construction vehicles |
✅ Strong fit |
Perfect for mini-excavators and compact utility machines |
| Small vehicle seats |
✅ Excellent |
Ideal size and comfort for compact tractors and mowers |
| Forklift seats |
✅ Acceptable |
Basic comfort and fit, no special sensors included |
| Construction seats |
✅ Good fit |
Simple mechanical support for basic off-road equipment |
| Tractor seats |
✅ Excellent |
Designed for small and mid-size agricultural tractors |
🧭 Final Thoughts
The Rancher Eco offers essential operator comfort, rugged construction, and smart pricing. It's a practical seating solution for everyday field work—especially suited to European operators and compact equipment fleets.
