Description
Manufacturer's code:

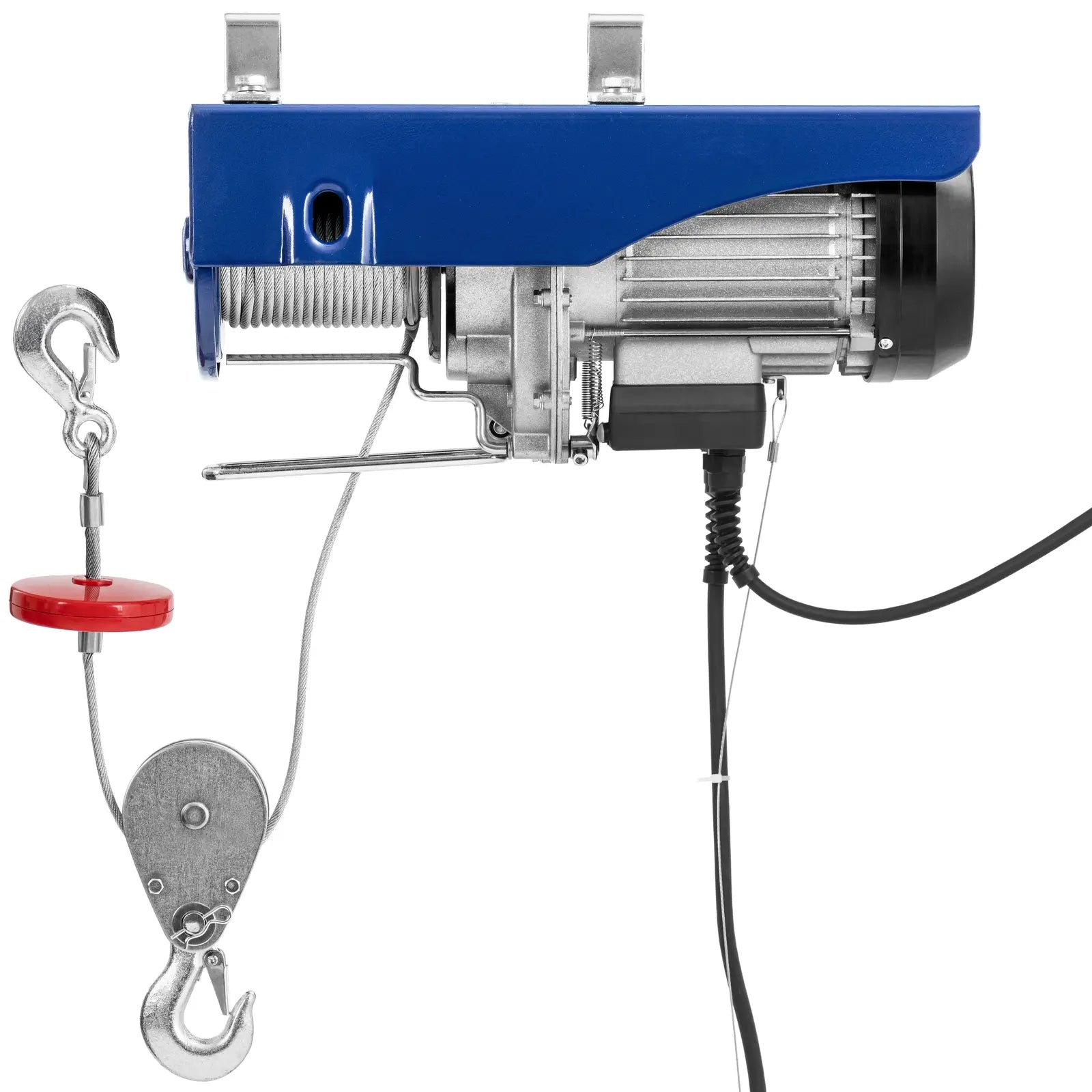

10060008 MMA rope winch it is suitable for safe lifting of various types of items in warehouses, factories and areas of storage. It is characterized by extremely durable construction and high strength.
Engine power 1300 W makes the device handle lifting heavy objects from 400 kg to 800 kg. The height of lifting objects, which with a single string with a lock is
6 m, while with a single string -
12 mThe red button on the remote gives you additionally the possibility to adjust the height freely, so the MMA product can easily be adapted to the requirements of the specific operation.
PROLIFTOR The advantage is that they have a high winding speed. The life of the device guarantees the overload mechanism and waterproof design. The high lifting speed allows for quick and efficient task execution. With a single string and less weight, the device can work at a rate of speed.
up to 8 m/min, whereas
with a block - 4 m/minThe 12 m CK45 stainless steel cable prevents the raised load from turning. Thanks to the durable material, it is characterized by an additionally minimalized wear, which guarantees long service life.
High level of protection confirms the IP54 leak standard, which means that the housing prevents the dust from entering the device in quantities interfering with its operation and water spatter from any direction.
insulation class BIt protects the device from overheating and harmful operation. The safety of operation throughout the lift ensures the load of the remote control cable. The pilot and the tractor are fitted with a steel cable passing parallel along the cable. Thanks to its slightly shorter electronic components have better protection. This also includes an automatic brake which stops the device from operating after the engine is turned off.
Solid construction made of lightweight high-grade materials, it is responsible for long service life.

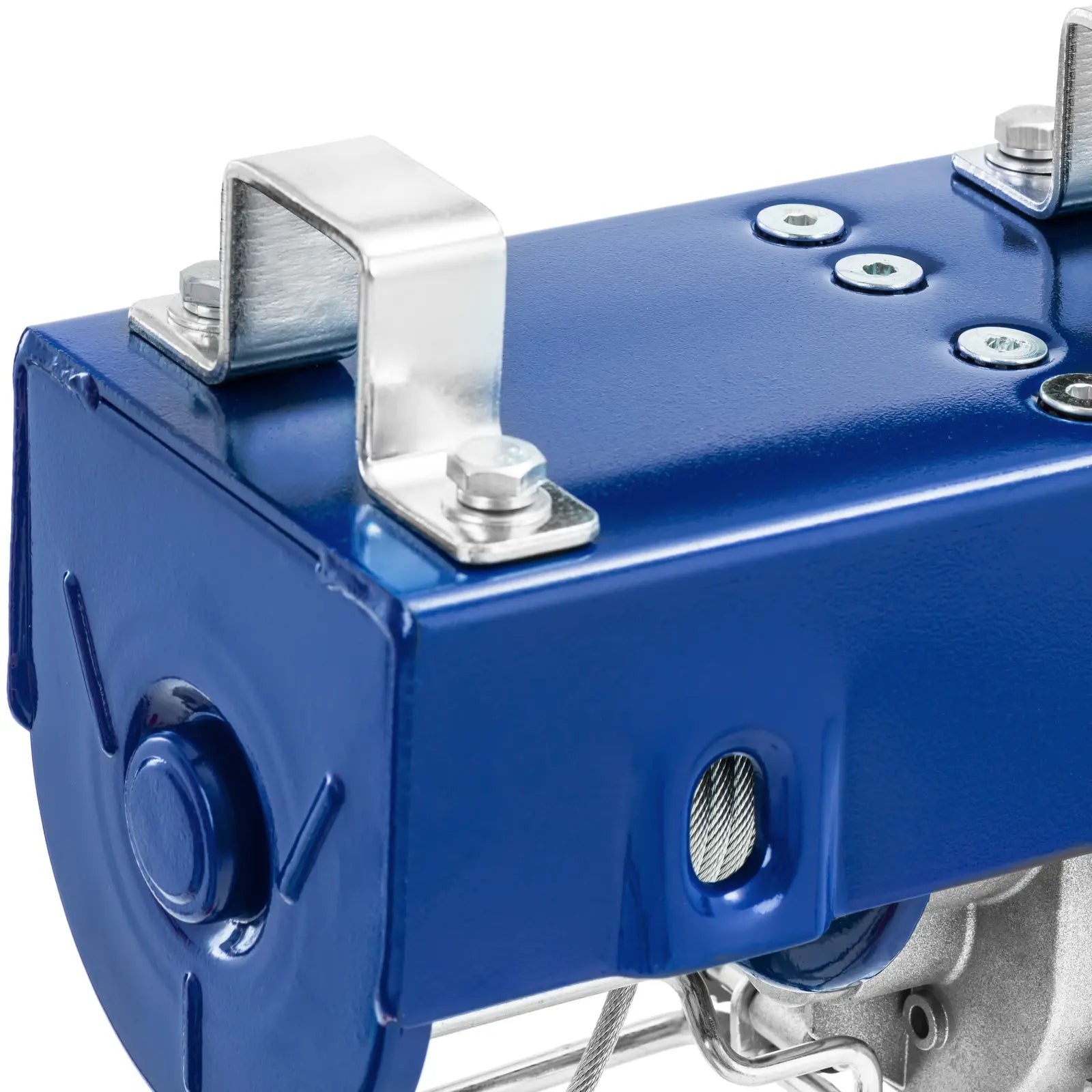

Powder coated housing This coating ensures a much more durable finish than it offers paint in liquid, protecting the coating against moisture, chemicals, ultraviolet light and extreme weather conditions. It also reduces the risk of scratches, scratches, scratches, brushing, corrosion, fading. This powder coating is extremely durable and also has an attractive appearance and beneficial impact on the environment. The PROLIFTOR 800 is characterized by an ergonomic, intuitive design of the winch, so you can handle it with one hand. The possibility of fixing the device on the wall, scaffolding or swivel will allow you to work in different conditions. The PROLIFTOR 800 model is characterized by a simple installation. The set includes all the accessories necessary for this. The rope lifter from MSW is a device designed for use in your rooms, warehouses and factories and warehouses. The PROLIFTOR 800 model is characterized by a high efficiency and easy to improve the quality of the company's high quality of use.
Technical parameters: - - Model - PROLIFTOR 800
- - Catalog number - 6008
- - The state of the article - New
- - Time for break at work - S3-20% 10 min
- - The length of the rope - 12 m
- - Loading hook - Yes.
- - Color - Blue
- - Maximum lifting capacity 12 m
- - Maximum lifting capacity 6 m
- - Material - Steel
- - Power [W] - 1300
- - Voltage [V] - 230
- - The carrying - without the blocking - 400 kg
- - The carrying - with the glitch - 800 kg
- - Covering the profile or tilting arm - Yes.
- - Resistance of the rope to breaking - 2000 kg
- - Pilot - Yes.
- - Lift speed - without a block - 8 m/mn
- - Lifting speed - with a blur - 4 m/mn
- - The diameter of the rope - 5.1 mm
- - The diameter of the chain - 5.1 mm
- ## I'll swing with a hook ## Yes.
- - Weight - 19.76 kg
- - Dimensions (DxSxW) - 42 x 16 x 21 cm
- - Weight of shipping - 28.1 kg
- - Emergency switch - Yes.
- - Dimensions of dispatch (DxSxW) - 43 x 17 x 24 cm

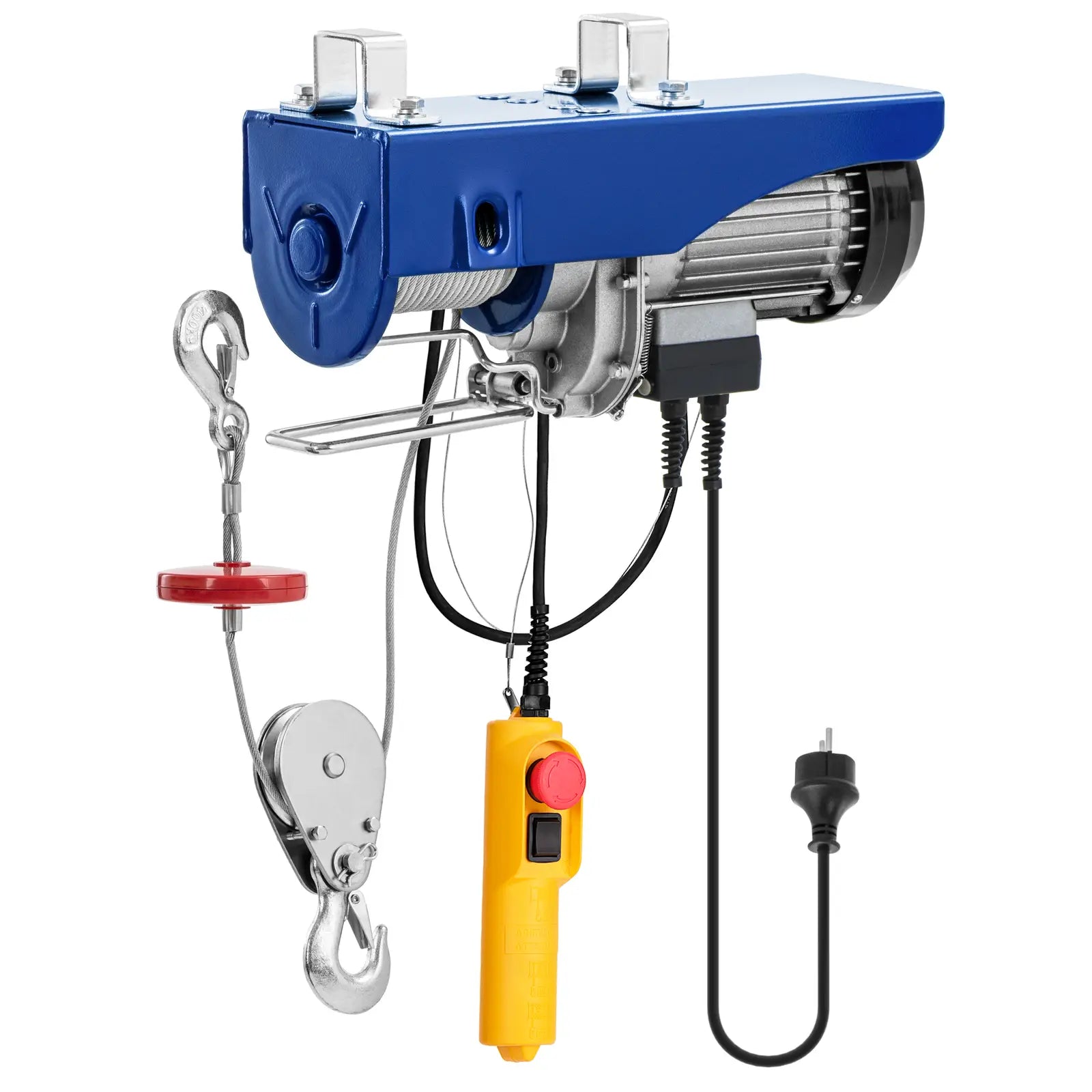

Included: - - Cable winch

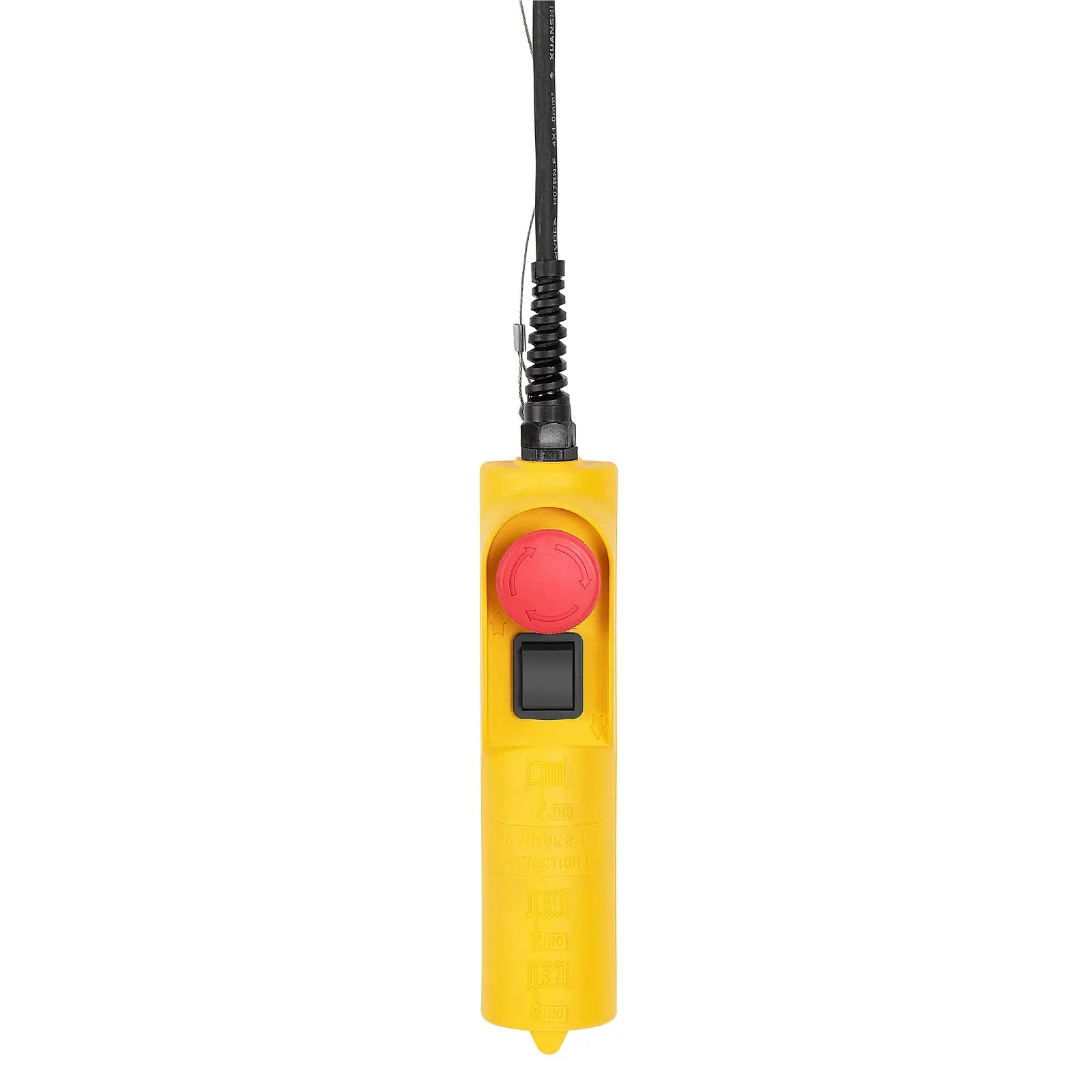

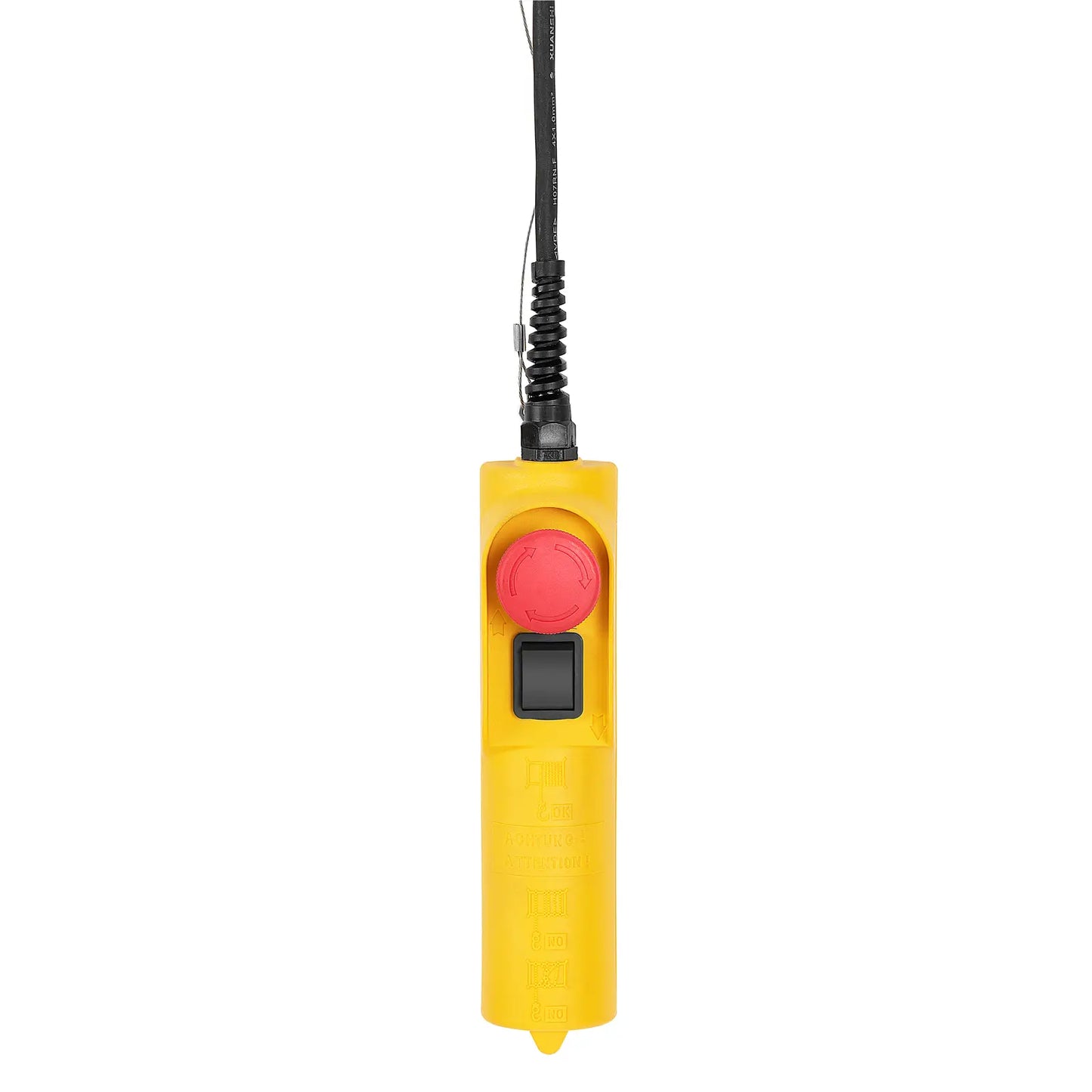

- - Wired control control pilot
- - Covering - fixing to profile or tilting arm

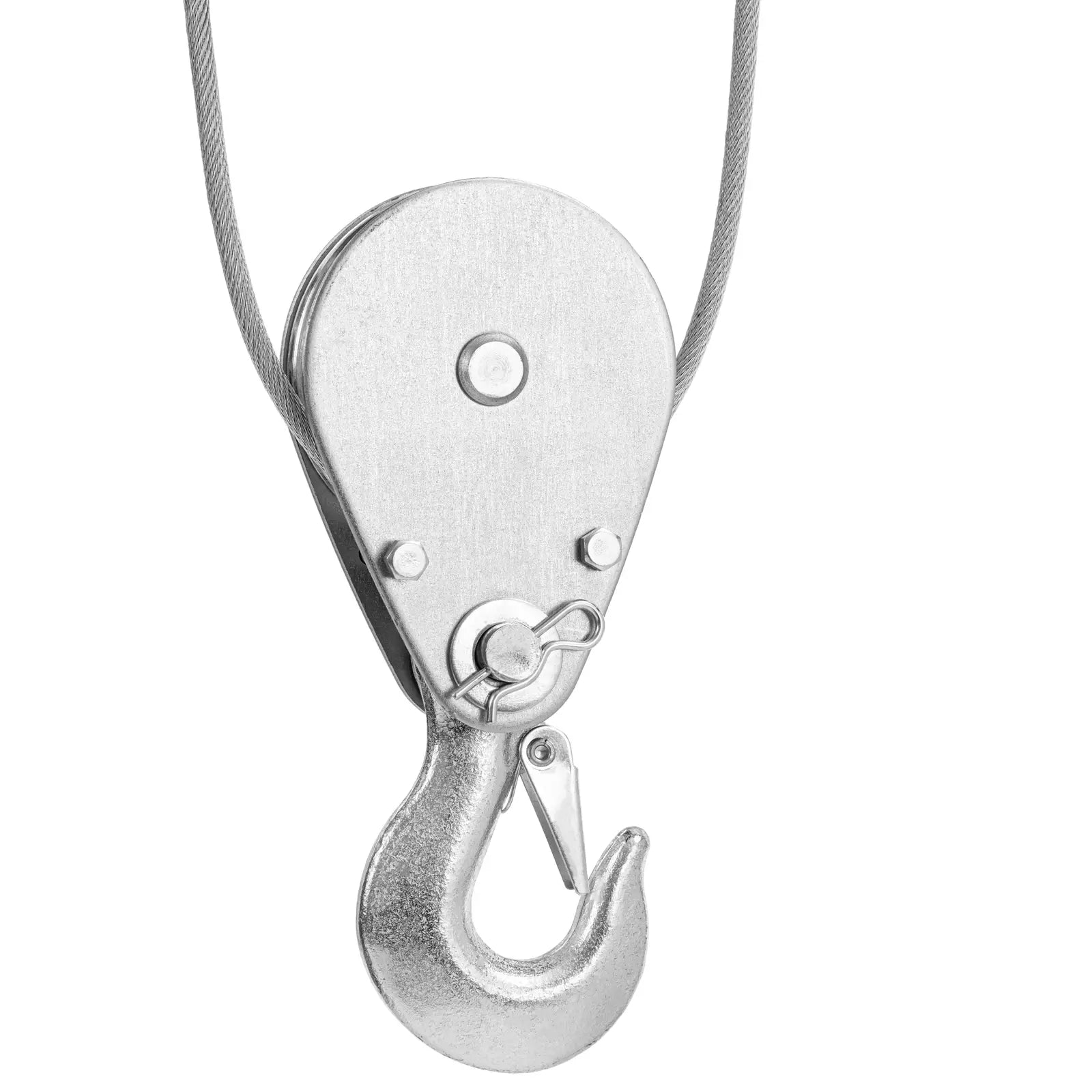

- - I'll lock up with a hook.

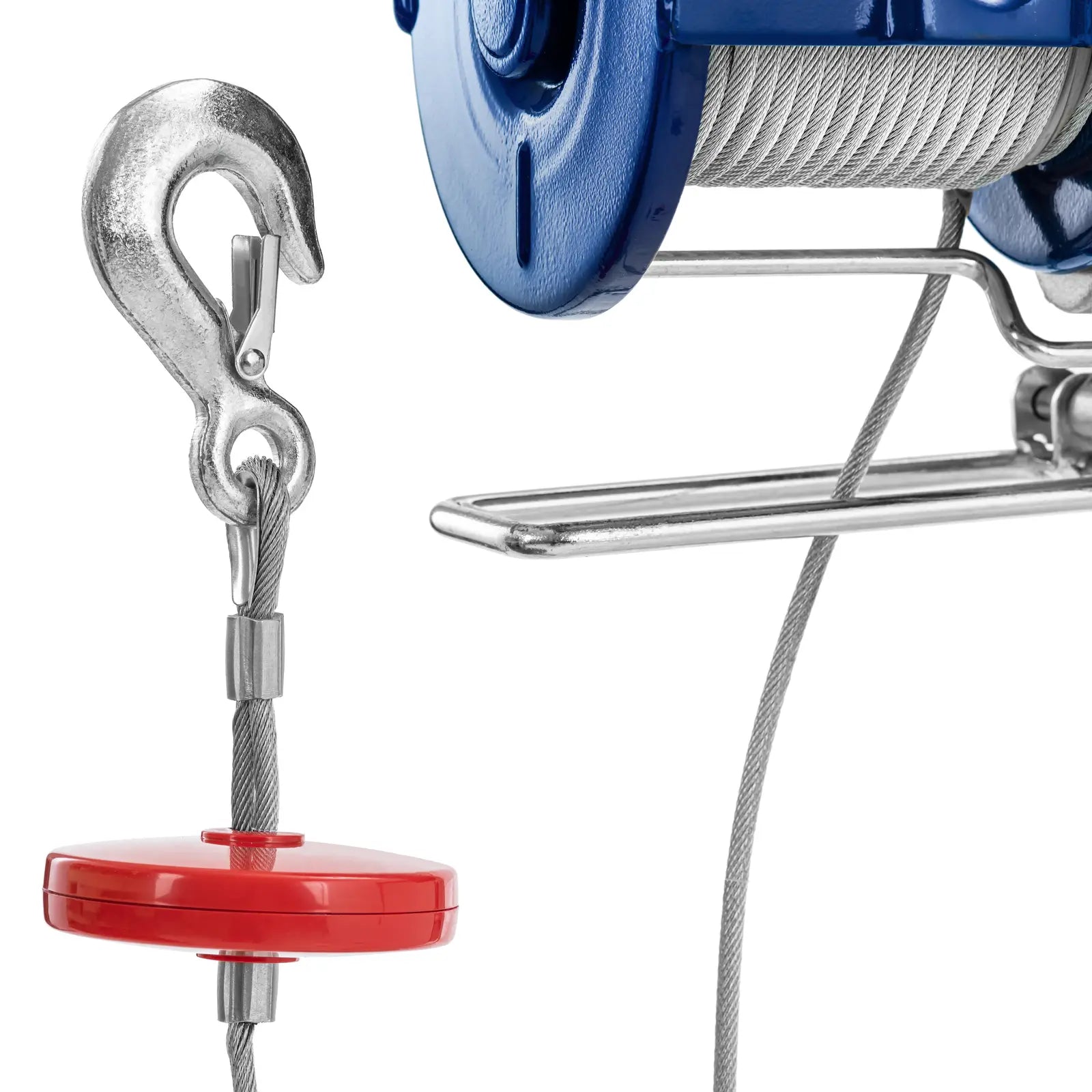

- - Loading hook
- - Steel line with length of 12 m
- - PL Manual
