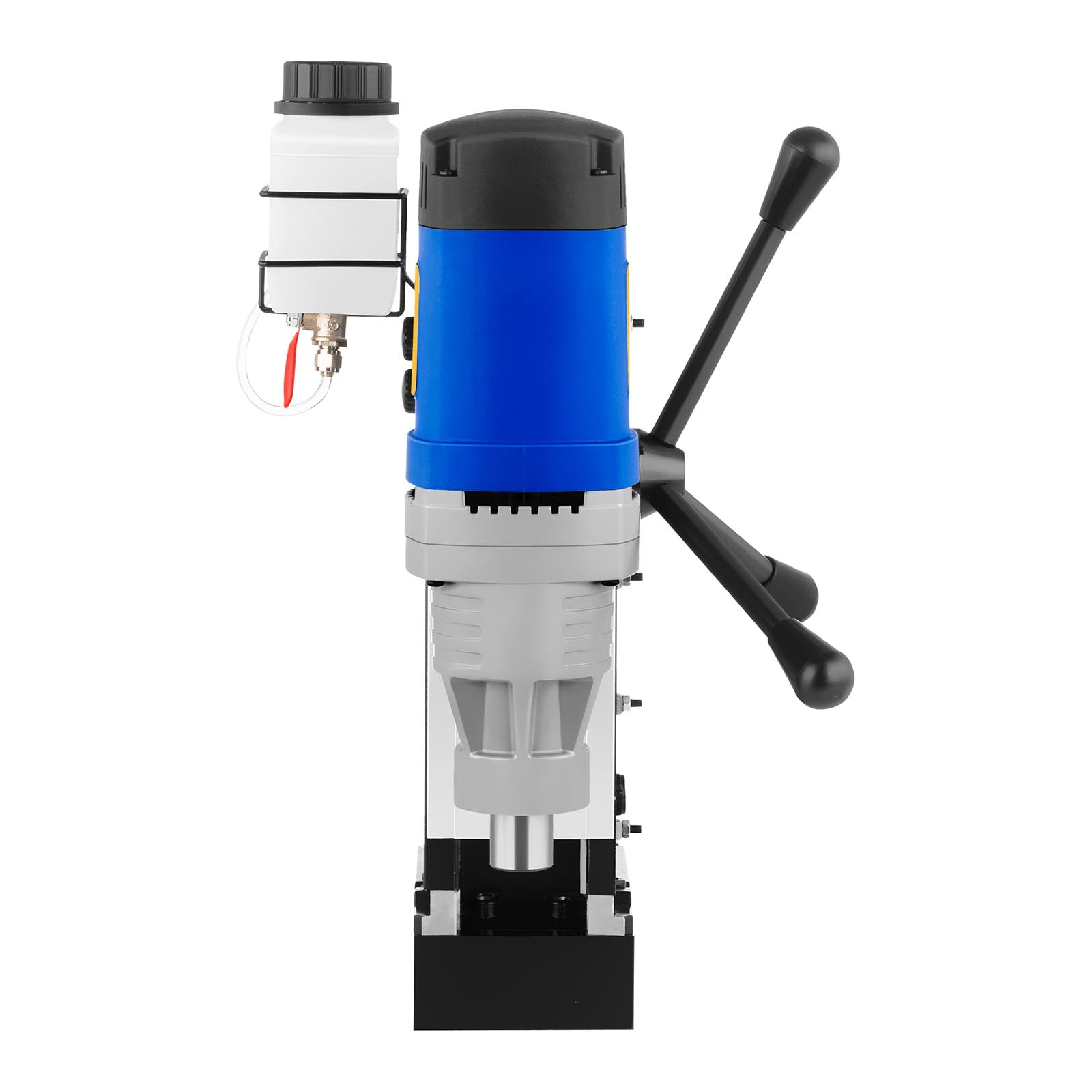

Drills – Magnetic drill with magnetic base 1300W MSW-MD32-ECO

Drills – Magnetic drill with magnetic base 1300W MSW-MD32-ECO

58 in stock

Quantity
Regular price €353,45 EUR
Regular price €397,14 EUR Sale price €353,45 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Overview

The Magnetic drill with magnetic base 1300W MSW-MD32-ECO from MSW brings drills you can rely on, made for your power tools needs. A popular choice in Electro-tools, Impact hammer drilling machines.

Product code: 1009357

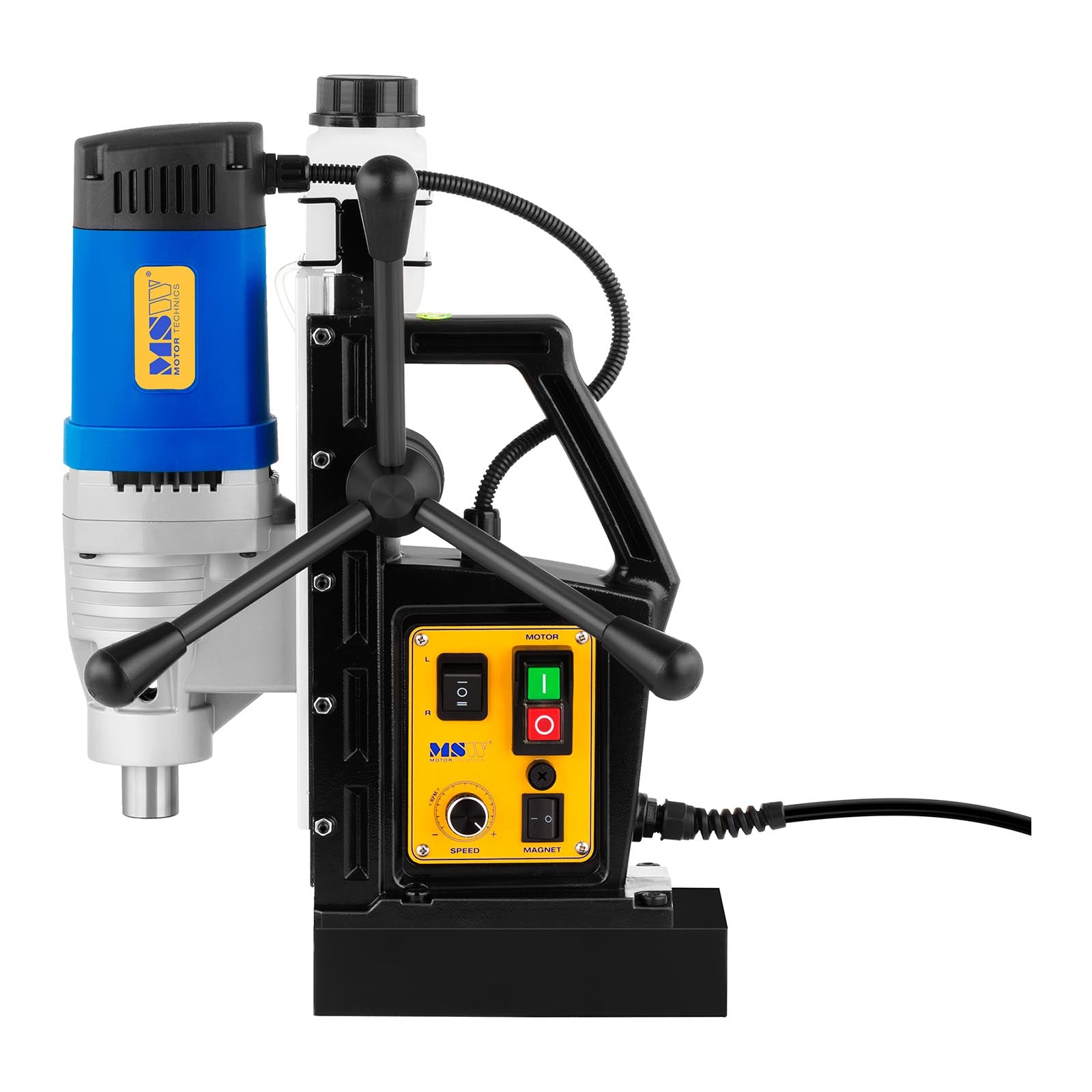

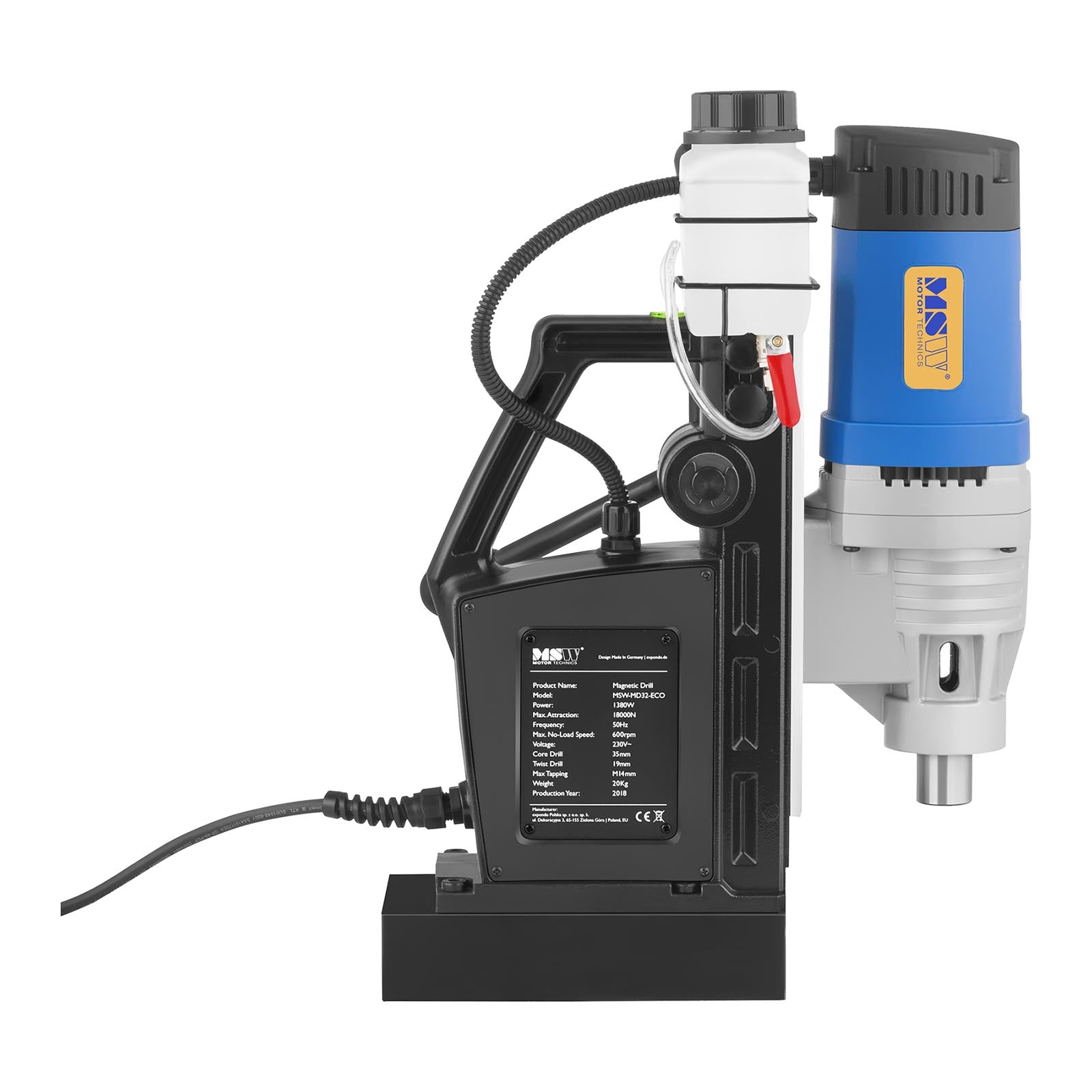

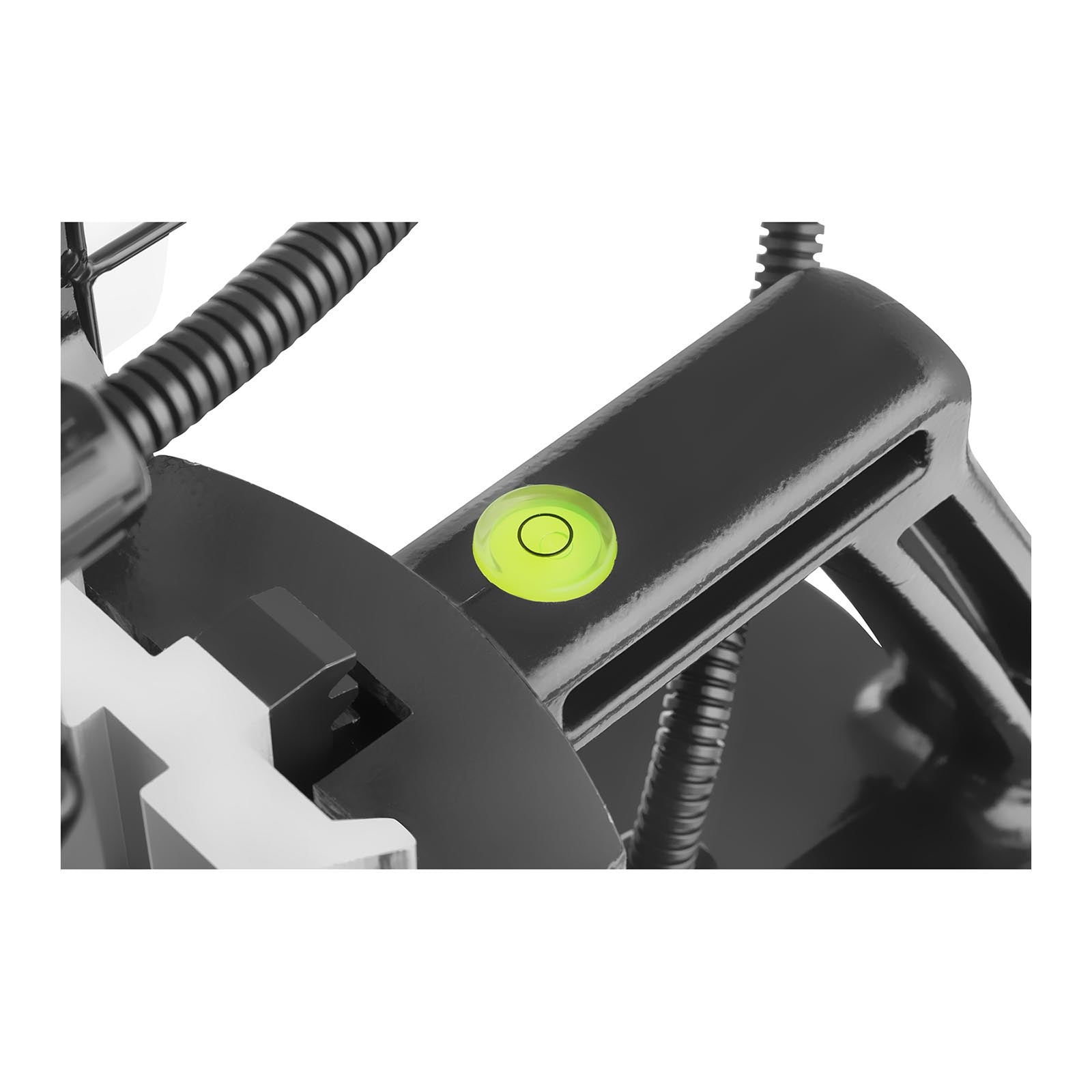

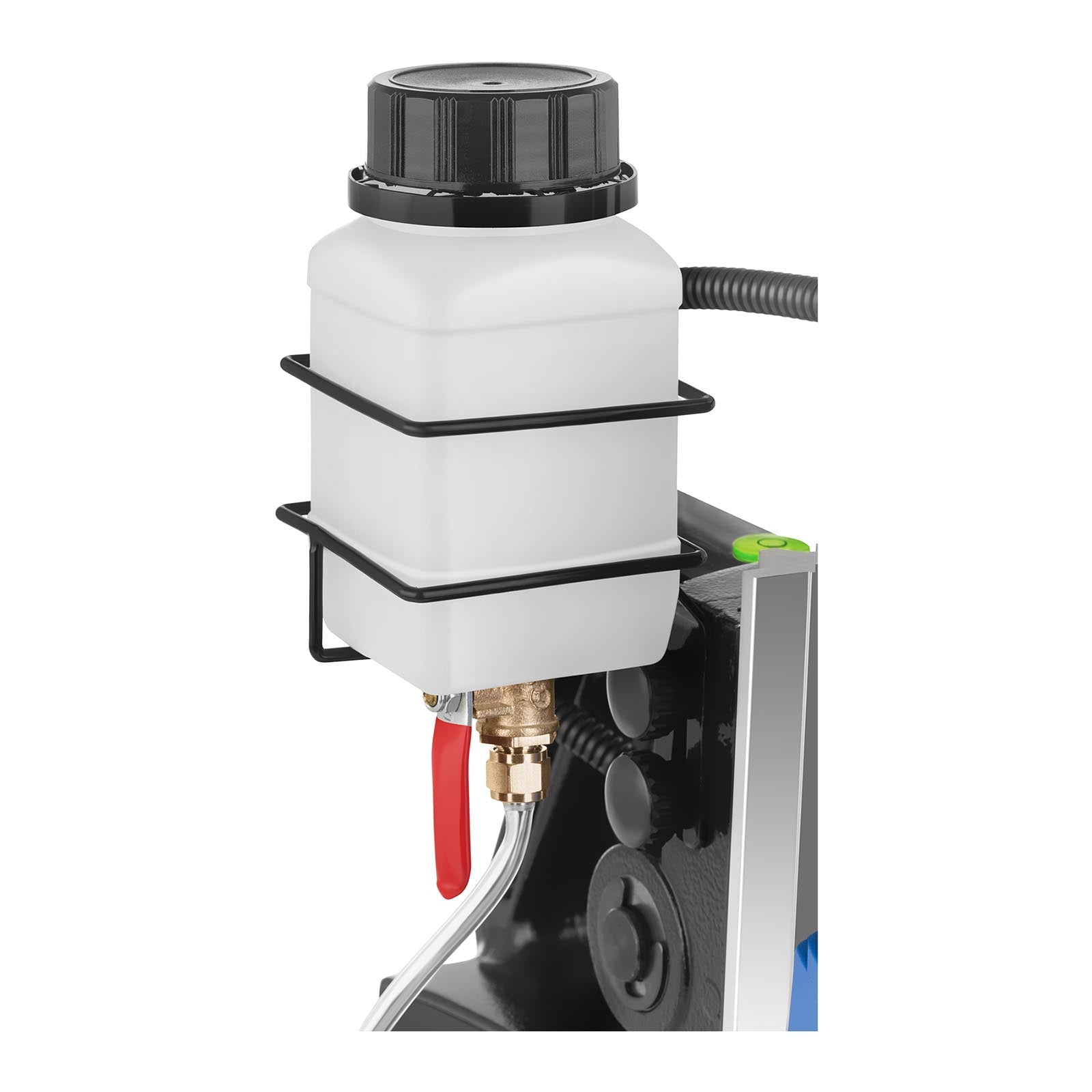

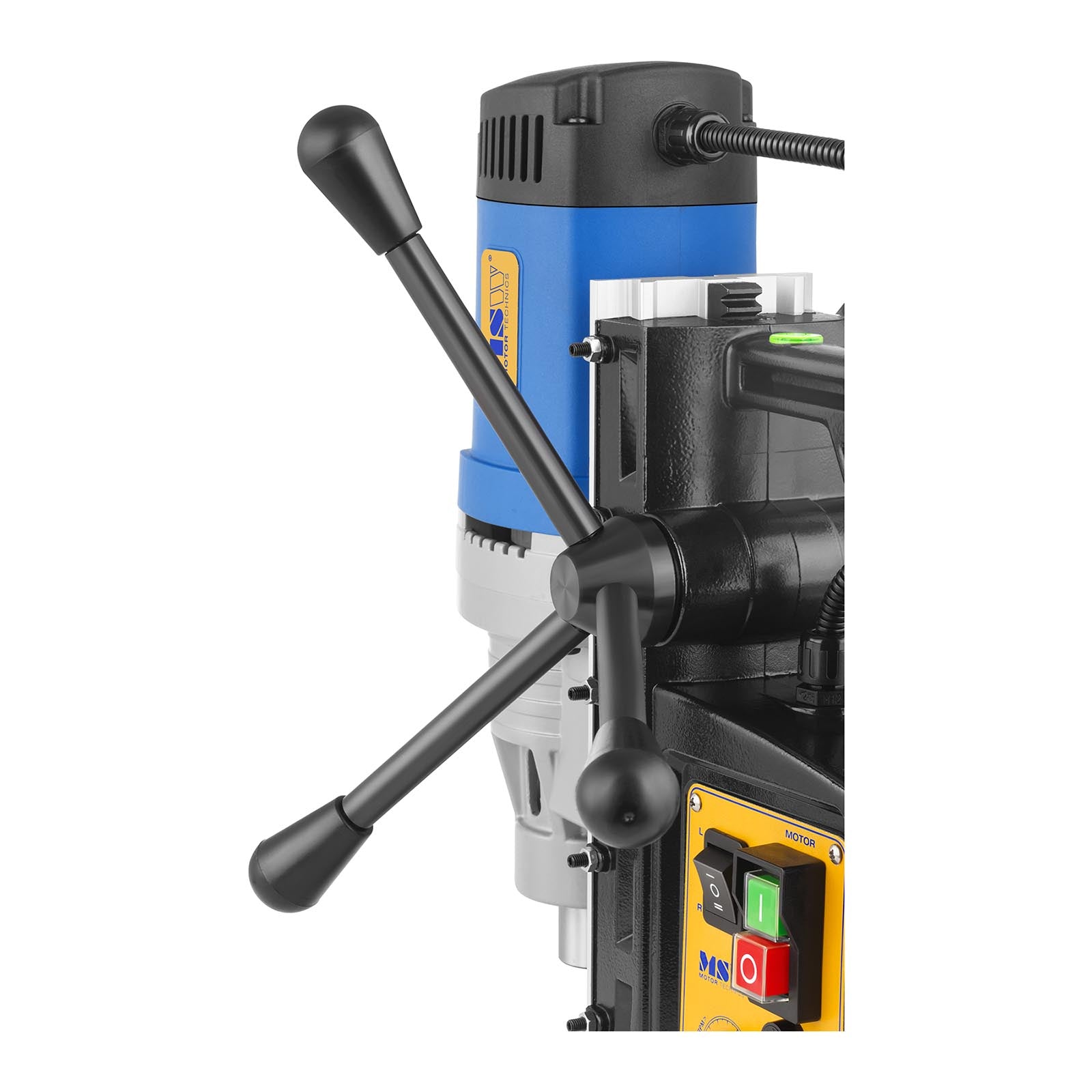

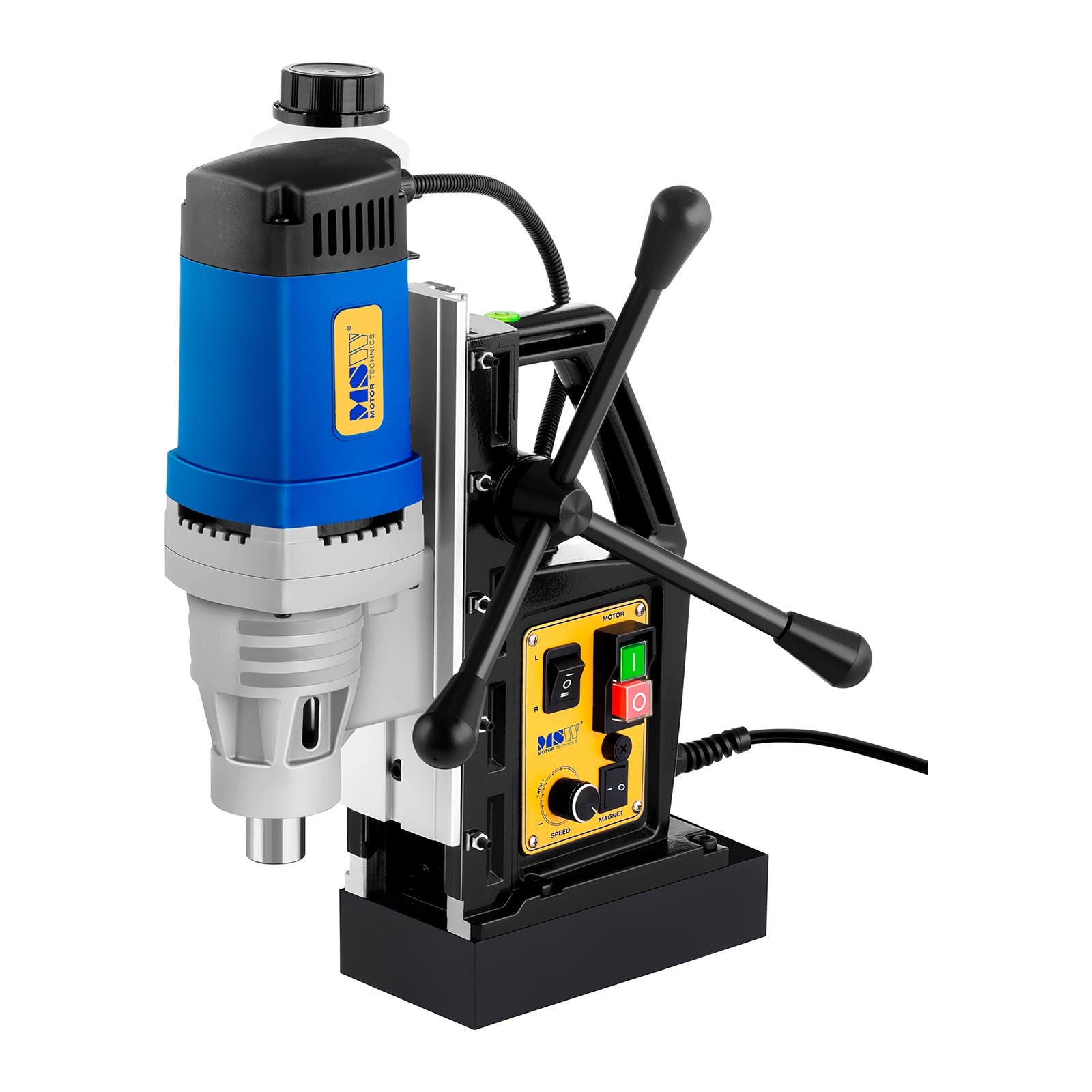

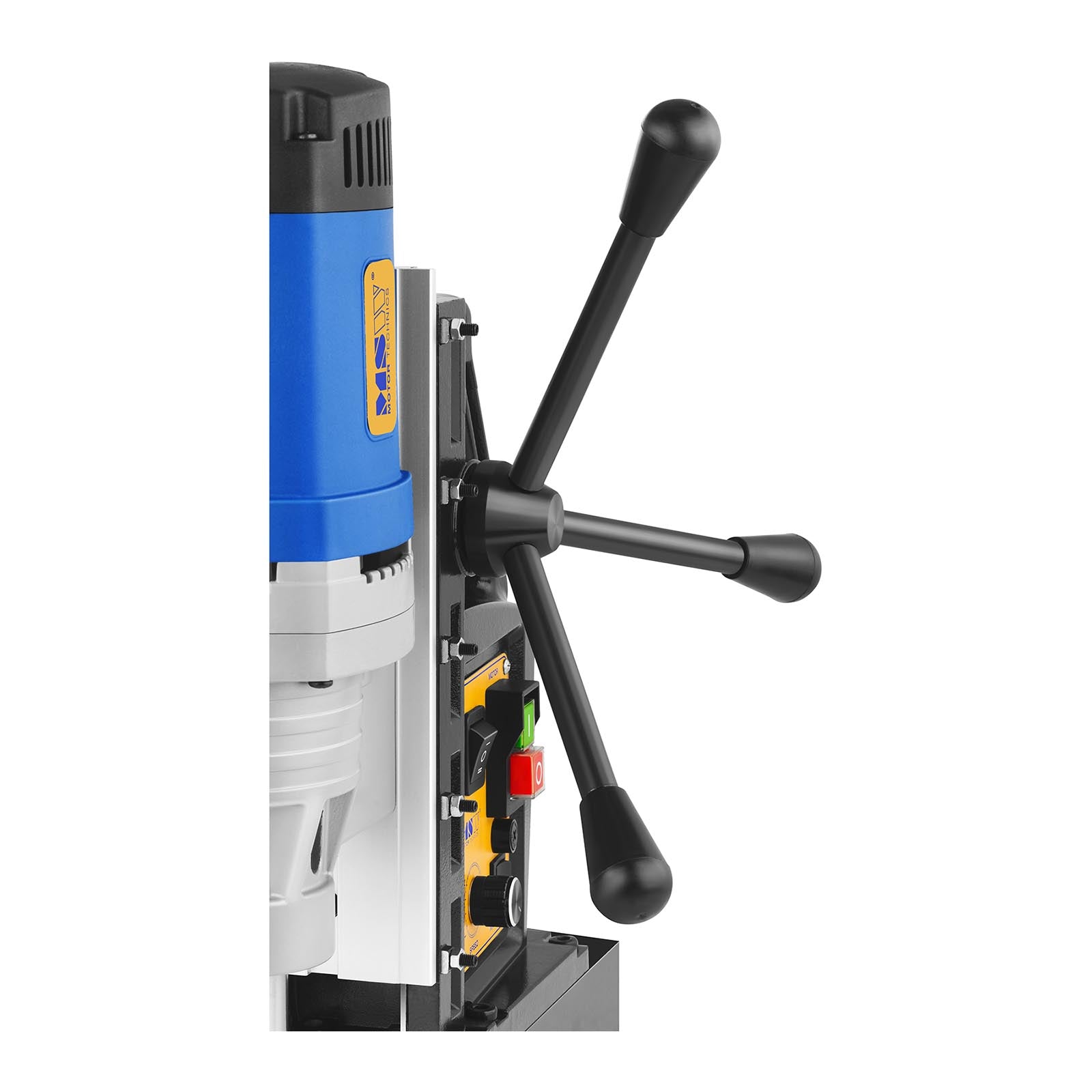

MSW magnetic drill Due to its design, it will allow you to work in difficult conditions and in various positions, e.g. vertically. This is possible thanks to a strong electromagnet with a power of 18,000 N, which keeps the device in a stable position. The relatively light weight and the long power cord (2 m) make it possible to place the drill anywhere. The efficient operation of the device is ensured by a 1300 W motor, which allows drilling at a speed of up to 600 revolutions per minute. A three-part rotating handle is responsible for setting the drilling depth(up to 50 mm). It moves the movable piece of equipment along the guide in the rangefrom 0 mm to 175 mm. The drill has a cooling system installed to reduce the temperature of the drill during operation. It consists of a 300 ml tank and a 50 cm long tube. This affects the efficiency when processing metal elements and extends the life of the drill. Easy operation of the equipment is due tolarge buttonslocated on one side of the drill. Thanks to them, you can start the engine and electromagnet and select the drilling direction. There is also astepless knobfor speed adjustment. The built-in spirit level ensures proper maintenance of the machine's angle. Safe use is ensured by anRCD magnetic switch, protecting against shock and accidental switching on. The fuses included in the set will protect the electrical circuit against overload. Additionally, there is a lock that prevents the drill from starting when the electromagnet is turned off.

Key features

Efficiency
Easy operation
Durability
Safety
Mobility

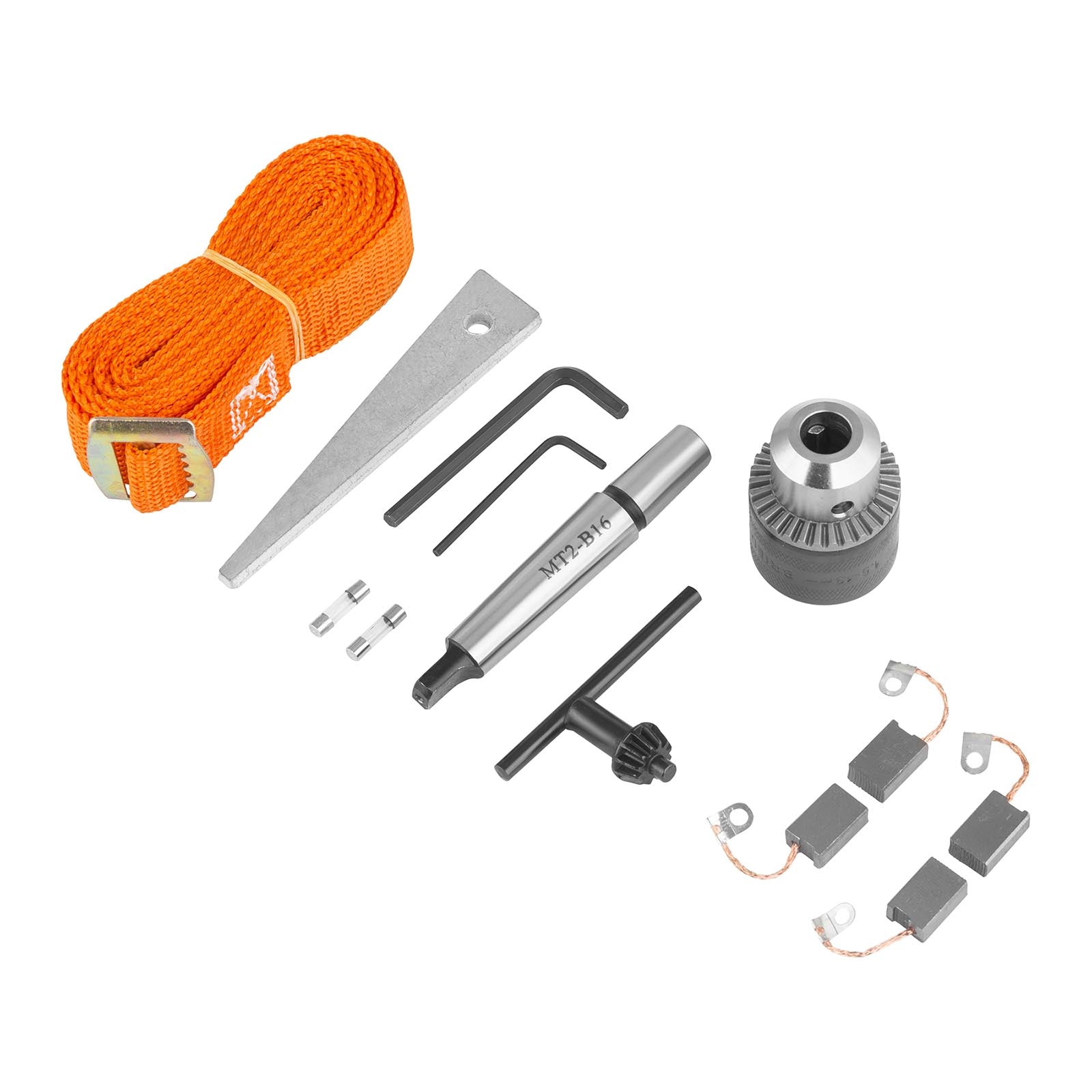

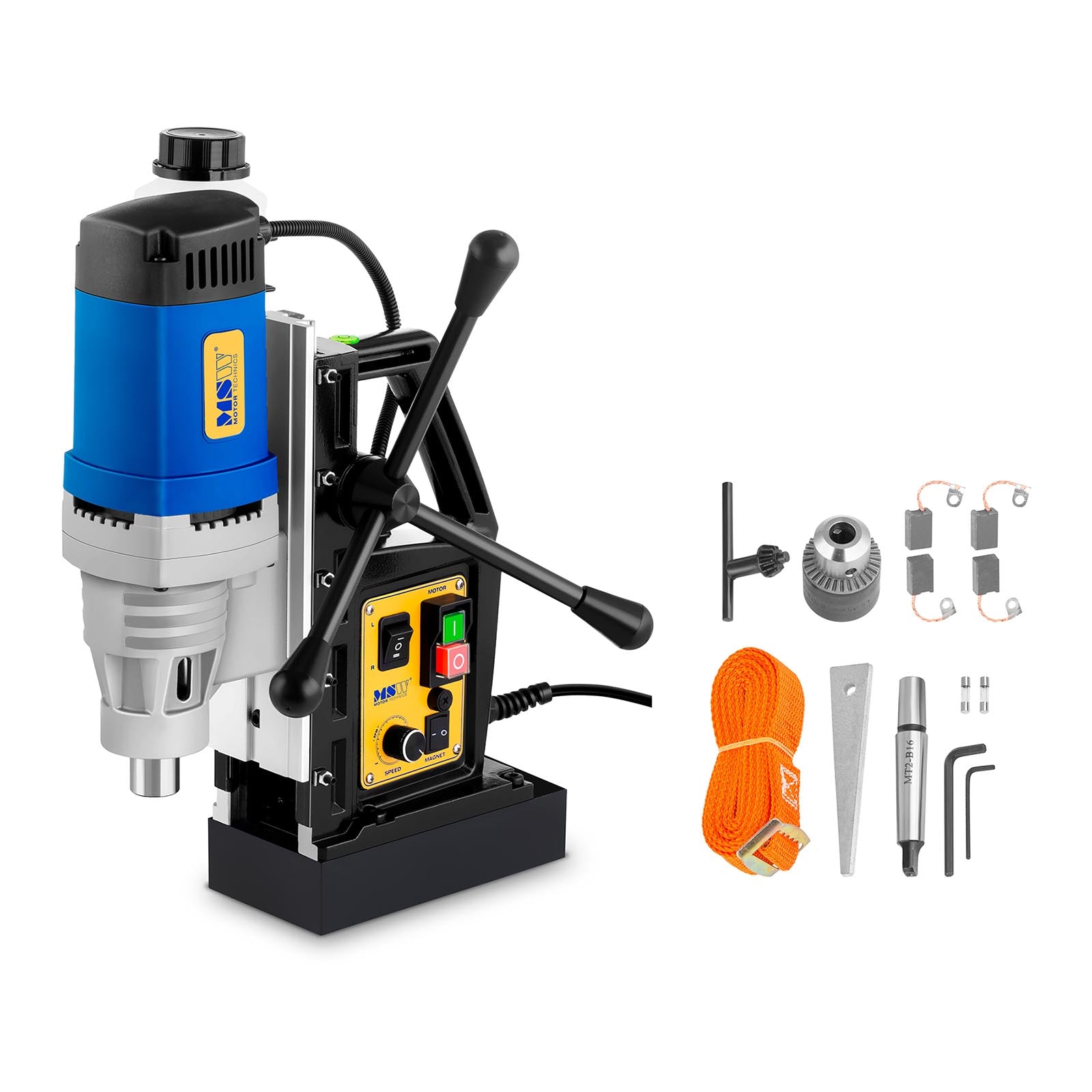

Magnetic drill
Safety strap
Rotary chuck - 3 elements
Allen key - 2 pcs
Fuse - 2 pcs
Wedge punch
Cooling tank
Drill chuck holder
Drill chuck (B16 / 1.5-13 mm)
Drill wrench
Carbon brush - 2 pcs
Technical specification
SpecificationDetail
ModelMSW-MD32-ECO
Catalog number10060431
MaterialCasting aluminum
Power1300 W
Voltage230 V
Cooling tank capacity300 ml
Cooling tank pipe length50 cm
Maximum electromagnetic attraction18000 N
Tap diameterM14
Core drill diameter35 mm
Maximum depth drilling50 mm
Drill diameter19 mm
Drill chuckB16 / 1.5-13 mm
Maximum rotational speed (without load)600 rpm
Guide range0-175 mm
Built-in spirit levelYes
Safety strap includedYes
Threading functionYes
Length of power cord2.25 m
Dimensions (LxWxH)31 x 21.5 x 56.5 cm
Weight16.8 kg
Shipping dimensions (LxWxH)41 x 41 x 18 cm
Shipping weight18 kg
