Drills – Magnetic drill with magnetic base + Suitcase 1680W

Drills – Magnetic drill with magnetic base + Suitcase 1680W

24 in stock

Quantity
Regular price €657,92 EUR
Regular price €739,24 EUR Sale price €657,92 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Overview

The Magnetic drill with magnetic base + Suitcase 1680W MSW-MD60-PRO from MSW brings drills you can rely on, made for your power tools needs. A popular choice in Electro-tools, Impact hammer drilling machines.

Manufacturer's number: MSW 10060434

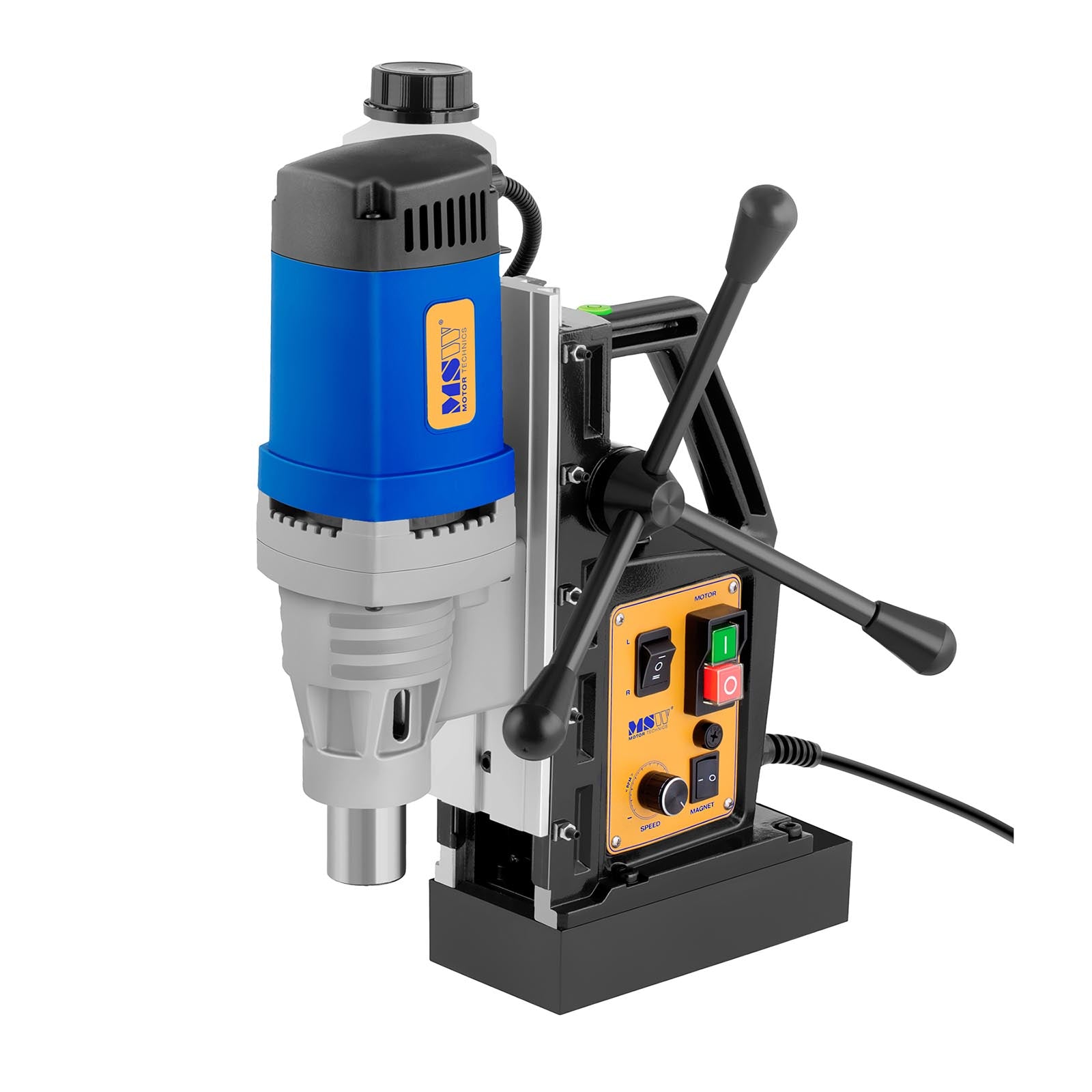

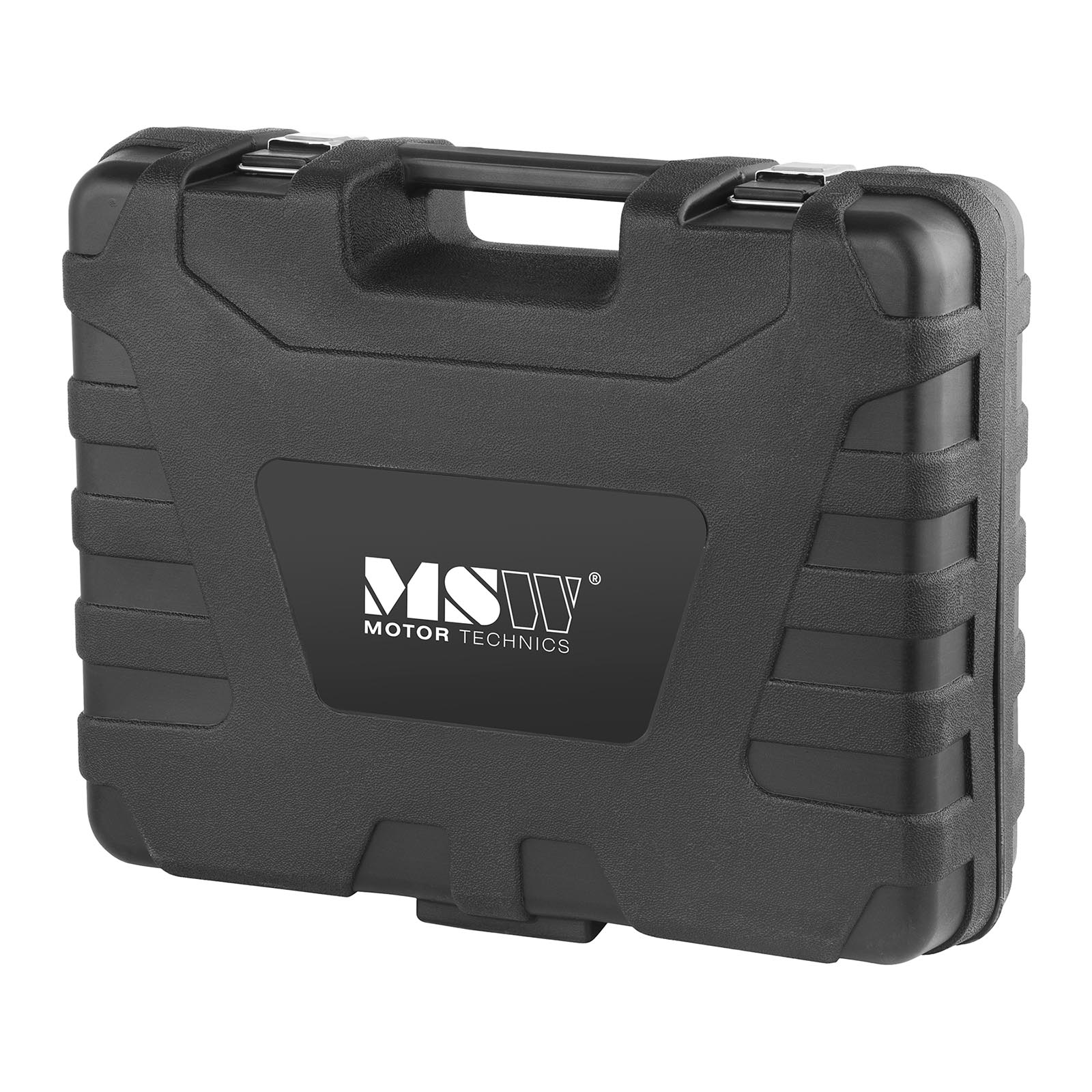

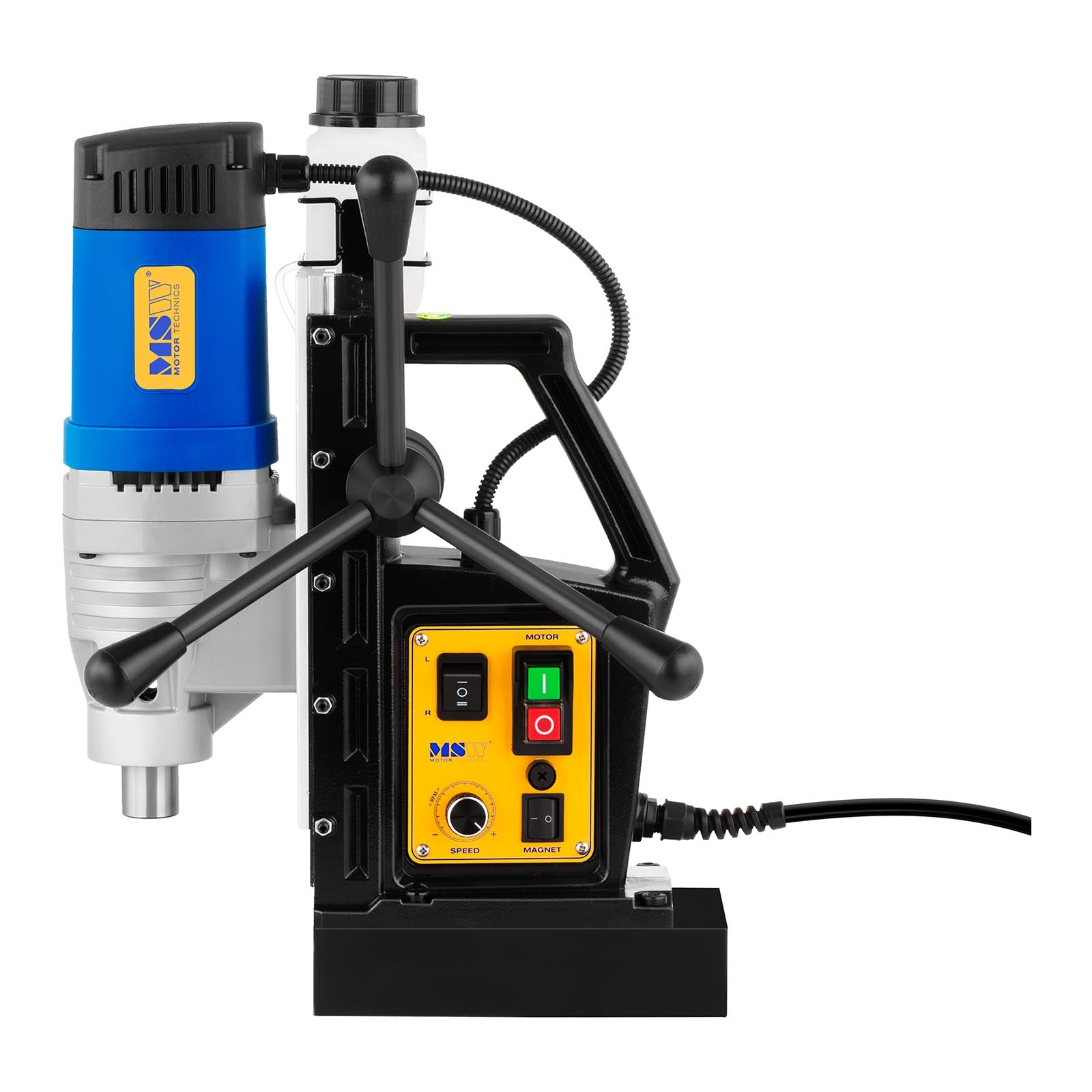

The MSW magnetic drill, thanks to its design, will allow you to work in difficult conditions and in various positions, e.g. vertically. This is possible thanks to a strong electromagnet with a power of 13800, which keeps the device in a stable position. The relatively low weight and the long power cord (2 m) make it possible to place the drill anywhere. The suitcase will make it easier to transport the entire set.

The efficient operation of the device is ensured by a 1680 W motor, which allows drilling at a speed of up to 370 rpm. A three-part rotating handle is responsible for setting the drilling depth (up to 50 mm). It moves the movable piece of equipment along the guide in the rangefrom 0 mm to 165 mm.

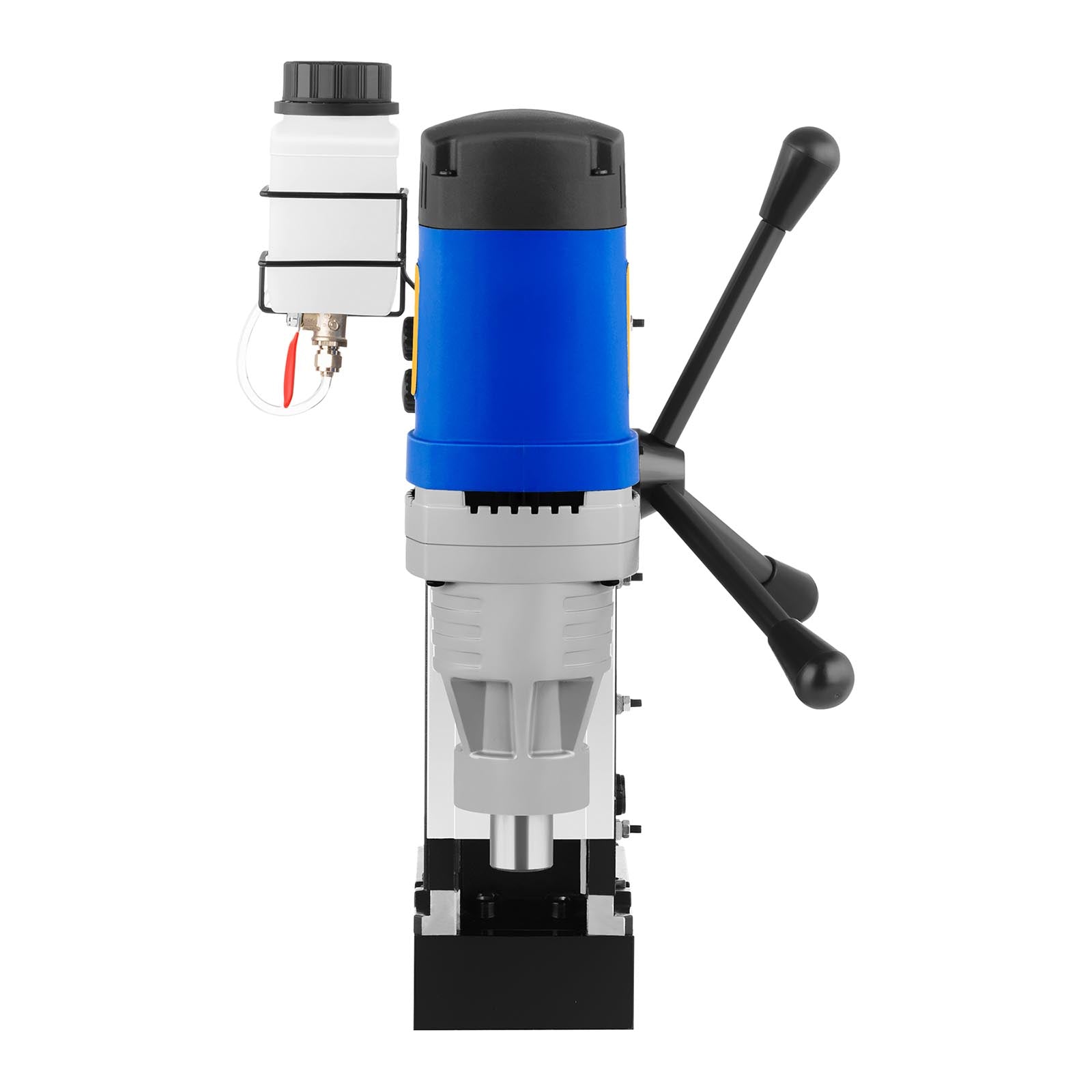

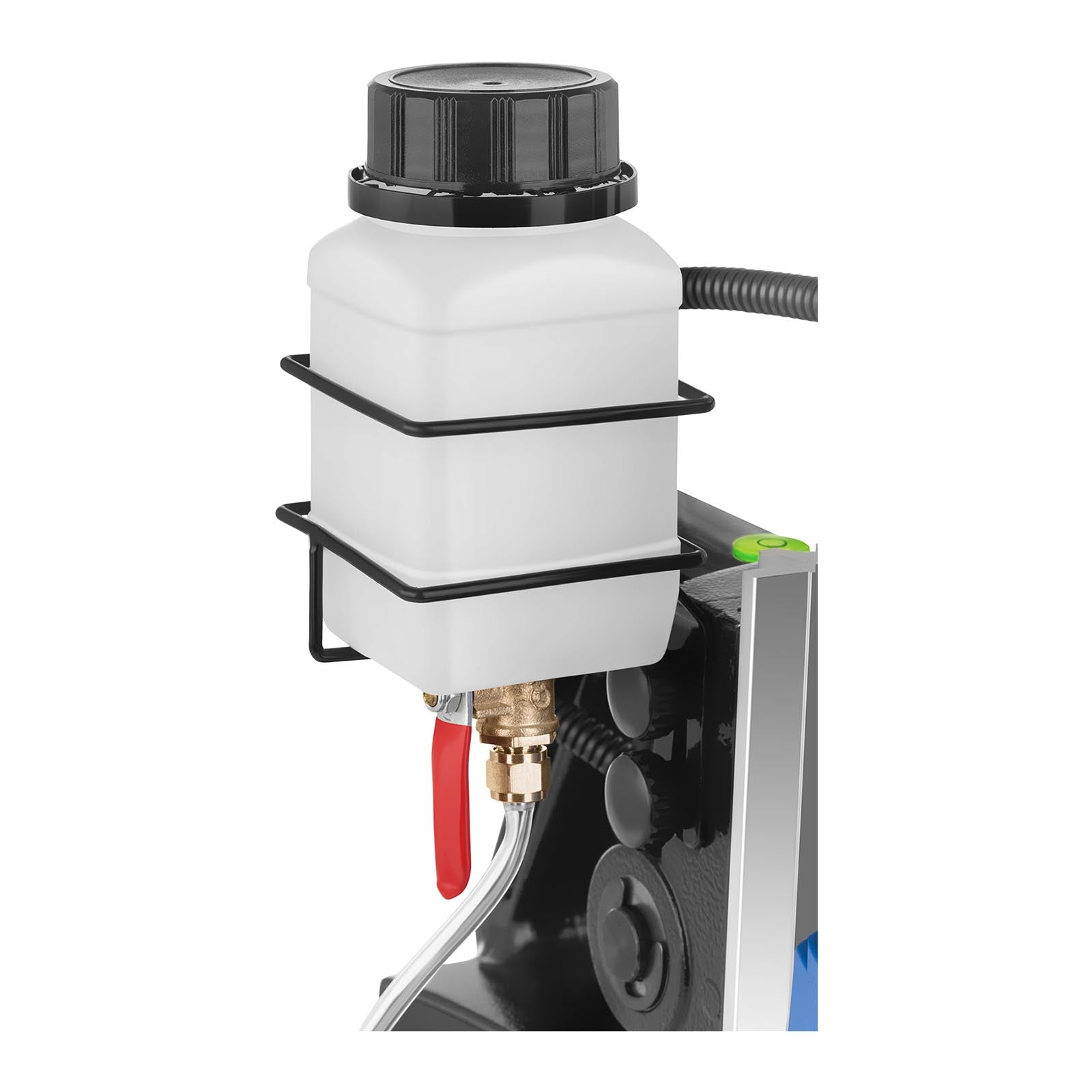

The drill has a cooling system installed to reduce the temperature of the drill during operation. It consists of a tank with a capacity of 300 ml and a tube with a length of 50 cm. This affects the efficiency when processing metal elements and extends the life of the drill.

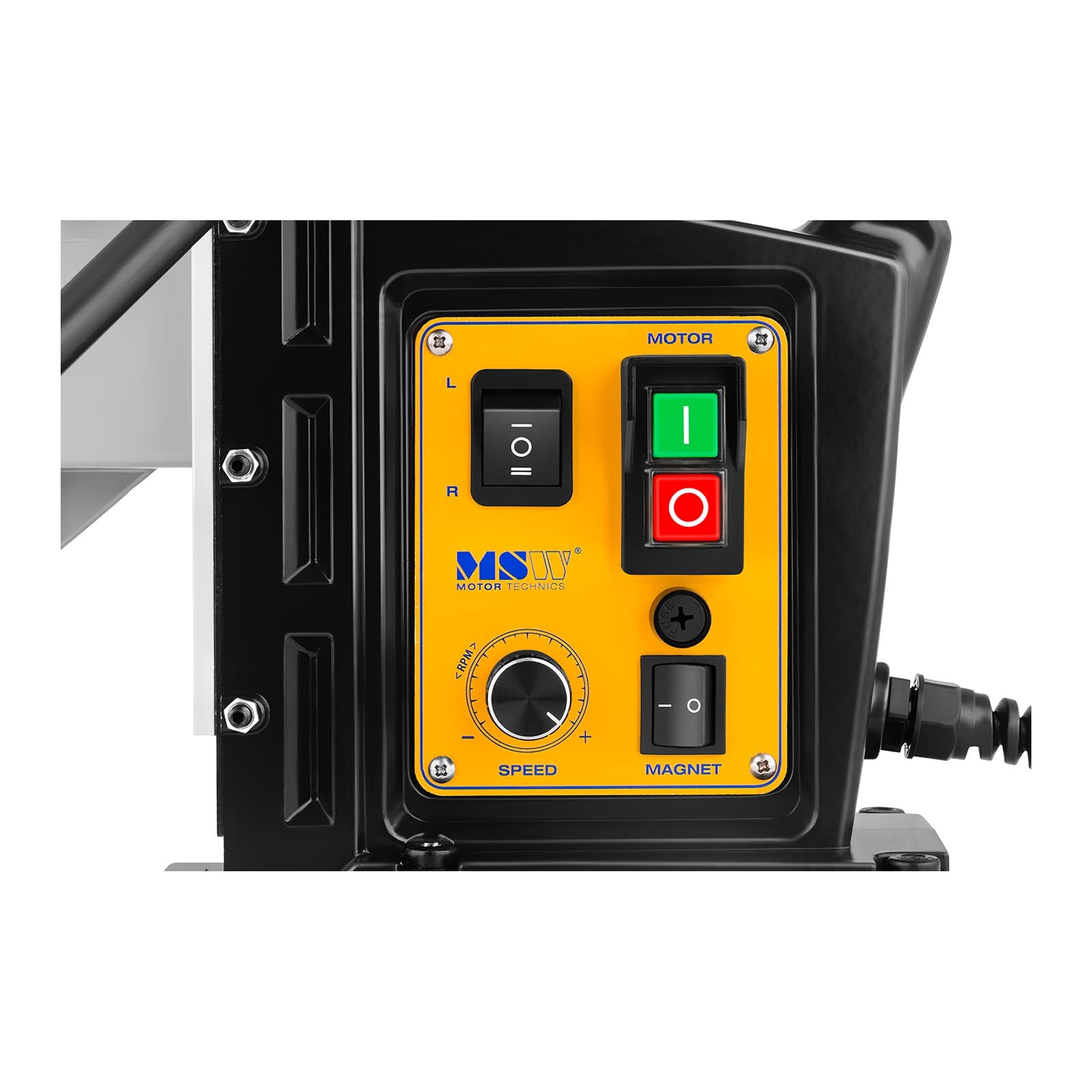

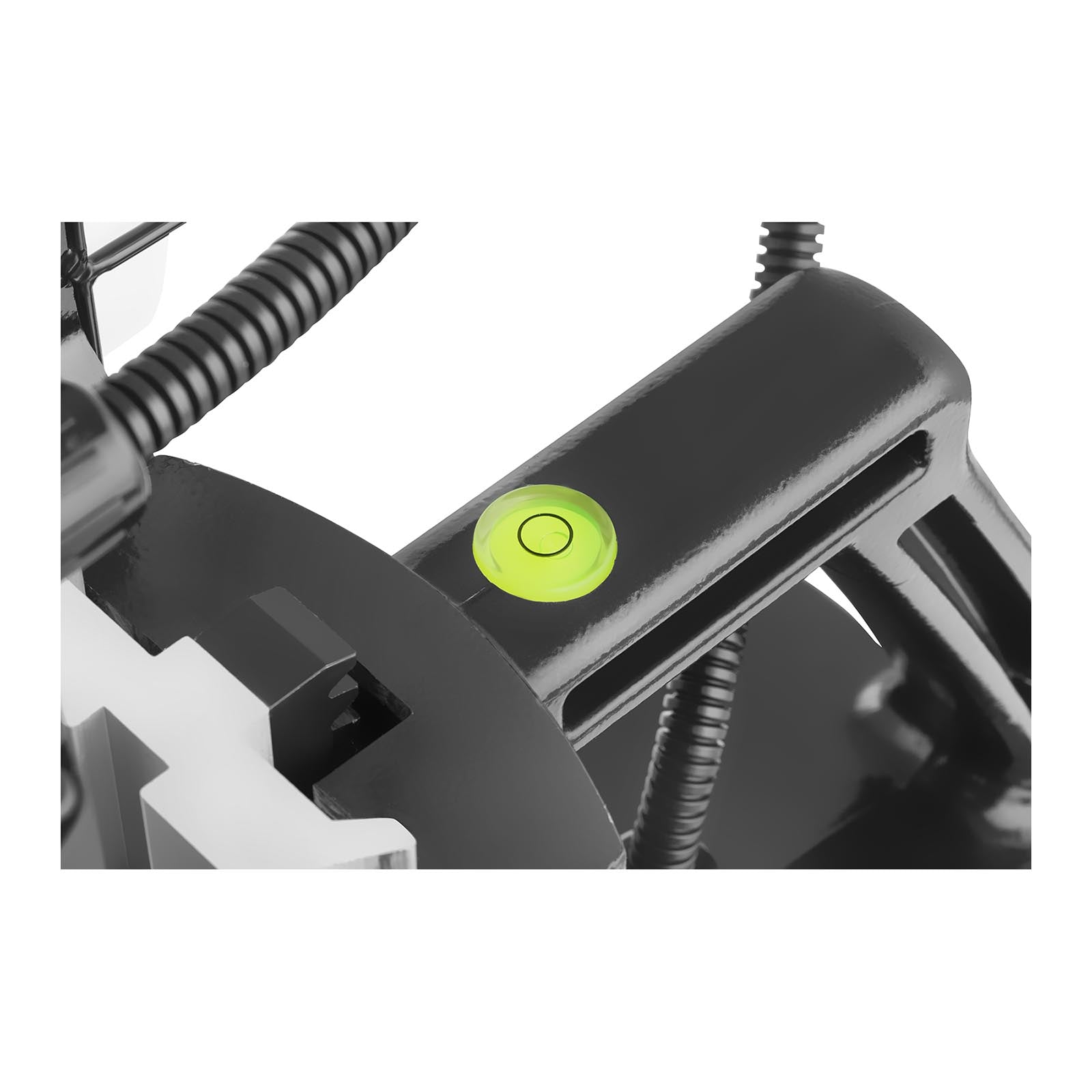

Easy operation of the equipment is due to large buttons located on one side of the drill. Thanks to them, you can start the engine and electromagnet and select the drilling direction. There is also a stepless knob for speed adjustment. The built-in spirit level ensures proper maintenance of the machine's angle.

Safe use is ensured by theRCD magnetic switch, which protects against electric shock and accidental switching on. The fuses included in the set will protect the electrical circuitagainst overload. Additionally, there is a lock that prevents the drill from starting when the electromagnet is turned off. instructions

Key features

Efficiency
Easy operation
Durability
Safety
Mobility

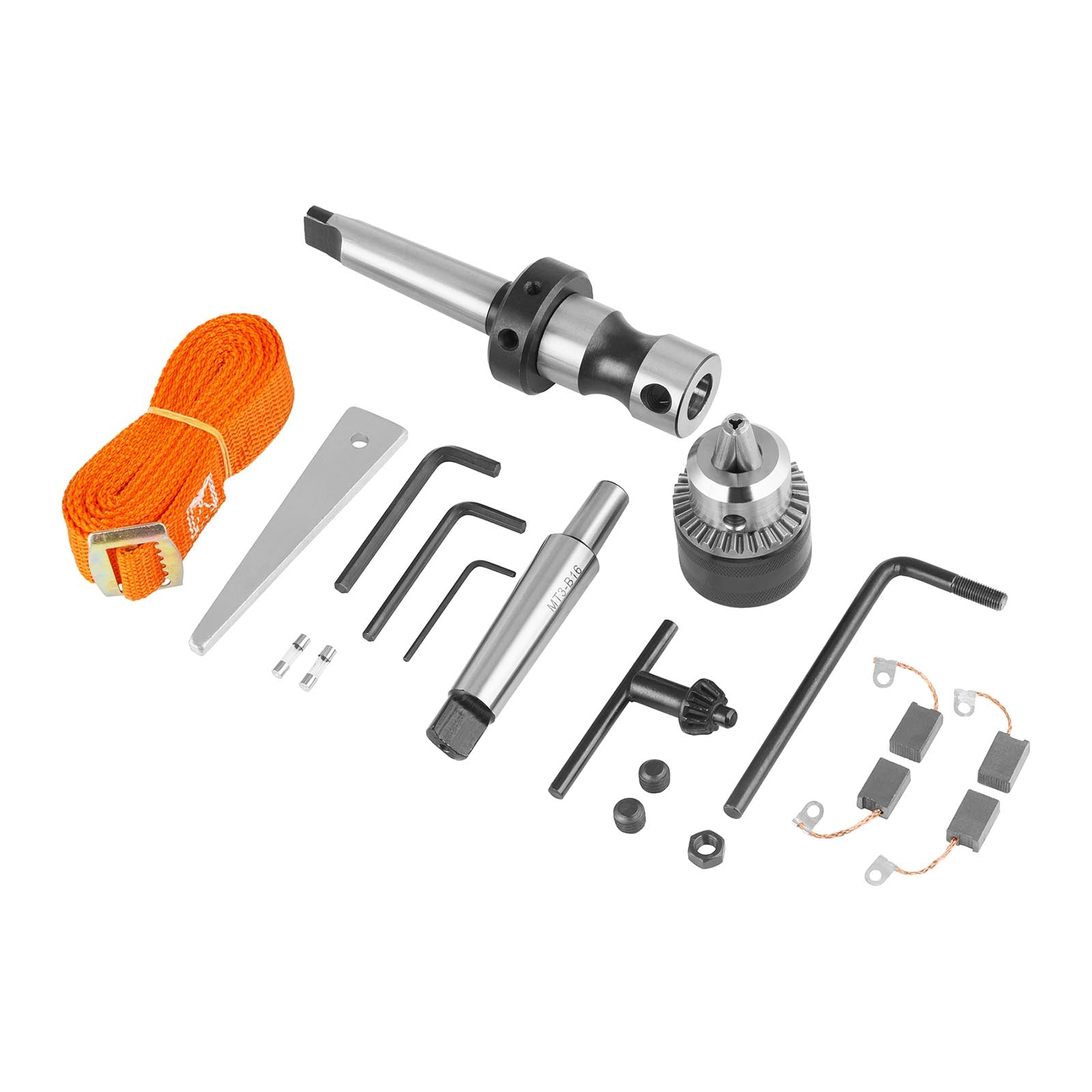

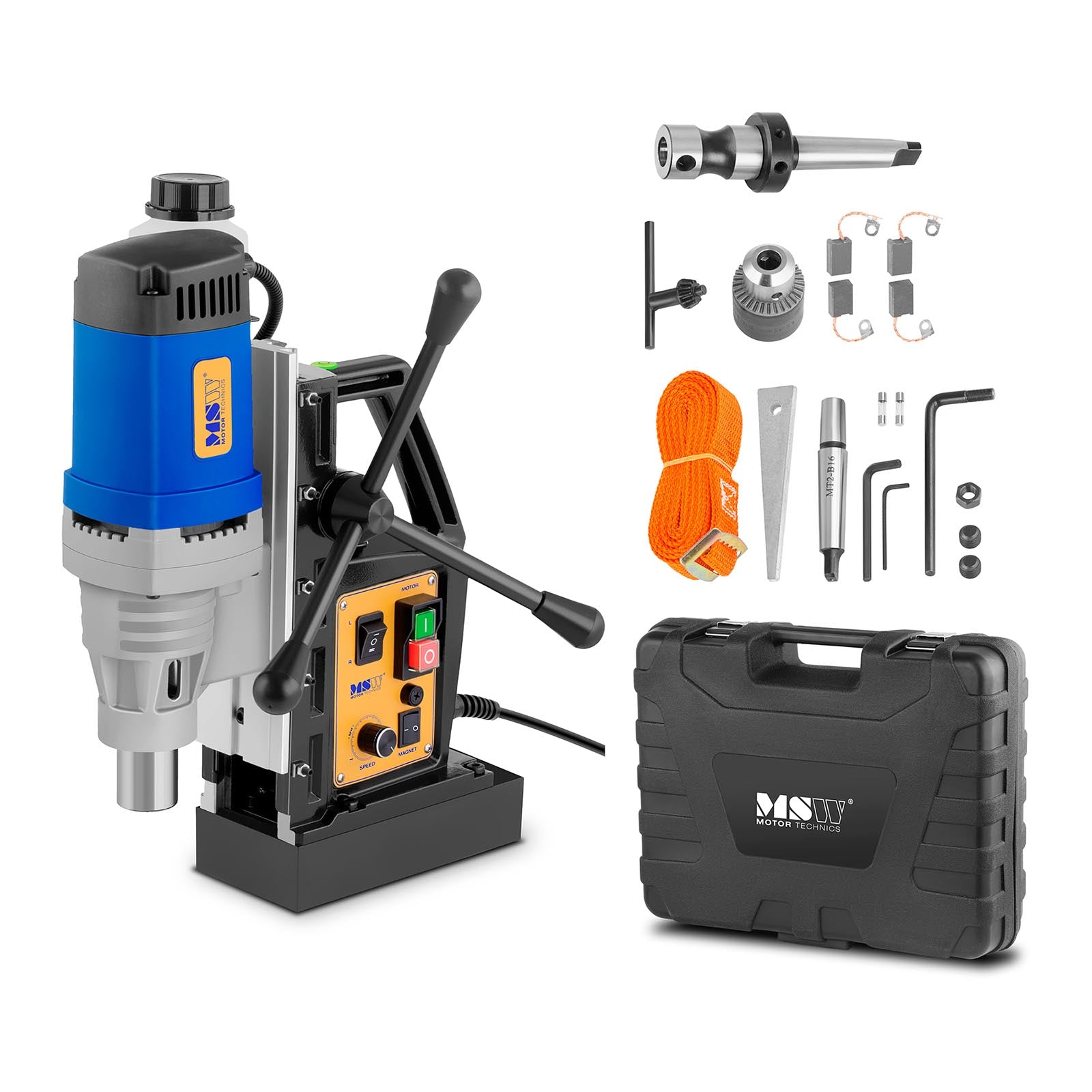

Magnetic drill
Safety strap
Rotary handle - 3 elements
Allen key - 1 pc
Fuse - 2 pcs
Wedge punch
Tank cooling
Drill chuck holder
Drill chuck (B18 / 3-16 mm)
Drill key
Carbon brush - 2 pcs
Mounting bracket MK3 / Weldon 19 mm
Suitcase
PL
Technical specification
SpecificationDetail
ModelMSW-MD60-PRO
Catalog number10060434
Housing materialAluminium, steel, plastic
Frame materialCast aluminum alloy
Power1680 W
Voltage/frequency230 V / 50 Hz
Cooling tank capacity300 ml
Cooling tank tube length50 cm
Maximum electromagnetic attraction13800 N
Maximum thread size drillsM25
Maximum drill diameter60 mm
Maximum drilling depth50 mm
Twist drill diameter28 mm
Included drill chuckB18 / 3-16 mm
Maximum rotational speed (no load)370 rpm
Drill range0-165 mm
Safety strap includedYes
Threading functionYes
Power cord length2.2 m
Dimensions (LxWxH)22.5 x 32 x 57 cm
Weight17.35 kg
Shipping dimensions (LxWxH)61.5 x 21 x 51 cm
Shipping weight24.4 kg
