Description
Manufacturer's code:

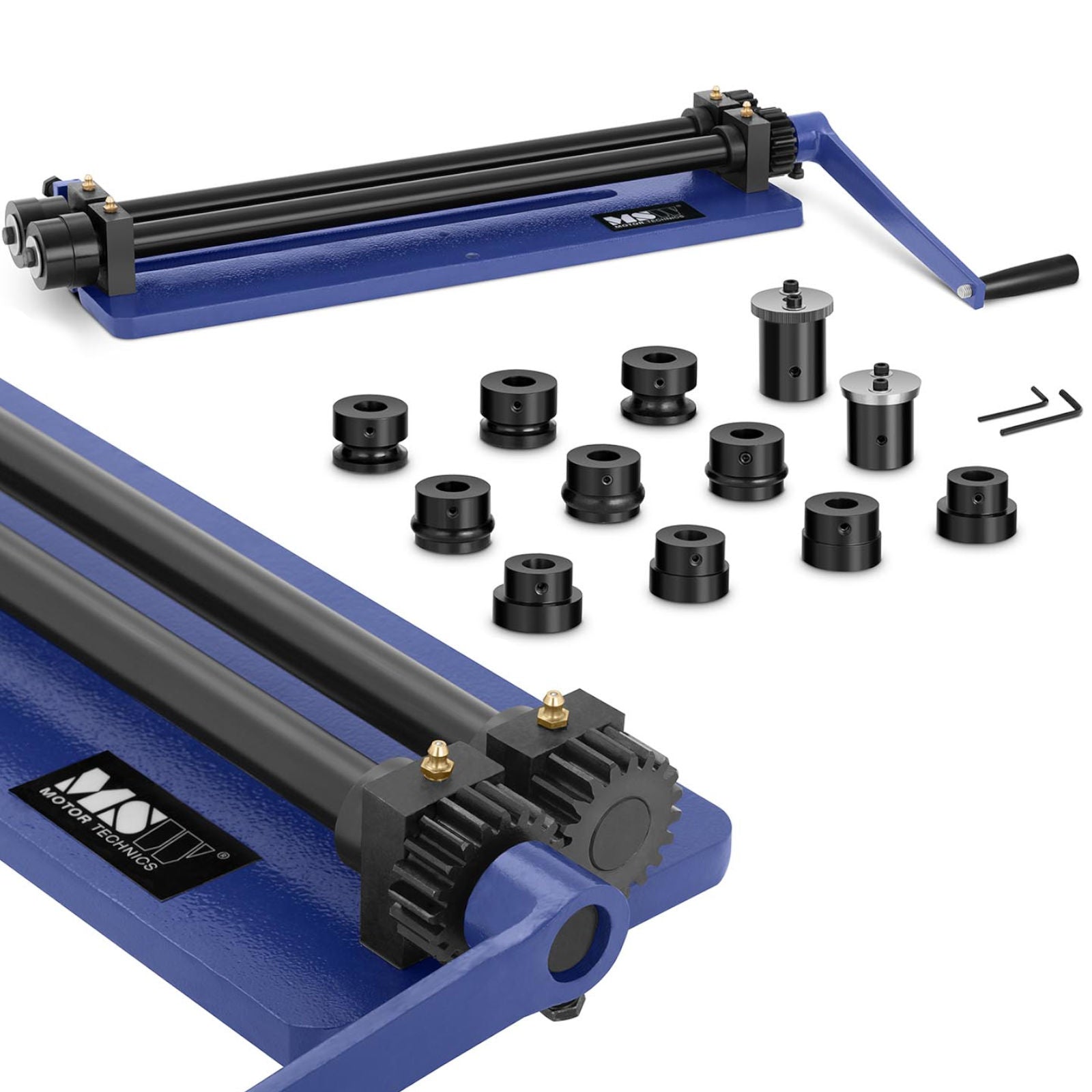

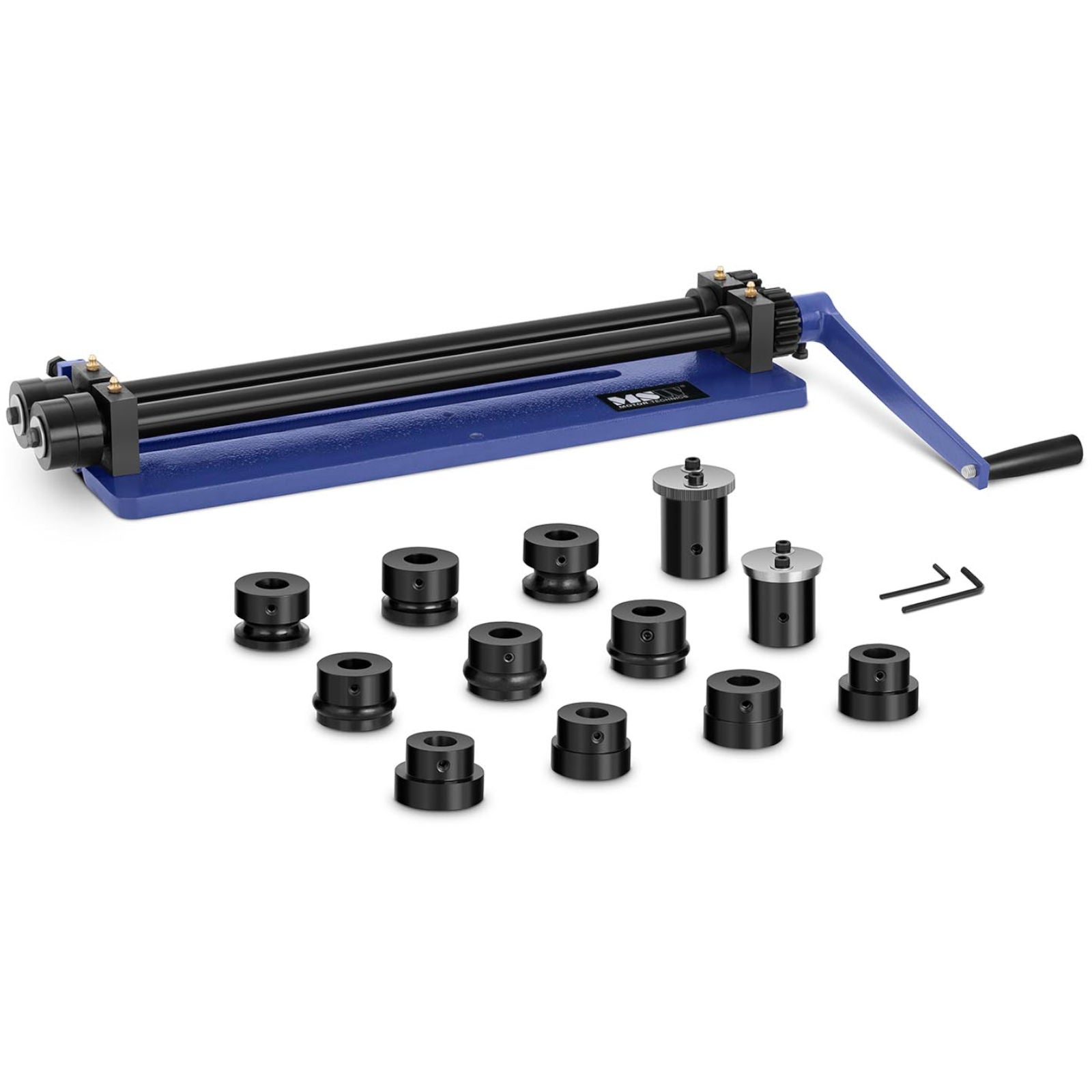

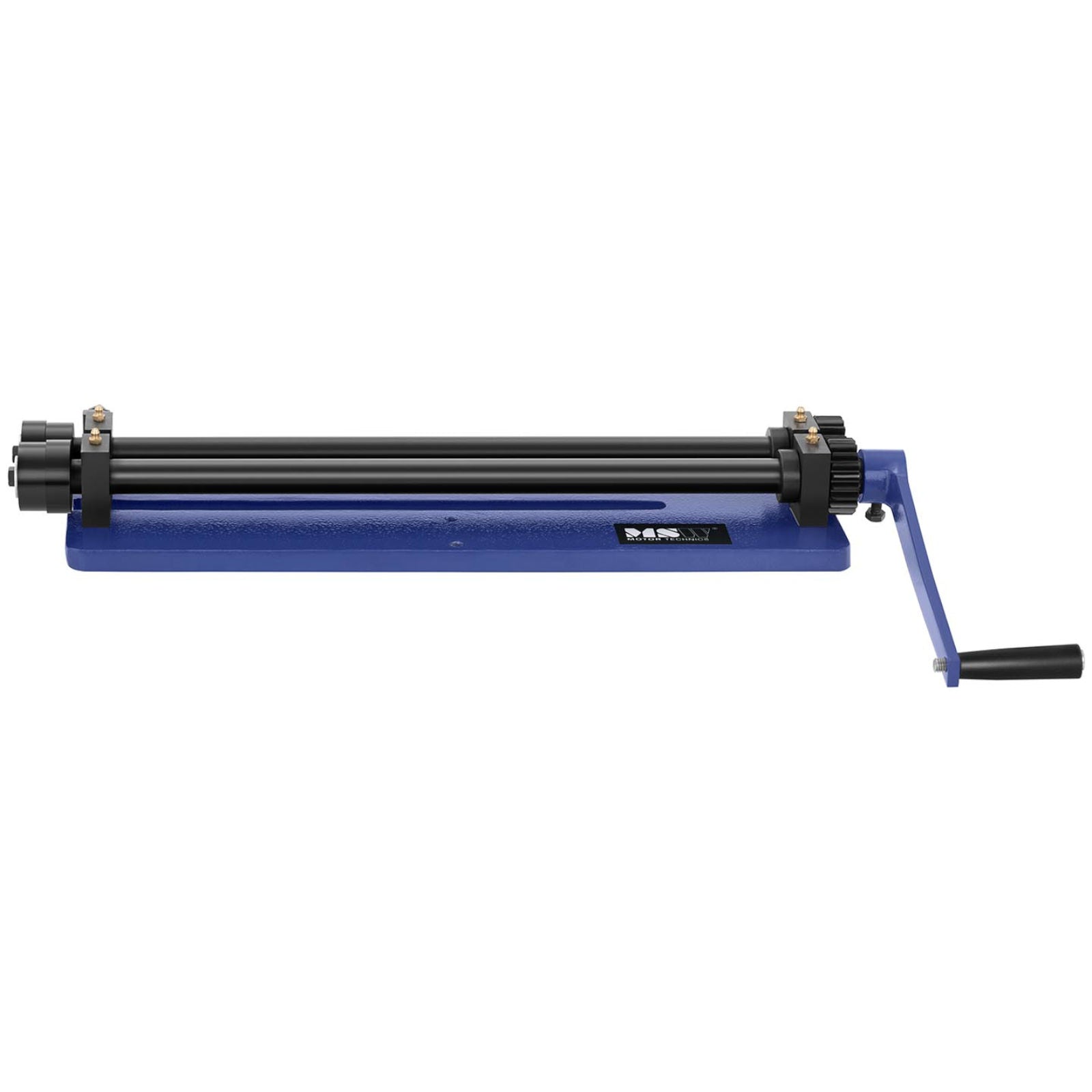

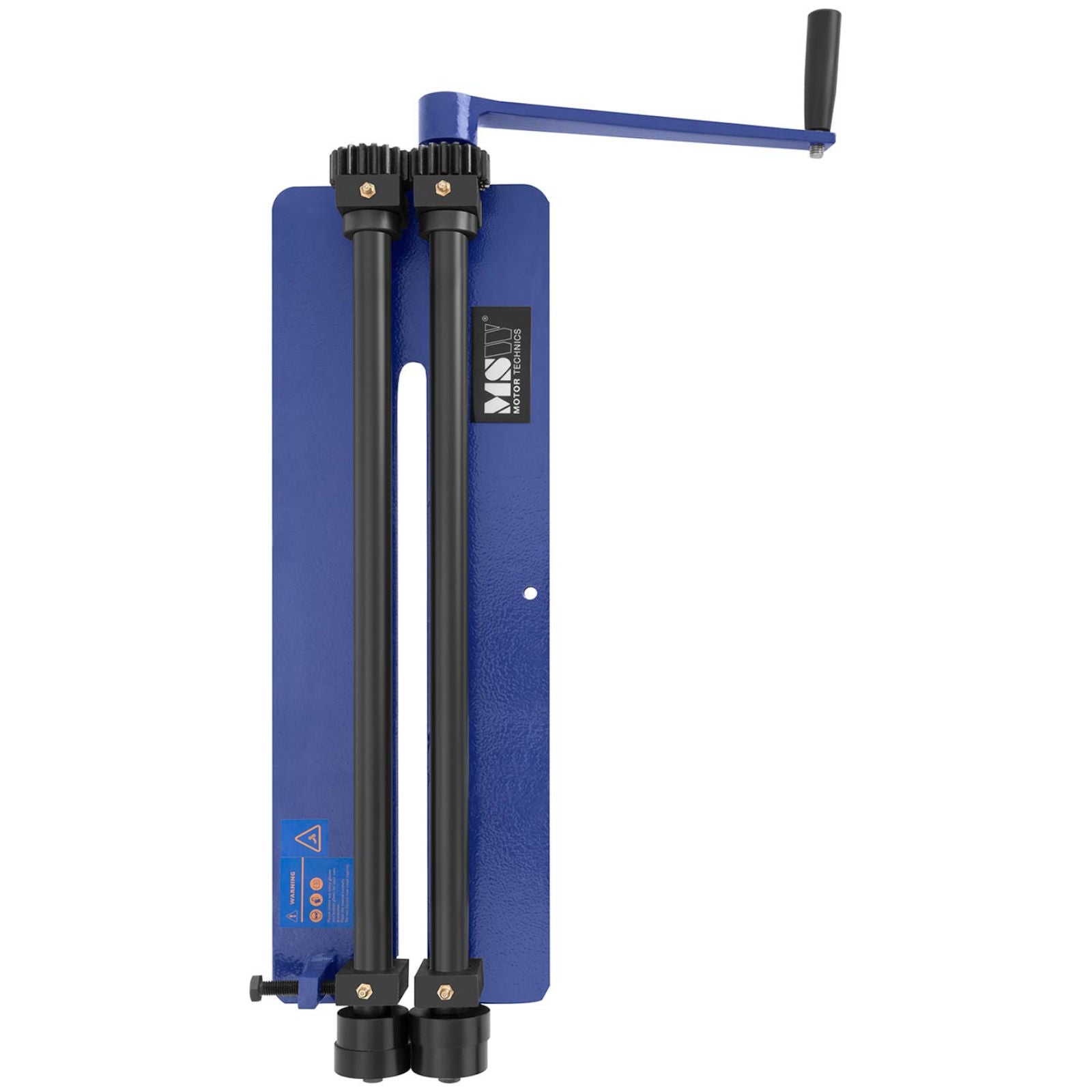

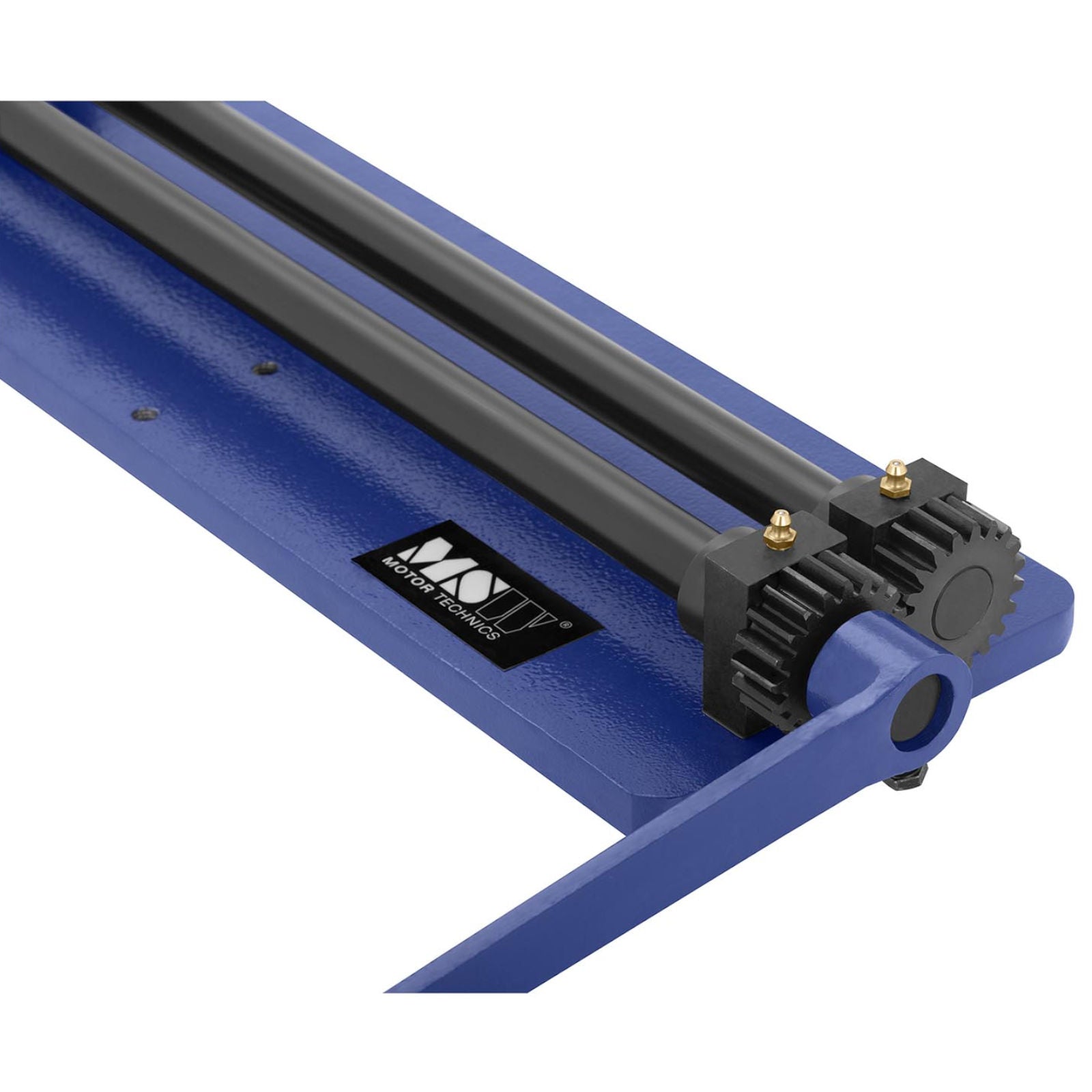

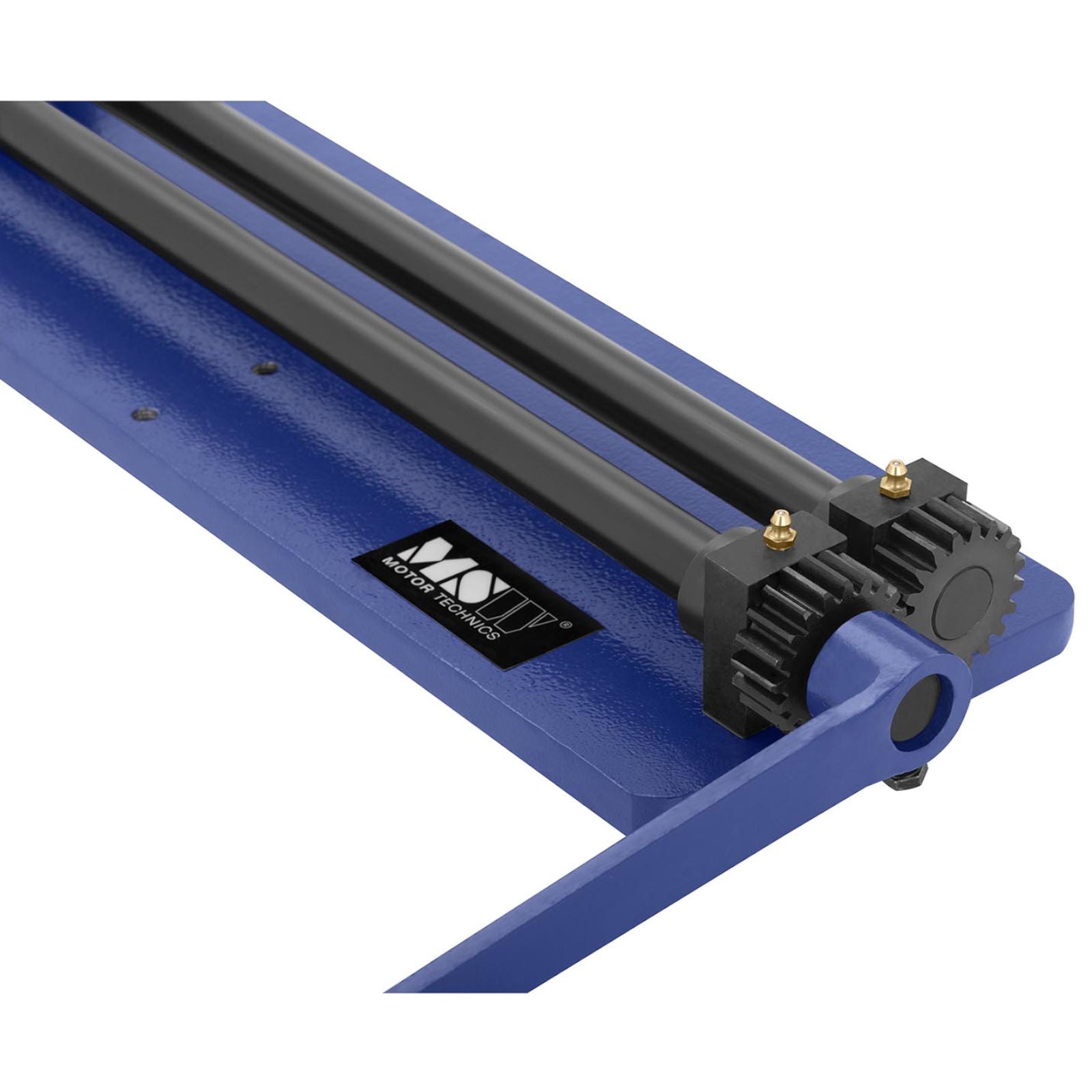

10060483The gouging machine of the German brand MSW will work well in workshops, factories and for hobby applications for
gouging, grooving, bending, milling or cutting sheet metal.
The maximum thickness for mild steel sheet is 1.2 mm and 1.8 mm for aluminum. The 3 sets of ball stones (6.35 mm 9.53 mm 12.7 mm) and 3 flanged stones (1.6 mm 3.2 mm 6.35 mm) included with the device guarantee a variety of sheet metal forming. The hand crank allows you to rotate the shaft while feeding sheets of metal for processing. The structure of the device is made of cast iron and steel, which ensures its stability and long life.
Product features: - - Wide use - gouging, grooving, milling, cutting, etc.,
- - Practicality - full set of replaceable stones,
- - Ease of use - crank manual,
- - Stability - durable construction made of cast iron and steel,
- - Protection - resistance to deformation and deformation.
Technical parameters: - - Catalog number - 10060483
- - Condition - New
- - Working depth - 440 mm
- - Maximum processing thickness - Steel sheet: 1.2 mm, Aluminum: 1.8 mm
- - Forming stone sets (ball pins, collar pins and shear set) - 7 pieces: 22 mm (inner diameter) and 55 mm (outer diameter)
- - Shear set - 1 pair (diameter 53 mm, thickness 8 mm)
- - Ball pins - 3 pairs (6.35 mm 9.53 mm 12.7 mm)
- - Collar pins - 3 pairs (1.6 mm 3.2 mm 6.35 mm)
- - Material - Cast iron + steel
- - Dimensions (LxWxH) - 74 x 32 x 31.5 cm
- - Weight - 25.3 kg
- - Shipping dimensions (LxWxH) - 75 x 29 x 15 cm
- - Shipping weight - 26.3 kg
In the set: - - Grooving machine
- - Crank handle
- - Flange pins (1.6 mm 3.2 mm 6.35 mm)
- - Ball pins (6.35 mm 9.53 mm 12.7 mm)
- - Shearing kit
- - Hex key
- - User manual
