Description
Manufacturer's name

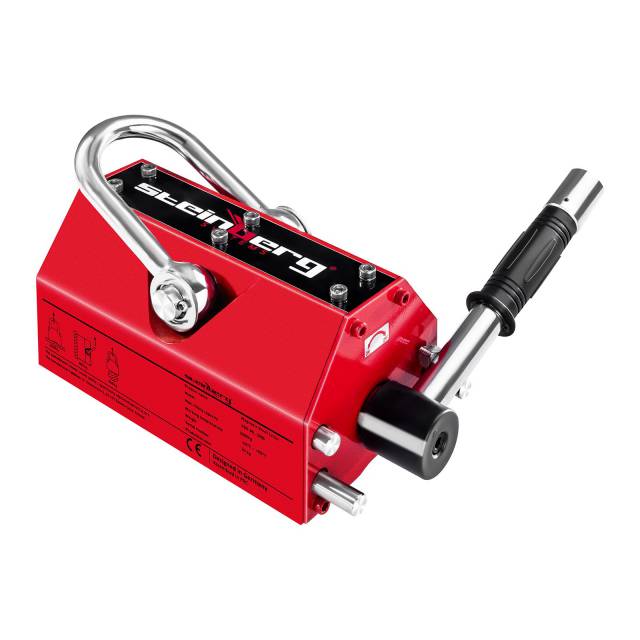

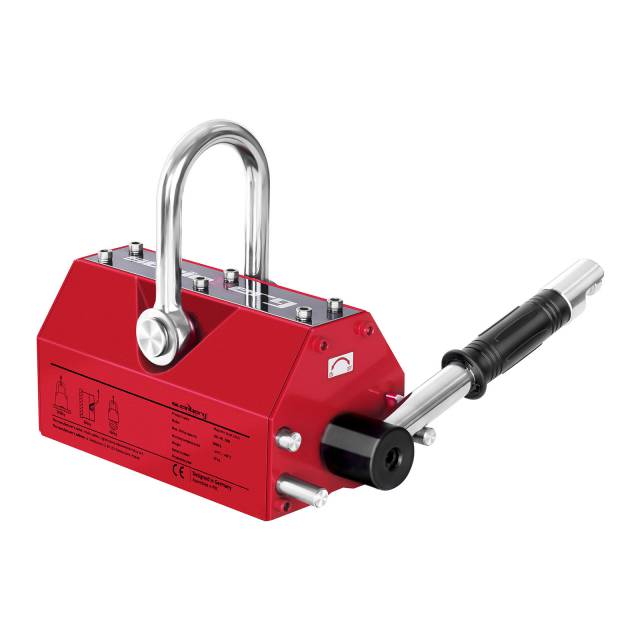

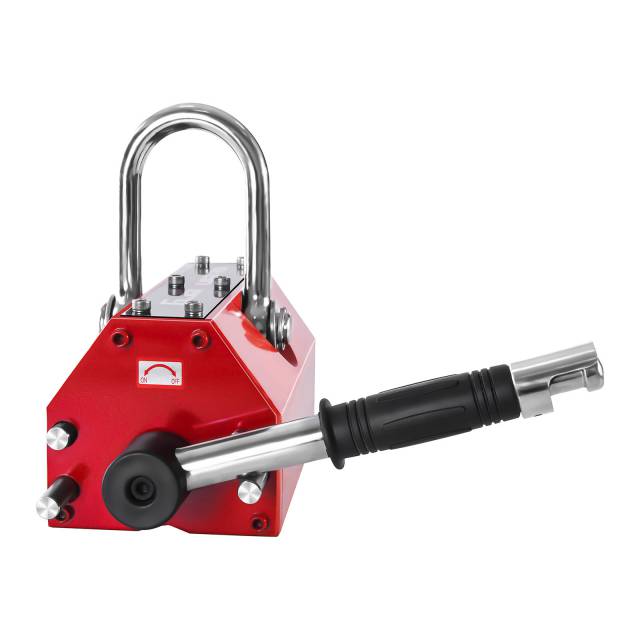

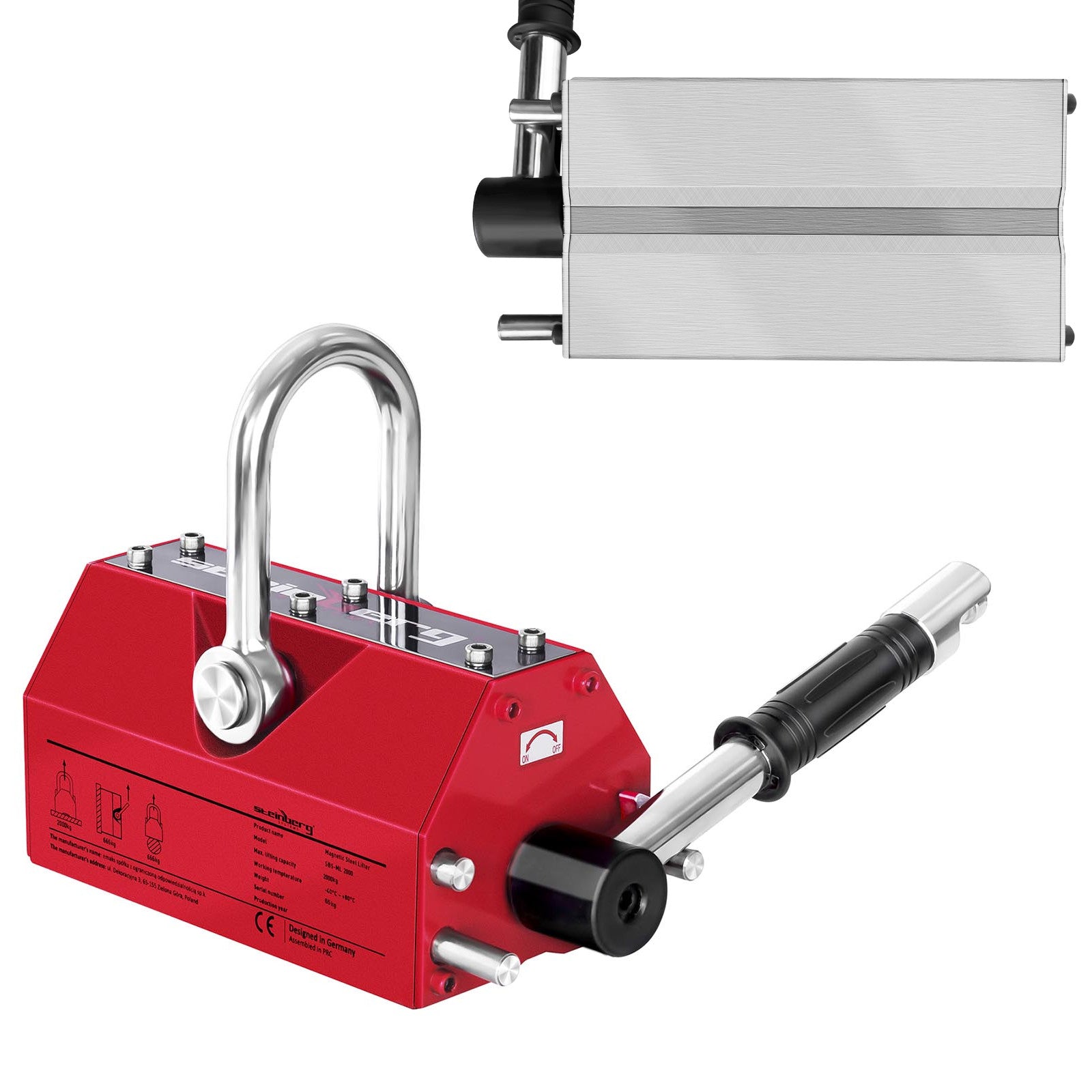

SBS-ML 2000 SBS-ML 2000 Magnetic lift Steinberg Systems is used for lifting iron and steel objects. It is ideal for machine, metallurgical, shipbuilding, as well as automotive workshops and construction companies.

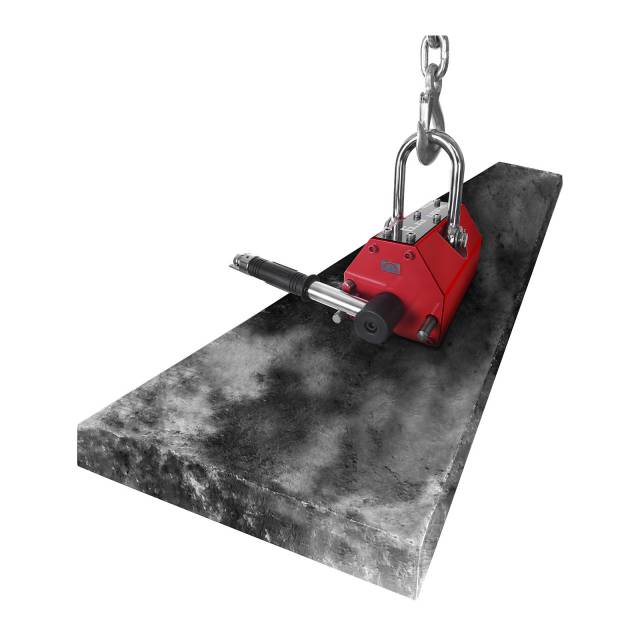

Magnetic grip lets you lift
sheet metal and profiled elementsThe equipment uses
neodymium magnets (sintered), so it is very easy to use. Inside the lift there is a fixed magnet and movable magnet, which properly arranged brings magnetic field into the raised structure. The magnetic grip SBS-ML 2000 is characterized by the safety of operation.
I don't need any power sources.It is equipped with a shekel to hang equipment, e.g. on a crane.
Characteristics and functions:- neodymium magnets
- permissible load 2000kg
- breaking load 6000 kg
- safe and simple operation
- hand lever
- zero cost of use
Technical parameters: - - Model - SBS-ML 2000
- - Catalog number - 3206
- - The state of the article - New
- - Permissible load - 2000 kg
- - Breaking load - 6000 kg
- - Max. load for lifting vertical and rounded surfaces - 666 kg
- - Temperature range - from -40 to 80deg C
- - Color - Red
- - Disable mechanism - Mechanical lever
- - Dimensions (DxSxW) - 41 x 16 x 16.7 cm
- - Weight - 65 kg
- - Dimensions of dispatch (DxSxW) - 53.5 x 26 x 30 cm
- - Weight of shipping - 75.5 kg
Included:- magnet jack SBS-ML 2000
- EN manual
Our devices have the CE declaration of conformity necessary for the health care.
