Description
Manufacturer's name

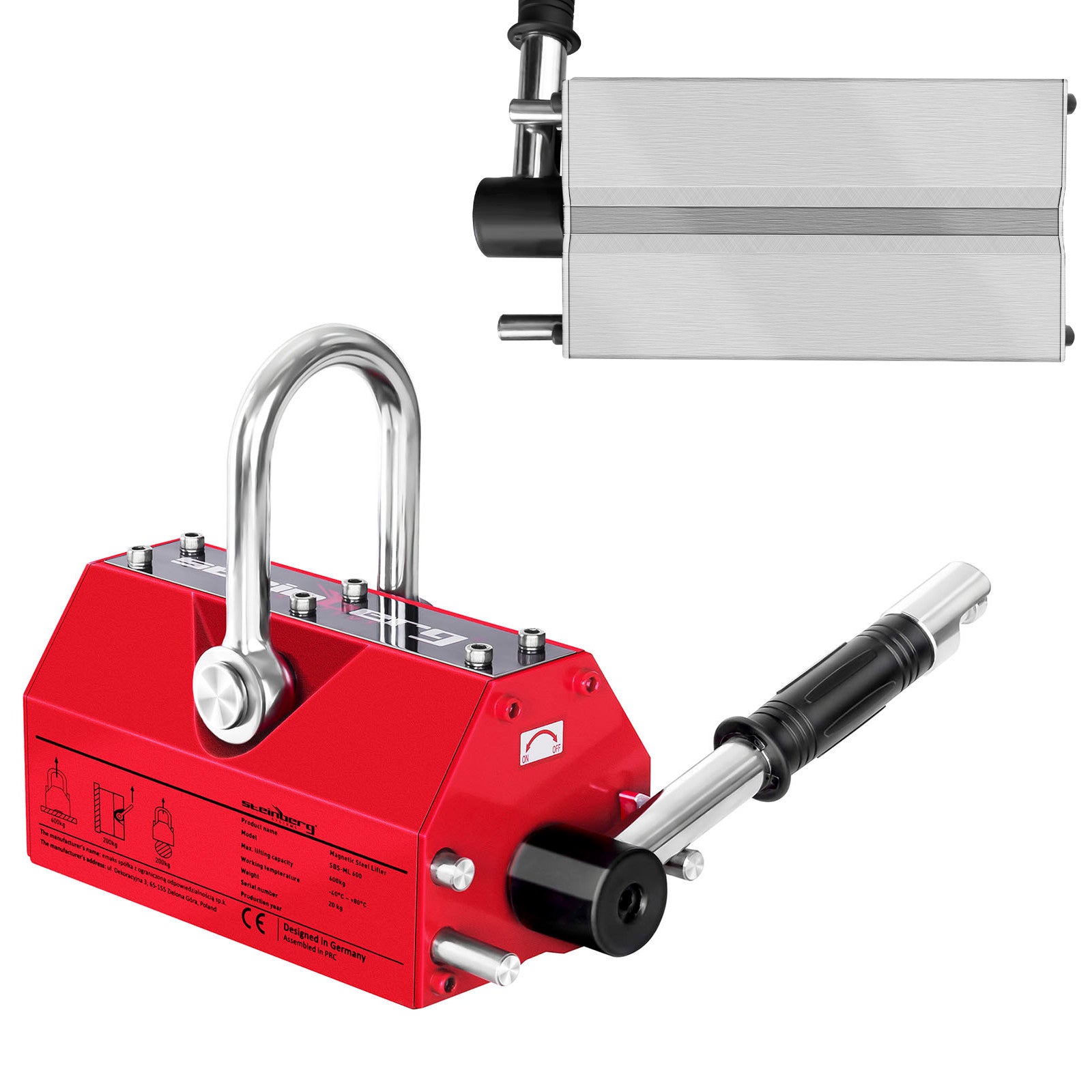

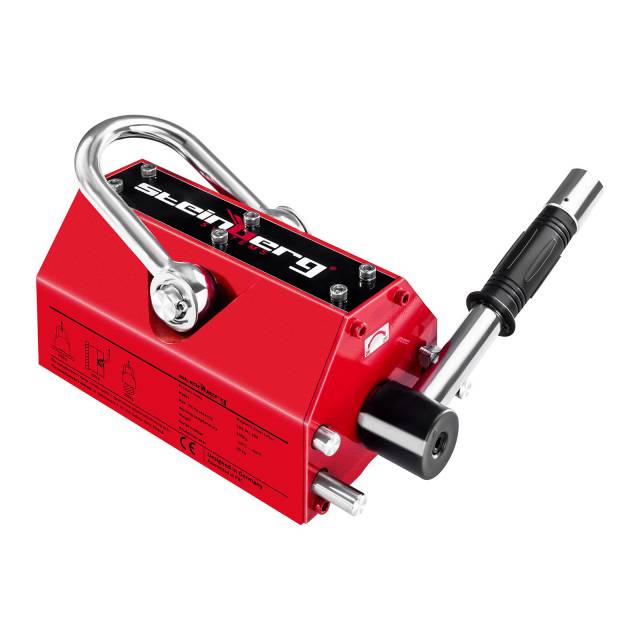

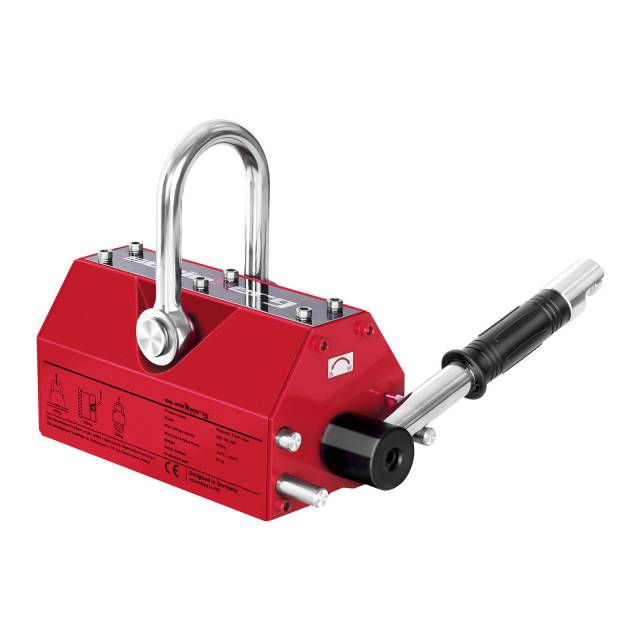

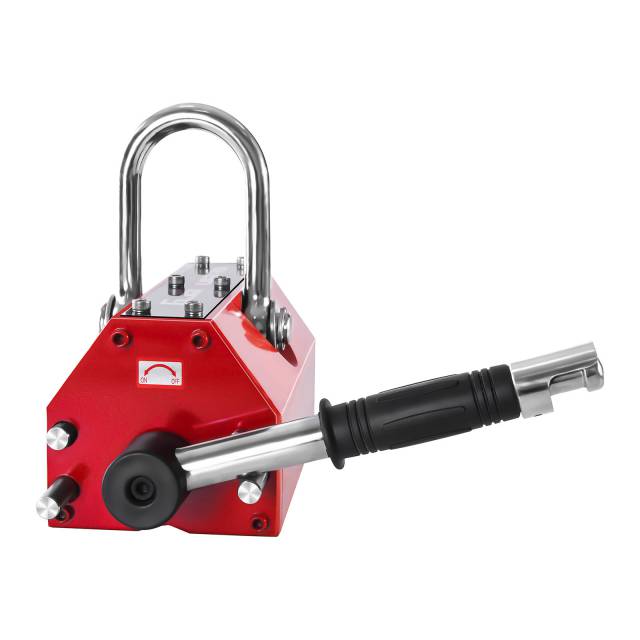

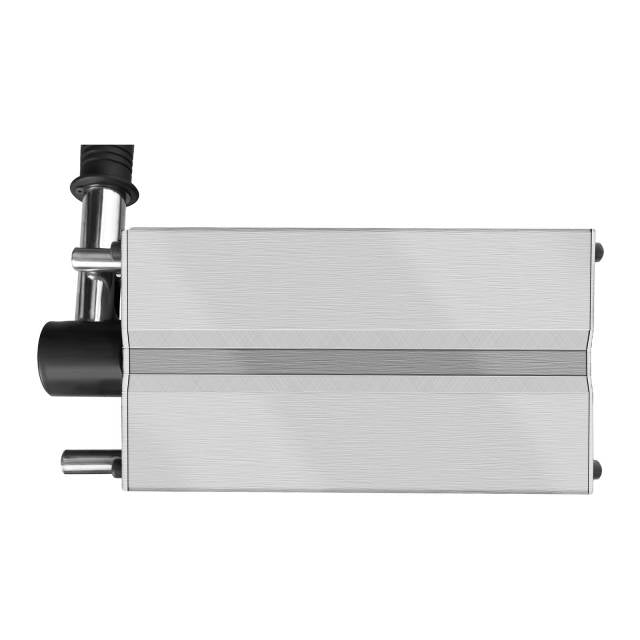

SBS-ML 600 Magnetic jack SBS-ML 600 Steinberg Systems is used for lifting iron and steel objects. It is ideal for machine, metallurgical, shipbuilding, as well as automotive workshops and construction companies.

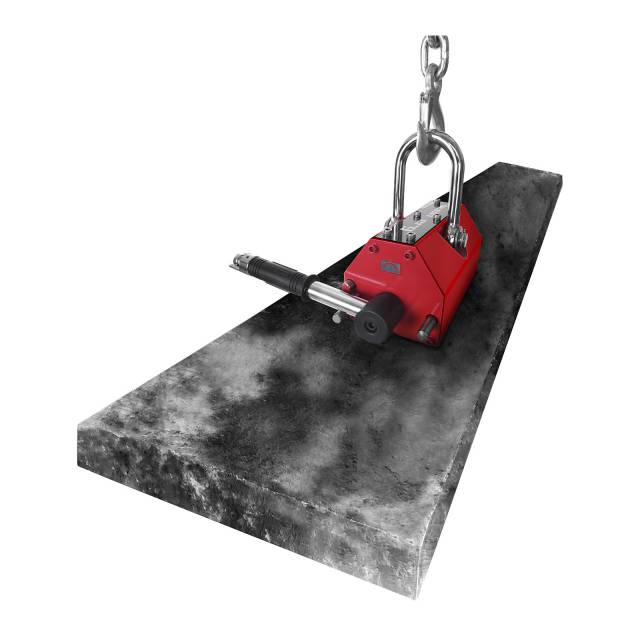

Magnetic grip lets you lift
sheet metal and profiled elementsThe equipment uses

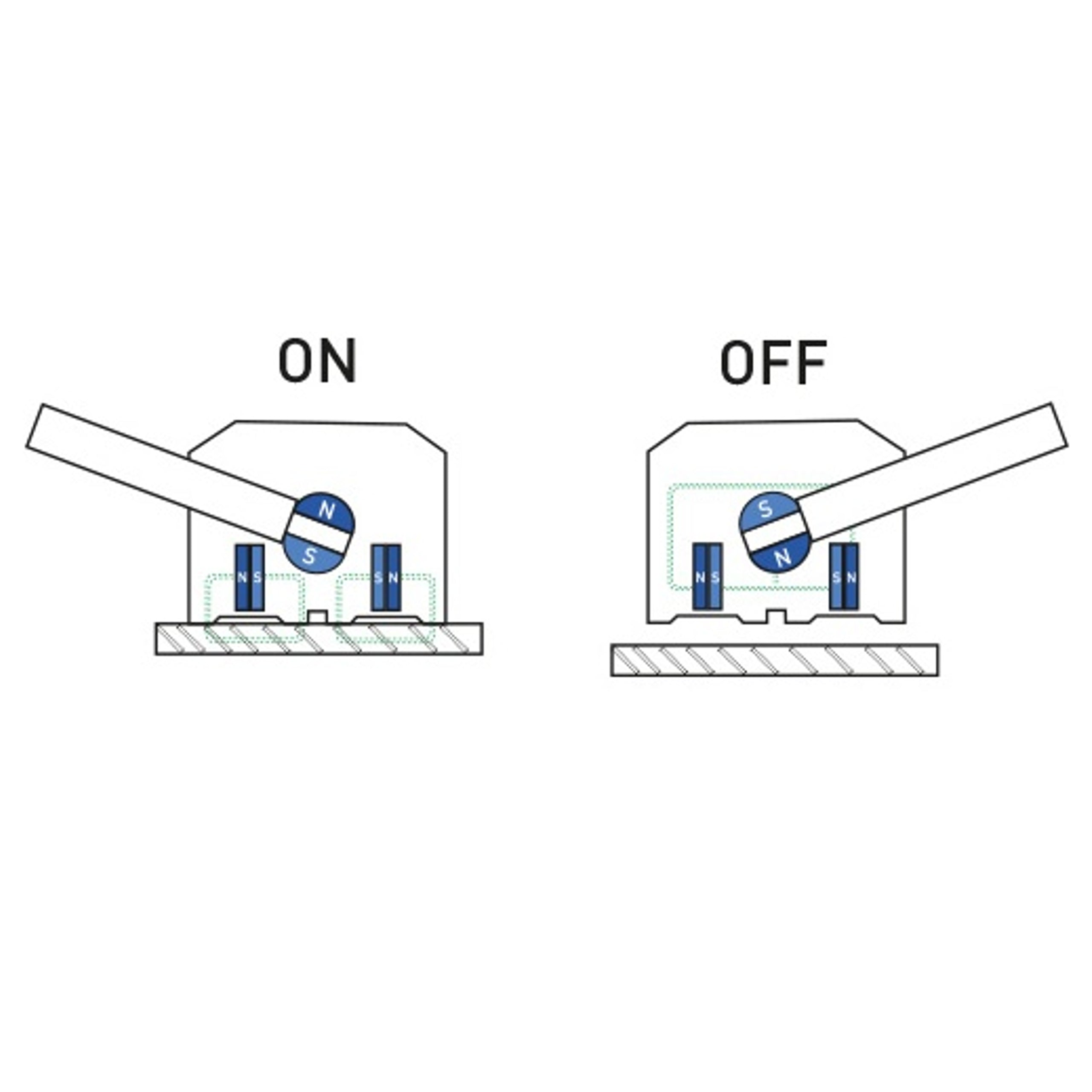

neodymium magnets (sintered), so it is very easy to use. Inside the lift there is a fixed and movable magnet, which properly set the magnetic field to introduce to the raised structure. The SBS-ML 600 magnetic grip is characterized by the safety of operation.
I don't need any power sources.It is equipped with a shekel to hang equipment, e.g. on a crane.
Characteristics and functions:- neodymium magnets
- Acceptable load 600 kg
- breaking load 1800 kg
- safe and simple operation
- hand lever
- zero cost of use
Technical parameters: - - Model - SBS-ML 600
- - Catalog number - 3204
- - The state of the article - New
- - Permissible load - 600 kg
- - Breaking load - 1800 kg
- - Max. load for lifting vertical and rounded surfaces - 200 kg
- - Temperature range - from -40 to 80deg C
- - Color - Red
- - Disable mechanism - Mechanical lever
- - Dimensions (DxSxW) - 27 x 12 x 11.5 cm
- - Weight - 19.5 kg
- - Dimensions of dispatch (DxSxW) - 32 x 23 x 22 cm
- - Weight of shipping - 20.8 kg
Included:- SBS-ML 600 magnetic lift
- EN manual
Our devices have the CE declaration of conformity necessary for the health care.
