Description
Manufacturer's code:

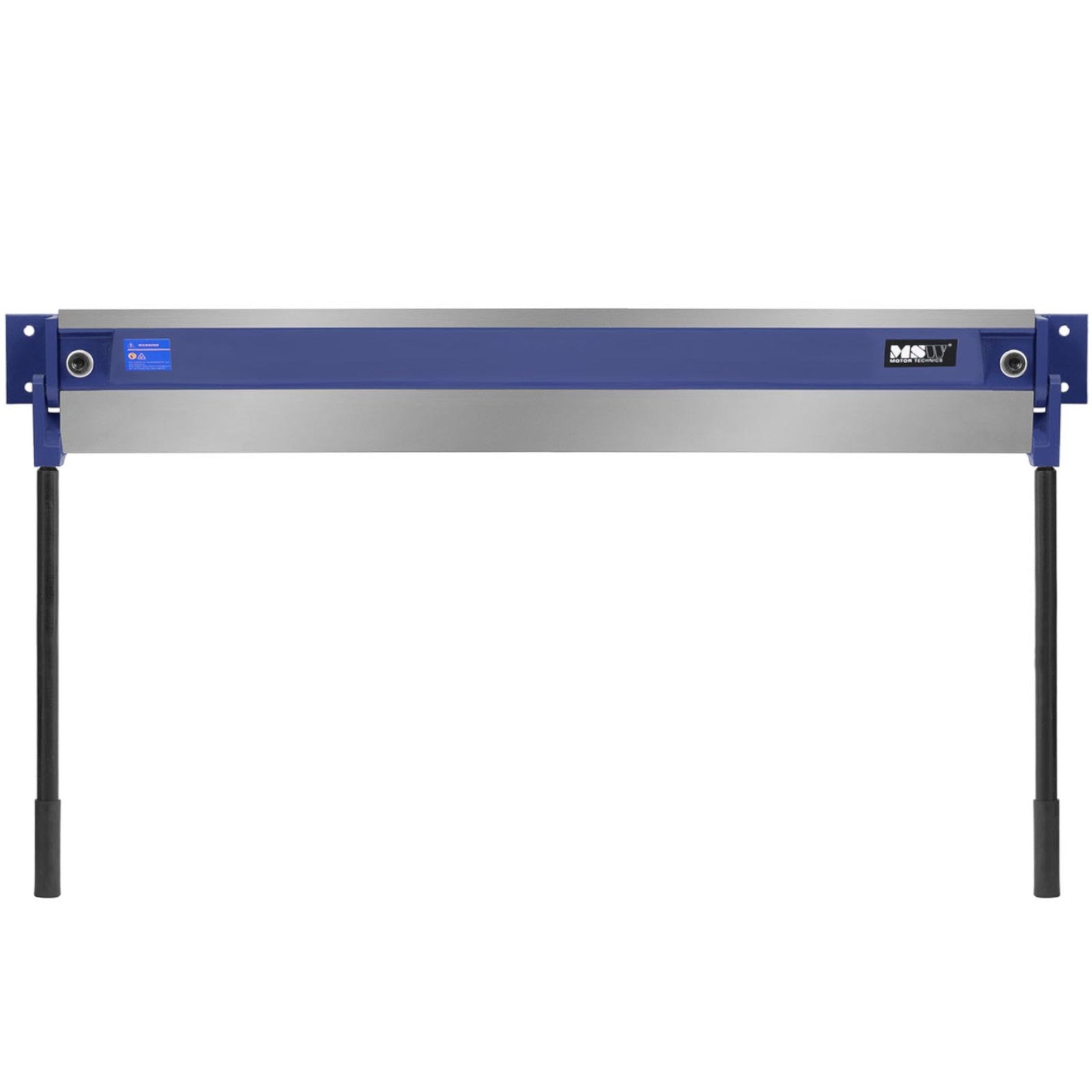

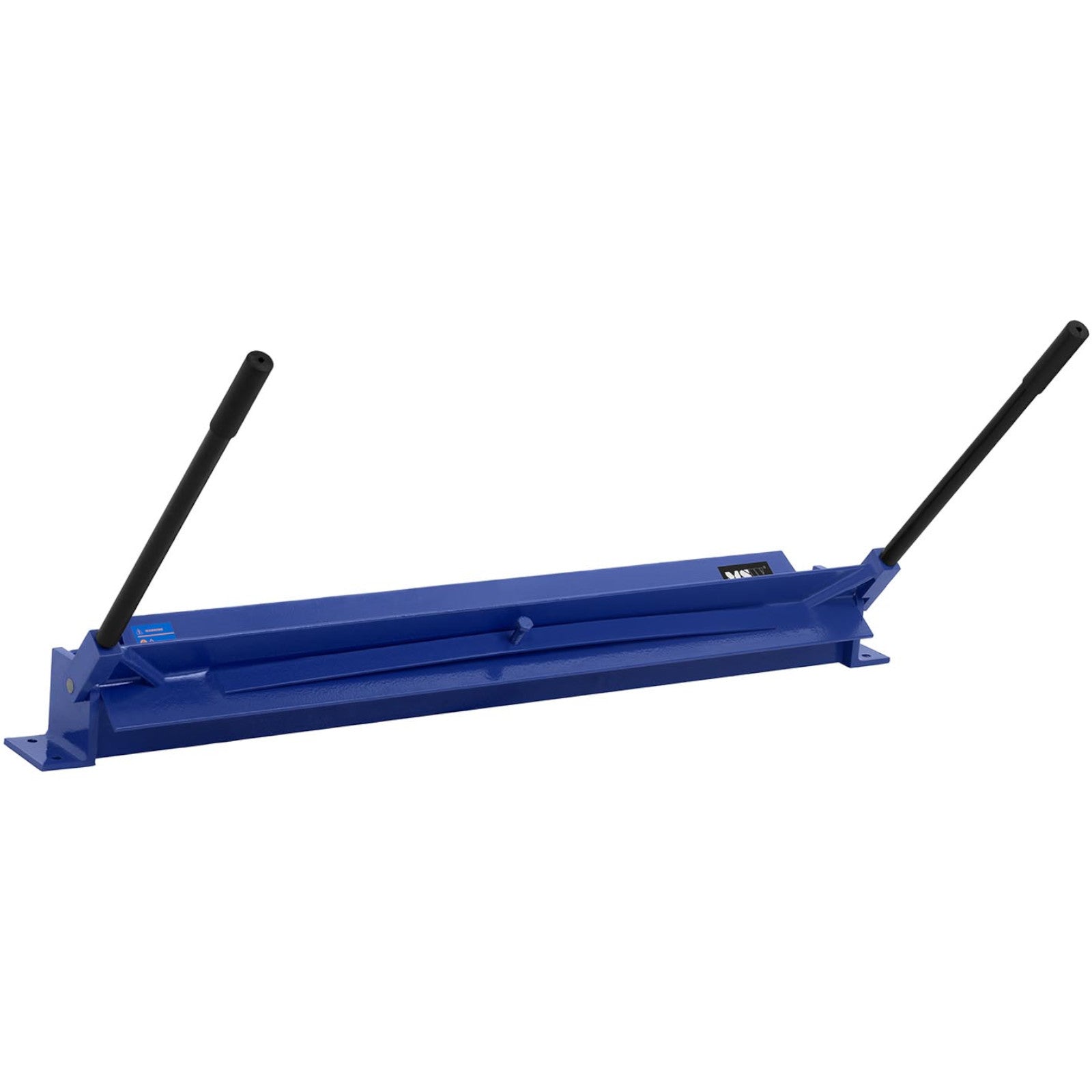

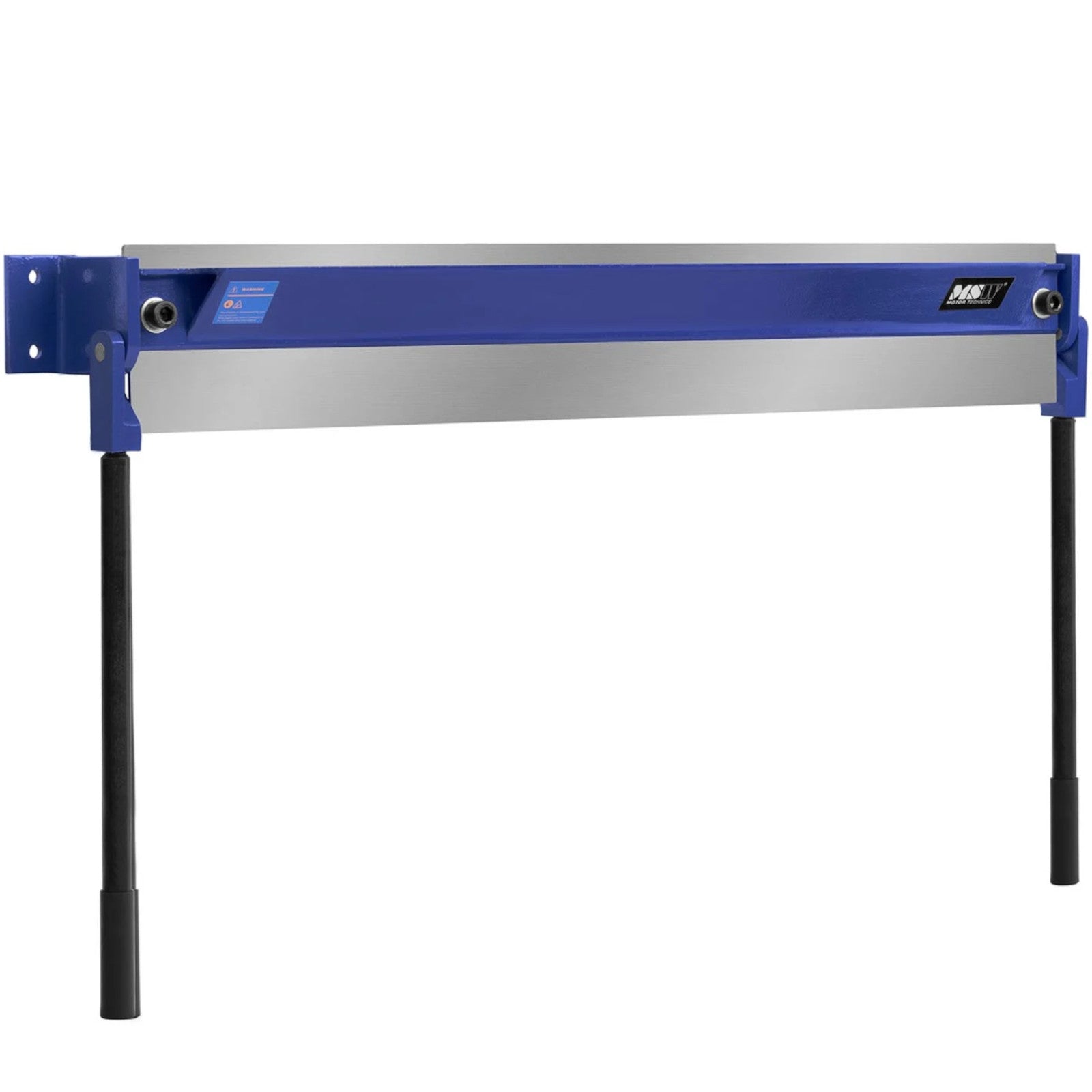

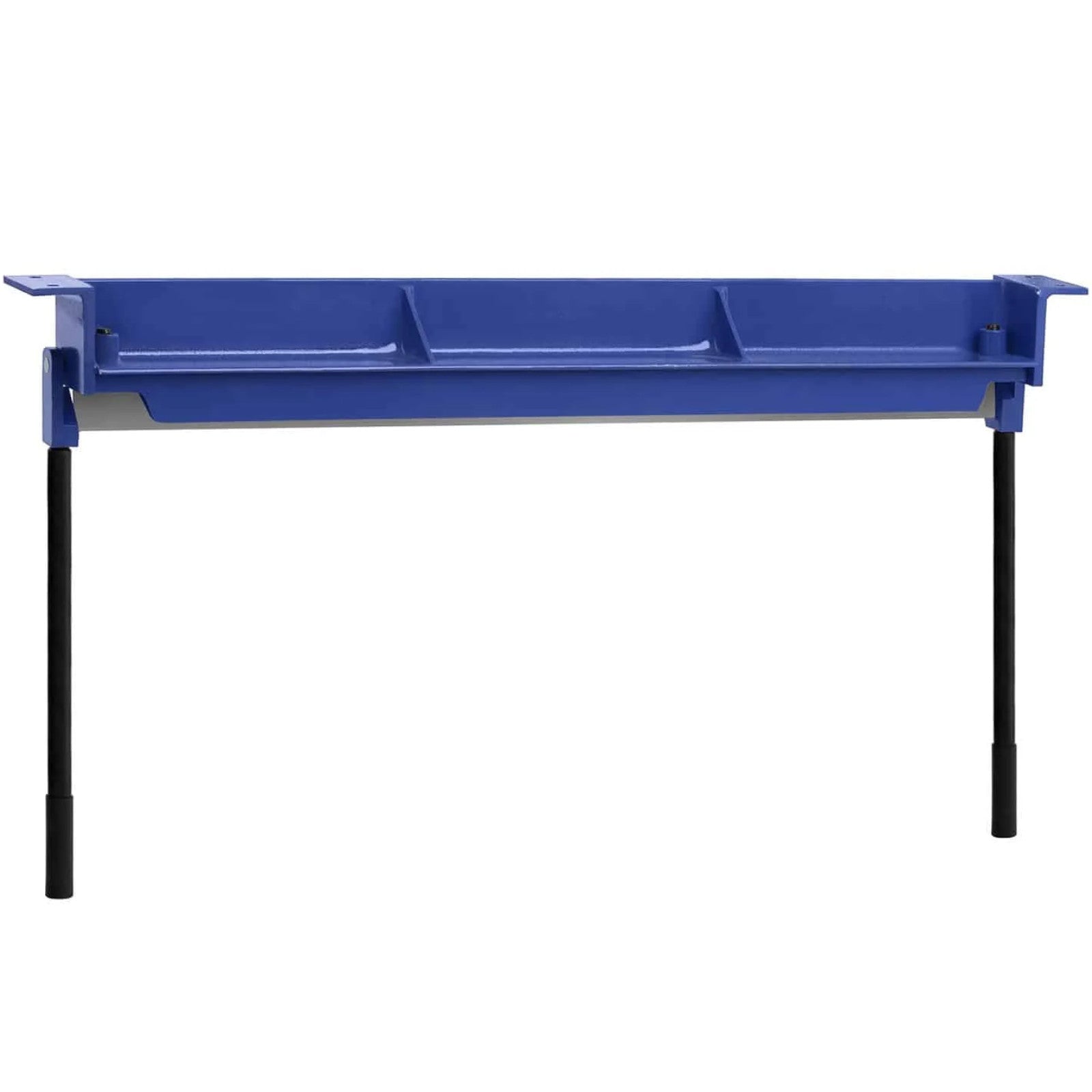

10060950The sheet metal bending machine by MSW will work well in private and professional workshops, locksmiths, construction companies and factories. It allows you to bend elements
1.2 mm thick and up to 1000 mm wide. The device uses ergonomic levers located on both sides of the device. Rubber handles prevent slipping. The knobs allow you to define machining parameters, including the bending angle in the range
to 135deg. The device has a stable steel structure, holes allow it to be screwed to the ground. You can also mount the equipment in a vice.
Product features: - - The bending machine allows you to process material up to 1000 mm wide and 1.2 mm thick,
- - The maximum bending angle is 135 degrees,
- - Adjustment knobs allow you to adapt the device to material of different thickness,
- - Mounting on the ground or in a vice ensures stability,
- - Hand levers on both ends.
Technical parameters: - - Catalog number - 10060950
- - Article condition - New
- - Model - MSW-MSB1000
- - Material - Steel
- - Bending angle [deg] - 0-135
- - Maximum thickness of the bent material [mm] - 1.2
- - Maximum thickness of the sheet to be processed [mm] - 1.2
- - Maximum width of the sheet to be processed [mm] - 1000
- - Dimensions (LxWxH) [cm] - 122 x 64.5 x 66
- - Weight [kg] - 30.2
- - Shipping dimensions (LxWxH) [cm] - 128 x 22 x 21
- - Shipping weight [kg] - 38.2
The set includes: - - Sheet metal bending machine
- - Levers - 2 pcs.
- - User manual
