Steinberg Systems
EAN:
Out of stock
Couldn't load pickup availability
Overview
The Car paint thickness tester, range 0 - 2000 µm USB from Steinberg Systems brings measuring tools & sensors you can rely on, made for your workshop & garage needs. A popular choice in Workshop garage, Car Workshop.
Manufacturer's code: 10030591

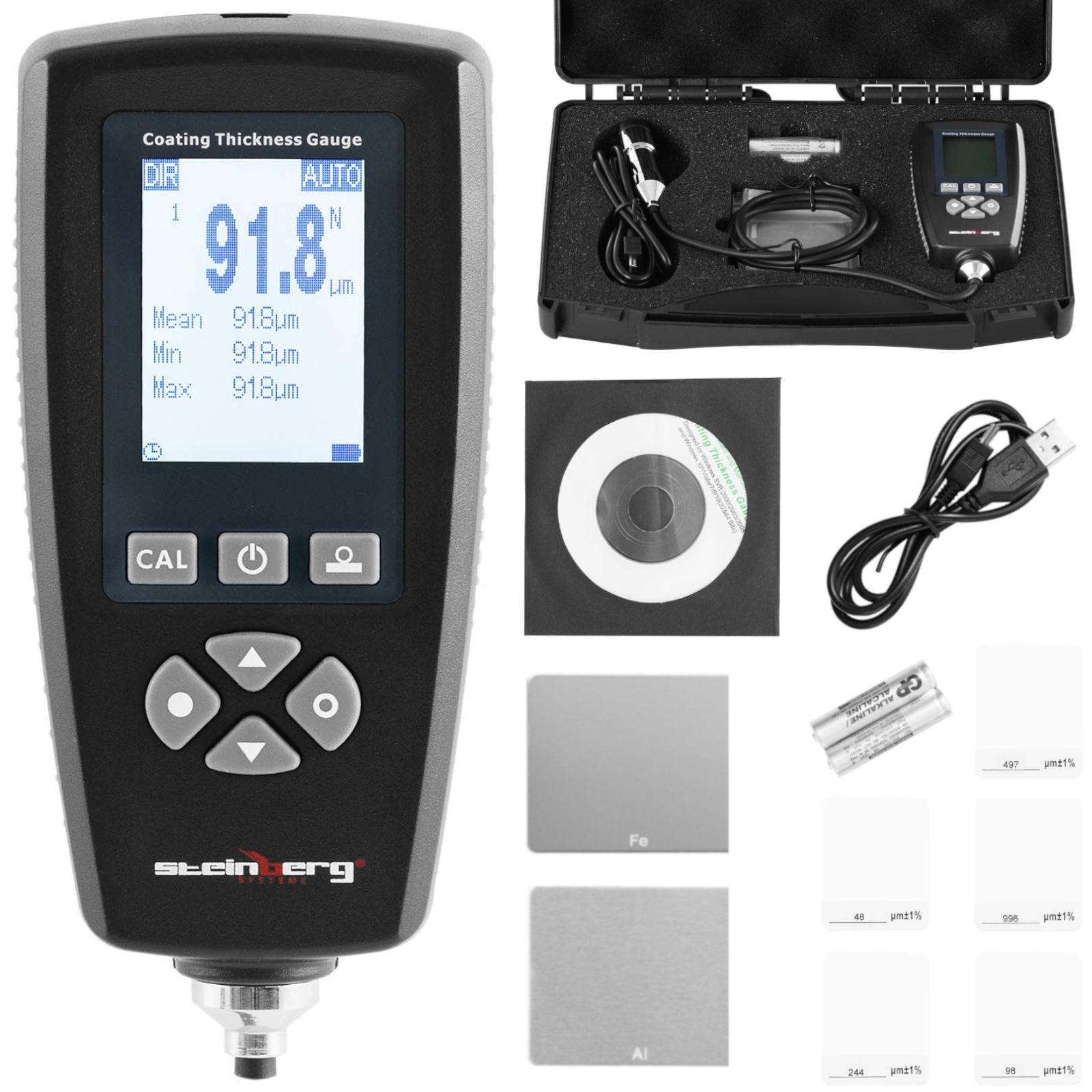

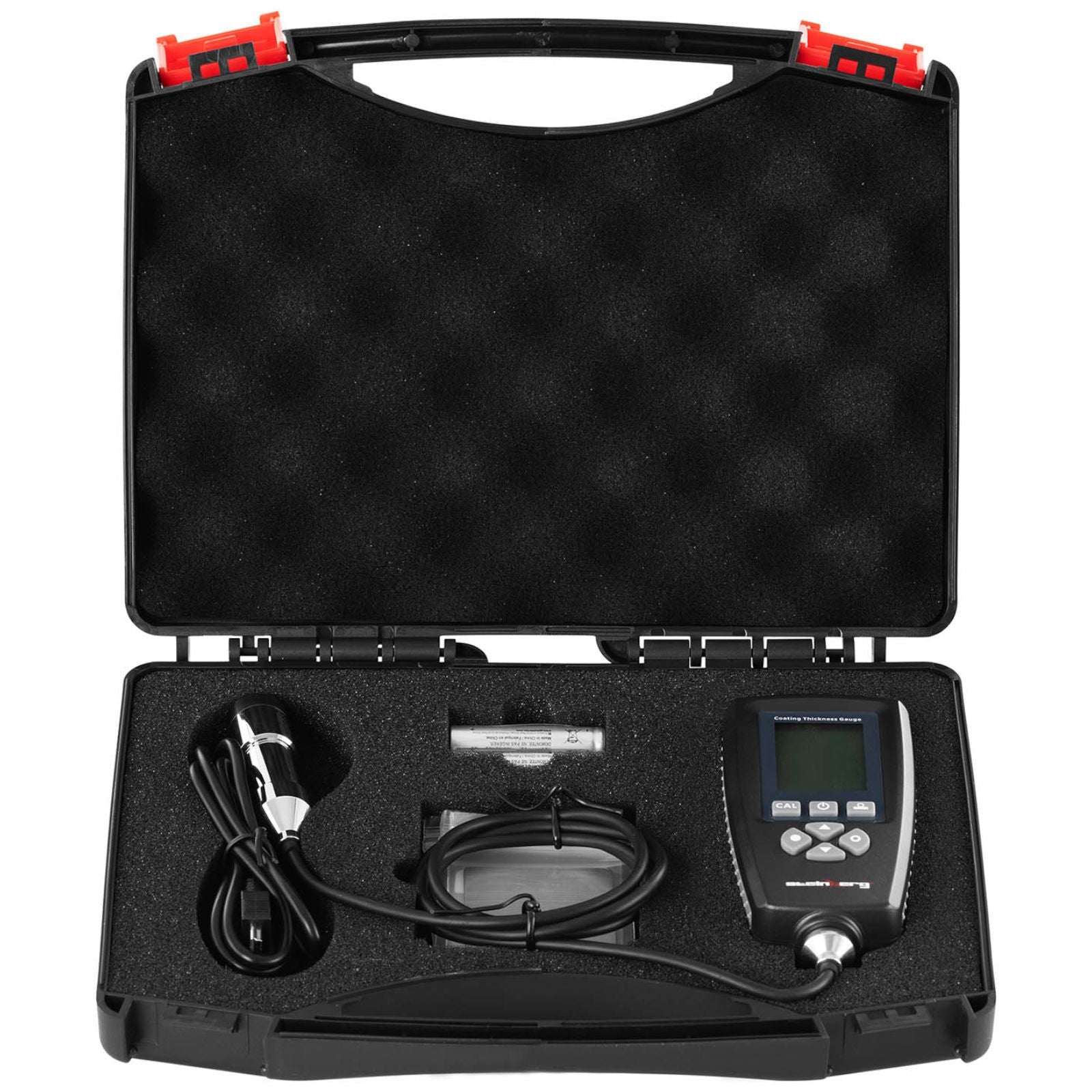

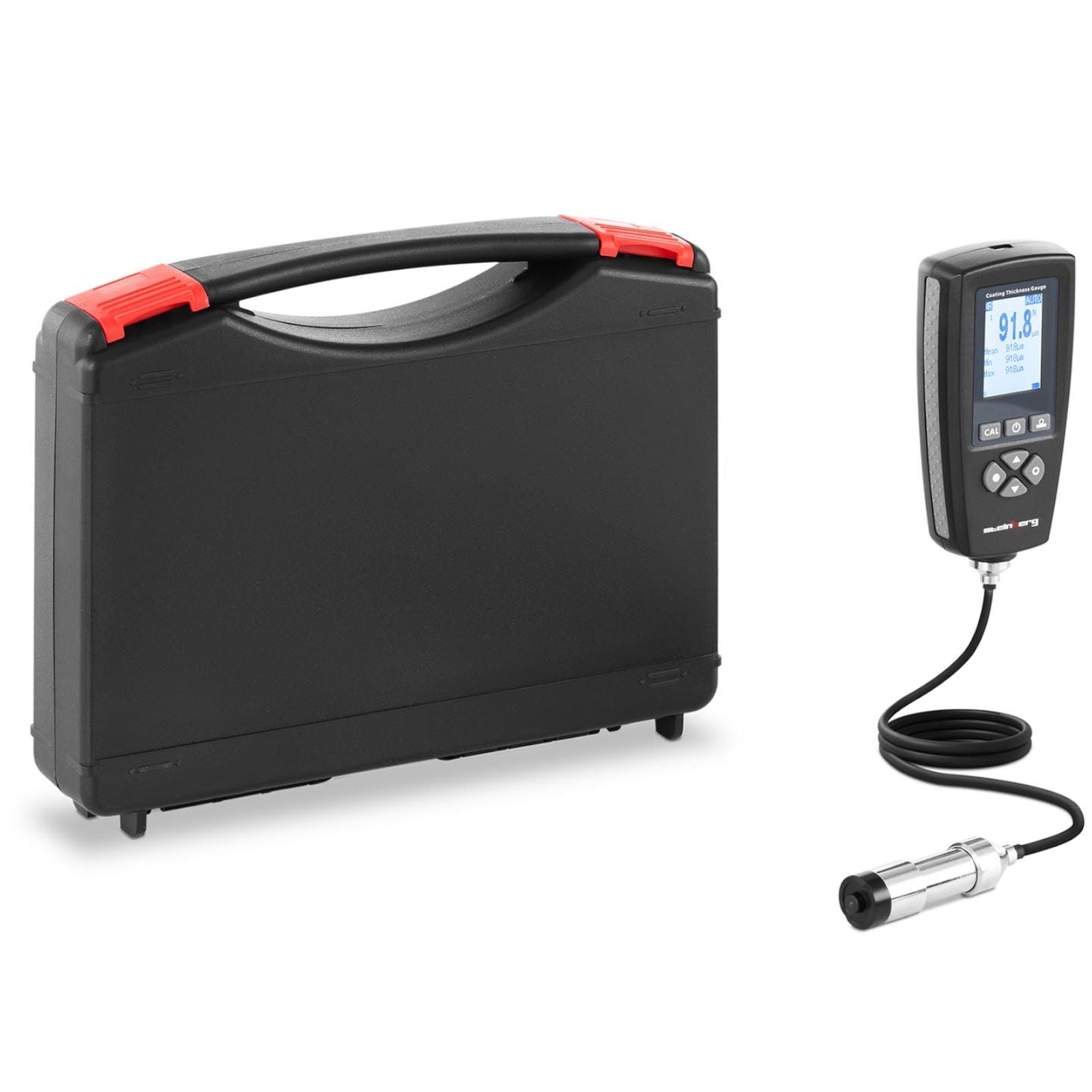

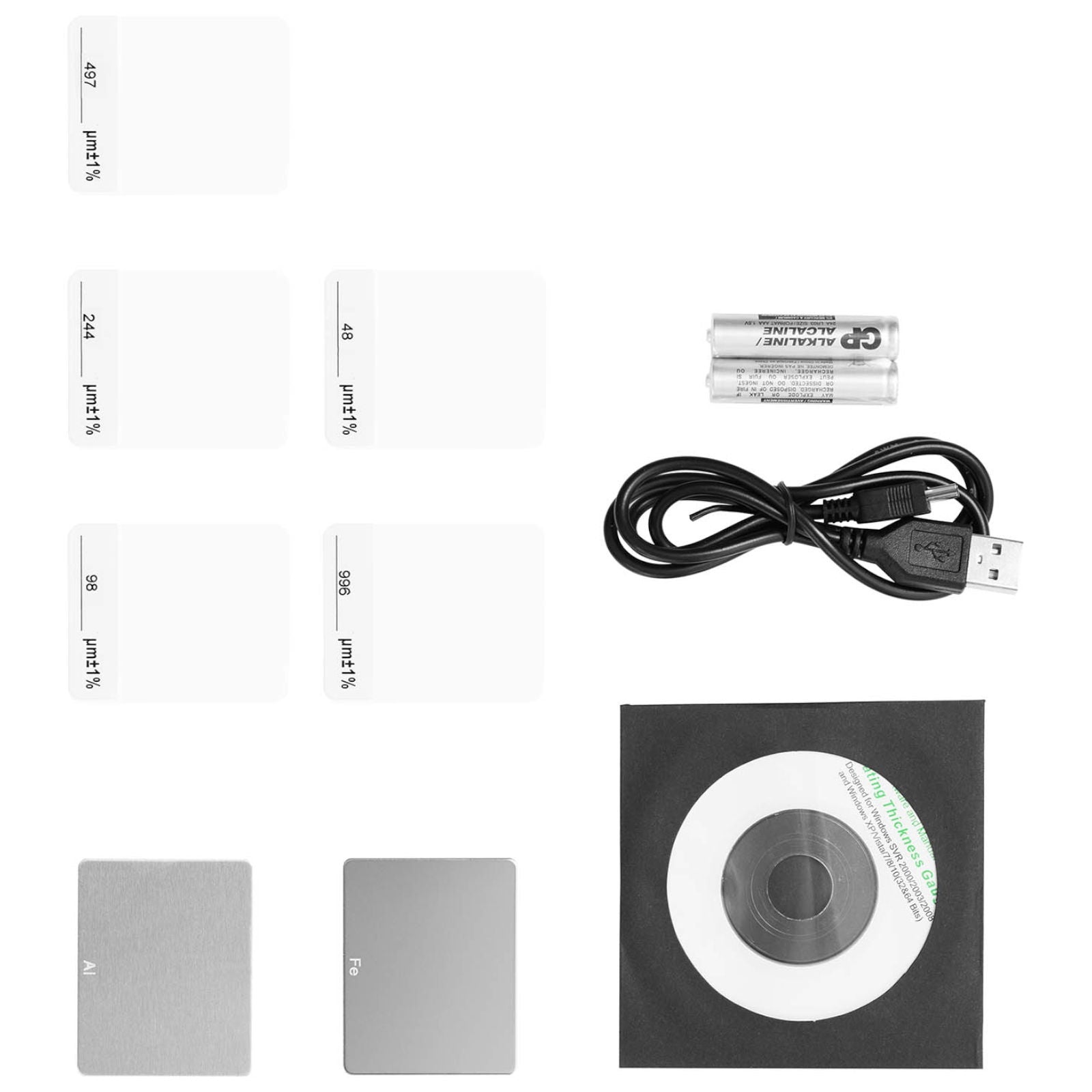

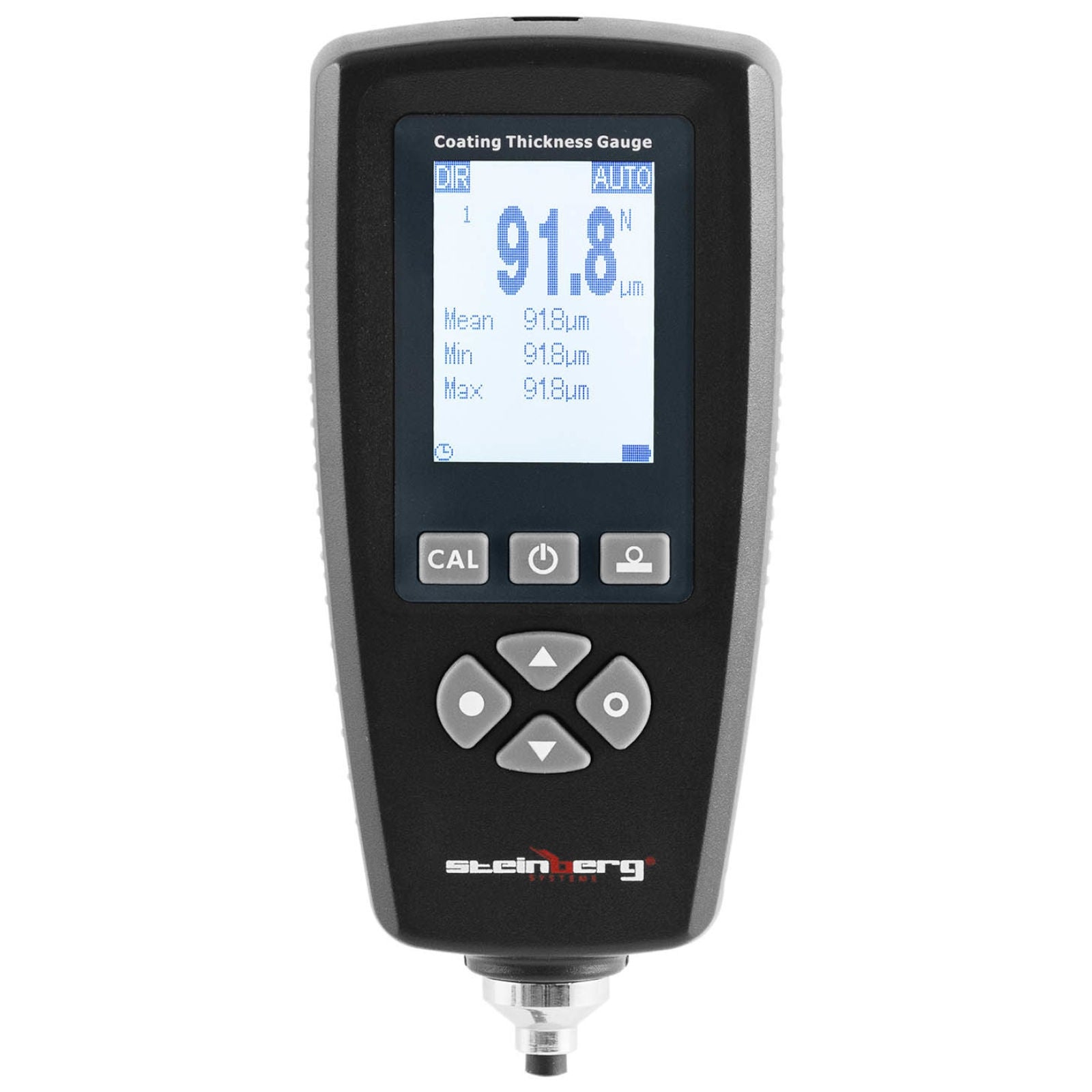

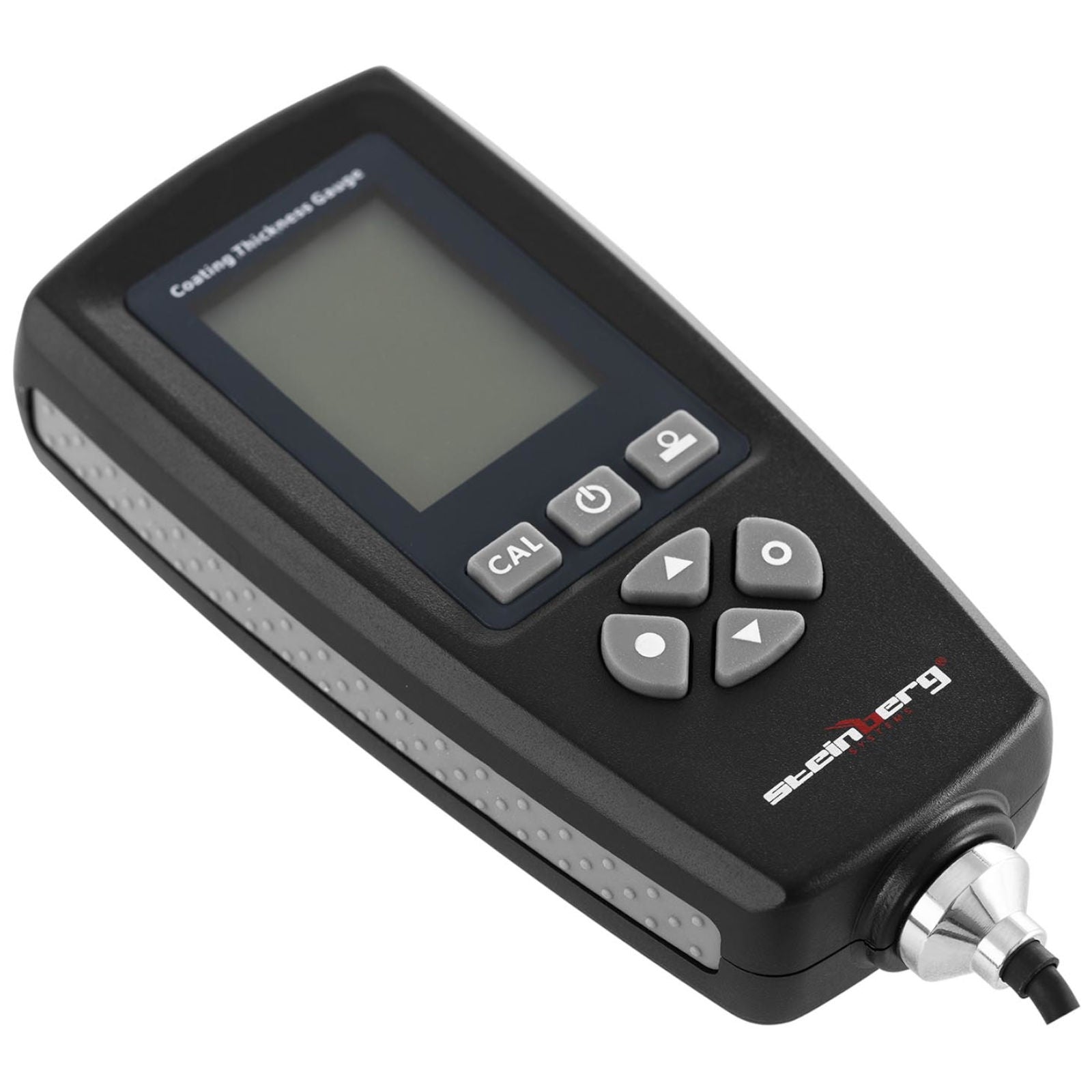

Paint thickness gauge by Steinberg Systems is a tool necessary in the car trade and in the metal and chemical industries. The tester will measure the paint coating offerromagnetic and non-magnetizing materials. The precision of the measurements is ±2% + 1 μm. LCDpanel with backlight function. The result can be saved in memory for up to 2000 results. The measurement range is0-2000 μm. The paint meter works in 2 modes: withferromagnetsusingmagneticinduction, and with other materials usingeddy current. The minimum measuring surface isØ20 mm. The minimum radius of curvature for convex surfaces is 5 mm, for concave surfaces 25 mm. The whole set is inthecase. To connect the equipment to the computer, simply use a USB cable. Powered by2 x AAAbatteries. The equipment shows reliable results in the temperature range of 0 ~ 50deg C and humidity between 20 and 90%.
Technical parameters:
Key features
| Specification | Detail |
|---|---|
| Model | SBS-CT-2000 |
| Catalog number | 10030591 |
| Article condition | New |
| Housing material | ABS: plastic and silicone |
| Minimum material thickness | 0.2 mm magnetic induction / 0.05 mm eddy current |
| Measurement accuracy | ±2% + 1 μm |
| Resolution | 0.1 µm |
| Display | LCD |
| Ambient temperature | 0~50deg C |
| Storage temperature | -10~60deg C |
| Method of connection to the computer | USB |
| Measurement memory capacity | 2000 results |
| Battery type | 2 x AAA |
| Measurement method | Magnetic induction / Eddy current |
| Material selection modes | Magnetic induction / Eddy current |
| Measurement range | 0-2000 µm |
| Units of measurement | µm, mm, mil |
| Minimum diameter of the measurement area | Ø20 mm |
| Minimum radius of curvature | 5 mm for convex surfaces / 25 mm for concave surfaces |
| Permissible humidity of the measured surface | 20~90% |
| Mini USB cable length | 0.8 m |
| Dimensions (LxWxH) | 10.5 x 5 x 2.5 cm |
| Weight | 0.2 kg |
| Shipping dimensions (LxWxH) | 25 x 19 x 6 cm |
| Shipping weight | 0.6 kg |
