Description
Manufacturer's code:

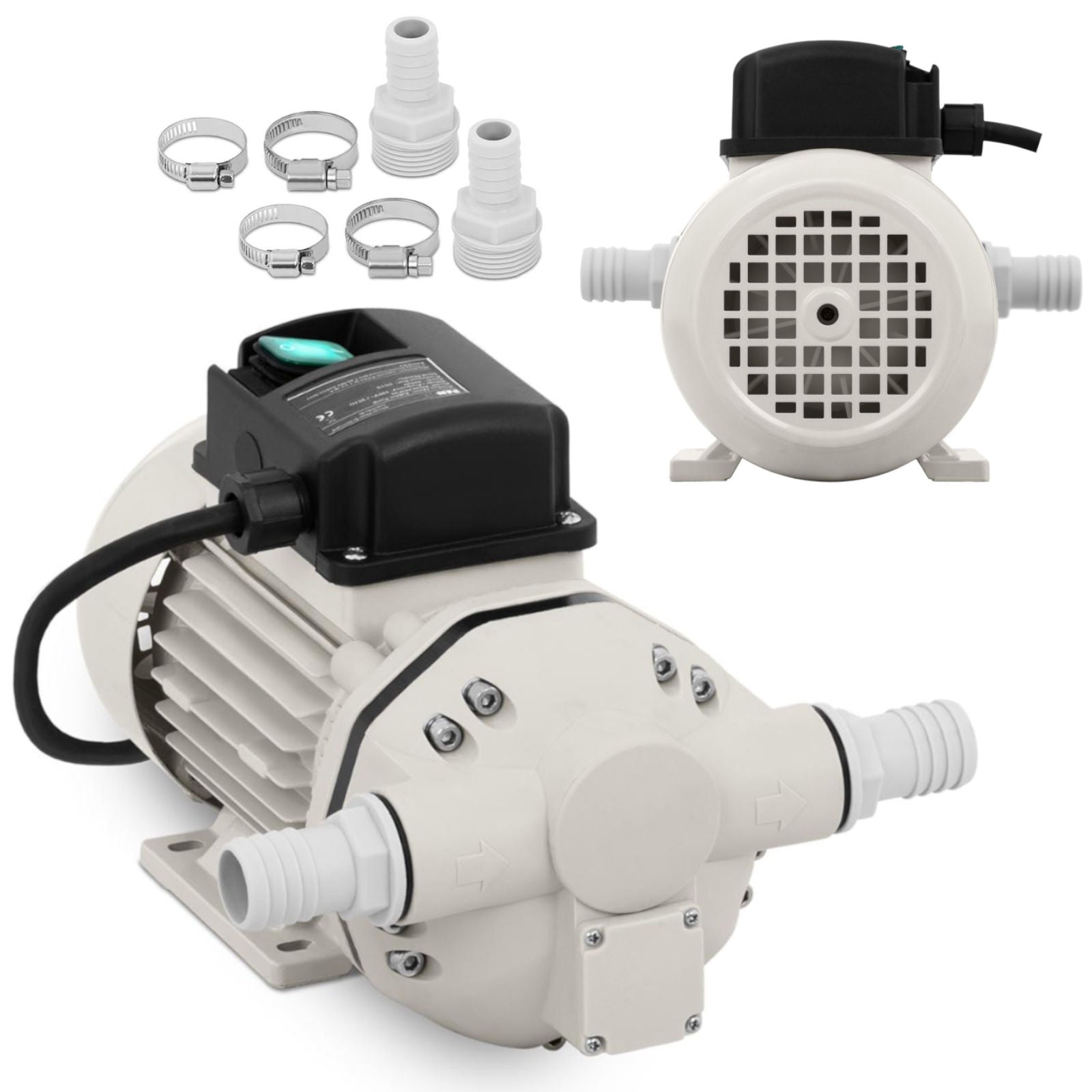

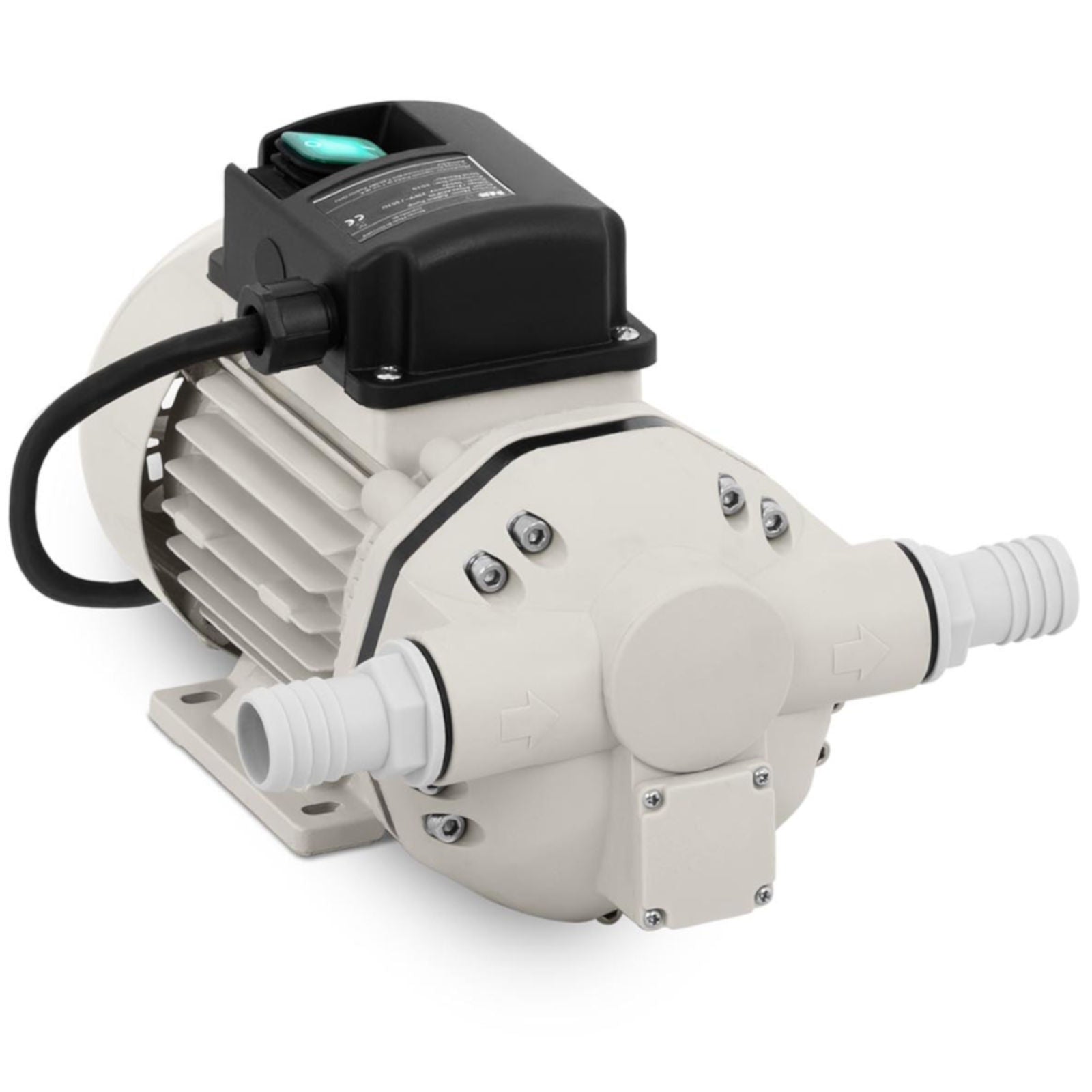

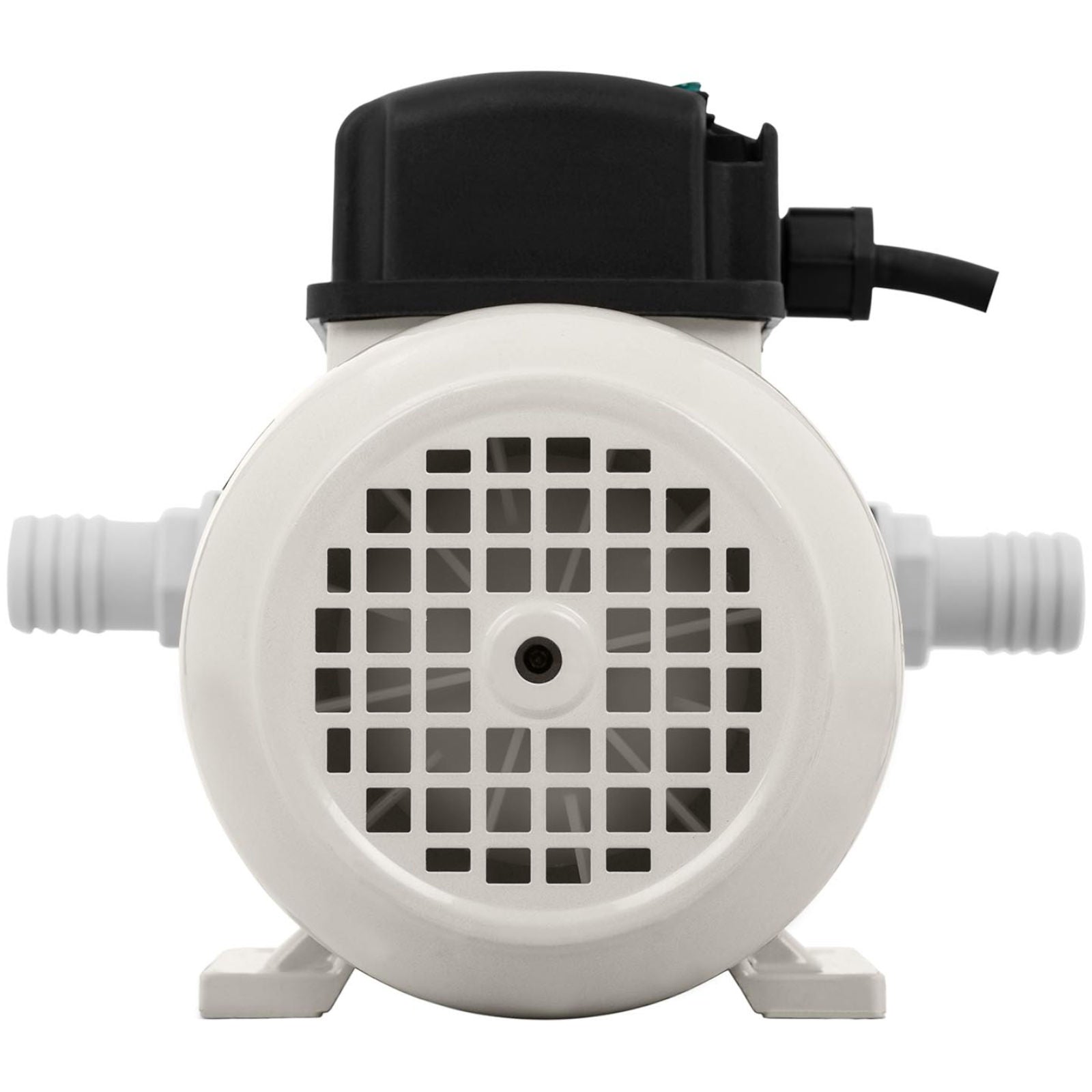

10060825Membrane pump made by MMA for rapid and safe pumping
aggressive fuels and harmful liquids catalytic fluid, urea, DEF, sus32, alcohol, ethanol, ammonia, IBC and water. The distributor is ideal for filling all types of vehicles and machines, so it will work well in workshops, garages, stations.
In the device used
Electric motor without any dynamic seals that keeps the body temperature stable. The membrane pump allows pumping the liquid at a speed
40 l/min and working pressure
2.8 barPossible ambient temperature:
-30 to 60deg C. Self-sucking The pump can remove the air from the suction tube itself, so it can be over the water tank during the startup. Self-sucking devices have a higher suction level (up to 10 m of altitude difference) compared to the centrifugal ones. The pump will work without damage even after longer dry operation.
Product features: - - Productivity - flow 40 l/min, pressure 2.8 bar,
- - Self-sucking - works without having to re-water the inflow channel,
- - Wide use - allows the pumping of aggressive fuels (urea, DEF, sus32 solution, alcohol, ethanol, ammonia, IBC, etc.) and water,
- - Durability - it's dry for a long time without damage.
Technical parameters: - - Model - MSW-AOP40
- - Catalog number - 10060825
- - The state of the article - New
- - Pressure - 2.8 bar
- - Inlet dimensions - 24.4 mm
- - The dimensions of the exit - 19,7 mm
- - Voltage - 230 V
- - Power - 550 W
- - Material - Metal
- - The material of the casing - EPDM
- - Temperature of work - -30 - 60deg C
- - Rotating speed - 2800 rpm
- - Maximum suction - 5 m
- - Flow rate - 40 l/min
- - Power cord - 1.6 m (including connection part)
- - Dimensions (DxSxW) - 28.5 x 23 x 17 cm
- - Weight - 5.9 kg
- - Dimensions of dispatch (DxSxW) - 33 x 16 x 20 cm
- - Weight of shipping - 6,4 kg

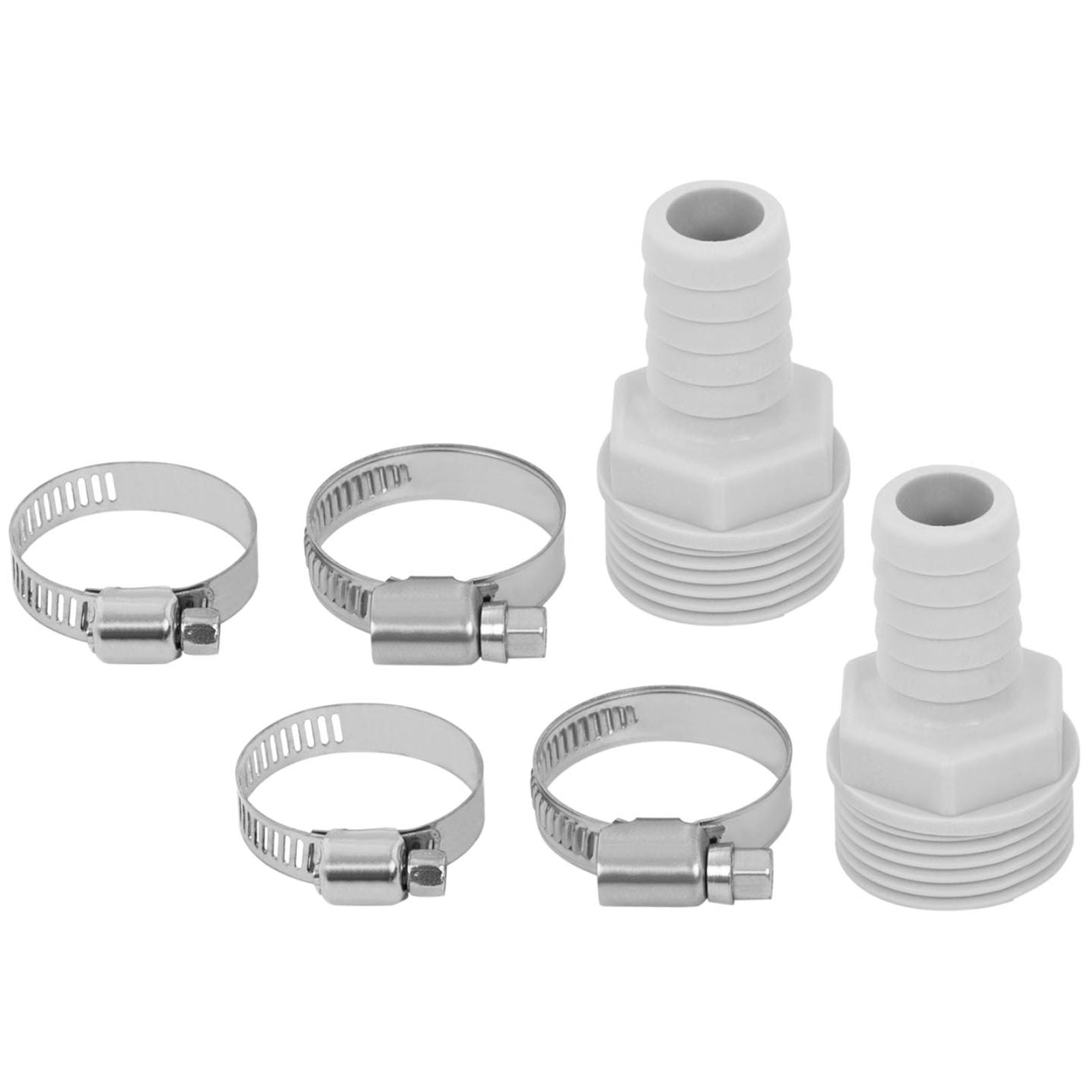

Included: - - Membrane pump
- - Clamp - 2 pieces.
- - Rubber seal - 2 pcs.
- - Large tip for the hose - 2 pieces.
- - A small hose tip - 2 pcs.
- - PL Manual
