Description
Manufacturer's code:

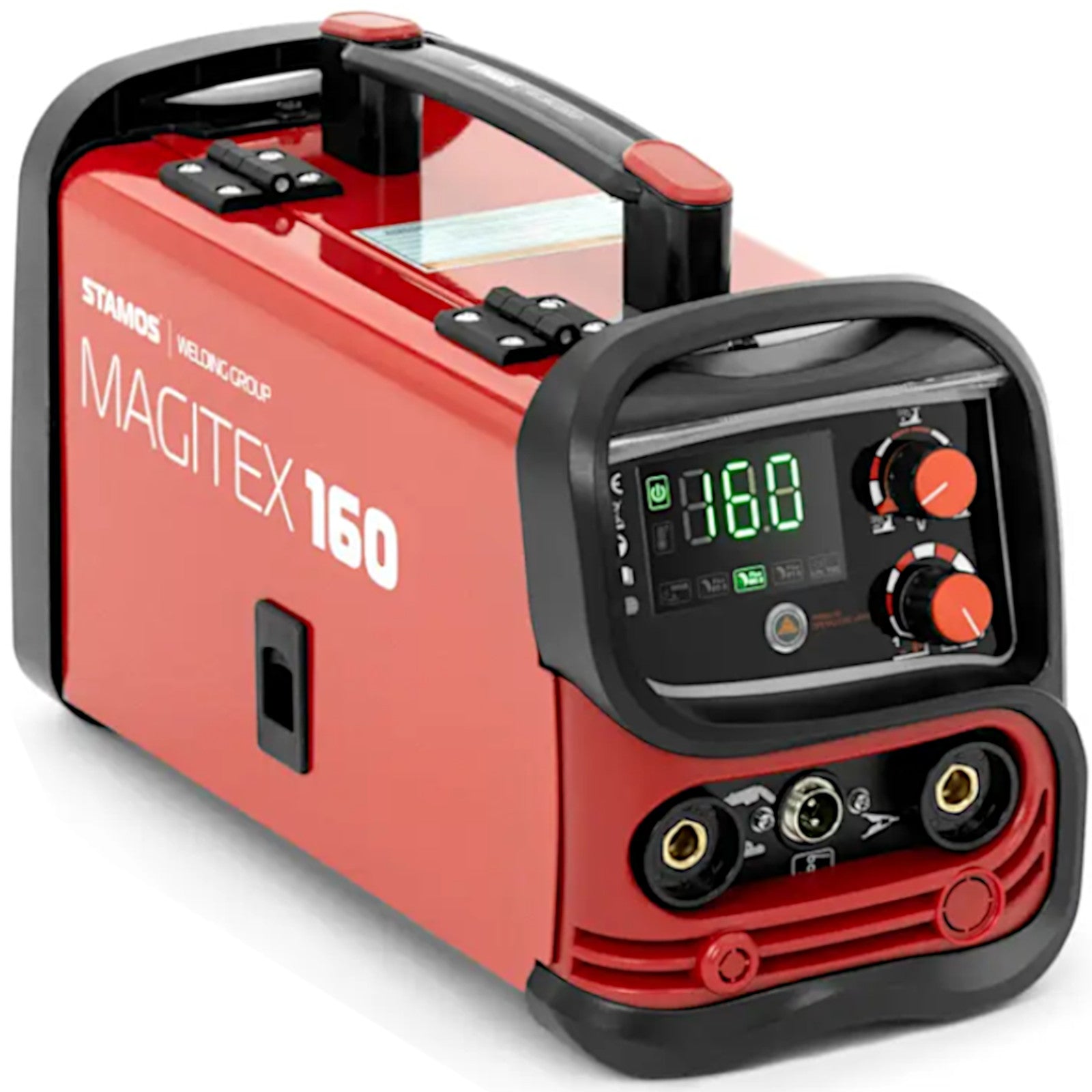

10021499The Stamos MIG/MAG welder uses the latest IGBT inverter technology and offers the highest level of versatility and quality. Smooth regulation of the welding currentup to 160 Aprovides optimal welds for many different tasks. The Migomat is complemented with theMMAwelding option, which allows it to be used without problems outdoors in windy conditions. It is also possible to work with the TIG Liftarc method. All operating values are always visible on the clearly arranged control panel. It is equally easy to choose the mode between welding with self-shielded wire (FLUX), TIG Liftarc and MMA. At full power, the welder reaches 160 A and a 60% duty cycle. Thanks to this, it reliably copes with even complex tasks. It also has an integrated storage space for a wire spool. Depending on the diameter of the welding wire (0.8 / 0.9 / 1 mm), you can select the appropriate mode on the control panel and thus obtain optimal results. Migomat is intended for connecting metal objects in production, workshops, locksmithing and crafts. The TIG method in this model uses Liftarc ignition to activate the arc. Compared to high-frequency ignition, it has the advantage of not affecting or disrupting sensitive electronic devices nearby such as cell phones, computers or control systems. Using the panel, you can easily determine the current strength up to 130 A. MMA welding mode is mainly used for welding iron or copper, as well as alloys such as cast iron or steel. Because stick welding does not require gas, the device can also be used in demanding conditions, such as wind. The Arc Force function ensures optimal results thanks to a stable arc.
Product features: - - The MIG/MAG welder offers 160 A for wire welding, 130 A for TIG Liftarc and 120 A for MMA,
- - The IGBT inverter in the migomat reliably processes all values, allows quick switching between modes and is influenced by the compact size of the machine,

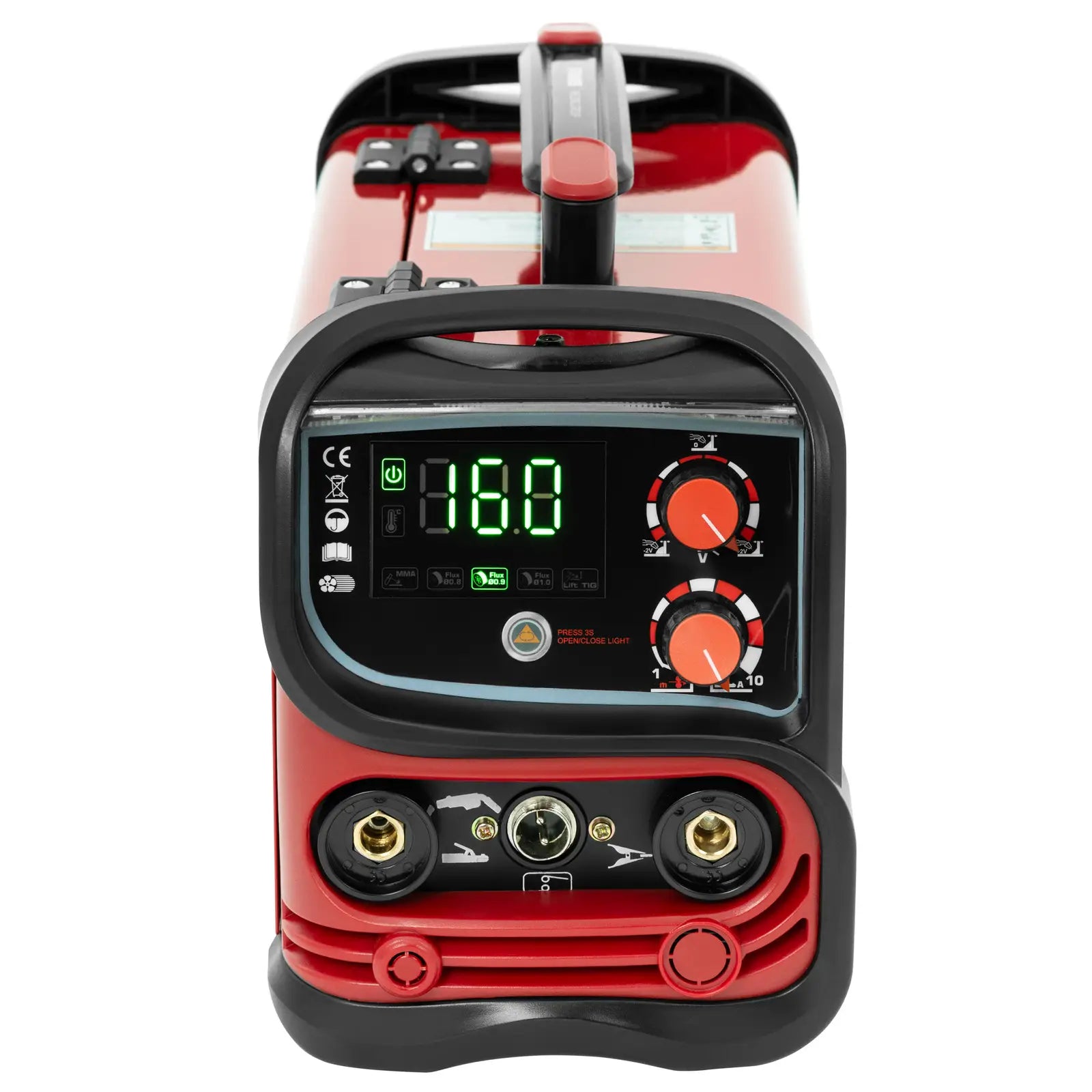

- - All settings are determined intuitively on a clear control panel with a large display,

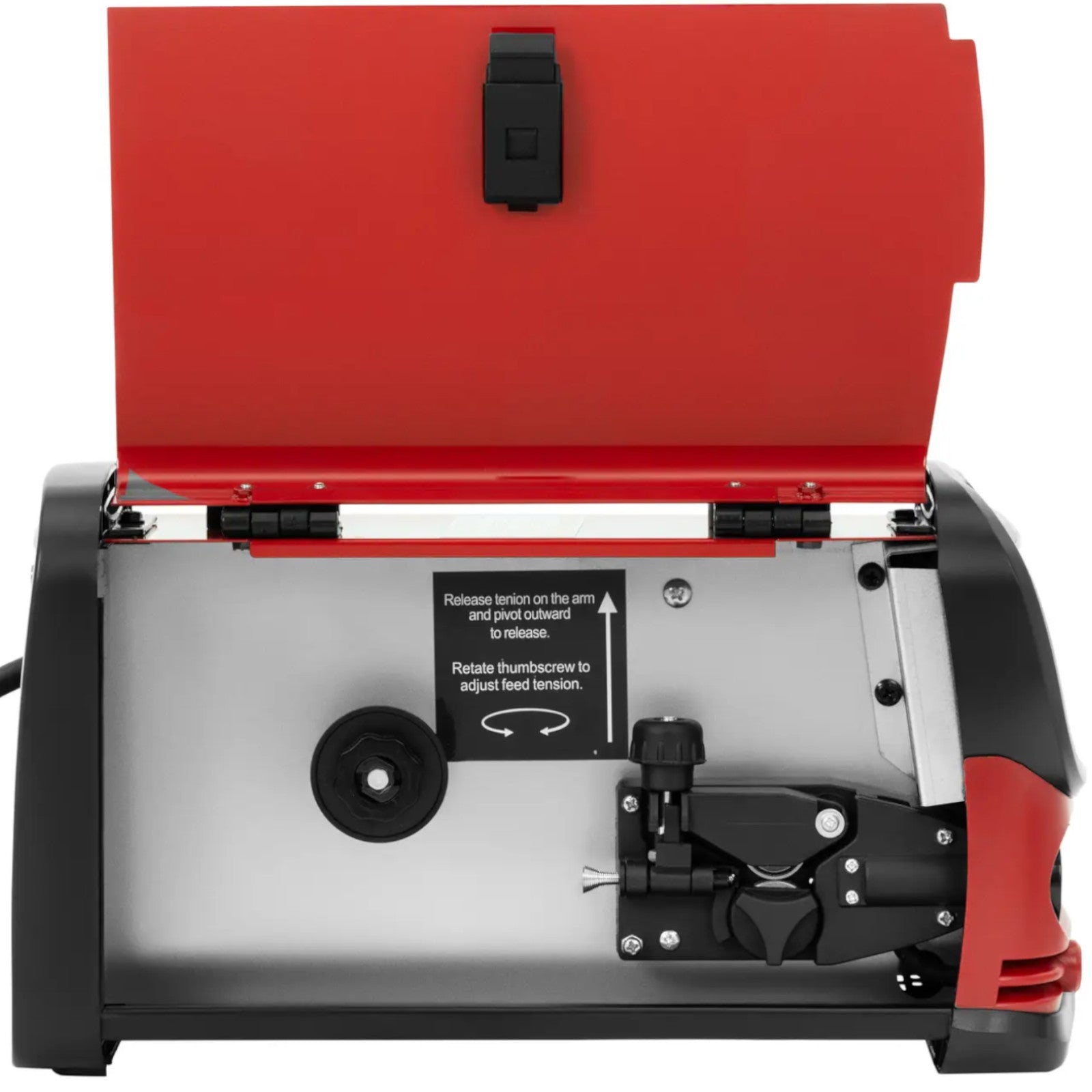

- - The integrated spool chamber and feeder of the MIG/MAG welding machine are designed for wire with a diameter of 0.8 to 1 mm,
- - Arc Force to obtain high-quality welds during MMA welding.
Technical parameters: - - No. catalog - 10021499
- - Article condition - New
- - Model - MAGITEX 160
- - Material - Steel
- - Color - Black
- - Voltage [V] - 230
- - IP protection level - IP21S
- - Wire speed [m/min] - 2-14
- - Efficiency [%] - 80
- - Wire diameter [mm] - Φ0.8/0.9/1.0
- - MMA welding current [A] - 20-120
- - TIG welding current [A] - 10-130
- - Maximum welding current [A] - FLUX: 160
- - Minimum welding current [A] - FLUX: 20
- - Lift TIG - Yes
- - ARC-Force - Yes
- - MMA function - Yes
- - Duty cycle [%] - 60
- - MIG/MAG cable - 2 m
- - Maximum wire spool diameter - 15 mm
- - Dimensions (LxWxH) - 35 x 15 x 22 cm
- - Weight - 6 kg
- - Shipping dimensions (LxWxH) - 40 x 25 x 26 cm
- - Shipping weight - 6.8 kg
- - Dimensions (LxWxH) - 35 x 15 x 22 cm
- - Weight - 6 kg
- - Shipping dimensions (LxWxH) - 40 x 25 x 26 cm
- - Shipping weight - 6.8 kg

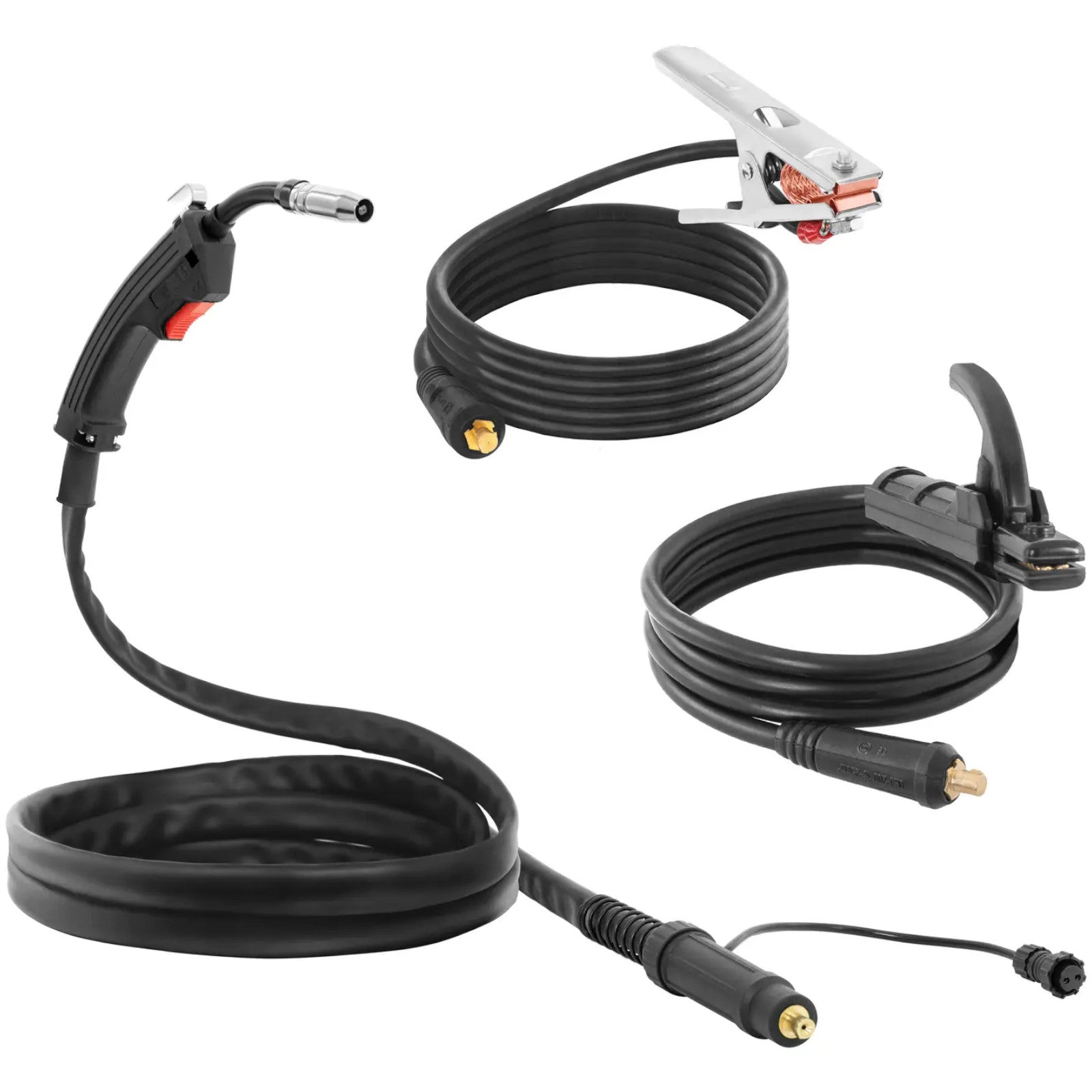

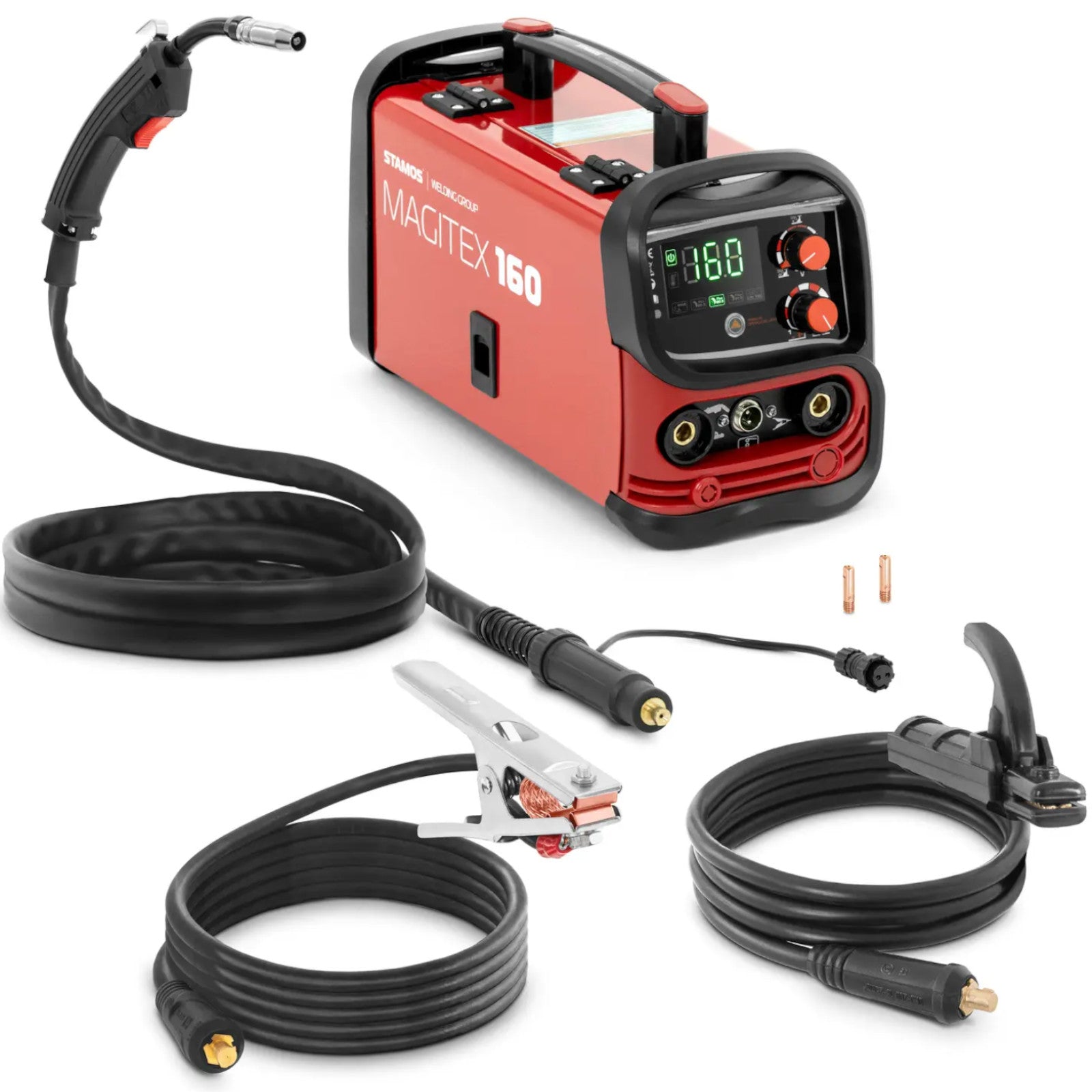

The set includes: - - Welding machine
- - MIG/MAG torch with hose set (2 m)
- - Electrode holder with cable (1.8 m)
- - Ground clamp with cable (1.2 m)
- - Power cable (2 m)
