Description
Manufacturer's code:

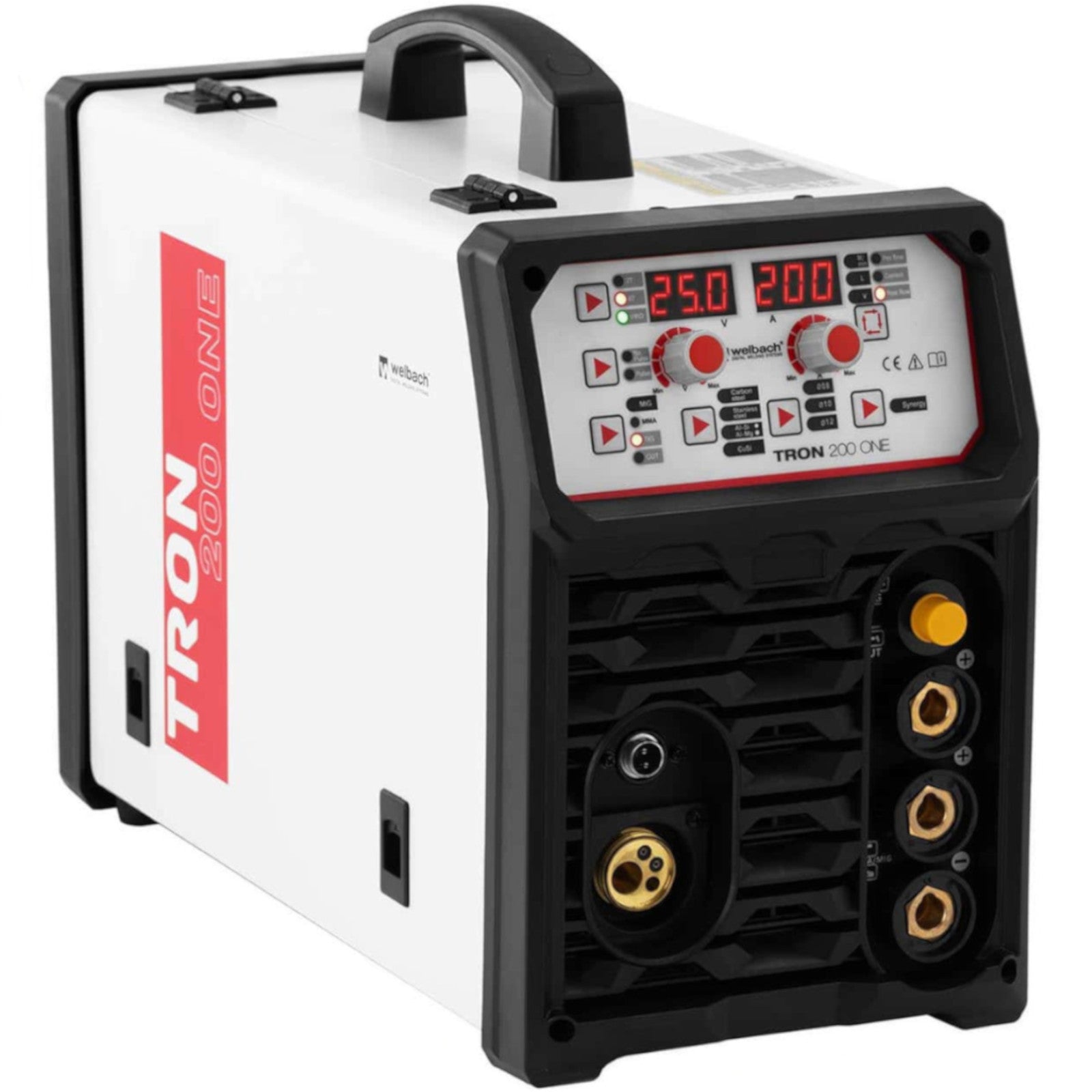

10021430The multifunctional welder by Stamos Welbach allows welding using the

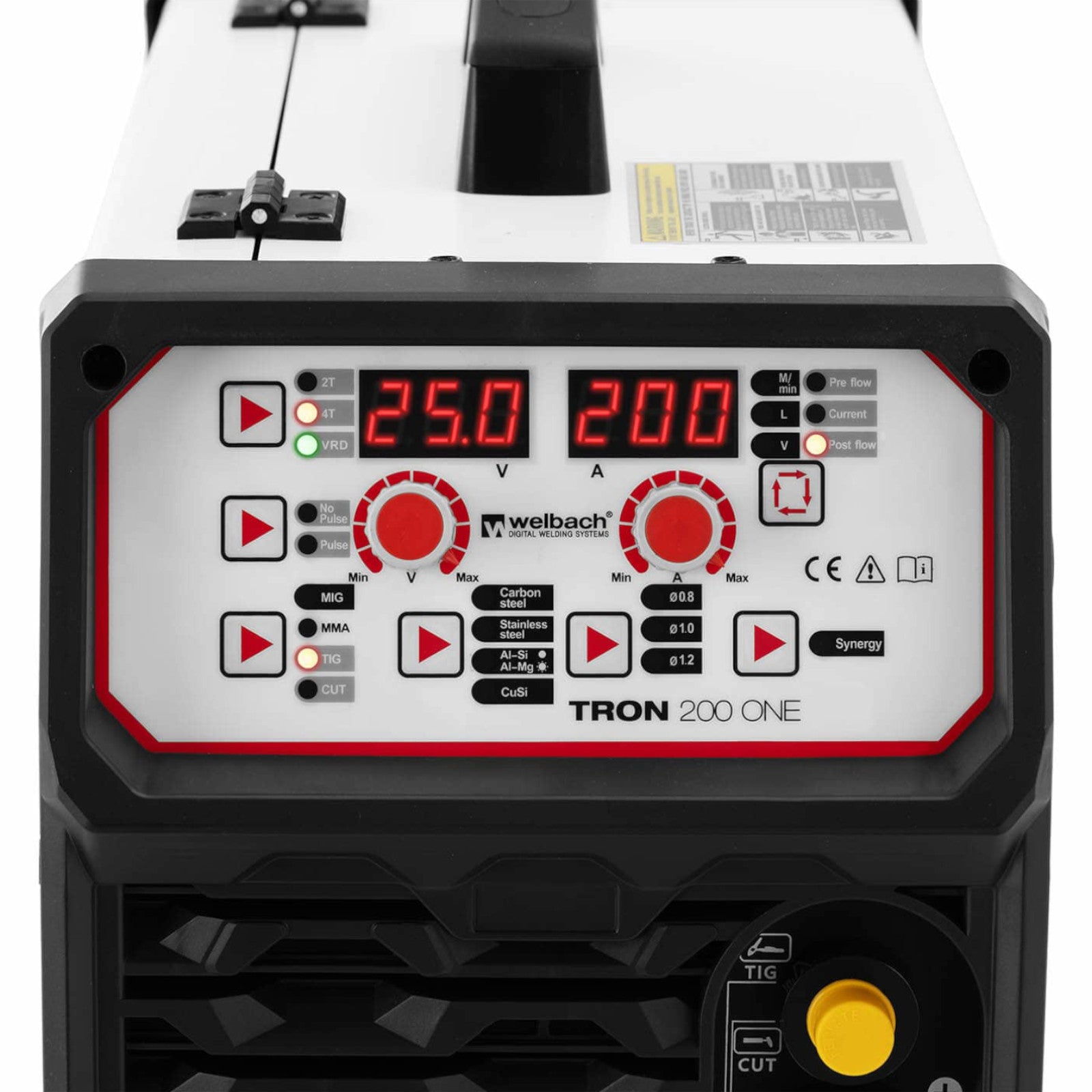

MIG/MAG, TIG or MMA technique. The machine with a modern IGBT inverter can also be used as a plasma cutter. Operating parameters are set on a transparent, digital panel with two LED screens. It allows you to determine the technique, welding current and time before and after gas flow. The panel will also allow you to select pre-set parameters that will help you achieve the best results. The device has a synergy function in which when one welding parameter is changed, the others are adjusted accordingly. For
MIG/MAG welding, spools with a diameter of

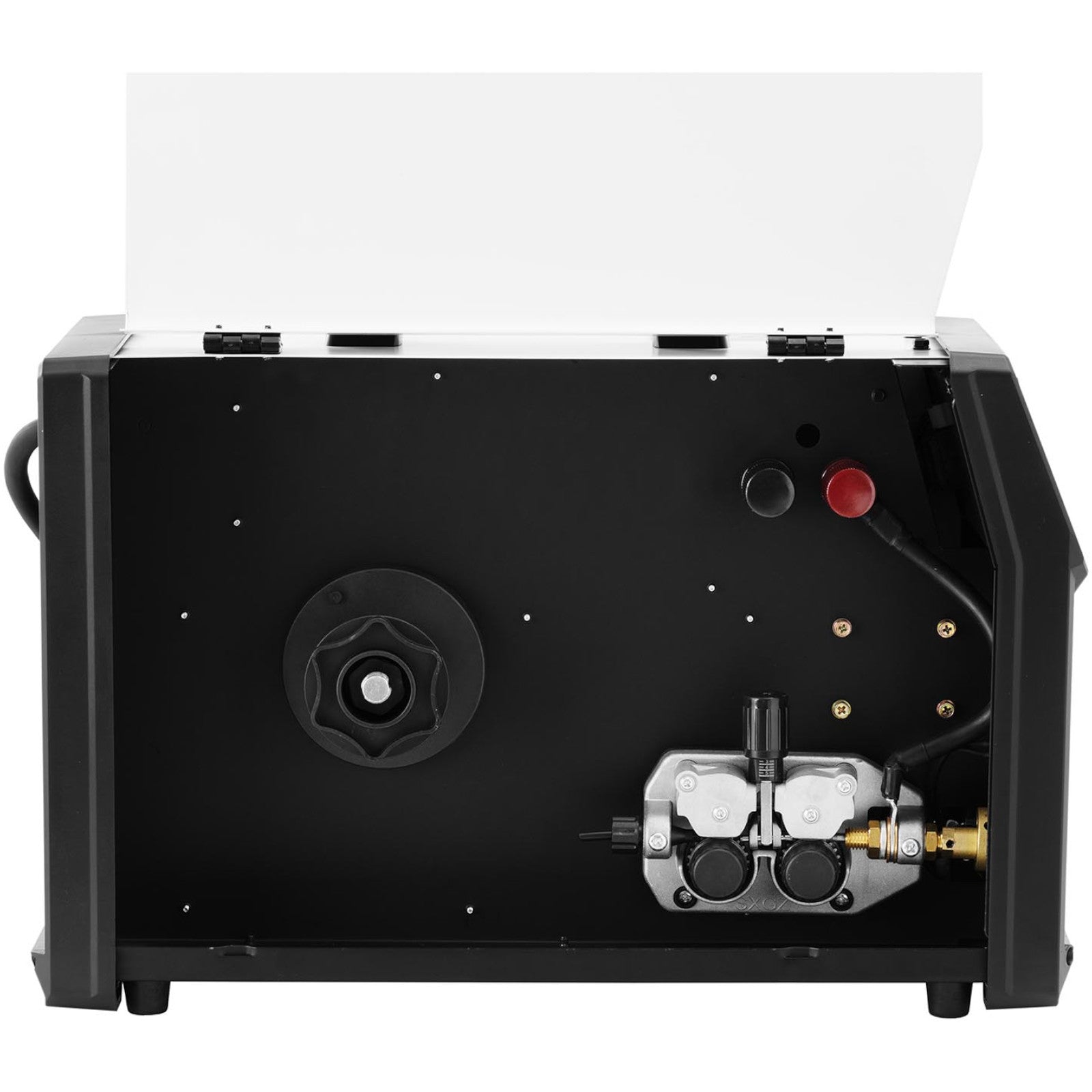

up to 200 mm are used to ensure long working time. The feeder is designed for wires with a diameter of
0.8 - 1.2 mm. The speed is adjustable in the range
2-15 m/min. The multifunctional welder allows welding using the
TIG DC method and obtaining high-quality welds in various positions. Thanks to high-frequency ignition, a stable arc is obtained from the very beginning and welds with high power
up to 200 A. The welding current set below
110 A allows you to work without interruption. For processing thin sheets from 0.5 mm, turn on the
Pulsefunction and connect almost all melting metals, such as steel, stainless steel, copper or nickel. The elements can be connected in various positions, whether vertically, horizontally or overhead. The plasma torch will easily cut metals up to 15 mm thick at a maximum current of 50 A. The plasma arc is generated using compressed air. This cools the torch while cutting and leaves a clean edge. As with gas shielded welding methods, here you also have the option of using a 2-step or 4-step mode. The pilot arc is ignited at high frequency. Effective even without gas when welding with electrodes. MMA welding allows you to work outdoors and in strong winds. The method works without additional gas. The multi-function welder delivers a very stable current - ideal for good results. The
VDR functionprovides greater safety when welding MMA, especially in humid environments.
The Hot Startfunction obtains an increased welding current for a short time after starting work. In this way, welding is stable and clean.
Product features: - - Plasma cutting function and MIG/MAG, TIG and MMA welding methods,
- - Clear, digital control panel with 2 LED displays,
- - Optimal welding results thanks to pre-set programs and synergy function,
- - Current up to 200 A for welding thickness of 5 mm and cutting of metals up to 15 mm at a current of 50 A,
- - Electrode welding with VRD and Hot Start functions.
Technical parameters: - - Catalog number - 10021430
- - Article condition - New
- - Model - TRON 200 ONE
- - Material - Stainless steel, Aluminum, Carbon steel
- - Compliance with the standard - EN60974-1
- - Working air pressure [bar] - 4 - 5
- - Cooling - Fan
- - Air consumption [l/min] - 80-160
- - Duty cycle [%] - Cutting/MIG/TIG: 30 MMA: 20
- - Cutting current [A] - 15-50
- - Torch cooling - Gas
- - Color - White
- - Efficiency [%] - 80
- - MMA electrode diameter [mm] - 1.6-3.2
- - Electrode diameter (TIG) [mm] - 1.6 - 3.2
- - Input power [kVA] - 9.6
- - Housing material - SPCC
- - Ground wire [m] - 3
- - Insulation class - F
- - Hot Start - Yes
- - IEC protection class - IP21S
- - Maximum cutting thickness [mm] - 15
- - Maximum input current [A] - Cutting: 38 MMA: 32 TIG: 28 MIG: 37
- - Maximum input current [A] - Cutting: 8.6 MMA: 9.6 TIG: 6.2 MIG: 8.2
- - TIG open-circuit voltage [V] - 62
- - MIG/MAG cable [m] - 3
- - Minimum welding current [A] - MiG: 40
- - Power cable [m] - 2
- - Power factor - 0.73
- - Maximum welding thickness [mm] - 0.5 - 5
- - Maximum welding current [A] - MIG: 200
- - Rated input current [A] - Cutting: 21 MMA: 18 TIG: 15 MIG: 20
- - Plasma cable [m] - 5
- - CUT open-circuit voltage [V] - 280
- - TIG ignition - HF
- - Voltage [V] - 230
- - MMA cable [m] - 3
- - MMA welding current [A] - 30-160
- - Plasma ignition - HF
- - MMA open-circuit voltage [V] - 62
- - TIG welding current [A] - 10-200
- - Wire speed [m/min] - 2-15
- - Welding current at 100% duty cycle [A] - Cutting: 27 MMA: 88 TIG: 110 MIG: 110
- - Welding current at 60% duty cycle [A] - Cutting: 35 MMA: 114 TIG: 142 MIG: 142
- - Wire diameter [mm] - 0.8/1.0/1.2
- - TIG cable [m] - 4
- - Duty cycle [%] - 60

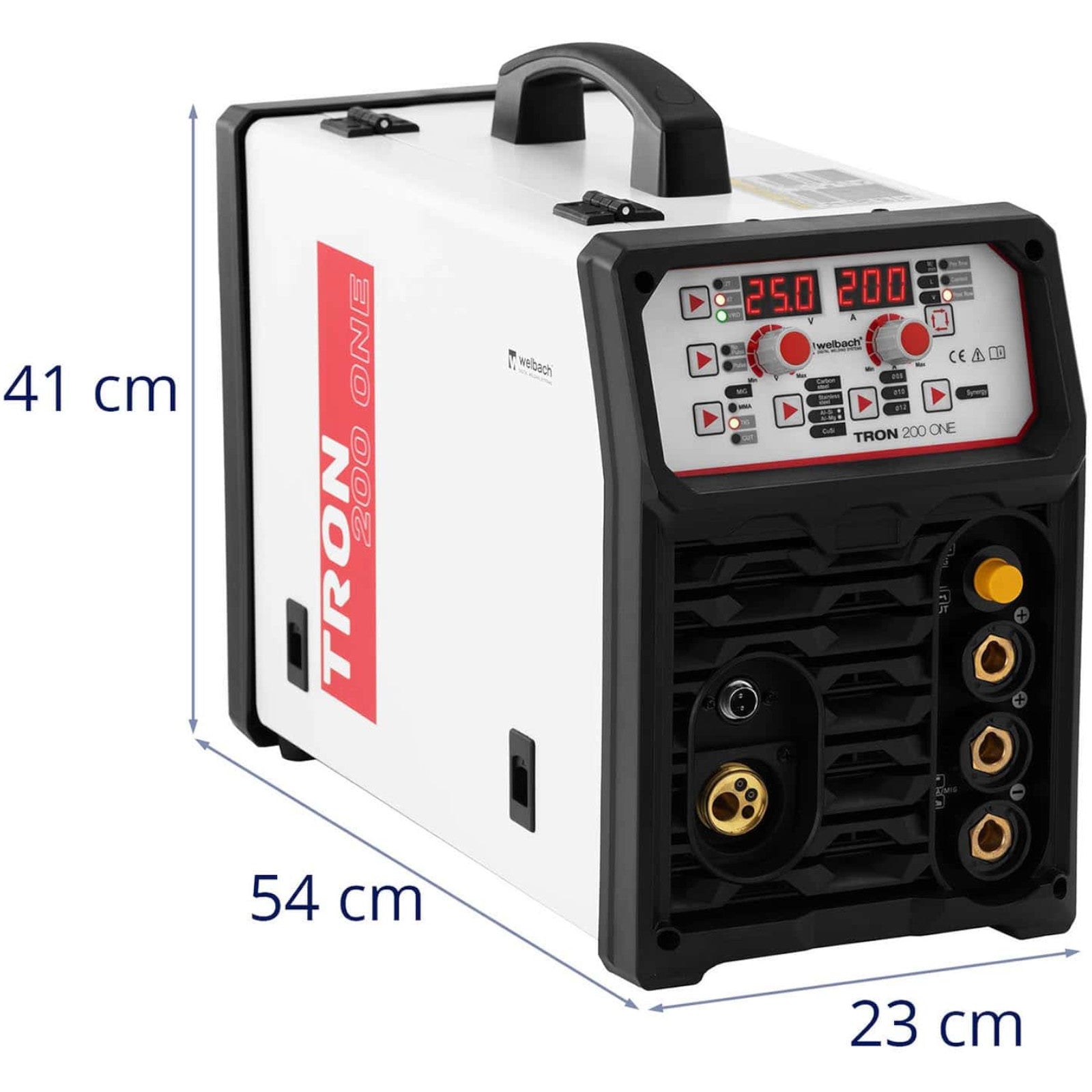

- - Dimensions (LxWxH) - 54 x 23 x 41 cm
- - Weight - 26.1 kg
- - Shipping dimensions (LxWxH) - 65 x 50 x 33 cm
- - Shipping weight - 28.2 kg

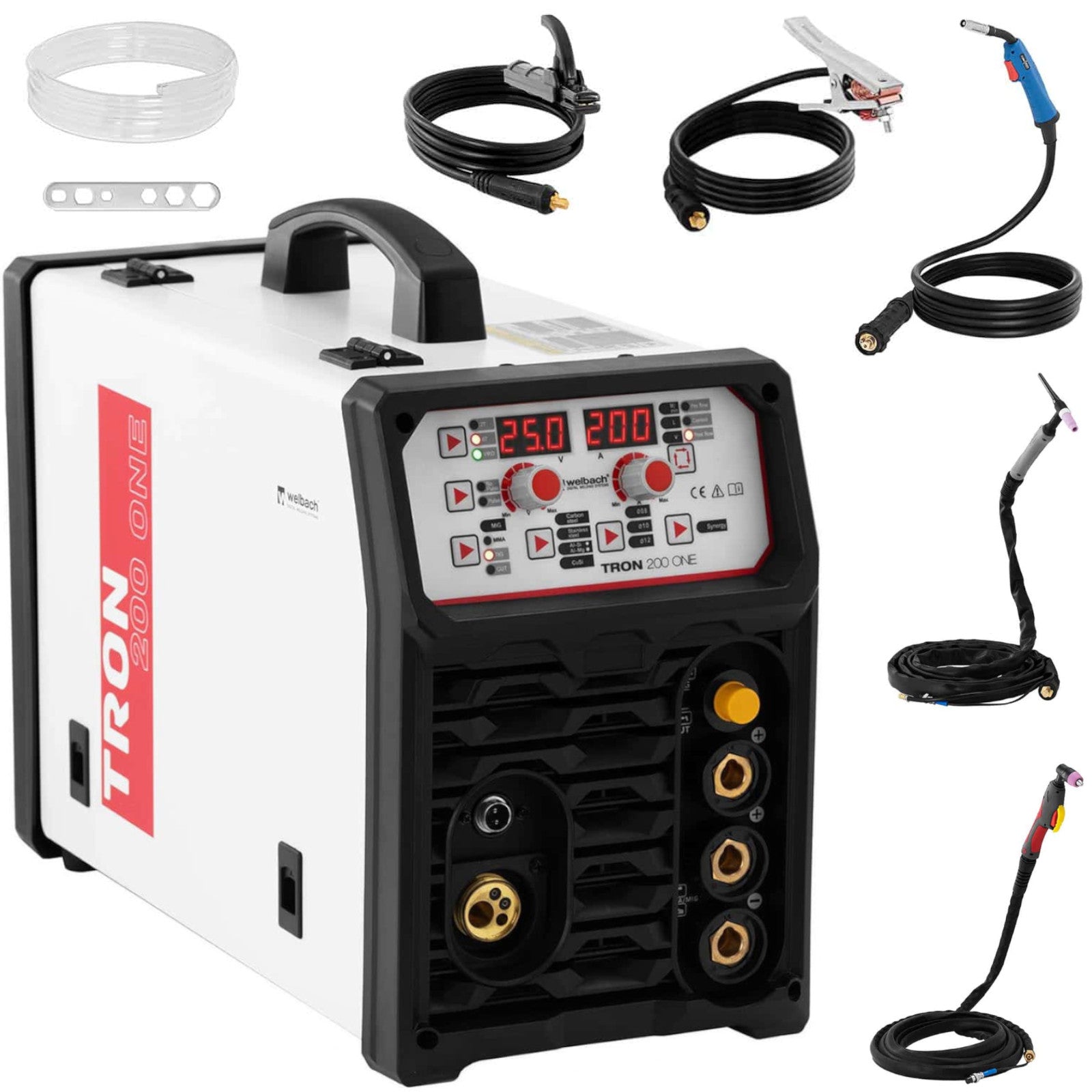

In the set: - - TRON 200 ONE multifunctional welder
- - SG-55 plasma torch with cable (5 m)
- - MIG 15AK torch with cables (3 m)
- - TIG WP26 torch with cables (4 m)
- - Electrode holder with cable (3 m)
- - Grounding clamp with cable (3 m)
- - Gas cable (4 m)
- - User manual
