Overview
The Mini prism surveying rangefinder mirror with pole silver coating dia. 3.5cm 1.26m from Steinberg Systems brings measuring tools & sensors you can rely on, made for your power tools needs. A popular choice in Electro-tools, Specialised equipment.
Manufacturer's code: 10031027

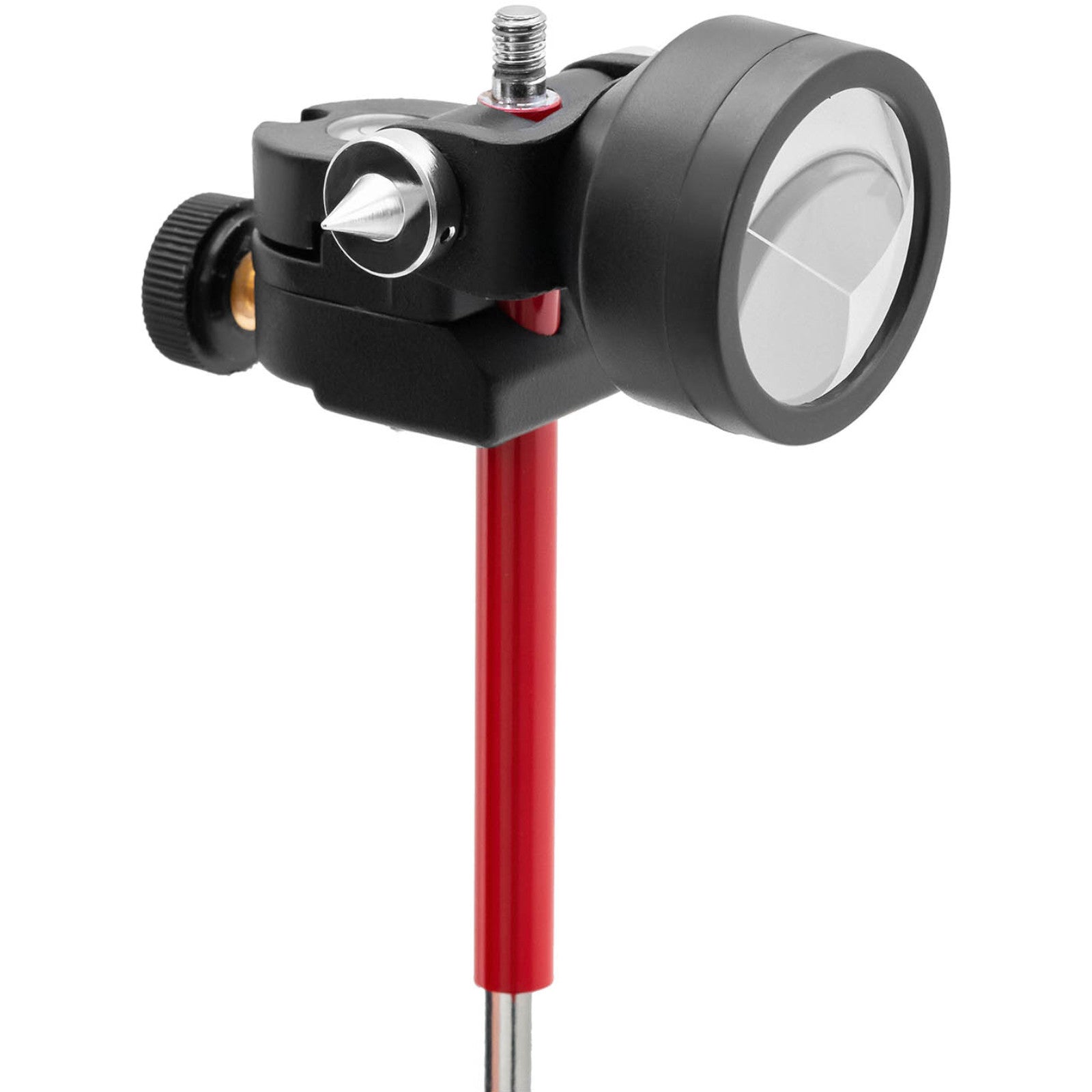

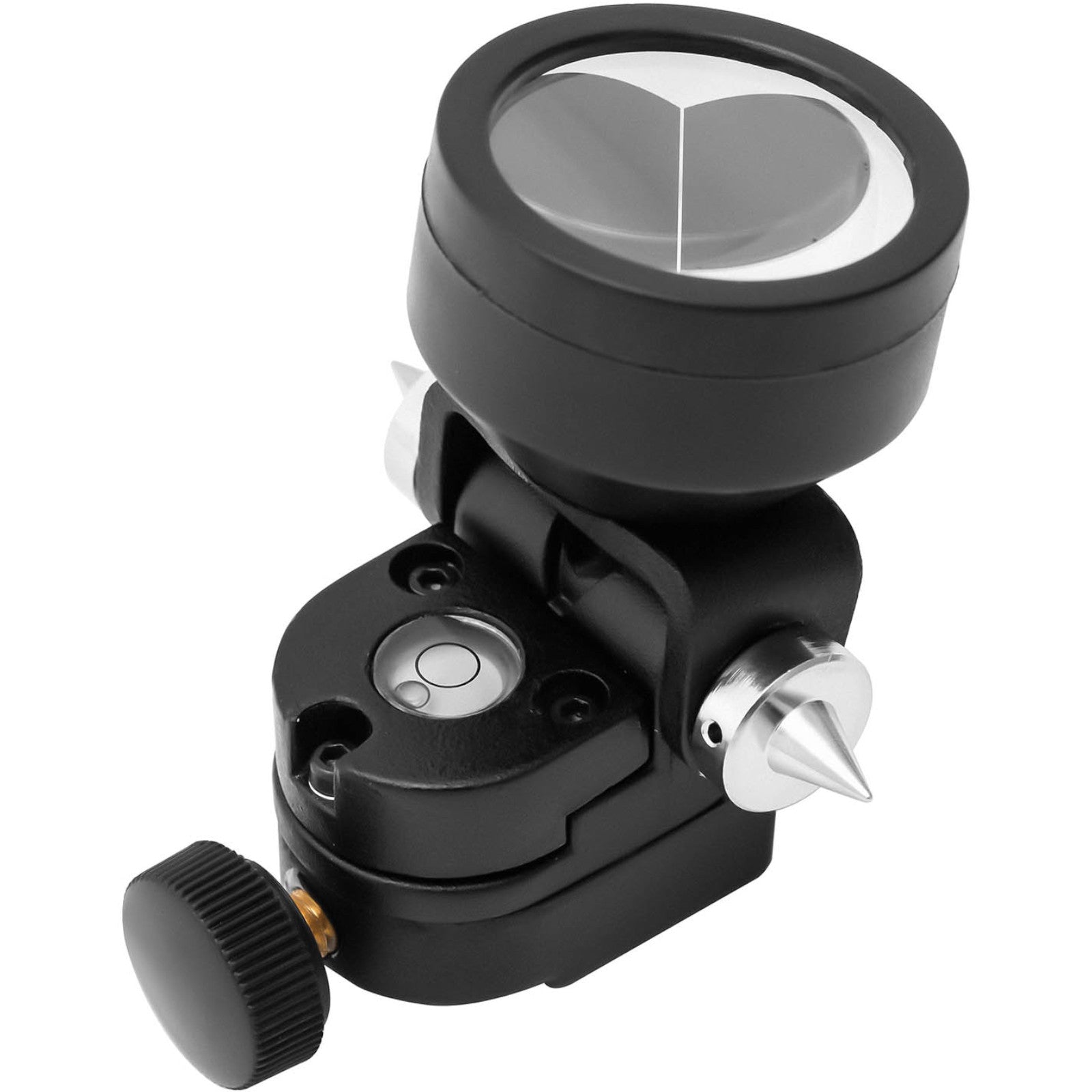

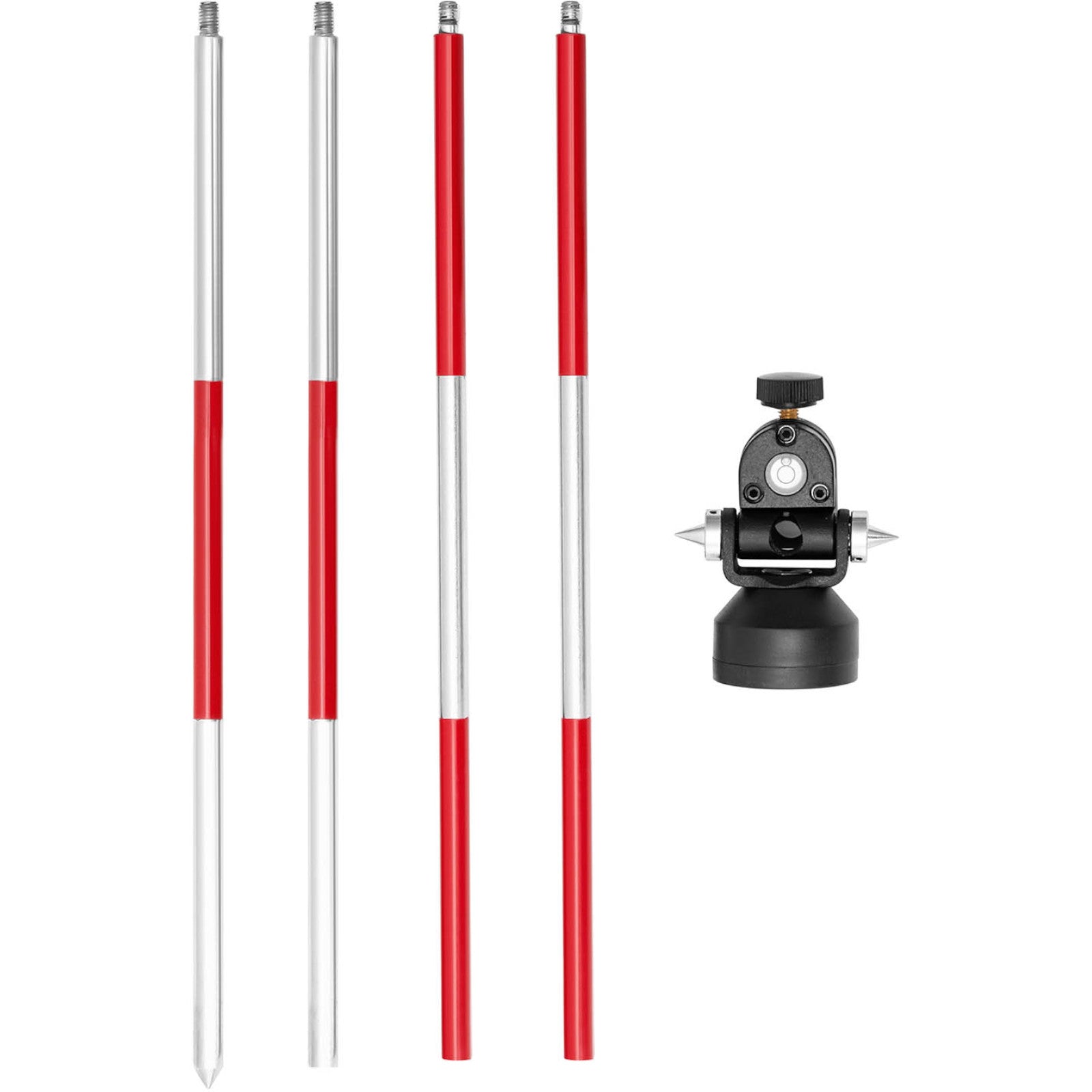

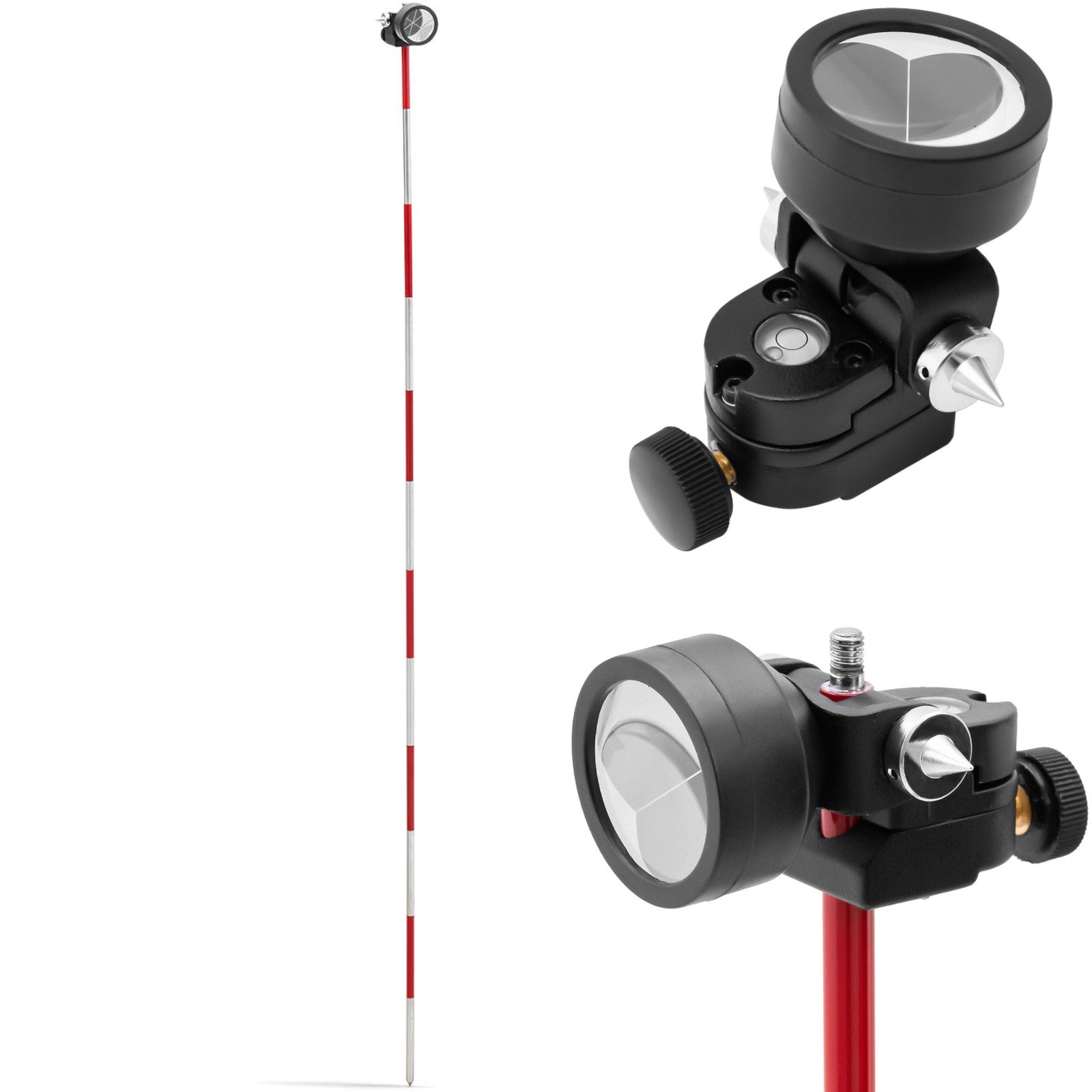

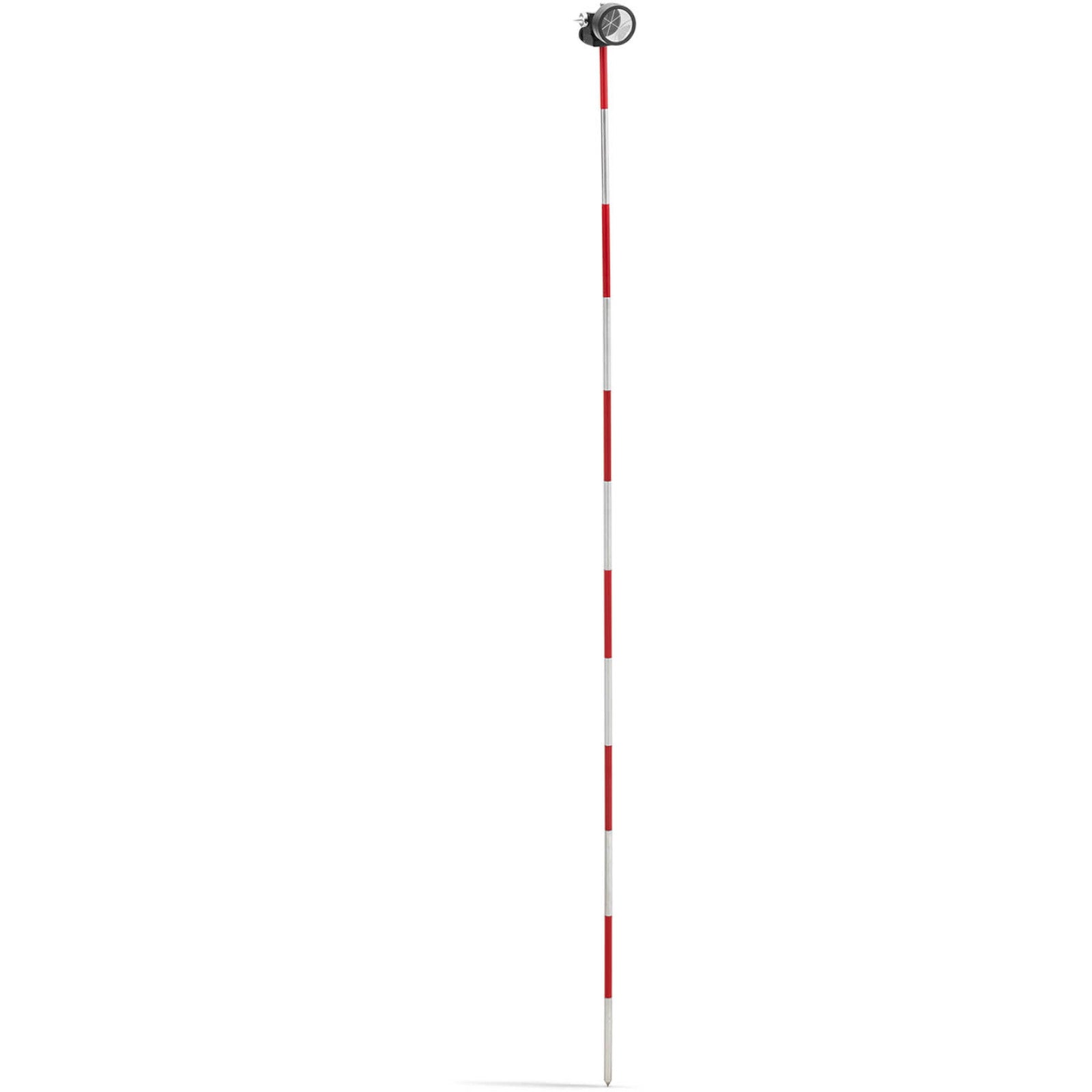

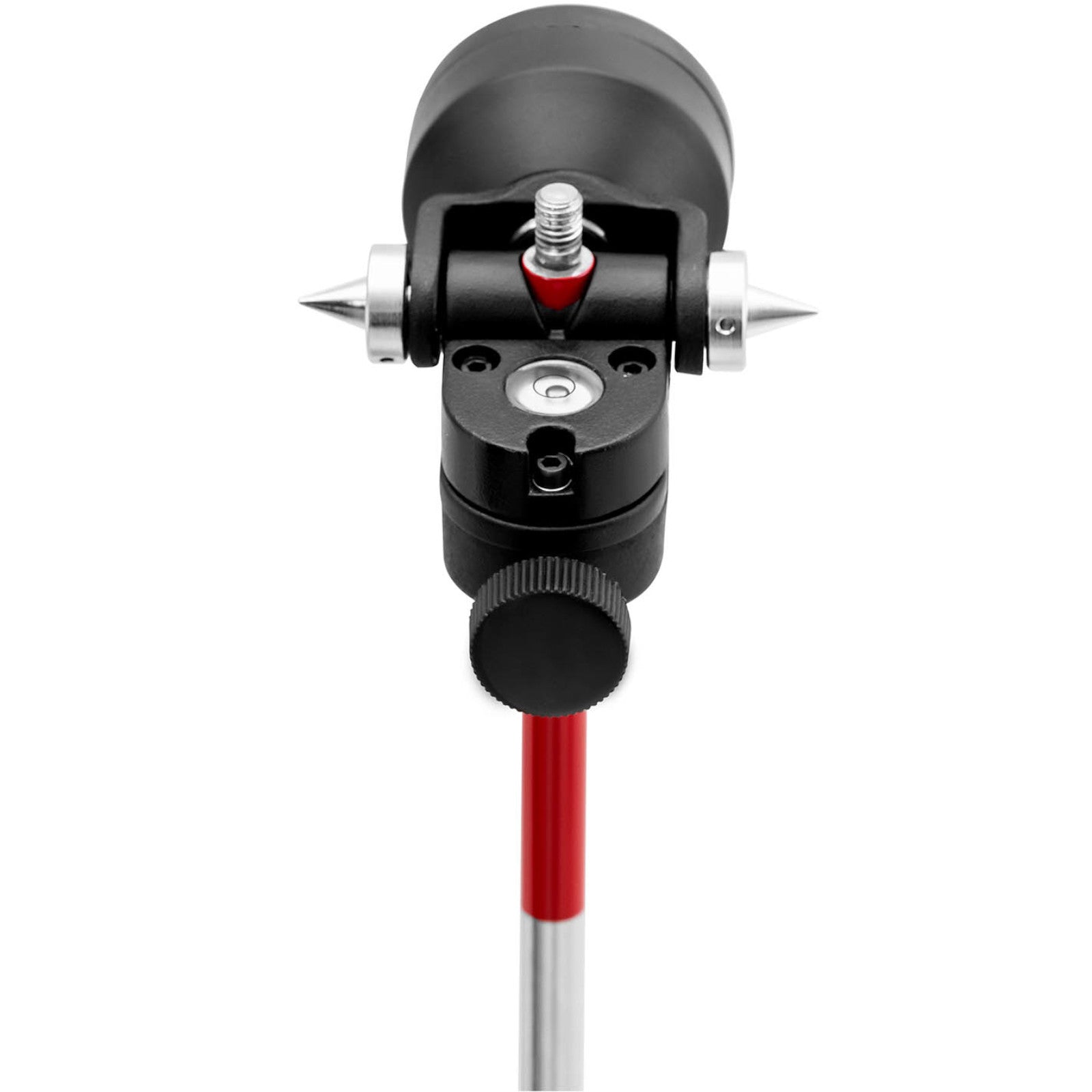

The Steinberg Systems mini prism allows you to quickly and efficiently set the Steinberg Systems total station. It can be used on construction sites or road construction. The mini prism is attached to the pole with an aluminum alloy bracket. For alignment, the support is guided along a pole with a length of 1.26 mand fastened with a connector. A spirit level has been integrated in the handle, which allows you to position the prism. The light and durable construction makes it easy to set the measuring point. 3.5 cm diameter and silver coating ensure optimal use of the device for all typical measurements.
Product features:
Technical parameters:
In the set:
Key features
| Specification | Detail |
|---|---|
| Model | SBS-MPSA-102 |
| Catalog number | 10031027 |
| Article condition | New |
| Material | Aluminum alloy, Chrome-plated steel |
| Offset [mm] | 0 |
| Pole diameter [mm] | 9 x 300 |
| Prism opening diameter [mm] | 33.4 |
| Total length [m] | 1.26 |
| Dimensions (LxWxH) [cm] | 125.5 x 4 x 6.5 |
| Weight [kg] | 0.8 |
| Shipping dimensions (LxWxH) [cm] | 50 x 8 x 7.5 |
| Shipping weight [kg] | 0.9 |
