Description
Manufacturer's code:

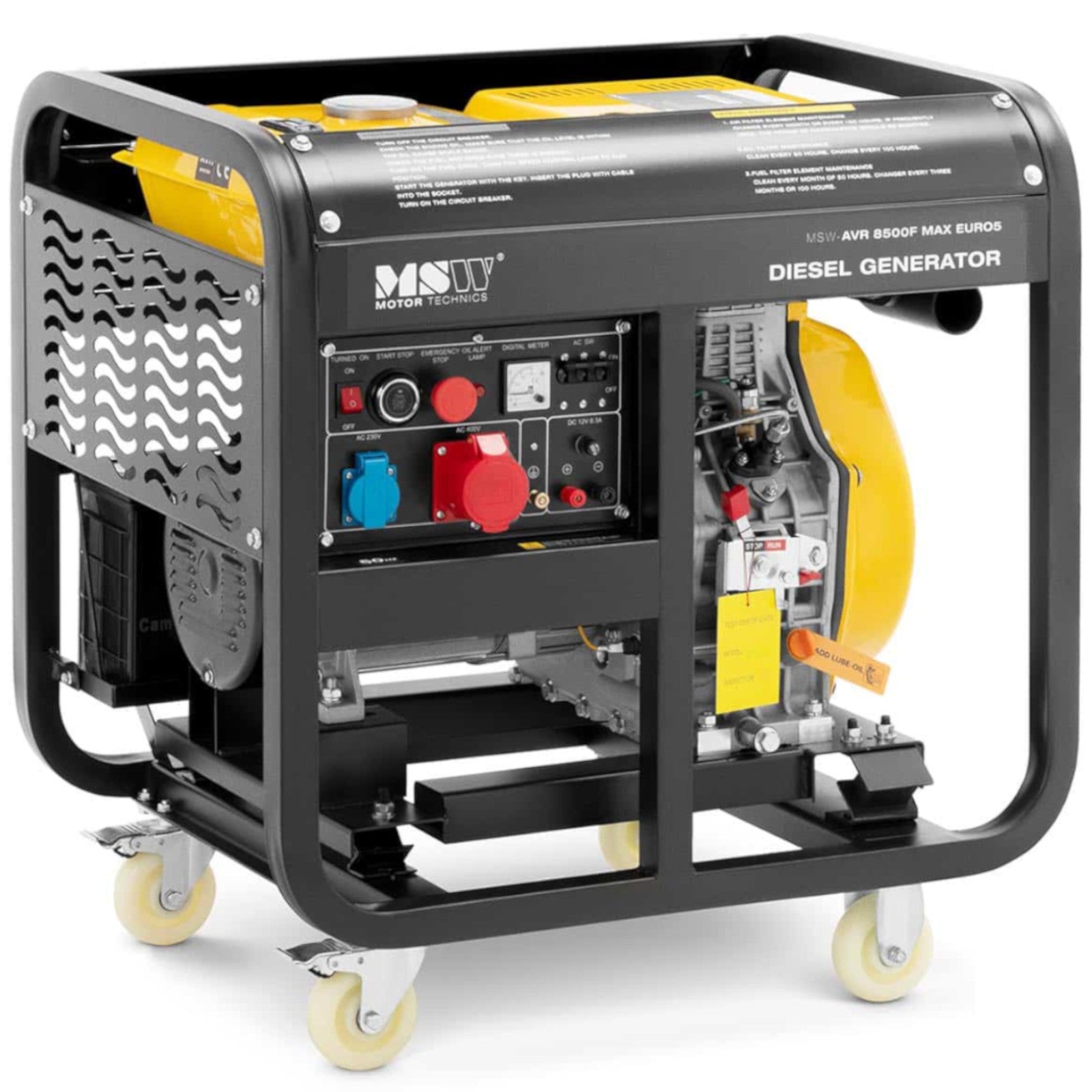

10062296The MSW diesel generator set will work in the event of a sudden power outage, providing the necessary electricity. This is made possible by a powerful
4-stroke diesel engine. The unit consumes only
30 liters of fuel per 11.3 hours. The device works with
power 2830 / 8500 W. Thanks to

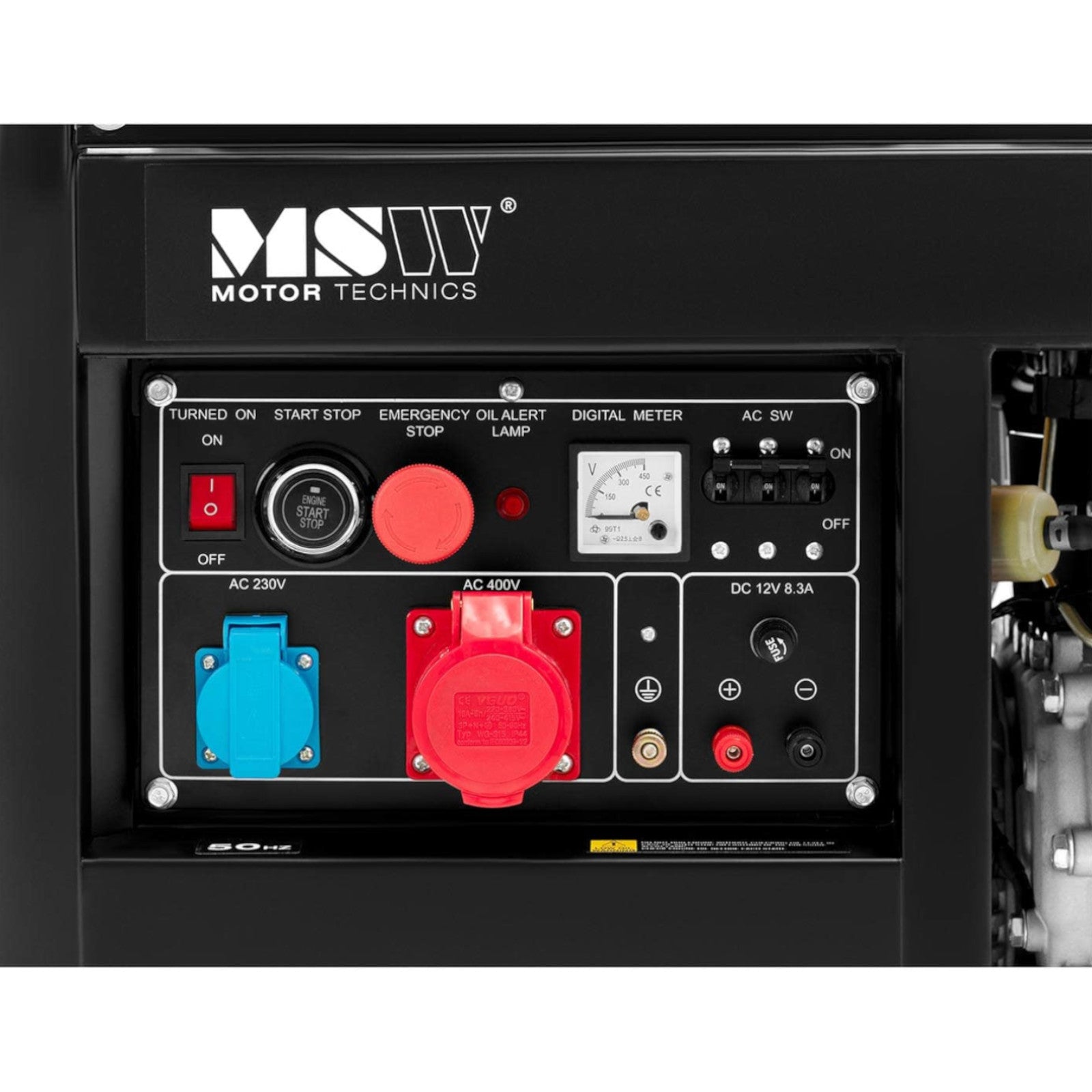

three sockets (240/400 V and 12 V)it can operate several different machines - even in parallel. The maximum power of a 230 V socket is 2,830 W, and a 400 V socket is 8,500 W. This makes the equipment ideal for emergency situations at home, in the office, at a campsite, on a boat or in the industrial sector. The generator is turned on using an electric or manual starter. All settings can be read from the display while working in real time. The device operates at a volume of
81 to 99 dB. The drive unit is safely constructed and cleanly finished. Effective air cooling protects the engine from overheating. Overload protection prevents motor damage in the event of overheating. The

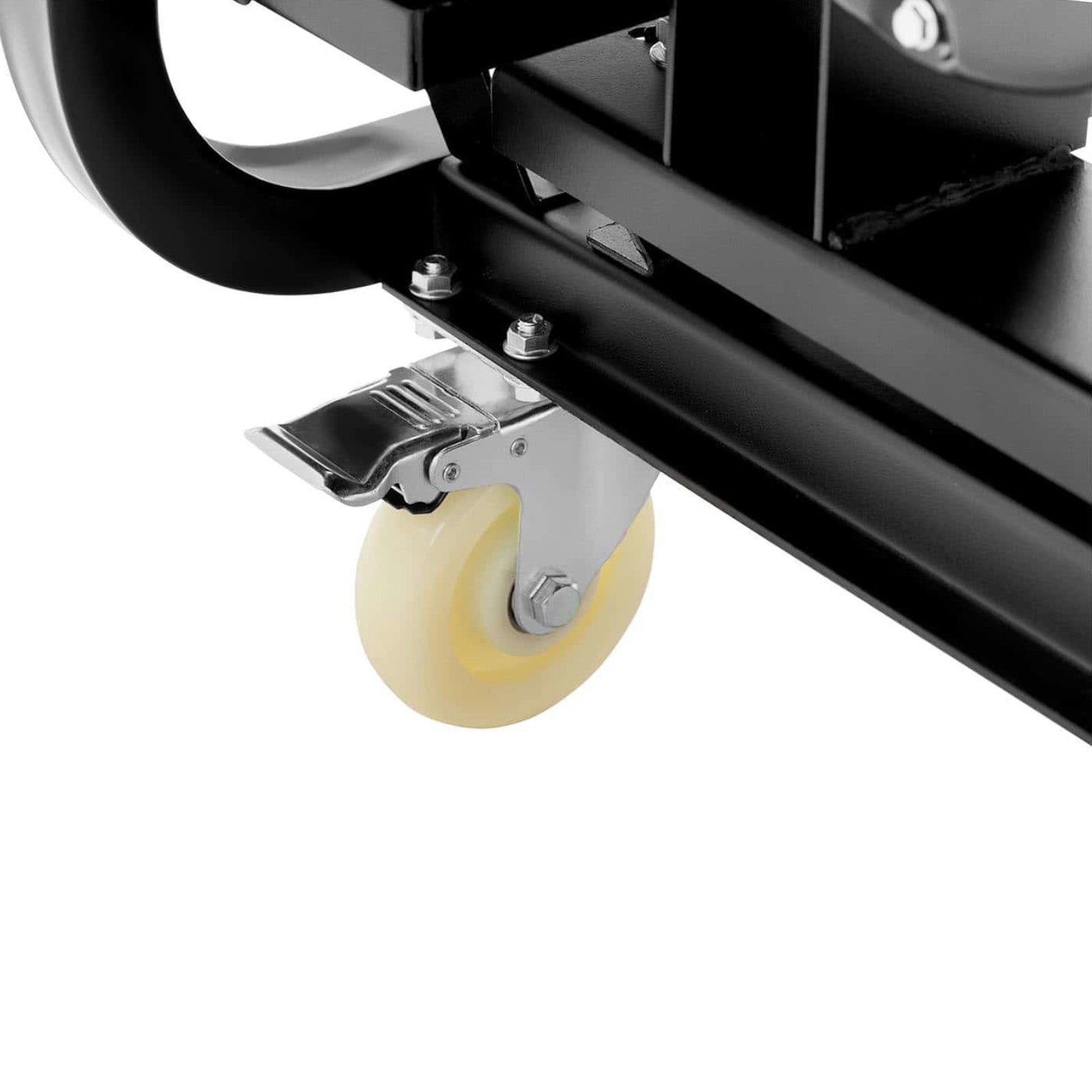

IP23 protection class also provides protection against water splashes at an angle of up to 60 degrees. The unit is protected against solid objects with a diameter of up to 12.5 mm. The compact device can be easily moved to a chosen place thanks to practical handles and wheels. The device is also equipped with an
AVR voltage regulator, an emergency switch and a low oil pressure sensor.
Product features: - - Maximum power 2830 / 8500 W or 10 kVA,
- - Up to 11.3 h of operation time on a full 30 l tank,
- - Simultaneous operation of various machines using three sockets with 240/400 V AC and 12 V DC,
- - High-quality materials and solid workmanship ensure the durability of the equipment,
- - Effective air cooling, overload protection and IP23 protection class.
Technical parameters: - - Catalog number - 10062296
- - Article condition - New
- - Model - MSW-AVR 8500F MAX EURO5
- - Noise level [dB] - 81
- - Material - Aluminum, Aluminum alloy
- - 12 V output - Yes
- - Carrying handles - Yes
- - Continuous power - 10
- - Cylinder diameter x stroke [mm] - 100x84
- - Stroke volume [cm³] - 660
- - Emergency stop switch - Yes
- - Engine model - 1100F
- - Engine speed [rpm] - 3000
- - Ignition system - Self-excitation
- - IP protection level - IP23
- - Fuel consumption [l/h] - 2.2
- - Fuel type - Diesel
- - Frequency [Hz] - 50
- - Fuel tank capacity [l] - 30
- - Rated output current [A] - 8.3
- - Rated output power [W] - 99.6
- - Overload protection - Yes
- - Oil tank capacity [l] - 2.5
- - Operating time with full tank [h] - 11.3
- - Motor - AC synchronous operation
- - Rated power 50 Hz [kVA] - 10
- - Power factor - 1
- - Rope length [m] - 1.7
- - Maximum power [W] - 2830 / 8500
- - Rated output voltage [V] - 12
- - Pulse width modulation - Yes
- - Oil type engine - SAE 10W30 (above CD stage)
- - Starting - electric
- - Sound power level [dB] - 81
- - Sound pressure level [dB] - 99
- - Fuel consumption [g/kWh] - ≤230
- - Voltage regulator - Yes
- - Operating temperature range [deg C] - -10 - 40
- - Voltage [V] - 240/400

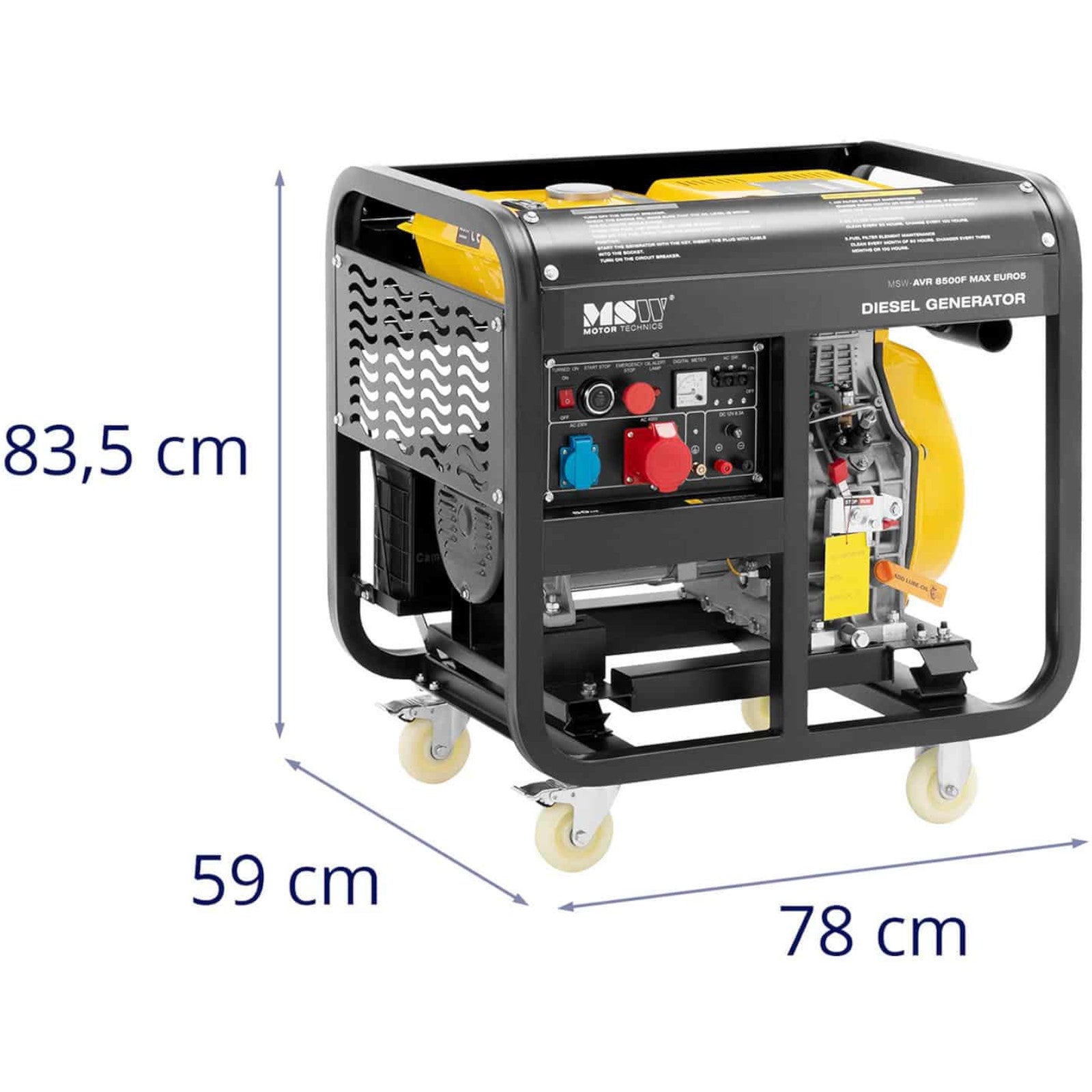

- - Dimensions (LxWxH) - 78 x 59 x 83.5 cm
- - Weight - 144.2 kg
- - Shipping dimensions (LxWxH) - 80 x 61 x 83.5 cm
- - Shipping weight - 158.5 kg

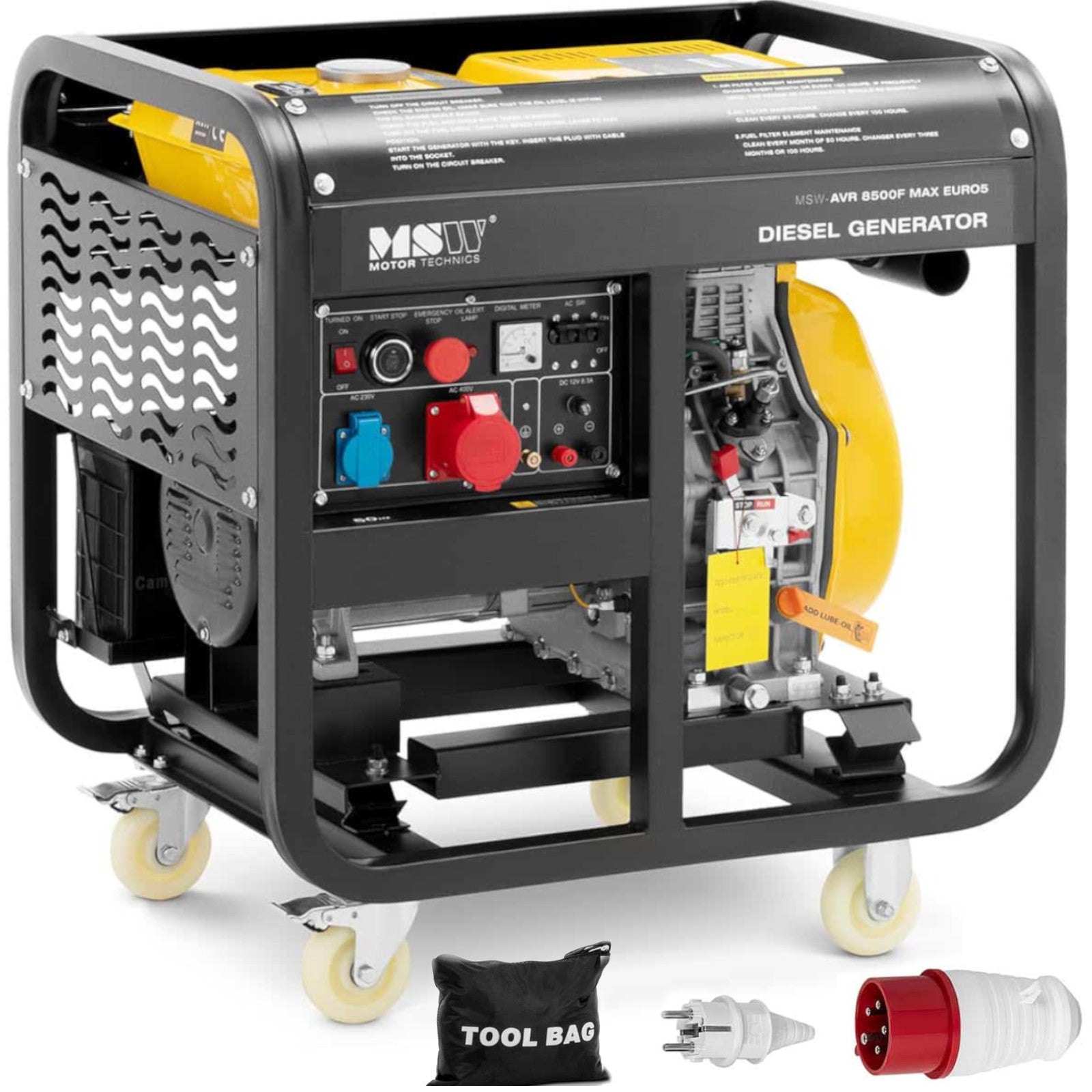

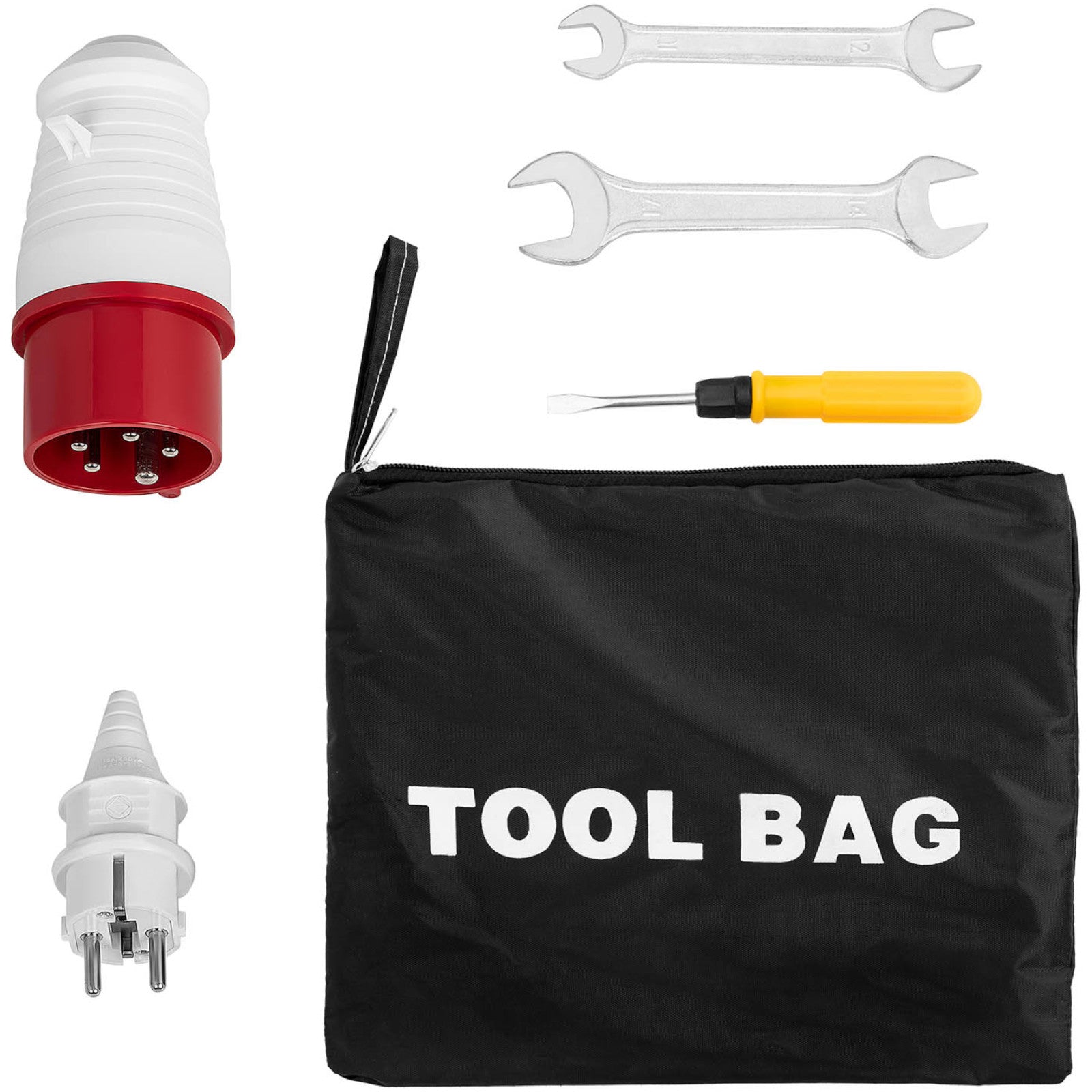

Included:
