Description
Manufacturer's code:
10021167Stamos Soldering Laboratory Power Supply allows to provide external devices with a fixed current with a certain voltage. It will be suitable in industry, laboratories, telecommunications, workshops and more. Excellent equipment efficiency results from the use of one channel providing output voltage in the range
0-30 V and current from 0 to 50 AThe device generates a very low pulse and noise current (≤ 1% RMS) that does not damage the power circuit. The power supply is adjustable by knobs and the set parameters are shown on the
LED displayThe red colour is visible even in dark spaces. The intelligent safety system provides protection against overheating. It activates the fan when the temperature is too high. Equipment also has protection by too much voltage and power. Compact dimensions allow you to fit the device even on a small workstation.
Rubber feet they are responsible for stability.
Product features: - - Maximum output power at 1500 W,
- - One channel providing max. output voltage 30 V and output current up to 50 A,

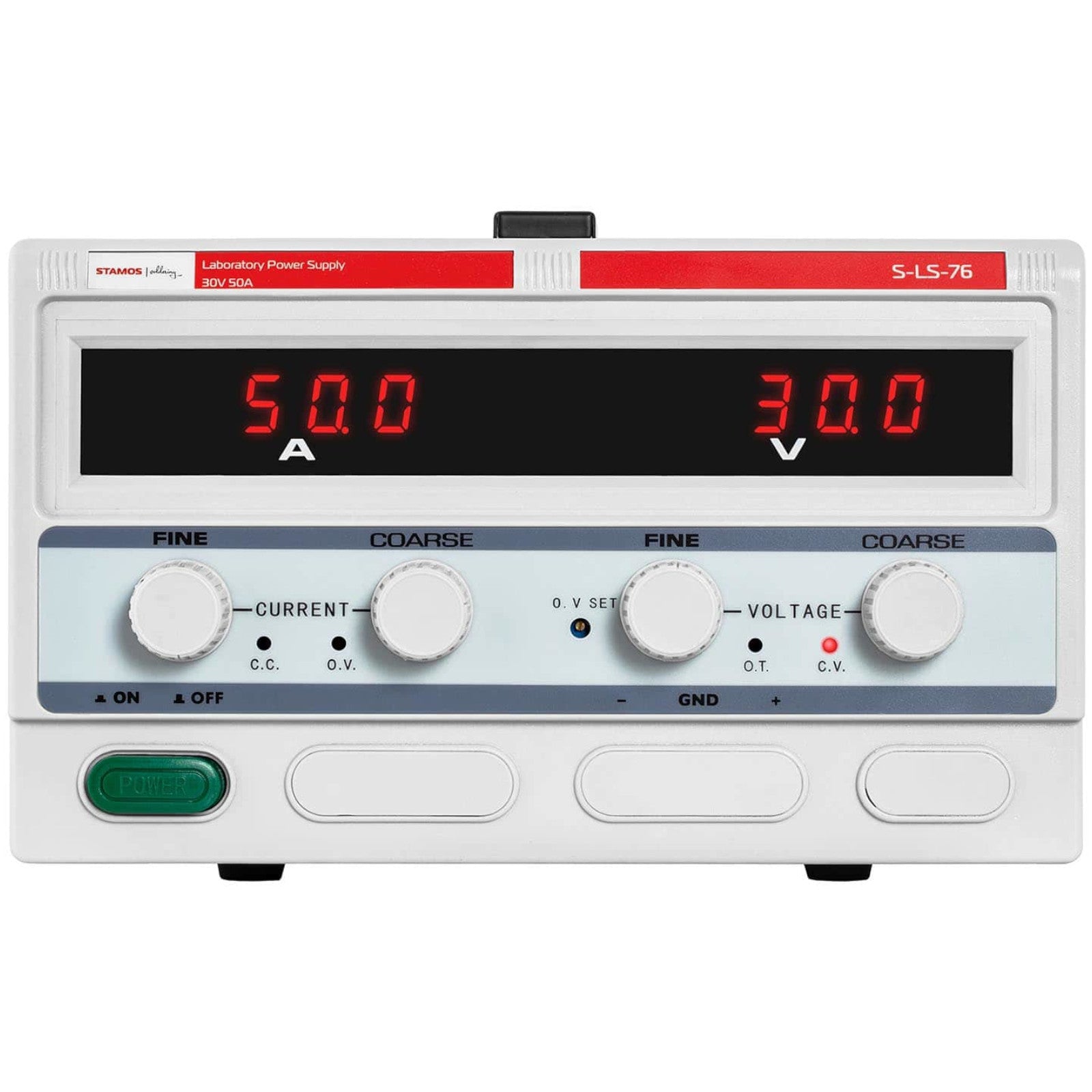

- - The knob panel ensures easy and accurate setting of voltage and current values, LED display shows the parameters,
- - Multiple security features in this heat, too high voltage and power,
- - Rubber feet prevent slipping and drawing surfaces.
Technical parameters: - - Catalog number - 10021167
- - The state of the article - New
- - Model - S-LS-76
- - Connector [mm] - Output socket/power socket/ground output
- - Cooling - Fan/temperature control
- - Color - Black
- - Flashback [A] - 15
- - Voltage stabilisation factor - CCV: ≤ 0,2 mV/C: ≤ 0,5% mA
- - Current stability factor - ≤ 0,3 %
- - Type - Impulse
- - Output current [A] - 0 - 50
- - Security - OVP / OTP / OPP
- - Power cord [m] - 1.1
- - Output voltage [V] - 0 - 30
- - Display - LED
- - Voltage [V] - 230
- - Power [W] - 1500
- - Marked input current [A] - 50
- - Pulse ox - ≤1% RMS
- - Dimensions (DxSxW) - 32 x 20 x 15.4 cm
- - Weight - 5 kg
- - Dimensions of dispatch (DxSxW) - 46.5 x 33 x 22.5 cm
- - Weight of shipping - 7.04 kg
Included: - - Laboratory power supply.

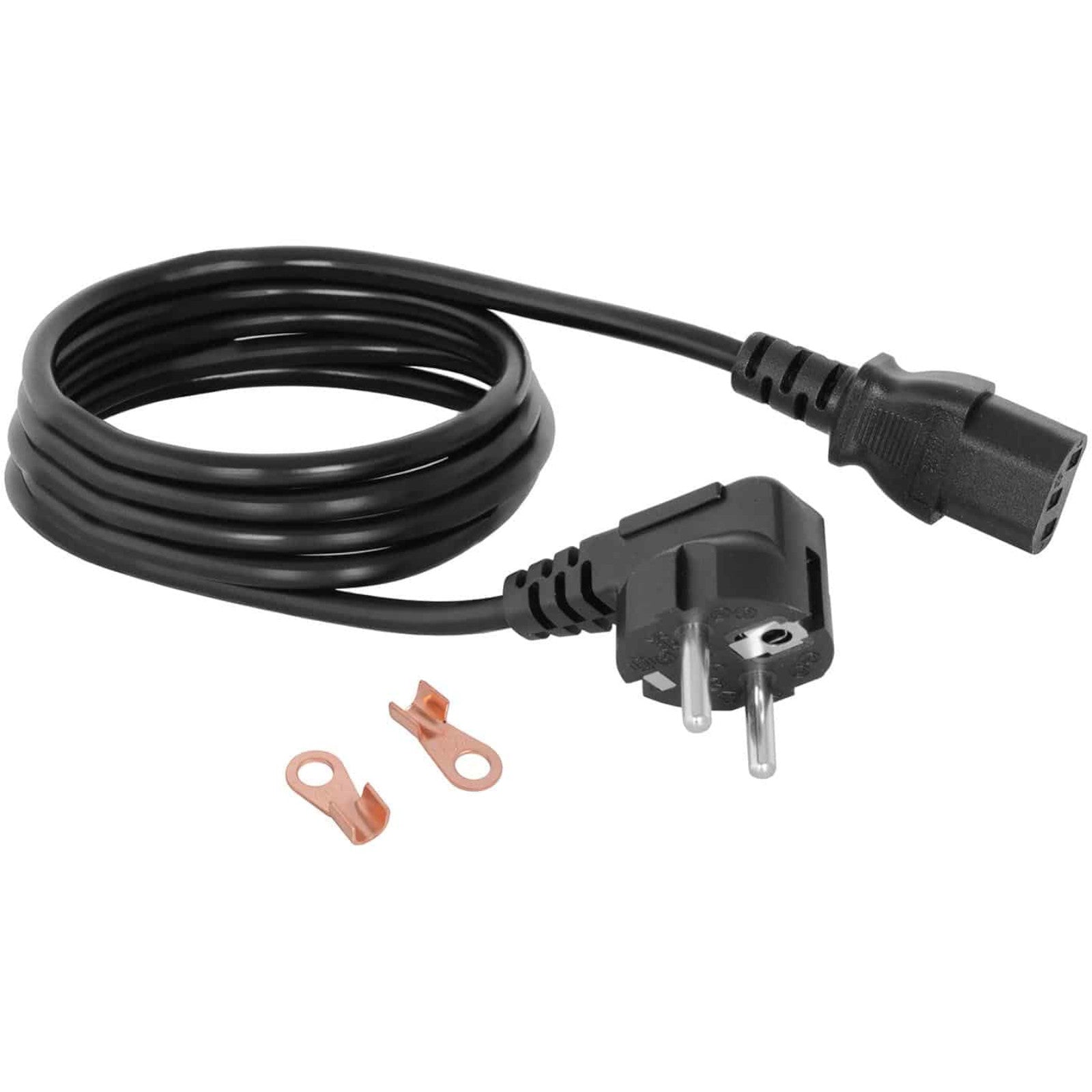

- - Power cord
- - User manual
