Description

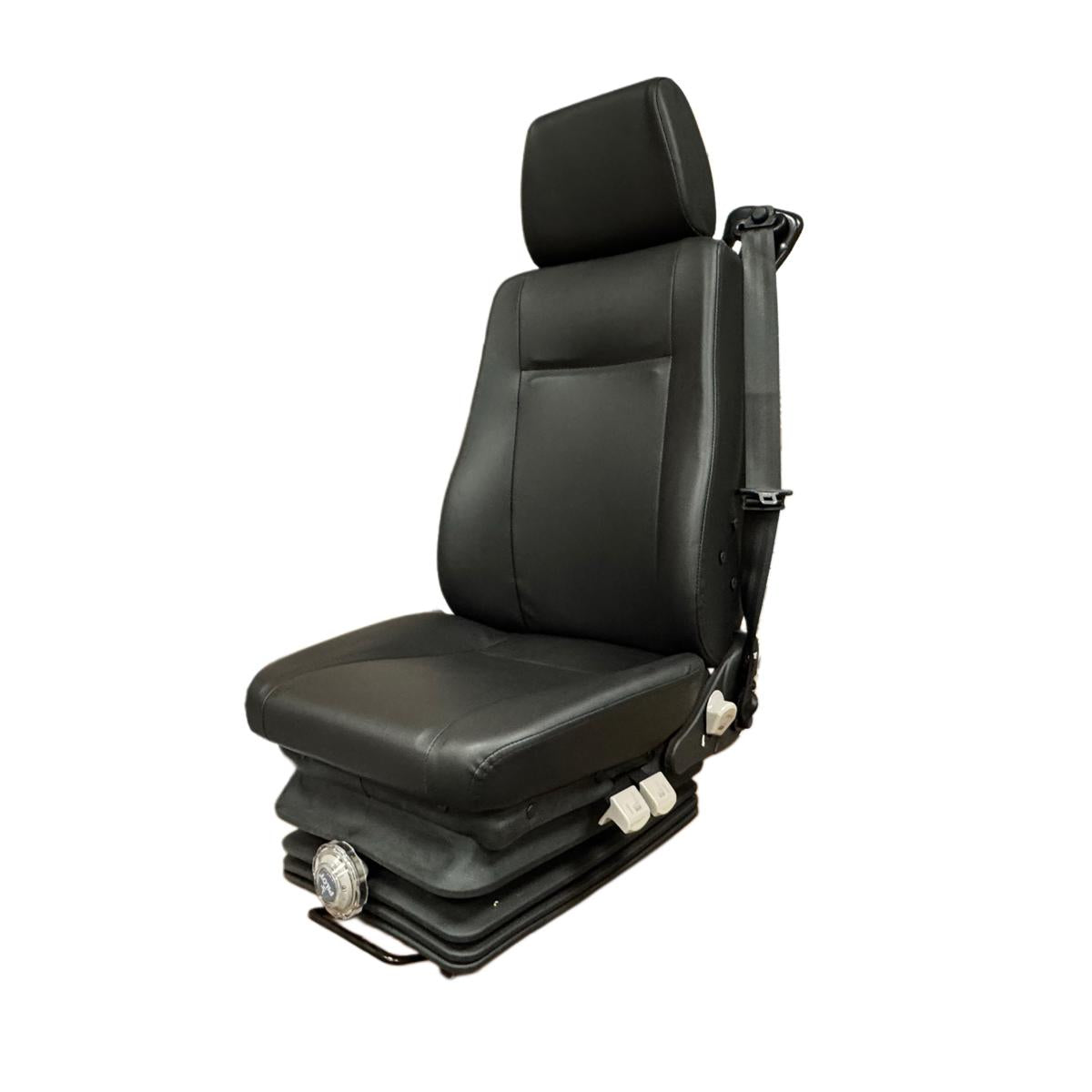

Pilot P1098/M80H — Mechanical Suspension Seat (216 mm)
Robust mechanical suspension seat with a spring-activated system and front-mounted controls—ideal where side access is limited. Comfort comes standard with recline, adjustable lumbar, headrest and height/tilt adjustment.
Key features
-
Mechanical suspension (spring-activated)
-
Weight adjustment: up to 150 kg
-
Suspension stroke: 80 mm
-
Slide travel: 190 mm
-
Height & tilt adjustment: 60 mm
-
Adjustable lumbar support & headrest
-
Backrest recline with easy reach controls
-
2-tone fabric upholstery
-
Standard connection width: 216 mm (adapter brackets available)
Technical specifications
| Suspension |
Mechanical, spring-activated |
| Weight adjustment |
Up to 150 kg |
| Suspension stroke |
80 mm |
| Fore–aft slide |
190 mm |
| Height/tilt adjust |
60 mm |
| Controls |
Front-mounted |
| Connection width |
216 mm |
| Testing |
ECE R14, ECE R25, M3/N3 |
Options
- Integrated 3-point seat belt
-
Turntable (swivel)
- Adjustable armrests
- Seat heating
- Operator presence switch
-
Vinyl or leather upholstery
Note: Additional connection widths available via adapter brackets—ask our team for the best fit for your machine.
