Description
Manufacturer's code:

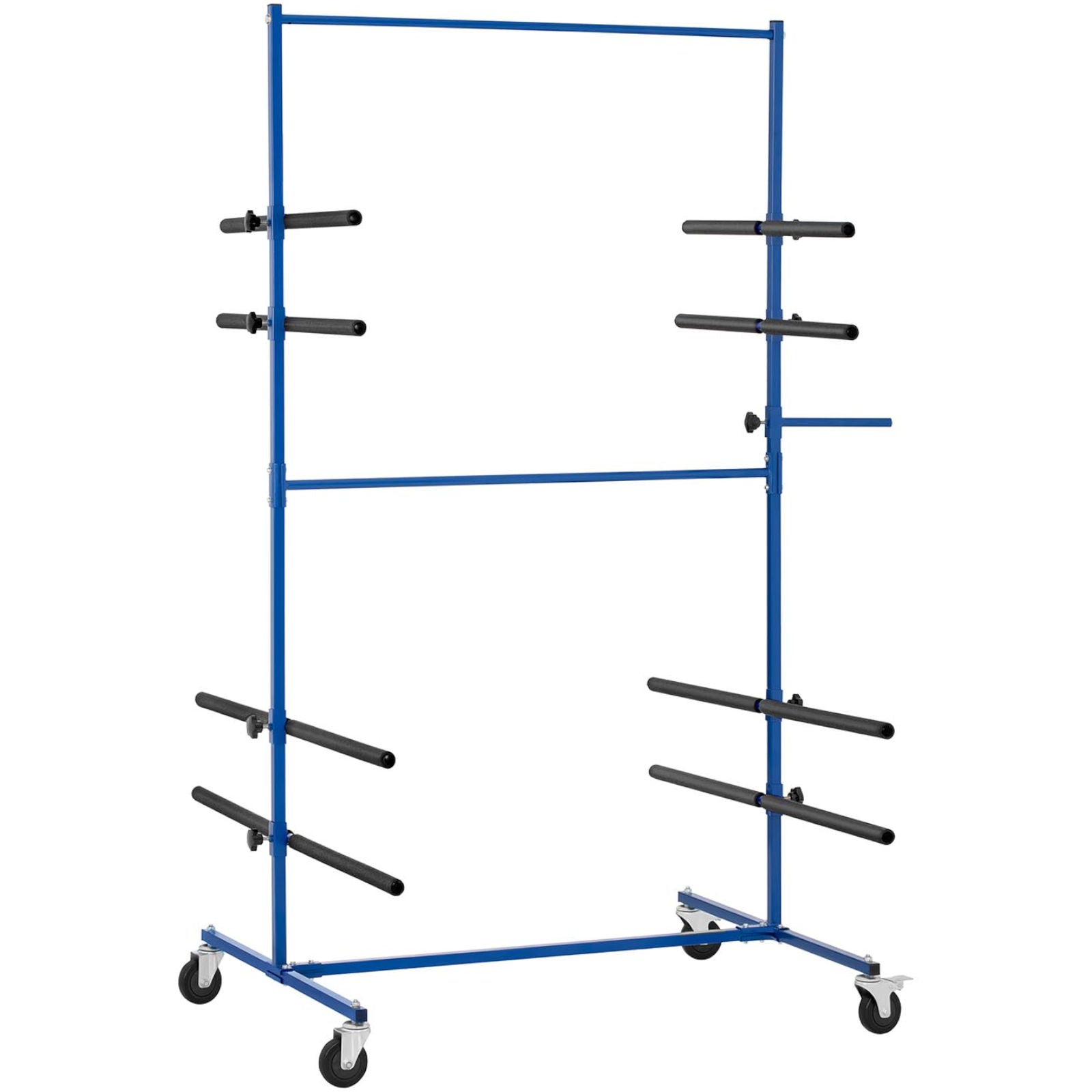

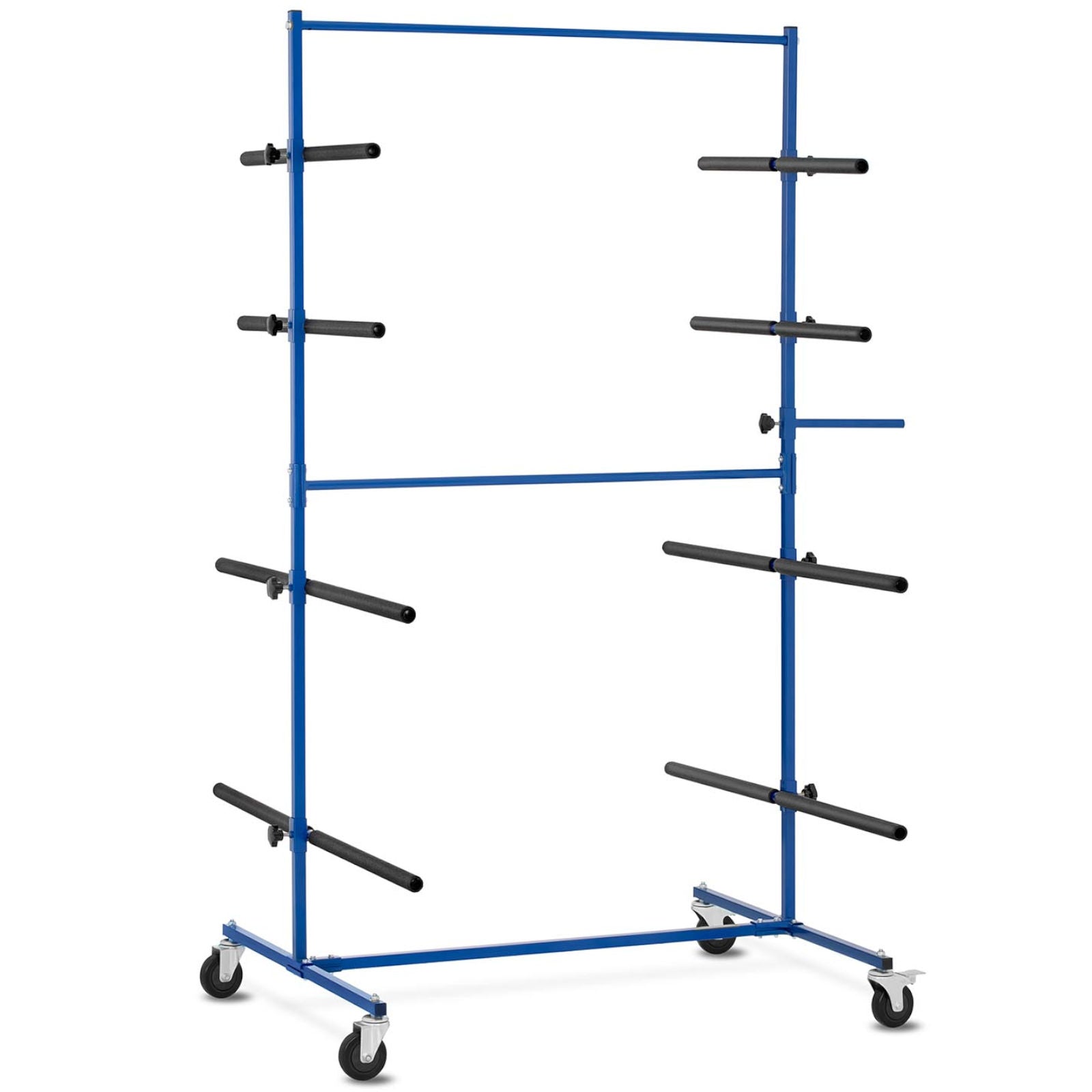

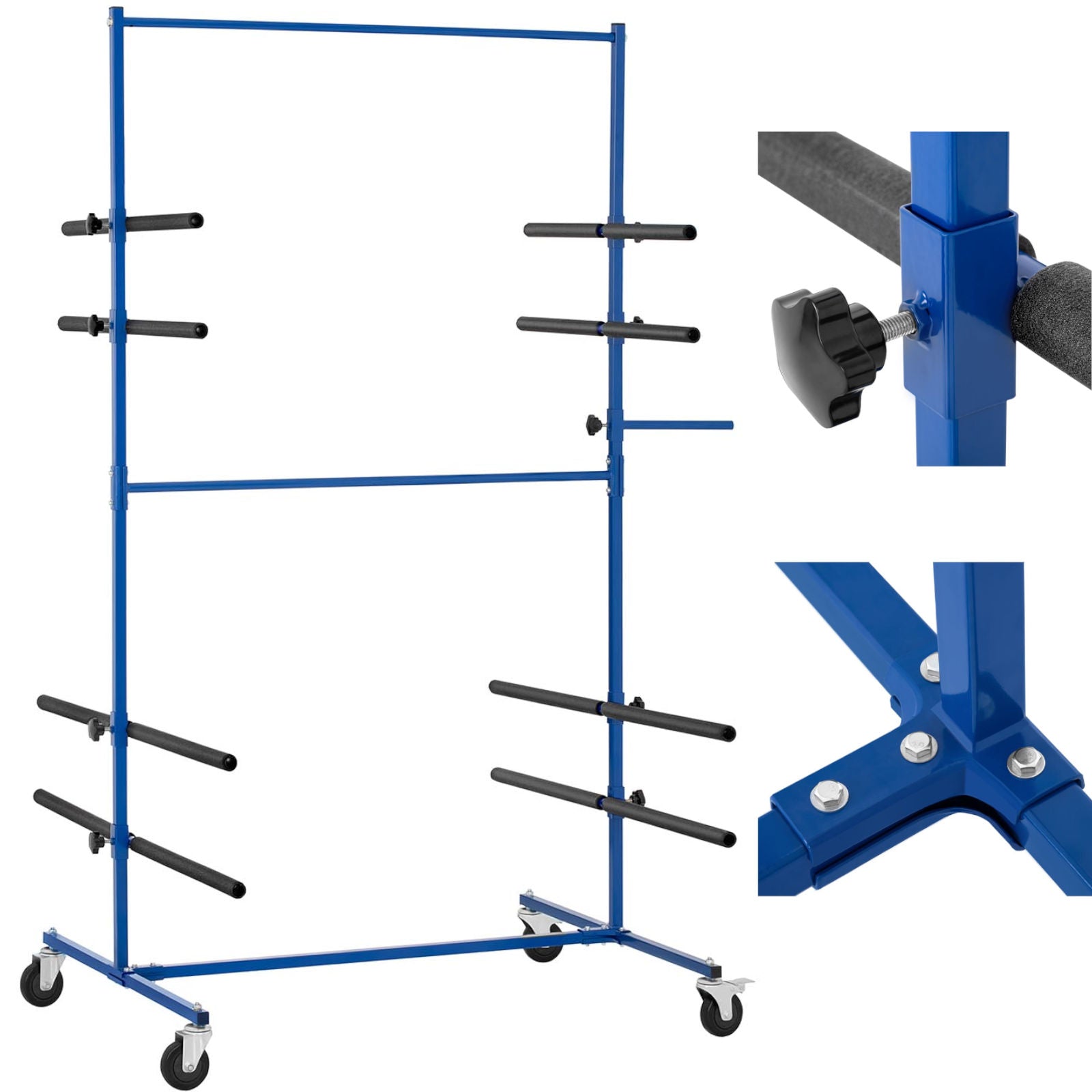

10060911The MSW brand paint stand will work well in any automotive, paint or body shop for painting and drying car bodies.
The stand has a
steel structure, the maximum load of the whole is 160 kg and of a single
hanger 20 kg. A large drying area was achieved by equipping each side of the stand with

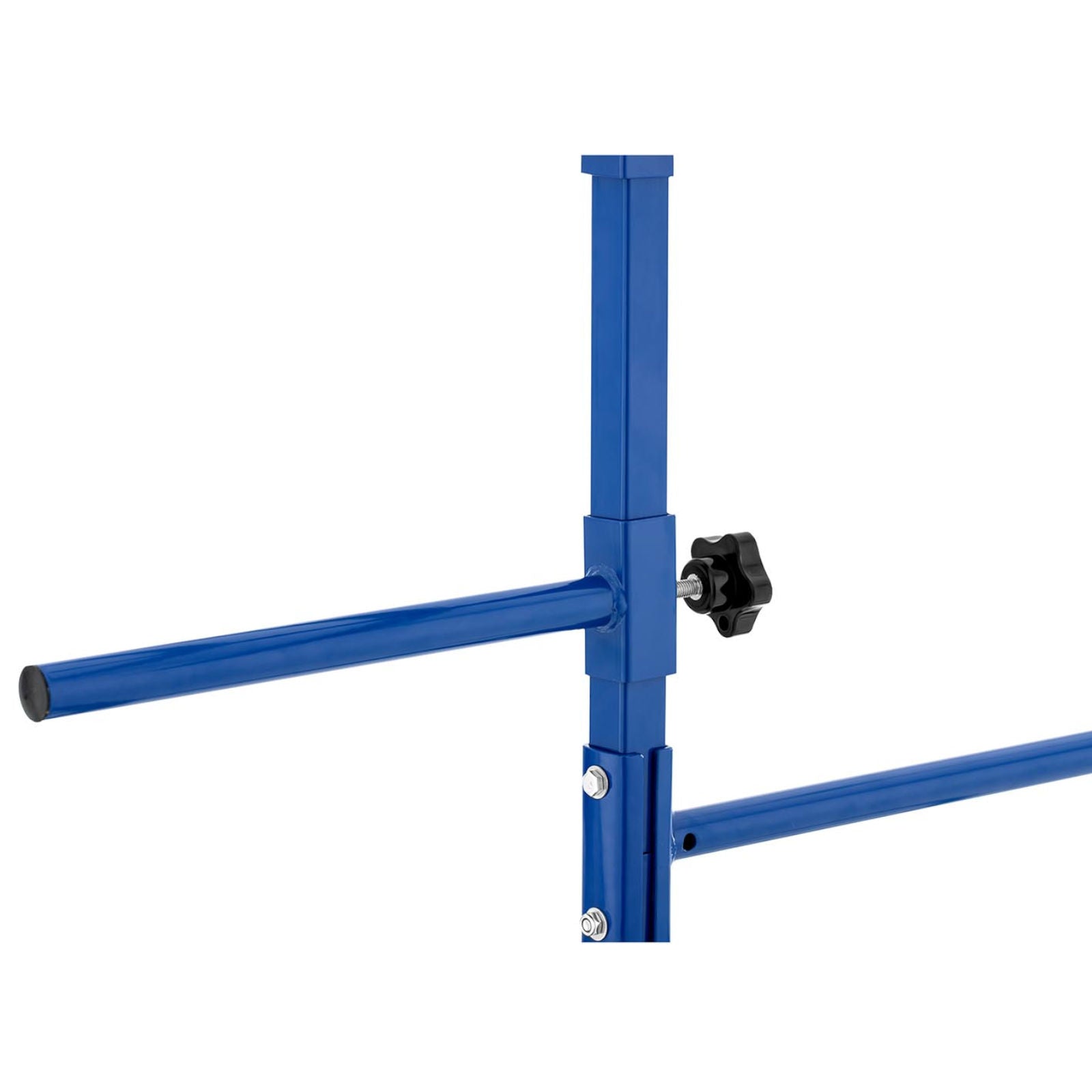

8 hangers. The height of the crossbars can be freely adjusted. The shelf has wheels that make it easy to move.
Product features: - - Large surface - double-sided stand with 8 crossbars on both sides,
- - Stable structure - max. load of the whole is 160 kg and of a single hanger 20 kg,
- - Mobility - wheels for efficient movement,
- - Easy assembly - easy to assemble even by 1 person.
Technical parameters: - - Model - MSW-BPS1
- - Catalog number - 10060911
- - Article condition - New
- - Material - Steel
- - Maximum load - 160 kg
- - Maximum load of a single arm - 20 kg
- - Wheel diameter - 98 mm
- - Wheel material - Polyurethane
- - Dimensions (LxWxH) - 153.5 x 117.5 x 214.5 cm
- - Weight - 19.3 kg
- - Shipping dimensions (LxWxH) - 122.5 x 42 x 11.5 cm
- - Shipping weight - 21.15 kg
H set: - - Main arm of the base

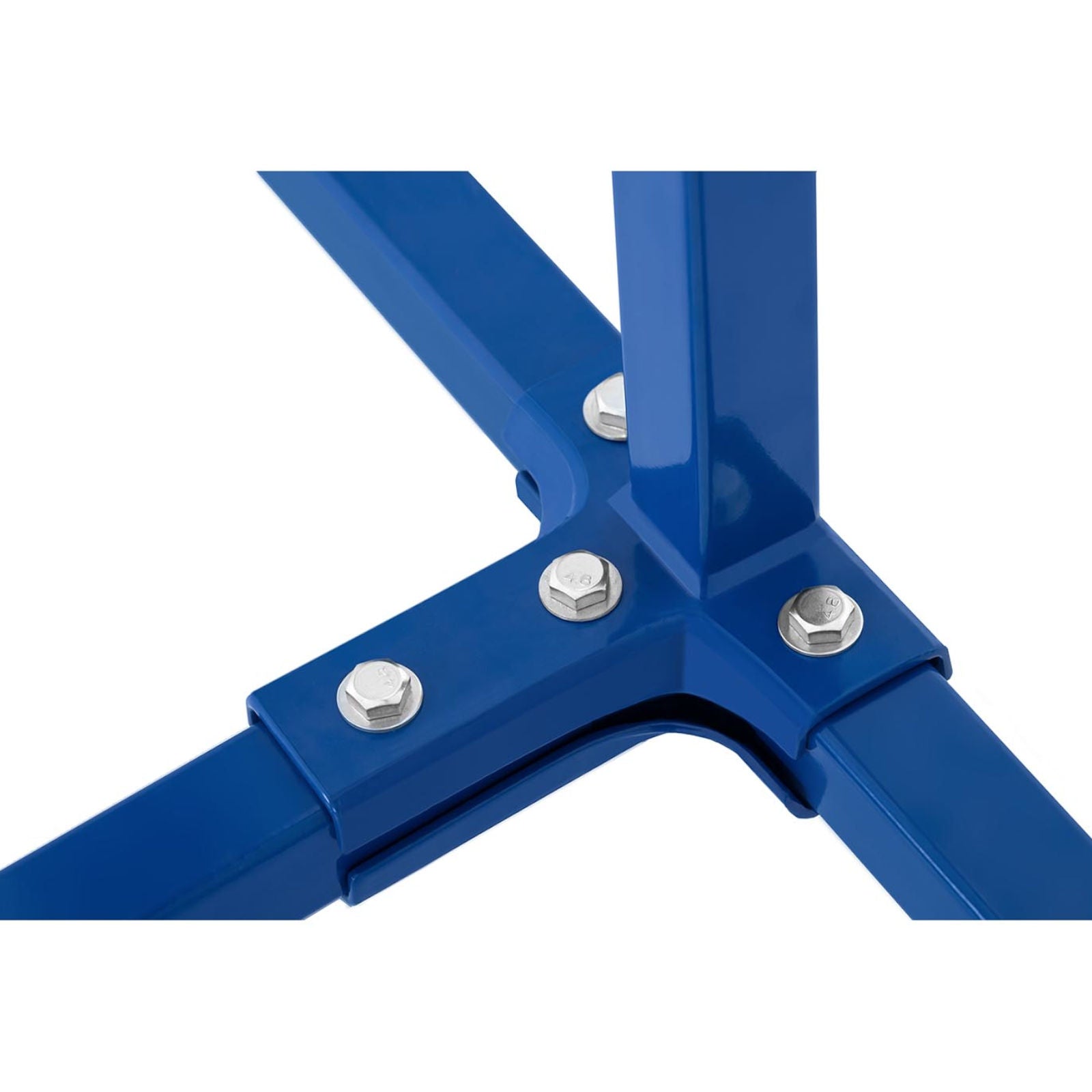

- - Side arm of the base - 2 pcs.
- - Wheel - 4 pcs.
- - Lower stand element with mounting element - 2 pcs.
- - Upper stand element - 2 pcs.
- - Upper crossbar
- - Lower currant with mounting element
- - Long hanger - 2 pcs.
- - Short hanger - 4 pcs.
- - Connector "T#8221 - 4 pcs.
- - M6 screw - 2 pcs.

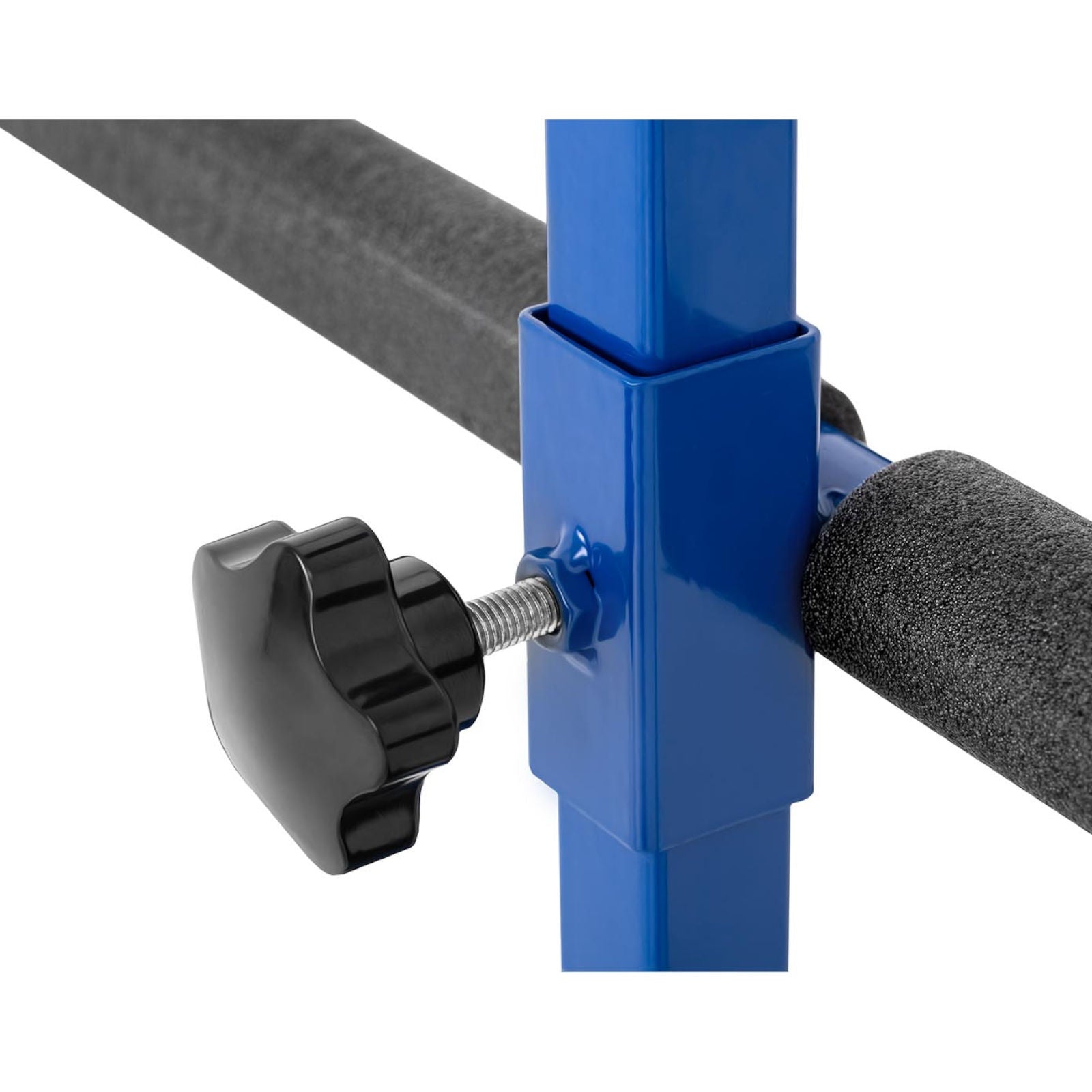

- - Clamping screw - 12 pcs.
- - Handle
- - Fixing element - 2 pcs.
- - Screw M10 - 2 pcs.
- - User manual
