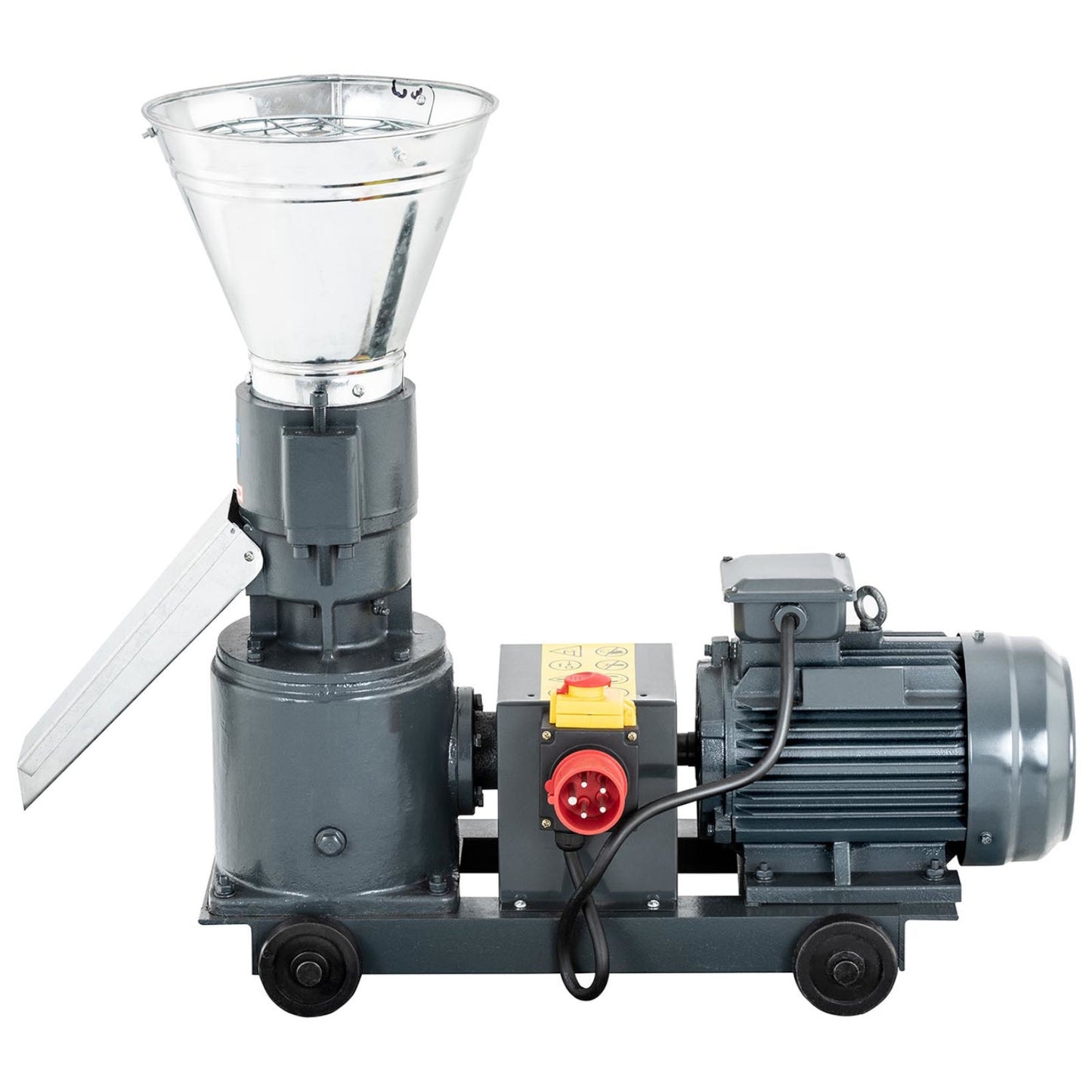

Pellet machines – Pellet machine, industrial sawdust feed pellet machine,

Pellet machines – Pellet machine, industrial sawdust feed pellet machine,

11 in stock

Quantity
Regular price €1.408,08 EUR
Regular price €1.637,30 EUR Sale price €1.408,08 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Overview

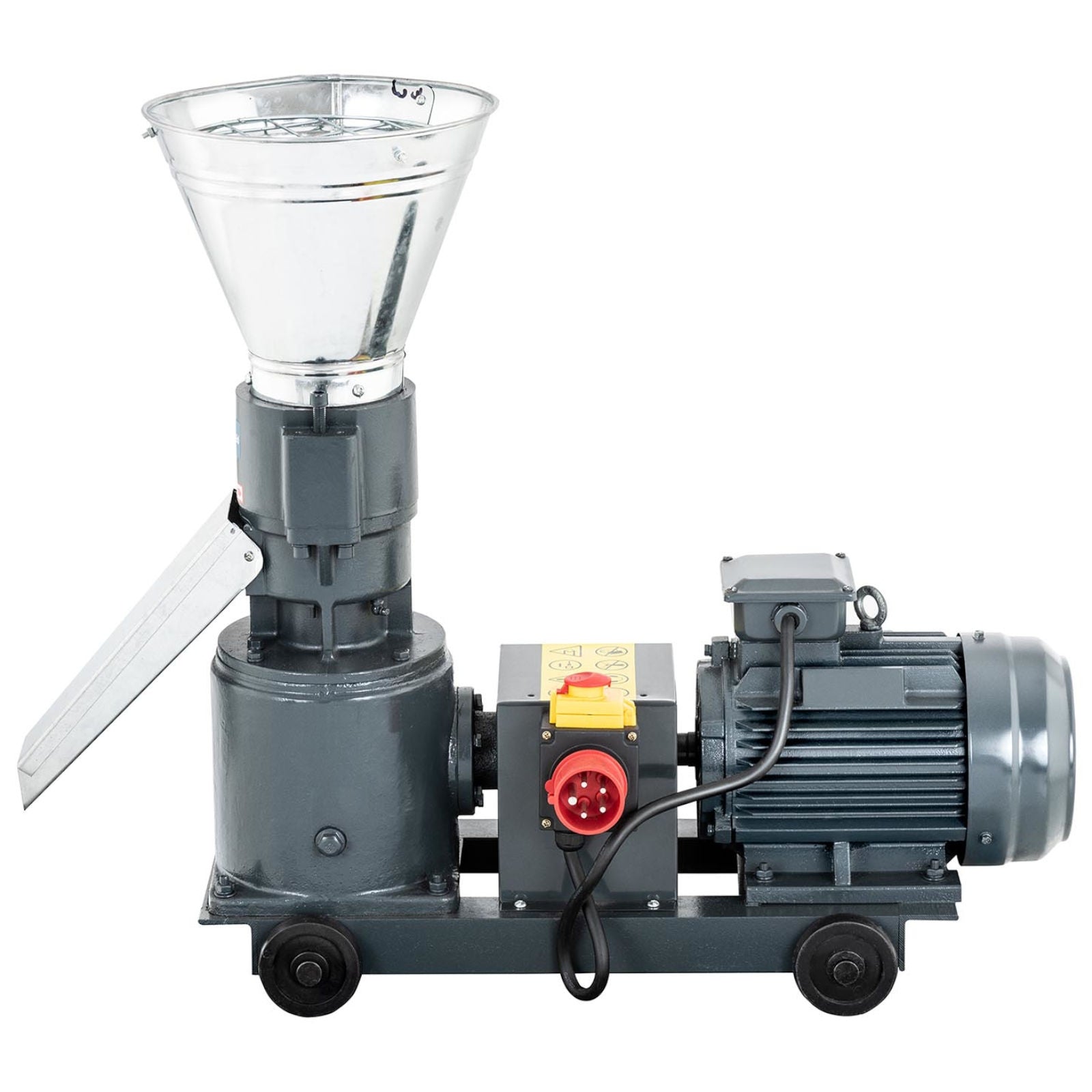

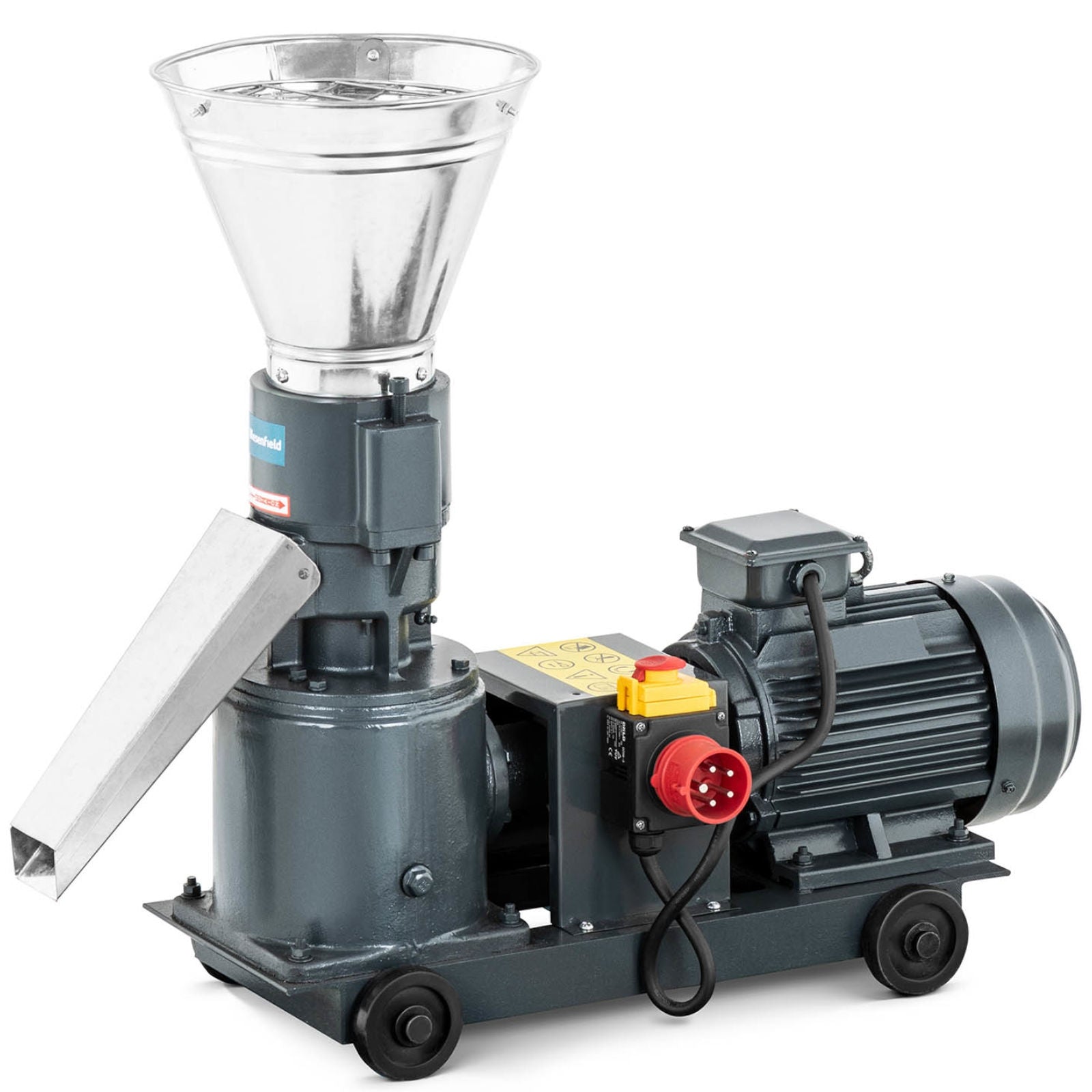

The Pellet machine, industrial sawdust feed pellet machine, 100 kg/h dia. 120mm from WIESENFIELD brings pellet machines you can rely on, made for your workshop & garage needs. A popular choice in Workshop garage, WIESENFIELD.

Manufacturer's code: 10280043

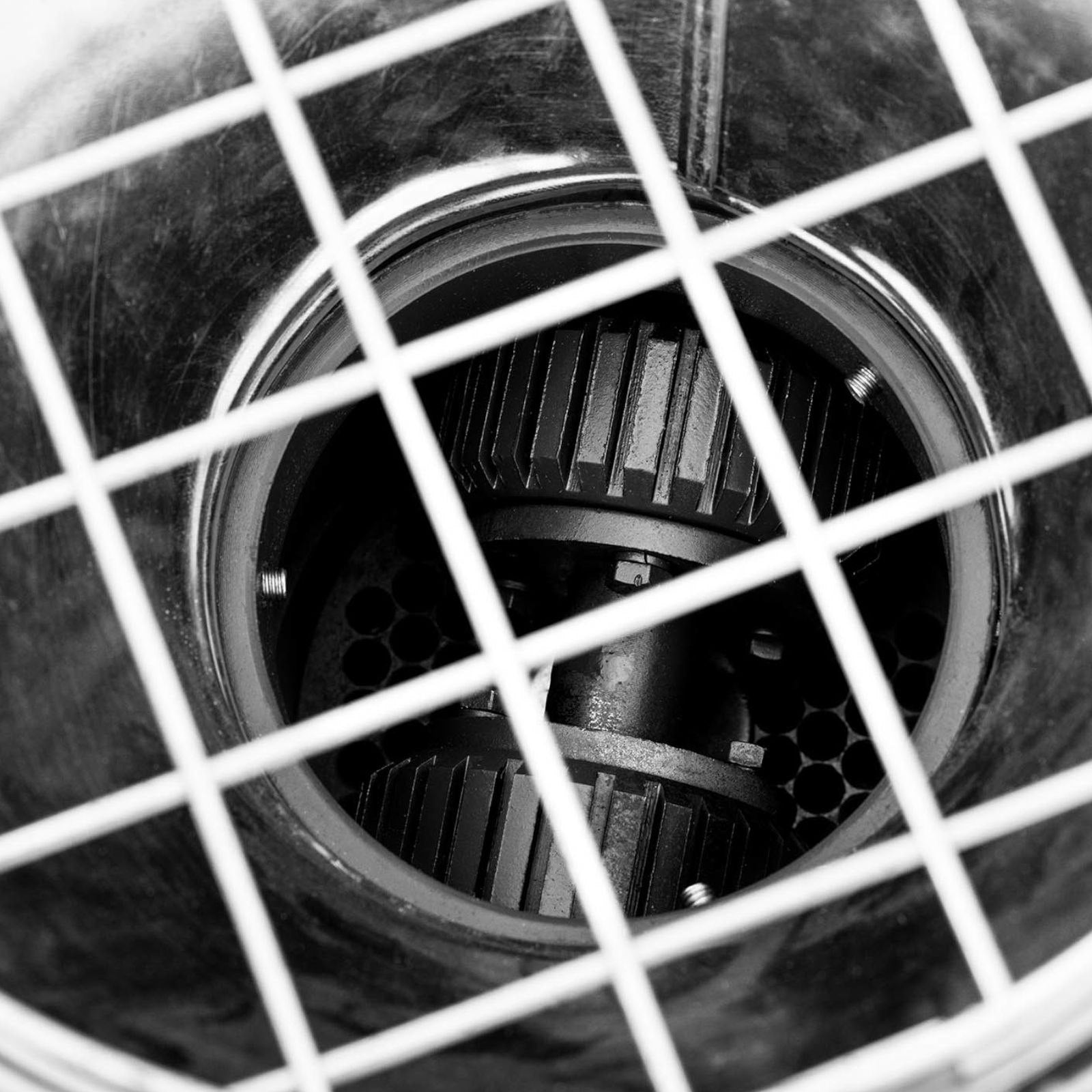

The professional industrial pellet machine by Wiesenfield is used to produce pellets, animal feed and granules from various organic materials. The granulator allows you to use wood sawdust, straw, nut shells, rice husks or paper. They are placed in a special matrix with holes of 6 mm in diameter, where they are exposed to high pressure and temperature (60-80 degrees Celsius). Some materials require the use of special binders. The pellet machine is capable of producing60-100 kg of feedand40-60 kg of sawdust pelletsper hour. A specialemergency brake ensures user protection. 4 wheels ensuremobility of the machine and facilitate transport.

Product features:

Technical data:

Key features

Production of pellets for heating and fertilization,
Production of fodder for feeding animals,
3000 W motor,
Die with a diameter of 120 mm,
Pellet diameter 6 mm,
Operating temperature from 60 to 80deg C,
Compact, mobile and easy to use,
Cast iron and alloy steel

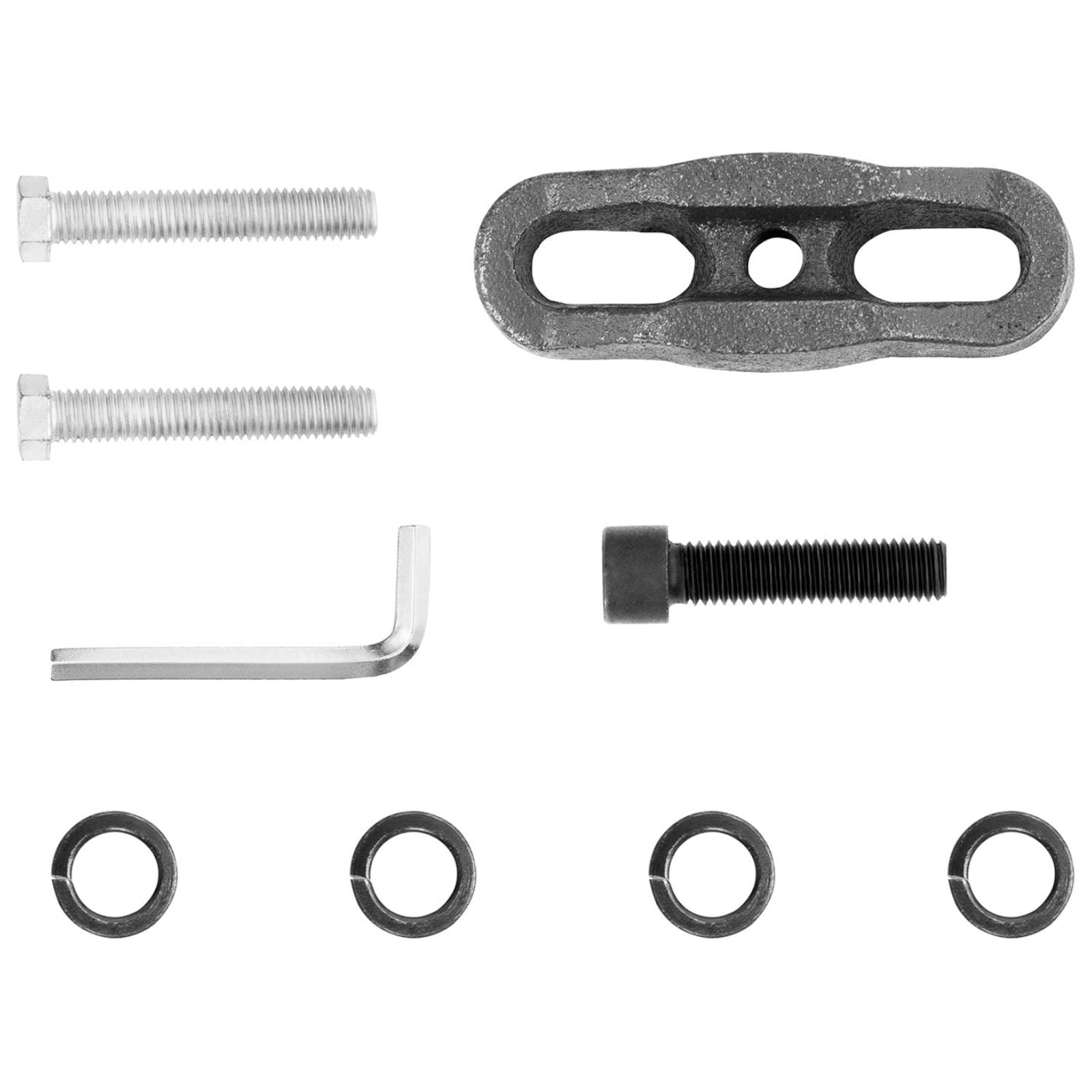

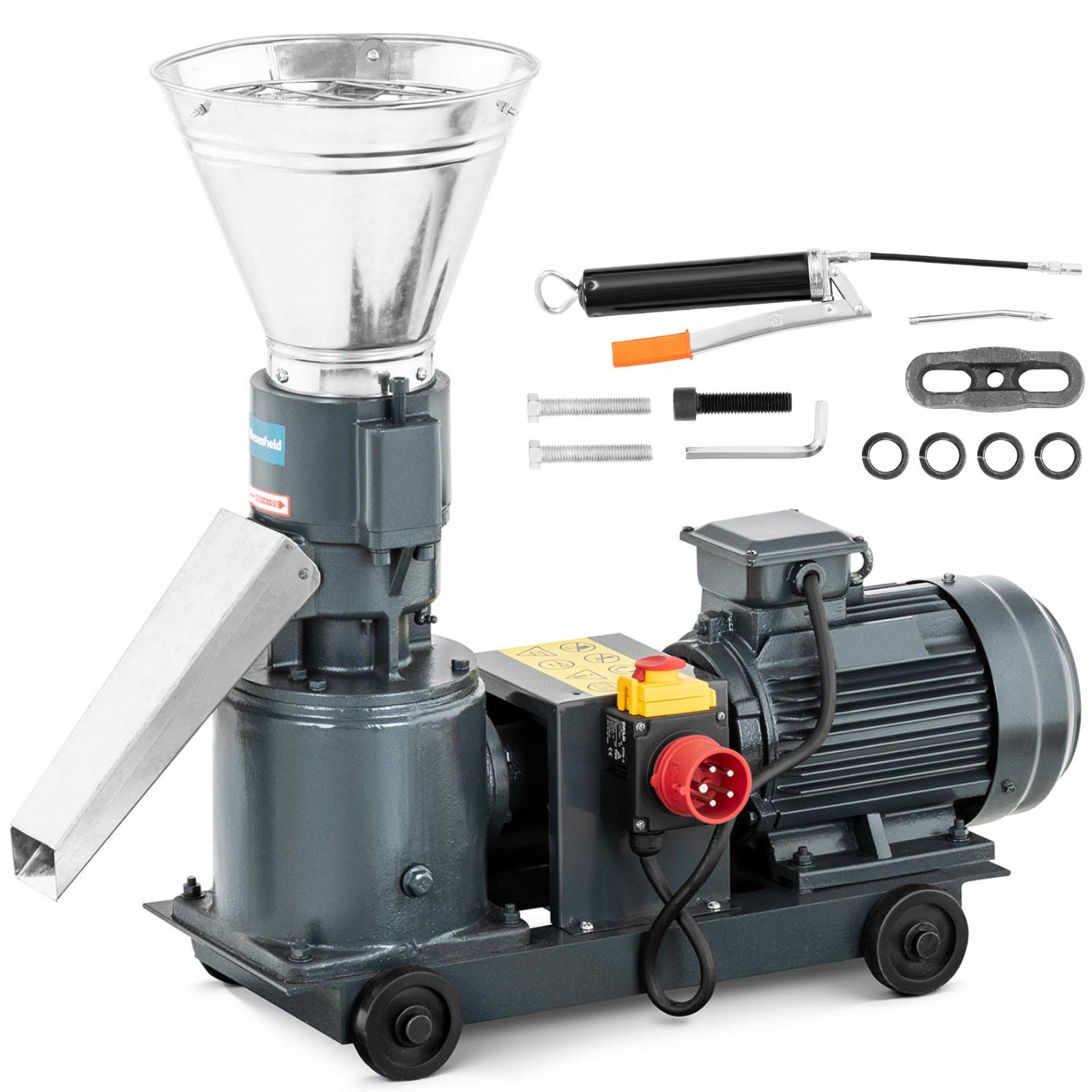

Pellet machine,
Wheels dia. 81 x 22 mm - 4 pcs,
8 mm Allen key,
Puller,
M10 screws - 5 pcs,
Flat washers dia. 10 mm - 5 pcs
Spring washers dia. 10 mm - 7 pcs
Wheel holders - 4 pcs
User manual
Technical specification
SpecificationDetail
ModelWIE-PM-500
Catalog number10280043
Article conditionNew
ManufacturerWiesenfield
Voltage [V]400
User manualYes
Emergency stopYes
Speed rotation [rpm]1430
Housing materialCast iron
Power [W]3000
IP protection level55
Frequency [Hz]50
Matrix diameter [mm]120
Size of die holes [mm]6
Sawdust production efficiency [kg/h]40-60
Feed production efficiency [kg/h]60-100
Continuous operation time [h]24
Dimensions (LxWxH) [cm]88.5 x 35.5 x 73
Weight [kg]77
Shipping dimensions (LxWxH) [cm]82 x 35 x 75
Shipping weight [kg]87
