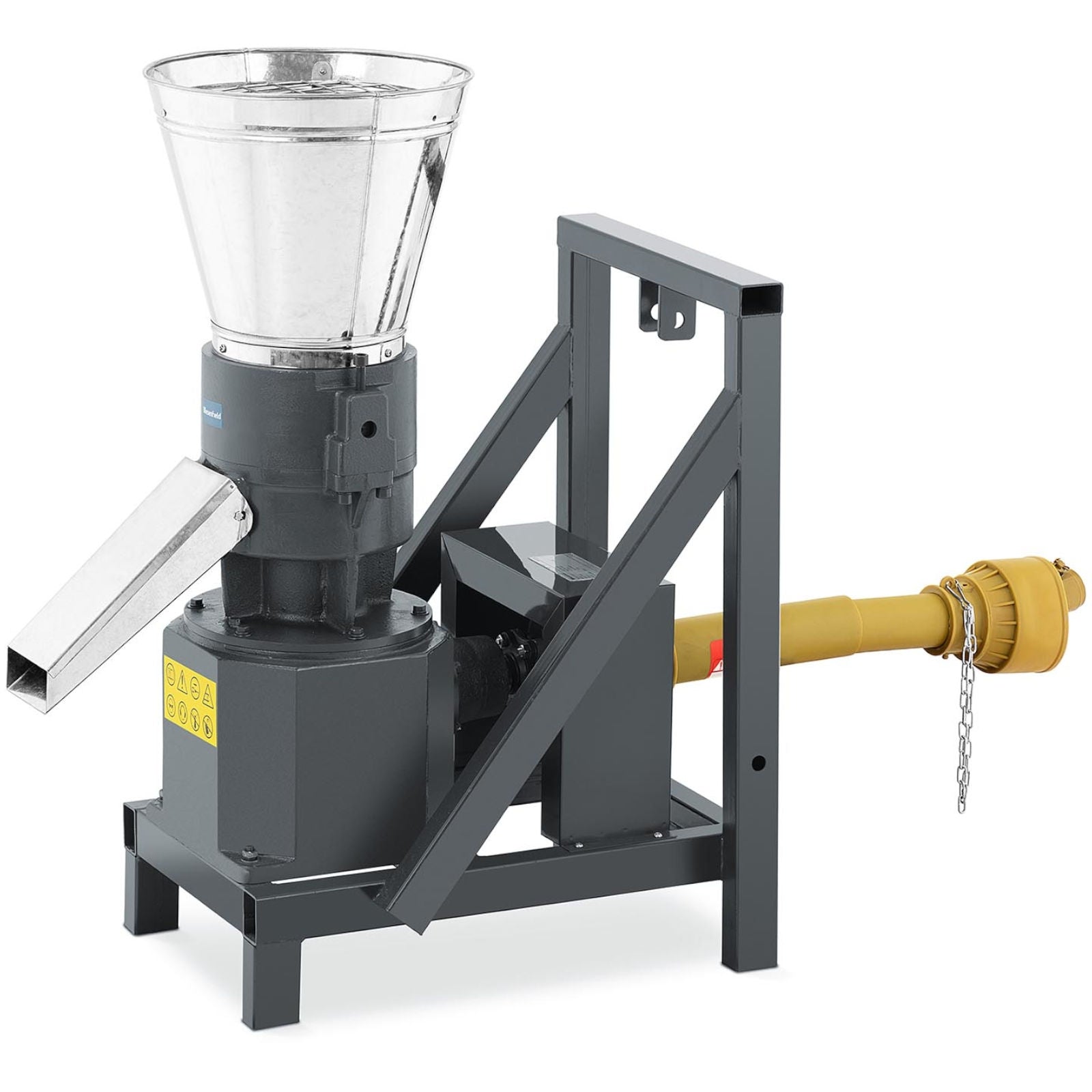

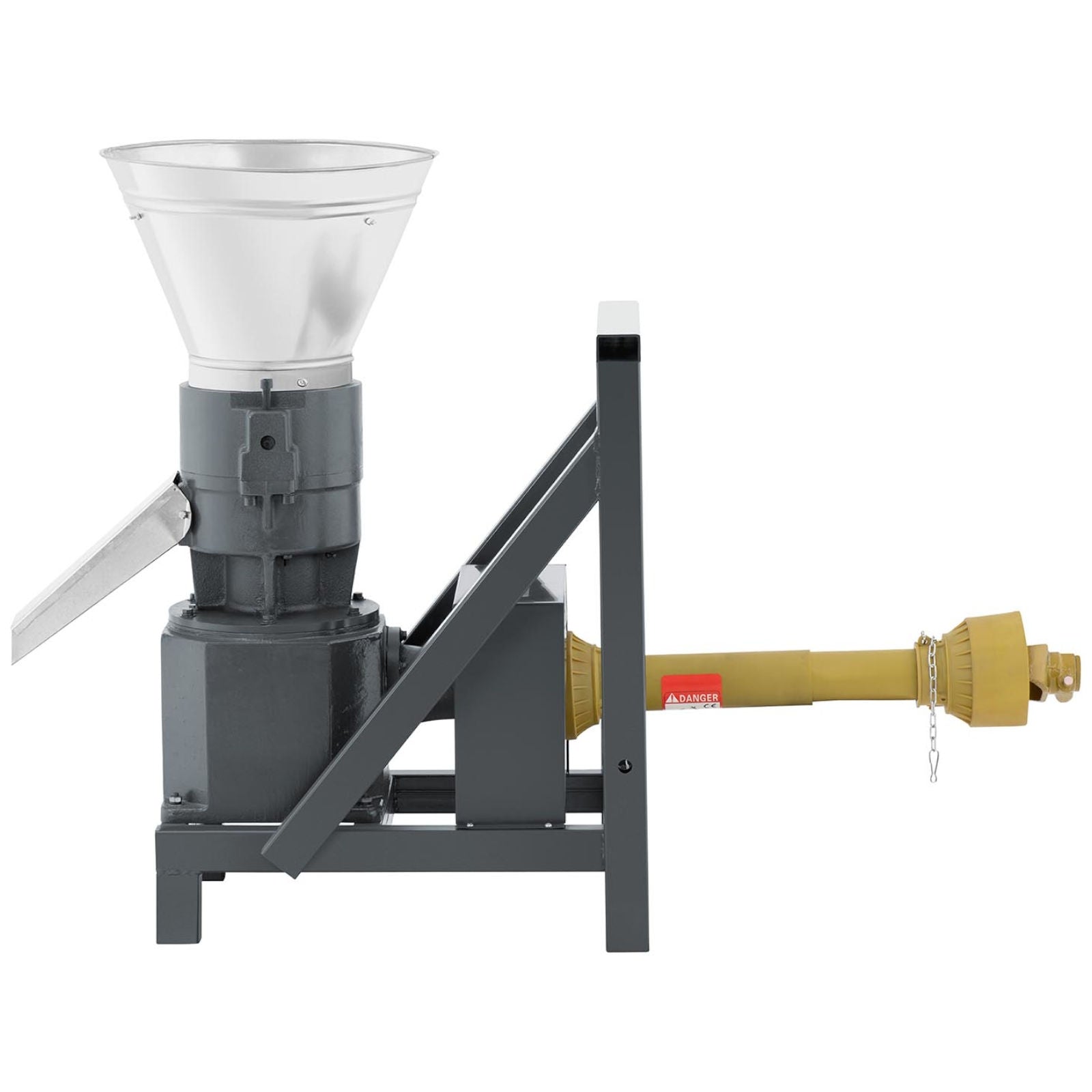

Pellet machine sawdust feed pellet machine for tractor 400 kg/h dia. 230mm

Description

Manufacturer's code: 10280045

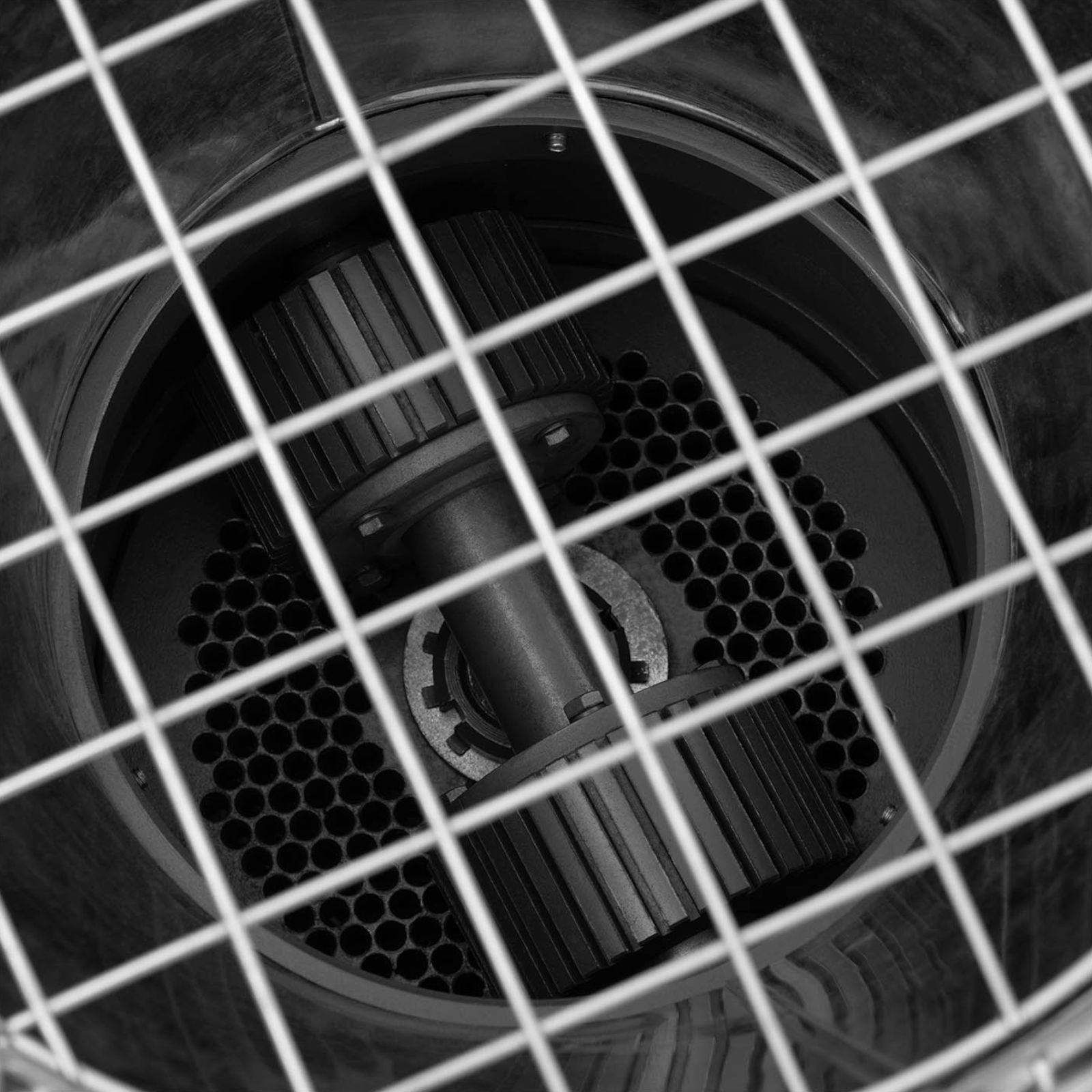

The professional industrial pellet machine by Wiesenfield is used to produce pellets, animal feed and granules from various organic materials. The granulator allows you to use wood sawdust, straw, nut shells, rice husks or paper. They are placed in a special matrix with holes of 6 mm in diameter, where they are exposed to high pressure and temperature (60-80 degrees Celsius). Some materials require the use of special binders. The pellet machine is capable of producing300-400 kg of feedand130-180 kg of sawdust pelletsper hour. The efficiency of the device was achieved thanks to power take-off shaft connected to a tractor with a power of 15-28 HP.
Product features:
  • - Production of pellets for heating and fertilization,
  • - Production of fodder for feeding animals,

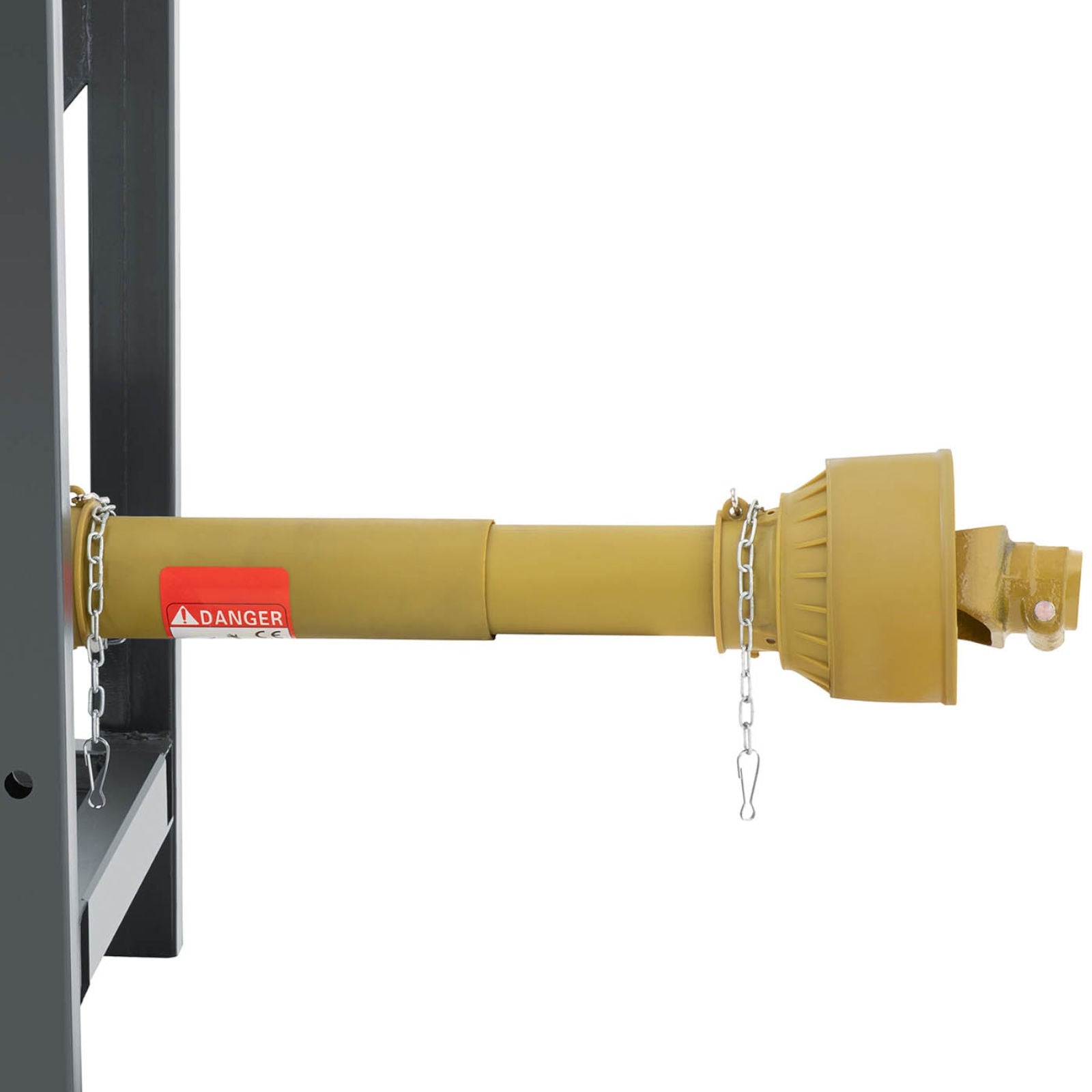

  • - Powered by the power take-off shaft connected to the tractor,
  • - Die with a diameter of 230 mm,
  • - Pellet diameter 6 mm,
  • - Operating temperature from 60 to 80deg C,
  • - Compact, mobile and easy to use,
  • - Cast iron and alloy steel.

Technical data:
  • - Model - WIE-PM-3000
  • - Catalog number - 10280045
  • - Article condition - New
  • - Manufacturer - Wiesenfield
  • - User manual - Yes
  • - Emergency stop switch - No
  • - Material housing - Cast iron
  • - Die diameter [mm] - 230
  • - Size of die holes [mm] - 6
  • - Sawdust production efficiency [kg/h] - 130-180
  • - Feed production efficiency [kg/h] - 300-400
  • - Power take-off [HP] - 15 - 28
  • - Dimensions (LxWxH) [cm] - 88 x 64 x 110
  • - Weight [kg] - 149
  • - Shipping dimensions (LxWxH) [cm] - 77 x 55 x 108
  • - Shipping weight [kg] - 180

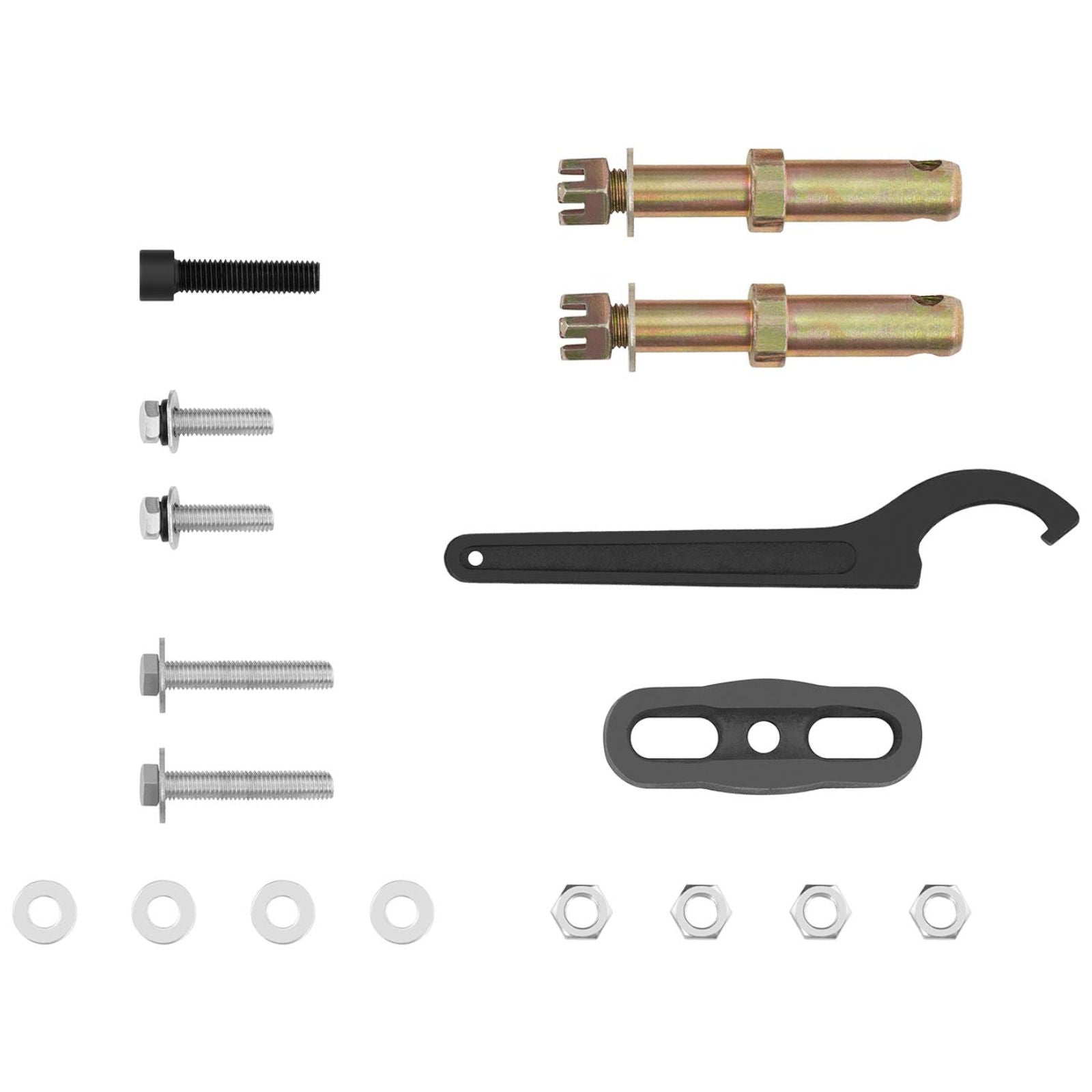

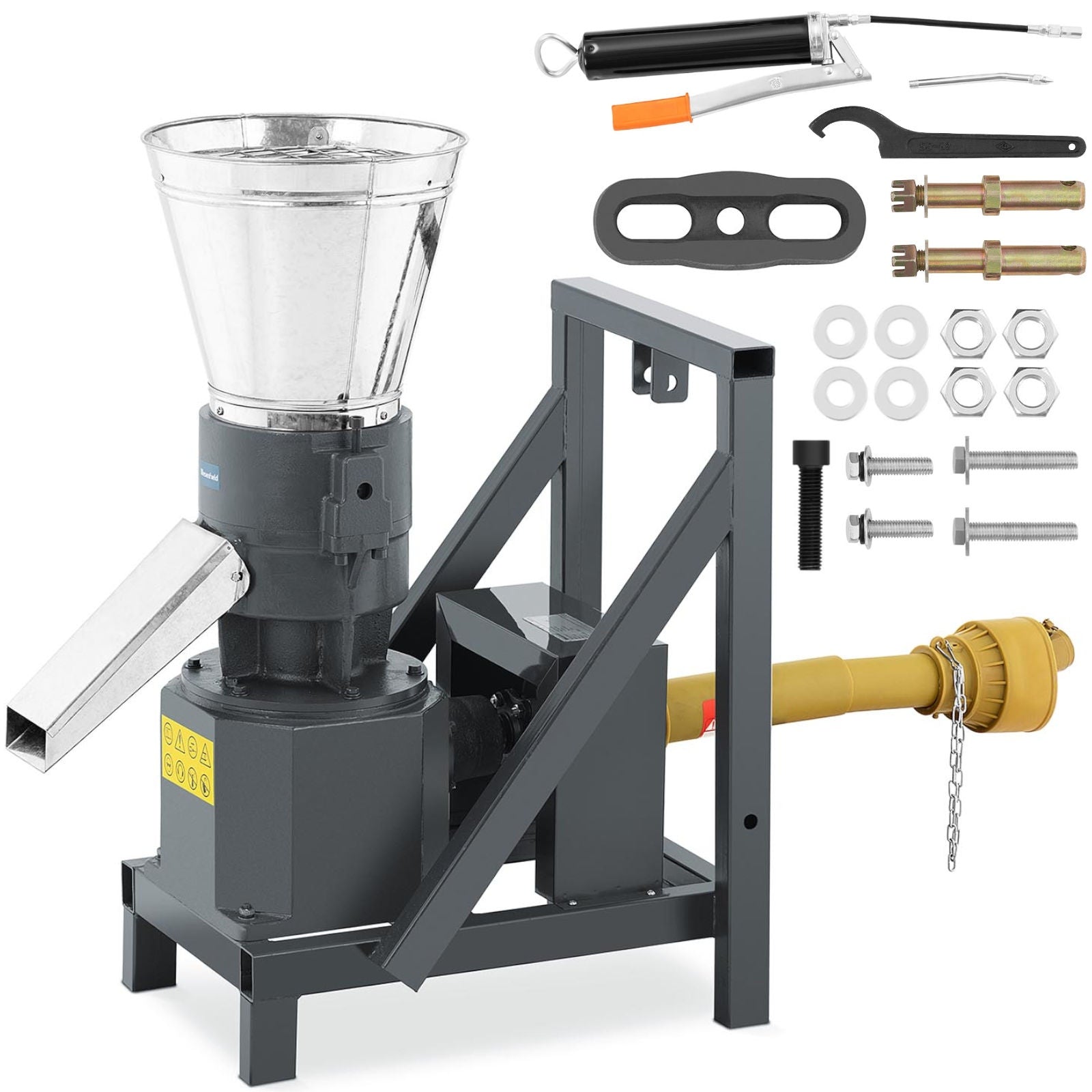

The set includes:
  • - Pellet machine,
  • - 10 mm Allen key,
  • - M12 x 45 mm screw,
  • - Flat washers dia. 10 mm - 7 pcs.
  • - Spring washers dia. 10 mm - 5 pcs.
  • - Hook,
  • - M10 x 40 mm screws - 7 pcs.
  • - User manual.

Pellet machine sawdust feed pellet machine for tractor 400 kg/h dia. 230mm

Product form

Manufacturer's code: 10280045The professional industrial pellet machine by Wiesenfield is used to produce pellets, animal feed and granules from various... Read more

Barcode: 4062859008503

6 in stock

€2.319,87 Incl. VAT
