Description
Manufacturer's code:

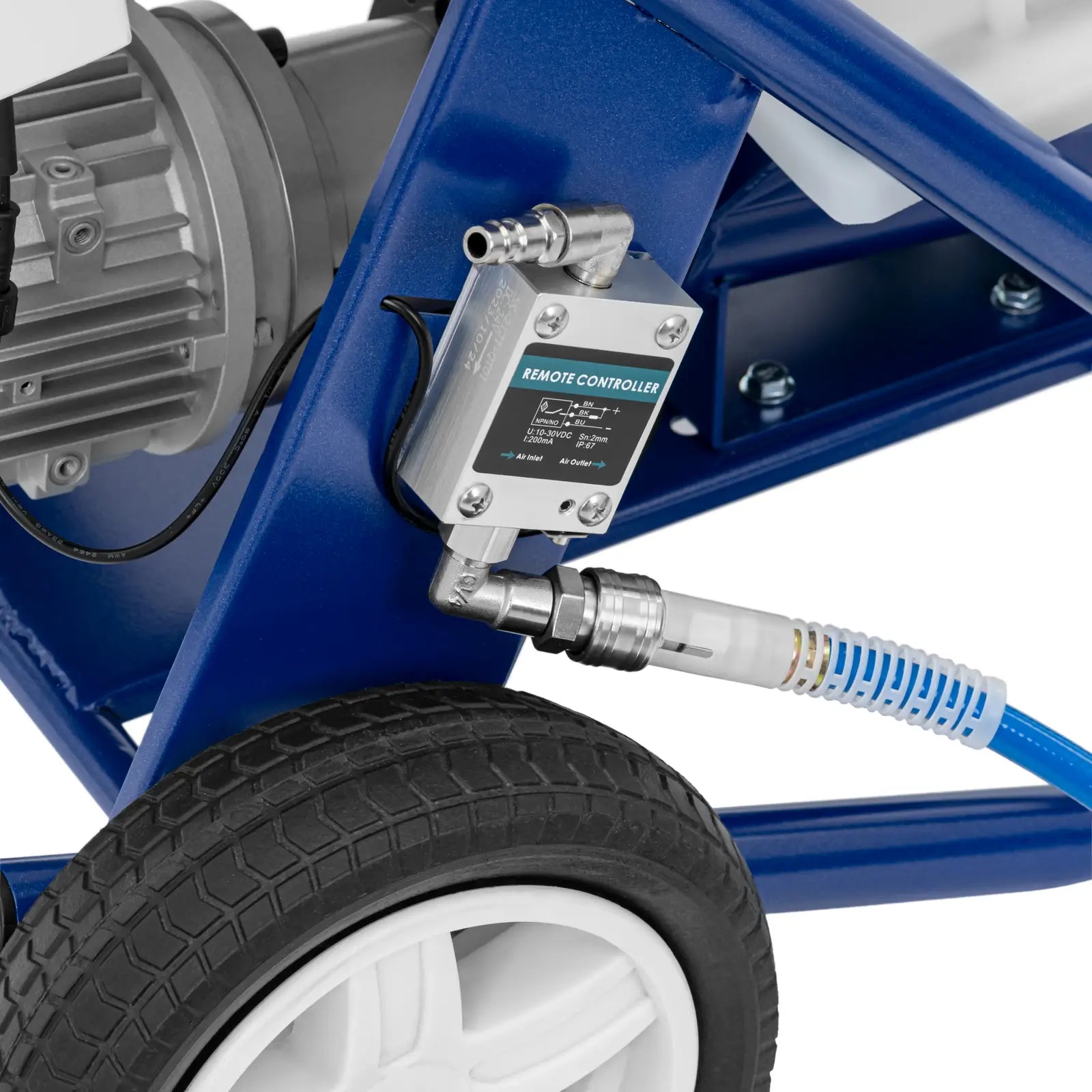

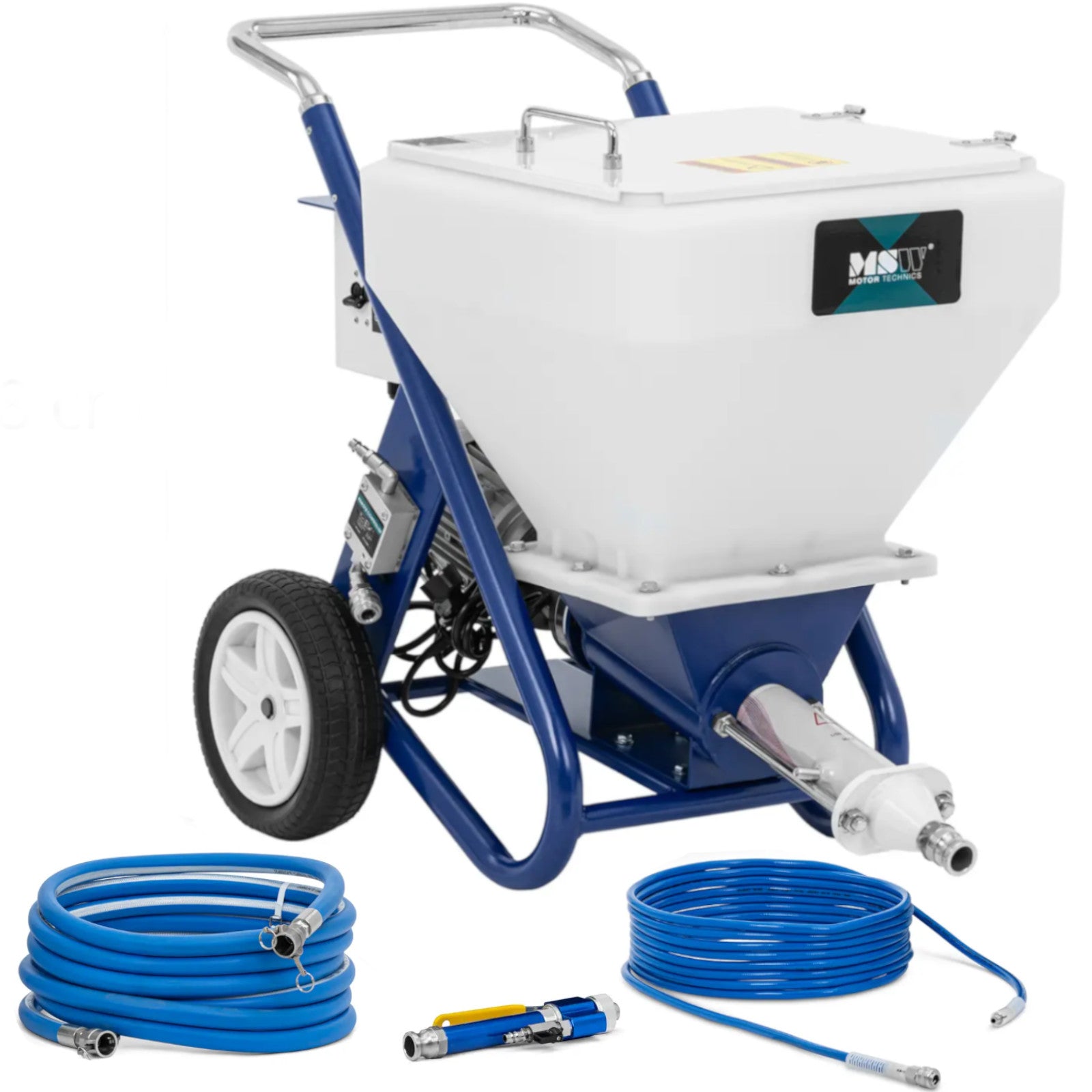

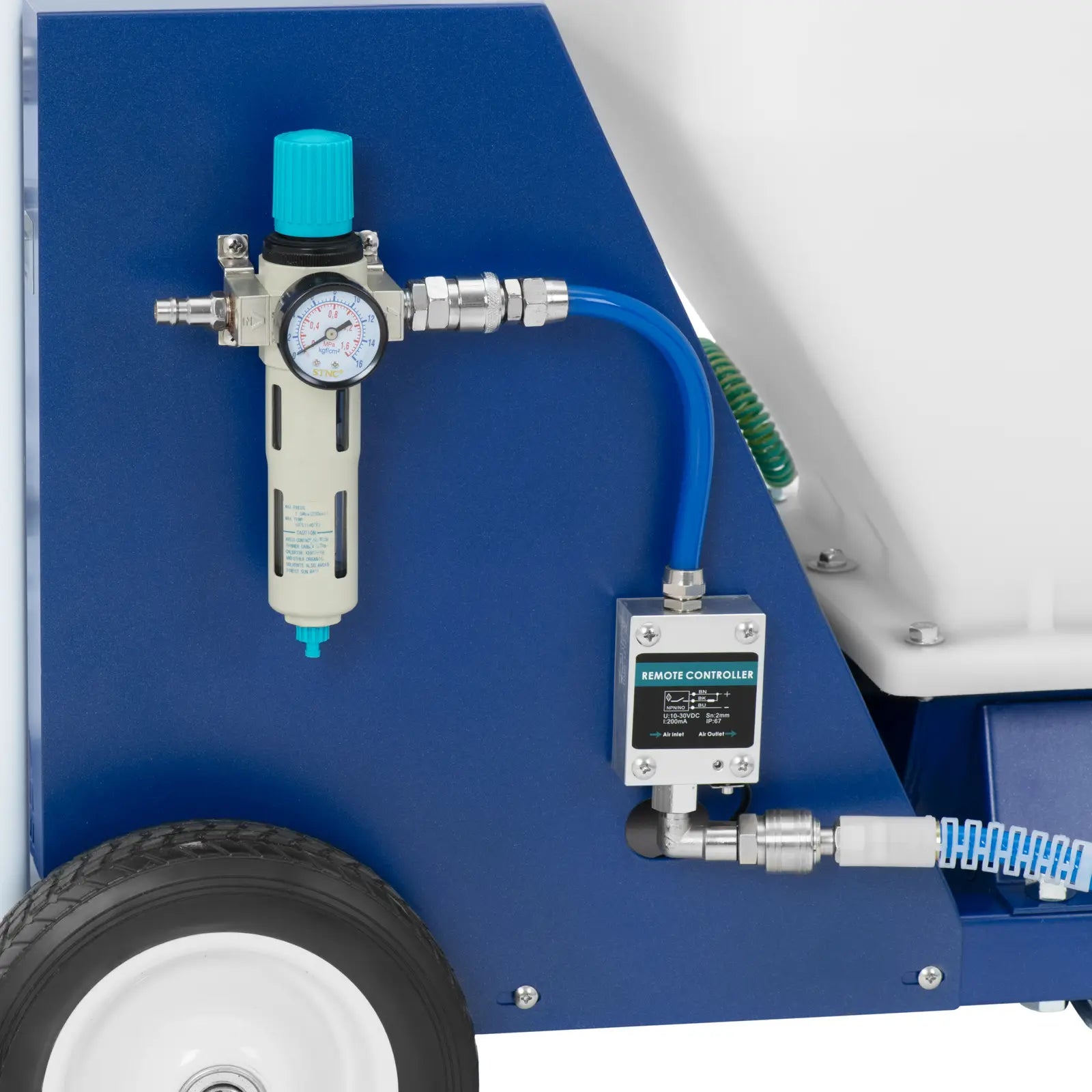

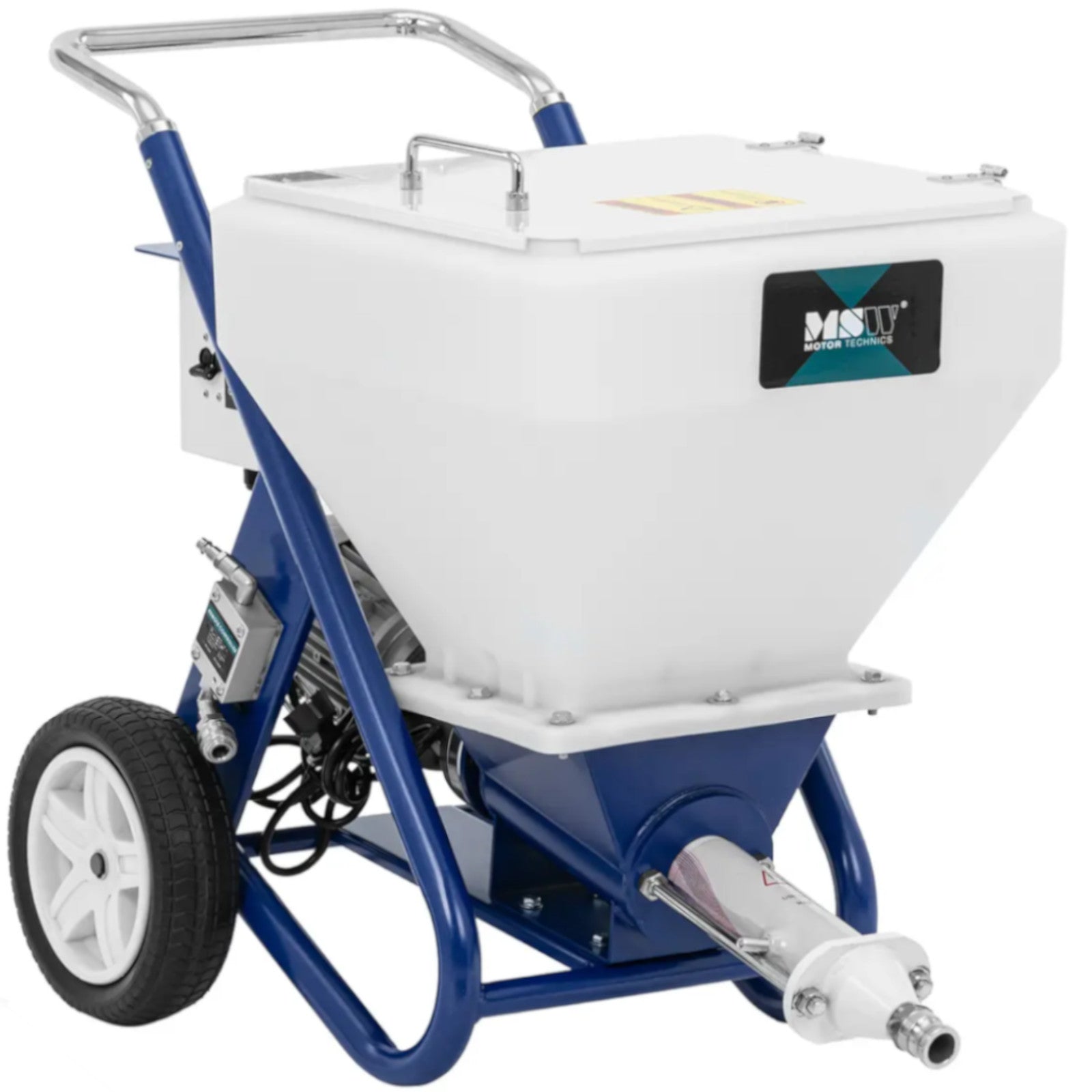

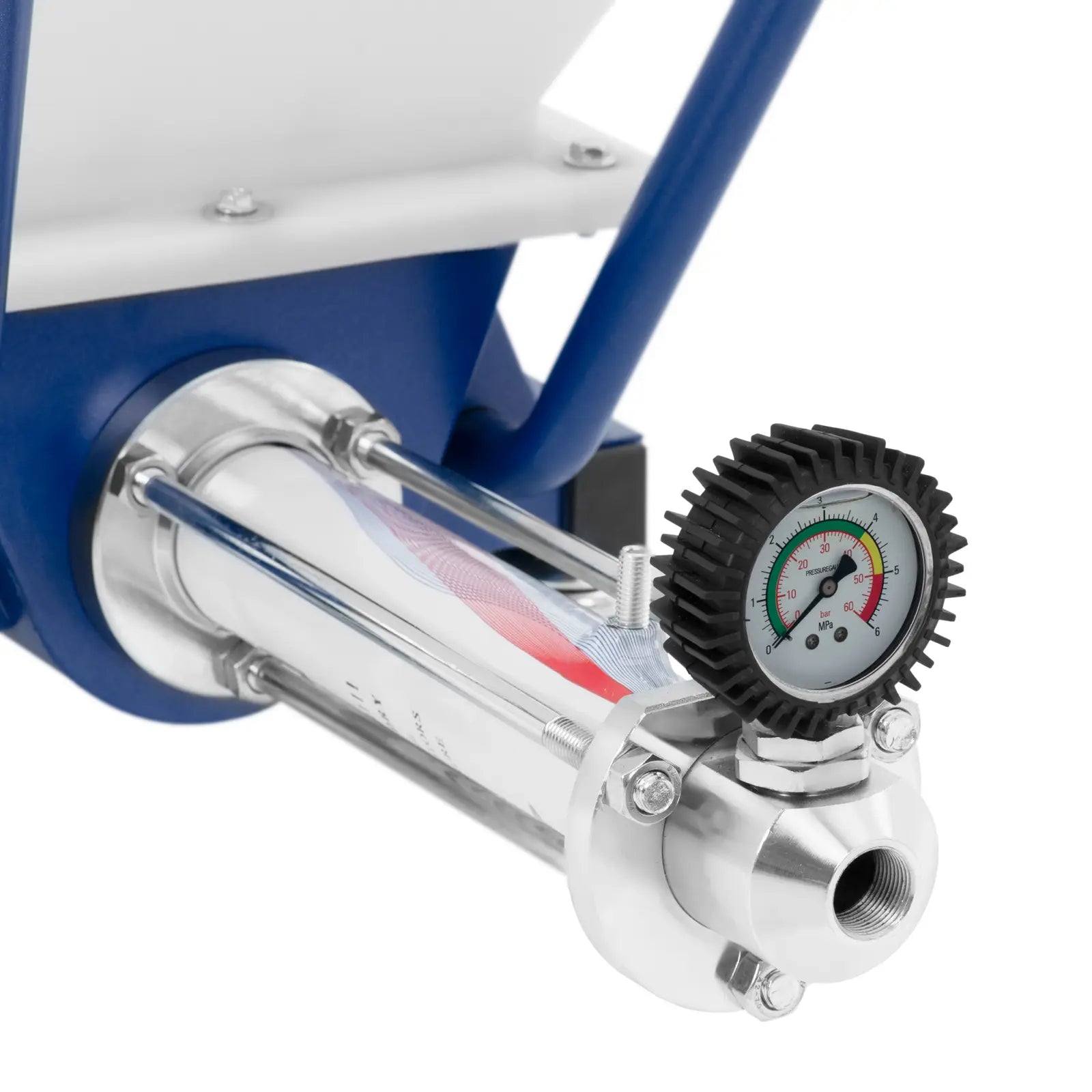

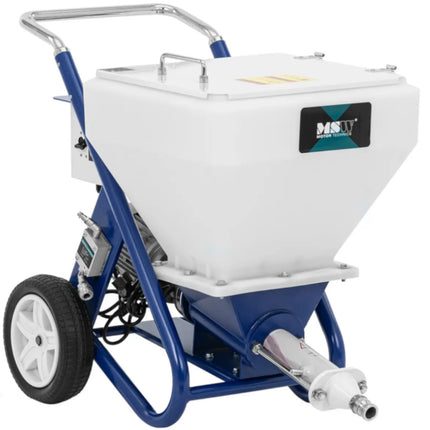

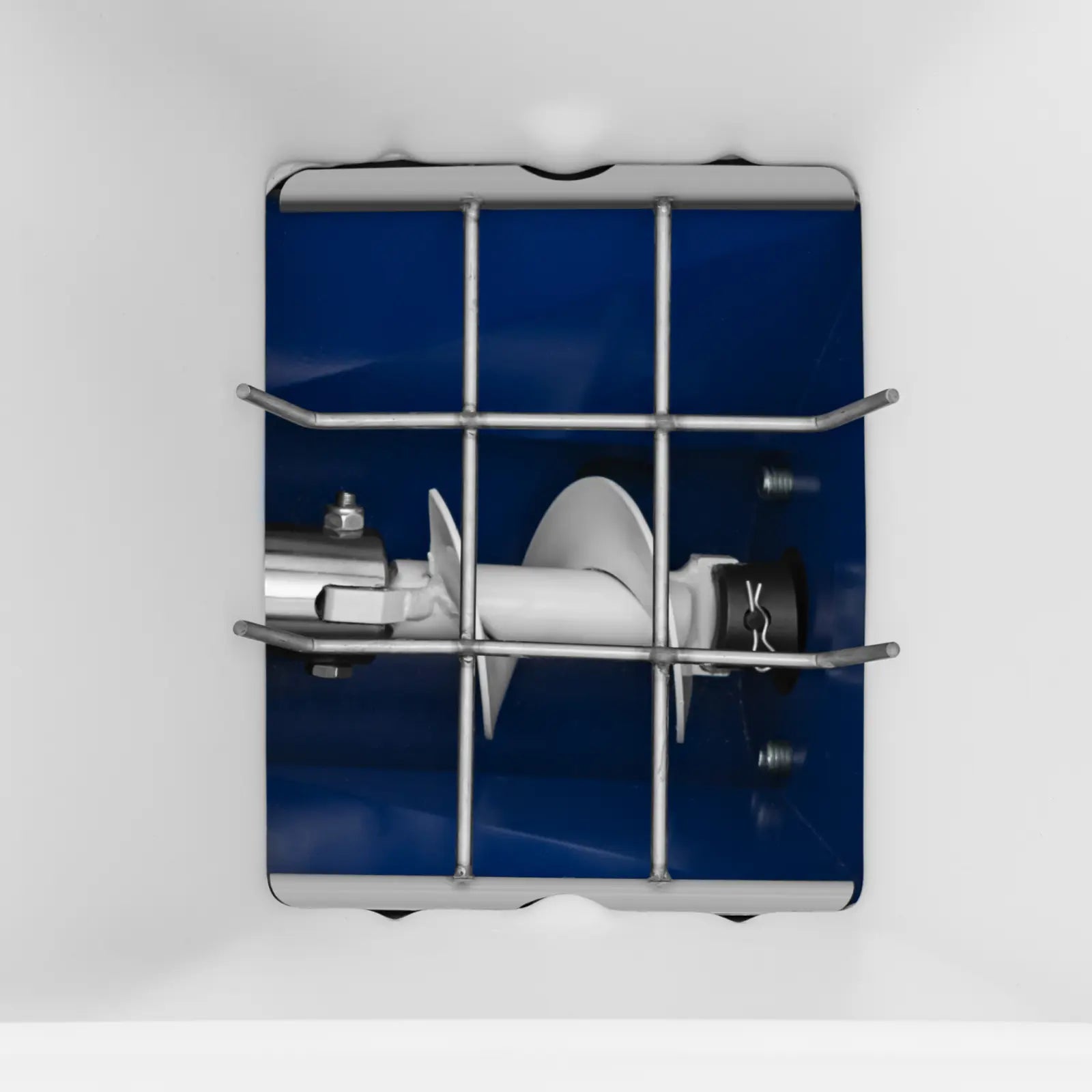

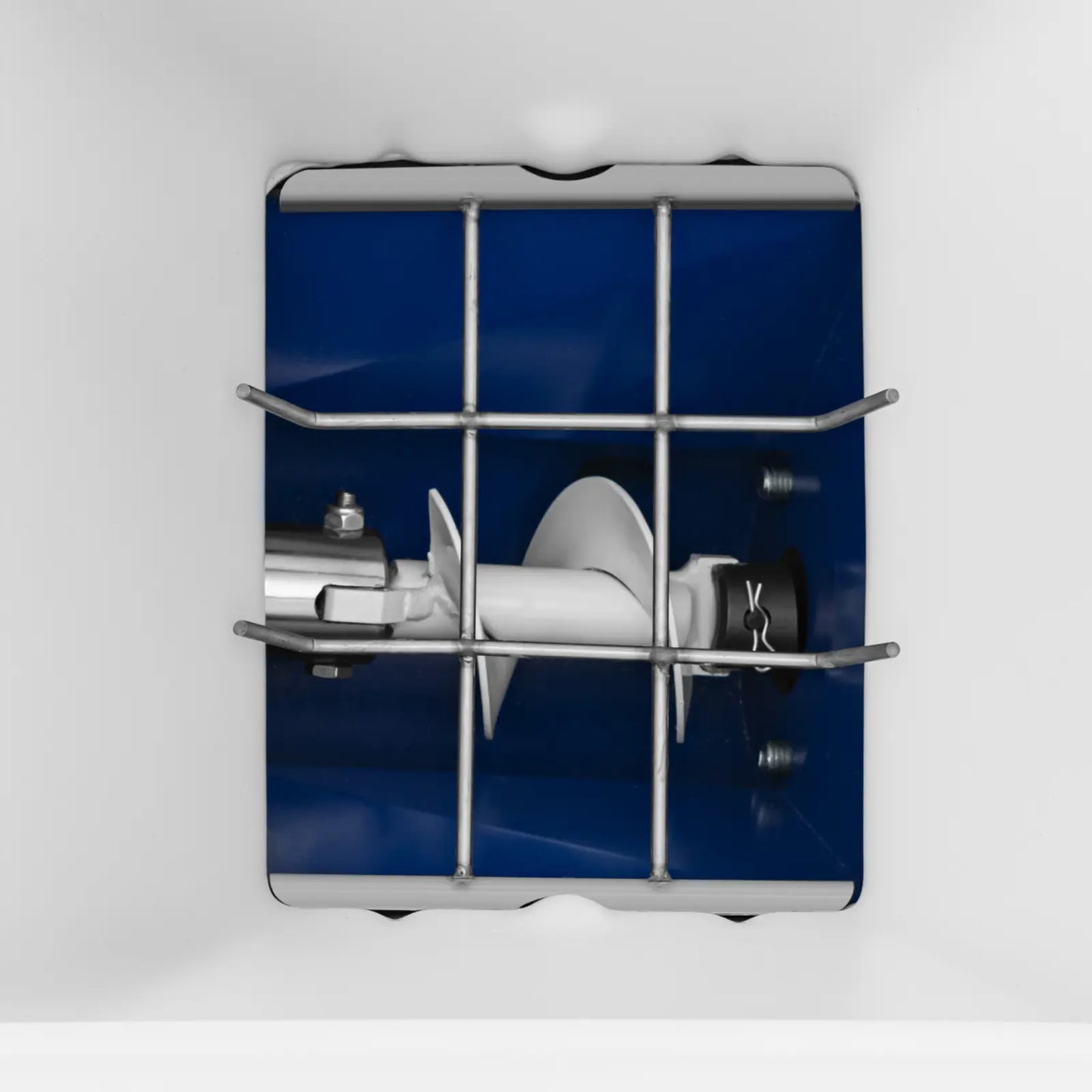

10062634The MSW brand plastering unit will allow you to effortlessly apply water-based plaster based on gypsum, lime or cement to the wall. The rotor in the device ensures the perfect consistency, which is applied to the wall at a working pressure of up to 20 bar. This way, the mortar will stay on the vertical surface and create an even layer that just needs to be smoothed. Operating the plastering machine is extremely easy and will provide maximum freedom of movement. Connect it to the compressor and set the input pressure using an air reducer.

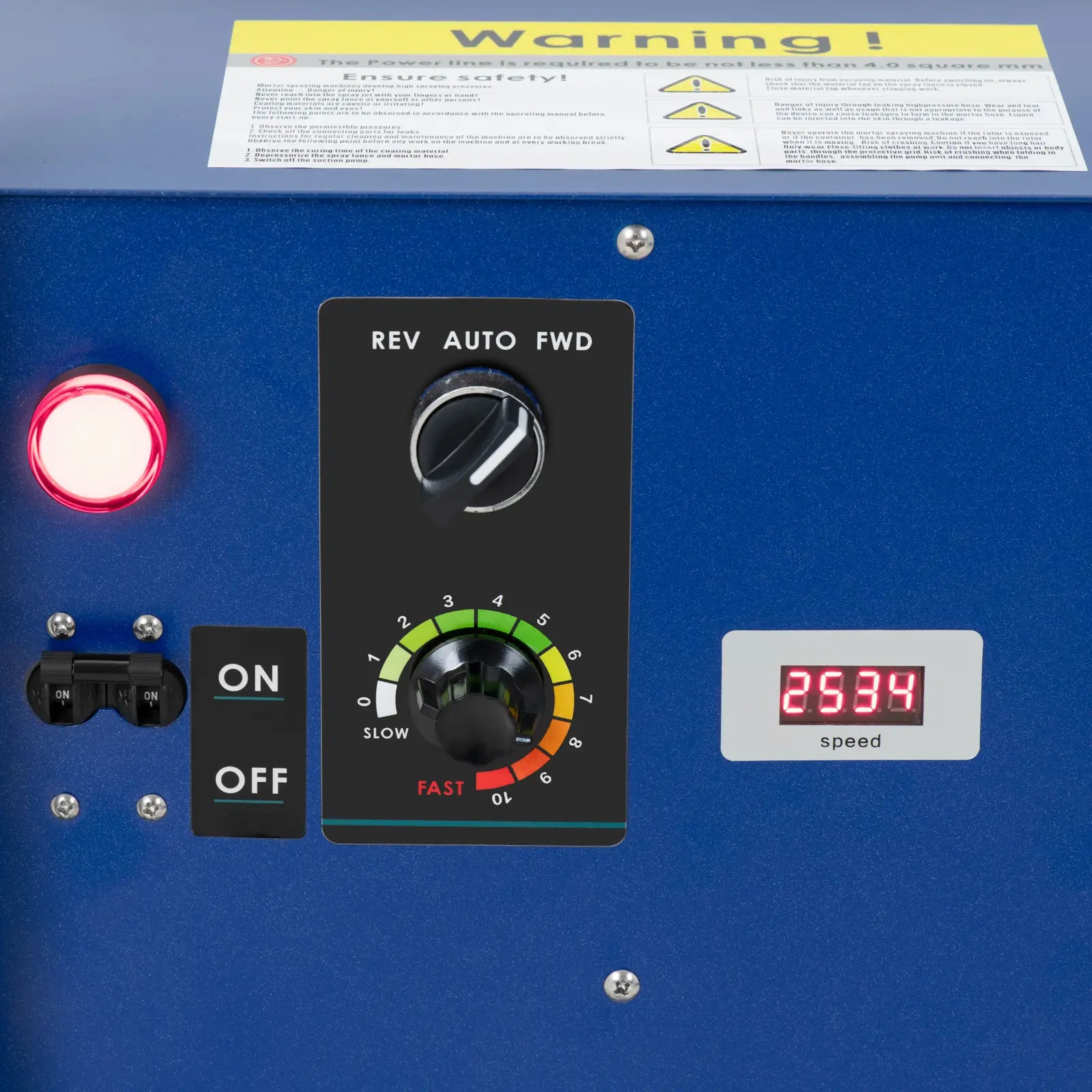

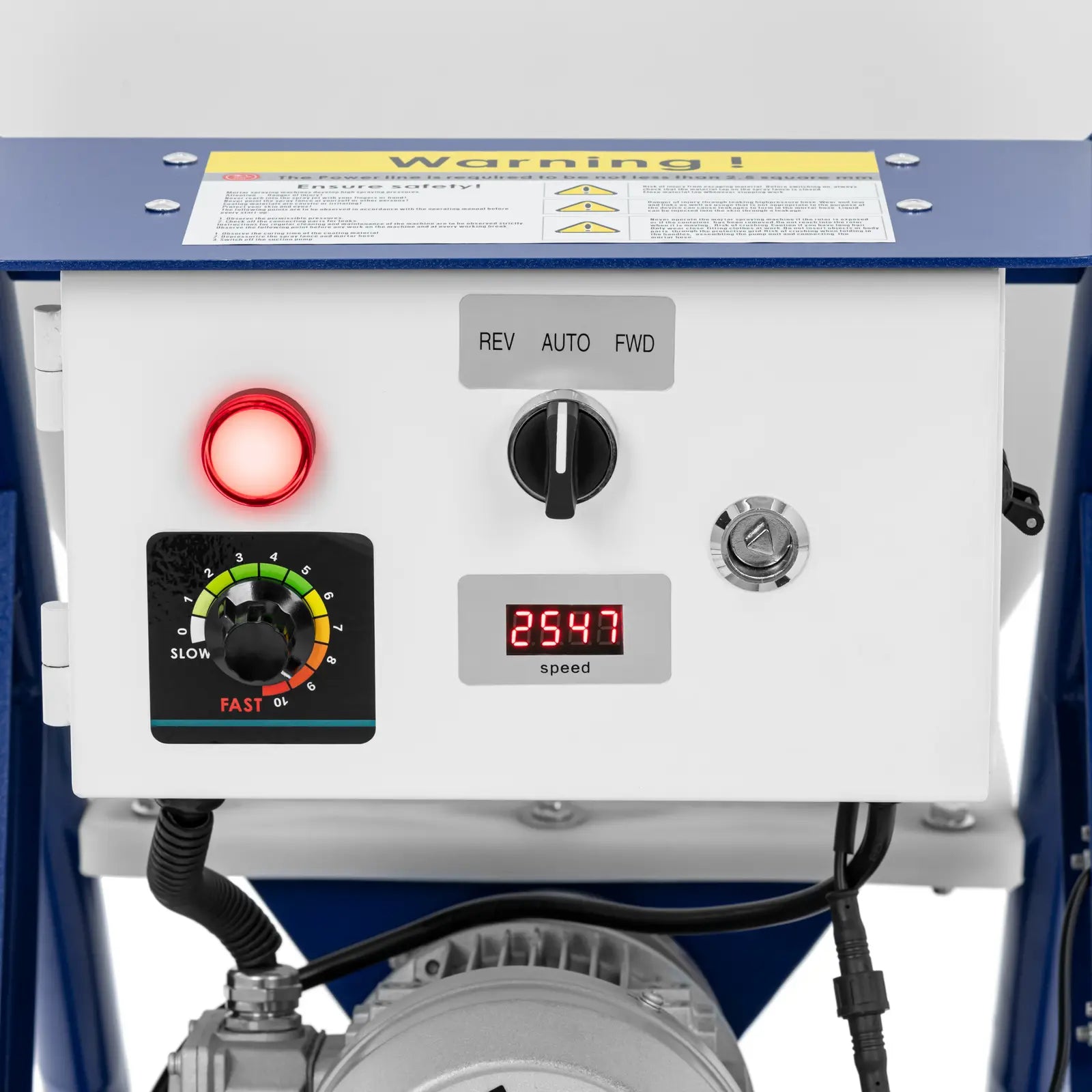

The direction of rotation and the speed of the rotor are determined on a clear control panel depending on the type of material and the amount of water used to obtain mass. The device will achieve the best results with material with a grain size of up to 6 mm. The dressing hose is 7.5 m long, so you can easily guide the spray gun during application. Depending on the type of mass, select the appropriate nozzle.
Note:An air compressor is required to operate the machine.

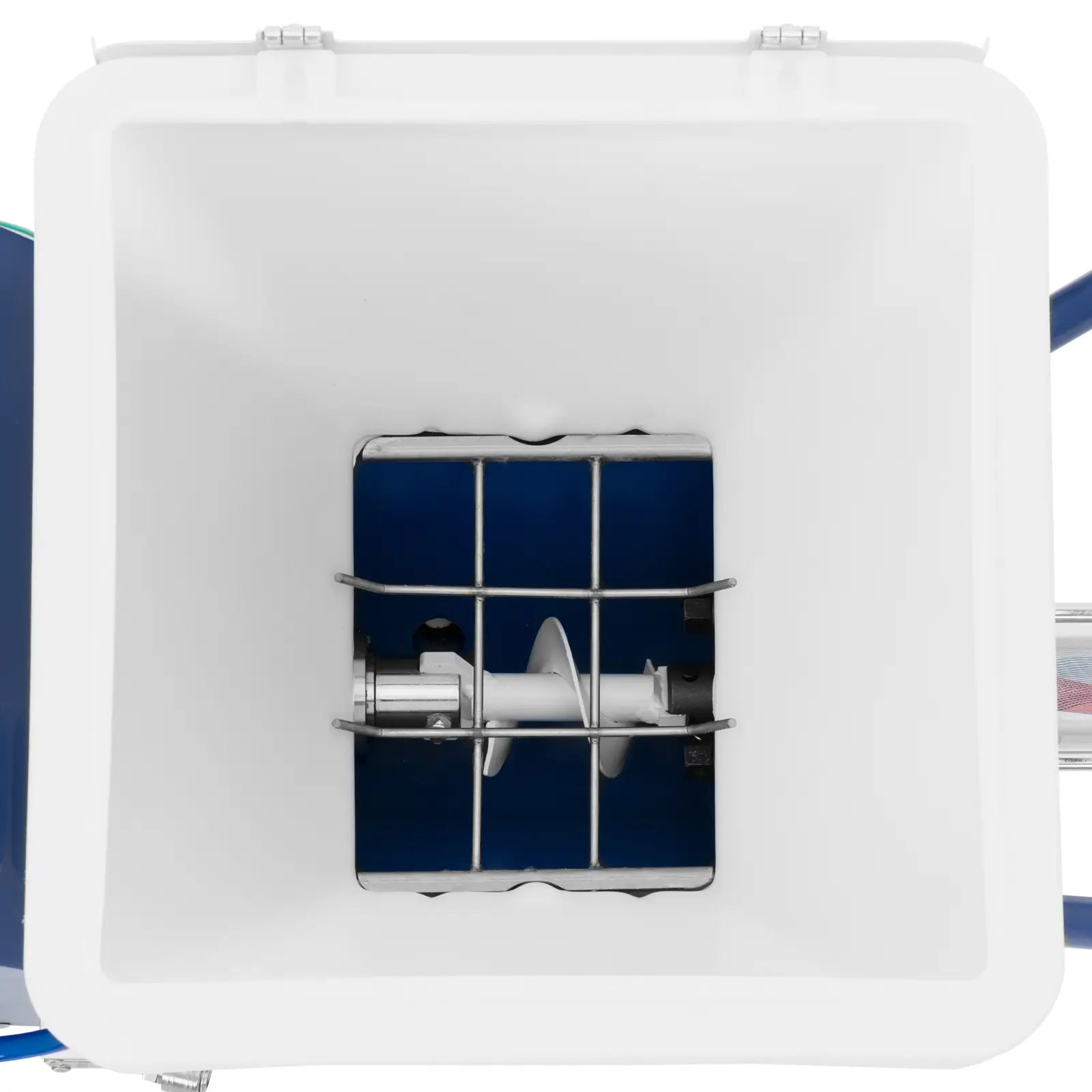

Depending on the material, a compressor with a power of 3 to 7.5 HP is recommended. The plaster container has a capacity of 40 liters. This means that even large surfaces can be covered with a plastering unit at a flow rate of 15 l/min without long breaks. The container cover will ensure cleanliness during work.
Thanks to two wheels, you can easily transport the machine to the place of use. The compact dimensions of the unit are ideal for use on scaffolding. This means that it also allows you to reach higher parts of walls. After finishing work, the device should be cleaned using water and the included cleaning balls.
Product features: - - At an operating pressure of 20 bar, the plastering unit will evenly spread up to 15 l/min of mortar, plaster or cement on the wall,
- - Dry material such as plaster or lime with a grain size of up to 6 mm should be mixed with water in the machine in order to obtain appropriate weight,
- - A 40 l tank allows for trouble-free work on large surfaces using the plastering unit,
- - Thanks to a 7.5-meter hose and an easy-to-use spray gun, the plastering machine will provide optimal freedom of movement during work,
- - Two wheels facilitate the transport of the unit, whose compact shape and dimensions will fit on scaffolding.
Technical parameters: - - Catalog number - 10062634
- - Article condition - New
- - Model - MSW-PU-20
- - Power supply type - Mains
- - Material - Rubber, PP, Iron
- - Color - Blue, White
- - Voltage [V] - 230
- - IP protection level -IP54
- - Power [W] - 2200
- - Working pressure [bar] - 20
- - Maximum working pressure [psi] - 290
- - Rotation speed [rpm] - Motor: 0 - 2500 impeller: 0 - 160
- - IEC protection class - I
- - Power cable - 2.5 m
- - Hose length - 750 cm
- - Flow - 15 l/min
- - Working air pressure - 10 Bar
- - Pumping height - 15 m
- - Maximum capacity - 40 l
- - Number of wheels - 2
- - Diameter of wheels - 200 mm
- - Length of compressed air hose [m] - 10

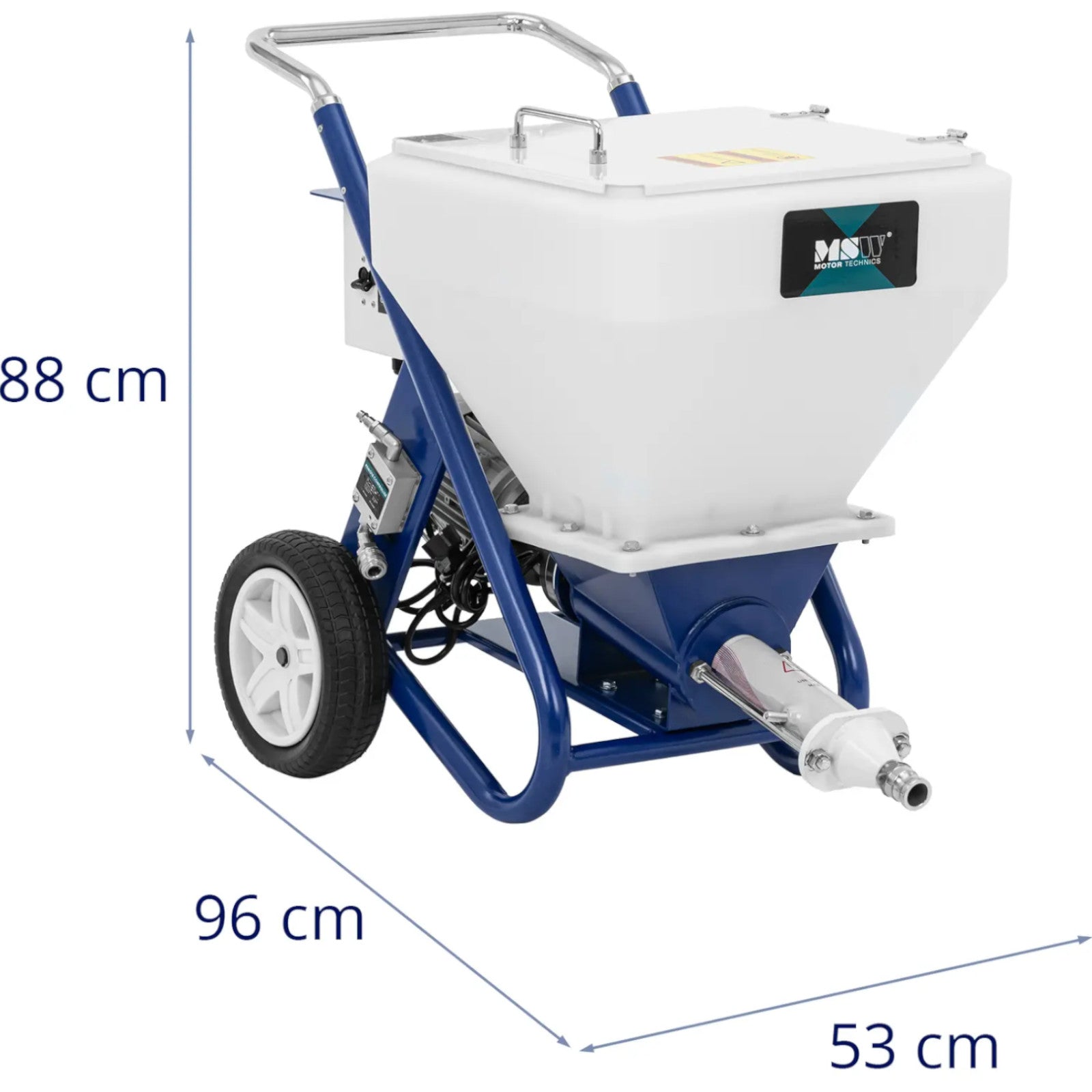

- - Dimensions (LxWxH) - 96 x 53 x 88 cm
- - Weight - 50 kg
- - Shipping dimensions (LxWxH) - 90 x 55 x 84 cm
- - Shipping weight - 70 kg

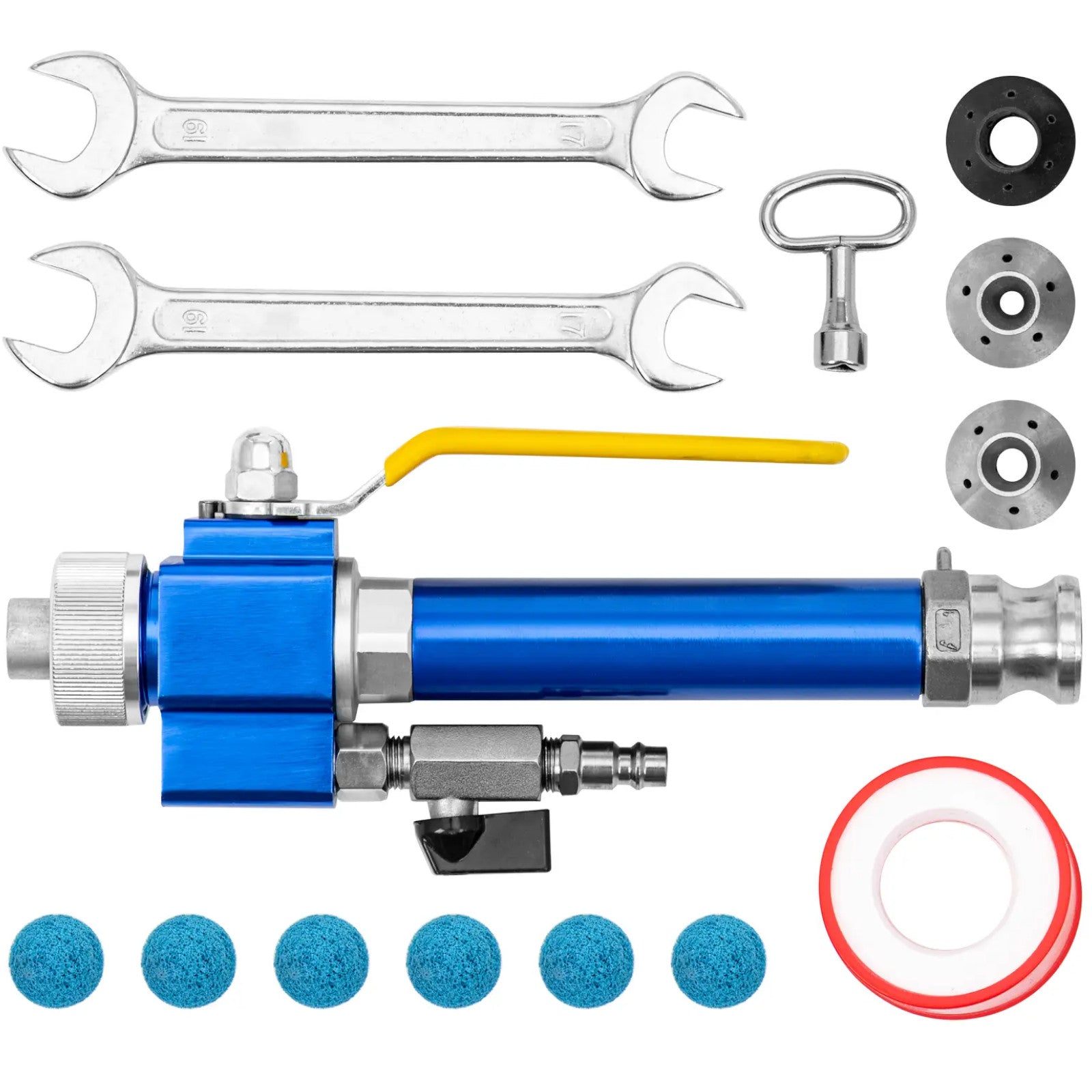

The set includes: - - Plastering unit
- - Mixing pump
- - Spray gun
- - 4 metal spray nozzles
- - 6 cleaning balls
- - Sealing tape
- - EU compressed air adapter
- - Mortar hose (7.5 m)
- - Compressed air hose (10 m)
