1 9

ANI

EAN:8022219271417

NHOU® Professional Spray Gun with Internal Cup – Viscous Coatings

NHOU® Professional Spray Gun with Internal Cup – Viscous Coatings

10 in stock

€310,00 EUR
€310,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

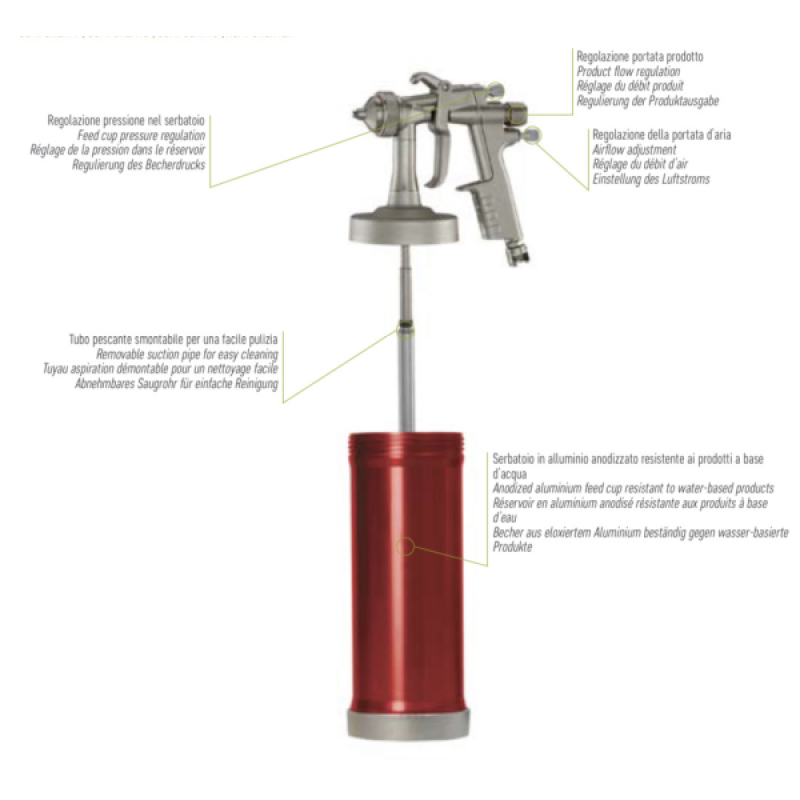

Designed for Viscous Materials

Suitable for thick rustproofing products, underbody coatings, wax inhibitors and compatible water-based paints.

Internal Feed Cup

The integrated pressurised container helps maintain consistent flow when applying heavier coating materials.

Adjustable Spray Pattern

Spray diameter and jet extension can be adjusted to suit different materials, surfaces and application tasks.

Low Air Consumption

Designed for efficient operation with a suitable compressed-air supply, including appropriately sized smaller workshop compressors.

Durable Construction

Features a nickel-plated aluminium body, anodised aluminium cup and stainless-steel needle and nozzle components.

Serviceable Modular Design

The removable suction pipe simplifies cleaning, while optional kits may support alternative application configurations.

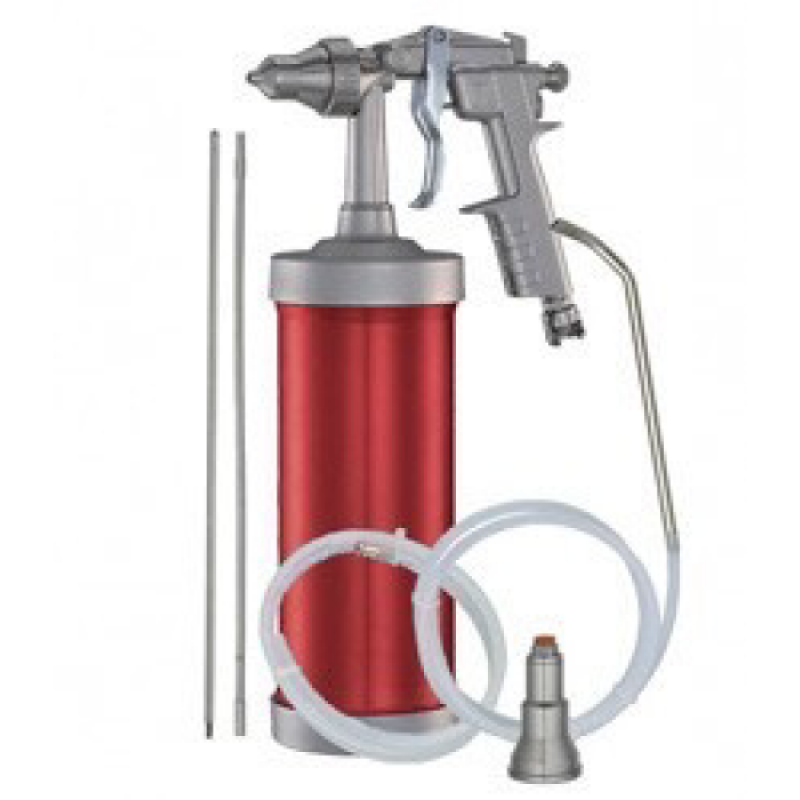

What's Included

1 × Spray Gun

NHOU® professional compressed-air spray gun.

1 × Feed Cup

Internal anodised aluminium feed cup.

1 × Needle and Nozzle Set

Standard stainless-steel needle and nozzle set.

1 × Suction Pipe

Detachable suction pipe.

1 × Instruction Manual

Included with the spray gun.

Questions

What materials is the spray gun designed for?
It is designed for compatible viscous coatings, underbody products, rustproofing waxes and selected water-based paints.
Does the spray gun include an internal container?
Yes. It includes an anodised aluminium internal feed cup designed to support the application of suitable viscous materials.
Is an air compressor included?
No. A compatible regulated air compressor, hose and connectors are required separately.
Can the gun work with a small compressor?
It is designed for relatively low air consumption, but compressor suitability depends on available airflow, operating pressure, tank capacity and duty cycle rather than motor power alone.
What is the recommended operating pressure?
The specified operating range is 0.5–3.5 bar. Begin at a lower pressure and adjust according to the material and required spray pattern.
Can the spray pattern be adjusted?
Yes. The gun provides adjustment of the spray diameter and jet extension for different coating tasks.
Is it suitable for NHOU® rustproofing products?
It is intended for compatible NHOU® and similar viscous corrosion-protection materials. Confirm product compatibility and required nozzle configuration before use.
Is the suction pipe removable?
Yes. The suction pipe can be detached to simplify cleaning and maintenance.
How should the gun be cleaned?
Depressurise the system, empty the cup and clean all material-contact parts immediately using a cleaner approved for the applied coating.
Recommended Applications
Product Specifications
SpecificationDetail
ProductNHOU® Professional Spray Gun with Internal Feed Cup
EAN8022219271417
Power supplyCompressed air
Operating pressure0.5–3.5 bar / 7.25–50.75 psi
Maximum pressure8 bar / 116 psi
Approximate weight1.30kg
Feed systemInternal pressurised feed cup
Spray adjustmentAdjustable spray diameter and jet extension
Primary applicationsUnderbody coatings, rustproofing waxes, viscous materials and compatible water-based paints
Body materialNickel-plated die-cast aluminium
Cup materialAnodised aluminium
Needle and nozzleStainless steel
Suction pipeDetachable aluminium pipe, approximately Ø16 × 14mm
Gun body (construction)Die-cast aluminium, Al Si 11 Cu 2 (Fe), UNI EN 1706
LeverZinc-plated steel, Fe P01-P02-P04, UNI EN 10025
RivetZinc-plated steel, CB4FF, EN 10263/2
Valve componentsAcetal resin Ultraform® N2320, brass CW614N and NBR 70 seals
Safety Information
Read the instruction manual and coating Safety Data Sheet before use. Wear suitable eye protection, gloves, protective clothing and respiratory protection where required. Never exceed the maximum pressure, never point the gun toward people or animals, and always depressurise the system before cleaning, adjustment or maintenance.

Application Guide

How it goes on

Step 1 of 10

Read the instructions

Review the spray-gun manual and coating manufacturer's directions before assembly or use.

Step 2 of 10

Confirm material compatibility

Verify that the selected coating is suitable for the gun, cup, seals, needle and nozzle.

Step 3 of 10

Prepare the material

Mix or condition the coating according to the manufacturer's instructions.

Step 4 of 10

Fill the cup

Add an appropriate quantity without exceeding the permitted fill level.

Step 5 of 10

Connect the air supply

Attach a suitable regulated compressor and confirm that all connections are secure.

Step 6 of 10

Set the pressure

Begin at the lowest suitable setting and adjust within the specified operating range.

Step 7 of 10

Test the spray

Use a test panel to adjust material flow, spray diameter and jet extension before treating the final surface.

Step 8 of 10

Apply evenly

Maintain a consistent distance and use smooth, overlapping passes.

Step 9 of 10

Depressurise safely

Disconnect and release stored pressure according to the equipment instructions.

Step 10 of 10

Clean immediately

Disassemble and clean all material-contact components using a cleaner approved for the coating.
