Description
Manufacturer's number:
10060143S-CHARGER-20A car railing designed for fast charging batteries
with a current of 12A maximum intensity.

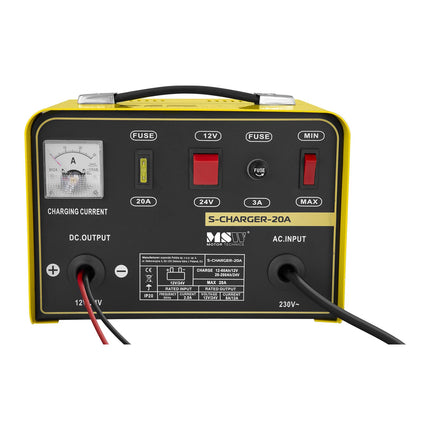

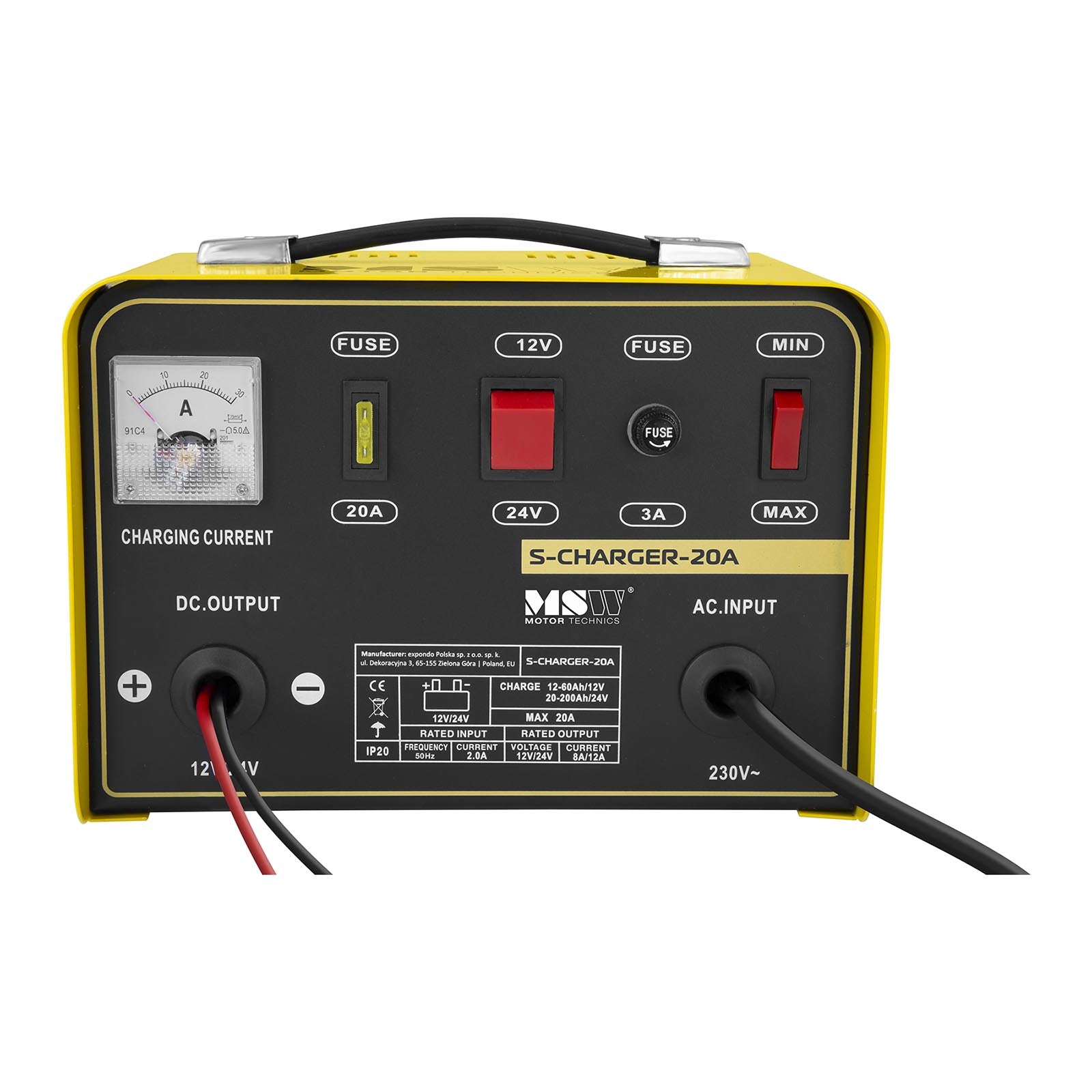

Practical and readable control panel allows for efficient control and setting of the device according to the needs. The panel has an analogue display and convenient switches responsible for
charging mode (
MIN and MAX) and
output voltage (
12V and 24VThe S-CHARGER-20A straightener is characterized by efficiency, and also
savings, because
maximum current consumption is 0,5 kW.
Built-in fuse
protects the device from shortness and shortnessThe rectifier also has a device for the device.
overheating protection systemThe equipment is convenient for handling, thanks to the
ergonomic handle, compact size and built-in cables.
Product features: -
Efficacy - fast charging with two modes (MIN and MAX) and a voltage switch (12V or 24V)
-
Security - short circuit fuse and cooling system to protect against overheating
-
Practicality - easy to use control panel with analogue displays and switches
-
Comfort - compact size, comfortable handle, built-in wires
-
Savings - low power consumption
Technical parameters: - - Model - S-CHARGER-20A
- - Catalog number - 10060143
- - The state of the article - New
- - Voltage - 230V / 50Hz
- - Output voltage - 12/24V
- - Charging current - 8/12A
- - The colour of the casing - Black and yellow
- - The length of the power cord - 180 cm

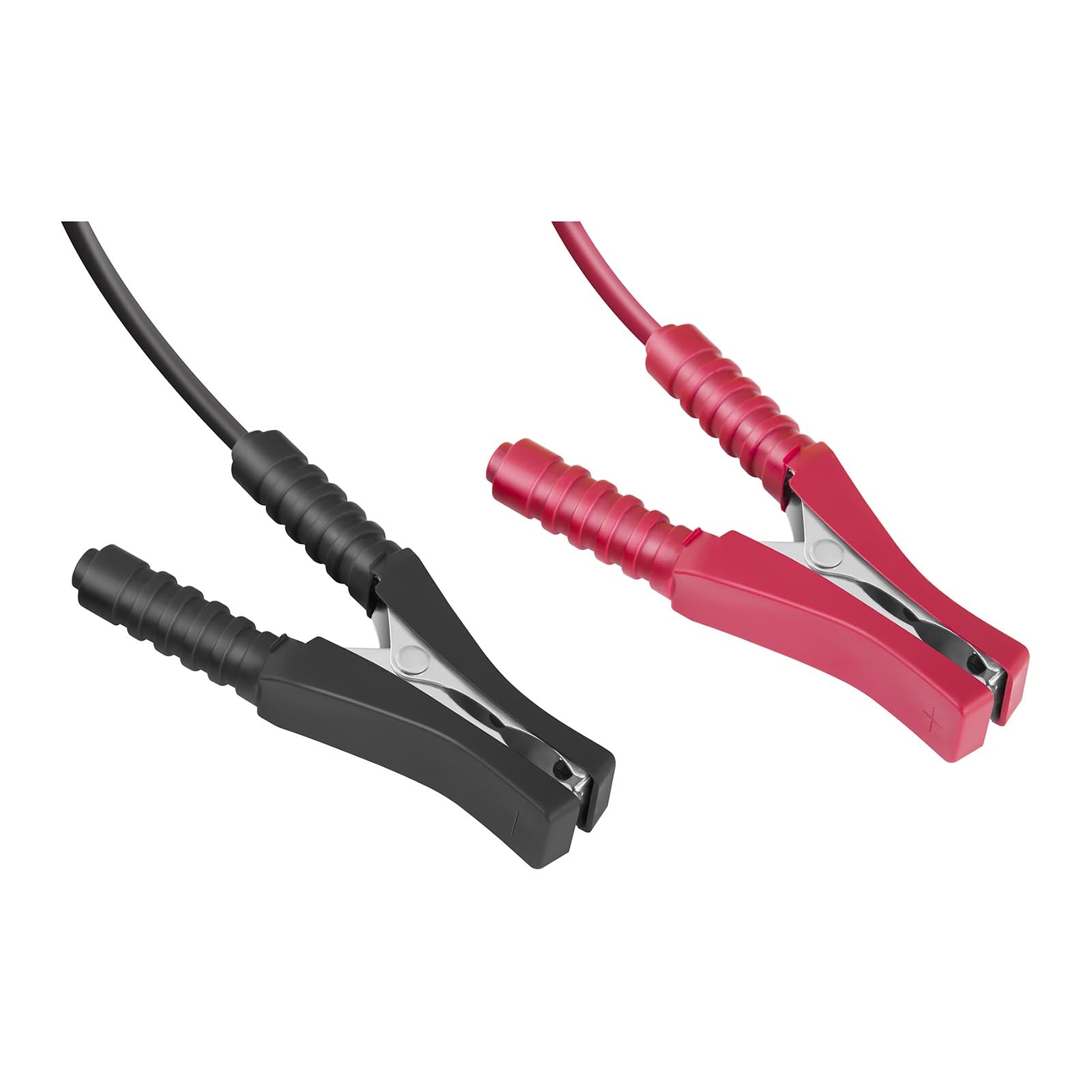

- - Length of the starter cable (+) - 150 cm
- - Length of the boot cable (-) - 150 cm
- - Max. power consumption - 0,5kW
- - Battery type - Lead-acid
- - Recommended battery capacity - 12-200Ah
- - Dimensions (DxSxW) - 15.6 x 25 x 19 cm
- - Weight - 5.3 kg
- - Dimensions of dispatch (DxSxW) - 31 x 23 x 22 cm
- - Weight of shipping - 5.9 kg
Included: - Wireless rectifier
- EN Instructions
