Description
Manufacturer's code:
10061177A practical pipe bender from the
MSW brand is used to shape all types of square and rectangular pipes and profiles. The equipment is suitable for professional use in production plants, workshops, service points, etc. The manually operated model has a simple structure. Effective pipe bending is possible thanks to the rings and adjustable form. It fits elements with sizes
19-38.1 mm (wall thickness 2 mm). Smooth adjustment is made using a large knob. Pipes can be bent in the range of
0-360deg. The solid device is made of low-carbon steel. This makes it durable and long-lasting. The mounting plate with
14 mm holes ensures high stability. The bending machine can be successfully used for design, repair and construction work. The device has a compact design, so it will work well on any workstation.
Product features: - - For square and rectangular pipes/profiles,
- - Bending range 0-360deg,
- - Comfortable and easy manual operation,
- - Smooth adjustment is possible thanks to a large knob,
- - Durable steel low carbon.
Technical parameters: - - Catalog number - 10061177
- - Article condition - New
- - Model - MSW-TRM-100
- - Material - Carbon steel
- - Angle bending [deg] - 0 - 360
- - Hole diameter [mm] - 14
- - Maximum thickness of the rolled material [mm] - 2
- - Pipe diameter [mm] - 19 - 38.1
- - Dimensions (LxWxH) - 50 x 22 x 33 cm
- - Weight - 27 kg
- - Shipping dimensions (LxWxH) - 40 x 35 x 26 cm
- - Shipping weight - 31 kg

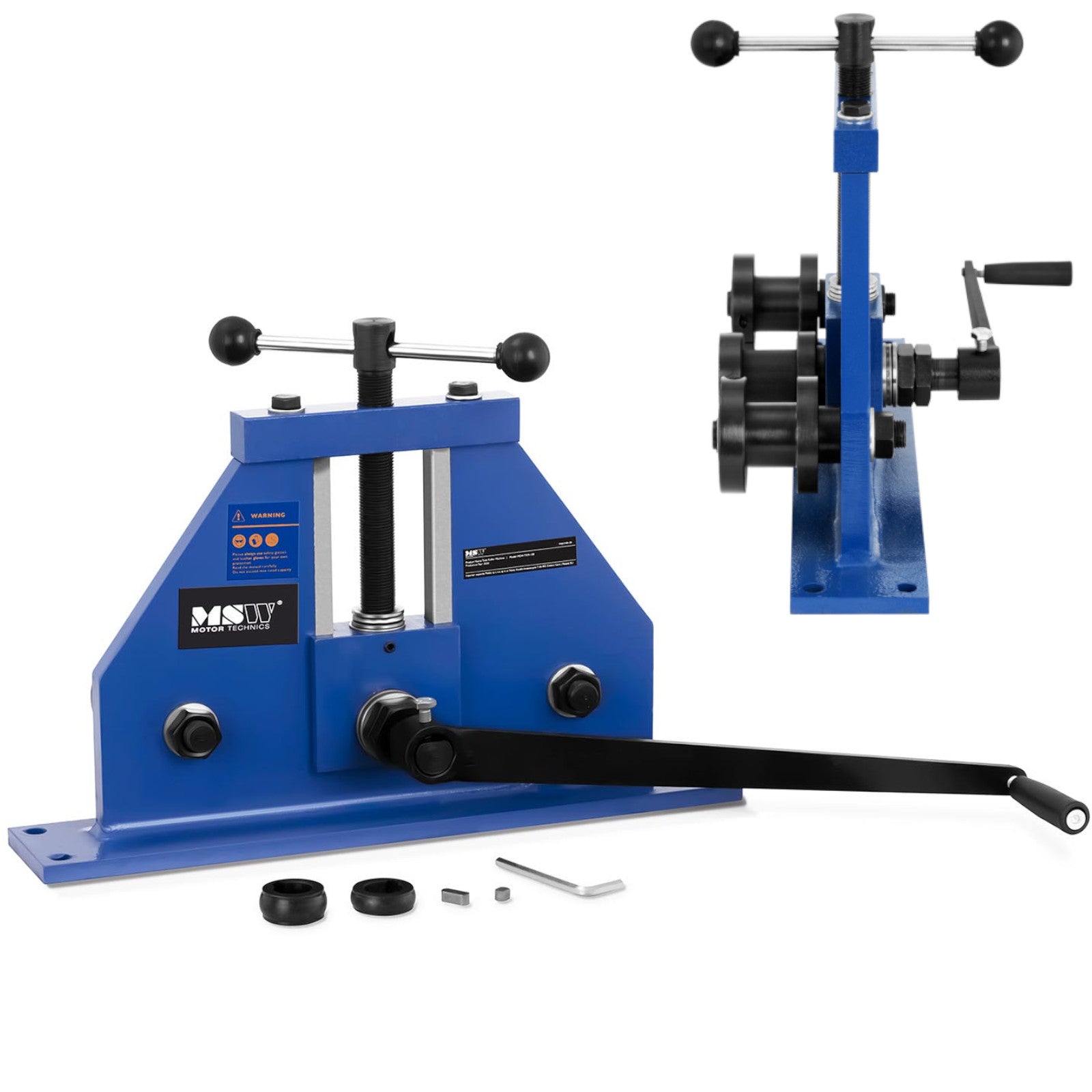

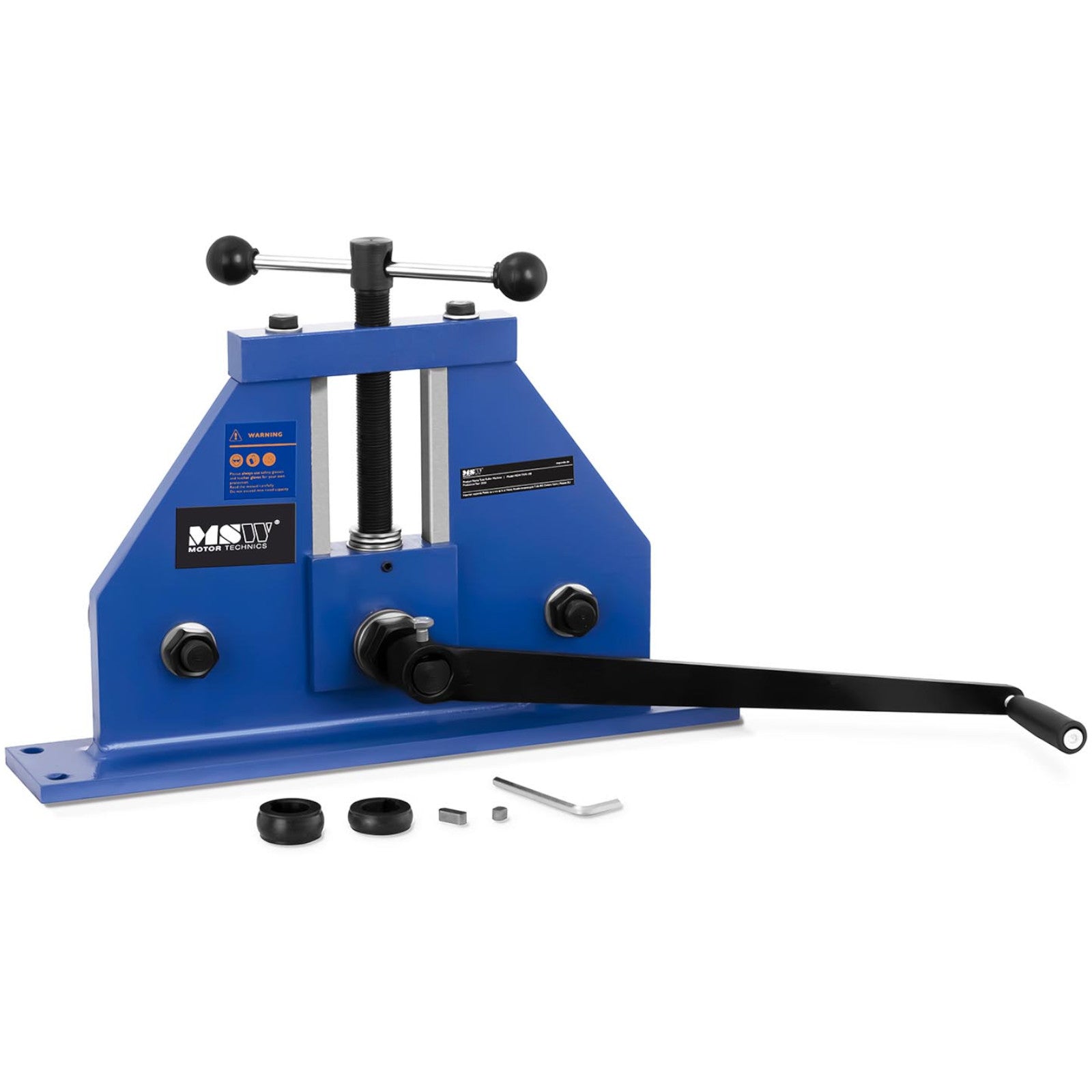

Included in the set: - - Pipe bending machine
- - Jack
- - 6 mm wrench
- - User manual
